ELIMINATOR 900
WASTE HANDLING SYSTEM
STANDARD EQUIPMENT
OPTIONAL ACCESSORY EQUIPMENT
6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800.344.4802
www.insingermachine.com
DESIGN
Automated self contained waste handling system. The system reduces
foodservice waste volume by up to 90%, resulting in lower labor and
hauling costs. Process water is re-circulated for re-use, saving water
and sewage costs. External silver catch lessens costly silverware
replacement. Complete renewal servicing of wear parts accomplished
without disturbing either the electrical or plumbing connections. Rated
capacity is 900 lbs. per hour of mixed foodservice waste including
food, disposables and paper products.
• Total stainless steel construction
• Automatic, 12 nozzle, wash-down system for extractor
• Extractor screw/screen removable from top!
• 2 HP TEFC bottom mount extractor drive motor
• 5 HP direct drive cutting system motor
• 1 HP TEFC re-circulating pump
• NEMA-12, carbon steel control panel enclosure
• Integral or remote NEMA-4 push button station
• Single point electrical connection
• Pulper lid interlock switch
• Extractor chute interlock switch
• Automatic Shutdown timer for self-cleaning
• Cylindrical extractor for easy cleaning– No corners!
• Trough connection
• Re-circulating pump
• Automatic pulper cleaning package with integral wash and rinse cycle
• Permanent trough magnetic for silverware catch
• Dual use cutting blades
• Security package inclusive of:
• Pulper lid and extractor discharge chute locking rings
• NEMA-4 stainless steel electronic panel enclosure
• Tamper proof fasteners
• Hose reel (30 ft. unmounted)
• Remote start-stop station
• Chemical additive pump

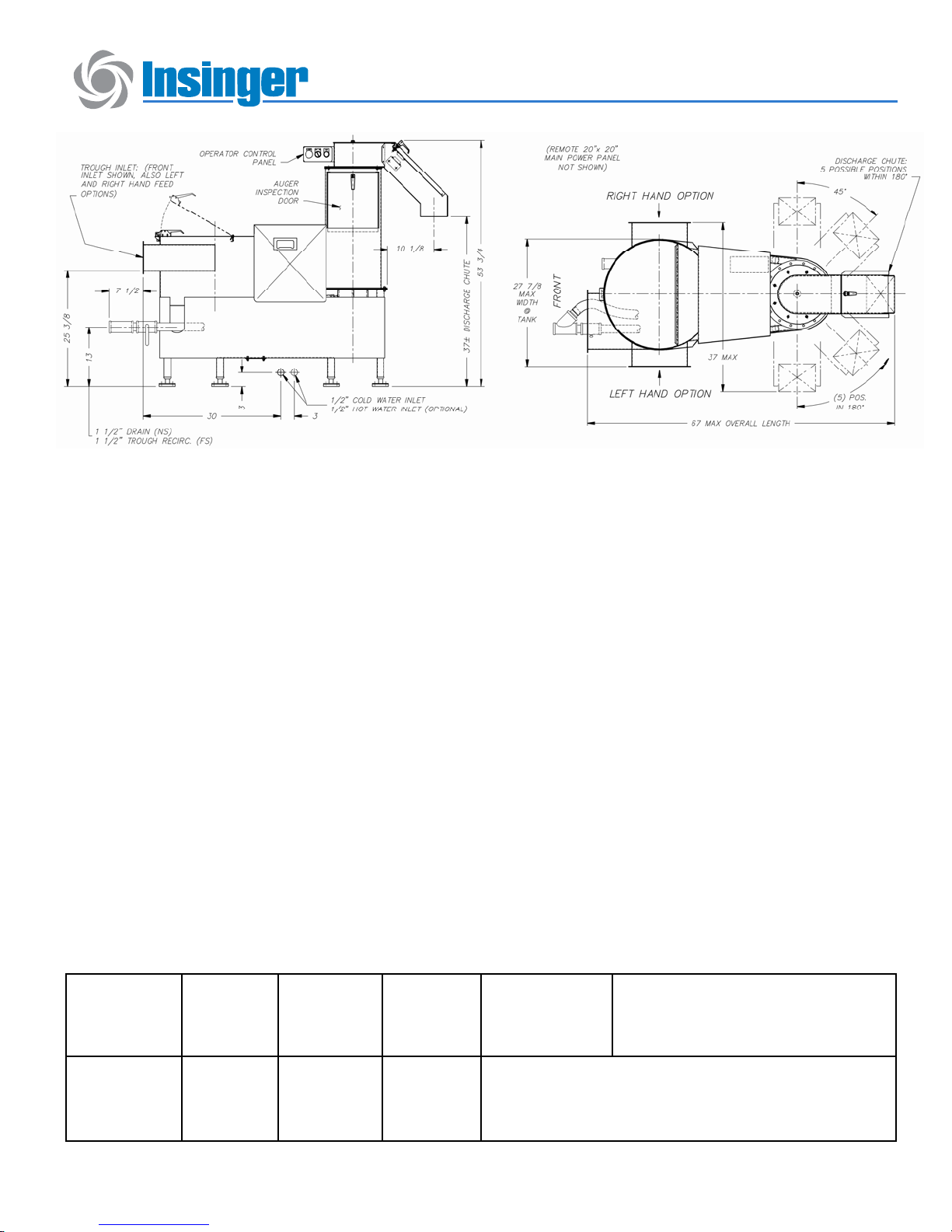

ELIMINATOR 900
SPECIFICATIONS
Utility Requirements: COLD- ½" npt, 12 gpm @ 30 psig
HOT- ½" npt, 12 gpm @ 30 psig (optional)
DRAIN- 1 ½" npt, 4" floor sink with take away strainer basket
Construction
Pulper:
Full 6” clearance between drive motor and floor.
Trough is 12" wide by 5 3/4" tall. Reduction capability as small as 9" .
Pulping chamber is 24" diameter, type 304 stainless steel. Single piece construction for durability and ease of cleaning.
Slurry chamber is constructed of two 5/16" 304 stainless steel plates encased in 10 gauge stainless steel.
Pulper has hinged lid with limit switch and compression latch.
Full stainless steel frame with adjustable vibration isolating feet.
Cutting mechanism is 12" diameter type 304 stainless steel annealed impeller. Cutting blade replacement or adjustment with single allen
wrench and no impeller removal. Cutting blades are type 440A hardened to Rockwell C-52. Two rotary blades indexible for double life
and five stationary blades for reduced wear.
Drive motor to be 5hp ODP direct drive.
Extractor:
Extractor discharge chute field adjustable to any 45° angle.
Tank door with draw latch for easy access.
Chute door with limit switch and draw latch.
Shell is 12" diameter one piece rolled cylindrical tank, for ease of cleaning, 14 gauge type 304 stainless steel construction.
Stainless steel screw/screen combination with nylon brush.
2HP bottom mount, direct drive TEFC motor with gear reducer.
Screw/screen combination removable from top via socket head cap screws.
Miscellaneous Features:
Integrated tubular frame with height adjustable feet and vibration isolator pads.
All motors, valving and piping are located in shrouded bottom frame work.
Multiple configurations to accommodate most layouts.
Pre-wired to unit mounted J-Box and pre-plumbed for ease of installation.
Capacity
Per Hour
900 lbs. food
service waste
Tank
Capacity
25 gallons
Pulper
Motor
5 hp
Extractor
Motor
2 hp
Recirculation
Pump
1 hp
Fresh Water
Consumption
1-2 gallons per minute cold water
50 gallons per day hot water (optional)
Extractor
Gearbox
30:1 ratio
Electric
Usage
5 kW
Drain
4" minimum
floor sink
Shipping
Weight
700 lbs.
Current Full Load AMPS
208/3/60...........................................................30
230/3/60...........................................................27
460/3/60...........................................................14
2006 PRINTED IN USA
Information and specification subject to change without notice Available in AutoQuotes and KCL Cadalog
