P3-NSU GARBAGE GRINDER
Food Waste Disposal System
DESIGN
The P3-NSU waste disposal system is a
self-contained system for size reduction
of food wastes including table and galley
scraps, paper, cardboard and assorted
small bones at rates of up to 200 pounds
per hour, making the waste suitable for
overboard discharge in a water borne
slurry.
It is designed for daily use in a naval
shipboard environment with a minimum
of automatic controls to reduce downtime
associated with the maintenance of such
controls. It is designed to withstand the
occasional accidental injection of hard
non-pulpable objects such as silverware,
glass, or small metal objects. Small non-
pulpable objects that are rejected by the
cutting mechanism will collect around the
inside periphery of the unit for removal
during manual cleaning.
The system is designed for manual
feeding but must be installed under an
existing “dresser table”, under a new
scrapping table, or under a sink.
All P3-NSU units are provided with inlet
water flow regulators and valves. An
outlet water dam, installed in the
discharge line of the unit, maintains an
optimum water level in the pulper.
Operation of the food waste disposal
system is controlled through an electrical
control panel and a “start/stop” push-
button station.
Live Tech Service is Available
24 hours/day 7 days/week
800-344-4802
[email protected]

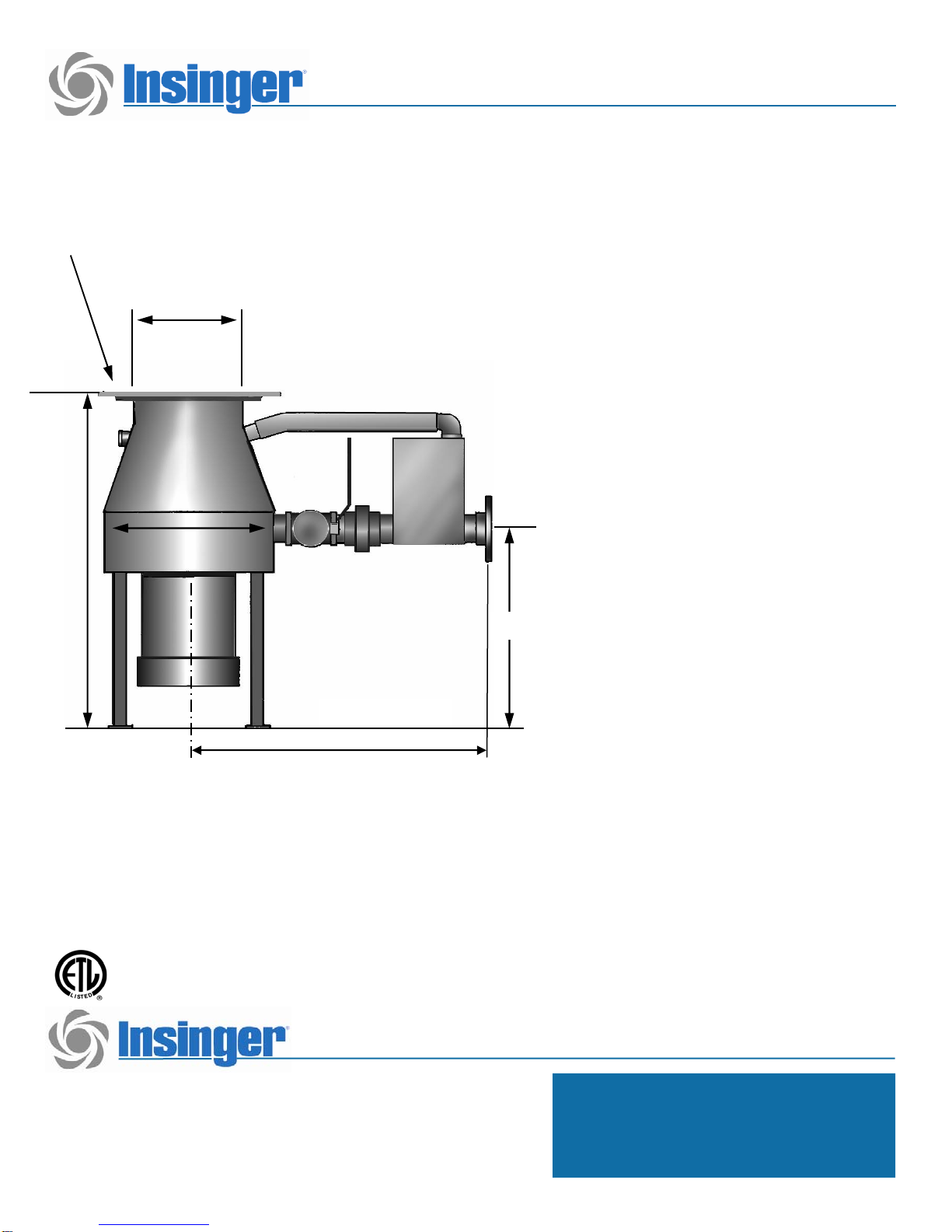

10” diameter
access hole
in table
Scrapping table
dresser or sink
Finished Deck
14” diameter
34”
To
drain
Bottom
of
table
top
22 3/4”
25 3/8”
6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
www.insingermachine.com

SPECIFICATIONS
Flush Water Characteristics:
Rated Flow– 6 gpm at 15 to 125 psi (fresh or sea water)
Inlet Size– 3/4 inch for fresh water and sea water
Outlet Size– 2 inch flanged outlet, MIL-F-20042, 150 series plain
Electrical Power Requirements:
Power Supply– 440 VAC, 3 PHASE, 60 HZ
Operating Current– approximately 4.3 Amperes
Maximum Power Demand– 15 Amperes (limited by main circuit breaker)
Motor:
3 HP, 208-203/460 Volts, 60 Cycle, 3 Phase, Totally Enclosed
Shipping Weight:
440 lbs. (approximate)
Unit Height– adjustable up to 34” + 1”
Unit Length– 32 3/8” overall
Equipment Supplied:
The food waste disposal system is shipped from the factory assembled and attached to a shipping pallet. Loose
parts are also attached to the shipping pallet. These parts require separate mounting adjacent to the installed
system and include:
An electrical control panel.
Valves and related controls for water supply lines.
A remote “start/stop” pushbutton station.
Interconnecting electrical cables and external pipe and fittings are to be furnished by the installing activity.
ITEM DESCRIPTION ITEM DESCRIPTION
1 Electrical Control Panel 10 Drive Motor
2 System Disconnect Switch 11 Manual Shutoff Valve
3 Start/Stop Pushbutton Station 12 Flow Regulator
4 Start Pushbutton 13 Strainer
5 Stop Pushbutton 14 Feed Chute
6 Power On Light 15 Pulper Tank
7 Motor Run Light 16 Pulper Leg
8 Electrically Operated Value 17 Selector Switch
9 Feed Chute Interlock Switch 18 Dam
19 Backflow Preventer
20 Vent Tube
21 Drain Valve
22 Outlet Flange
23 Table Gasket
