Intelix AVO-V3AD-F Service manual

© Intelix LLC www.intelix.com
Technical Specifications
Bandwidth Video: 60 MHz, 3 dB roll off
Digital audio: 25 MHz, 1dB roll off
Maximum Input 1.1Vp-p
Insertion Loss (video) .1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the
frequency range
Insertion Loss (audio) Less than 1 dB over the frequency range
Return Loss (video) Greater than 15 dB over the frequency range
Return Loss (audio) Greater than 15 dB over the frequency range
Common Mode Rejection
(video)
-55 dB at 0.1MHz. Gradually increasing to –20 dB at 60 MHz
Common Mode Rejection
(audio)
-50 dB at 0.1MHz. Gradually increasing to –30 dB at 25 MHz
Max. Distance Digital audio only: 600 feet
480i/p video only: 1,000 feet
480i/p video with digital audio: 600 feet
720p video only: 500 feet
720p video with digital audio: 500 feet
1080i/p video only: 500 feet
1080i/p video with digital audio: 500 feet
Cable – Cat5 UTP/STP
24 gauge or lower solid copper twisted pair wire impedance: 100
ohms at 1 MHz. Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable – Coax Impedance: 75 ohms at 1 MHz
Connectors Three (3) female RCA for Green (Y), Blue (Pb), and Red (Pr)
One (1) female RCA for digital audio
One (1) Shielded RJ45 for twisted pair
Pin Configuration
Reverse polarity sensitive
Red (Pr): Pins 7 & 8
Green (Y): Pins 3 & 6
Blue (Pb): Pins 1 & 2
Digital Audio: Pins 4 & 5
Temperature Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: up to 95%
Enclosure ABS fire retardant plastic
Dimensions 4.3” x 2.5” x 1.0”
Weight 0.2 lbs.
Regulatory FCC, CE
Warranty 2 years
Order Information AVO-V3AD-F: single AVO-V3AD-F in bulk packaging
AVO-V3AD-PAC-F: two AVO-V3AD-F baluns in retail-ready
packaging
Intelix LLC
2222 Pleasant View Road Phone: [phone]
Suite #1 Fax: [phone]
Middleton, WI 53562 Toll-Free: 866-4-MATMIX
www.intelix.com [email protected]
Intelix AVO-V3AD-F HDTV Component Video
and Digital Audio Balun Installation Guide
Introduction
The Intelix AVO-V3AD-F component video and digital audio HDTV balun
transmits a YPbPr (RGB) signal and digital audio over inexpensive structured
pair cabling, such as Cat 5.
Used in pairs, the AVO-V3AD-F supports 480i/p, 720p and 1080i/p resolutions
for hi-definition multimedia applications.
Installation
One (1) pair of baluns is needed to
complete one component (YPbPr) or
RGB connection via Cat5 twisted
pair. To install the baluns, perform
the following steps:
1. Identify the pin configuration of
the baluns. Three (3) twisted
pairs are required for video and
one (1) twisted pair is required
for digital audio. The pin
configuration follows the
EIA/TIA 568A/B standard. The
Intelix AVO-V3AD-F balun is
reverse polarity sensitive. Please
ensure that wiring is straight-
through.
2. Connect one AVO-V3AD-F
balun to the component video
coaxial cable output of the video source using three RCA video cables.
Ensure the color codes of the AVO-V3AD-F and video equipment match.
3. Connect a second AVO-V3AD-F balun to the component video coaxial cable
input of the receiver(s) at the remote end using three RCA video cables.
4. Complete the connection between the two baluns using standard Cat 5 twisted
pair cable. Verify the Cat 5 is terminated with RJ45 connectors on both ends.
Ensure that there are no split pairs or taps.

© Intelix LLC www.intelix.com
5. If digital audio is to be connected (optional), connect an RCA lead between
the balun and the digital audio equipment at both ends.
6. Power-on the component video equipment. Check the image quality and refer
to troubleshooting if the image quality is unsatisfactory.
Troubleshooting
Video
Symptom Probable Causes Possible Solutions
No video No continuity in video link Verify cable continuity between
pairs of baluns.
No video Power off Check power supplies of video
equipment.
No video Improper connection or swapped
pairs
Check that baluns are connected
to correct video inputs and
outputs.
Unusual colors Reversed polarity Check wiring and ensure
straight-through polarity.
Background pattern EMI interference Identify possible radiating
frequency sources (i.e.; wireless
LANs, switching power
supplies). Try to isolate them
from the video connection.
Use shielded twisted pair
grounded at both ends.
Weak contrast Exceeded distance Verify cable grade. Use higher
grade cable if necessary.
Increase contrast on monitor.
Weak contrast Unusual link attenuation Verify cable distance using
ohmmeter or cable tester.
Image not stable Defective link or equipment Verify video equipment interface
integrity.
Horizontal bars moving
slowly
Substantial crosstalk between
multiple video sources
Consecutively turn off other
video sources to determine
which video source is the cause
of interference.
Snowy picture Distance is near limit Verify cable grade. Use higher
grade cable if necessary. Reduce
color intensity at monitor.
Rolling horizontal bars or
other interference
Improper grounding Confirm that either the send or
destination side is grounded. If
the source device, cable run, and
output device are all floating,
ground the chassis of the source
or output device.
Smearing Exceeded distance Verify cable grade. Use higher
grade cable if necessary.
Digital Audio
Symptom Probable Causes Possible Solutions
No audio Distance exceeded Verify cable length between the two
baluns.
No audio Split pair Check if the UTP pairs are split and
correct. Each signal pair must be
twisted.
No audio Power-off. Check power supplies of digital audio
equipment.
Missing channels Cabling problem between
the decoder/amp and the
audio speakers.
Check audio speaker cabling. Verify
Content is multi-channel and decoder is
working when attached straight through.
Noise, static EMI interference. Check that wiring is not too close to
transformers and ballasts.
Noise, static Distance exceeded or
unusual cable attenuation
Check cable distance and cable grade.

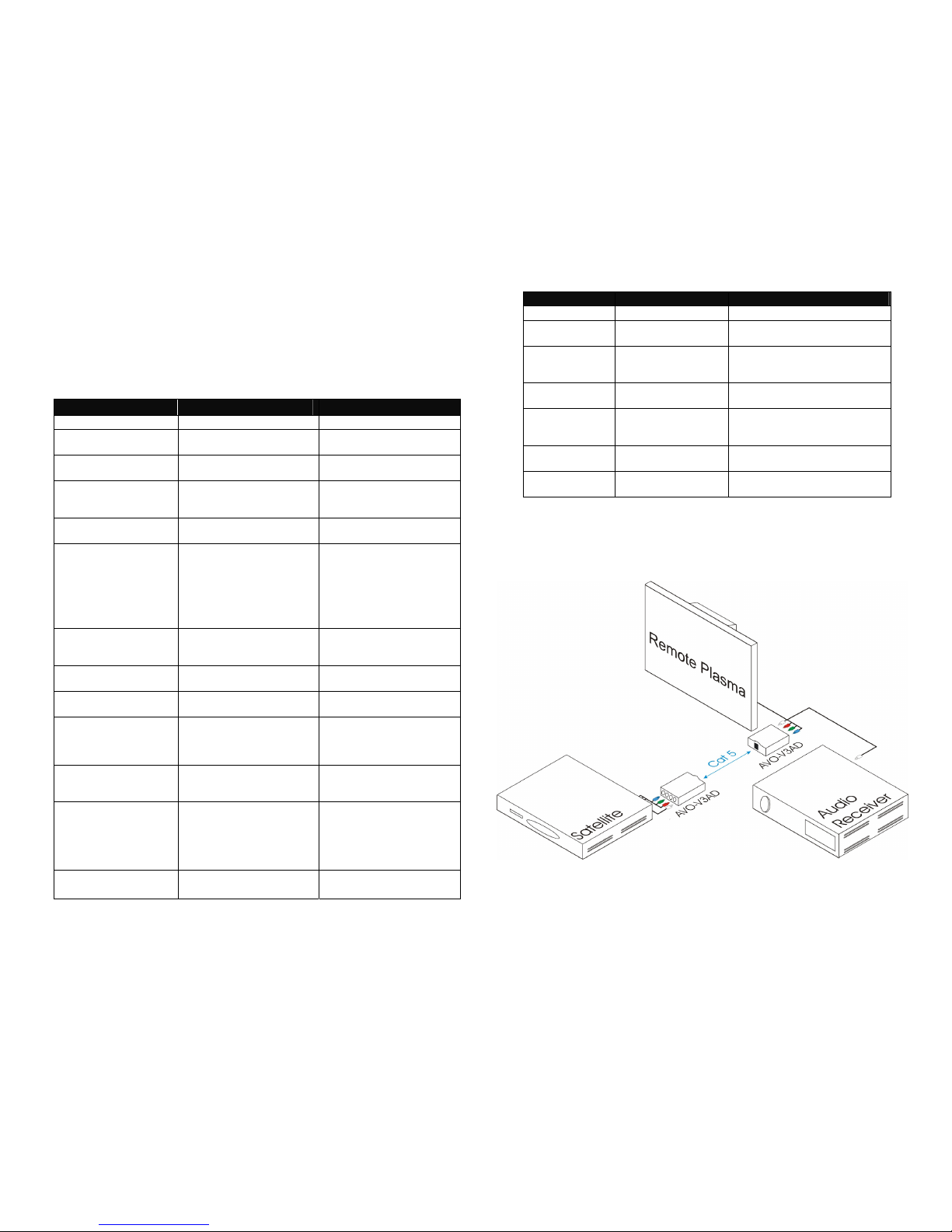

AVO-V3AD-F System Diagram
