Intenda DUAL BOX Manual

INSTALLATION, USE AND
MAINTENANCE

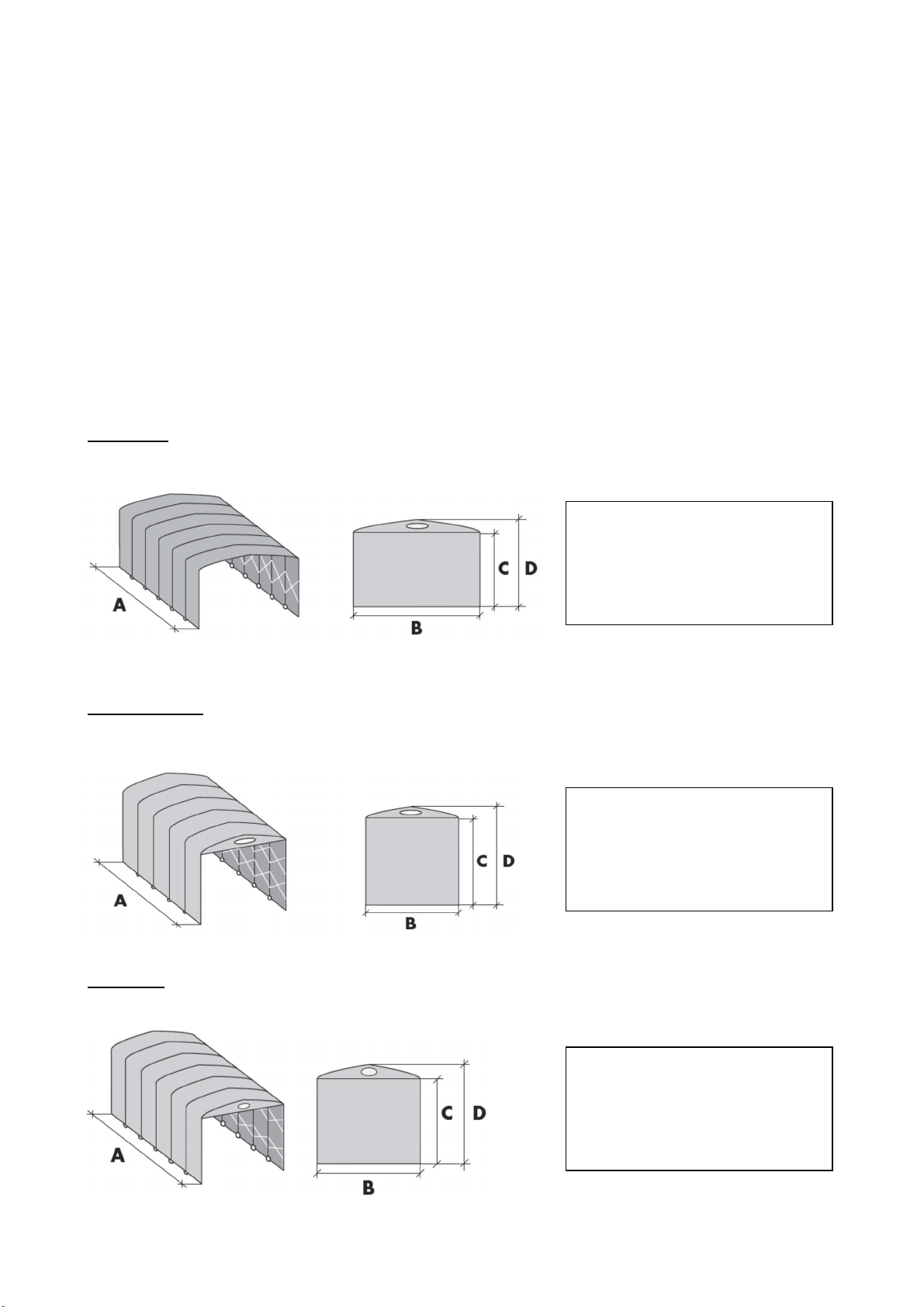

DUAL BOX
CARAVAN BOX
MAXI BOX
COPRIPISCINA
INTENDA S.r.l.
Via V. Pareto, 3
37045 S. Pietro di Legnago (VR)
Tel [phone] – 600270
Fax [phone]
http://www.intenda.it - e-mail: [email protected]

2
TABLE OF CONTENTS
1. GENERAL INFORMATION……………………………………………….……………………....3
1.1 Introduction………………………………………………………………………………..............3
1.2 General precautions regarding the use of the product…………..………………….…….…..4
1.3 Structure of the manual……………………………………………………………………………4
1.4 Product identification………………………………………………………………………………5
1.5 Warranty…………………………………………………………………………………………….5
2. BOX DESCRIPTION AND TECHNICAL SHEET………………………………….…………...7
2.1 General description……………………………………………………………………...……......7
2.2 Components……………………………………………………………………………………..…8
2.3 Fabric’s characteristics………………………………………………………………..………....10
3. INSTALLATION…………………………………………………………………………..............11
3.1 Handling and transport……………………………………………..........................................12
3.2 Place and requirements for the installation………………………………………………...….12
3.3 Installation…………………………………………………………………………………......….12
3.3.1 Package opening……………………………………………………………………………….12
3.3.2 Box installation……………………………………………………………………………........13
4. GENERAL SAFETY PRINCIPLES……..……………………………………………………..…17
5. BOX USAGE…………………….………………………………………………………...............18
6. CHECKS AND MAINTENANCE……………………………………………………...………….20
6.1 Ordinary Maintenance………………………………………………………………………….....21
7. DISASSEMBLY…………………………………………………………………………………….22

3
1. GENERAL INFORMATION
1.1. Introduction
This manual is an integral part of the product; it is addressed to the installer and to the final user of
the box, and enables a correct installation and use. For this reason it must be hold with the box until
proper disposal.
In this manual you will find the instructions to:
•correctly install the box
•understand the functions of the box and of the whole thereof
•correctly do the box scheduled maintenance processes
•take care of the basic safety rules
ATTENTION: the installer and the final user must read the whole manual in every of its
parts, and store it together with the box.
Before using the box, please read carefully the technical information contained in this
manual and follow them strictly.
Keep this manual in a safe and accessible place.
The manual must be kept with care, disseminated and made available to all interested persons. In
harmony with the overall design of the structure, the manual was created in full compliance with the
directives of the European Community.
This manual contains the main information indicated in the index, it is an integral part of the Box and
must be kept with care until the final dismantling of the structure itself in order to allow reference for
future updates. In the event of damage that makes the copy of the manual in its possession unusable,
the user can request a copy from Intenda S.r.l., specifying the type of structure, the serial number or
order shown on the nameplate of the structure itself.
No responsibility is assumed for translations into other languages which do not conform to the
original meaning.
This manual reflects the state of the product at the time of supply and cannot be considered
inadequate only because it is subsequently updated on the basis of new studies or experiences. You
will receive, in the future, revisions or updates to integrate and consider. Intenda S.r.l. reserves the
right to update production and manuals without the obligation to update the production and previous
manuals and without the obligation to inform users of the equipment previously supplied. The
notification of proposals for updating the manual and / or the machines are in any case to be
considered a courtesy. The customer assistance service is however available to provide, upon
request, information on the updates that Intenda S.r.l. made to the products.
This manual has been created in order to provide the user with a general knowledge of the product
and the maintenance instructions deemed necessary for its proper functioning. Before proceeding
with functional operations, maintenance and repairs, carefully read the Manual. It contains all the
information necessary for the correct use of the product and to avoid accidents. The control and
maintenance frequencies prescribed by the manual are always intended as the minimum necessary
to ensure the efficiency, safety and durability of the product in normal working conditions. The
surveillance must in any case be constant and prompt action must be taken in the event of
anomalies.
WARNING: Any modification or tampering, not authorized by the manufacturer, to the product and
to the safety or structural systems, cancels any responsibility of the manufacturer with regard to CE
conformity.

4
1.2. General precautions regarding the use of the product
These indications are part of the normal behavior that workers must have towards the product and
therefore in the design and construction of the product, the manufacturer considered them known to
the tenant. It is the user's task to inform (by delivering this manual) and train the employees (users
and maintenance technicians) so that these indications are brought to the attention of the staff who
will work with the structure.
- Always use anti-cut gloves when closing or opening the structure, during adjustments or
maintenance (described in the following chapters). When finished, wash your hands with soap and
water.
- Immediately clean any accidental contacts of corrosive products that come into contact with the
structure to avoid rapid deterioration.
- Do not allow unauthorized personnel to work with the equipment.
- Before using the equipment, make sure that any dangerous to safety conditions have been properly
eliminated.
- Make sure that all the guards and other protections as well as the structural fixings are in place and
that all the safety devices are present and efficient.
- Make sure that there are no foreign objects in the sliding area of the structure.
- Individual protection devices must be used such as:
o Safety clothing
o Safety shoes
o Cut resistant gloves
The protection systems must be used in the following phases:
- Structure maintenance operations (cleaning, checking or adjustment)
- Operating operations (closing and opening)
1.3. Structure of the manual
This manual consists of eight parts which contain:
• 1. GENERAL RULES AND WARNINGS, useful premises for using and understanding the manual;
• 2. GENERAL INFORMATION, useful premises for identifying the box;
• 3. TECHNICAL DATA, information on the characteristics of the box;
• 4. OPERATING INSTRUCTIONS, interface for the safe use of the box;
• 5. MAINTENANCE, advices and recommendations;
• 6. DEMOLITION AND DISMANTLING OF THE STRUCTURE, instructions and recommendations;
• 7. SPARE PARTS, detailed list of the parts that make up the box.
The user manual makes use of the following typographical conventions:

5
Symbol Indicates
Note
WARNING 
ATTENTION
1.4. Product identification
The physical identification record is the silk-screened and stamped plate which contains the details
to be cited, in case of need, to the company Intenda S.r.l . This plate is the only one recognized by
the manufacturer as a means of product identification. For no reason the data shown on the
product can be altered. A reproduction of the plate is shown in the following drawing.
1.5. Warranty
Intenda’s products are guaranteed as by law, with effect from the date stated on the invoice.
During this period INTENDA S.r.l. will remove in an appropriate time all vices and defects of the
materials and/or of the building process, only if the box:
Notes contain important information highlighted outside
the text. Pay close attention.
Warning messages contain procedures, indicated in
the manual, that failure to observe can result in
equipment damage.
The ATTENTION messages indicate the particular
procedures whose failure to comply can damage the
operator.

6
2. has been installed by qualified workers
3. has been used correctly, following the conduct and maintenance indications contained in
this manual
4. has not been subjected to natural disasters.
To remove the defects found out during the warranty time:
•the costs of working time and transport are at the expense of the dealer
•the costs of spare parts are at the expense of INTENDA S.r.l.
Warranty is meant to be ex works Legnago (VR). All the tools and optional parts eventually
supplied by the dealer are not subject to the warranty.
In the box building process INTENDA S.r.l. uses materials and mechanisms of suitable type, state
and quality, at its own discretion; even after the receipt of the order, INTENDA S.r.l. can make
substantial changes or appropriate improvements at its own discretion.
Slight colour differences, folds or “partridge’s eyes” in the PVC clothes should not be considered
defects, but features of the article.

7
2. BOX DESCRIPTION AND TECHNICAL SHEET
2.1. General description
The box must be used only as an ordinary protection cover, for purely temporary use. In case of bad
weather conditions (wind, snow), the box must be removed. Given that the box can not be fixed to
the ground - but only bound to it - its use in these conditions can cause damages to people and
things.
It is particularly important for safety not to hang or apply any type of load at the structure or at the
top cover of the box.
In particular, children must not handle any part of the box. The failure to respect the conditions of
use and warnings immediately voids the warranty.
DUAL BOX
CARAVAN BOX
MAXI BOX
A (cm):
515/618/721/824/927/…
B (cm): 300/400/500/600
C (cm): 230/260/280
A (cm):
515/618/721/824/927/…
B (cm): 300/350
C (cm): 320/340
A (cm):
515/618/721/824/927/…
B (cm): 400/500/600
C (cm): 320

8

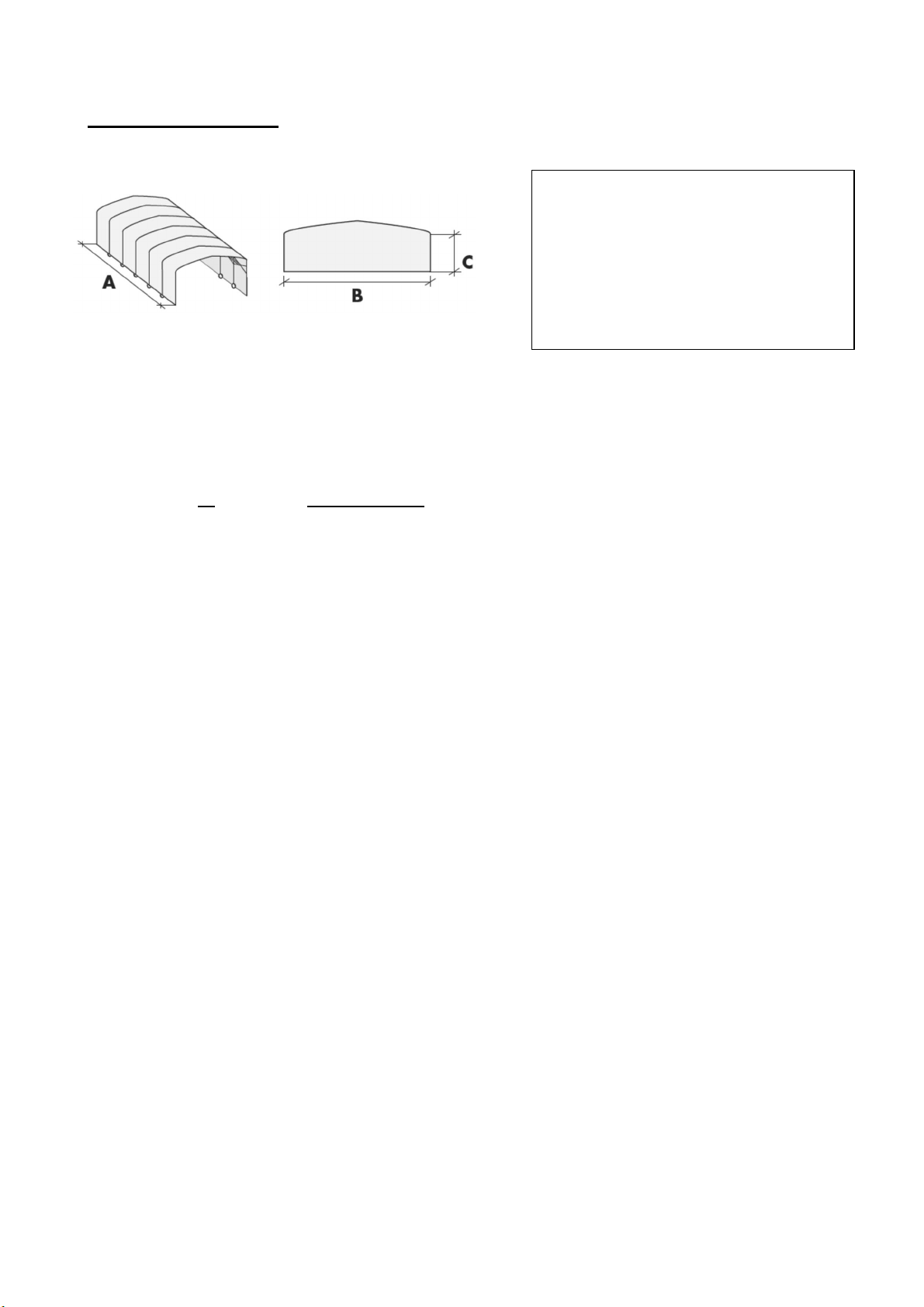

COPRIPISCINA C=CM 200
2.2. Components

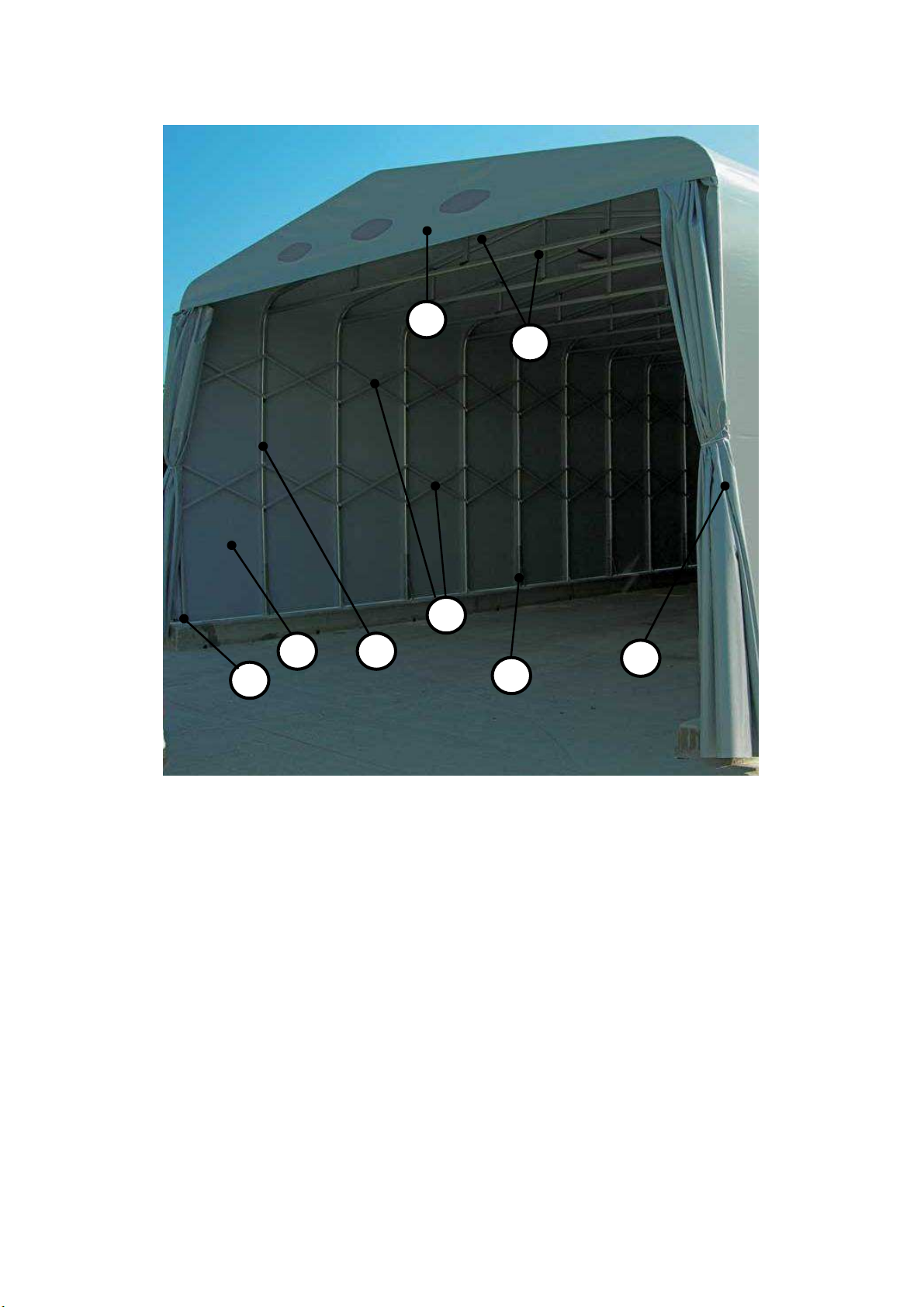

N. DESCRIPTION
1 ALUMINIUM PROFILE MM 60X40
2 PVC LG 550/TRANSPARENT CRISTALPLUS (only Copripiscina
sides)
3 PVC GABLE END WITH WINDOW IN MICRO-PERFORATED
MATERIAL
4 CROSSES (for Maxi Box and Caravan Box they are coupled in
height). The mobile version includes also tension bars (stretching
devices for Copripiscina h. 200)
5 PVC SLIDING CURTAIN WITH ZIG-ZAG OPENING on both sides
6 ALUMINIUM CROSSBEAM. Starting from the width of cm 500:
aluminium crossbeams and other reinforcement elements on every
profile.
7 GROUND-FIXING BRACKETS (base v.), NYLON WHEELS (mobile
v.)
8 GROUND-FIXING BRACKETS (base v.)
A (cm):
515/618/721/824/927/…
B (cm): 300/350/400/450/
500/550/600/650/700
C (cm): 200

9
3
6
2
8
1
4
7
5

10
2.3. Fabric’s characteristics
POLY LG 550/LAC 2L FLAME-RETARDANT
DUAL BOX – CARAVAN BOX – MAXI BOX – COPRIPISCINA
Fabric Warp:100% PES/1100 Dtex
Weft: 100% PES/1100 Dtex
Fabric’s weight Ca 550 gr/m
2
Finishing gloss lacquered
Breaking strength Warp: Ca 250 DaN/5 cm
(DIN 53354) Weft: Ca 180 DaN/5 cm
Tear strength Warp: 25 DaN
(DIN 53363) Weft: 20 DaN
Grip (IVK/PKT 14) 10 DaN/5 cm
Temperature resistance +70° C/ - 30°C
Light resistance (DIN 53388) Level: 7/8
Fire-proofing ADR cl. II

11
CRISTALPLUS 650
COPRIPISCINA H.200
Composition PVC
Fabric’s weight Ca 800 gr/m
2
Thickness 0,65 mm
Breaking strength L: 220 kg/cm
2
(ASTM D-882) H: 210 kg/cm
2
Tear strength 7 kg/mm
(ASTM D-1004-9)
Characteristics UV-treated with 1000 hours
test
Temperature resistance +65° C /-10° C
Hardness A/15 3S
3.INSTALLATION
ATTENTION: Intenda S.r.l. recommends a preventive investigation by a competent
technician, for a detailed analysis of the urban planning regulations in force in the
installation area of the box. The manufacturer assumes no responsibility for installations
in areas (floors) not suitable for supporting the static and dynamic loads of the structure
or in areas where the stresses deriving from atmospheric phenomena can cause
permanent damage to the structure. The manufacturer assumes no responsibility for
installations in areas regulated by specific urban planning regulations.

12
3.1. Handling and transport
The box installation of the box should only be done by qualified staff.
The products must be unloaded through appropriate lifting equipment, which must be used only by
authorized staff.
If the unloading operation is made by hand, it is important to consider that the weight limit that each
male person can handle is 25 Kg; moreover, the operators should be equipped with gloves and
safety shoes.
3.2. Place and requirements for the installation
Before the arrival of the installers the user must arrange:
•any permits required by local regulations
•appropriate ground
3.3. Installation
Before starting the installation, if electrical equipment utilization is needed:
•make sure you do not work in wet areas
•use only intact extension cords, according to the place of use
•use shoes with rubber soles
ATTENTION: it is necessary for the operators to use appropriate personal protective
equipment such as safety shoes and gloves, in order to avoid injuries provoqued by the
fall of the packaging or of components that it contains, perforation and cutting due to
cutting or hanging parts.
3.3.1. Package opening
Packaging must be opened only with scissors with rounded tips, using the best care not to cut the
cloth of the article (Photo 1).
NOTE: The packaging material disposal is at user’s charge, who will perform it in accordance
with existing environmental norms.
P
H
O
T
O
1

13
3.3.2 Box installation
The box should be installed according to this instruction:

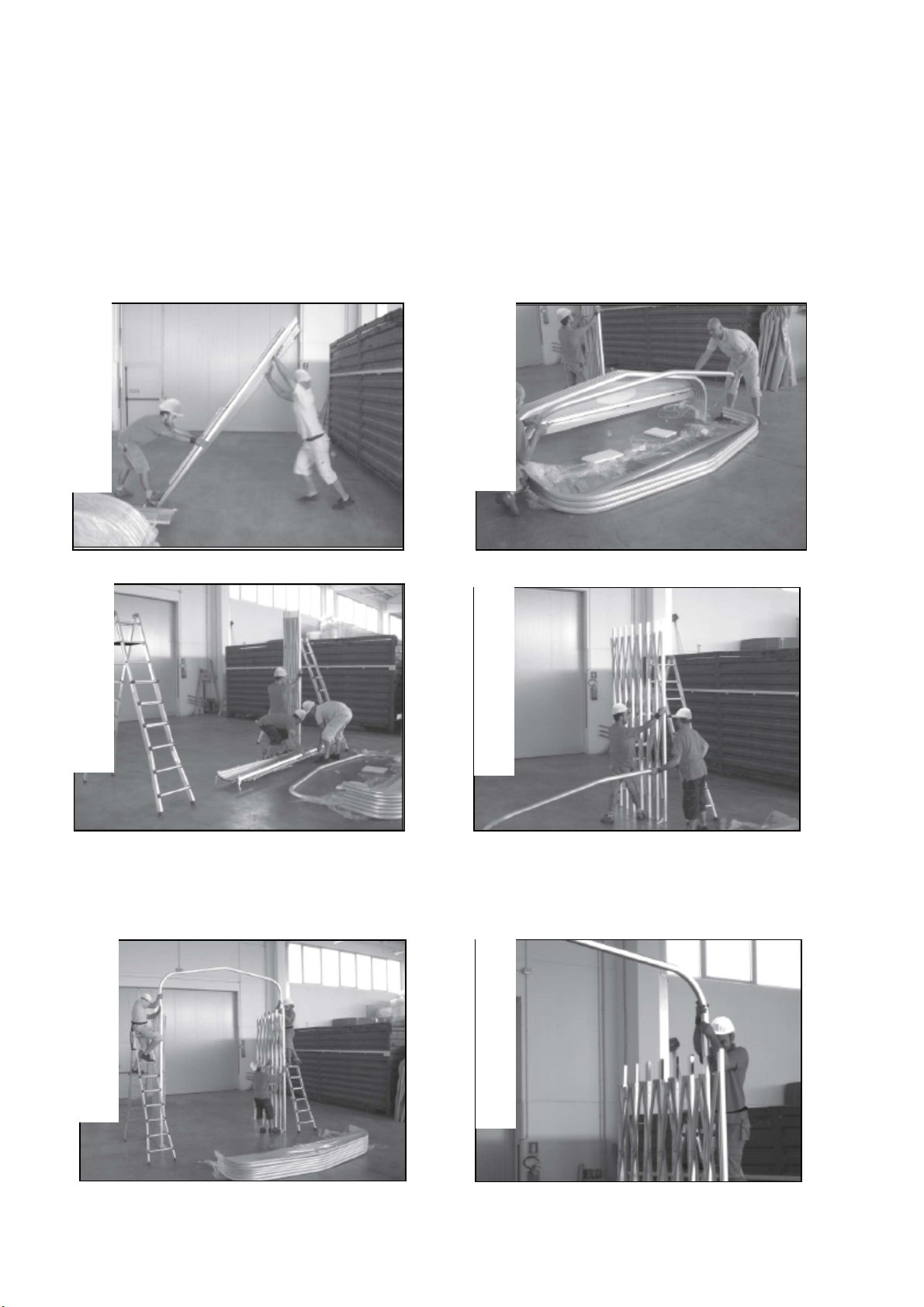

-The uprights must be lifted up maintaining the crosses in a slightly position (photo 2, 3, 4,
5);
-An arch must be linked to the second upright (photo 6 and 7);
P
H
O
T
O
2
P
H
O
T
O
3
P
H
O
T
O
4
P
H
O
T
O
5
P
H
O
T
O
6
P
H
O
T
O
7

14
-One of the archs with the PVC gable must be positioned on the first profile; then, the elastic rope
which is linked to the arch must be at the same side where the iron hooks are positioned (photo 8
and 9);
- the remaining arches have to be assembled in a way to complete the structure (photo 10 and 11);
-the tarpaulin keder must be inserted in the lateral slot of the profile, first to the top and then to the
bottom (photo 12 and 13);
P
H
O
T
O
8
P
H
O
T
O
9
P
H
O
T
O
10
P
H
O
T
O
11
P
H
O
T
O
1
3
P
H
O
T
O
12

15

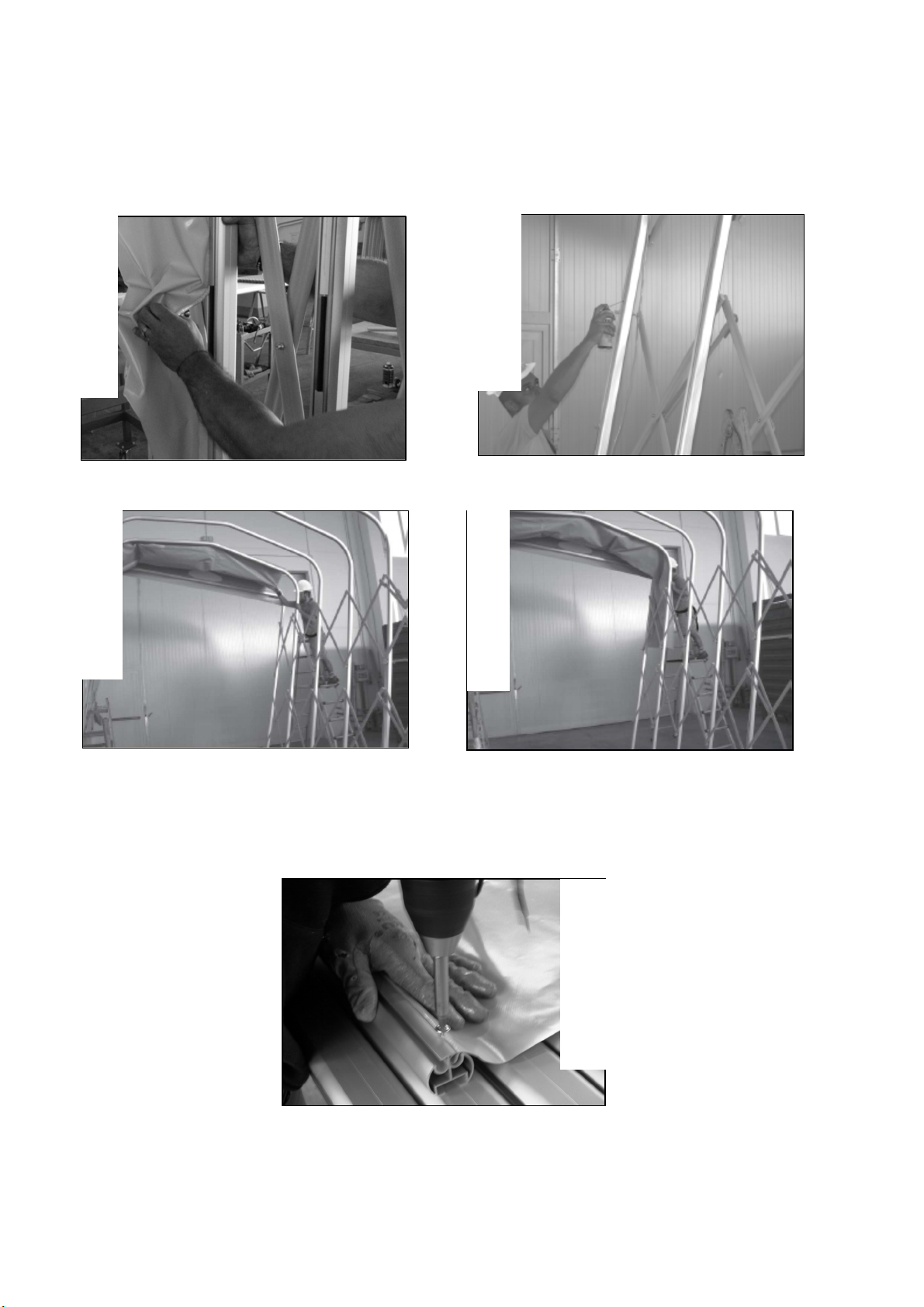

- the top covers must be threaded in the apposite spinner, covering the whole perimeter of the
arches; in order to facilitate this operation, it is advised to put some lubricant spray into the groove
(photo 14, 15, 16, 17);
- the top covers must be fixed with the screws to the lower part of the structure (photo 18);
14
P
H
O
T
O
1
P
H
O
T
O
17
P
H
O
T
O
14
P
H
O
T
O
15
P
H
O
T
O
18

16

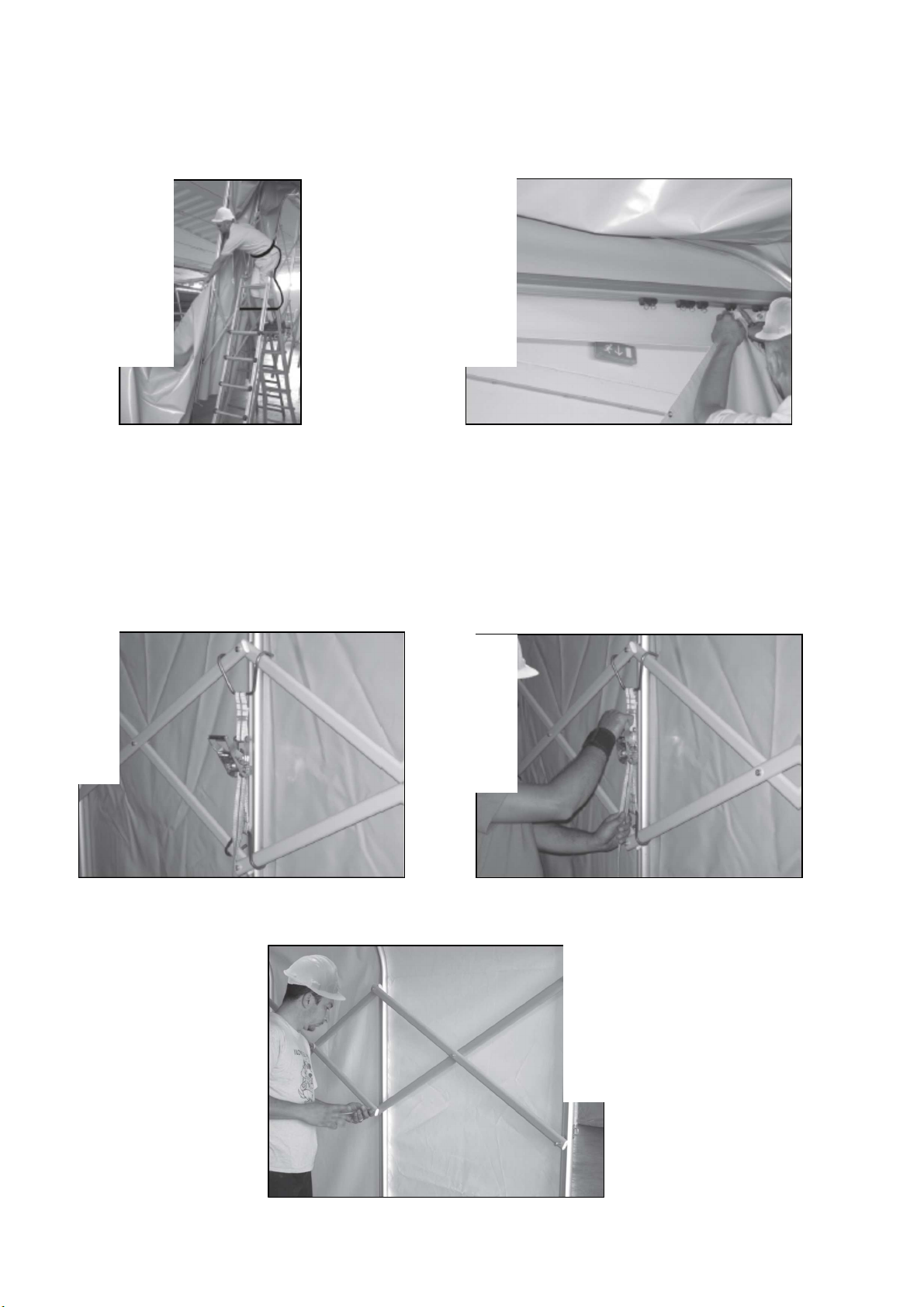

- then, the door must be threaded in the profile and hooked to the sliders. It is recommended to
press the slider hooks with a cramp in order to avoid the door’s unhooking (photo 19 and 20);
The structure must be tensioned:
•BASE VERSION: using the proper stretching device (not included ) and fixing the screws of
the lower part of the crosses (photo 22 and 23)
•MOBILE VERSIONE: putting the tension bars in regulation position, at 180° (photo 24 and
25);through the regulation of the tensor screws, there will be a better top cover tensioning
(photo 24 and 25)
P
H
O
T
O
19
P
H
O
T
O
20
P
H
O
T
O
22
P
H
O
T
O
21
P
H
O
T
O
23

17
Now the box can be fixed to the ground, using proper anchoring systems.
ATTENTION: other installation ways which are not contained in this manual are not allowed,
if not previously authorized by INTENDA S.r.l.
ATTENTION: the box must be fixed to the ground or to a wall. The installer must verify the
ground type and conditions and choose the appropriate anchoring system, also considering
the typical meteorological conditions of that particular place (strong wind,…).
4. GENERAL SAFETY PRINCIPLES
It is recommended to follow the safety requirements indicated on the structure and into the
installation manual. Do not remove or modify the safety devices. The utilization of the product
shouldbeinaccordancewiththeproducer indications.
Thesafety indicationsdonotreferonlytonewproducts,butalsotoalreadyusedproducts.
Itisstrictlyrecommendedtofollowthesafetyprinciplesdescriptedinthisinstallationmanual,
inordertopreventfaultsinthefunctioningoftheproduct.
WARNING 
P
H
O
T
O
25
P
H
O
T
O
24

18
It is strictly recommended to follow the maintenance and inspection
programs as described in this manual.
It is useful to explain the correct meaning of some terms used it this manual:
“Dangerous areas”: any part of the box which can damage a person during handling of the
structure.
“Exposed person”: any person who stands entirely or partially near a dangerous area of
the box.
“Operator”: the person in charge of the handle and maintenance of the box.
The box should be only used by trained staff. These people should know the features of the
product, and should be informed about the indications contained in this manual .
INSTALLATION AREA
The structure can be opened and closed by manual handling, by pushing it to the back. The
handling operations should be always done on the ground. Any folding operation from a
raised position it is strictly forbidden.
5. BOX USAGE
Before using the box, it is necessary to check that the installation has been done properly.
ATTENTION: check that the structure is not damaged or deformed, and that no one of the
component is broken.
5.1 Mobile version
•OPENING OF THE STRUCTURE:
-Pull the frame until the structure will be fully stretched
-Move the tension bar placed between the crosses in horizontal position
-Link the internal stretching devices to the pegs with eyelet placed on the ground;
then, put in tension the structure through the stretching device.
The structure should be tensioned at the same degree on both sides
NOTE

19
To avoid damages or structural instability, it will be necessary to close the structure on itself in
case of important atmospheric events (rain, wind and snow).
•CLOSURE OF THE STRUCTURE:
-Unlock the tension bar placed between the crosses
-Push the frame until its complete closure
a. Not allowed uses
The product should be used for the purposes declared by the constructor.
In particular, the box must not be used:
- without PVC awnings
- with missing/broken safety and fixing devices
- in explosive atmosphere, or in place with potential fire hazard
- to contain materials with non-conforming measures, or materials which protrude from the
structure
- in adverse weather conditions; in these situations (strong wind, rain, snow), it is necessary
to fold up the box
- in dangerous conditions, if the structure appears damaged or not functioning

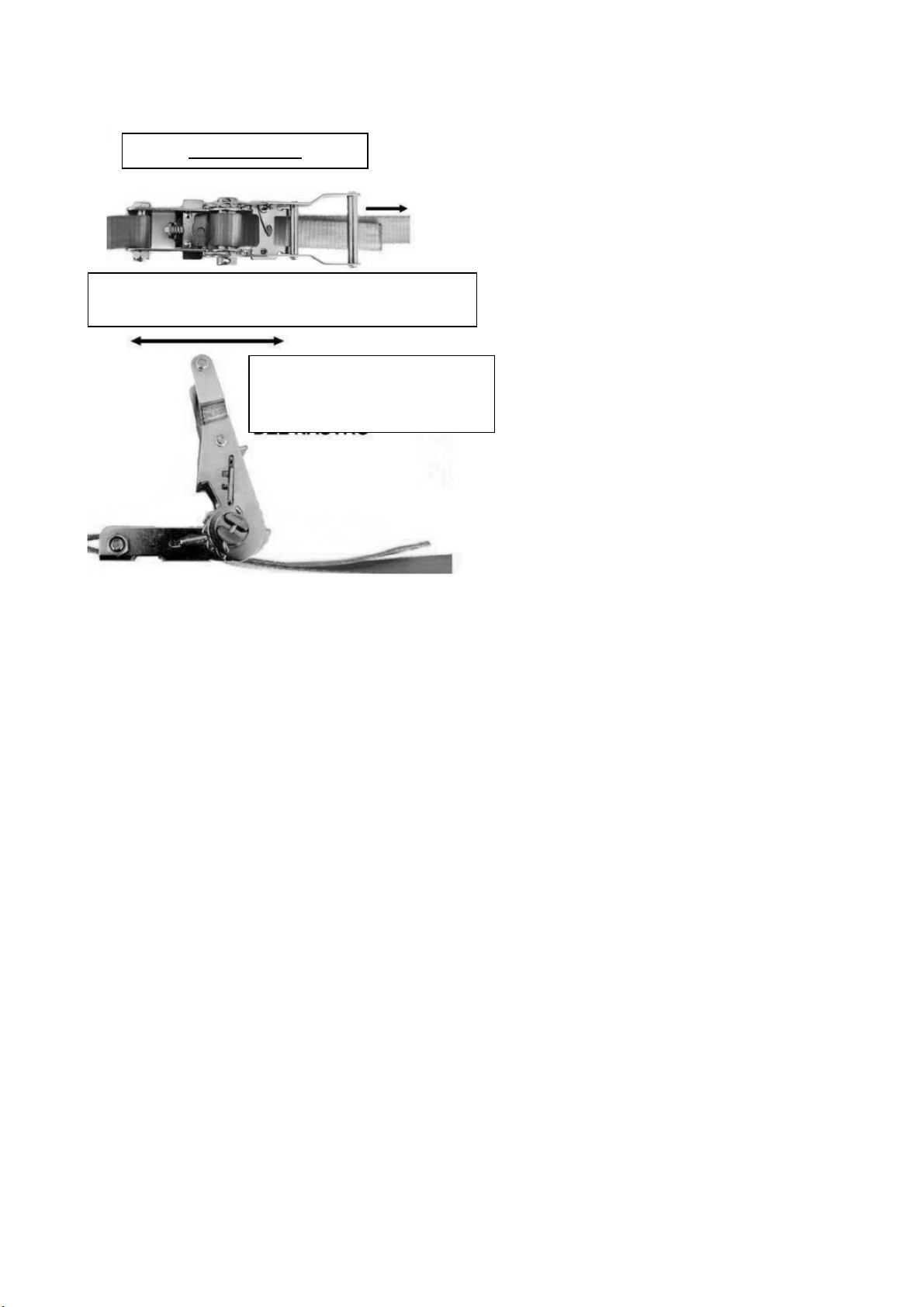

OPEN POSITION
For d sassembly, pull the belt n the d rect on
nd cated by the arrow
Move the stretch ng lever to
tens on the belt

20
- for unproper uses and/or by unskilled people
- for purposes which are contrary to the norms
- in case of severe maintenance deficiencies
- in case of unauthorized modifications of the product
- with total or partial non-compliance with the instructions
It is not possible to use the box in conditions of strong wind and/or snow.
In order to use the product during these adverse conditions, a written declaration by
Intenda is needed.
Every modification of the product which changes the functionalities of the box and
subsequently modify the risks, have not been authorized by the constructor.
These kinds of changes, if not authorized by the constructor, will cause the decay the
warranty and will invalid the declaration of conformity of the product.
b. Residual risks
According to its own knowledge of the product, the constructor declares that the following dangers
may occur:
- Unusual vibrations of the structure
- Cutting, shearing, hitting of the operator by the mobile components during the handling
of the box
- Slipping or trippling of the operator during the installation process
- Breaking of the restraining elements during adverse wind; in this case, there is the risk
for every exposed person to get hit by the structure
- Structural loss of stability, if the prescription previously indicated will not be respected
6. CHECKS AND MAINTENANCE
It is necessary to periodically check the general state of the structure, of the connections between
the various components, of the and the PVC awnings.
The PVC awning can be washed with mild soap and then rinsed with water only. After the cleaning,
the PVC shall be well dried before fold, in order to avoid the creation of moulds,
The checks and maintenance frequency indicated below is to be considered as the minimum interval
to grant efficiency, security and durability of the product of the product in normal use situations.
A constant supervision is recommended, in order to act promptly in case of anomalies.
Ordinary maintenance, checks and lubrification operations must be done after the frame has been
uninstalled.
ATTENTION: Every modification or manomission which has not been previously authorized by the
constructor, will cause the dacay of every responsibility of the constructor on the product conformity.
