Inter-m ES-6116 User manual

Operation Manual
Emergency Switcher
ES-6116
* Rack mount products in the Western Hemisphere(North America, S
outh America, and the Caribbean)
do not have handles installed due to customer preference.

EMERGENCY SWITCHER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently
good value, and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your
complete satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION : RISQUE DE CHOC ELECTRIQUE
NE PAS QUVRIR
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used
near water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should
be taken so than objects do not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids,
such as vases,
should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
* To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
* The mains plug of the power supply cord shall remain readily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operation and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Caution: To prevent electric shock do not use this (polarized) plug
with an extension cord, receptacle or other outlet unless
the blades can be fully inserted to prevent blade
exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser
cette fiche polarisée avec un prolongateur, une prise
de courant on une autre sortie de courant, sauf si les
lames peuvent étre insérées à fond sans en laisser
aucune partie à découvert.
Pour deconnecter completement l’appareil du reseau
d’alimentation. deconnecter le cordon d’alimentation
de la prise murale.
La prise du reseau d’alimentation doit demeurer
aisement accessible.

EMERGENCY SWITCHER
1
ES-6116
Contents
Contents
Unpacking .........................................................................................................................2
Installation
Environment ......................................................................................................................2
Important Safety Instructions ...............................................................................................2
Features .............................................................................................................................3
Operation ..........................................................................................................................3
Front Panel ........................................................................................................................4
Rear Panel .........................................................................................................................5
Suggestions for Rack Installation ..................................................................................6
Operating Procedure.......................................................................................................6
Applications ......................................................................................................................7
Block Diagram ..................................................................................................................8
Specifications ....................................................................................................................9
Service..............................................................................................................................10
Procedures ......................................................................................................................10
Schematic .......................................................................................................................10
Parts List..........................................................................................................................10
Warranty .........................................................................................................................10

EMERGENCY SWITCHER
2ES-6116
Installation
Unpacking
Unpacking
Although your ES-6116 is neither complicated nor difficult to operate, we recommend you take a few
minutes to read this brief manual and familiarize yourself with the important information regarding
product features, setup and operation.
As with most electronic devices, we strongly recommend you to retain the original packaging. In the
unlikely event the product must be returned for servicing, the original packaging (or reasonable
equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life.
Such environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped. S3125A

EMERGENCY SWITCHER
3
ES-6116
Features
Operation
Features
- AUTO FIRE SENSOR CONNECTOR
Connect to a fire sensor for a fully functional fire alarm.
- SPEAKER SWITCHING DURING EMERGENCIES
Speaker switching can be performed manually or remotely using the Inter-M PX-6116.
- FIRE AND SPEAKER SWITCHING INDICATOR
LED indicators show you the status of the speaker performance.
- EXTENSION FUNCTION
Use the ES-6116 Emergency Switcher with an additional ES-6116.
- WORKS FLAWLESSLY WITH OTHER INTER-M PRODUCTS
Use with the Inter-M PX-6116 Matrix and the Inter-M RG-6116 Relay Group.
Operation
Make certain that speakers and input sources are properly connected before switching the unit on.
Keep volume levels turned down before switching on.
※NOTE : The system’s operation is delayed by approximately three seconds after pressing the power
switch.
This is due to the built-in protection circuitry, designed to protect the speakers and other system
components.

EMERGENCY SWITCHER
4ES-6116
Front Panel
Front Panel
1. EMERGENCY ALL LED
This LED will light to indicate that the EMERGENCY SPEAKER ALL Switch (3) has been engaged.
2. FIRE AND EMERGENCY 1-16 LEDS
These LEDs light to indicate that the corresponding EMERGENCY SPEAKER SELECTOR (4) has
been
engaged. Also, during a fire emergency, these LEDs will blink on and off.
3. EMERGENCY SPEAKER ALL SWITCH
This switch allows manual selection of all 16 speakers at one time during an emergency.
4. EMERGENCY SPEAKER SELECTORS
These switches allow you to select speakers 1-16, and are for use during an emergency. They can
be
operated manually, or by connecting the Inter-M RG-6116 relay group.

EMERGENCY SWITCHER
5
ES-6116

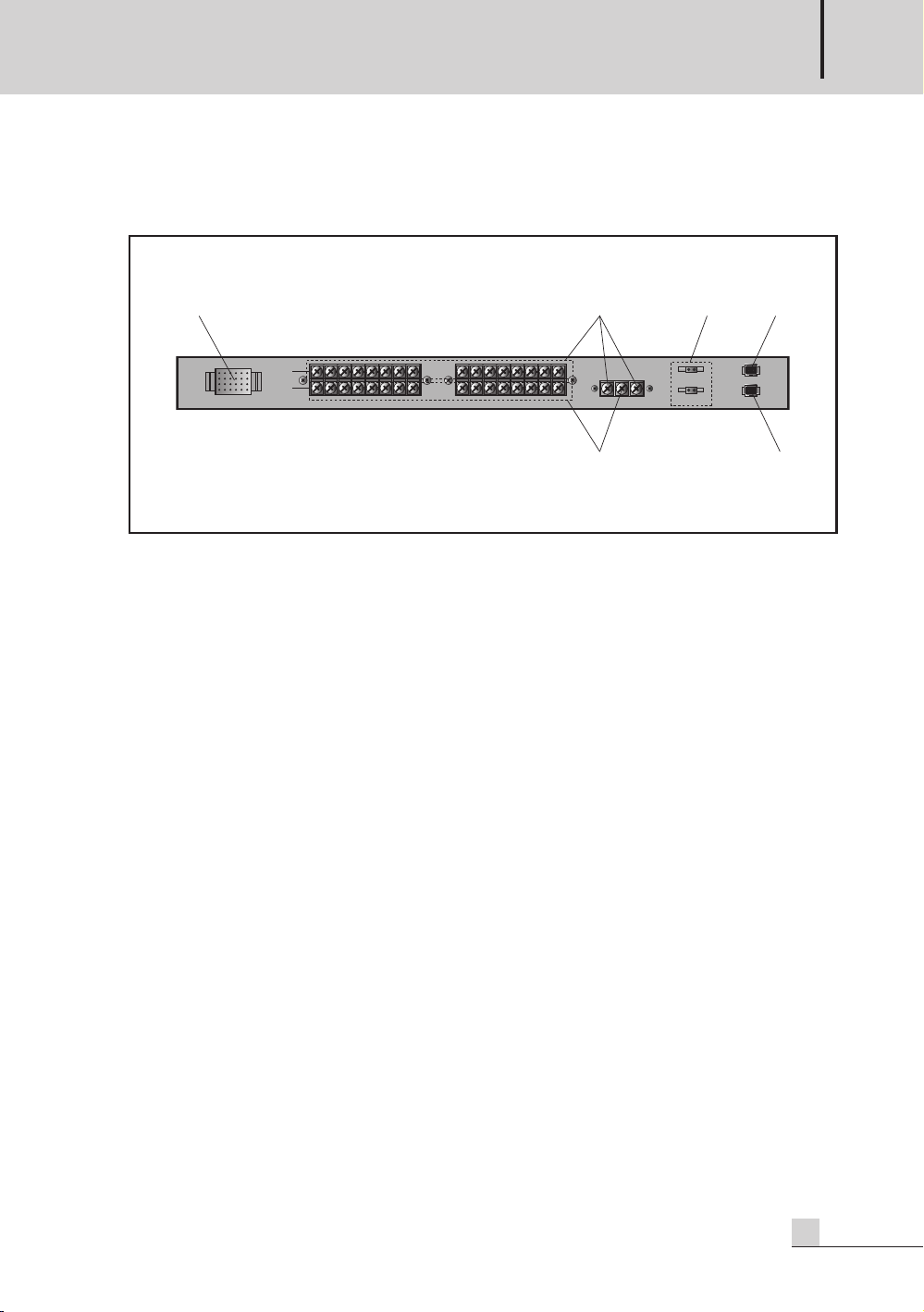

Rear Panel
Rear Panel
1. FIRE SENSOR TERMINAL
Connects LINK IN terminal to preceding unit, and connects LINK OUT terminal to subsequent unit.
2. EMERGENCY SWITCHER TERMINAL
Use this terminal to connect an Inter-M PX-6116 Emergency Switcher.
3. EXTENSION CONNECTOR
Connect an additional ES-6116 to this connector.
4. DC 24V OUTPUT CONNECTOR
This terminal is used for connecting to the DC 24V In terminal of an auto-broadcasting system.
5. FIRE SENSOR TERMINAL
Connect an auto-fire sensor to this terminal. Alternately, the FIRE SENSOR CONNECTOR (1) may
be
used to connect a fire sensor.
6. DC 24V INPUT CONNECTOR
This terminal is used for connecting to the DC 24V Out terminal of an auto-broadcasting system.
FIRE SENSOR
FIRE
SUM
EM
SUM
COM
NEXT LAYER IN
NEXT LAYER OUT
DC IN
DC OUT
141516 910111213 12345678
EM SWITCH
FIRE SENSOR
1234
56

EMERGENCY SWITCHER
6ES-6116
Suggestions for Rack Instaallation
Operating Procedure
Suggestions for Rack Instaallation
- Witch off AC Mains power to the ES-6116 before installing the system.
- Connect the fire sensor to the FIRE SENSOR Connector or Terminal, referencing Table 1 below.
Also refer to the included circuit block diagram. (See Page 8.)
- Connect the Com, Fire, Sum, and EM Sum terminals on the rear panel to the PX-6116’s
emergency switcher rear panel connection.
Operating Procedure
- Switch the ES-6116 AC Mains Power Switch on.
- The SPEAKER SELECTOR Switches (3) and (4) may be operated manually, or the unit may be
connected to the Inter-M RG-6116 for remote operation.
※NOTE : To set up linkage lines, use the top screen of the PCB according to the table below.
TABLE 1 FIRE SENSOR CONNECTOR PIN NO. & FUNCTION
TOP SCREEN of MAIN PCB LINKAGE LINE
T1 Line 1, 2
T2 Line 2, 3
T3 Line 3, 4
T4 Line 4, 5
T5 Line 5, 6

EMERGENCY SWITCHER
7
ES-6116

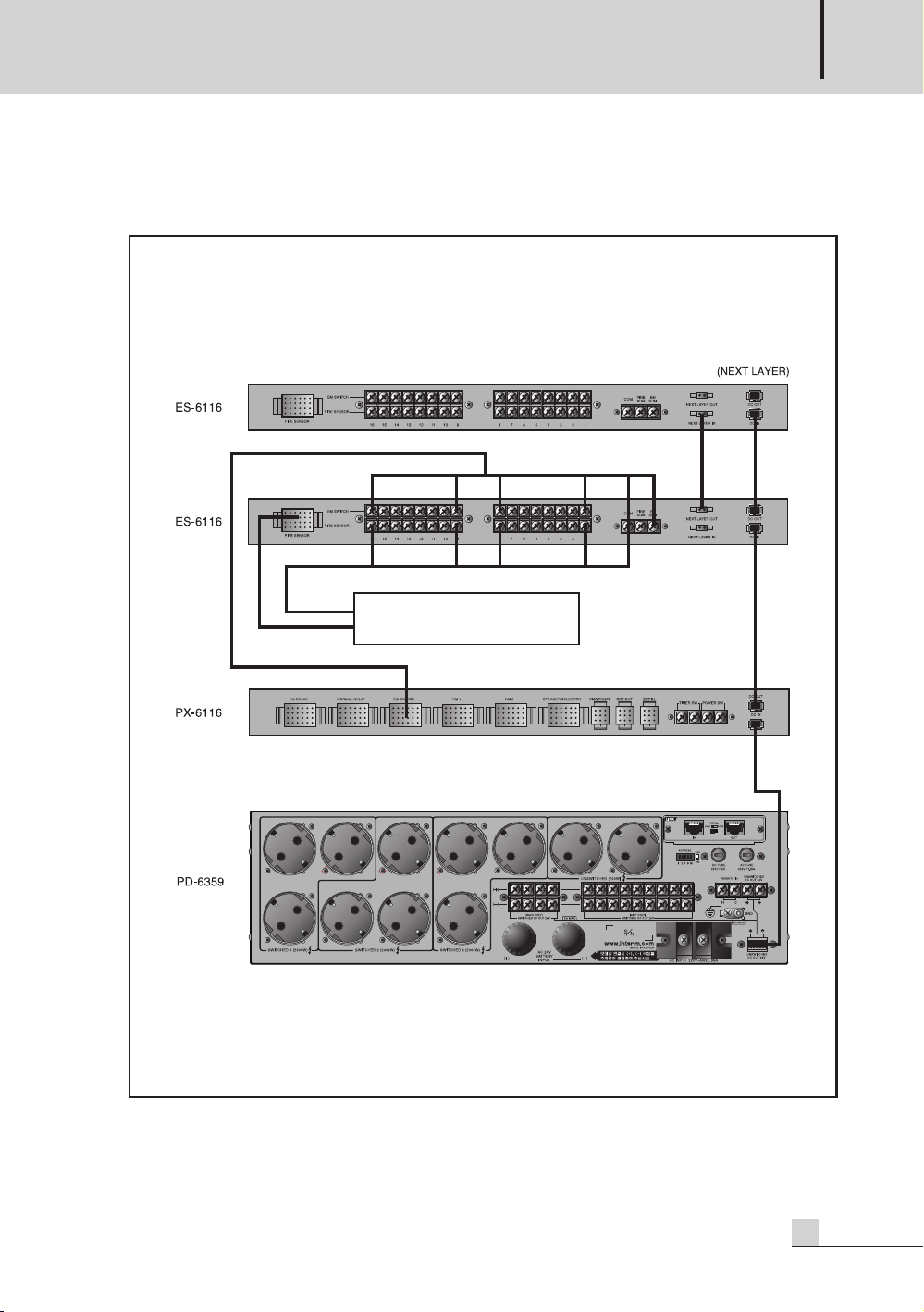

Applications
Applications
FIRE SENSOR

EMERGENCY SWITCHER
8ES-6116
Block Diagram
Block Diagram

EMERGENCY SWITCHER
9
ES-6116
ES-6116
Fire Sensor 16 Line
ELECTRICAL EM Speaker Relay Control 16 Line
Indicator All Mode 1
Power Source 24V DC
GENERAL Weight 3.1kg/6.8lb
Dimensions 482(W)x44(H)x280(D)mm/19(W)x1.7(H)x11(D)in
* Design and specification are subject to be changed for the improvement of product quality without pre notice.
Specifications
Specifications
※ DIMENSIONS

Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system.
Information provided in the troubleshooting portion of this manual may help with this process. Once it
is certain that the problem is related to the product contact your warranty provider as described in the
warranty section of this manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and
conditions of warranty for a given product may be determined first by locating the appropriate
country which the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
EMERGENCY SWITCHER
10 ES-6116

MADE IN KOREA
October 2022 133294
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
