Inter-m GES-162 User manual

Operation Manual
* Rack mount products in the Western Hemisphere(North America, South America,
and the Caribbean) do not have handles installed due to customer preference.
Gigabit Ethernet Switch
GES-162

GIGABIT ETHERNET SWITCH
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ATTENTION : RISQUE DE CHOC ELECTRIQUE
NE PAS QUVRIR
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases,
should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
* To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
* The mains plug of the power supply cord shall remain readily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.
Pour deconnecter completement l’appareil du reseau
d’alimentation. deconnecter le cordon d’alimentation de la
prise murale.
La prise du reseau d’alimentation doit demeurer aisement
accessible.

GIGABIT ETHERNET SWITCH
1
GES-162
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Overview .........................................................................................................................................3
Features ...........................................................................................................................................3
Contents and Accessories .............................................................................................................3
Front Panel ......................................................................................................................................4
Rear Panel .......................................................................................................................................5
Applications ....................................................................................................................................7
Block Diagram ................................................................................................................................8
Specifications ..................................................................................................................................9
Service
Procedures....................................................................................................................................11
Schematic.....................................................................................................................................11
Parts List .......................................................................................................................................11
Variations and Options...............................................................................................................11
Warranty .......................................................................................................................................11

GIGABIT ETHERNET SWITCH
2GES-162
Installation
Unpacking
Unpacking
Although your GES-162 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A

GIGABIT ETHERNET SWITCH
3
GES-162
Features
Contents and Accessories
Contents and Accessories
1. AC Power Cord × 1EA
2. 4P Euro Terminal Block x 1EA
3. Wall-Mount Screw x 4EA
4. User manual x 1EA
Features
- High performance network CPU
- OS: eCos 3.0
- 128MByte DDR2 Memory
- 1G x 16 Port
- 1G SFP x 2port
- All 1G Ethernet port are tri-speed 10/100/1000 Mbps port
- Link aggregation (IEEE 802.3ad)
Overview
Overview
GES-162 is an ethernet switch that supports 10/100/1000Mbps.

GIGABIT ETHERNET SWITCH
4GES-162

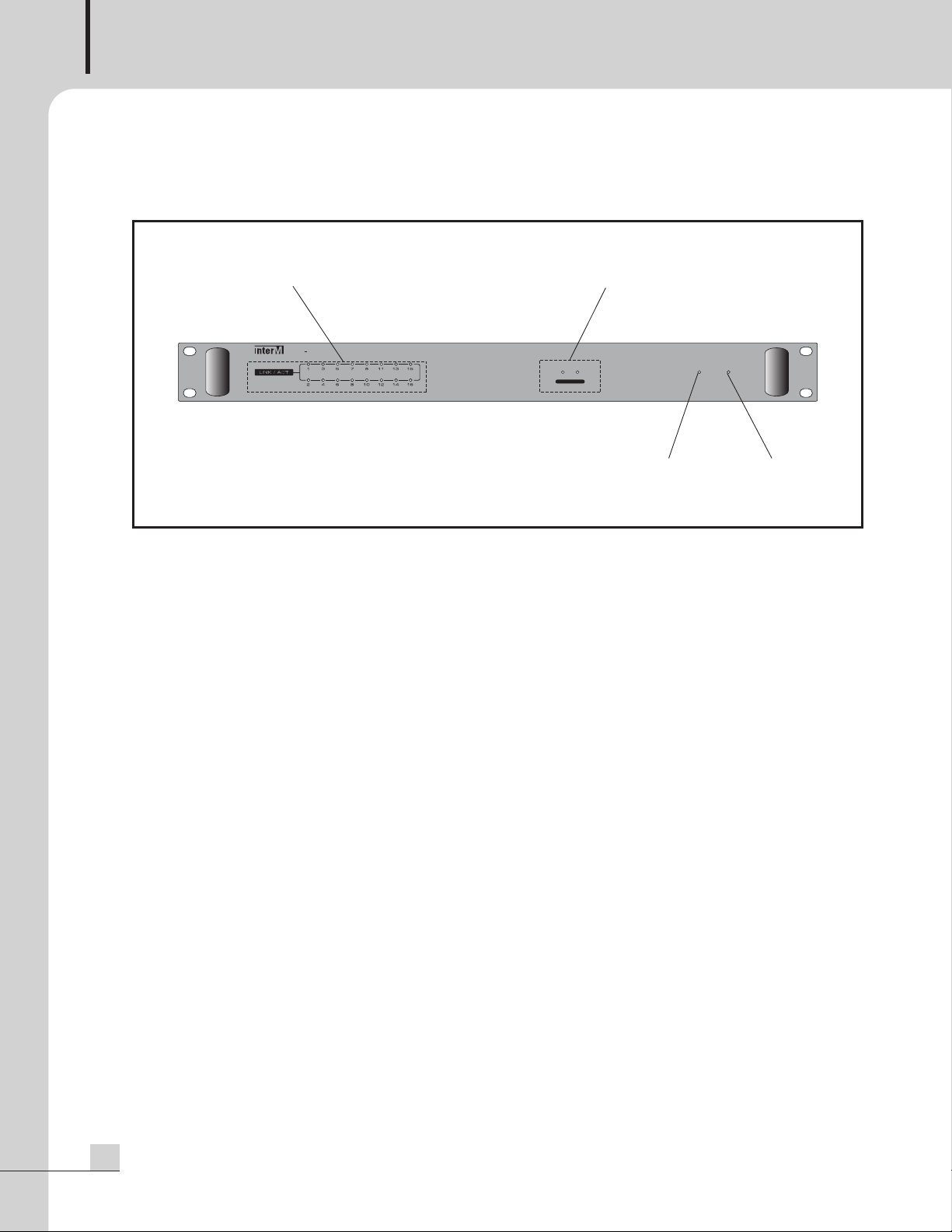

Front Panel
Front Panel
1. PORT STATUS LED
It is an LED that displays the status of each port 1~16. The LED turns off for unconnected ports, and the
Green LED turns on for connected ports. The LED light flickers during opertion.
2. SFP PORT STATUS LED
This LED indicates the status of the SFP 1~2 ports. The LED turns off for unconnected ports, and the Green
LED turns on for connected ports. The LED light flickers during opertion.
3. OPERATION STATUS LED
This LED indicates the operation status of the device. When the device is running, the LED lights up.
4. POWER INDICATOR LED
After plugging in the device, press the AC power switch at the back to turn on the device and the Green LED
lights up.
SFP
POWERSTATUS
12
GES 162 GIGABIT ETHERNET SWITCH
12
3 4

GIGABIT ETHERNET SWITCH
5
GES-162
Rear Panel
Rear Panel
1. AC POWER INPUT TERMINAL
This terminal supplies power to this device. Power supply is AC 230-240V~, 50/60Hz. Do not bend, pull,
twist, heat or cut the power cord. If the cord is damaged, it will cause fire or electric shock.
2. AC POWER SWITCH
This switch turns the AC power of the device on and off.
3. DC 24V POWER INPUT TERMINAL
This is an emergency spare battery (DC 24V) connection terminal. If an error occurs in the AC power, the
device is operated with the connected spare battery. Refer to the following pictures for the connection.
- EURO Terminal (DC 24V)
※Be sure to check the voltage and +,-polarity before connecting.
1
2
3
4
5
6
7
8
9
10/100
/1000
BASE-T
GBIC
1G 2G
10
11
12
13
14
15
16
12 3
4 5
-
+
- +

GIGABIT ETHERNET SWITCH
6GES-162

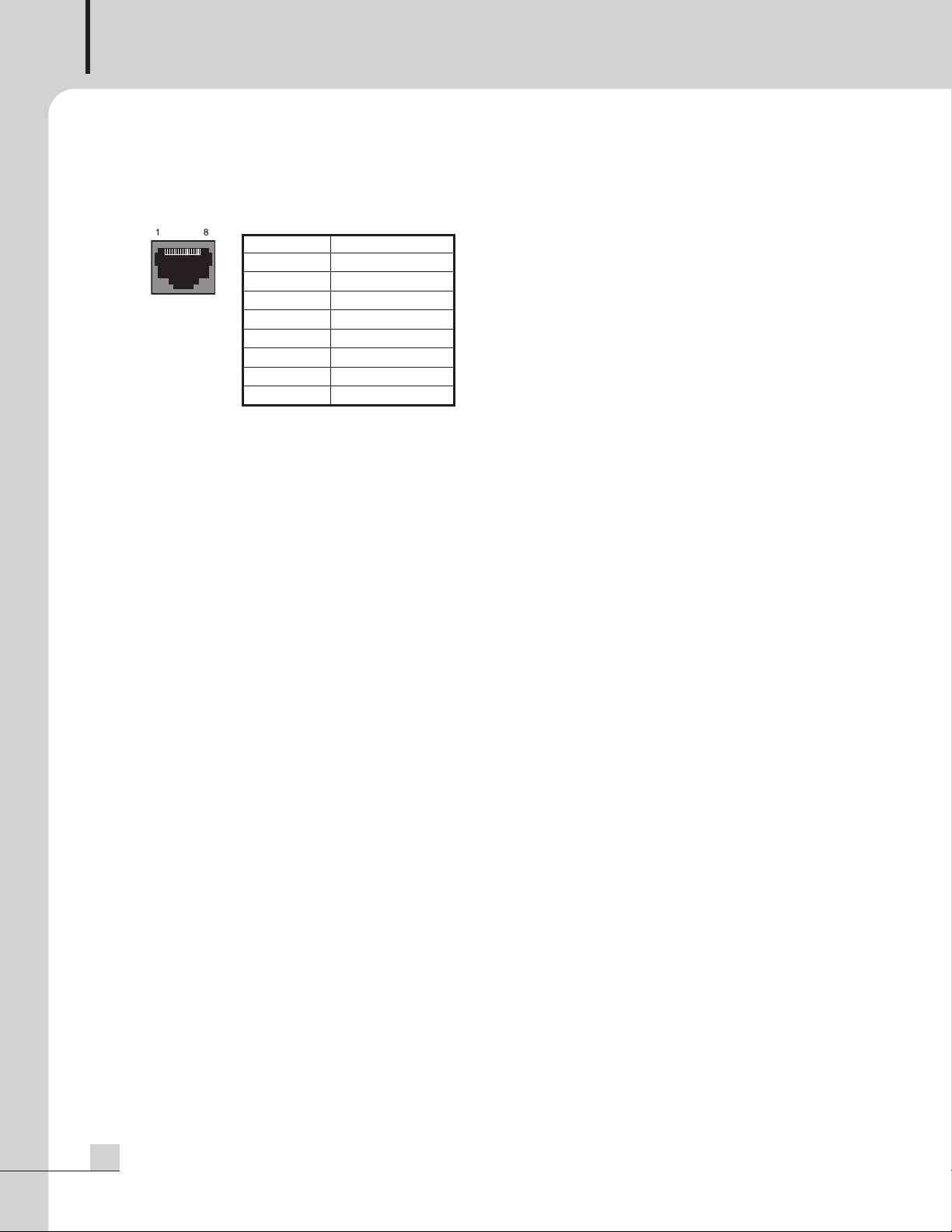

4. LAN PORTS
There are 16 LAN ports. 10/100/1000Mbps (UTP) is supported.
5. SFP PORTS
It is an SFP port for connecting two optical cables using GBIC (for multi-near-field communication).
1000Mbps is supported.
PIN NO. Function
1 TXN
2 TXP
3 RXN
4 NA
5 NA
6 RXP
7 NA
8 NA

GIGABIT ETHERNET SWITCH
7
GES-162

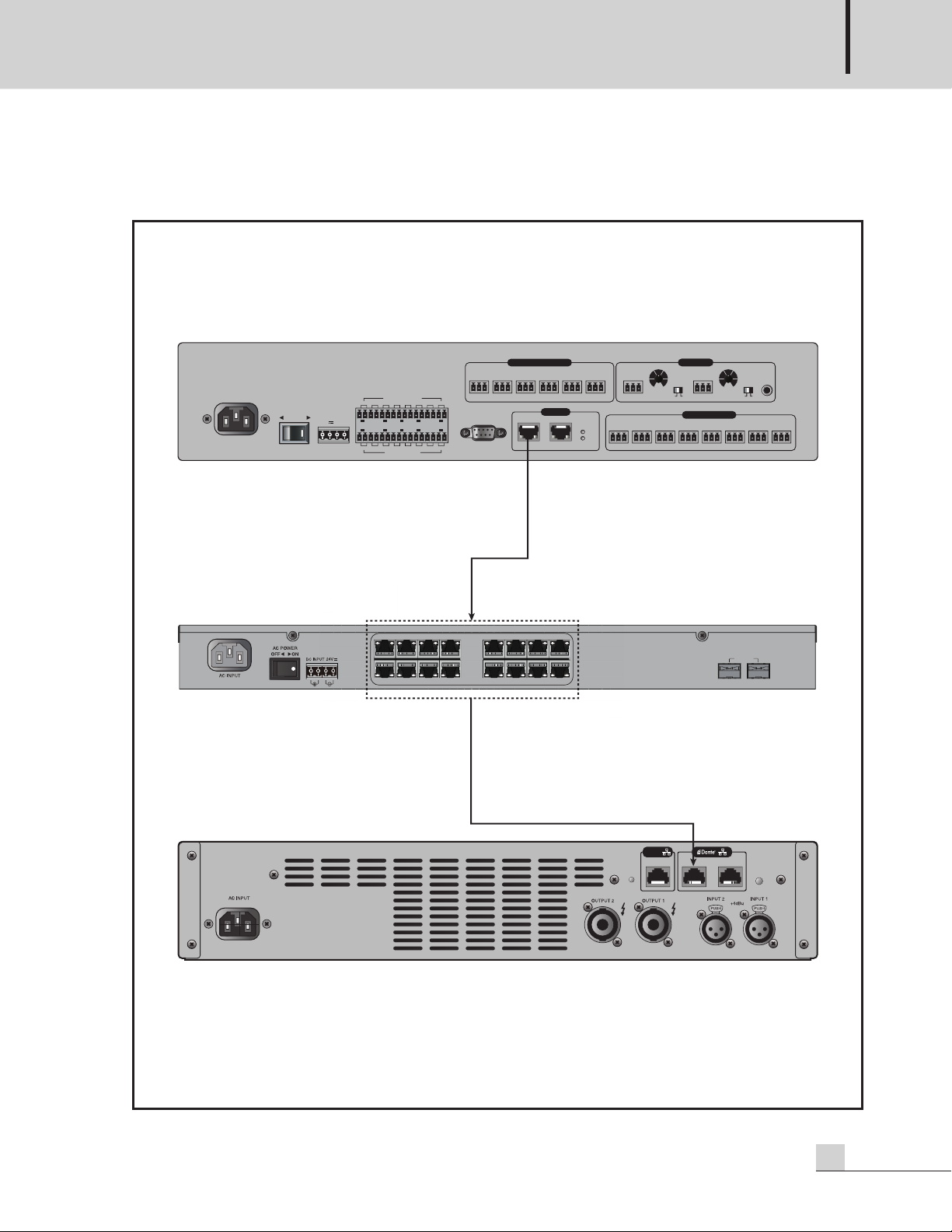

Applications
Applications
1
2
3
4
5
6
7
8
9
10/100
/1000
BASE-T
GBIC
1G 2G
10
11
12
13
14
15
16
PRIMARY SECONDARY
SYNC
AC INPUT
POWER
RS-232
OFF ON DC INPUT
24V 500mA CH 8
HCE
OUTPUT (0dBu / 10k )
NETWORK
87654321
CONTACT OUTPUT
CONTACT INPUT
LIVE
87654321
CH 7
HCE
CH 6
HCE
CH 5
HCE
CH 4
HCE
CH 3
HCE
CH 2
HCE
CH 1
HCE
CH 8
HCG
CH 7
HCG
CH 6
HCG
CH 5
HCG
CH 4
HCG
CH 3
HCG
LINE INPUT (0dBu / 10kΩ)
CH 2
HCG
LINE / MIC
LEVEL
MIN MAX
LEVEL
MIN MAX
OFF ON
CH 1
PHANTOM PHANTOM
HCG
AUX
OFF ON
SECONDARYPRIMARYWAN
RUN RST.
//
CONTROL
DAC-288
GES-162
D-3000

GIGABIT ETHERNET SWITCH
8GES-162
Block Diagram
Block Diagram

GIGABIT ETHERNET SWITCH
9
GES-162
Specifications
Specifications
* Design and specification are subject to be changed for the improvement of product quality without pre notice.
GES-162
Switching Fabric Capacity (Gbps) 36Gbps
Forwarding Capacity (Mpps) 26.786Mpps
DRAM capacity 128Mb
Flash memory capacity 16Mb
10/100/1000 UTP supported ports 16 Port
SFP support ports 2 Port
Operating power AC 230-240V~, 50Hz/60Hz, 14W
EURO: DC 24V, 700mA
Operating temperature -10℃~+40℃
Weight 3.2kg/7.05lb
Dimension 482(W) x 88(H) x 280(D)mm/
19(W) x 3.5(H) x 11(D)in

GIGABIT ETHERNET SWITCH
10 GES-162
280
440
482
44 280

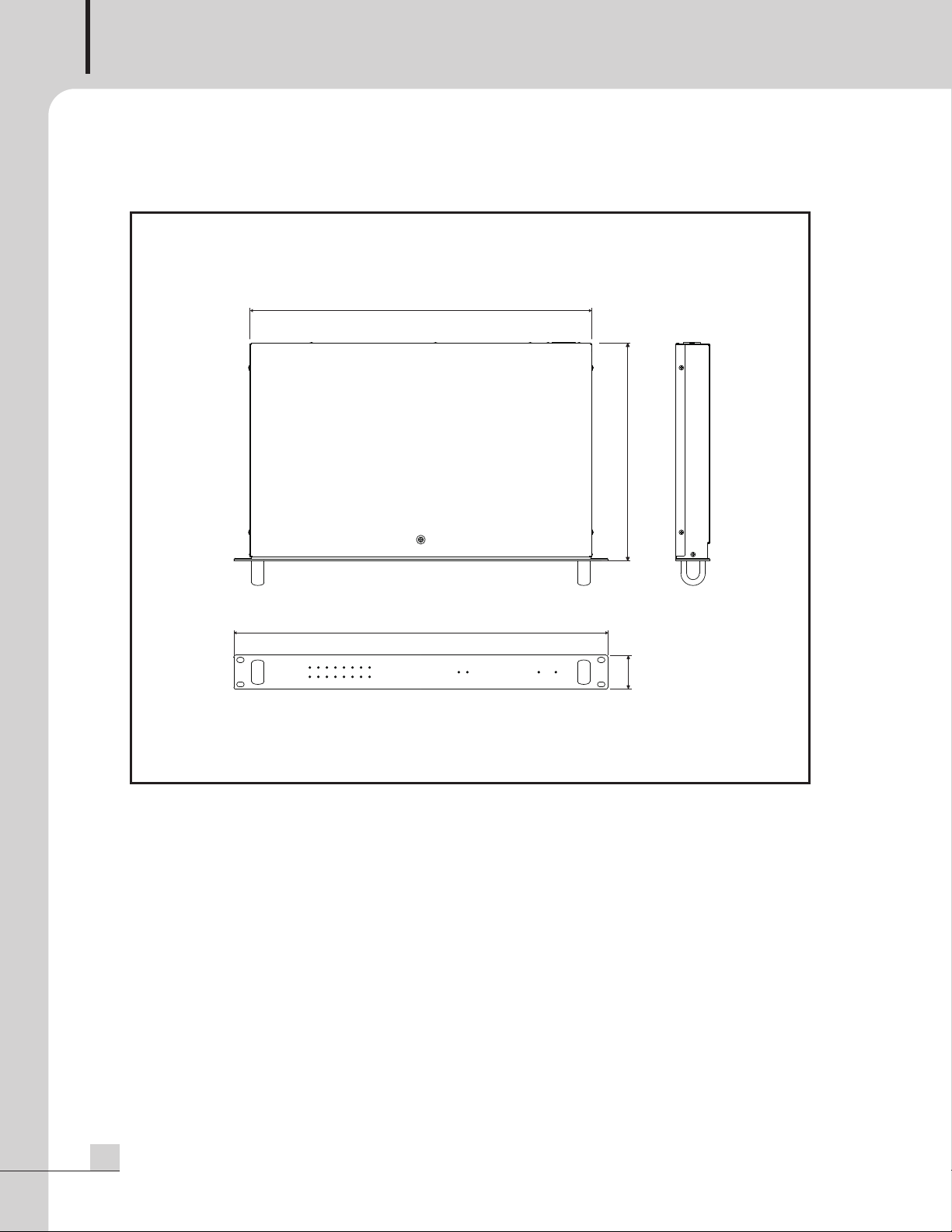

※ DIMENSIONS

GIGABIT ETHERNET SWITCH
11
GES-162
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.

NOTE

MADE IN KOREA
December 2020 152925
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
