Installation
Unpacking
Unpacking
Although your APS-100 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely
event the product must be returned for servicing, the original packaging (or reasonable equivalent) is
required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTA T SAFETY I STRUCTIO S
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appa-
ratus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the appa-
ratus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped. S3125A
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 2

AUDIO STREAMING PLAYER
3
ASP-100
Quick Set Up
Quick Set Up
- ITEMS REQUIRED TO I STALL THE I TER-M ASP-100
1. Wi-Fi Enabled Smartphone or Tablet (Apple IPhone/IPad or Android Phone/Tablet).
2. Mobile Application Fing IO (available in the IPhone App store or Google play).
- DOW LOAD FI G IO O YOUR WI-FI E ABLED MOBILE PHO E OR TABLET
Make sure your mobile phone or tablet is on the same Wi-Fi network as your Inter-M ASP -100
• Apple IOS users download Fing here:
https://itunes.apple.com/gb/app/fing-network-scanner/id430921107?mt=8
• Android Users download Fing here:
https://play.google.com/store/apps/details?id=com.overlook.android.fing&hl=en_GB
- SETTI G UP YOUR I TER-M ASP-100
1. Unbox your Inter-M ASP-100.
2. While unpowered, plug the male end of the RCA cable into the Inter-M ASP-100.
3. Turn down volume on your power amp or receiver.
4. Plug male ends of RCA cables into your power amp or receiver.
5. Plug a Cat5 cable into the ASP-100 internet port and your local Internet switch or router. Ensure it is
Internet ready (connected) with DHCP enabled in order to obtain an IP address and get the ASP-100
online.
6. Plug the power supply into the ASP-100 and electrical wall outlet.
7. Wait a couple of minutes for the ASP-100 to boot.
- LAU CHI G THE I TER-M ASP-100 USER I TERFACE
1. Using the mobile device you downloaded Fing IO, launch the Fing app.
Make sure your mobile device is on the same network as your Inter-M ASP-100
2. Hit the refresh (circle arrow) icon on the top right of the app.
3. A list of network devices will appear
4. Look for Inter-M and the IP associated with the device “IP example: 192.168.1.99“
5. To launch the ASP-100 web interface type the IP from Fing into any PC, Mobile phone or tablet device
browser that is on the same Wi-Fi network that the Inter-M ASP-100.
6. ASP-100 “User Interface” will pop up.
7. In Google Chrome save desktop Icon to gain quick access
8. Manage the Inter-M ASP-100 device from UI.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 3

AUDIO STREAMING PLAYER
4ASP-100
Support & Recommendations
Support & Recommendations
- RECOMME DATIO S
1. Have some basic knowledge of computer LAN networking.
2. Use a PC to configure the ASP-100 for ease of use.
3. Use the ASP-100 Cabled on LA (plugged in with Cat5 cable).
4. Confirm you are installing the ASP-100 on a DHCP enabled network.
Dynamic Host Configuration Protocol (DHCP) is a client/server protocol that automatically provides an In-
ternet Protocol (IP) host with its IP address and other related configuration information such as the subnet
mask and default gateway.
5. If the network you are installing the ASP-100 on does not have WIFI, please see page 5 for default IP ad-
dress to access by PC.
6. Google Chrome is the recommended web browser to access the ASP-100 Web Interface.
7. Save a desktop icon for future reference.
- TECH ICAL SUPPORT
Inter-M
5666 Corporate Ave.
Cypress, CA 90630, USA
TEL: [phone]
FAX: [phone]
EMAIL : [email protected]
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 4

AUDIO STREAMING PLAYER
5
ASP-100
Top Panel
Top Panel
1. POWER LED (RED)
2. ETWORK LED (GREE )
3. O AIR LED (ORA GE)
4. OPERATIO LED (GREE )
5. DHCP LED (ORA GE)
POWER
NETWORK ▶DC 12V , 500mA ▶AUDIO OUT ▶L
R
NETWORK
ON AIR
OPERATION
AUDIO STREAMING PLAYER
ASP-100
DHCP
FACTORY RESET ▶DHCP
STATIC
1
2
3
4
5
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 5

AUDIO STREAMING PLAYER
6ASP-100

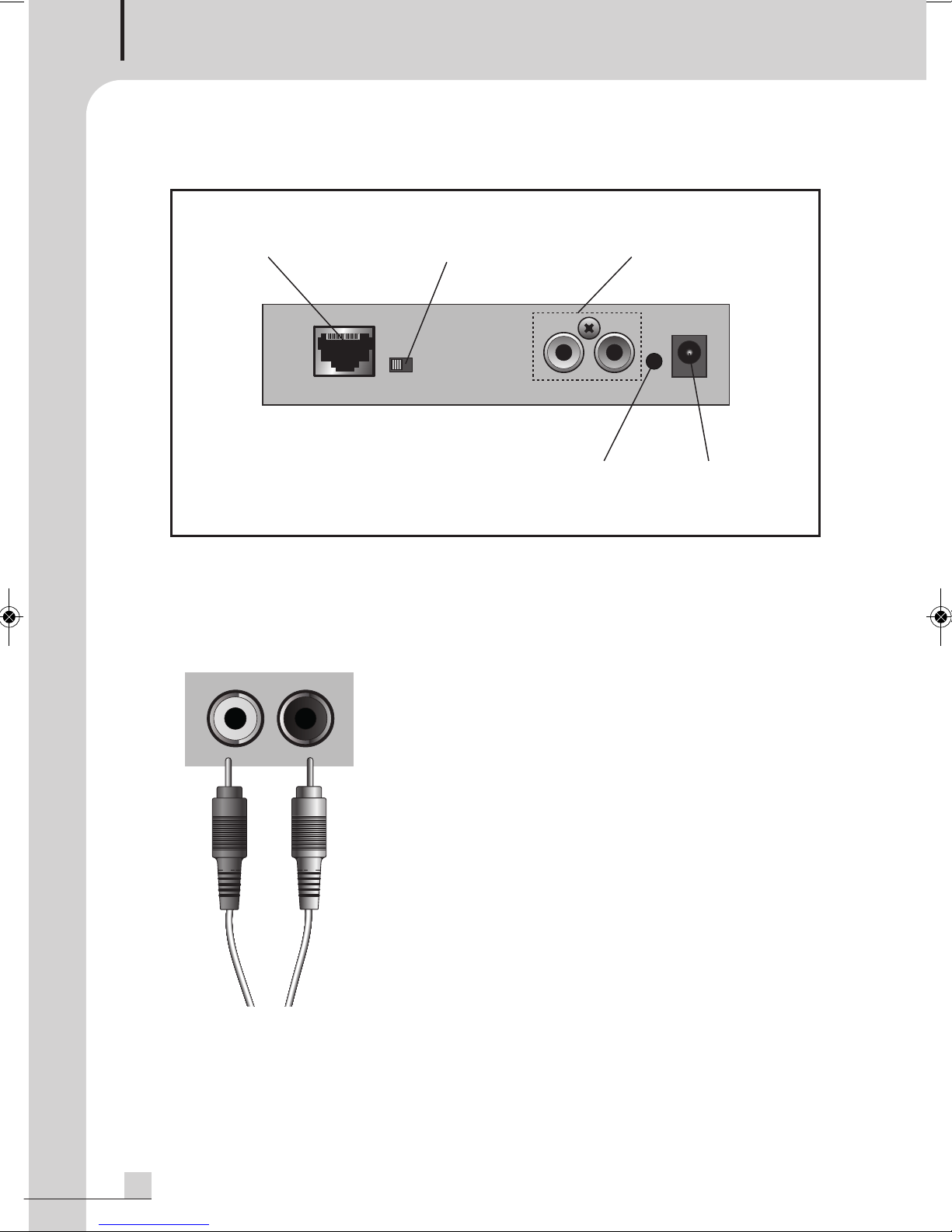

Rear Panel
Rear Panel
1. ETWORK PORT
2. IP SETTI G SELECTOR (DHCP/STATIC)
(Default: 192.168.1.99)
3. AUDIO OUT (L/R)
4. FACTORY RESET SWITCH
5. DC I PUT
12V DC
123
4 5
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 6

AUDIO STREAMING PLAYER
7
ASP-100
Web Settings
Web Settings
• Accessing ASP-100 User Interface Web page
- If IP address has not been set, type the default IP address (192.168.1.99) – pushing the factory set switch
more than 5 seconds will result in the unit being reset to default mode.
When connected normally, user verification window will pop-up.
Type the Default ID and PASSWORD to log in. (Default ID : admin, Password : 1)
※Changing password: please refer to the section of ‘12. password setting’
※Caution: It is better to set and use the assigned password for the security purposes.
Please make a note to keep the assigned password.
• etwork Settings
Shown above is the network settings page.
The host name is used to identify your unit on LAN - multiple unit is in auto searching mode.
※ IP address : You can set the ASP100 to obtain all network information automatically by setting DHCP
(Dynamic IP address) or can be set as Static IP address.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 7

AUDIO STREAMING PLAYER
8ASP-100

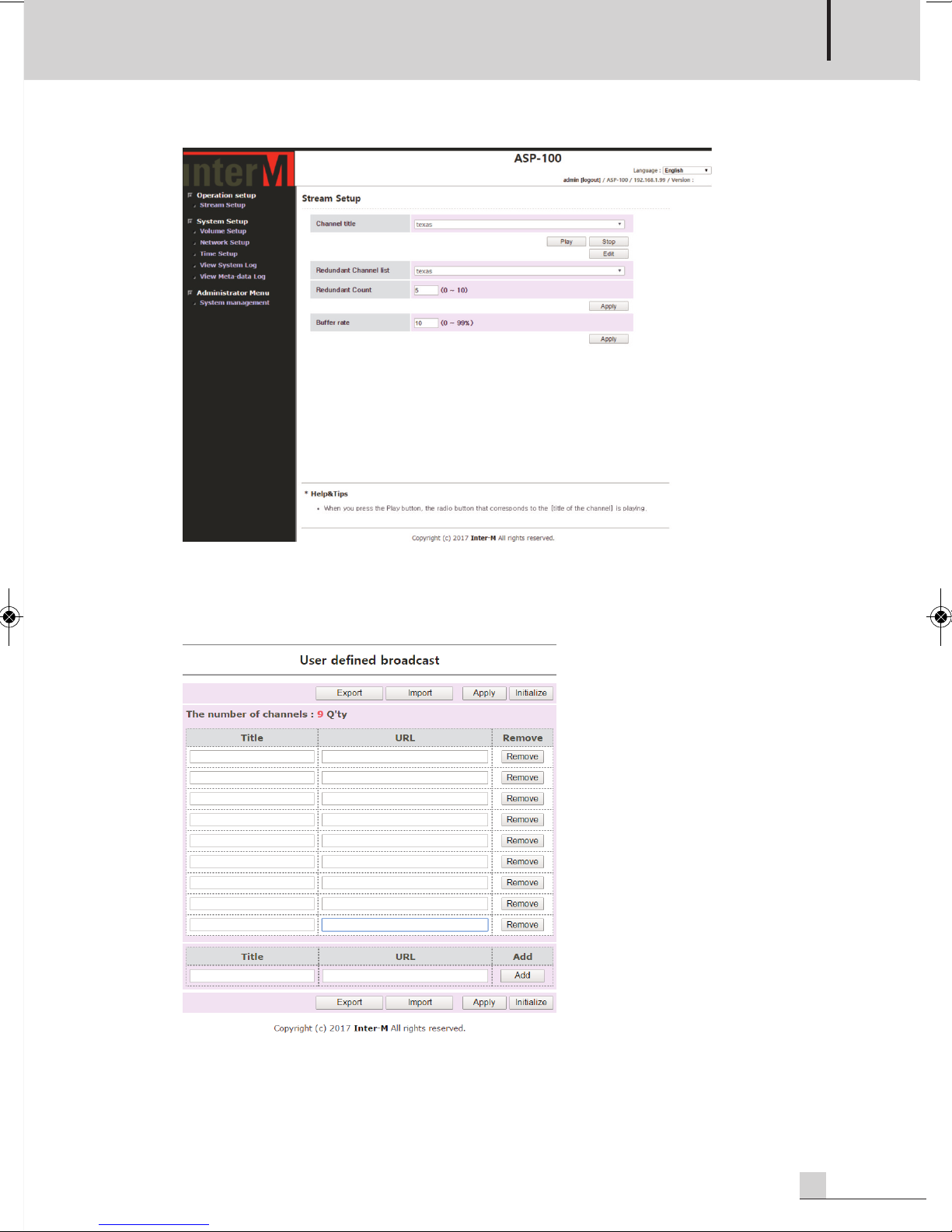

• Internet Radio Settings
Select the broadcasting station from the Channel list. Then, select broadcasting title from the Channel title.
Finally, click the play button.
The channel list consists of two different categories which are “Fixed Channel” and “User Defined channel”.
Fixed Channel consists of 36 preset channels and User Defined Channel can store up to 20 user determined
channels.
The station that user creates as a preset can be selected in User Defined Channel.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 8

AUDIO STREAMING PLAYER
9
ASP-100
Utilize the play and stop buttons to launch your audio stream.
• Adding a streaming radio URL
The following window is shown by clicking the user defined button.
Type the title and URL of desired station then click the set button to save. Up to 20 channels can be added
or deleted by the administrator.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 9

AUDIO STREAMING PLAYER
10 ASP-100

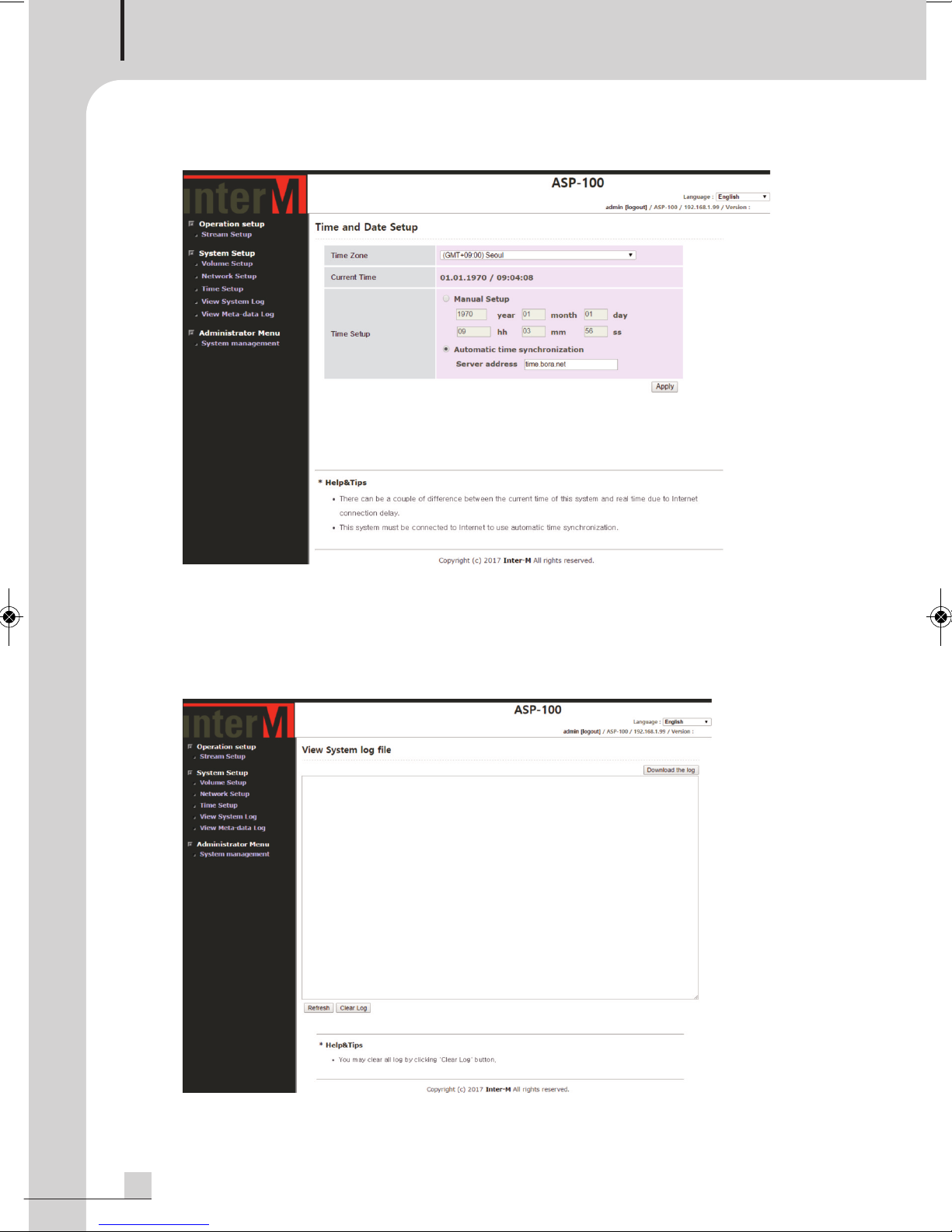

• Time Setting
Shown above is the menu for setting the time and date on the ASP-100.
It can be set to time zone as well as current time. The current time can be set manually or automatically.
When the current time is set as automatic time synchronization, the server address must be typed
(default:time.bora.net) and unit must be connected with internet.
• Log Viewer
The log viewer displays captured data information stored within the ASP-100’s unit settings. This includes
history of any modifications with a time stamp. If the time has not been set, the log information will be
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 10

AUDIO STREAMING PLAYER
11
ASP-100
shown as an/ 1/ 1970 as default.
Refresh: identify the recently changed log information
Clear Log: clear the history of log information
• System Upgrade
After downloading an upgrade file from your PC, find and select the upgrade file by clicking the […] button.
Next, click the set button to start the upgrade.
The screen will be off when upgrade is fully processed. Next, manually turn on the power of unit to finish
the upgrade.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 11

AUDIO STREAMING PLAYER
12 ASP-100
• Rebooting
Reboot the unit. The reboot process takes about 30 seconds.
• Factory Settings
The network and time settings will be reset to the default setting for each.
• Password Settings
Password set up page:
When the unit is reset to the factory setting, the password will be reset to the default password.
The default Password is “1”
※ONLY PASSWORD can be changed.
※Caution: Please make a note to keep the changed password.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 12

AUDIO STREAMING PLAYER
13
ASP-100

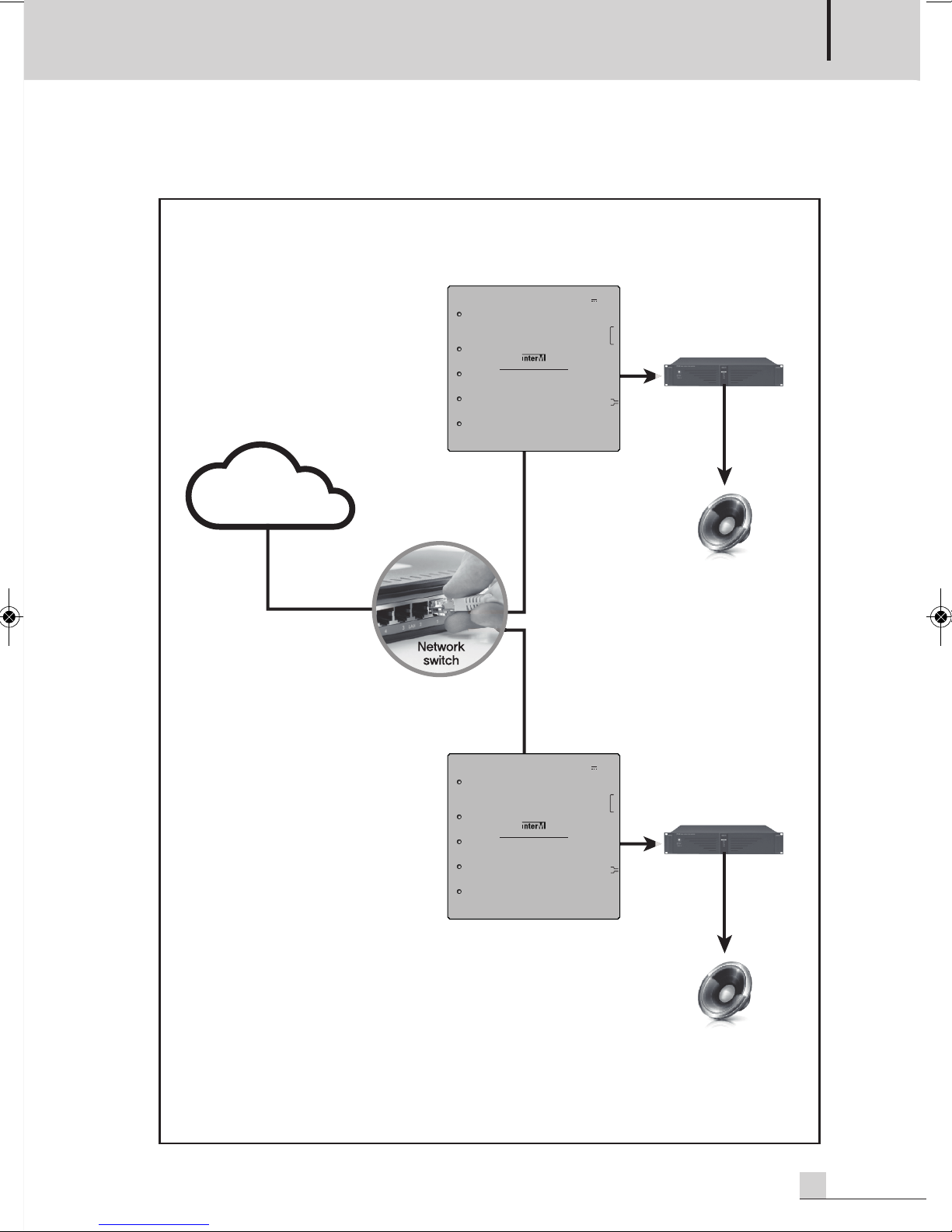

Application
Application
STREAMING
SERVER
POWER
NETWORK ▶DC 12V , 500mA ▶AUDIO OUT ▶L
R
NETWORK
ON AIR
OPERATION
AUDIO STREAMING PLAYER
ASP-100
DHCP
FACTORY RESET ▶DHCP
STATI C
WAN
AMP
SPEAKER
POWER
NETWORK ▶DC 12V , 500mA ▶AUDIO OUT ▶L
R
NETWORK
ON AIR
OPERATION
AUDIO STREAMING PLAYER
ASP-100
DHCP
FACTORY RESET ▶DHCP
STATI C
AMP
SPEAKER
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 13

AUDIO STREAMING PLAYER
14 ASP-100
Block Diagram
Block Diagram
RJ45
DDR
MEMORY
eMMC
Audio
Codec
LDO
DCDC
CPU
PHY
12VDC Adapter
Audio Out
L R
Network port
Factory Reset
DHCP/STATIC
switch
+10V
-10V
+5V
REG. +5V
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 14

AUDIO STREAMING PLAYER
15
ASP-100
Specification
Specification
ASP-100
Communication Type NETWORK
Network Port 10/100Mbps
Output Level @-10dBFs Play 14dBu
S/R More than 65dB
T.H.D Less than 0.1%
Operating Temperature 0~40℃
Power Source DC 12V
Power Consumption 3W
Weight (set) 0.457kg/1.0lb
Dimension (set) 138.3(W) x 132.7(H) x 28.6(D)mm/
5.4(W) x 5.2(H) x 1.1(D)in
※Design and specification are subject to be changed for the improvement of product
quality without pre notice.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 15

AUDIO STREAMING PLAYER
16 ASP-100
※DIME SIO S
138.3
28.6
132.7
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 16

AUDIO STREAMING PLAYER
17
ASP-100
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 17

MADE IN KOREA
February 2017 141660
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in apan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, I C.
5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
ASP-100_MANUAL_141660_FOR.qxp_레이아웃 1 2017. 4. 27. 오전 9:53 페이지 18
