INTERNATIONAL
e
274
TRACTOR
OPERATOR'S MANUAL
®

To The Owner
Y our new I nternational Harvester tractor is design-
ed to meet today's exacting operating require-
ments. The ease and comfort of operation, the
ability to match ground speeds to engine power
and work requirement, and the effort less versatil-
ity of the hydraulic system are intended to lighten
your work and shorten your hours on the job.
Your local International Harvester dealer is inter-
ested in the performance you receive from this
tractor. He has factory trained servicemen, inform-
ed in the latest method of servicing tractors, and
modern tools, and original-equipm.ent IH service
parts
which assure proper fit and good perform-
ance.
To obtain top performance and assure economical
operation the tractor shou Id be inspected, depend-
ing on its use, periodically, or at least once a year,
'by your International Harvester Dealer.
Before you operate the tractor, study th is manual
carefully. It has been prepared to help you operate
and
maintain your tractor with utmost efficiency.
New copies may be ordered from your dealer at
a nominal price.
When in need
of parts, always specify the tractor
and engine serial numbers, including prefix and
suffix letters. Write these serial numbers in the
spaces provided below.
METRIC (SI) MEASUREMENTS
A standard of measurement known as International System of Units (SI) has
been adopted for world-wide use . English Units followed by Metric Equiva-
lents are used
throughout this manual. (Metric Equivalents are given in
parentheses.) A conversion list
of commonly used measurements are listed
on page 73 for your reference.
1. Engine serial number
2. Tractor serial number

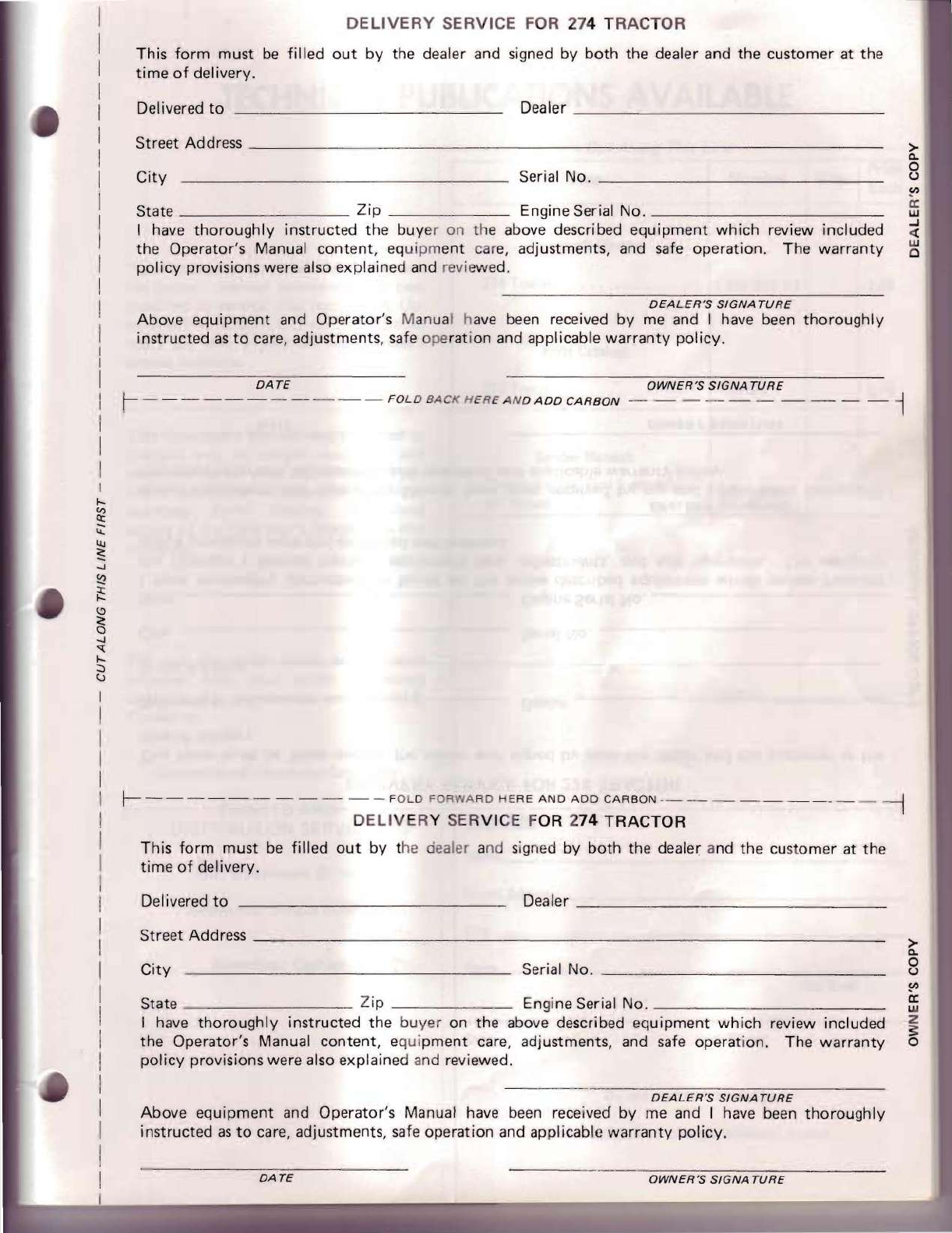

DELIVERY SERVI CE FOR 274 TRACTOR
This form must be filled out by the dealer and signed by both the dealer and the customer at the
time of delivery.
Delivered
to
Dealer ____________________________ ____ _
Street Address ____________ ______ _ ____ ____ ________ _ _________________ ~ -----
City
Serial No. _ _____________________ _
State Zip Engine Serial No. ____ __ ____________ __
I have thoroughly instructed the buyer on th e above described equ, ipment which review included
the Operator's Manual content,
eq uipment car e, adjustments, and safe operation. The warranty
policy provisions were also explained and reviewed.
DEALER'S SIGNA TURE
Above equipment and Operator's M an ua l h ave been received by me and I have been thoroughly
instructed as to care, adjustments, safe operation and applicable warranty policy.
DA TE OWNER'S SIGNA TURE
~ - - -- -- --- - -- - - -- FO LDB A C KH E R EANDADDCARBON -- - ---- - -- - - ---l
f---- - --- -- - -- --- F OL D FOR WA RD HE RE AND ADD CARBON · -- - - ---- - - -- - -l
DELIVER Y SER VI CE FOR 2 74 TRACTOR
This form must be filled out by the dealer and signed by both the dealer and the cu st omer at the
time of delivery.
Delivered
to
Dealer ______ _____ _________ _
Street Address ____________ ---,- ____ __________ __ _ _ ___ ~ ___________ _ _ _
City
Serial No. ____ ~ ___ -'- __'_ ___________ _
State Zip
En gi ne Serial No. _ ___ _ __ _______ __
I have thoroughly instructed the buyer on the above described equipment which review included
the Operator's Manual content, equi
pment care, adjustments, and safe operation. The warranty
policy provisions were also explained and reviewed.
DEALER 'S SIGNATURE
Above equipment and Operator's Manual have been received by me and I have been thoroughly
instructed as to care, adjustments, safe operation and applicable warranty policy.
DATE
OWNER'S SIGNA TURE
>
0..
8
~
a:
w
z
;:
o

r--- --- ---- --- ------------------------i
DELIV ER Y SE RVICE FO R 274 TRACTOR
This for m must be filled out by the dealer and signed by both the dealer and the customer at the
time of delivery.
Delivered to
Dealer _______________ _
Street Address _-,- _____________________________ _
C ity
Serial No. ______________ _
State Zip Engine Serial No. ____ _ ______ _
I have thoroughly instructed the buyer on the above described equipment which review included
the Operator's Manual content, equipment ca re, adjustments, and safe operation. Th e warranty
policy provisions were also e xp lained an d revi ew ed.
DEALER' S SIGN A TURE
Above equipme nt and Operator's Manual have been rece ived by me an d I have bee n th oroughly
instructed as to ca re, ad justments, safe o pe ra tion an d ap plicable warra nty policy.
DATE OWNER'S SIGNATURE
~------ - -- -- - --------- - -------- -- -------~
>
Q.
o
<.J
w
<.J
LA.
LA.
o
..J
<
Z
o
e"
w
a:

TECHNICAL PUBLICATIONS AVAILABLE
; -- --------- -- -------------- --Cut Along This Line ------- ----- --- -- -----------
I
I
I
Your International Harvester Dealer and ,
his factory trained servicemen are best '
qualified to service your equipment. Up-
to-date instructions and adequate special
tools are a'iso a part
of your Dealer's
service faci lities.
This Operator's Manual was prepared to
instruct you in proper operation and •
maintenance of your equipment. If you
desire additional information you may
purchase Parts Catalog. Addition
al ,
copies of the Operator's Ma nu al are also
available.
OJ
.S
Fill out the order blank and forward :!
together with your check or money ~
order in the appropriate amount (U.S. tl)
Funds) to : .§
International Harvester Company
PRINTED AND
DISTRIBUTION SE RV ICES
807 Blackhawk Drive
Westmont, Illinois 60559
Attention: Cashier
<:(
....
....
r
Title Number
Q'ty.
Pr ice
Each
Operat or's Manual
27 4 Tr actor ........ ... ....
1432874 R2
7.20
Pa rts Cat alogs
27 4 Tractor . . . .. ..........
TC-196
5. 10
Service Manuals
I
C hassi s, Engine, Fuel System
GSS-1478·1
28.40
and Mo w er
TOTAL __________ __
Pl ea se Print
Name __________ ______________________ ____ ______ _
Stre et Address __________ ____ _______ _
Ci ty _____ ________________ ____ ____________ _
Su te ___ ___________________ __
Zip Code
Dat e Sig ne d
Do not send cas h or stamps
Prices subje ct to change wit hout notic e.

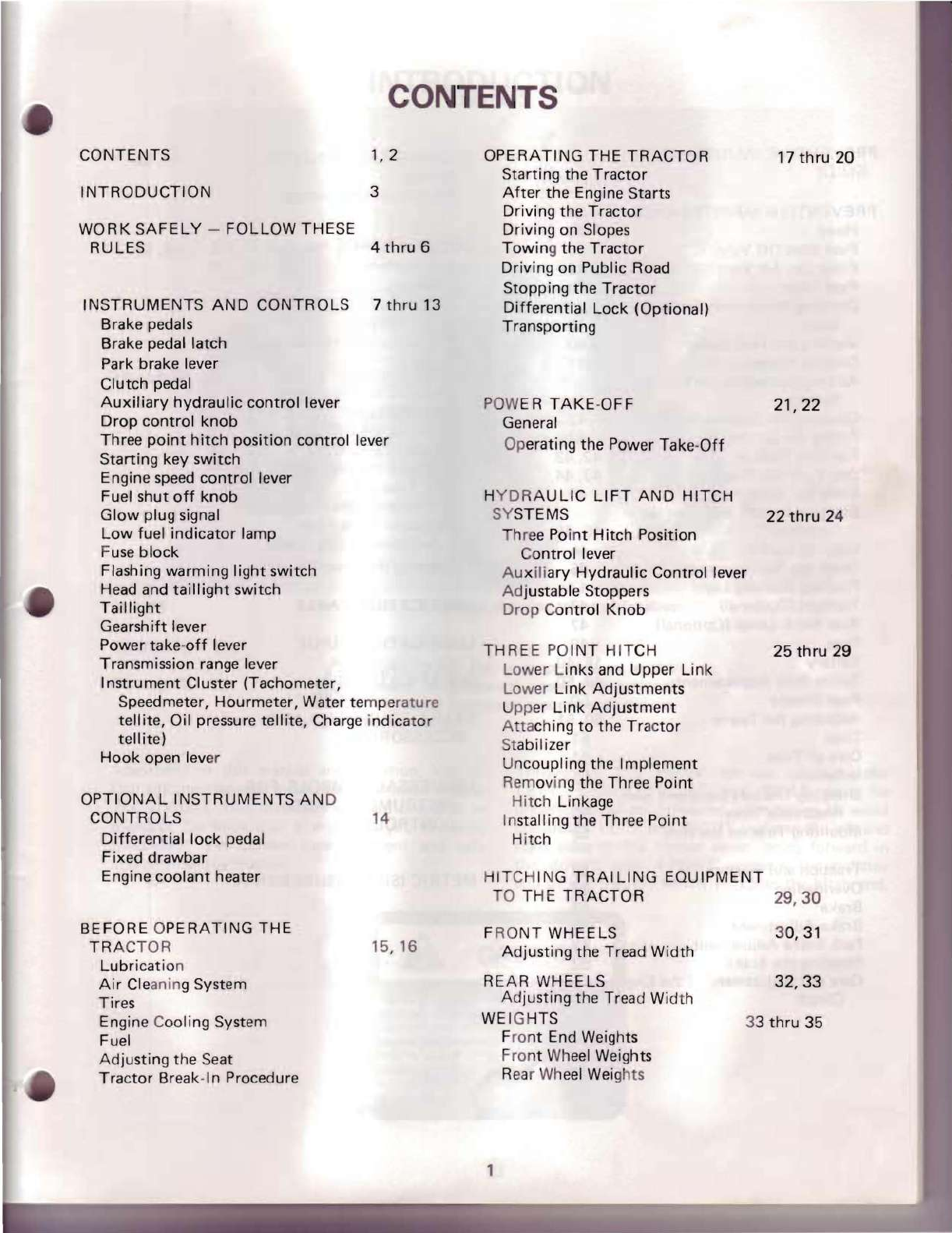

CONTENTS
CONTENTS
1,2
INTRODUCTION 3
WORK SAFELY - FOLLOW THESE
RULES
4thru6
INSTRUMENTS AND CONTROLS 7 thru 13

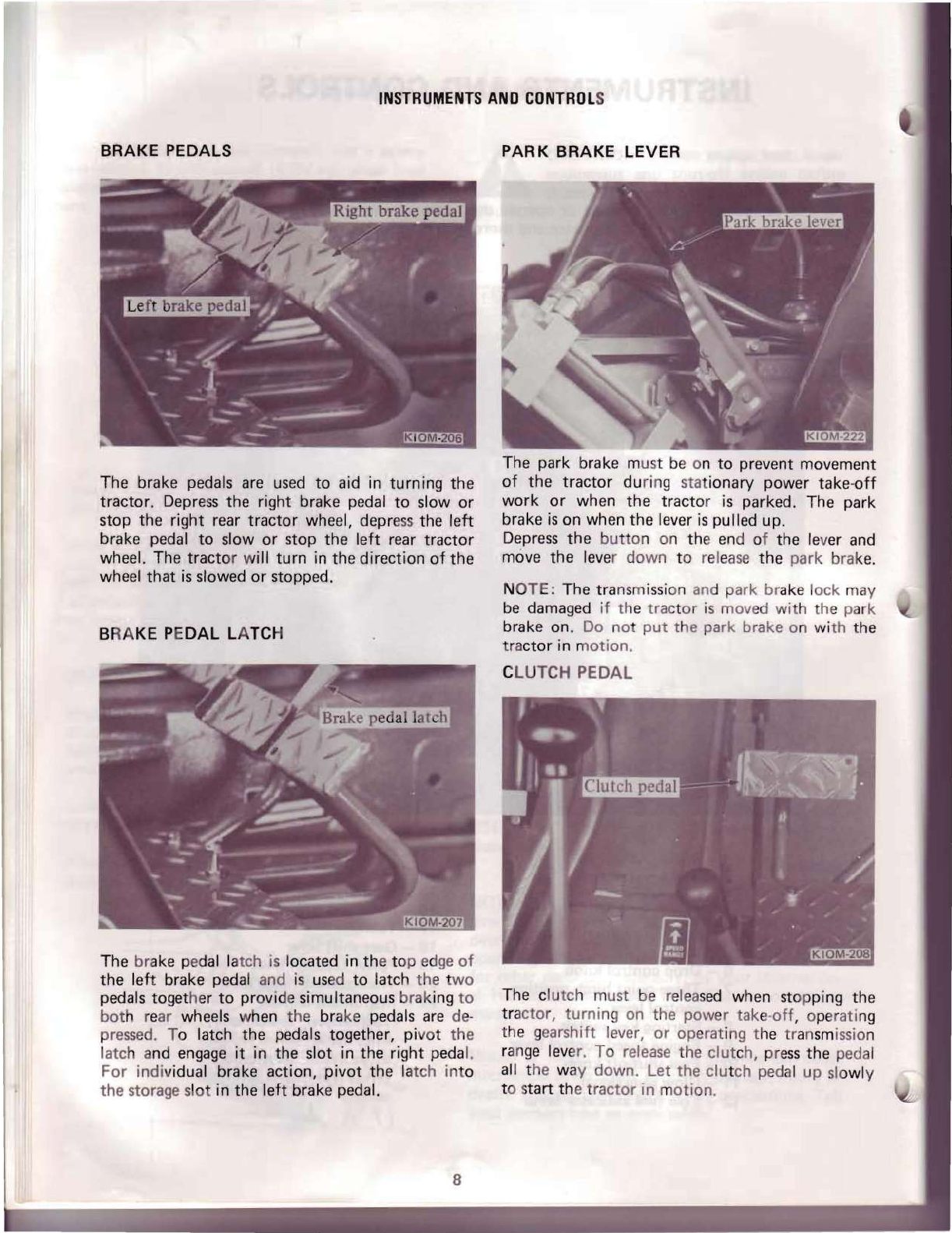

Brake pedals
Brake pedal latch
Park brake lever
Clutch pedal
Auxiliary hydraulic control lever
Drop control knob
Three
point hitch position control lever
Starting key switch

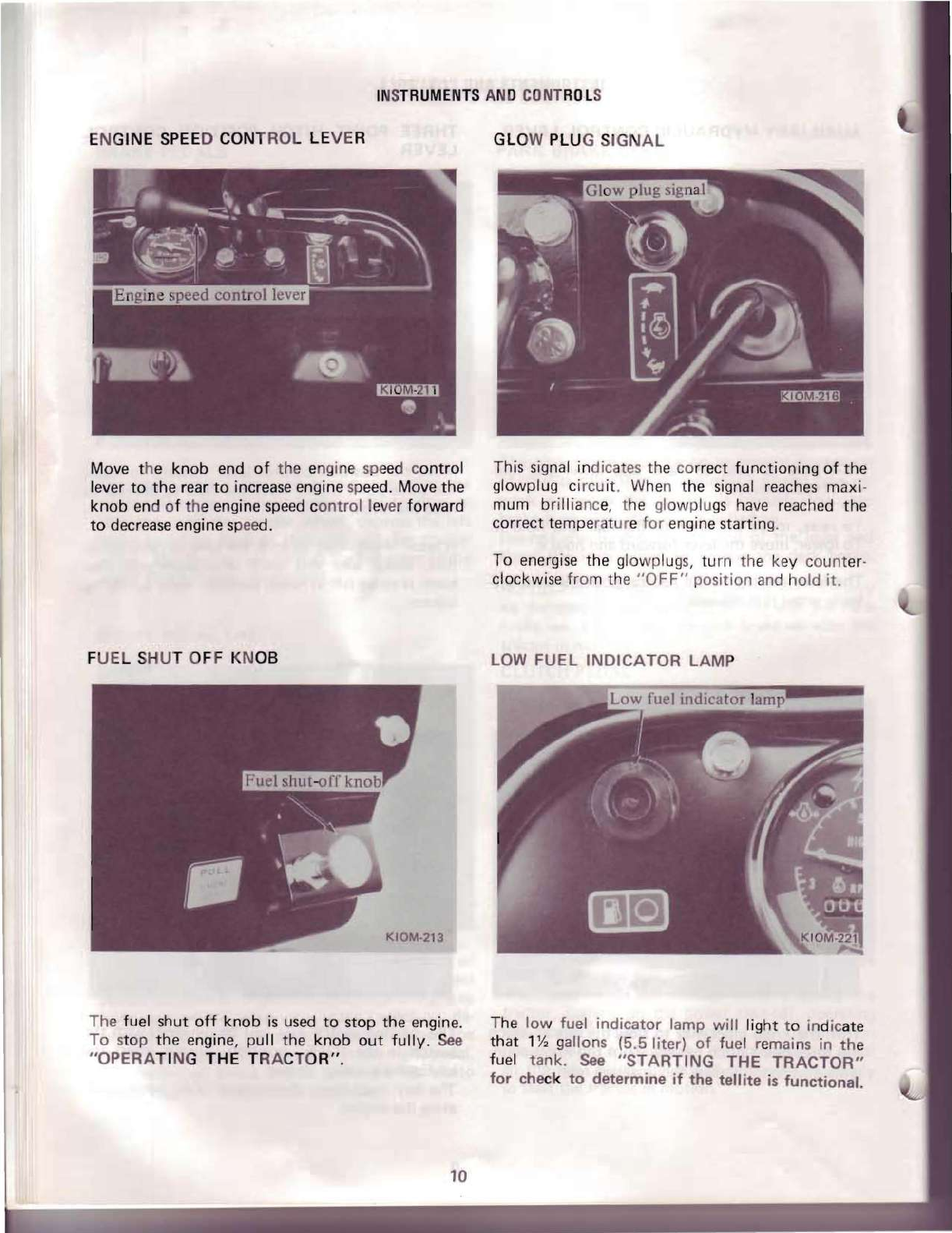

Engine
speed control lever
Fuel shut
off knob
Glow plug signal
Low fuel indicator lamp
F use block
Flashing warming light switch
Head and
taillight switch
Taillight
Gearshift lever
Power
take-off lever
Transmission range lever
Instrument Cluster (Tachometer,
Speedmeter, Hourmeter, Water temperature
territe, Oil pressure tellite, Charge indicator
territe)
Hook open lever
OPTIONAL INSTRUMENTS AND
CONTROLS 14
Differential lock pedal
Fixed drawbar
Engine
coolant heater
BEFORE O PERATING THE
TRA CTOR
Lubrication
Air Cleaning System
Tires
Engine Cooling System
Fuel
Adjusting the Seat
Tractor Break-In Procedure
15, 16
OPERATING THE TRACTOR
Starting the Tractor
After the Engine Starts
Driving the Tractor
Driving on Slopes
Tow ing the Tractor
Drivi ng on Public Road
Stopping the Tractor
Differential Lock (Optional)
Transporti
ng
17 thru 20
PO W ER TAKE -OFF 21,22
General
Op erating the Power Take- Off
H YD R AULIC LIFT AND HITCH
SYSTEMS 22 thru 24
Three
Po int Hitch Position
C
ontro l Iever
Auxiliary Hydraulic Control lever
Adjustable Stoppers
Dr op Co ntrol Knob
TH
RE E PO INT HITCH 25thru 29
Low er Links and Upper Link
Low er Link Adjustments
Upper
Link Adjustment
A tt aching to the Tr ac tor
Stabilizer
Uncoupling the Implement
Rem oving the Three Point
Hit ch Li nkage
Installing the Three Point
Hit ch
H IT CH ING TRAILING EQUIPMENT
TO THE TRACTOR 29,30
FRONT WHEELS
Adjusting the Tread Width
REAR WHEELS
Adjusting the Tread Wi dth
WEIGH TS
1
Front End Weights
Front
Wh eel Weights
R
ea r Wh eel Wei ghts
3
0,31
32,33
33 thru 35

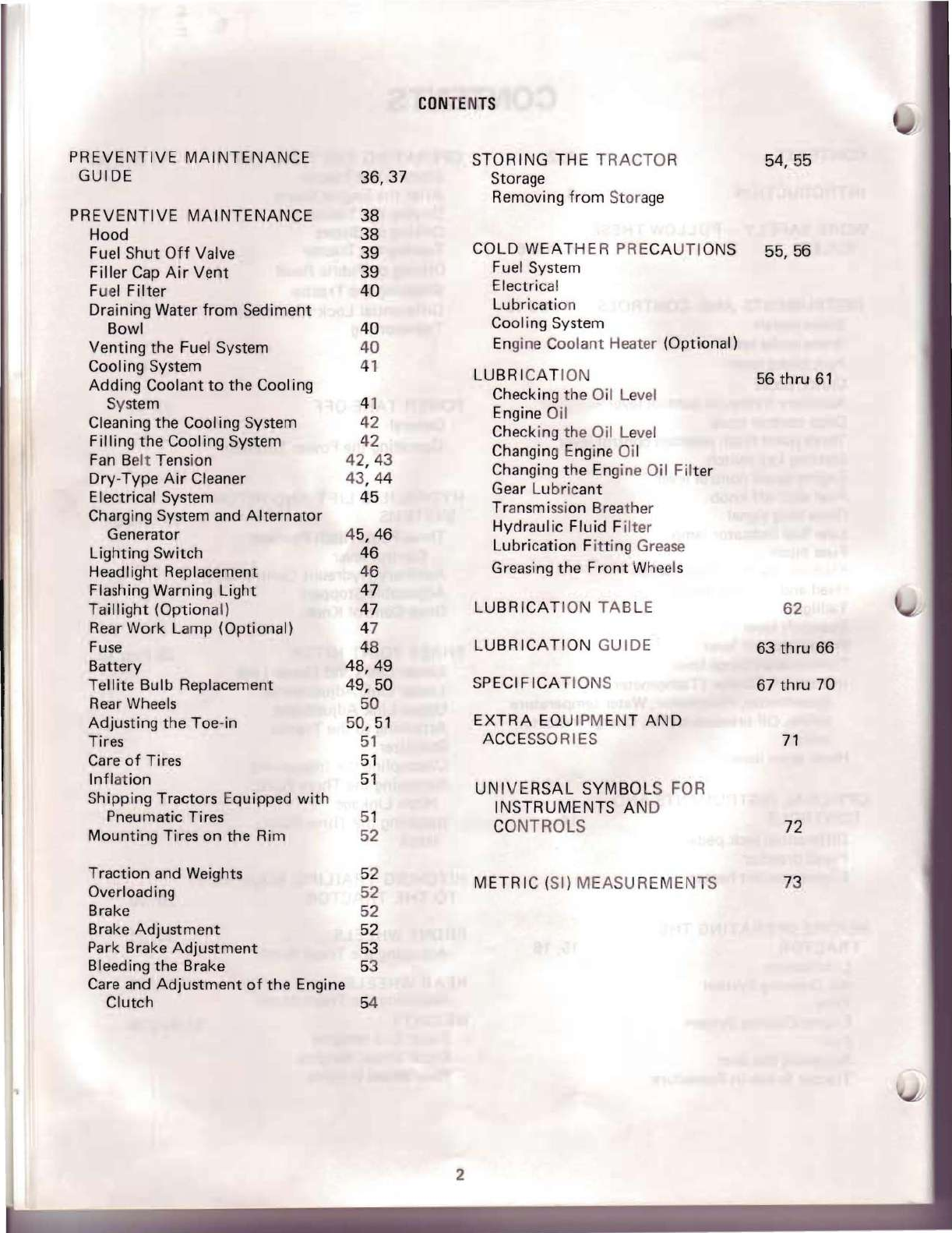

CON TEN TS
PREVENTIVE MAINTENANCE
STORING THE TRACTOR
54,55
GUIDE
36,37
Storage
Removing from St or a ge
PREVE NTIVE MAINTENANCE 38
Hood 38
Fuel Shut Off Valve 39 COLD WEATHER
PRE CAUTI ONS
55,56
Filler Cap Air Vent 39 Fuel System
F ue l Filter 40
Electrical
Draining Water
from Sediment Lubrication
Bowl 40 Cooling System
Venting the Fuel System
40
En gine C oolant Heater (Optional)
Cooling System 41 LUBRICATION
Adding Coolant to the Cooling 56 thru
61
S ys tem 41 Checking the Oil Le
vel
Cleaning the Cooling System 42 Engine Oil
Filling the Cooling System
42
Checki ng th e Oil Le vel
Fan Be lt Tens ion 4
2,43
Chang ing E ng ine Oi l
Dry-Type Air Cleaner 4 3,44
Changing the En gine Oil Filter
Electrical System 45
Gear Lu bricant
Charg i ng System and Alternator
Tr ansmis si on Br ea t he r
Generator 4
5,46
Hydraulic Fluid F ilter
Lighting Switch 46 Lubrication F
it ti ng G rease
Headlight Replacement 46 Greasing the
Front Whe e ls
Flashing Warning Light 47
Taillight (Option al ) 47
LUBRICA TI ON TA BLE
62
Rear Work L am p (Optional) 47
Fuse
48
LUBRICA TIO N GUIDE 63
thru 66
Battery
48,49
Tellite Bulb Replacement 49, 50
SPECI FICATIONS 67
thru 70
Rear Wheels
50
Adjusting the Toe-in 50,
51
EXTRA EQ UIPM EN T AND
Tires 51 ACCE
SSO RIES
71
Care of Tires 51
Infl ation 51
Shipping Tractors Equipped wit h UN
IVE RSAL SYMBOL S FOR
Pneumatic Tires
51
INSTRUMENTS AND
Mounting Tires on the Rim 52 CONTROLS 72
Traction and Weights 52 METR IC (
SI ) MEASU REMENTS
Overloading 52 73
Brake 52
Brake Adjustment 52
Park Brake Adjustment 53
Bleeding the Brake 53
Care and Adjustment of the Engine
Clutch 54

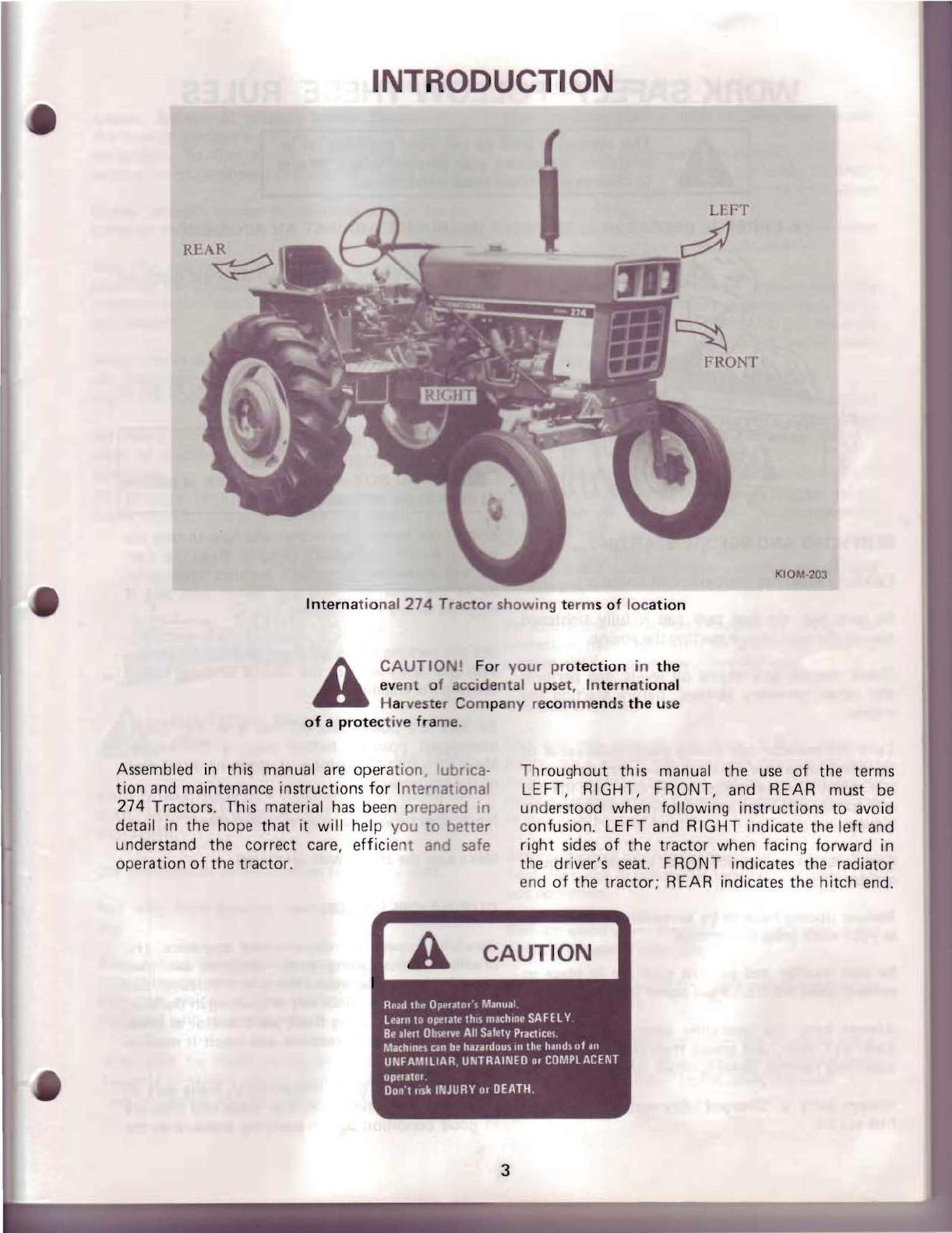

INTRODUCTION
FRONT
KIOM-203
Internatio na l 274 Tr ac to r showing terms of loc ation
A
CA U TIO NI For your pr otection in the
ev ent of accide nta l u ps et . In te rna ti onal
Harvester C om pany recomm end s the use
of a protec tive frame.
Assembled in this manual are operation, lubrica-
tion and maintenance instructions for I nternat onal
274 Tractors . This material has been prepared In
detail in the hope that it will help you to bette r
understand
the correct care, effic ie nt and safe
operation of the tractor.
Th roughout this manual the use of the terms
LEFT, RIGHT, FRONT , and REAR must be
understood when
following instructions to avoid
c
onfusion. LEFT and RIGHT indicate the left and
right sides of the tractor when facing forward in
the driver's seat.
FRONT indicates the radiator
end of the tractor ; REAR indicates the hitch end.
CAUTION
3

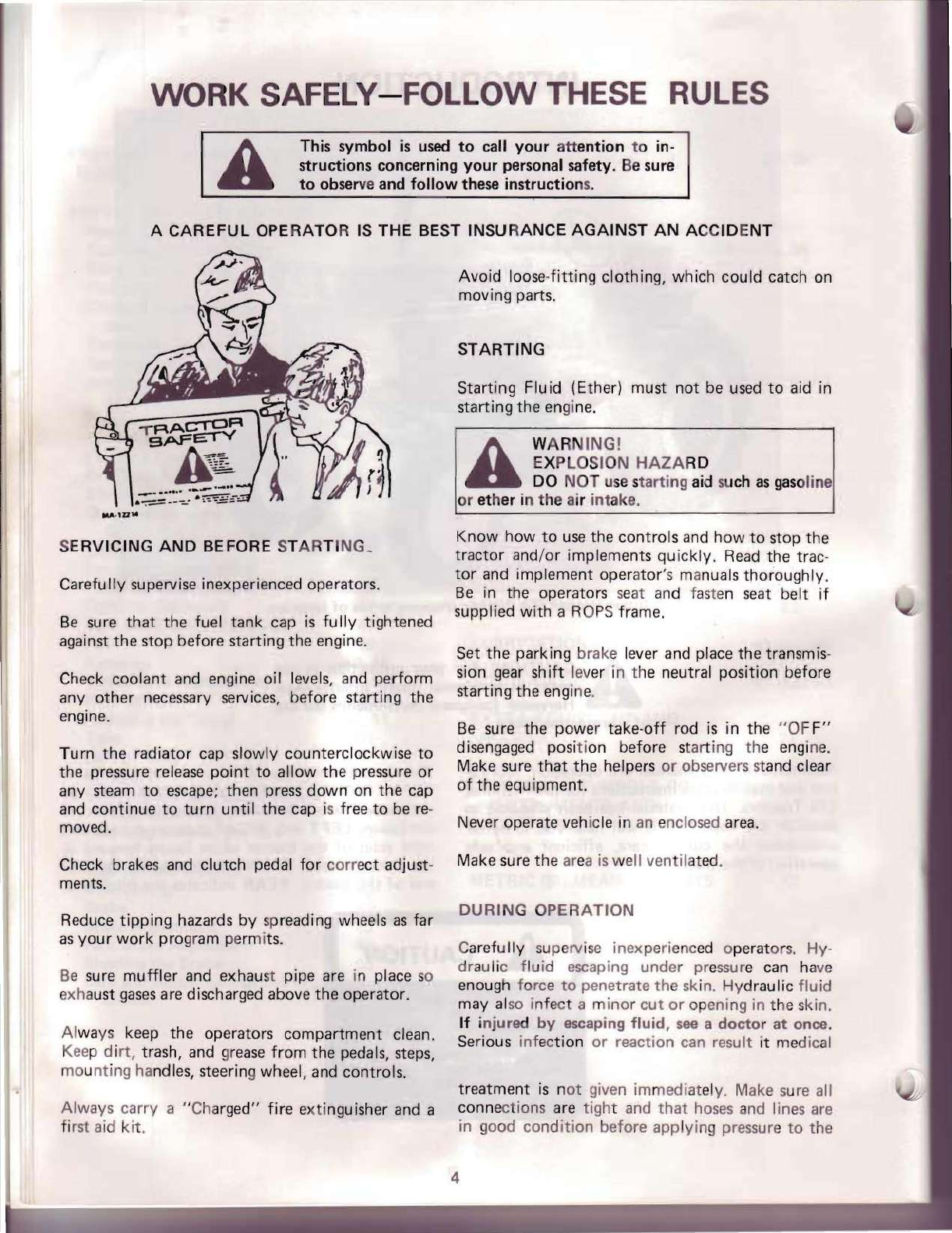

WORK SAFELV- FOLLOW THESE RULES
A This symbol
is used to call your att ention to in-
structions concerning your personal safety. Be sure
to observe and follow these instructions.
A
CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST AN ACCIDE NT
_ . '12"
SERVICING AND BEFORE ST AR TIN G_
Carefully supervise inexperienced operators.
Be sure that the fuel tank cap is fu Ily tightened
against the stop before starting the engine.
Check
coolant and engine oil levels, and perform
any other necessary services, before starting the
engine.
Turn the radiator cap slowly counterclockwise to
the pressure release point to allow the pressure or
any steam to escape; then press down on the cap
and continue to turn until the cap is free to be re-
moved.
Check
brake s and clutch pedal for corre ct adjust-
ments.
Reduce
tipping hazards by spreading wheels as far
as
your work pro gr am permi ts .
Be sure
muffler and exhau st pipe are in place so
exha ust gases are discharged above the operator.
Always keep the operators compartment clean.
Keep d i
rt, trash, and grease from the pedals, steps,
mo unting ha ndles, steerin g wheel, and controls .
Always carry a "Ch arged" fire e xti nguisher and a
fi rst aid kit.
Avoid loose-fitting
clothing, which could catch on
moving parts.
STARTING
Starting Flu id (Ether) must not be used to aid in
starting the en gine.
A WARNING!
EXPLOSION
HAZA RD
DO NOT use starting aid such as gas oline
or ether in the ai r intake.
Know how to use the controls and how to stop the
tractor and/ or implements quickly. Read the trac-
tor and implement oper a tor' s manuals thoroughly.
Be in the operators se at and fasten seat belt if
supplied with a ROPS frame.
Set the parking brake lever and place the transmis-
sion gear shift lev er in the neutral position before
starting the engine.
Be sure the powe r take-off rod is in th e "OF F"
disengaged posi ti on before s tarting th e engine.
Make sure
that the helpers or observers stand clear
of the equ ipment.
Never operate vehic le in an enclosed area.
Make
sure th e ar ea is we ll vent il at ed.
DURIN G OPERATION
C
aref ully supe rv is e inex pe ri en ced o perat ors. Hy-
dr au li c f lu id escaping under pr essure can have
enough force to penetrate the ski n. Hydraulic fluid
may al so i nfect a minor cut or opening in the skin.
If injured by escaping fluid, see a doctor at once.
Serious infec tion or reaction can result it medical
treatment is n ot given immediat el y. Make sure all
conne ct ions are tight and that hoses and lines are
in good condition before app lyi ng pressure to the
4

W OR K SAFElY- FO LLOW THESE RULES
system. Relieve all pressure before disconnecting
the Iines or
perform ing other work on t he hydra u-
lic system. To find a leak under pressure u se a
small piece
of cardboard or wood. Never se hands.
Power take-off master shield must always be in
place on the tractor.
Stop the engine, set the parking brake lever and
place the transmission gear shift lever in t he neutral
position before dismounting from the trac tor for
any reason.
Always keep shields in place. Disengage PTO. shut
off the engine, and remove the key before adjust·
ing or unclogging power driven machinery.
No riders allowed. Make certain
that everone IS
clear of machinery before starting the engine or
operation.
IH strongly recommends a rollover prorect i e
frame (ROPS). It is available for this tract or .
A
CAUTION!
riders. Never
allow unauthorized
MA -16 8p 8
Keep others, especially children, from riding on
steps, fenders, or drawbar, and away from tra c tor
equipment.
Use the drawbar when hitching to a hea vy load.
P
ull only from drawbar; never hit ch to axle hou s-
ing.
Alwa ys k ee p the tractor in gear when going down
hill s. A to w ed vehicle having a grossw ei g ht greater
than
th e weight of the towing tracto r must be
equipp ed with its own brakes.
Stay alert for holes, rocks, tree stum ps and other
hazards in terrain which coulid ca use an upset or
loss of control which could result in inj ur y.
Use care when pulling loads or using heavy equip-
ment:
A.
Use only approved hitch points.
B. Limit loads to those you can safely control.
C. Don't turn too sharp, and use care when
backing.
D. Use counterweight or wheel weights when
suggested in Operator's Manual
Wi th trail-behind PTO driven implements the
hi tching point on the fixed drawbar must be in
line with the PTO shaft. If it is not, the driveline
m ay pu II apart or create excessive angles when
turning
the tractor.
Check overhead clearance carefully before driving
under power Iines, guy wires, bridges, low hanging
tree branches, enteri
ng or leavi ng bui Id i ngs, etc.
On e standard wheel weight must remain on the
rig
ht rear wheel to help maintain proper weight
distr ibution of the tractor and to decrease the
chance
of an overturn.
Al w ays avoid sudden starts, excessive speed, and
su dden stops.
To assure the protection provided by design, the
pro tective frame must not be altered by welding,
cu tt ing, drilling, or in any other manner.
5
TRANSP ORTING
Use warning devices (i.e. flags, S.M.V. emblem,
light
s, etc.) which are approved for use by your
loc al government agencies, when moving equip-
me nt on public roads. Keep these devices clean and
in good
working condition.
Before moving on public roads, or from field to
field, lock the brake pedals together for simultane-
o us operation.
Red uce speed when traveling on rough roads, sharp
tu rns, and down steep hills.
For your safety, avoid he avily-traveled roads when
moving equipment.
Be sure hitches and/or drawbars are properly stabil-
liz
ed before towing equipment. Be courteous, have
consider
ation for other traffic using the road.

WORK SAFELY -FOllOW T HE SE RUL ES

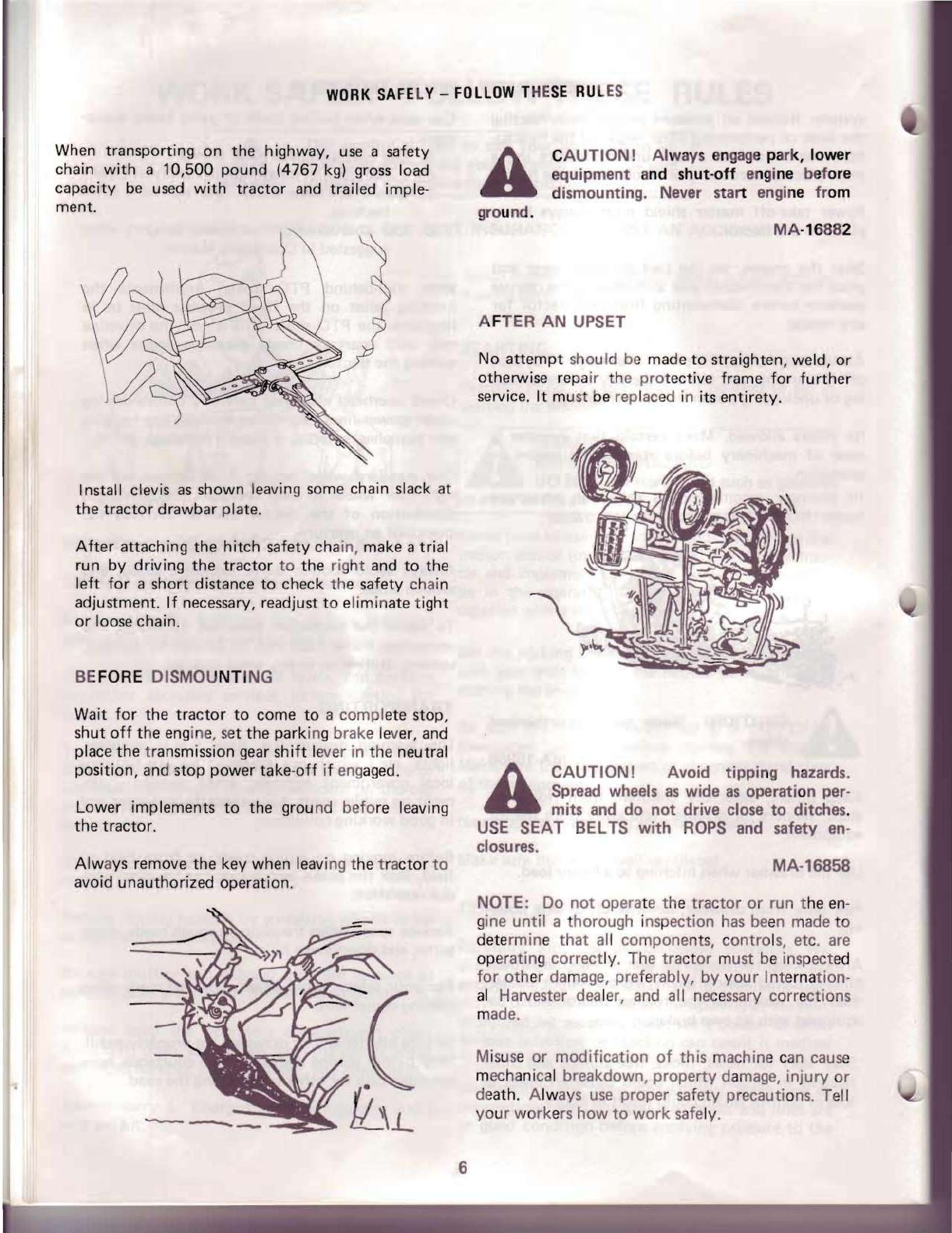

When transporting on the highway, use a safety
chain with a
10,500 pound (4767 kg) gross load
capacity be used with tractor and trailed imple-
ment .
Install clevis as shown leaving some chain slack at
the tractor drawbar plate.
After attaching the hitch safety chain, make a trial
run by driving
the tractor to the ri ght and to the
left for a short distance to check the safety chain
adjustment.
If necessary, readjust to elim in ate tight
or loose chain.
BEFORE DISMOUNTI
NG
Wait for the tractor to come to a compl ete stop,
shut off the engine, set the park in g brake le ver, and
place
the transmission gear shift lever in the neutral
position, and stop power take-off if engaged.
Lower implements
to the grou nd befo re leaving
the tractor.
Always remove
the key when leavi ng the tra ctor to
avoid unauthorized operation.
6
A
ground.
CAUTIONI Al ways engage park, lower
equip
ment a nd shut-off engine bef ore
dismounting. Nev er st a rt engine fr om
MA-16882
AF TE R AN UPSET
No attempt should be made to straighten, weld, or
otherwise repa ir the pro tective frame for further
service. It must be replaced in its entirety .
A CAUTI
ON I Avoid tipping hazards.
Spread wheels as wide as operation per-
mits and do not drive close to ditches .
USE SEAT BELTS with ROPS and safety en-
closures.
MA -16858
NOTE: Do no t ope rate the tr a ctor or run the en-
gine until a horough inspection has been made
to
dete rmine that a li compone nts , c ontro l s, et c. are
operating correct ly. The tra ct or must be inspected
for oth er damage, preferably, by yo ur I nt erna tion -
al Harvester dealer, and all necessary corrections
m
ade .
Mi
su se or modification of this machine can cause
mechanical
breakdown , property damage, injury or
death. A
lw ays use proper saf ety precautions. Tell
your workers how to work safely.

INSTRUMENTS AND CONTROLS
Before attempting to start or operat e the tractor , be sure to review all the
instructions for the new tract or and thoro ughly familiarize yourself with the
instruments and controls.
1 - Brake pedal
2 - Brake ped
al latch
3 - Park
brake lever
4 - Clutch pedal
5 - Auxiliary hydraulic control
lever
6 - Dr
op contro l knob
7 - Three-point hitch posi tion
c ontrol lever
8 -
Star ti ng key switch
9 - Engine speed
control le ver
10 -Fuel shut- off knob
11 -Glow plug signal
12 - Low fuel indicator lamp
7
13 - Fuse block
14 - Flashing warning lig ht
15 - Flashing warning l
igh t switch
16 - Head and taillight
sw it ch
17 - Taillight
18 - Gear shi
ft lever
19 - Power
take - off lever
20 - Transmission range lever
21 - Instrument cluster
(Tachom
et er , speed meter ,
h
our meter, w ater temper -
at ure tellite, oil pressure
tellite and ch arge in dicator
tellite)

INSTRUMENTS AND CONTROL S
BRAKE PEDALS
The brake pedals are used to aid in turn i ng the
tractor. Depress the right brake pedal to slow or
stop the right rear tractor wheel, depr ess the left
brake pedal to slow or stop the left rear tractor
wheel. The tract or w ill turn in the direction of the
wheel that is slowed or stopped.
BRA KE PE DAL LATCH
The br ake pedal la tch is l ocated in th e top ed ge of
the left brake pedal and is used to latch th e t wo
pedals toget her to pr o vi de simuItaneous braking to
bot h re ar wheels when the br ake pedals are de-
pressed. To latch
the pedals together, pivot the
latch a nd engage it in the slot in the right peda l.
For individual brake action, pivot the la tch i nt o
the storage s lot in the left brake pedal.
8
PAR K BRAKE LEVER
The park brake must be on to prevent movement
of the tractor du r in g stationary power take - off
work or when the tracto r is parked. The park
brake is on when the lever is pulled up .
Depress
the bu tt on on th e end of the le v er and
move the lever down to release the park brake.
NOT E: The transm iss ion and park br ake l ock may
be damaged if the
tra ctor is moved wi th the p ar k
brake on.
Do no t put the park brake on wi th the
tra ctor in m otion .
CLU TCH PEDAL
The cl u tc h must be released when stopping the
tr a ctor, turn ing on the pow er tak e- off , operati ng
the gearshift lever, or op erating the transm issi on
ran
ge lever. To release th e clut ch, pre ss the p ed al
a ll the way down. Let the clut ch pedal up sl o wl y
to s tart th e t ractor in m otion.

INS TRUM ENTS AN DCONTR OLS
AUXILIARY HYDRAULIC CO NTROL LEVER
rhis lever is used to raise and low er the mid -
mounted cultivator.
To raise, move the lever to the rear and hold it.
To lower, move the lever forward an d h old it .
The lever returns
to the neutral position auto err -
ically when
it is released.
DROP C ON TROL NOB
Turn the kn ob clockwise to sl ow the rate at whi ch
the three-point
hitch lowers. Turn the knob coun-
terclockwise
to increase the lowering rate.
TH RE E POINT HITCH POSITION CONTROL
LEV ER
Move the position control lever forward to lower
th e three-point h itch . Move the lever to the rear to
rai se the hitch .
A latch is provided
to lock the lever in raised posi-
tion. Make sure this latch is engaged whenever
hitc h is to be left in raised position while operating
tracto r.
ST ARTING KEY SWITCH
The starting switch key can be removed with the
switch in the
"OFF" position. Always insert the
key in the position shown.
The key must
be in the position "ON" while oper-
ating
th e engine.
9

IN S TRUMENTS AN D CONT ROL S
EN GINE SPEED CONT ROL LE VE R
Move the
knob end of the engine sp eed c ontrol
lever to the rear to increase engine speed. Move the
knob en d of th e engine speed c ontrol lever forward
to decrease engine sp ee d.
F
UEL S HU T OFF KNOB
The fuel shut off knob is used to stop the engine.
To s to p the engine, pull the knob out fully. See
"OPERA TI NG THE T RA C TO R".
10
GLO W PLUG S IGNAL
This signal indic at es the co rrect functioning of the
glowplug circu
it . When the signal reaches maxi-
mum br illiance, the gl ow plu gs have reached the
correct tempe ratur e for engine starting.
To energise the glowplu gs, turn th e key count er-
clockwise from the "OFF" position and hold it.
LOW FUEL INDICATOR LAMP
The
low fuel indicator lamp will light to in dicate
that 1 ~ gallons (5 .5 liter) of fuel remains in th e
fuel
tank. See "STARTING THE TRACTOR"
for che ck to determine if the tellite is functional.

INSTRU MENTS A ND CO NTR OLS
FUSE BLOCK
Three fuse elements located under the f use ' d
cover system. See "ELECTRICAL SYSTE .. or
replacement instructions.
FLASHING WARNING LIGHT SWI T CH
Flashing warning light can be fl as hed by turning
the switch clockwise.
It is independent of key switch.
This light
is for use on public hig hway to warn
drivers
of other vehicles that they are approachmg
a slow moving vehicle.
See " DRIVIN G ON PUBLIC ROAD" in "OP ER A T-
I G TH E T RA CTOR".
H EAD AND T~ILLIGHT SWITCH
The switch has four positions: "OF F" positions;
"TA IL" position for the instrument panel and red
taillight; " LOW" position for panel light, red tail-
light and dim headlights; " HIGH" position for red
a,II,ght, panel light and bright headlights.
NOTE : The switch works independently of the key
swit ch.
TAI LLI GHT
Ta illi g ht
The taillight is turned on by the head and taillight
switch. See "HEAD AND T AILLIGHT SWITCH".
11

INSTRUMENTS AND CONTROLS
GEARSHIFT LEVER
This lever is used to shift the transmission gears
into reverse or any of the four forward speed
ranges.
POWE R TA KE-OFF LEVER
Push this lever forward for power take - off opera -
tion. Pull the lever back against the lock tab on the
locking plate to turn-off the power take -off.
The lever
is locked in "OFF" position to avoid in -
a dvertent engagement of PTa .
See "PO WE R TAKE -OFF" un der "ADJUSTING
AND OPERA TI NG",
TRANSMISSION RAN
GE LEVER
Move the transmission ran ge lever forwar d to place
the trans mission in " LO W" range. Move the lever
to the rear to pl ace th e tr ansmission in "HIGH"
range. The cen te r p os ition places th e transmission
in "NE UTR AL".

IN STRU ME NT S AND CO N TR O LS
INSTRUMENT CLUSTER
1 - Tachometer
2 - Speedmeter
3 -
Hour meter
4 - Water te
mp era ture tellite
5 - Oil pr es sure tellite
6 - Charge indic ator tellite
~ TACHOME TE R
The tachometer indicates engine s
pe ed in r ° u-
tions per minute. (r.p.m.)
SPE ED ME TER
The speedmeter indicates ground spee d in miles per
hour in fourth gear (High range).
HOUR METER
The hour meter indicates hours of eng ine operatIon
up to 9999.9 hours. The hour meter is accurate at
1800 engine rpm .
WATER TEMPERATURE T ELLITE
The water temperature tellite indicates high en gi ne
coolant temperature.
If the light comes on, remove the load and allow
he engine to run at high idle until the light goes
out . If the light does not go out within one minute,
top the engine and determine the cause.
See "ST AR TING THE TRACTOR" for check to
determine if the tellite is functional.
~ OIL PRESSURE TELLITE
The oil pressure tellite indicates low engine oil
pressure. If it lights during engine operation, stop
the engine immediately and determine the
cause.
f CHARGE INDICAT OR TELLITE
The ch arge indicator tellite indicates the battery is
being discharged. If the light comes on during
operation, determine and correct
the cause to
avoid complete discharge of the battery and possi-
ble dam age to other elements of the electrical sys-
tem. See yo ur Internation al Harvester dealer.
HOOD OP EN LEVER
The lever is used to release the latch of front hood.
Front hood can be opened by hand after releasing
the latch. See "PREVE N TIVE MAINTENANCE".
13

OPTIONAL INSTRUMENTS AND CONTROLS
DIFFERENTI AL LOCK P EDA L
Push down on the di ff erent ial lock pedal with t he
rig ht heel to lock t he re ar wh eel s together to pr e-
ve nt o ne whe el from spinning on a wet or slip pe ry
su rf ace. Remove the he el from th ep edal to rele ase
the diff erential lock.
Refer
to " DIF FE RE NTIAL LOCK" under "OPER-
ATING THE TRACTOR".
NOTE: Alw ays release the differential lock be for e
maki
ng a turn.
F IXED DRA WB AR
14
S ee "HITCHING TRAILING EQUI PM E NT TO
THE TR ACTOR".
RE AR WORK LAMP
The rear work lamp
is turned on by th e sw itch on
th e work lamp.
It is independe nt of the ignition switch.
See "OPERATING THE TRACTOR" .
A
CAUTION! Do not turn on the rear
work lamp while traveling on public
road.
ENGINE COOLANT HEATER
T
he block type e ng in e cool an t heater isavailab le as
optional eq u ip ment.
Refer
to "COLD WEATHER PRECAUTION".
