Application Note 1181
Author: Pengju Kong
ISL6442 Dual PWM and Linear Controller Evaluation
Board User Guide
This application note describes how to use the ISL6442EVAL1Z
(Rev. C) board to evaluate the ISL6442 dual switching
regulator, plus one linear regulator. Refer to the schematic,
BOM (Bill of Materials), and board layout (at the end of this
document), as needed. The ISL6442 datasheet is also used as
a reference.
Configuration
The outputs are set up as follows:
•SwitcherV
OUT1 = 1.8V @ 3A (with VIN = 6V)
•SwitcherV
OUT2 = 3.3V @ 3A (with VIN = 6V)
•LinearV
OUT3 = 5.0V @ 0.3A (with VIN3 = 6V)
The outputs are switching at ~1.4MHz rate, based on the
resistor selected on the RT pin.
The current range for the switcher output that is presently
supported is limited by the FETs used. The FDS6912A dual FET
(in SO-8 package) can handle up to 3A. However, the ISL6442
gate drivers are capable of driving discrete upper and lower
FETs for up to 25A output current as well, even though not
supported on this board.
The linear output supports ~1W. The output current capability
of the linear regulator is determined mainly by the power
dissipation of the FET as mounted:
PVOUT3 = (VIN3-VOUT3)*IOUT3.
Quick Start Evaluation

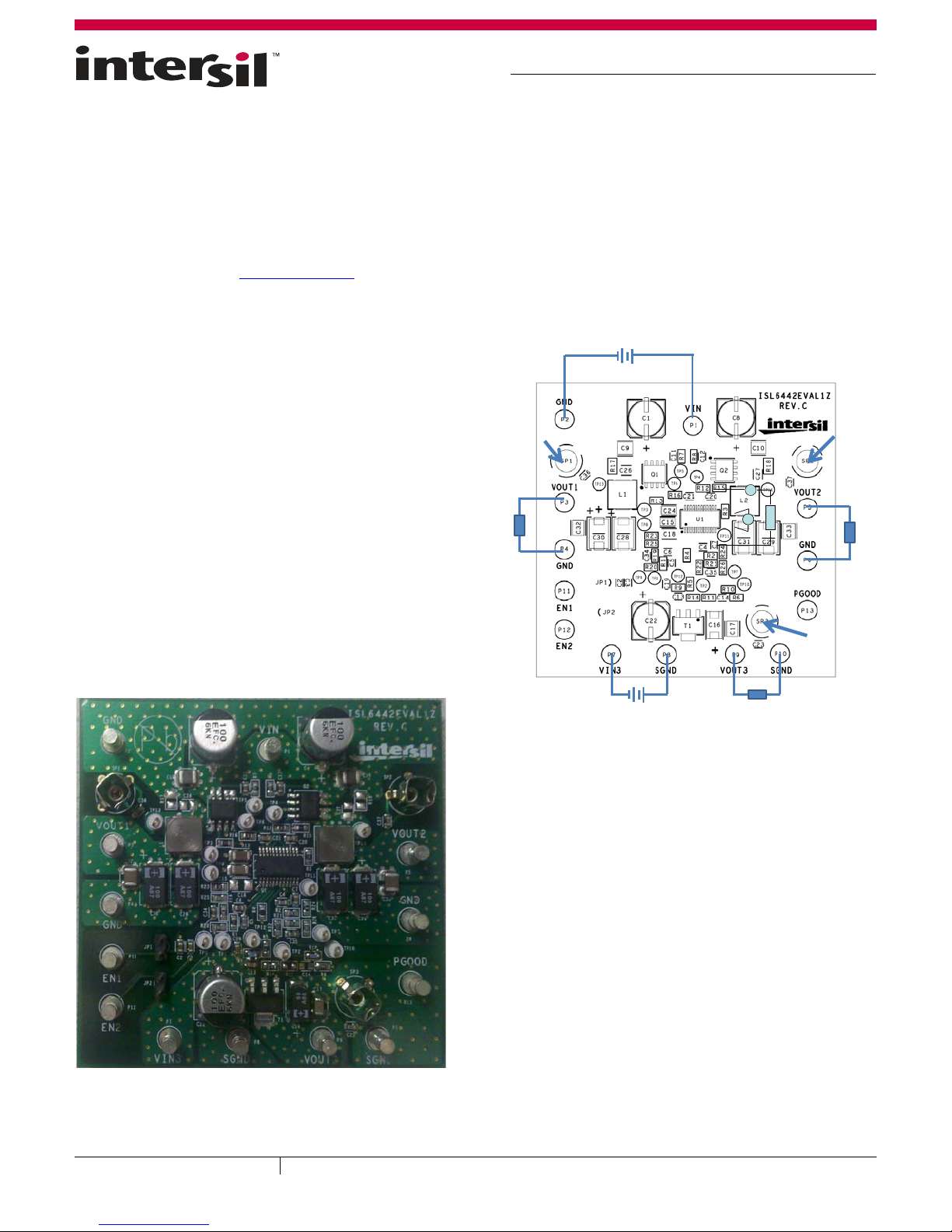

Figure 1 shows a photo of the populated board, and Figure 2
shows a plot of the top layer for reference, and details the
available input and output connections. Two switchers share
one input VIN. The linear regulator has separate turrets for its
input (VIN3) and GND. Each output has turrets for VOUT and
GND, plus a scope probe socket, for low noise waveforms.
Quick Start Setup (Light Load)
For a quick and easy test, one 6V supply is needed. Connect P1
(VIN) and P7 (VIN3) to each other, and to the 6V supply; connect
the supply GND to P2 and P9. Attach light loads to each
output.
Switch on the power supply; all three outputs should turn on to
their expected DC values; use a voltmeter or oscilloscope to
view them. VOUT1 and VOUT2 will have a ramp time of a few
milliseconds (VOUT3 will be much faster).
Note that the IC and all three inputs are sharing one supply
voltage in this simple example. The linear VIN3 can certainly be
different, since it has its own input posts.
Board Features and Modifications
Heavier loads can be evaluated by placing them across the
appropriate output to GND. Resistors, electronic loads, or
FIGURE 1. ISL6442EVAL1Z BOARD PHOTO
LOAD
A
Iout
VV
+
_
Vout
VIN = 6V
VIN3 = 6V VOUT3 LOAD
VOUT2 LOAD
VOUT1 LOAD
VOUT2
test
point
VOUT1
test
point
FIGURE 2. ISL6442EVAL1Z INPUT AND OUTPUT CONNECTIONS
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
Copyright Intersil Americas Inc. 2011. All Rights Reserved.
1-888-INTERSIL or 1-888-468-3774 |Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
November 28, 2011
AN1181.1

Application Note 1181
2AN1181.1
November 28, 2011
actual loads can be used. It is STRONGLY recommended that the
power be turned off when attaching loads, due to the tight
spacing of the posts. The switcher outputs should be able to
provide at least 3A; monitor the FET temperature if you try to go
higher, to be sure the conditions will allow it. Make sure the input
power supply can source the amount of input current necessary
to drive the maximum loads to be tested.
The linear VOUT3 is especially sensitive to power dissipation
concerns; it will change as the user varies either the input
voltage, the output voltage, and/or the load current. The
equation used is PVOUT3 = (VIN3-VOUT3)*IOUT3. The PNP bipolar
will also be rated for how well the power is dissipated from the
package and spread out on the board; this is another variable
that the user must keep in mind for their design and layout.
JP1 is used to disable VOUT1, by shorting SS/EN1 to GND. JP2
does the same function for VOUT2.
The switching frequency is controlled by a resistor (R4) on the RT
pin, to GND. Refer to the datasheet for the curve of resistor
values versus frequency.
Each output voltage is determined by a resistor divider from the
output to its FB pin to GND. See the ISL6442 datasheet for the
formulas to calculate the values. Note that there are some
limitations; the switchers can approach 100% duty, but will be
limited by dead time, rDSON of the FETs at maximum load,
switching frequency, etc. The maximum values are limited by the
VIN available (if you want go higher, check the ratings of the FETs,
and other output components to be sure they can handle it). The
minimum output voltage will be just above the 0.6V internal
reference. The maximum output voltage for the linear is limited
by the VIN3 and the LCDR pin (which is biased from 5V). Thus, the
maximum output voltage is close to the 5V set on the board; it is
not recommended to go higher. The minimum voltage will also
be just above the 0.6V internal reference.
Performance Waveforms
These figures depict the ISL6442EVAL1Z performance during
typical operational situations, as well as during fault conditions.
Loading of the output can be most easily done via an electronic
load; however, other methods can work as well.

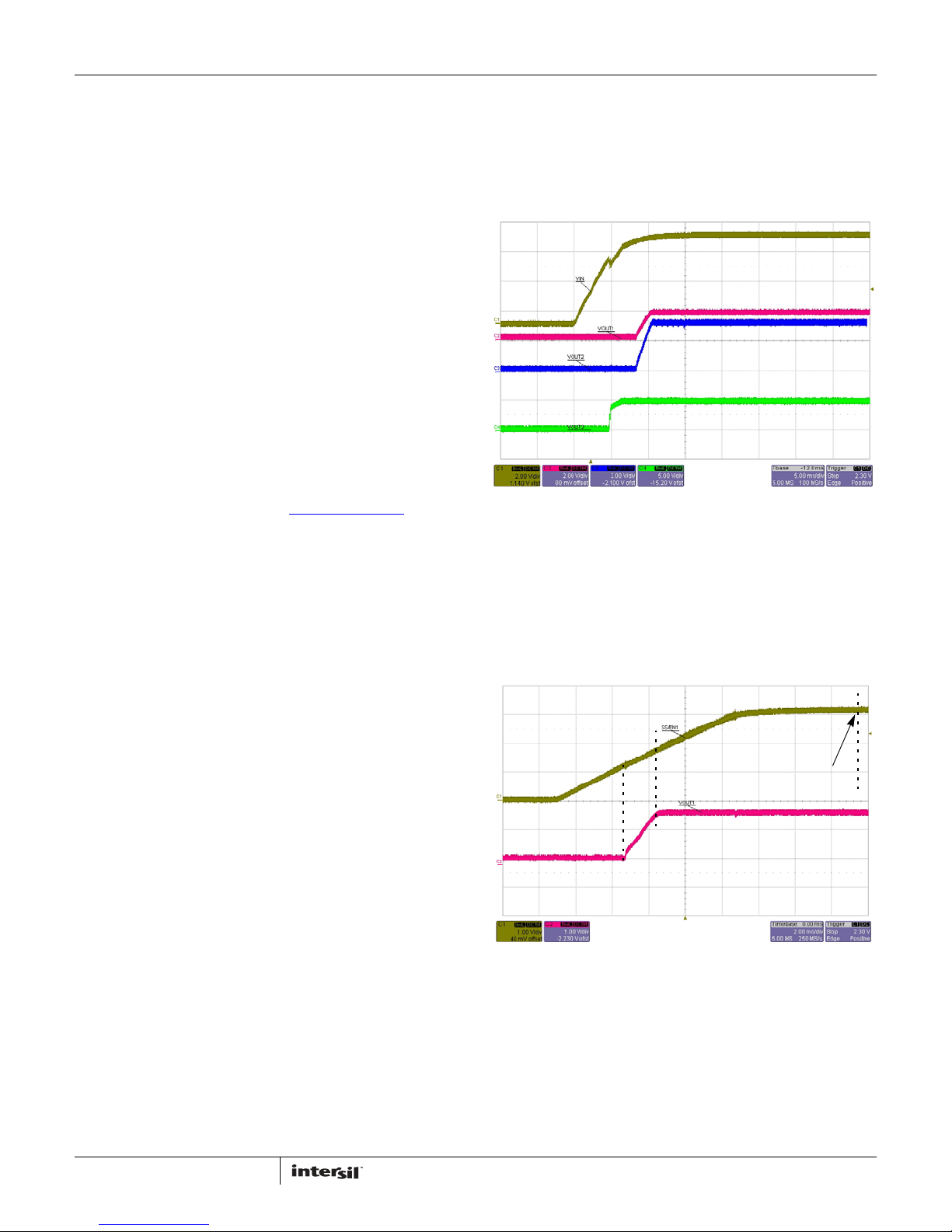

Figure 3 shows a typical power-up sequence, with all inputs
connected to a single VIN = VIN3 = 6V. When VCC exceeds its
POR rising trip point (~4.4V), the IC is enabled, and the linear
VOUT3 comes up almost immediately. Meanwhile, the two SS/EN
pins start charging (not shown), but the outputs do not start
ramping until the SS/EN pins ~1V; then both switcher outputs
start their soft-start ramps at the same time. In this case, both
outputs track each other initially; this is accomplished by
selecting the ratio of SS/EN capacitors to match their output
voltages. The ramp times shown are on the order of a few
milliseconds, as determined by the SS/EN capacitors on the
board.
Figure 4 shows the detail soft start waveform of PWM1 (PMW2
would be similar). The full SS/EN1 ramp is shown; the output
doesn’t start to ramp until the SS/EN passes the ~1V threshold
for Enable. The output ramps from zero to full scale, while
SS/EN1 ramps from 1.0V to 1.6V. Finally, the EN/SS1 keeps
ramping up to ~3.2V, at which point the ramp is considered done
(the PGOOD timer would start from this point, if both outputs
ramps were done).
FIGURE 3. TYPICAL POWER-UP WAVEFORMS WITH VIN
CH4 VOUT3
(5V/DIV)
CH3 VOUT2
(2V/DIV)
CH2 VOUT1
(2V/DIV)
CH1 VIN
(2V/DIV)
5ms/DIV; VIN3 = VIN
CH1 OUT1
(1V/DIV)
CH1 EN/SS1
(1V/DIV)
2ms/DIV FIGURE 4. PWM1 SOFT-START
~3.2V

Application Note 1181
3AN1181.1
November 28, 2011

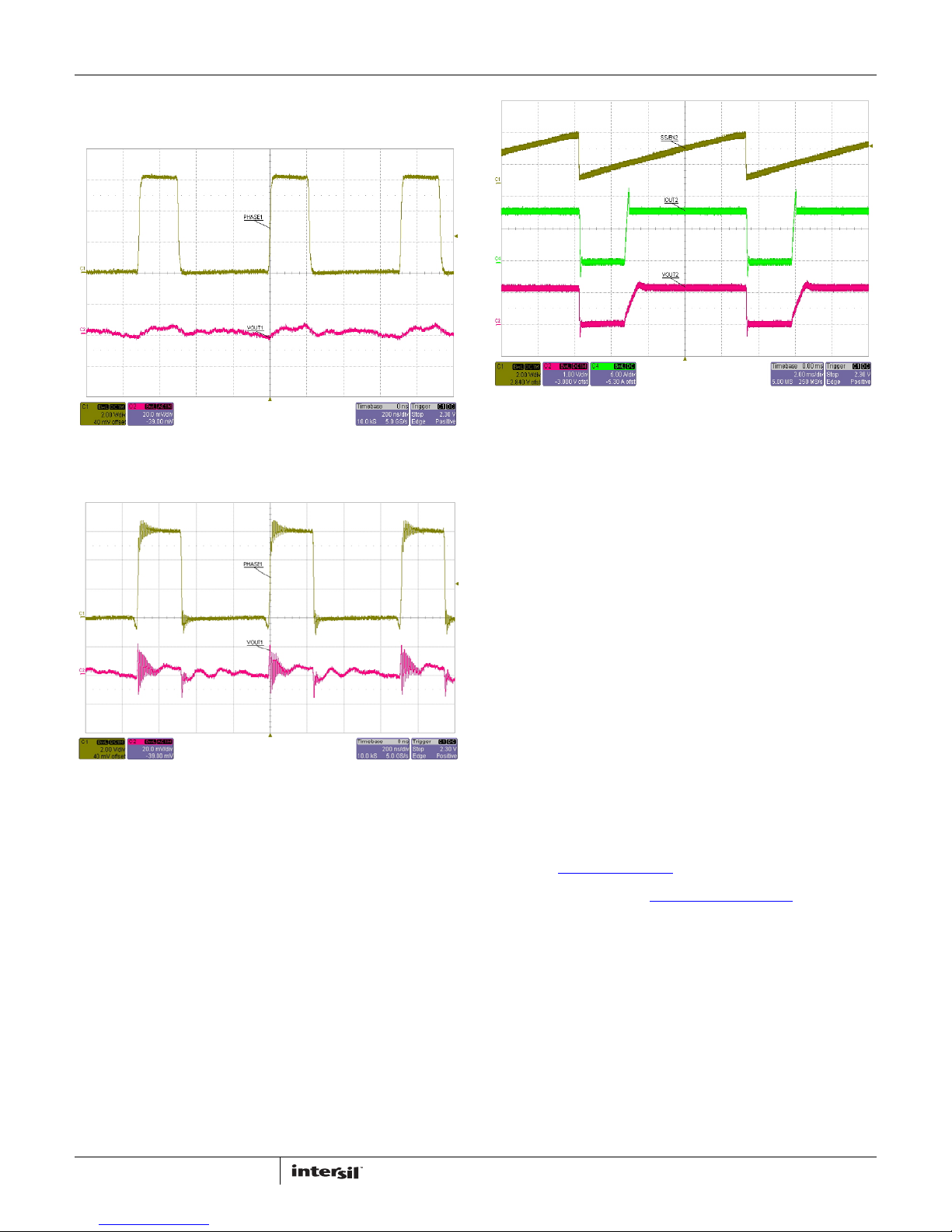

Figures 5 and 6 show the PHASE1 signal (which has the same
timing as UGATE1) and the output voltage ripple on VOUT1 at no
load and 3A load. The switching frequency is 1.4 MHz.
Figure 7 shows the overcurrent hiccup mode already in
operation. At time T0, the SS/EN2 is discharged to GND (it may
not have time to reach GND, due to the limited size of the
discharge transistor, plus the size of the timing capacitor). Once
SS/EN2 is below ~1V, the output should shut off, and the load
current goes to zero; this occurs by time T1. Once SS/EN2 rises
above 1V again, the VOUT2 will try to turn on again. If the output
remains shorted, the output current will be limited on each clock
cycle to an average value low enough to keep the dissipation
reasonable.
Conclusion
The ISL6442EVAL1Z evaluation board showcases a simple, but
high-performance dual regulator, providing control in a variety of
applications, with emphasis on computer systems. The
high-current MOSFET drivers of the ISL6442 yield a highly
efficient power conversion solution with a reduced number of
external components in a compact footprint.
Documentation
See the following pages for more detailed information, including:
• “Schematic” of ISL6442EVAL1Z
• Table 1, “BILL OF MATERIALS” on page 5
• “ISL6442EVAL1Z Board Layout” on page 7. Note that this
board layout has not been fully optimized for performance or
minimum board area, primarily due to the various options, test
points, and other features to make testing easier. So while it
follows most of the recommended practices, it could
potentially be improved for any given single application.
References
Datasheet: ISL6442 datasheet
Visit us on the internet, at: http://www.intersil.com
CH1
PHASE1
CH2 (AC)
VOUT1
(20mV/DIV)
FIGURE 5. PWM1 SWITCHING AND RIPPLE WAVEFORMS AT
NO LOAD
(2V/DIV)
0.2µs/DIV; VOUT1 = 1.8V; VIN = 6V
CH1
PHASE1
CH2 (AC)
VOUT1
(20mV/DIV)
FIGURE 6. PWM1 SWITCHING AND RIPPLE WAVEFORMS
AT 3A LOAD
(2V/DIV)
0.2µs/DIV; VOUT1 = 1.8V; VIN = 6V
FIGURE 7. PWM2 OVERCURRENT HICCUP MODE
CH1
SS/EN2
CH4
ILOAD2
CH2
VOUT2
(1V/DIV)
2ms/DIV; VOUT2 = 3.3V; VIN = 6V; ROCSET = 2.15kW
(5A/DIV)
(2V/DIV)
T0 T1

Application Note 1181
4AN1181.1
November 28, 2011

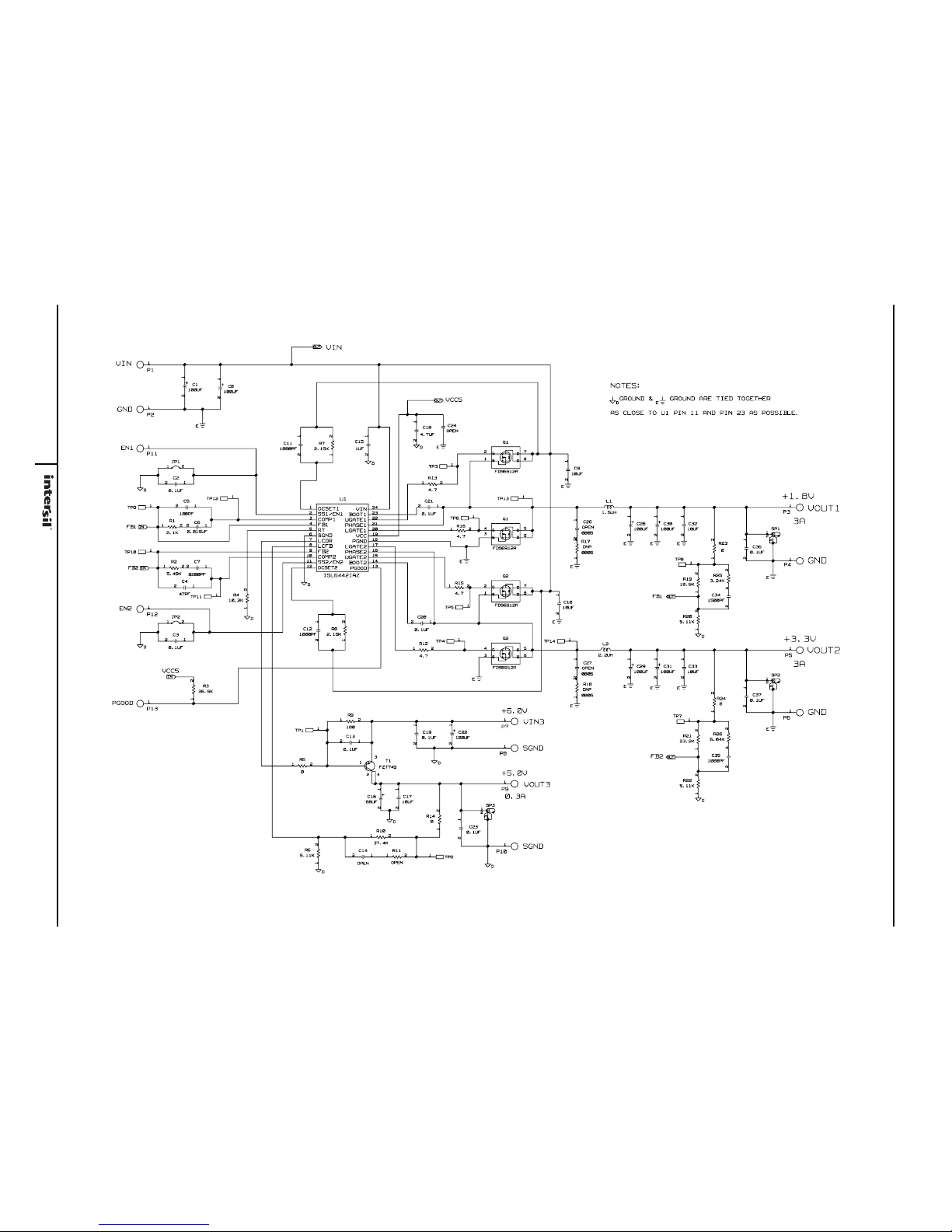

Schematic
