INTERSPORT E4.1 User manual
E4.1
PROGRAMMABLE
MAGNETIC ELLIPTICAL
1
ENGLISH MANUAL
2
Thank you
Thanks for purchasing this product. The product will help you exercise your muscles in the correct way and to improve
your fitness and all this in a familiar environment.
Precautions
WARNING: This elliptical trainer has been designed and constructed to provide maximum safety. Nevertheless, certain
precautions should be taken when using exercise equipment. Read the whole manual before assembling and using the
elliptical trainer. The following safety precautions should also be observed:
It is the responsibility of the owner to ensure that all users of the elliptical trainer are adequately informed of all
precautions. Use the elliptical trainers only as described in this manual.
Keep children and pets away from this equipment at all times. DO NOT leave them unsupervised in the room where this
elliptical trainer is kept.
Inspect and assemble all parts regularly. Replace and worm parts immediately.
Place the elliptical trainer on a level surface, with at least 1.0 m of clearance on each
side of elliptical trainer. To protect the floor or carpet from damage, place a mat under the elliptical trainer.
Keep the elliptical trainer indoors, away from moisture and dust. Maintain the using place ventilation. DO NOT use it in the
airless place.
Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the elliptical trainer.
Always wear athletic shoes for foot protection while exercising.
Do not use this product if more than 130kg of weights.
Do not put your hands on the moving parts to prevent injures.
Keep your pedaling speed in a controlled way.
If you find your elliptical trainer works abnormal, do not use it immediately.
No more than one person should operate the elliptical trainer at one time.
If you feel pain or dizziness while exercising, stop exercising immediately and ask for a doctor.
3
Safety notice
When you are remedial or have below symptoms, after discussing with your doctor, then
could use this elliptical trainer.
1. Waist paining now and leg, waist, neck hurt before, legs, waist, neck and hand numbly please do not use.
2. Have anamorphic arthritis, rheumatic and gout.
3. Have osteoporosis and other abnormality.
4. Have perfunctory system obstacle (heart disease, blood obstacle, hypertension ).
5. Have breath obstacle.
6. Using the manpower pulse adjust machine or insert into the body machine.
7. Have sarcomata.
8. Have thrombus or other symptoms.
9. Have diabetes or be caused by diabetes feeling obstacle.
10.Have skin trauma.
11.Hyperpyrexia caused by sick(38or over 38).
12.Abnormal back bone or back bone bending.
13.Pregnant or catamenia.
14.Feel physical abnormality, need convalesce.
15.Body condition is not very well.
16.The aim is to healing.
17.Except the upper symptoms, feel other physical abnormality.
Before beginning any exercise program, consult your physician. This is especially important for
persons over age 35 or persons with pre-existing health problems. To reduce the risk of serious
injury, read all important precautions and instructions in this manual and all warnings on your
elliptical trainer before using your elliptical trainer.
4
Pre-assembly Notes
Open the boxes:
Make sure to inventory all the parts that are included in the box. Check the hardware chart of a full count of the number
of parts included for proper assembly . If any of the parts are missing, contact with the dealer.
5
NO.
NAME
SPECIFICATION
QTY
31
Allen C.K.S. half thread screw
M85020
4
32
Spring washer
7
33
Flat washer
t1.5
11
34
Allen C.K.S. half thread screw
M86520
3
35
Curve washer
8.5R25t2.0
6
36
Hex self-locking nut
M8
6
37
Allen C.K.S. full thread screw
M820
6
38
Philips C.K.S. self-tapping screw
ST416
10
39
Wave spring washer
15
4
40
Allen C.K.S. half thread screw
M84020
4
41
carriage screw
M105020
4
42
4
Flat washer
44
Allen C.K.S. hollow screw
1056.5-M620
2
45
Flat washer
6
2
46
Allen C.K.S. full thread screw
M615
2
47
Philips C.K.S. full head screw
M510
4
48
Philips C.K.S. full head screw
M410
4
6
Name
Specifications
QTY
L- shape wrench
5x80x80S
1
L- shape wrench
5X35X85S
1
L- shape wrench
6X40X120
1
Cross spanner
15#&17#
1
Cross open spanner
1
GATHER YOUR TOOLS
Before starting the assembly of your unit, gather the necessary tools. Having all of the equipment at hand
will save time and make the assembly quick and hassle-free.
CLEAR YOUR WORK AREA
Make sure that you have cleared away a large enough space to properly assemble the
unit.Make sure the space is free from anything that may cause injury during assembly.After
the unit is fully assembled,make sure there is a comfortable amount of free area around the
unit for unobstructed operation.
NOTE: Each step number in the assembly instructions tells you what you will be doing. Read
and understand all instructions thoroughly before assembling .
7
Product instruction
PRODUCT
E4.1
DIMENSION
Unfold 1300x530x1600mm
SPEED RATIO
8
FLYWHEEL
RESISTANCE
FRAGMEN
32
STRIDE LENGTH
330×175MM
Technical Information
8
ASSEMBLY INSTRUCTIONS
Step 1:
Attach the front stabilizer
(2) to the main frame (1)
with curved washer(33),
spring washer(32) and
Allen C.K.S. half thread
screw(31).
Step 2:
Attach the rear stabilizer
(3) to the main frame (1)
with curved washer(33),
spring washer(32) and
Allen C.K.S. half thread
screw(31).
9
Step 3:
1. Attach the Upright post decoration strip(89)
to the upper upright post(4),take upright
post cover(16) off from the main frame(1)
and cover it on the upper upright post(4).
2. Connect motor communication wire(24) and
console communication wire(25).
3. Attach upper upright post(4) to the main
frame(1) with curve washer(35), spring
washer(32),Allen C.K.S. full thread
screw(34) and flat washer(33), spring
washer(32),Allen C.K.S. half thread
screw(37) andAllen C.K.S. half thread
screw(34), flat washer(33), Hex self-locking
nut(36).
4. Attach upright post cover(16) and Upright
post decoration strip(89) to the main
frame(1).
5. Attach bottle holder(14) to upper upright
post(4) with Philips pan head full thread
screw(38).
6. Attach the axle(15) to the upright post(4).
Tip: Put the communication wires and
resistance adjust knob wire into the upright
post, and make sure all screws are in the
hexagonal hole before tighten all the bolts.
10
Step 4:
1.Attach the wave spring washer(39) to
the axle(15 ),attach the body arm set(5)
to the axle(15), tighten with the flat
washer(33) and Allen C.K.S. full thread
screw(37)
Step 5:
1. Attach Body arm(L)(6) to Body arm
set(5),tighten with Curved washer(35), Allen
C.K.S. half thread screw(40),and Hex self-
locking nut(36).
2. Attach the BodyArm cover 1(Upper) 17 and
BodyArm cover 2(Upper) 18 to the Body
arm(L)(6),tighten with Philips C.K.S. self-
tapping screw(38).
3. Attach the Body arm(R)(7) same as above
steps.
Tip: Make sure all screws are in the
hexagonal hole before tighten all the bolts.
11
Step 6:
1. Attach the Pedal(L) 13 to the Pedal
supporter(L/R)(8),tighten with carriage screw(41),
Flat washer(42),and Hex locking nut(93).
2. Attach the Pedal(R)(14) to the Pedal
supporter(L/R)8) as the same way. Tip: Make sure
all screws are in the hexagonal hole before tighten
all the bolts.
Step 7:
1. Attach the Wave spring washer(39) to the axle A1
of main frame(1),and attach the axle bushingA2 of
Pedal supporter(L/R)(80) to the axle A1, tighten
with the Flat washer (33) and Allen C.K.S. full
thread screw(37).
2. Attach the U shape plate A3 of Pedal
supporter(L/R)(8) to the axle bushingA4 of main
frame(1),tighten with Allen C.K.S. hollow screw(44),
Flat washer(45),andAllen C.K.S. full thread
screw(46).
3. Attach the BodyArm cover 1(19) and Body Arm
cover 2(20) to the Pedal supporter(L/R)(8),tighten
with Philips C.K.S. self-tapping screw(35).
4. Install right pedal supporter(14) with the same way.
12
Step 8:
1. Handle pulse connection wire
(28)through the Upright post(4),and
attach the Handlebars(9) to Upright
post(4),tighten with T-shaped rotary
knob(21).
2. Attach Console fixed piece(10) to the
Upright post(4),tighten with Philips
C.K.S. full head screw(47).
Tip: Make sure all screws are in the
hexagonal hole before tighten all the
bolts.
13
Step 9:
1. Connect the Console communication wire
(25) and Console connection
wire(30),connect the Handle pulse
connection wire(28) and Console
outset(29).
2. Attach the Console(11) to the Console fixed
piece(10),tighten with Philips C.K.S. full
head screw(497).
3. Attach the Handlebar cover(L)(22) and
Handlebar cover(R)(23) through the
Handlebars(9) to the Upright post(4),tighten
with Philips C.K.S. full head screw(48).
Tip: Make sure all screws are in the hexagonal
hole before tighten all the bolts.
Tip: Adjust the handlebar (9) to a suitable
place, about 100mm away from the console
(11)
14
Half-drawing for assembly
15
Part list
NO.
NAME
SPECIFICATION
QTY
1
Mainframe
1
2
Front stabilizer
1
3
Rear stabilizer
1
4
Uprightpost
1
5
Saddlepost
2
6
Body arm upper(L)
1
7
Body arm upper(R)
1
8
Pedal supporter(L/R)
2
9
Handlebar
1
10
Consolefixed piece
1
11
Console
1
12
Bottleholder
1
13
Pedal(L)
1
14
Pedal(R)
1
15
Axle
×311.5
1
16
Bottom stand post cover
1
17
Body Arm cover 1(Upper)
2
18
Body Arm cover 2(Upper)
2
19
Body Arm cover 1(Bottom)
2
20
Body Arm cover 2(Bottom)
2
21
T-shapedrotary knob
M830
1
16
22
Handlebar cover(L)
1
23
Handlebar cover(R)
1
24
Motorcommunicationwire
1
25
Consolecommunicationwire
1
28
Handle pulse connectionwire
2
29
Consoleconnectionwire
2
30
Consoleconnectionwire
1
31
Allen C.K.S. half thread screw
M8×50×20
4
32
Spring washer
8
7
33
Flatwasher
t1.5
11
34
Allen C.K.S. half thread screw
M8×65×20
3
35
Curved washer
×R25×t2.0
6
36
Hex self-lockingnut
M8
6
37
Allen C.K.S. full thread screw
M8×20
6
38
PhilipsC.K.S. self-tappingscrew
ST4×16
10
39
Wave springwasher
4
40
Allen C.K.S. half thread screw
M84020
4
41
carriage screw
M105020
4
42
Flatwasher
10
4
43
Hex self-lockighut
M10
3
44
Allen C.K.S. hollow screw
1056.5-M620
2
45
Flatwasher
6
2
46
Allen C.K.S. full thread screw
M615
2
47
Philips C.K.S. full head screw
M510
4
48
Philips C.K.S. full head
screw
M410
4
49
Philips C.K.S. full head
screw
M510
4
89
Upright post decoration
strip
1
93
Knob
4
17

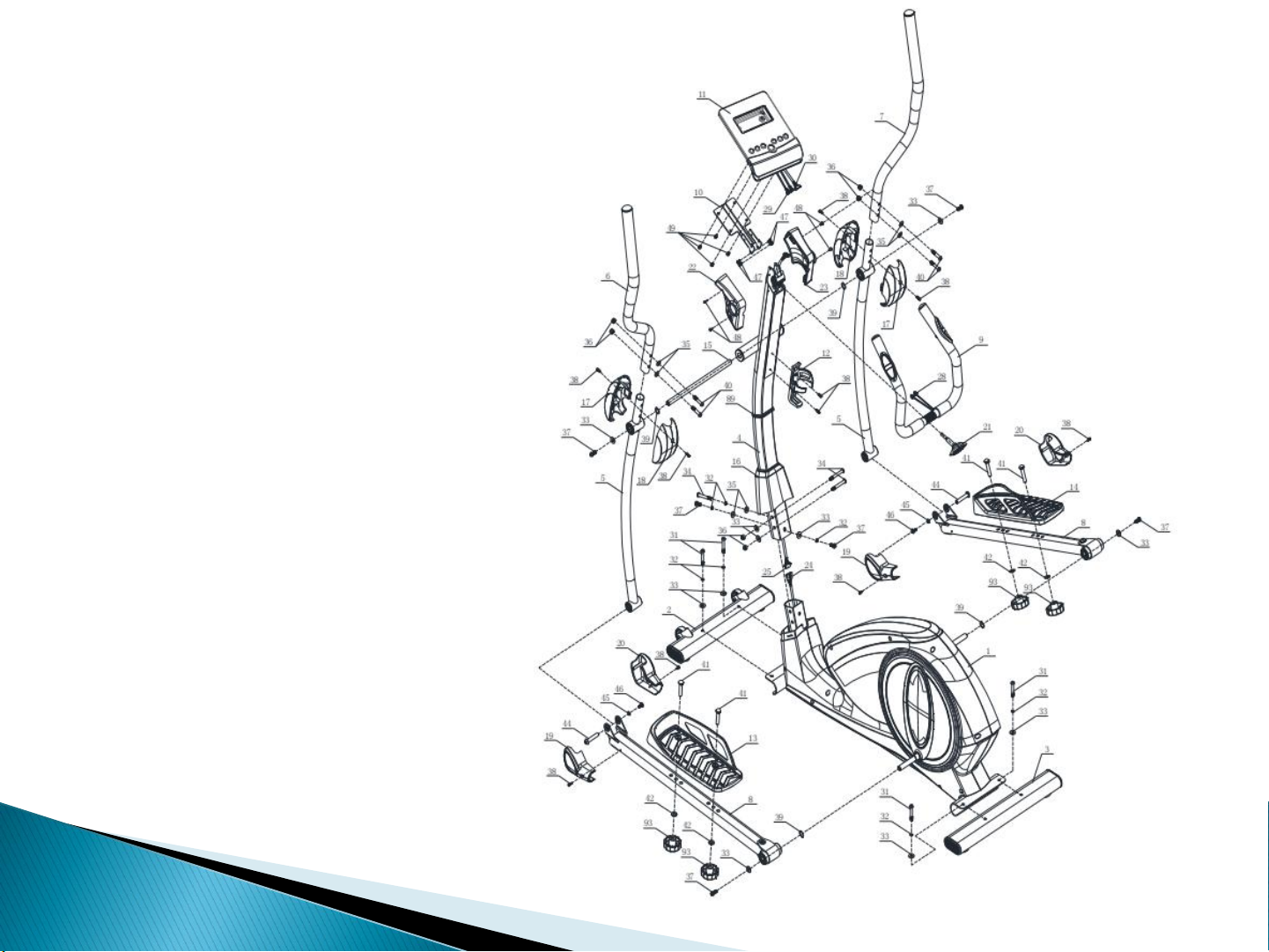

Drawing for assembly
18
19
Part list
NO.
NAME
SPECIFICATION
QTY
1
Mainframe
1
2
Front stabilizer
1
3
Rear stabilizer
1
4
Uprightpost
1
5
Saddlepost
2
6
Body arm(L)
1
7
Body arm(R)
1
8
Pedal supporter(L/R)
2
9
Handlebars
1
10
Consolefixed piece
1
11
Console
1
12
Bottleholder
1
13
Pedal(L)
1
14
Pedal(R)
1
15
Axle
311.5
1
16
Bottom stand post cover
1
17
Body Arm cover 1(Upper)
2
18
Body Arm cover 2(Upper)
2
19
Body Arm cover 1(Bottom)
2
20
Body Arm cover 2(Bottom)
2
21
T-shapedrotary knob
M830
1
22
Handlebar cover(L)
1
23
Handlebar cover(R)
1
24
Motorcommunicationwire
1
25
Consolecommunicationwire
1
20
26
Magneticsensor
1
27
Power communication wire
1
28
Handle pulse connectionwire
2
29
Consoleconnectionoutputwire
2
30
Consoleconnectioninput wire
1
31
Allen C.K.S. half thread screw
M8×50×20
4
32
Spring washer
8
11
33
Flatwasher
t1.5
13
34
Allen C.K.S. half thread screw
M8×63×20
3
35
Curved washer
×R25×t2.0
6
36
Hex self-lockingnut
M8
12
37
Allen C.K.S. full thread screw
M8×20
11
38
PhilipsC.K.S. self-tappingscrew
ST4×16
36
39
Wave springwasher
4
40
Allen C.K.S. half thread screw
M84020
4
41
carriage screw
M105020
4
42
Flatwasher
10
8
43
Hex locking nut
M10
3
44
Allen C.K.S. hollow screw
1055-M620
2
45
Flatwasher
6
2
46
Allen C.K.S. full thread screw
M615
7
47
Philips C.K.S. full head screw
M510
4
48
Philips C.K.S. full head screw
M410
4
Table of contents
Other INTERSPORT Elliptical Trainer manuals
