Intex PureSpa PS-BH-20 User manual

292
IO
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
OWNER’S MANUAL
PureSpa™
PS-BH-20
PS-BH-20-1G
292-*IO-R0-1707
Do not forget to try these other fine Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fine
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may
result in updates to the instruction manual without notice.
For illustrative purposes only.
©2016 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte
vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/
Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in
Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex
Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne
par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR
Roosendaal – The Netherlands
www.intexcorp.com
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 2
Warning.......................................................................................... 3-5
Parts............................................................................................... 6-7
Product specifications................................................................. 8
Set-up............................................................................................. 8-12
Operation....................................................................................... 13-14
LED Code Chart............................................................................. 15
Maintenance and Chemicals........................................................ 16-22
Storage........................................................................................... 22
Troubleshooting............................................................................ 23
Warranty......................................................................................... 24
TABLE OF CONTENTS

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 3
IMPORTANT SAFETY RULES
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following.
READ AND FOLLOW ALL INSTRUCTIONS
• Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access
by children. To avoid accidents, ensure that children cannot use this spa unless they are
supervised at all times.
• Risk of drowning. Inspect the spa cover regularly for leaks, premature wear and tear, damage, or
signs of deterioration. Never use a worn or damaged cover: it will not provide the level of
protection required to prevent unsupervised access to the spa by a child.
• Risk of injury. Replace damaged cord immediately. Do not bury cord.
• Risk of Electric Shock. Do not permit any electric appliance, such as a light, telephone, radio, or
television, within 3.5 m (11.5 feet) of a spa or hot tub.
• Risk of Electric Shock. Do not use the spa when it is raining, thundering or lightning.
•
The spa electrical appliance should be supplied through a residual current device (RCD) having a
rated residual operating current not exceeding 30 mA.
• The spa electrical appliance comprises a portable residual current device (PRCD) having a rated
residual operating current not exceeding 10 mA. If a leakage current of more than 10 mA is detected,
the PRCD will operate and cut-off the power supply, in such case, unplug and stop using the spa at
once. You must contact the local service center for assistance and/or repair of the product.
• Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12 V,
must be inaccessible to a person in the spa.
• Electrical installation shall fulfill the requirements of local national standards.
• Parts incorporating electrical components, except remote control devices, must be located or fixed so
that they cannot fall into the spa.
• To reduce the risk of injury, do not permit children to use this product unless they are closely
supervised at all times.
• Children should not use spas or hot tubs without adult supervision.
• To reduce the risk of child drowning, supervise children at all times. Attach and lock spa cover after
each use.
• To reduce the risk of injury:
a)The water in a spa should never exceed 40°C (104°F). Water temperatures between 38°C (100°F)
and 40°C (104°F) are considered safe for a healthy adult. Lower water temperatures are
recommended for young children and when spa use exceeds 10 minutes.
b)Since excessive water temperatures have a high potential for causing fetal damage during the early
months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to
38°C (100°F).
c)Before entering a spa or hot tub, the user should measure the water temperature with an accurate
thermometer since the tolerance of water temperature-regulating devices varies.
d)The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with
the possibility of drowning.
e)Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory
system problems, or diabetes should consult a physician before using a spa.
DANGER
WARNING

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 4
WARNING
f) Persons using medication should consult a physician before using a spa since some medication may
induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.
g)People using medications and/or having an adverse medical history should consult a physician
before using a spa or hot tub.
h)Check with a doctor before use if pregnant, diabetic, in poor health, or under medical care.
• People with infectious diseases should not use a spa or hot tub.
• To avoid injury exercise care when entering or existing the spa or hot tub.
• Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness
and possible drowning.
• Pregnant and possible pregnant women should consult a physician before using a spa or hot tub.
• Water temperature in excess of 38°C degree may be injurious to your health.
• Do not use a spa or hot tub immediately following strenuous exercise.
• Prolonged immersion in a spa or hot tub may be injurious to your health.
• When pregnant, soaking in hot water for long periods can harm your fetus. Measure the water
temperature before entering. Do not enter spa if water is hotter than 38°C (100°F). Do not stay in spa
for longer than 10 minutes.
• Spa heat in conjunction with alcohol, drugs, or medication can cause unconsciousness.
• Exit immediately if uncomfortable, dizzy, or sleepy. Spa heat can cause hyperthermia and
unconsciousness.
• The causes, symptoms, and effects of hyperthermia may be described as follows: Hyperthermia
occurs when the internal temperature of the body reaches a level several degrees above the normal
body temperature of 37°C (98.6°F). The symptoms of hyperthermia include an increase in the internal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia
include failure to perceive heat; failure to recognize the need to exit spa or hot tub; unawareness of
impending hazard; fetal damage in pregnant women; physical inability to exit the spa or hot tub; and
unconsciousness resulting in the danger of drowning.
• The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in hot tubs
and spas.
• Always add chemicals to water, never add water to chemicals. Adding water to chemicals may cause
strong fumes or violent reactions and hazardous chemical spray.
• Never jump or dive into a spa or any shallow body of water.
• Assembly and disassembly by adults only.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and maintenance must be performed
by an adult above 18 years old, and who is familiar with the risk of electric shock.
• No part of the electrical appliance is to be located above the bath during use.
• Keep the plug of this product more than 4m away from the spa and at a height of 1.2m at least.
• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making
any adjustment to the product, and on raining days.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers, hedge
trimmers and other equipment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. Use only identical replacement parts when servicing.

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 5
CAUTION
• This product is provided with a RCD located at the end of the power cord. The RCD must
be tested before each use. Do not use the spa if the RCD does not function properly.
Disconnect the power cord until the fault has been identified and corrected. Contact a
qualified electrician to correct the fault. Do not bypass the RCD. There are no serviceable
parts inside the RCD. Opening the RCD will void the warranty.
1. Press the RESET button on the RCD.
2. Turn on the spa electrical equipment.
3. Press the TEST button on the RCD. The RCD
indicator should turn off and the electrical equipment should
shut off. If the RCD indicator does not turn off, and the
electrical equipment does not shut off, the RCD is faulty.
Do not use the spa. Contact a qualified electrician to correct
the fault.
4. Press the RESET button on the RCD. The indicator on
the RCD should turn on. If the RCD indicator does
not turn on, the RCD is faulty. Do not use the spa.
Contact a qualified electrician immediately to correct the fault.
WARNING
TEST
RESET
RESET
TEST
TEST
RESET
RESET
TEST
TEST
• Always keep plug dry, plug in with wet plug is definitely forbidden!
• The plug of SPA must be directly connected only to a earthed socket-outlet from a fixed electrical
installation.
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or converter
plugs to connect unit to electrical supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands are wet.
• Do not leave the spa empty for extended period of time. Do not expose the spa to direct sunlight for
extended period of time.
• When the appliance is not in use for long period of time, such as in the winter, the spa set should be
disassembled and stored indoor.
• Do not allow the water in the spa to freeze. Do not turn on the spa when the water is frozen.
• Do not use the spa if damaged in delivery and/or malfunctioning in any fashion. Contact the Intex
service center for further direction.
• Never use the spa alone or allow others to use the spa alone.
• Never pour water with a temperature higher than 40°C (104°F) into the spa directly.
• Keep all pets away from spa to avoid any damage.
• Do not add bath oil or bath salt to the spa water.
• The spa must be setup on a level, flat and smooth surface that is capable of supporting the
maximum load of the filled spa with four adult occupants; weight 2647 kg (5800 lbs).
• Provide adequate drainage system around the spa to deal with overflow water and splashes.
WARNING
• Maintain water chemistry in accordance with manufacturer’s instructions.

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 6
PARTS
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
810 11
18
17
19
21
23
22
3
4
15
16
20
7
5
24
12
13
14
25
26
6
28
29
27
1
2
30
31
32
33
34
35
36
9

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 7
When ordering parts, be sure to quote the model number and part numbers.
PARTS (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF. NO. DESCRIPTION QTY. PART NO.
PS-BH-20 PS-BH-20-1G
1 CONTROL BASE 1 12126 12346
2 CONTROL BASE BACK COVER 1 12282 12282
3 CONTROL PANEL (INCLUDED #4) 1 12127 12127
4 CONTROL PANEL BOLT 3 11024B 11024B
5 CONTROL BASE INFLATION CAP 1 11831B 11831B
6 CONTROL PANEL BOLT WRENCH 1 11053 11053
7 SPA/COVER INFLATION HOSE 1 11830 11830
8 SPA CONTROL INLET/OUTLET O-RING 1 12307 12307
9 SPA CONTROL AIR INLET O-RING 1 12294 12294
10 SPA DRAIN PLUG 1 11696B 11696B
11 SPA DRAIN VALVE ADAPTOR 1 11718 11718
12 FILTER CARTRIDGE HOUSING 2 11798 11798
13 FILTER CARTRIDGE 4 11692 11692
14 FILTER CARTRIDGE HOUSING LID 2 11797 11797
15 INLET/OUTLET PLUG 6 11739 11739
16 SPA TUB 1 12120 12120
17 SPA COVER 1 12121 12121
18
SPA COVER INFLATABLE BLADDER - POOL (PRE-INSTALLED IN SPA COVER) 1 12122 12122
19 GROUND CLOTH 1 12124 12124
20 CHEMICAL DISPENSER 2 11614 11614
21 TEST STRIPS 1 11855 11855
22 WRENCH 1 11742 11742
23 PRESSURE GAUGE 1 11741 11741
24 INFLATION HOSE ADAPTOR 1 11829 11829
25 MALE BUCKLE 14 11698B 11698B
26 FEMALE BUCKLE 14 11799B 11799B
27 DEFLATION OUTLET CAP 1 11934B 11934B
28 DEFLATION HOSE ADAPTOR 1 11935 11935
29 SPA FILTER MOTOR 1 12284 12350
30
SPA COVER INFLATABLE BLADDER - SPA (PRE-INSTALLED IN SPA COVER) 1 12123 12123
31 HORIZONTAL BEAM 2 12262 12262
32 L SHAPE U LEG 2 12263 12263
33 SPA BENCH 2 12230 12230
34 WATER CONTROL VALVE 1 12286 12286
35 AIR CONTROL VALVE 1 12285 12285
36 SCREW 1 12306 12306

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 8
PRODUCT SPECIFICATIONS
SET UP
Cord-connected spa with pump, heater, blower, built-in hard water treatment and control panel.
The water heating function heats the water on the spa (A) side only.
The filtration system is designed to filter one side of the tub at a time only.
This product requires a minimum of 13 Amps. If the circuit breaker trips, please check that no other
appliances or other large loads are on the same circuit as the spa.
Site preparation and requirements
• For outdoor installation only. For household use only.
• Make sure the area is free of sharp objects under or around the spa.
• Provide a properly located power outlet to connect the spa and allow easy access for periodic testing of the
cord mounted RCD.
• Make sure there is enough clearance around the spa for full access to the spa equipment for maintenance
and/or service.
• The area shall facilitate draining purposes during long term spa storage.
• Make sure the floor is water resistant and non-slip surface. Do not install the spa on carpet or other
materials that will be damaged by moisture, condensation.
• Spa owners may need to comply with local or states laws relating to childproof fencing, safety barriers,
lighting, and other safety requirements. Contact your local building code enforcement office for further
details.
• Do not setup the spa on grass or dirt, as this increases the amount of debris entering the spa, and damage
the spa floor.
• Do not expose the spa to direct sunlight for extended period of time.
• It is possible to install and leave the spa outside at a temperature not lower than 4°C (39°F) provided the
water temperature inside the spa is higher than 4°C (39°F) and the water inside the circulation system,
pump, pipe are not frozen. Put a “temp barrier mat” between the spa floor and the ground to prevent heat
loss from the bottom of the spa and to provide better heat retention.
Maximum seating capacity: 4 adults
"A" side water capacity: 210 gal (795 L)
"B" side water capacity: 310 gal (1,173 L)
Inner/outer size:
152"(3.86M)
72"(1.83M)
50"(1.27M)
72"(1.83M)
52"(1.32M)
106"(2.69M)
BA
Height: 28 in (71 cm)
Bubble air blower: 1.1 HP / 220-240 V / 50 Hz
Filter pump flow rate: 323 gal/hr (1,222 L/hr)
Heater power: 2,200 Watts / 220-240 V / 50 Hz
Spa temperature range: 20ºC – 40ºC (68ºF – 104ºF)
Spa temperature rise: 1.5-2.5ºC/hr (3ºF – 4.5ºF/hr)
"A" side number of Bubble Jets: 120
"B" side number of Bubble Jets: 150
Tub Liner and bench recommended
working air pressure: 0.083 bar (1.2 psi)

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 9
SET UP (continued)
Setup the spa with at least 2 persons.
1. Move the entire package to the selected site. Do not drag the spa tub across the ground as this can
cause damage and leakage.
Open the carton carefully as this carton can be used to store the spa during long term storage or when
not in use.
2. Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or
damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service
Centers” sheet.
3. Estimated assembly time 45 minutes. (Note the assembly time is only approximate and individual
assembly experience may vary.)
Spa Control Unit Assembly
1. Connect the control panel (3) cable plug into the receptacle on top of the spa control base and screw in
the plug cover firmly by hand (see drawing 1).
2. Screw the control panel bolts (4) with the provided bolt wrench (6) to secure the control panel (see
drawing 2).
3. Plug the spa control unit into an electrical outlet.
Spa Benches Assembly
1. Take out the ground cloth (19) and spread it over the cleared area. Then spread out the spa liner over
the ground cloth and point the drain valve towards a suitable draining area. Note: Spread the ground
cloth with the bubbles facing down over the cleared area where you intend to setup your spa.
2. The tub liner and benches are to remain deflated to facilitate the assembly of the lateral support. There
are 2 straps on each side; insert the L shape U legs (33) through the spa lateral lowest strap sleeves
(see drawing 3).
3. Slide the bench belt loops located at the back through the L shape U legs vertical pipes (see drawing 4).
4
3
4
6
2
1
3
1
2

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 10
SET UP (continued)
4. Insert the horizontal beam through the bench sleeves and the spa lateral upper strap sleeves. Then
insert the protruding connectors over the L shape U legs vertical pipes (see drawing 5).
Inflation
Inflate the Spa Tub Wall
1. Press the button located on top of the control base and remove the back cover (see drawing 6).
2. Unscrew the control base inflation cap (5) to reveal the air blower inflation outlet, insert one end of the
inflation hose (7) into the outlet and turn to the right to lock it (see drawing 7).
3. Unscrew the air valve cap to reveal the stem in the up position for inflation. Insert the other end of the
inflation hose (7) into the valve and turn to the right to lock it in position (see drawing 8).
7
5
7
8
7
1 2
4. Press the button to turn on the control unit panel buttons first. Press the button to inflate the
spa tub wall until it is firm to the touch but not hard (see drawing 9).
IMPORTANT: Do not over inflate or use high pressure air compressor to inflate.
5. Press the button again to turn it off.
6. Disconnect the inflation hose (7) from the air valve and attach the pressure gauge (23) to the air valve.
The pressure gauge indicator should be in the green area for a properly inflated spa tub (see
drawing 10). Repeat previous steps to add more air if necessary.
9
BA
10
23
1
2
6
Press
5

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 11
SET UP (continued)
7. Replace the air valve cap back.
NOTE: The cap is designed to be screwed on and off. Never exert force as this could cause the
complete internal inflation system of the valve to come loose. See “Spa Tub Air Valve Fastening” for
valve maintenance.
Inflate the Spa Benches
1. Open the inflation valve and insert the inflation hose (7) into the valve; press to inflate until it is
firm to the touch but not hard (see drawings 11 & 12).
2. Disconnect the inflation hose (7) from the inflation valve, close and recess the inflation valve.
3. Repeat the above steps to inflate the other bench.
Inflate the Spa Cover Air Bladder
1. Open the inflation valve and insert the inflation
hose
(7) into the valve; press to inflate
until it is firm to the touch but not hard (see
drawing 13).
2. Disconnect the inflation hose (7) from the air
blower inflation outlet and the valve.
3. Replace the control base inflation cap (5) back;
close and recess the inflation valve.
NOTE: If there is a need to add some air to the spa tub
wall or spa cover air bladder after they have been setup, refer to above “Inflate the Spa Tub Wall” and “Inflate
the Spa Cover Air Bladder” sections. The cover air bladder is preinstalled inside the spa cover. If it needs to
be reinstalled, place the uninflated air bladder inside the spa cover lip before inflating the bladder.
Deflation
For Spa Tub Wall and Benches:
1. Unscrew the cap to reveal the stem, push the stem
in and turn 90 degree right to secure it in the down
position
(see drawing 14).
2. Once the deflation is completed, push the stem in
and turn 90 degree left to return it to the inflation
position.
3. Replace the cap back.
For Cover Air Bladder:
1. Pull valve cap out and squeeze the valve at its base until deflated.
2. Close and recess the valve back.
14
13
7
11
7
1 2 12

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 12
SET UP (continued)
Spa Control Unit Installation
1. Connect the spa control unit to the spa tub (see drawing 15). Hand-tighten the connectors securely.
Do not use tools to tighten.
2. Reinstall the back cover (2) to the spa control base (see drawing 16).Back cover must be installed
before using the SPA.
CAUTION:
Do not sit, lean, cover or place any objects over the spa control unit.
3. Inflate the spa tub first before installing filter pump fittings. Attach
the filter cartridge housing assembly to the lower outlet grid on the
inside of the spa “A” side. Attach remaining filter cartridge housing
assembly to the lower outlet grid on the inside of the “B” side (see
drawing 17).
4. Before filling with water make sure the bottom drain valve caps are
securely closed on the inside and outside on both sides of the tub.
5. Fill the spa tub with freshwater to a level between MIN and MAX
marked on the inside of the spa wall. Do not over fill the spa. Never
move the spa tub with water inside and/or with the control base
attached to the spa as the spa or control base may be damaged.
WARNING: Never pour water with a temperature higher than
40°C (104°F) into the spa directly. It is recommended to fill the spa tub with lukewarm water
for quick heating and energy saving. Both sides of the tub must be filled with water to the
recommended level.
6. Place the spa cover and spa air bladder (pre-installed in spa cover) over the spa tub, and make sure the
spa cover buckles are locked using the key provided after pulling the buckled straps tight.
IMPORTANT: Inspect the spa cover regularly for leak, premature wear and tear or deterioration. Never
use a damaged spa cover.
7. Ensure the spa is plugged into a grounded electrical socket and press the button to turn on the
control unit panel buttons first. Press the button on the control panel to activate the heater, see “Spa
Control Unit Panel” operation section.
17
16
2
15

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 13
OPERATION
On/Off Button: Once the unit is plugged in, use this button to active the control unit panel
buttons. The light next to the button is green when activated. Press this button to turn off all
currently activated functions.
NOTE: The On/Off button may appear as a black button in the center of the control panel.
Heat Button: Use this button to turn on and off the heating system for the spa (A) side only.
The pump will heat the spa water until the water temperature reaches the set temperature, and
then the heater will go into rest while the filtration pump will continue to run for an additional 8
hours with the indicator light “A” showing green. During these 8 hours, every time the spa water
temperature drops 1-2°C (1.8-3.6°F) below the set temperature the heating system will restart.
After the additional 8 hours, the heater will rest for about 2 hours, and the filtration system
will switch to the “B” side, and filter the water for 2 hours with the indicator light “B” showing
green. After 2 hours, the filtration system will switch back to the “A” side, and run for 8 hours.
The heater will restart to compensate for any spa water temperature drop from the initial set
temperature. This cycle is repeated again until the unit is manually turned off. When the flame
icon on the display is red, the heating system is activated. When the flame icon turns green,
the water is at the set temperature. The heating system is at rest and the filtration system will
continue working nonstop.
When the indicator light “A” is illuminated, the following options are available:
• During the heating process, press the filter button for 3 seconds to switch the filtration function
to the “B” side, the heater will stop and the flame icon will turn off. The filtration will run for
2 hours; then the filtration will automatically switch back to the spa (A) side, and the heating
system resumes its operating cycle.
• Stop the filtration while the heater is at rest mode: press the flame button first to turn off the
heater, and then the filter button.
• Press the flame button while the heater is at rest mode will turn off the heating system only,
the filtration system will operate for two cycles or 24 hours before it turns off automatically.
When the indicator light “B” is illuminated and the heater is in standby mode (indicated
by a flashing green flame icon), the following option is available:
• Press the flame button will stop the filtration on the “B” side of the tub, and turn on the heater
and filter functions on the “A” side of the tub.
IMPORTANT: The following conditions will lead to slow water heating.
• The ambient temperature is lower than 10ºC (50ºF).
• Outdoor wind speed is above 3.5-5.4 m/s (8-12 mph).
• The air bubble function is activated when heating the spa water.
• The spa is not properly covered with the spa cover when the water is heating.
Celsius/Fahrenheit Toggle Button: The temperature can be displayed in either Fahrenheit
or Celsius. The system’s default is Celsius.
CAUTION: NEVER use the spa if indicated water temperature is more than 40°C (104ºF).
1: On/Off Button
2: Heat Button
3: Celsius/Fahrenheit Toggle Button
4: Temperature Increase Button
5: Temperature Decrease Button
6: Water Filter Button
7: Bubble Button
8: LED Display
9: Filtration section indicator light ("A" side filtration;
"B" side filtration)
BA
7
6
54
3
2
8
1
9
BA
SPA CONTROL UNIT PANEL

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 14
OPERATION (continued)
Temperature Adjustment Buttons: Pressing the Temperature Increase or Decrease
buttons will cause the LED to flash. When flashing you can adjust to the desired temperature
setting. If you hold these buttons down the values will rapidly increase or decrease. The new
and desired temperature setting will remain on the LED display for 5 seconds to confirm the new
value.
NOTE: The default temperature is 20°C (68°F).
NOTE: Temperature adjustment ranges from 20°C (68°F) to 40°C (104°F).
Water Filter Button: This button turns the filter pump on and off. Pressing the button, the
system will start filtering the “A” side first for 10 hours with the indicator light “A” showing green,
then automatically switch to the “B” side and filter for 2 hours with the indicator light “B” showing
green. After two such cycles or 24 hours, the filter pump will automatically turns off. The water
filter icon on the display is green when activated. If the heating system is activated the filtration
system will automatically start. The filtration system can be activated together with the bubble
function.
When the indicator light “B” is illuminated and the heater is off, press the filter button to
turn off the filtration.
When the indicator light “B” is illuminated and the heater is in standby mode (indicated
by a flashing green flame icon), press the filter button to switch the filtration to the “A”
side.
NOTE: There is a delay of about 10 second for the filter pump motor to switch from one side to
another side of the tub.
Bubble Button: Use this button to activate the massage system, which has a 30-minute
auto-shutoff feature. The bubble icon on the displays is green when activated.
WARNING: Do not run Bubble system when the cover is attached, air can accumulate inside the
spa and cause irreparable damage and bodily harm.
Bubble Control Knob: Once the bubble massage is activated, use this knob to select which
side of the tub to run the bubble massage system.
LED Display: Once plugged in the LED displays the “A” side water temperature automatically.
NOTE: the built-in hard water treatment function works automatically in conjunction with the filtration system.
40 C
o
“B” side bubble massage activated.
Bubble massage activated on both sides.
“A” side bubble massage activated.

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 15
LED CODE CHART
LED Reading CAUSE SOLUTION
E80 Water control valve broken • Contact Intex Service Center.
E90 No water flow
• Turn off and unplug the control unit.
• Ensure the outlet cover grid is clean and free
from obstructions.
• Ensure the in/outlet connections on the spa tub
and filter pump are not blocked.
• Keep the spa water properly sanitized.
• Be sure the filter cartridge is clean and not
clogged.
• If problem persists, contact Intex Service
Center.
E94 Water temperature too low
• If the ambient temperature is below 4°C (39°F),
we recommend you do not use the spa.
• Turn off and unplug the control unit, add some
warm water to raise the spa water temperature
above 5°C (41°F), then press the button to
heat up the water to the desired temperature.
• If problem persists, contact Intex Service
center.
E95 Water temperature too high
• Turn off and unplug the control unit. When the
water has cooled down, plug the RCD and
restart all over again.
• Turn the heater off, then press the filter and
bubble buttons to lower the water temperature.
• If problem persists, contact Intex Service
Center.
E96 System Error
• Turn off and unplug the control unit, use the
cap to stop the water from flowing out of the
tub, disassemble and drain out the control unit.
Reassemble the control unit back to the tub.
Plug the RCD and restart all over again.
• If problem persists, contact Intex Service
Center.
E97 Dry-fire Protection • Contact Intex Service Center.
E99 Water temperature sensor broken • Contact Intex Service Center.
END
After 72 hours of continuous
heating operation, the pump will
hibernate automatically. The rapid
heating and water filtration
functions are disabled.
• Press the button to re-active the
filter pump.

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 16
MAINTENANCE AND CHEMICALS
Water Sanitation
The spa owner must regularly check and keep the spa water sanitized with scheduled maintenance (daily, if
necessary). Adding sanitizer and other chemical will control bacteria and viruses present in the spa water.
The maintenance of a proper water balance through appropriate use of sanitizers is the single most important
factor in maximizing the life and appearance of the spa tub as well as ensuring clean, healthy and safe water.
Proper technique is important for water testing and treating the spa water. See your pool/spa professional for
chemical, sanitizer, test kits and testing procedures questions.
CATUTION: ALWAYS FOLLOW THE CHEMICAL MANUFACTURER’S DIRECTIONS, AND THE
HEALTH AND HAZARD WARNINGS.
Do not add chemicals if the spa is occupied. This can cause skin or eye irritation. Concentrated chlorine
solutions can damage the spa tub. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their
related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other
party for costs associated with the loss of spa water, chemicals or water damage.
Maintenance of Spa Water and Cartridge
Protect all the spa occupants from possible water-related illnesses by keeping the spa water clean and sanitized.
Always practice good hygiene. To ensure proper spa water quality follow these procedures:
1. Inspect and clean the filter cartridge every day, and change the filter
cartridge every 3 days.

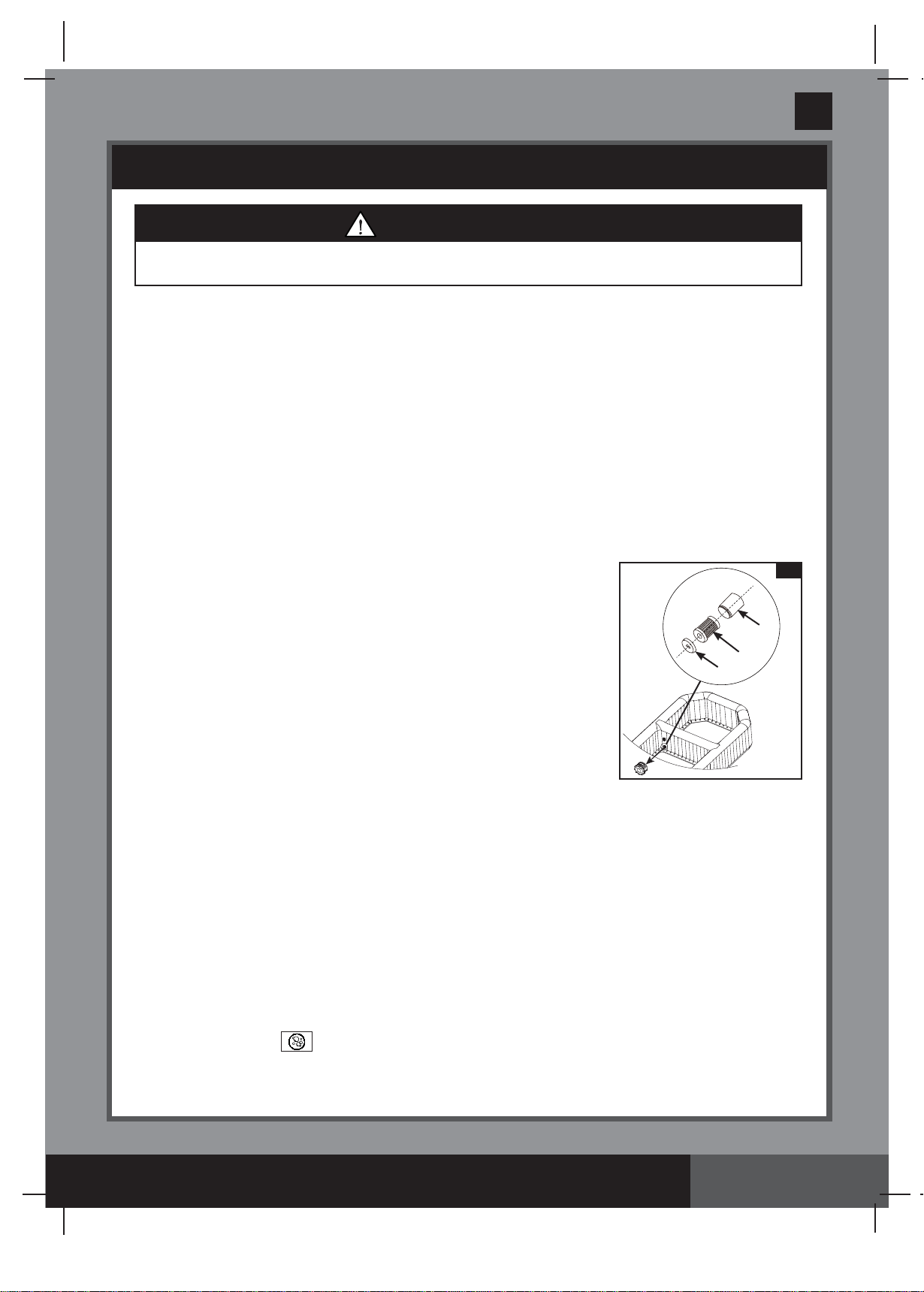

a. Unscrew the cartridge housing assembly from the spa tub wall and
remove the cartridge (see drawing 18).
b. Use a garden hose to rinse off the cartridge. If the cartridge remains
soiled and discolored it should be replaced. Keep spare cartridges
on hand.
c. Reinstall the clean cartridge back into the cartridge housing and replace
the cartridge housing assembly back onto the spa tub wall.
2. Change the spa water every 3 days. See “Spa Tub Drainage” and “Spa
Tub Cleaning” sections for details.
3. Use spa chemicals to maintain proper water chemistry. Spa damage
resulting from misuse of chemicals and mismanagement of spa water
is not covered by the warranty.
4. All occupants must shower before entering the spa.
Water Chemistry Balance
Maintain the spa water pH level between 7.2 and 7.8, total alkalinity level between 80 and 120 ppm and free
chlorine level between 2 to 4 ppm. Use the included test strips to test the spa water chemistry before each use of
the spa and continue to test the water no less than once a week.
The Test Strips can test the “Free Chlorine”, “pH”, “Total Alkalinity” and “Calcium Hardness” levels at the same
time:
1. Dip the entire strip into the water and remove immediately.
2. Hold the strip level for 15 seconds. Do not shake excess water from the strip.
3. Compare the strip pad to the color chart on the packaging label. If necessary, adjust the chemical level
in the pool water.
NOTE: Check the expiry date of the test kit as the test results may be inaccurate if the kit is used after that date.
Low pH will damage the spa tub and pump. Damage resulting from chemical imbalance is not covered by the
warranty.
Use the included chemical floater dispenser to administer chlorine [chemical tablet size: less than 1” (2.5cm)
diameter] into the spa water. Add 1 tablet into the dispenser. Always follow the chemical manufacturer’s
directions. Remove the chemical floater dispenser when the spa is in use.
Never let chlorine come in contact with the spa tub if it is not completely dissolved.
IMPORTANT: Press the button on the spa control panel to turn on the bubble air blower and help dissolve
the chemicals into the water.
Never mix chemicals together. Add the chemicals to the spa water separately. Thoroughly dissolve each
chemical before adding another one to the water.
WARNING
Always unplug this product from the electrical outlet before removing, cleaning, servicing or
making any adjustment to the product.
18
14
12
13

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 17
SPA WATER CHEMISTRY AND BALANCE
Preferred Water Chemistry Reading
Minimum Ideal Maximum
Free Chlorine 2 ppm 2 - 4 ppm 5 ppm
pH 7.2 7.2 - 7.6 7.8
Total Alkalinity (TA) 60 ppm 80 ppm 120 ppm
Calcium Hardness (CaCO3)100 ppm 150–250 ppm 350 ppm
Water Temperature 20ºC / 68ºF 20–40ºC / 68–104ºF 40ºC / 104ºF
Free chlorine: is the chlorine residual present in the spa water.
Result if too low – Inadequate level of disinfection.
Result if too high – Cause odor problem, skin & eye irritation, corroded metals and other materials.
pH: a value that indicates how acidic or basic the spa water is.
Result if too low – Corroded metals, eye & skin irritation, and destruction of total alkalinity.
Result if too high – Scale formation, cloudy water, shorter filter/heater runs, eye & skin irritation, poor chlorine
efficiency.
Total Alkalinity (TA): indicates the degree of the water’s resistance to pH change. It determines the speed
and ease of pH change, so always adjust total alkalinity before adjusting the pH level.
Result if too low – Corroded metals, eye & skin irritation. Low alkalinity will cause the pH to be unstable.
Result if too high – Scale formation, cloudy water, shorter filter/heater runs, eye & skin irritation, high chlorine
demand.
Calcium Hardness (CaCO3): refers to the amount of calcium and magnesium dissolved in the water.
Result if too low – Difficulty balancing water, corrosion of metal components, eye & skin irritation and water
foaming.
Result if too high – Scale formation, cloudy water, eye & skin irritation, difficulty balancing water and filter/
heater inefficiency.

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 18
SPA WATER CHEMISTRY AND BALANCE (continued)
SPA Water Adjustment
How to adjust the spa water chemistry when the levels are off the range. CAUTION: Always follow the
chemical manufacturer’s directions, and the health and hazard warnings.
Total Alkalinity (TA) Adjustment
Remove the spa cover to aerate the water and use the included test strips to check the chemistry level.
Ensure the chlorine level in the water is between 2-4 ppm first, as chlorine will affect the TA test result.
If the TA level (and not the pH) is higher than 120 ppm, to lower the TA level, you add muriatic acid (hydrochloric
acid) or sodium bisulfate.
If the TA level is lower than 60 ppm, you add sodium bicarbonate.
For example (water volume 210 gal / 795 L), if the TA level is 180 ppm, the desired decrease is 60 ppm, from
below chart, you need to add 0.269 Lb (121 g) of sodium bisulfate or 0.101 qt (96 ml) of muriatic acid.
If the test strip color is between 180 ppm and 240 ppm, and close to 180 ppm, you can also add 0.269 Lb
(121 g) of sodium bisulfate or 0.101 qt (96 ml) of muriatic acid.
If the reading is more than 240 ppm, you can add sodium bisulfate or muriatic acid to the water drop by drop
until the test strip indicates a 240 ppm reading, then add 0.528 Lb (238 g) of sodium bisulfate or 0.202 qt
(192 ml) of muriatic acid.
NOTE: After adjustment, retest the water after 24 hours and adjust again if necessary.
pH Adjustment
After the total alkalinity has been lowered to 120 ppm or raised to 80 ppm and the pH is still high or low, you
can adjust it using the following chart.
Desired level 60 ppm 80 ppm 100 ppm 120 ppm 140 ppm
Volume:
210 gal / 795 L
0.269 Lb 0.358 Lb 0.448 Lb 0.528 Lb 0.627 Lb
121 g 161 g 202 g 238 g 283 g
Volume:
310 gal / 1173 L
0.393 Lb 0.525 Lb 0.656 Lb 0.787 Lb 0.918 Lb
178 g 238 g 297 g 357 g 416 g
Lowering Total Alkalinity
Amount of Sodium Bisulfate to lower Total Alkalinity
Desired level 20 ppm 40 ppm 60 ppm 80 ppm
Volume:
210 gal / 795 L
0.059 Lb 0.118 Lb 0.178 Lb 0.237 Lb
27 g 53 g 80 g 107 g
Volume:
310 gal / 1173 L
0.087 Lb 0.174 Lb 0.261 Lb 0.347 Lb
39 g 79 g 118 g 158 g
Raising Total Alkalinity
Amount of Sodium Bicarbonate to raise Total Alkalinity
Desired level 60 ppm 80 ppm 100 ppm 120 ppm 140 ppm
Volume:
210 gal / 795 L
0.101 qt 0.135 qt 0.169 qt 0.202 qt 0.234 qt
96 mL 128 mL 160 mL 192 mL 223 mL
Volume:
310 gal / 1173 L
0.148 qt 0.198 qt 0.247 qt 0.297 qt 0.346 qt
140 mL 187 mL 234 mL 281 mL 328 mL
Amount of Muriatic Acid to lower Total Alkalinity
(Muriatic acid: 31.45%)

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 19
SPA WATER CHEMISTRY AND BALANCE (continued)
WARNING
Muriatic acid is a caustic chemical and liquid solution of sodium bisulfate (NaHSO4)
is highly acidic. Handle all chemicals with care and wear extra personnel protective
equipment including goggle and gloves. It is very important not to splash acid onto
your skin or clothing, or into your eyes.
Lowering pH Using Sodium Bisulfate
Calcium Hardness Adjustment
Use the included test strips to check the water hardness level and adjust it following below chart.
Lowering Calcium Hardness
If your household water supply is treated with a softener, mix the spa hard water with the soft water
according to the water volume ratio chart to lower the calcium hardness:
Initial level 1000 ppm 500 ppm 350 ppm 250 ppm
Desired level:
100 ppm
Water Volume Ratio (Vhard water:Vsoft water)
1:9 1:4 2:5 2:3
Lowering Calcium Hardness Using Soft Water
Raising pH Raising pH Using Sodium Bicarbonate
Lowering pH Lowering pH Using Muriatic Acid
Volume 210 gal (795 L) 310 gal (1173 L)
Total Alkalinity 120 ppm 80 ppm 120 ppm 80 ppm
From→To
8.4→7.2 0.028 qt 0.018 qt 0.041 qt 0.027 qt
26 mL 18 mL 39 mL 26 mL
7.8→7.2 0.019 qt 0.013 qt 0.025 qt 0.018 qt
18 mL 12 mL 24 mL 17 mL
Volume 210 gal (795 L) 310 gal (1173 L)
Total Alkalinity 120 ppm 80 ppm 120 ppm 80 ppm
From→To
8.4→7.2 0.071 Lb 0.047 Lb 0.102 Lb 0.068 Lb
32 g 21 g 46 g 31 g
7.8→7.2 0.047 Lb 0.032 Lb 0.069 Lb 0.046 Lb
21 g 14 g 31 g 21 g
Volume 210 gal (795 L) 310 gal (1173 L)
Total Alkalinity 120 ppm 80 ppm 120 ppm 80 ppm
From→To 6.8→7.2 0.541 Lb 0.361 Lb 0.79 Lb 0.527 Lb
243 g 163 g 358 g 239 g
Volume 210 gal (795 L) 310 gal (1173 L)
m (CaCl2) 0.197 Lb 89 g 0.286 Lb 130 g
Raising Calcium Hardness
If the calcium hardness level in the spa water is lower than 100 ppm, add calcium chloride into the spa
water.

292
IO
SAVE THESE INSTRUCTIONS
(292IO) BUBBLE SPA WITH POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/15/2016
English
Page 20
MAINTENANCE
Spa Tub Drainage
1. Turn off the spa control unit.
2. Deflate the benches, and remove the benches and L shape U legs from the tub side wall.
3. Connect the drain valve adaptor (11) to a garden hose and point the other end of the garden hose to a
suitable draining area (see drawing 19).
4. Remove the drain valve cap from outside of the spa tub and attach the drain valve adaptor to the drain
valve (see drawing 19).
5. From inside of the spa tub, open the drain valve cap, water will start flowing out from the garden hose.
6. When the water stops draining, disconnect the spa control unit from the spa tub wall. Lift the spa tub wall
from the side opposite the drain, leading any remaining water to the drain and emptying the spa completely
(see drawing 20).
7. Attached the inflation hose (7) to the air blower inflation outlet on the control unit.
8. Turn on the spa and press the button, aim the inflation hose at the inlet/outlets on the spa tub and
spa control unit to dry out any water in the piping system (see drawings 21 & 22).
9. Use a clean towel to wipe up any remaining water and moisture on the spa tub and spa control unit.
10. Ensure the spa tub and spa control unit are thoroughly dried.
NOTE: The enclosed plugs (15) can be used to cover the water inlet and outlet connectors from the inside
of the spa tub to prevent water from flowing out.
21
7
22
7
20
19
11 1
2
3
