OWNER’S MANUAL
PureSpa™
Greywood Deluxe™
SB-HW20
346-*A*-R0-2007
Do not forget to try these other fine Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fine
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may
result in updates to the instruction manual without notice.
For illustrative purposes only.
©2019 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., G.P.O Box 28829, Hong
Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué
dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading
B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 2
Warning.......................................................................................... 3-6
Parts............................................................................................... 7-8
Set-up............................................................................................. 9-14
Operation....................................................................................... 15-19
Minimize Heat Loss and Energy Consumption Advice............. 19
LED Code Chart............................................................................. 20
Maintenance and Chemicals........................................................ 21-25
Storage........................................................................................... 25
Troubleshooting............................................................................ 26-27
Filter pump motor disassembly................................................... 28
Warranty......................................................................................... 29
TABLE OF CONTENTS

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 3
IMPORTANT SAFETY RULES
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following.
READ AND FOLLOW ALL INSTRUCTIONS
• The spa electrical appliance should be supplied through a residual current device (RCD) having a
rated residual operating current not exceeding 30 mA.
• The spa electrical appliance comprises a portable residual current device (PRCD) having a
rated residual operating current not exceeding 10 mA. If a leakage current of more than 10 mA
is detected, the PRCD will operate and cut-off the power supply, in such case, unplug and stop
using the spa at once. You must contact the local service center for assistance and/or repair of the
product.
• Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12V,
must be inaccessible to a person in the spa.
• Electrical installation shall fulfill the requirements of local national standards.
• Parts incorporating electrical components, except remote control devices, must be located or fixed
so that they cannot fall into the spa.
• To reduce the risk of injury, do not permit children to use this product unless they are closely
supervised at all times.
• Children should not use spas or hot tubs without adult supervision.
• To reduce the risk of child drowning, supervise children at all times. Attach and lock spa cover after
each use.
• To reduce the risk of injury/illness:
a)The water in a spa should never exceed 40°C (104°F). Water temperatures between 38°C (100°F)
and 40°C (104°F) are considered safe for a healthy adult. Lower water temperatures are
recommended for young children and when spa use exceeds 10 minutes. It is recommended to
seek medical advice before use.
b)Since excessive water temperatures have a high potential for causing fetal damage during the early
months of pregnancy, pregnant or possibly pregnant women should limit spa water temperature
and duration of use and should also seek medical advice.
DANGER
WARNING
• Risk of Accidental Drowning (especially children under 5 years). Caution shall be exercised to
prevent unauthorized access to spa by children. This can be reached by adult supervisor securing
the means of access or installing a safety protection device to the spa. To avoid accidents during
spa use, ensure that children are kept under constant supervision.
• Risk of drowning. Inspect the spa cover regularly for leaks, premature wear and tear, damage, or
signs of deterioration. Never use a worn or damaged cover: it will not provide the level of protection
required to prevent unsupervised access to the spa by a child.
• Risk of injury. The suction fittings in this spa are sized to match the specific water flow created by
the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow
rates are compatible. Never operate spa if the suction fittings are broken or missing. Never replace
a suction fitting with one rated less than the flow rate marked on the original suction fitting.
• Risk of injury. Replace damaged cord immediately. Do not bury cord. Never use an extension cord.
• Risk of Electric Shock. Do not permit any electric appliance, such as a light, telephone, radio, or
television, within 3.5 m (11.5 feet) of a spa or hot tub.
• Risk of Electric Shock. Do not use and unplug the spa when it is raining, thundering or lightning.

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 4
WARNING
c)The user should check the water temperature before entering the spa.
d)The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with
the possibility of drowning.
e)Persons with any medical condition should seek medical advice before using a spa.
f) Persons using medication and/or having an adverse medical history should seek medical advice
before using a spa since some medication may induce drowsiness while other medication may affect
heart rate, blood pressure, and circulation.
g)Avoid putting the head underwater and swallowing spa water.
• People with infectious diseases should not use a spa or hot tub.
• To avoid injury exercise care when entering or existing the spa or hot tub.
• Pregnant and possible pregnant women should consult a physician before using a spa or hot tub.
• Water temperature in excess of 38°C degree may be injurious to your health.
• Do not use a spa or hot tub immediately following strenuous exercise.
• Prolonged immersion in a spa or hot tub may be injurious to your health.
• When pregnant, soaking in hot water for long periods can harm your fetus. Measure the water
temperature before entering. Do not enter spa if water is hotter than 38°C (100°F). Do not stay in spa
for longer than 10 minutes.
• Spa heat in conjunction with alcohol, drugs, or medication can cause unconsciousness.
• Exit immediately if uncomfortable, dizzy, or sleepy. Spa heat can cause hyperthermia and
unconsciousness.
• The causes, symptoms, and effects of hyperthermia may be described as follows: Hyperthermia
occurs when the internal temperature of the body reaches a level several degrees above the normal
body temperature of 37°C (98.6°F). The symptoms of hyperthermia include an increase in the internal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia
include failure to perceive heat; failure to recognize the need to exit spa or hot tub; unawareness of
impending hazard; fetal damage in pregnant women; physical inability to exit the spa or hot tub; and
unconsciousness resulting in the danger of drowning.
• The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in hot tubs
and spas.
• Always add chemicals to water, never add water to chemicals. Adding water to chemicals may cause
strong fumes or violent reactions and hazardous chemical spray.
• Never jump or dive into a spa or any shallow body of water.
• Assembly and disassembly by adults only.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and maintenance must be performed by
an adult above 18 years old, and who is familiar with the risk of electric shock.
• No part of the electrical appliance is to be located above the bath during use.
• Keep the plug of this product more than 4m away from the spa and at a height of 1.2m at least.
• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making
any adjustment to the product, and on raining days.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers, hedge
trimmers and other equipment.

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 5
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. Use only identical replacement parts when servicing.
• Always keep plug dry, plug in with wet plug is definitely forbidden!
• The plug of SPA must be directly connected only to a earthed socket-outlet from a fixed electrical
installation.
• To reduce the risk of electric shock and fire, do not use extension cords, timers, plug adaptors or
converter plugs to connect unit to electrical supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands are wet.
• Do not leave the spa empty for extended period of time. Do not expose the spa to direct sunlight for
extended period of time.
• When the appliance is not in use for long period of time, such as in the winter, the spa set should
be disassembled and stored indoor.
• Do not allow the water in the spa to freeze. Do not turn on the spa when the water is frozen.
• Do not use the spa if damaged in delivery and/or malfunctioning in any fashion. Contact the Intex
service center for further direction.
• Never use the spa alone or allow others to use the spa alone.
• Never pour water with a temperature higher than 40°C (104°F) into the spa directly.
• Keep all pets away from spa to avoid any damage.
• Do not add bath oil or bath salt to the spa water.
• The spa must be setup on a level, flat and smooth surface that is capable of supporting the
maximum load of the filled spa with four adult occupants: weight 1136 kg (2500 lbs); six adults:
1592 kg (3500 lbs).
• Provide adequate drainage system around the spa to deal with overflow water and splashes.
• Use accessories exclusively provided by the spa manufacturer for safety reasons.
• Not for public/commercial use and/or domestic renting dwelling settings.
• All the information pertaining to the installation, cleaning and maintenance please refer to below
paragraphs of the manual.
• Never place any metallic objects on the surface of the control base recessed channel.
Carefully read, understand, and follow all information in this user manual before installing and using
the spa. These warnings, instructions, and safety guidelines address some common risks of water
recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common
sense, and good judgment when enjoying any water activity. Retain this information for future use.
Non swimmers safety
• Continuous, active, and vigilant supervision of weak swimmers and non-swimmers especially in
exercise spas, by a competent adult is required at all times (remembering that children under five
are at the highest risk of drowning).
• Designate a competent adult to supervise the spa each time it is being used.
• When the spa is not in use, or unsupervised, remove all toys from the spa and its surrounding area
to avoid attracting children to the spa.
Safety devices
• A safety cover or other safety protection device shall be used, or all doors and windows (where
applicable) shall be secured to prevent unauthorized access to the spa.
WARNING

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English

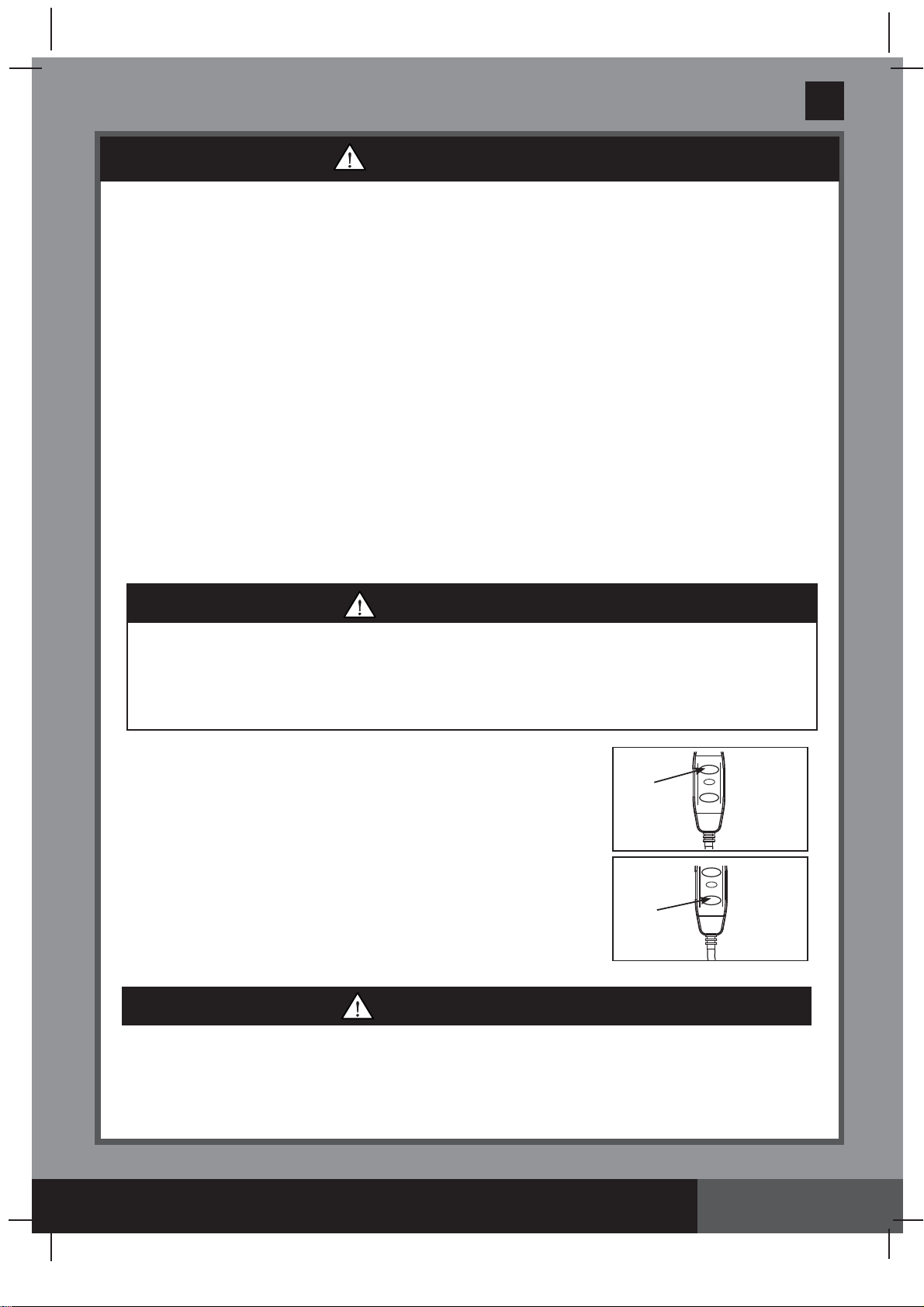

Page 6
CAUTION
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
• Maintain water chemistry in accordance with manufacturer’s instructions.
• This product is provided with a RCD located at the end of the power cord. The RCD must be
tested before each use. Do not use the spa if the RCD does not function properly. Disconnect
the power cord until the fault has been identified and corrected. Contact a qualified electrician to
correct the fault. Do not bypass the RCD. There are no serviceable parts inside the RCD.
Opening the RCD will void the warranty.
WARNING
TEST
RESET
RESET
TEST
TEST
RESET
RESET
TEST
TEST
WARNING
• Barriers, covers, alarms, or similar safety devices are helpful aids, but they are not substitutes for
continuous and competent adult supervision.
Safety equipment
• Keep a working phone and a list of emergency phone numbers near the spa.
Safe use of the spa
• Encourage all users especially children to learn how to swim.
• Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge
regularly. This can make a life-saving difference in the event of an emergency.
• Instruct all spa users, including children, what to do in case of an emergency.
• Never dive into any shallow body of water. This can lead to serious injury or death.
• Do not use the spa when using alcohol or medication that may impair your ability to safely use the
spa.
• When covers are used, remove them completely from the water surface before entering the spa.
• Protect spa occupants from water related illnesses by advising them to keep water treated and
practicing good hygiene. Consult the water treatment guidelines in the user’s manual.
• Store chemicals out of the reach of children.
• Attached the safety signage provided on the spa or within 2 m of the spa in a prominent visible
position.
1. Plug the unit into a grounded electrical outlet.
2. Press the RESET button on the RCD.
3. Turn on the spa electrical equipment.
4. Press the TEST button on the RCD. The RCD indicator should
turn off and the electrical equipment should shut off. If the RCD
indicator does not turn off, and the electrical equipment does not
shut off, the RCD is faulty. Do not use the spa. Contact a qualified
electrician to correct the fault.
5. Press the RESET button on the RCD. The indicator on the RCD
should turn on. If the RCD indicator does not turn on, the RCD is
faulty. Do not use the spa. Contact a qualified electrician
immediately to correct the fault.

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 7
PARTS
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
20 21
19
26
25
22 23 810
16
15
14 13 12
18
17
11
1
6
2
3
4
29
9
28
5
24
27
7

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 8
When ordering parts, be sure to quote the model number and part numbers.
PARTS (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF. NO. DESCRIPTION QTY. PART NO.
4 ADULTS 6 ADULTS
1 CONTROL BASE 1 12834 12834
2 SIDE COVER HINGE BASE 2 12771D 12771D
3 SIDE COVER HINGE FIXER 2 12772D 12772D
4 CONTROL BASE SIDE COVER 2 12770D 12770D
5 CONTROL PANEL 1 12839 12839
6 CONTROL PANEL BOLT WRENCH 1 11053 11053
7 SPA/COVER INFLATION HOSE 1 11830 11830
8 SPA CONTROL INLET/OUTLET O-RING 2 11699 11699
9 SPA CONTROL AIR INLET O-RING 1 11687 11687
10 SPA DRAIN PLUG 1 11995 11995
11 SPA DRAIN VALVE ADAPTOR 1 11718 11718
12 FILTER CARTRIDGE HOUSING 1 11798 11798
13 FILTER CARTRIDGE 2 11692 11692
14 FILTER CARTRIDGE HOUSING LID 1 11797 11797
15 INLET/OUTLET PLUG 3 11739 11739
16 SPA TUB 1 10068 12842
17 SPA COVER 1 11841W 12107W
18
SPA COVER INFLATABLE BLADDER (PRE-INSTALLED IN SPA COVER) 1 11689 12108
19 GROUND CLOTH 1 11717 12109
20 CHEMICAL DISPENSER 1 12735 12735
21 TEST STRIPS 1 11855 11855
22 WRENCH 1 11742 11742
23 AIR PRESSURE RELEASE VALVE CORE 1 12589D 12589D
24 HOSE ADAPTOR (PRE -INSTALLED WITH #7) 1 12773 12773
25 MALE BUCKLE 6 11994 11994
26 FEMALE BUCKLE 6 11993 11993
27 DEFLATION OUTLET CAP 1 12775D 12775D
28 DEFLATION HOSE ADAPTOR 1 12774 12774
29 SPA FILTER MOTOR 1 12778 12778

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 9
PRODUCT SPECIFICATIONS
SET UP
RF frequency band: 2408~2476MHz Transmitter power: 10dBm
Inflatable, portable aboveground cord-connected spa with pump, heater, blower, built-in hard water treatment
and control panel.
Note: the spa equipment features a complete grounding system that is also in contact with the spa water. It
is possible that a person may build up static electricity that discharges when touching the water. Regardless,
any electric shock experienced should be investigated by a qualified electrician prior to use of the spa.
Unplug the spa until the cause is determined and any corrective action completed.
Site preparation and requirements
• The spa can be installed indoor or outdoor. For household use only.
• Make sure the area is water resistant, level, flat and free of sharp objects under or around the spa.
• Provide a properly located grounded electrical outlet with a protection grade of IPX4 or higher to connect
the spa and allow easy access for periodic testing of the cord mounted RCD.
• Make sure there is enough clearance around the spa for full access to the spa equipment for maintenance
and/or service.
• The area shall facilitate draining purposes during long term spa storage. Check local and national
regulations regarding spa water disposal requirements.
• To reduce noise disturbance, do not install the spa in the immediate vicinity of vertical walls.
• The area shall be within reach of fresh water supply in compliance with local water regulations, and whose
parameters shall be adjusted according to the spa water chemistry and balance section of the manual
before first use of the spa.
• Check your local laws and regulations regarding indoor and/or outdoor spa installation.
Additional requirements for indoor installation
• Make sure the floor can support the full weight of the filled spa with the maximum number of occupants.
Check with a qualified contractor or a structural engineer to verify this requirement.
• Make sure the floor is water resistant and non-slip surface. Do not install the spa on carpet or other
materials that will be damaged by moisture, condensation.
• Do not install the spa indoors on a second floor above finished living space due to the possibility of water
and humidity damage.
Voltage / Frequency / Phase 220 - 240 V / 50 Hz / 1 PH
Maximum seating capacity: 4 adults 6 adults
Water capacity: 210 gal (795 L) 290 gal (1098 L)
Inner/outer diameter: 59/79 in (150/201 cm) 66/86 in (168/218 cm)
Height: 28 in (71 cm)
Bubble air blower: 800 Watts
Filter pump flow rate: 460 gal/hr (1,741 L/hr)
Heater power: 2,200 Watts
Temperature range: 10ºC – 40ºC (50ºF – 104ºF)
Temperature rise: 1.5-2.5ºC/hr (3ºF – 4.5ºF/hr) 1-2ºC/hr (2ºF – 3.5ºF/hr)
Number of Bubble Jets: 140 170
Spa tub recommended working air pressure: 0.083 bar (1.2 psi)
WARNING
Risk of fire: This product draws a minimum of 13 AMPS. Most household circuits are 13 to
16 AMPS. If the circuit breaker trips, please check that no other appliances or other large
loads are on the same circuit as the spa. Never use an extension cord. Unfold the line cord
prior to use. Never place the plug on combustible materials.

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 10
SET UP (continued)
Setup the spa with at least 2 persons.
1. Move the entire package to the selected site. Do not drag the spa tub across the ground as this can
cause damage and leakage.
Open the carton carefully as this carton can be used to store the spa during long term storage or when
not in use.
2. Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or
damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service
Centers” sheet.
Spa Control Panel Charging and Installation
1. Make sure the back of the control panel (5) and the control base recessed channel surface are clean
and dry.
2. Make sure the control base is plugged in and the RCD tested. Place the control panel (5) on the
control base recessed channel to charge the built-in battery (see drawing 1). See “Spa Control Panel”
operation section for more details.
3. Once the control panel battery is fully charged, you may place the control panel on top of the spa tub
wall (see drawing 2.1). To remove the control panel from the spa tub, lift the latch while pulling the
control panel away from the support stand (see drawing 2.2).
• Humidity is a natural side effect of indoor spa installation. The room shall be properly ventilated to allow
moisture to escape. Install a ventilating system to prevent excess condensation, moisture in the room.
Additional requirements for outdoor installation
• Spa owners may need to comply with local or states laws relating to childproof fencing, safety barriers,
lighting, and other safety requirements. Contact your local building code enforcement office for further
details.
• Make sure the surface is level, flat, smooth and strong enough to support the full weight of the filled spa.
• Do not setup the spa on grass or dirt, as this increases the amount of debris entering the spa, and
damage the spa floor.
• Do not expose the spa to direct sunlight for extended period of time. Provide protection from the
sun such as sunshade, tent, awning or gazebo.
• It is possible to install and leave the spa outside at a temperature not lower than 4°C (39°F) provided the
water temperature inside the spa is higher than 4°C (39°F) and the water inside the circulation system,
pump, pipe are not frozen. Put a “temp barrier mat” between the spa floor and the ground to prevent heat
loss from the bottom of the spa and to provide better heat retention. Do not use the spa if the ambient or
water temperature is 4°C (39°F) or lower.
1
52.2
5
2.1
1
2

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 11
SET UP (continued)
Inflation
Inflate the Spa Tub Wall
1. Take out the ground cloth (19) and spread it over the cleared area. Then spread out the spa liner over
the ground cloth and point the drain valve towards a suitable draining area.
NOTE: Spread the ground cloth with the bubbles facing down over the cleared area where you intend
to setup your spa.
2. Flip up the control base side cover (4) to reveal the air blower inflation outlet. Pull out the latch to open
the cover, insert the hose adaptor (24) with hose and reattach the latch to the hose adaptor to secure it
in place (see drawing 3).
3. Unscrew the air valve cap on the spa tub to reveal the
stem in the up position for inflation. Insert the other end of
the inflation hose (7) into the valve and turn to the right to
lock it in position (see drawing 4).
3
1
2
34
5
4
7
1 2
Optional equipotential bonding system
Depending on local building codes and regulations, have a qualified electrician to connect the spa
equipotential terminal with a conductor (wire) having a nominal cross-sectional area of 2.5 mm2to 6mm2to
the household equipotential terminal. (Wire not included)

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 12
SET UP (continued)
4. Press the button to turn on the control panel. Press
the button to inflate the spa tub wall for 8 to 10
minutes until it is firm to the touch but not hard (see
drawings 5 & 6).
IMPORTANT: Do not over inflate or use high pressure
air compressor to inflate.
5. Press the button again to turn it off.
6. Replace the air valve cap back.
The cap is designed to be screwed on and off. Never
exert force as this could cause the complete internal
inflation system of the valve to come loose. See “Spa
Tub Air Valve Fastening” for valve maintenance.
NOTE: If there is a need to replace the spa tub air pressure
release valve core (23) due to wear and tear, use the included
wrench (22) to unscrew the core from the valve base. Insert
the replacement core and tighten with the wrench. Make sure
the core is securely tightened (see drawing 7).
Inflate the Spa Cover Air Bladder
1. Open the inflation valve and insert the inflation hose (7)
into the valve; press to inflate until it is firm to the
touch but not hard (see drawing 8).
2. Disconnect the inflation hose (7) from the air blower
inflation outlet and the valve.
3. Replace the control base inflation latch back; close
and recess the inflation valve.
NOTE: If there is a need to add some air to the spa tub wall
or spa cover air bladder after they have been setup, refer to
above “Inflate the Spa Tub Wall” and “Inflate the Spa Cover Air Bladder” sections. The cover air bladder is
preinstalled inside the spa cover. If it needs to be reinstalled, place the uninflated air bladder inside the spa
cover lip before inflating the bladder.
7
22
23
5
8
7
6
IMPORTANT: To prevent damage to the air blower motor never
block the air blower outlet opening during inflation.

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 13
SET UP (continued)
The spa tub inflation/deflation valve incorporates an “air pressure release” function that automatically
releases excess air when the spa tub internal pressure is between 1.5 - 2.5 psi (0.103 - 0.172 bar).
Air pressure release valve.
Colder temperatures at night
cause the spa to seem less
inflated.
Air expands in the midday
heat and correct air
pressure is restored.
Air expands in the midday heat.
Air pressure release valve kicks
in and releases excess air.
Inflation of spa in the morning.
IMPORTANT
Deflation
For Spa Tub Wall:
1. Unscrew the cap to reveal the stem, push the stem in and turn
90 degree right to secure it in the down position (see drawing 9).
2. Once the deflation is completed, push the stem in and turn 90
degree left to return it to the inflation position.
3. Replace the cap back.
NOTE:
To deflate the spa tub for storage, see “STORAGE” section.
For Cover Air Bladder:
1. Pull valve cap out and squeeze the valve at its base until deflated.
2. Close and recess the valve back.
9

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 14
SET UP (continued)

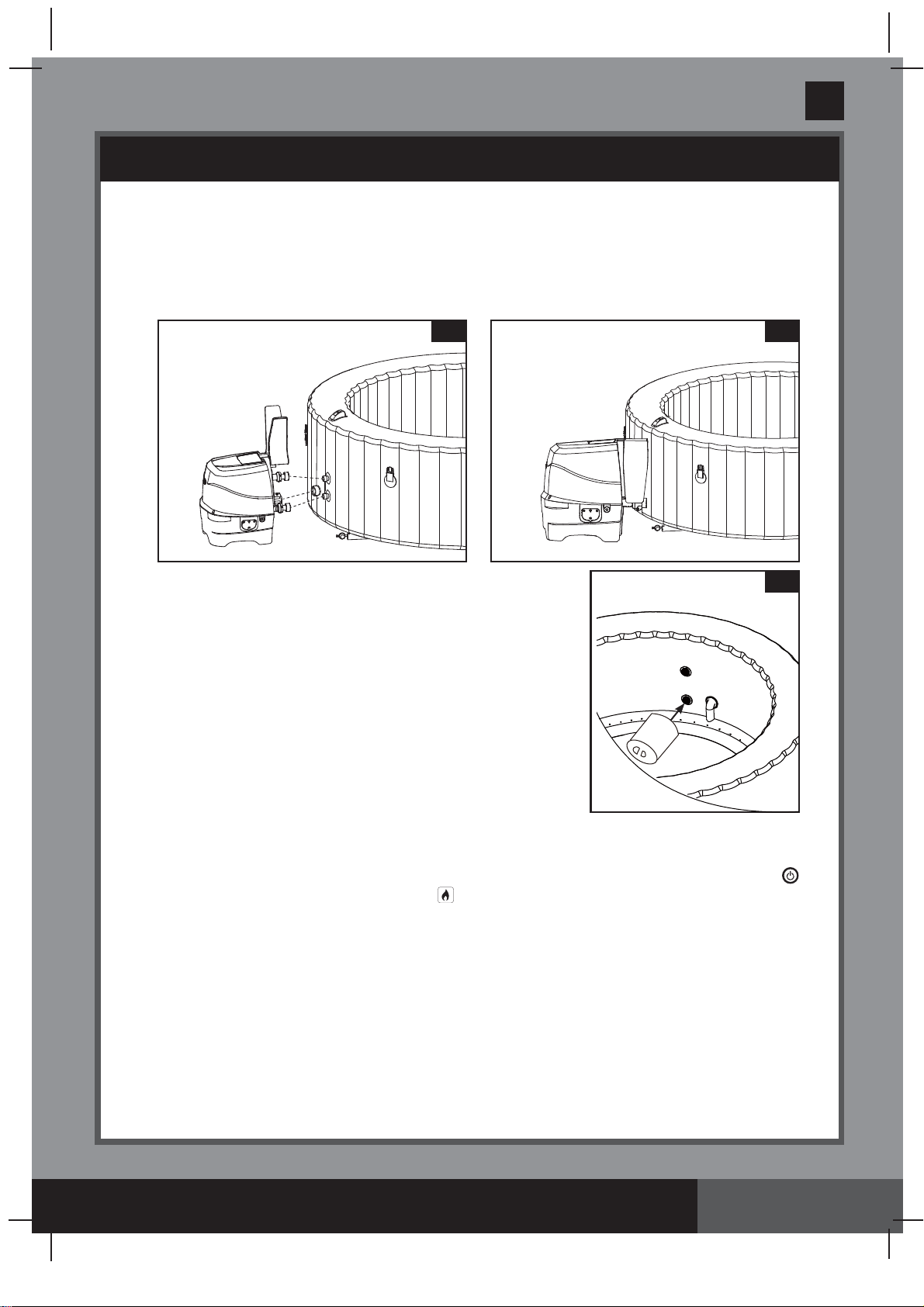

Spa Control Unit Installation
1. Connect the spa control unit to the spa tub (see drawing 10). Hand-tighten the connectors securely. Do
not use tools to tighten.
NOTE: Never attach external accessories not supplied with the kit to the spa tub or control base unit, as
this will void the warranty.
2. Replace the control base side covers (4) (see drawing 11).
CAUTION: Do not sit, lean, cover or place any objects over the spa control unit.
3. Attach the filter cartridge housing assembly to the inside of the spa
tub outlet grid (lower position) (see drawing 12).Inflate the spa tub
first before installing filter pump fittings.
4. Before filling with water ensure the bottom drain valve caps are
securely closed on the inside and outside.
5. Fill the spa tub with freshwater to a level between MIN and MAX
marked on the inside of the spa wall. Do not over fill the spa.
Never move the spa tub with water inside and/or with the control
base attached to the spa as the spa or control base may be
damaged.
WARNING: Never pour water with a temperature higher than
40°C (104°F) into the spa directly. It is recommended to fill the
spa tub with lukewarm water for quick heating and energy saving.
6. Place the spa cover and spa air bladder (pre-installed in spa cover)
over the spa tub, and make sure the spa cover buckles are locked
using the key provided after pulling the buckled straps tight.
IMPORTANT: Inspect the spa cover regularly for leak, premature wear and tear or deterioration. Never
use a damaged spa cover.
7. Ensure that the spa base is plugged into a properly located and sized electrical outlet and press the
button to turn on the control panel. Press the button on the control panel to activate the heater, see “Spa
Control Panel” operation section.
Spa Cover
The attachment buckles of the cover are locking buckles. Two keys are provided in the plastic bag with the
manual and other accessories. Each buckle is marked with “locked” and “unlocked” symbols for easy operation:
put the key into the slot on the buckle and turn it to the appropriate position to lock or unlock the buckle
respectively.
To assure safety from unauthorized access, always put the cover on when spa is not in use and lock all
buckles. Always keep the keys out of reach of children. In case you misplace the keys, you can use any similar
size flat screwdriver to lock or unlock the buckles.
When the spa is being used, the cover should be placed in a clean, dry area, otherwise it can pick up dirt and
bacteria. Covers should not be put on wooden tables or wooden decking because of the risk of bleaching the
wood. A cover lifter, dedicated support or similar device, is recommended for ensuring that the cover, mostly its
side facing the water, does not come into contact with the ground or any other dirty surfaces.
11
10
12

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 15
OPERATION
On/Off Button: Once the unit is plugged in, press this button to active the control panel
buttons. Press this button again to turn off all currently activated functions.
Lock/Unlock Button: Press and hold this button 3 seconds to lock/unlock the control buttons.
If you forget to lock the keypad controls, the system will automatically lock it after 1 minute of
inactivity. The icon on the display is green when locked.
Control Panel Battery Indicator: The battery indicator will turn green when it is fully charged;
turn red when it requires charging and flashing red when it is in charging mode.
Bubble Button: Use this button to activate the massage system, which has a 30-minute
auto-shutoff feature. The bubble icon on the displays is green when activated.
CAUTION: Do not run Bubble system when the cover is attached, air can
accumulate inside the spa and cause irreparable damage and bodily harm.
Water Filter Button: This button turns the filter pump on and off. The water filter icon on the
display is green when activated and flashing 002H which is the minimum preset operating
hours. Press again to increase the preset time from 002H, 004H to 006H. Pressing the button
after the maximum number of hours (006H) will turn off the filter pump and the LED display
shows the spa water temperature. If you have selected too many hours keep pressing to repeat
the cycle. Once the operating time is set, the LED display will stop flashing after 10 seconds
and the filter pump starts working. The cycle repeats itself at the same time each day for the
number hours selected.
If the heating system is activated it will override the filter pump preset time function.
To view the preset time while the filter pump is operating, press
button, the display will
briefly flash the preset hours for 10 seconds and then display back the remaining operating
hours. To adjust the preset time, press button twice until the display is flashing and repeat
previous steps.
NOTE: The built-in hard water treatment function works automatically in conjunction with the
filtration system.
Celsius/Fahrenheit Toggle button: The temperature can be displayed in either Fahrenheit or
Celsius. The system’s default is Celsius.
NOTE: The default temperature is 20°C (68°F). Temperature adjustment ranges from 10°C
(50°F) to 40°C (104°F).
NOTE: The spa control panel is resistant to water, but it is not designed to be completely
submerged. Do not put the control panel in the water. Submersion could cause water to enter
the panel causing damage to the electronics.
SPA CONTROL PANEL
A: On/Off Button
B: Lock/Unlock Button
C Control Panel Battery Indicator
D: Bubble Button
E: Water Filter Button
F: Celsius/Fahrenheit Toggle Button
E
CB
DA
F
WARNING
NEVER use the spa if indicated water temperature is more than 40°C (104ºF).

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 16
SPA CONTROL PANEL
G: Heat Button
H: Heater Start Timer (HST) Button
OPERATION (continued)

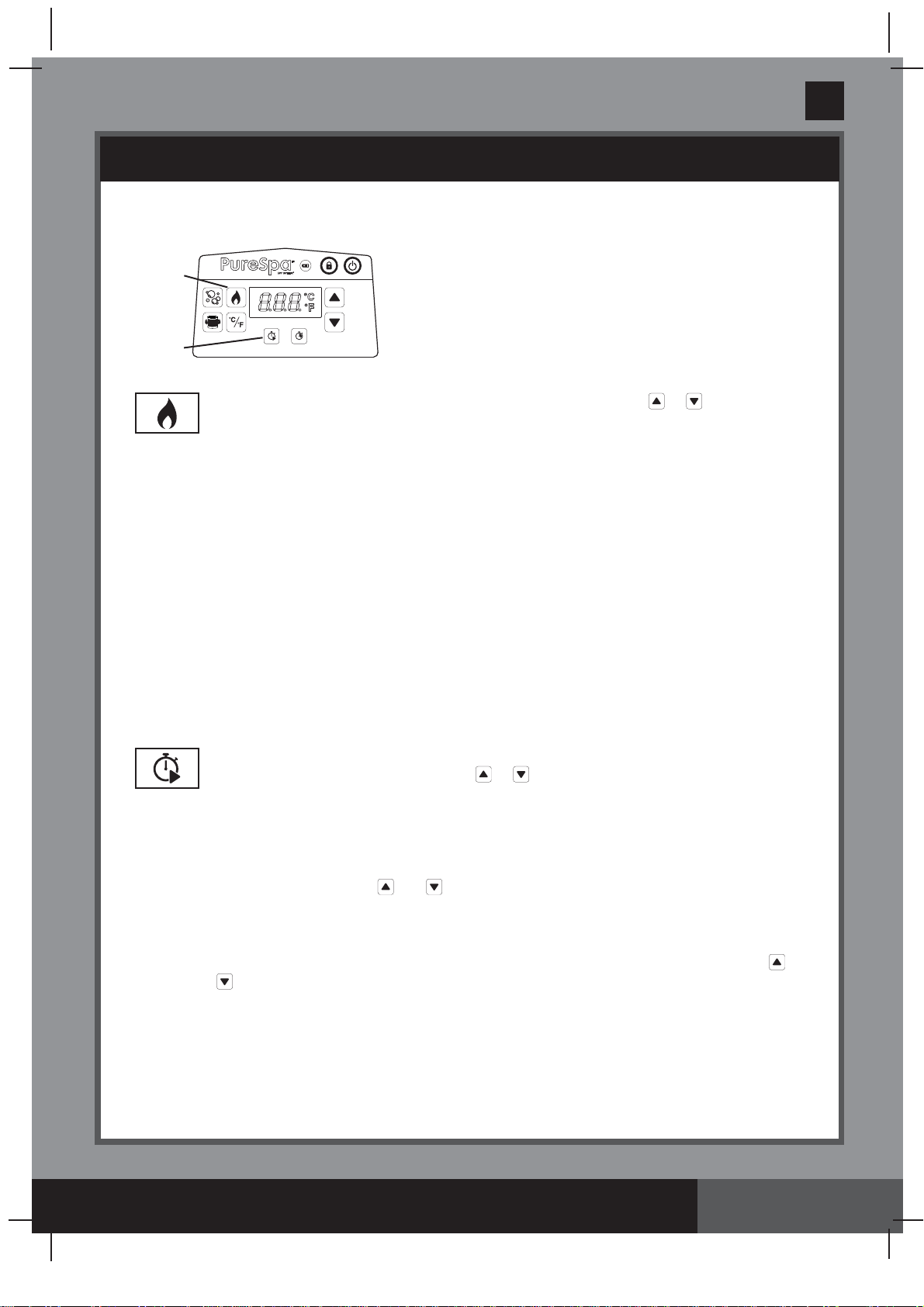

Heat Button: Press this button to activate the heating system. Press or to set the
desired water temperature. The heater will continuously heat until the water temperature
reaches the set temperature and then hold at that temperature. This is achieved by the heater
restarting automatically whenever the water temperature drops 1-2°C (1.8-3.6°F) below the set
temperature. When the flame icon on the display is red, the heating system is activated. When
the flame icon turns green, the water is at the set temperature. The heating system is then at
rest, but the filtration system will continue circulating water nonstop, unless manually turned off.
If the heating system is reactivated, the filter pump will restart at the same time.
NOTE: To stop the filtration system while the heater is at rest mode, press the flame button
first and then the filter button. Pressing the heat button only while the heater is at rest mode will
turn off the heating system only and the filtration system will operate for 1 more minute before
it turns off or continue with the filter pump preset operating hours. To turn the heater off while
heating, press the flame button.
IMPORTANT: The following conditions will lead to slow water heating.
• The ambient temperature is lower than 10ºC (50ºF).
• Outdoor wind speed is above 3.5-5.4 m/s (8-12 mph).
• The air bubble function is activated when heating the spa water.
• The spa is not properly covered with the spa cover when the water is heating.
Heater Start Timer (HST) Button: Use this button to select a future start time for the heating
system. Press this button and then press or to set the number of hours by which you
wish to delay the start of the heating system, from 000 to 120 hours. The icon will flash red for a
few seconds and then stays red. The information shown on the LED display alternates between
the remaining hours before heater start and the water temperature. Once the countdown timer
reaches 000, the heating system will start operating. To deactivate the function at any time,
simply set the HST time back to 000. To readjust the preset hours, press the HST button twice
and adjust the hours with and buttons.
Example 1: It is 9:00pm Monday evening and you would like the spa to be hot on Friday
evening. Allowing for 24 hours for the spa to heat up (4 persons model about 1.5-2.5ºC (3-4.5ºF)
per hour) the heater should be set to start on Thursday evening. With the Spa turned on, first
press the Heat button and set your desired temperature. Press the HST button and then or
until 072 hours is shown. The heater will start after 72 hours has passed (Thursday at 9:00pm)
and will run until the desired temperature is attained. The heater will then cycle on and off to
maintain the set temperature until turned off. To turn off the heater, press the flame button.
H
G

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 17
OPERATION (continued)

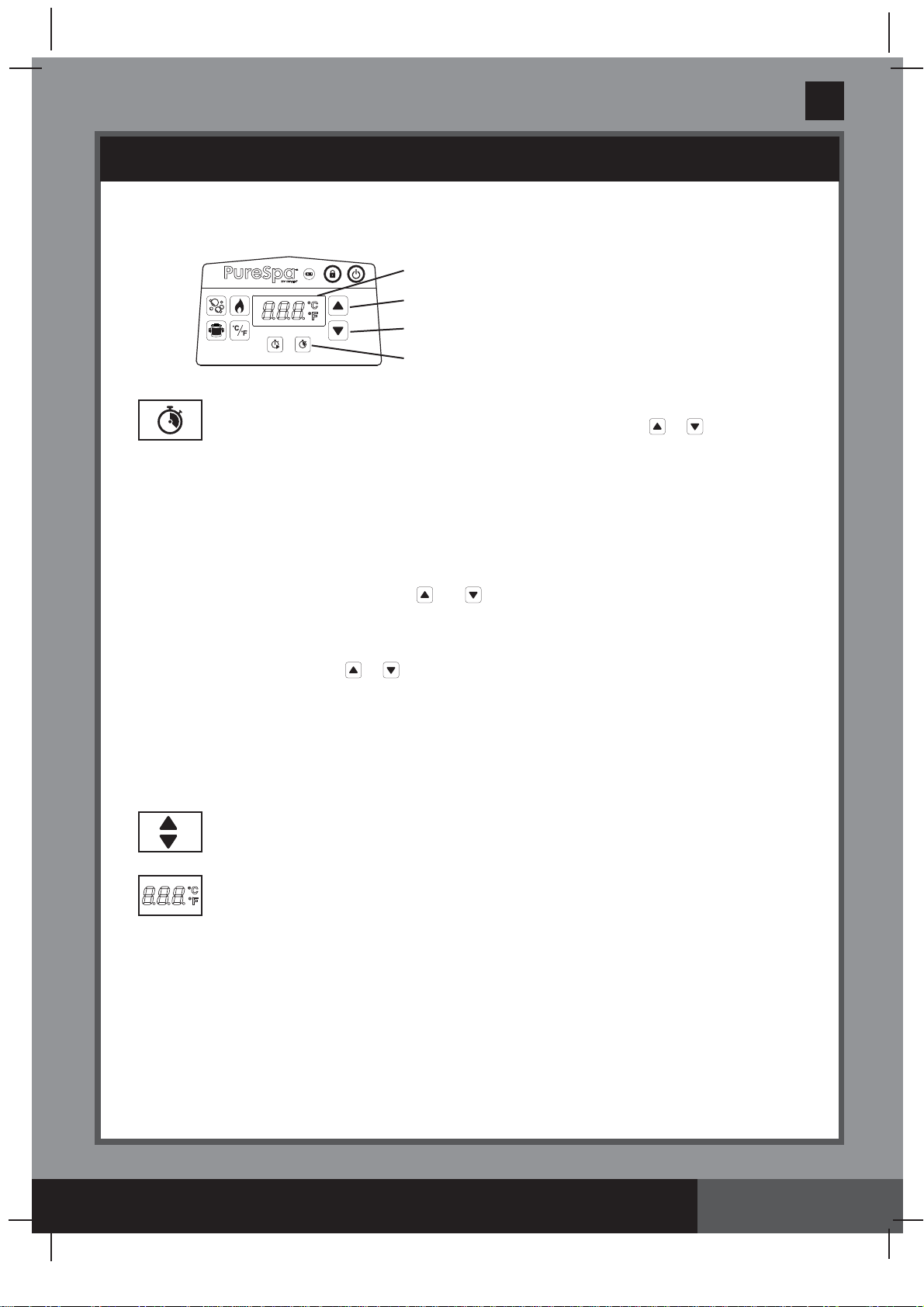

Heater Duration Timer (HDT) Button: Use this button to select the desired length of time
the heating system should operate. Press this button and then press or to set the
number of hours you wish the heater to operate before it automatically turns off, from 000 to
048 hours. The icon will flash red for a few seconds and then stays red. The heating system
will operate for the amount of preset hours only. The timer takes priority over temperature,
so the heater will shut off when HDT time runs out regardless if the preset spa water
temperature is reached or not. During the HDT function, the information shown on the LED
display alternates between the remaining heater operating hours and the water temperature.
Repeat previous steps to reprogram this function. To deactivate the function at any time,
simply set the HDT time back to 000. To readjust the preset hours, press the HDT button
twice and adjust the hours with and buttons.
Example 2: Using the same scenario as example 1 above but rather than manually turning
the heater off when you are finished, you would like the heater to turn off automatically on
Saturday evening at 9:00pm. After going through the steps in example 1, press the HDT
button and then the or button to select 048 hours. The heater will then run from
Thursday at 9:00pm to Saturday at 9:00pm.
NOTE: If HST and HDT timers are both set, the LED display will first alternate between
remaining time before the heater start and the water temperature, until HST timer runs out
and the heater activates. Then the LED display alternates between remaining HDT time and
water temperature until the HDT timer runs out as well.
Adjustment Buttons: Press the increase or decrease buttons to adjust the desired function
settings. Press and hold the button will rapidly increase or decrease the numbers.
LED Display: Once plugged in the LED displays the current water temperature automatically.
If the control panel (5) is not placed on the control base recessed channel, the LED display
will go blank after 5 minutes. Press any button to resume the control panel.
I: Heater Duration Timer (HDT) Button
J: Decrease Button
K: Increase Button
L: LED Display
SPA CONTROL PANEL
K
J
L
I

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 18
OPERATION (continued)
Heater Function Setting Examples
Temp set
at (oC/F) HST HDT Action
40/104 000H 000H
HST & HDT functions are off. Heating system has to be activated
manually by pressing ( ) button. See “Spa Control Panel” section
for details. The heater will continuously heat until the temperature
is reached and then hold at that temperature.
40/104 000H 005H
Turn the heater on and set a run time at which point the heater
will turn itself off. The heater will continuously heat until the
temperature is reached and then hold at that temperature until the
5 hours run time has expired, regardless if the water temperature
has reached 40°C/104°F or not.
40/104 012H 005H
Turn the heater on some time into the future to a set temperature
and set a run time at which point the heater will turn itself off. The
heater will start after 12 hours and continuously heat until the
temperature is reached and then hold at that temperature until the
5 hours run time has expired, regardless if the water temperature
has reached 40°C/104°F or not.
40/104 012H 000H
Turn the heater on some time (in hours) into the future to a set
temperature. The heating system will start after 12 hours, and
continuously heat until the water reaches 40°C/104°F and then
hold at that temperature. When the spa water temperature drops
1-2°C (1.8-3.6°F) below the set temperature the heating system
will restart. When the flame icon on the display is red, the heating
system is activated. When the flame icon turns green, the water
is at the set temperature. The heating system is at rest and the
filtration system will continue working nonstop.

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 19
OPERATION (continued)
Function ON OFF Information shown on LED display alternates between

Remaining filter pump time and water temperature



Remaining HST time and water temperature


 Remaining HST time and water temperature first. Then
remaining HDT time and water temperature.



Remaining HDT time and water temperature


NOTE: Keep the spa control panel within 5m (16ft) range of the control base to ensure good
wireless transmission signal.
1) Always keep the spa cover on to minimize heat loss during heating of the spa between
uses (but not while it is being used). Ensure the cover is fitted tightly, as per manufacturer’s
instructions to maximize insulation. It shall be recommended that the cover, when not in
use, should be kept off the ground to retain its cleanliness (particularly the surface in close
proximity to the water spa water surface). The cover should be stored in an appropriate
location, where it cannot be damaged, or cause damage.
2) Check the set water temperature and consider lowering it for the times when the spa will
typically not be in use.
3) Depending on external conditions, consider turning off the heater entirely if not using the spa
for an extended period of time (where the spa provides this option, but still maintains residual
disinfection/pH-values).
4) Consider that the comfortable temperature range during use may be lower than the maximum
safe temperature.
5) Use the included insulating ground cloth underneath the spa to minimize heat loss through
the bottom of the spa.
6) Maintain clean filters to preserve appropriate working conditions for the pump and avoid
unnecessary water replacement and re-heating.
MINIMIZE HEAT LOSS AND ENERGY CONSUMPTION ADVICE

346
A
SAVE THESE INSTRUCTIONS
(346IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 07/29/2019
English
Page 20
LED CODE CHART
LED Reading CAUSE SOLUTION
E81 Transmission signal failure
• Reset the RCD, restart all over again.
• Place the control panel within 5 m (16 ft) of the
control base unit.
• Press and hold POWER button for 5 seconds to
turn off and charge the panel again.
• If problem persists, contact Intex Service Center.
E90 No water flow
• Turn off and unplug the control unit.
• Ensure the outlet cover grid is clean and free from
obstructions.
• Clean or replace the cartridge, see Maintenance
and Storage section.
• Ensure the in/outlet connections on the spa tub and
filter pump are not blocked.
• Keep the spa water properly sanitized to ensure a
clean and unclogged filter cartridge.
• If problem persists, contact Intex Service Center.
E94 Water temperature too low
• If the ambient temperature is below 4°C (39°F), we
recommend not to use the spa.
• Turn off and unplug the control unit, add some
warm water to raise the spa water temperature
above 5°C (41°F), then press the
button to heat
up the water to the desired temperature.
• If problem persists, contact Intex Service center.
E95 Water temperature too high
• Turn off and unplug the control unit. When the water
has cooled down, plug the RCD and restart all over
again.
• Turn the heater off, then press the filter and bubble
buttons to lower the water temperature.
• If problem persists, contact Intex Service Center.
E96 System Error • Turn off and unplug the control unit. Plug the RCD
and restart all over again.
• If problem persists, contact Intex Service Center.
E97 Dry-fire Protection • Contact Intex Service Center.
E99 Water temperature sensor broken • Contact Intex Service Center.
END
After 72 hours of continuous
heating operation, the pump will
hibernate automatically. The rapid
heating function is disabled.
• Press the
button to re-active the filter pump.
BLANK
Control panel battery has no power
or in “Power Saving Mode” waiting
to be placed on the control base
recessed channel.
• Press any button to reactivate the control panel.
• Reset the RCD, restart all over again and charge
the control panel again.
• Make sure the surface between the back of the
control panel and the control base recessed channel
is clean, dry and free of obstruction.
• If problem persists, contact Intex Service Center.
