Intex CD136A User manual

Operation Manual
Aluminium Drywall Cart
WARNING: Read and become familiar with this manual BEFORE operating this equipment.
Failure to do so could result in serious property damage and or serious bodily injury.

2Intex Drywall Cart intexinternational.com
Innovative Design
Fork frame provides
greater worksite
manoeuvrability
through doorways etc.
Smooth Ride
Four Heavy Duty 200mm (8")
rubberised swivelling wheels.
Two rear wheel equipped with
foot breaks for all worksite
conditions.
Multipurpose Transformer
Uprights quickly dismantle
and stow, forming a one-piece
300mm(12") wide flatbed for
compact cart storage and fork lifting
bulk board materials throughout
multiple levels of the worksite.
Heavy Duty Construction
Built TradeTuff® with
Industrial Rated lightweight
aluminium alloy.
Unique lightweight Industrial Rated Aluminium
Drywall Cart designed for transporting bulk board
materials around the worksite.
Intex Aluminium Drywall Cart
Code CD136A
Unit Weight 22kg
Max. Load Rating 1,000kg (2,204 lbs)
Max. Load Size (Height) 122cm (48")

3
WARNING: To reduce the risk of injury user must read and understand operator’s manual.
WARNING!
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS BEFORE OPERATING THIS EQUIPMENT.
FAILURE TO UNDERSTAND AND FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN
MISUSE OR FAILURE OF THE EQUIPMENT. MISUSE OR FAILURE OF THE EQUIPMENT WHILE THE
CART IS LOADED CAN RESULT IN OVERTURNING THE CART AND LOAD, POTENTIALLY RESULTING IN
SERIOUS PROPERTY DAMAGE AND/OR SERIOUS BODILY INJURY.
• It shall be the responsibility of the cart owner to keep the cart properly maintained.
• Always wear appropriate personal protective equipment when operating the cart.
• Do not attempt to use cart if any part is missing, damaged or worn.
• The cart weight capacity is 1,000kg (2,204 lbs). DO NOT not load the unit beyond this limit. Failure
to follow this warning can result in damage to the cart contributing to a sudden failure of the cart
and possibly serious property damage and/or serious bodily injury.
• The cart load size capacity (height) is 122cm (48") from the load support frame. DO NOT not load the
unit beyond this limit or with materials that exceed this limit. Failure to follow this warning can result
in destabilising of the loaded cart. Such destabilising of the loaded cart can result in failure of the cart
and/or overturning of the cart and possibly severe property damage and/or serious bodily injury.
• Only operate the cart on hard, flat, level surfaces free of obstructions, debris, clutter, pits, holes
or openings. Failure to follow this warning can result in tipping the cart and load possibly resulting in
serious property damage and/or serious bodily injury.
• When moving a loaded cart, ALWAYS push the cart, NEVER pull toward the operator. When
moving any loaded cart, unforeseen and unanticipated circumstances can arise which can result
in unanticipated motion and/or destabilising of the loaded cart. Such unanticipated motion and/or
destabilising of the loaded cart can result is failure of the cart and/or overturning of the load and
possibly severe property damage and/or serious bodily injury.
• When moving a loaded cart, always keep nearby personnel aware of and clear of the cart’s motion
to avoid being struck and possibly injured by the loaded cart or load.
• The cart is made of aluminium which conducts electricity. Keep the cart away from live electrical
wires. Failure to do so could result in electrocution.
• Only use genuine and authorised Intex replacement parts. Installation and the use of other parts
can compromise the safety of the cart and may cause failure, possibly resulting in serious property
damage and/or serious bodily injury. Use of non-Intex authorised parts will void all warranties.

4Intex Drywall Cart intexinternational.com

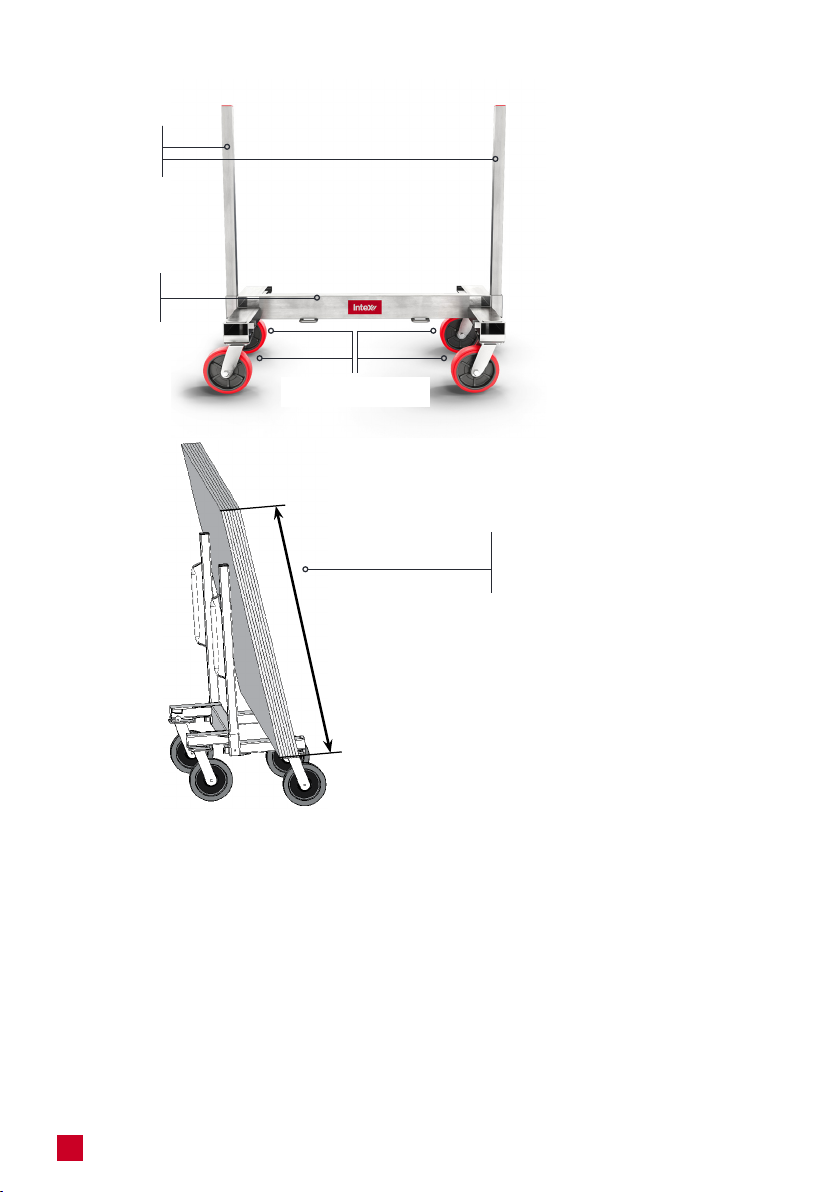

INTEX CART COMPONENTS & SPECIFICATIONS
CARE & MAINTENANCE
• Inspect castors FREQUENTLY (at least daily and before each use) for proper operation of all rollers
and bearings. For castors equipped with brakes and swivel locks, check these for proper operation.
• Inspect castors FREQUENTLY (at least daily and before each use) for secure attachment to the cart
frame. Tighten all castor fasteners securely if necessary.
• Inspect the latch pins that secure the upright arms in the working position for proper operation.
Repair or replace when necessary to maintain proper function.
• Occasionally oil the castor bearings.
• Take reasonable care to avoid damaging the cart whilst in operation or in transportation.
Max. Load Size (Height):
122cm (48")
DO NOT EXCEED
Max. Load Rating:
1,000kg (2,200 lbs).
DO NOT EXCEED
Support
Arms
Cart
Frame
Castors
(User Assembled)

5
WARNING: To reduce the risk of injury user must read and understand operator’s manual.
ASSEMBLY & USE

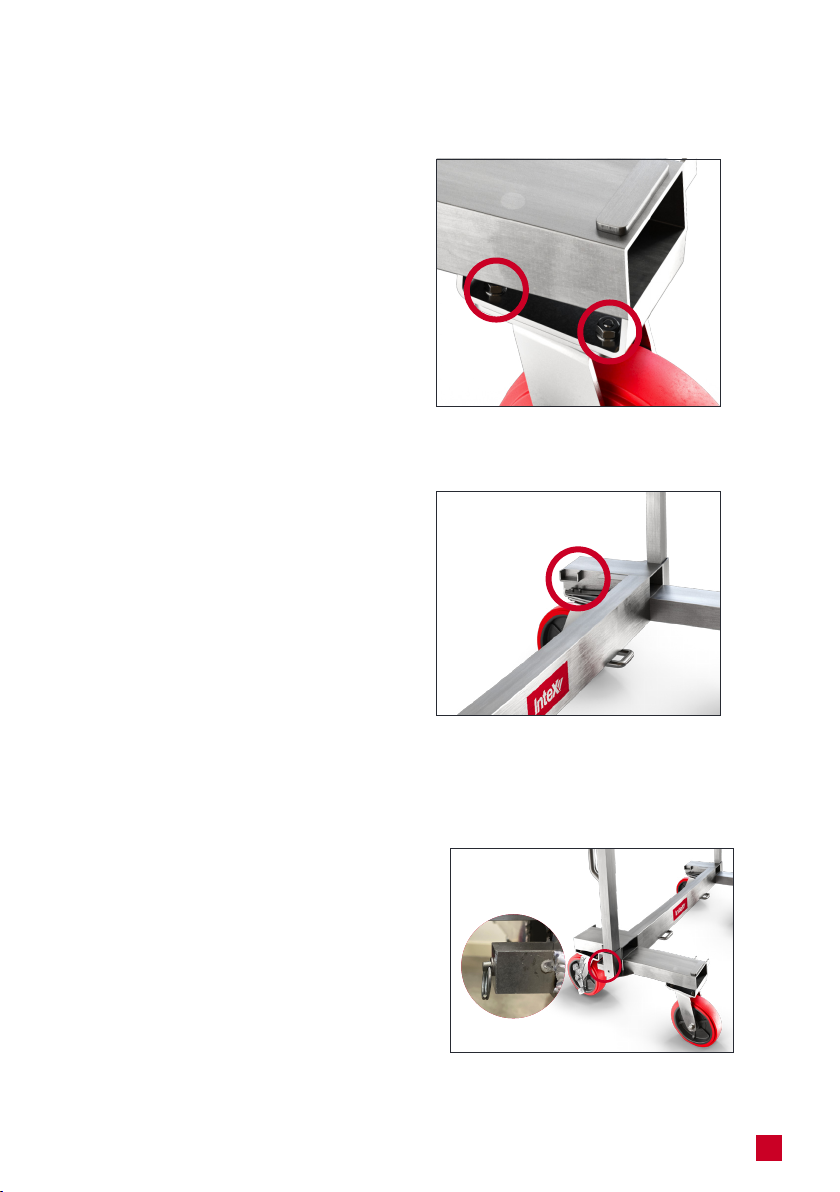

1. For initial assembly fasten all castors
securely with four bolts per castor.
2. Press the release tab to remove the
upright arms from the storage and
transport position.
3. Lock the support arms in the upright
position when loading building boards
and similarly configured materials.

6Intex Drywall Cart intexinternational.com
ASSEMBLY & USE
5. The support arms can be stowed
and positioned to configure the cart
for use as a manoeuvrable flatbed.
6. With the arms stowed and
locked in the storage and
transport position, the cart can
be conveniently handled for
compact transportation.
4. When moving the cart while loaded,
ALWAYS push the loaded cart away
from the operator. NEVER pull the
loaded cart toward the operator.

7
WARNING: To reduce the risk of injury user must read and understand operator’s manual.
PARTS INDEX
Part # Name
PLC01A Upright Storage Latch
PLC02A Upright Latch Assembly (Pull Pin)
PLC03A Upright Tube
PLC04A Swivel 8" Castor
PLC05A Upright End Cap
PLC14A Swivel-Locking / Braking Castor
PLC14A
PLC03A
PLC01A
PLC04A
PLC04A
PLC05A
310mm
PLC02A
Spare Parts Online @intexinternational.com
950mm (37")
320mm (13")
1220mm (48")
PLC14A

CD136A 10/21
TradeTuff® ia a registered Trademark of Intex International.
The information contained in this brochure was correct at the time of printing. E&OE
