Intex Troll User manual

®
Operation Manual
Troll® Drywall Cart & Spanning Platform
WARNING: Read and become familiar with this manual BEFORE operating unit.
Failure to do so could result in serious property damage and or serious bodily injury.

2Intex Telpro® Troll® intexinternational.com
Troll® Drywall Cart
Warning & Instructional Information 3
Components & Product Specifications 4
Care & Maintenance 4
Assembly & Use 5
Parts Index 7
Troll® Drywall Cart Spanning Platform
Components 8
Assembly & Use 9
contents

3
WARNING: To reduce the risk of injury, user must read and understand operator’s manual.
WARNING!
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS BEFORE OPERATING THIS EQUIPMENT.
FAILURE TO UNDERSTAND AND FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN
MISUSE OR FAILURE OF THE EQUIPMENT. MISUSE OR FAILURE OF THE EQUIPMENT WHILE THE
CART IS LOADED CAN RESULT IN OVERTURNING THE CART AND LOAD, POTENTIALLY RESULTING IN
SERIOUS PROPERTY DAMAGE AND/OR SERIOUS BODILY INJURY.
• It shall be the responsibility of the owner of the Troll® Cart to keep the product properly maintained.
• As with any material handling equipment, ALWAYS WEAR APPROPRIATE PERSONAL PROTECTIVE
EQUIPMENT when operating the Troll® Cart. Failure to do so could result in serious bodily injury.
• DO NOT ATTEMPT TO USE YOUR TROLL® CART IF ANY PART IS MISSING, DAMAGED OR WORN.
ORDER A REPLACEMENT PART IMMEDIATELY. Using a Troll® Cart with missing, damaged or worn
components can result in failure of the unit and possibly serious property damage and/or serious
bodily injury.
• THE WEIGHT CAPACITY OF THE TROLL® CART IS 3,000 LBS. (1,360 KG). DO NOT LOAD THE UNIT
BEYOND THIS LIMIT. Failure to follow this warning can result in damage to the cart
contributing to a sudden failure of the cart and possibly serious property
damage and/or serious bodily injury.
• THE LOAD SIZE CAPACITY OF THE TROLL® CART IS 4’ (1.2m) FROM THE LOAD SUPPORT FRAME.
DO NOT LOAD THE UNIT BEYOND THIS LIMIT OR WITH MATERIALS THAT EXCEED THIS LIMIT.
Failure to follow this warning can result in destabilising of the loaded cart. Such destabilising
of the loaded cart can result in failure of the cart and/or overturning of the cart and possibly
severe property damage and/or serious bodily injury.
• OPERATE THE TROLL® CART ONLY ON HARD, FLAT, LEVEL SURFACES FREE OF OBSTRUCTIONS,
DEBRIS, CLUTTER, PITS, HOLES OR OPENINGS. Failure to follow this warning can result
in tipping the cart and load possibly resulting in serious property damage and/or
serious bodily injury.
• WHEN MOVING A LOADED TROLL® CART, ALWAYS PUSH THE CART. NEVER PULL THE
LOADED CART TOWARD THE OPERATOR. WHEN MOVING ANY LOADED CART, UNFORESEEN AND
UNANTICIPATED CIRCUMSTANCES CAN ARISE WHICH CAN RESULT IN UNANTICIPATED MOTION
AND/OR DESTABILISING OF THE LOADED CART. Such unanticipated motion and/or destabilising
of the loaded cart can result is failure of the cart and/ or overturning of the load and possibly
severe property damage and/or serious bodily injury.
• When moving a loaded Troll® Cart, ALWAYS keep nearby personnel aware of and clear of the cart’s
motion to avoid being struck and possibly injured by the loaded cart or load.
• The Troll® Cart is made of steel which conducts electricity. KEEP THE UNIT AWAY FROM LIVE
ELECTRICAL WIRES. Failure to do so could result in electrocution.
• Use only Intex authorised replacement parts. Installation of other parts can compromise the
safe design of the Troll® Cart and may cause failure of the unit possibly resulting in serious property
damage and/ or serious bodily injury. Use of non-manufacturer authorised replacement parts will
void all warranties.

4Intex Telpro® Troll® intexinternational.com

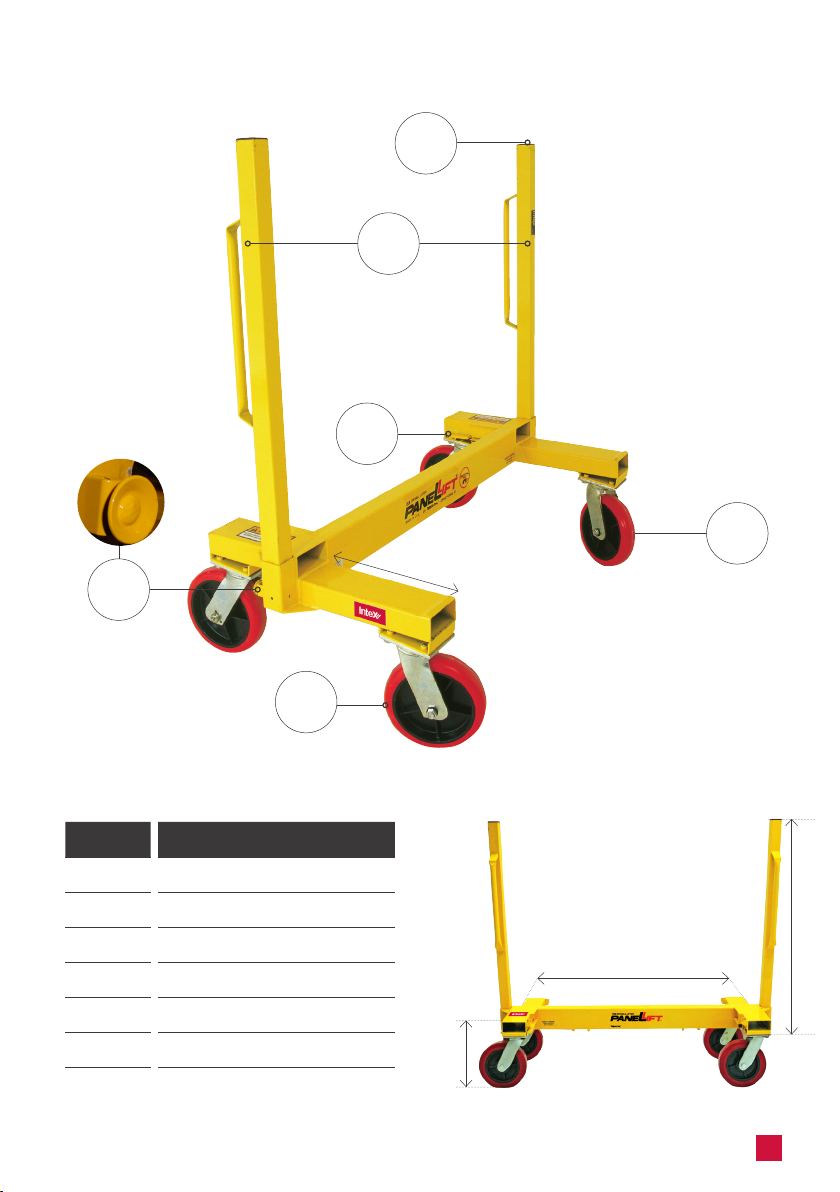

TROLL® CART COMPONENTS & SPECIFICATIONS
CARE & MAINTENANCE
Inspect FREQUENTLY (at least daily and before each use):
• Inspect casters FREQUENTLY (at least daily and before each use) for proper operation of all rollers
and bearings. For casters equipped with brakes and swivel locks, check these for proper operation.
• Inspect casters FREQUENTLY (at least daily and before each use) for secure attachment to the cart
frame. Tighten all caster fasteners securely if necessary.
• Inspect the latch pins that secure the upright arms in the working position for proper operation.
Repair or replace when necessary to maintain proper function.
• Occasionally oil the caster bearings.
• Take reasonable care to avoid damaging the Troll® Cart when transporting or using it.

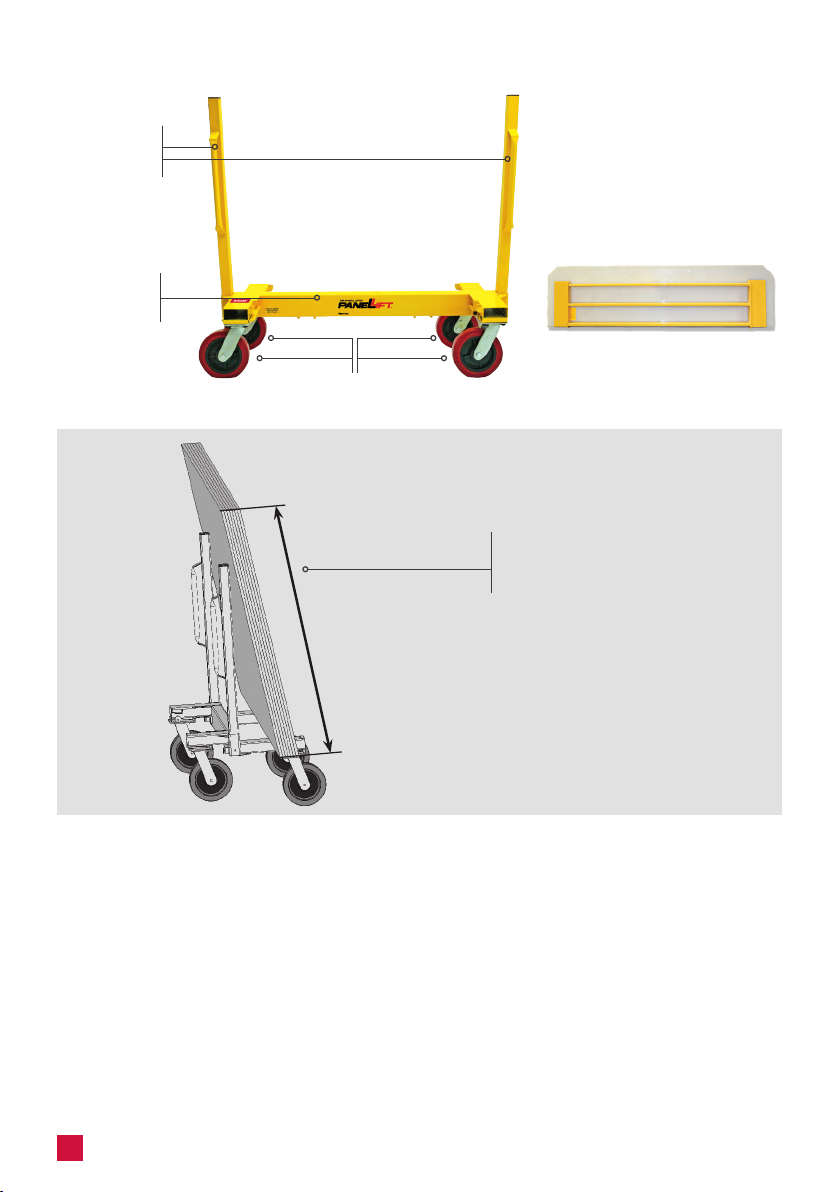

Max. Building Panel Size:
48" (121.9 cm)
DO NOT EXCEED
Max. Load Rating:
3,000 lbs. (1,360kg)
DO NOT EXCEED
Support Arms
Cart Frame
Base Panel
(Sold Separately)
Casters
(User Assembled)

5
WARNING: To reduce the risk of injury, user must read and understand operator’s manual.

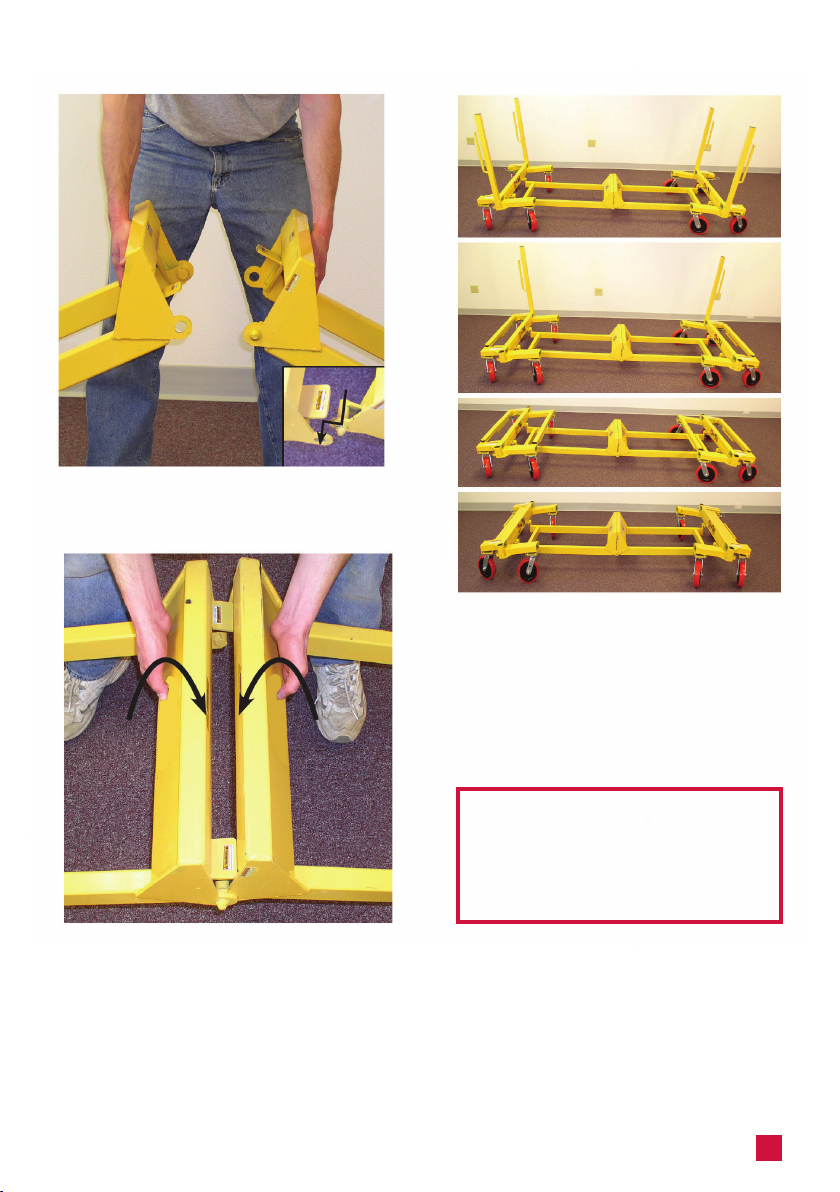

ASSEMBLY & USE
1. For initial assembly fasten all casters
securely with four bolts per caster.
2. Press the release tab to remove the
upright arms from the storage and
transport position.
3. Lock the support arms in the upright
position when loading building boards
and similarly configured materials.

6Intex Telpro® Troll® intexinternational.com
ASSEMBLY & USE
5. The support arms can be
positioned to configure the Troll®
Cart for use as a flatbed cart.
6. With the arms locked in the storage and
transport position, the Troll® Cart can be
conveniently handled for loading and
compact transportation.
4. As with all carts, when moving the
Troll® Cart while loaded, ALWAYS
push the loaded cart away from the
operator. NEVER pull the loaded cart
toward the operator.

7
WARNING: To reduce the risk of injury, user must read and understand operator’s manual.
PLC14
PARTS INDEX
Part # Name
PLC01 Upright Storage Latch
PLC02 Upright Latch Assembly (Pull Pin)
PLC03 Upright Tube
PLC04 Swivel 8" Caster
PLC05 Upright End Cap
PLC14 Swivel-Locking / Braking Caster
PLC03
PLC01
PLC04
PLC05
950mm
320mm
310mm
1100 mm
PLC02
© 2016 Telpro Inc. All Rights Reserved.
Form 42-16-00-00 version 2 6
ASSEMBLY & USE
1. For initial assembly fasten all casters
securely with four bolts per caster.
2. Press the release tab to remove the
upright arms from the storage and trans-
port position.
3. Lock the support arms in the upright
position when loading wallboard and
similarly congured building materials.
4. As with all carts, when moving the
Troll®Cart while loaded, ALWAYS push
the loaded cart away from the operator.
NEVER pull the loaded cart toward the
operator.
5. The support arms can be posi-
tioned to congure the Troll®Cart for
use as a atbed cart.
6. With the arms locked in the storage
and transport position, the Troll®Cart
can be conveniently handled for loading
and compact transportation.

8Intex Telpro® Troll® intexinternational.com
1. Mount each half of the Troll® Spanning
Platform on the Troll® Carts
2. Close the Frame Catch. CAUTION:
Never use the Troll® Spanning Platform
without closing these catches. If the
catches are not closed the Troll®
Spanning Platform may detach from
the cart possibly resulting in property
damage or bodily injury.
2 x Troll® Carts (CD136)
Sold Separately
Troll® Spanning
Platform End #1
(CD272)
Troll® Spanning
Platform End #2
(CD272)
ASSEMBLY & USE
TROLL® SPANNING PLATFORM COMPONENTS

9
WARNING: To reduce the risk of injury, user must read and understand operator’s manual.
3. Bring the two halves together. Align and
simultaneously insert the pins on each half
into the corresponding holes on the other half.
4. Lower the assembled halves to the locked
position. CAUTION: Keep hands and fingers
clear of pinch points.
The support arms can be installed in a wide
variety of positions depending on the support
needs of the load being carried.
ASSEMBLY & USE
WARNING!
Load rating of assembled
system: 4,000 lbs. (1814 kg)
DO NOT EXCEED

Giraffe®, starmix® , Useit® & Jost® are registered Trademarks of Intex Group Int. 2016 © Intex Group MANAG700 - 12/17 The information contained in this brochure was correct at the time of printing. E&OE
Troll® is a registered Trademark of Intex International.
Distributed in Australia & New Zealand by Intex International.
The information contained in this brochure was correct at the time of printing. E&OE
Intex International
91-115 Link Drive, Campbellfield
National Business Park, Victoria, Australia 3061
Tel: [phone] intexinternational.com
STWARFCT Version No.1 03/19
