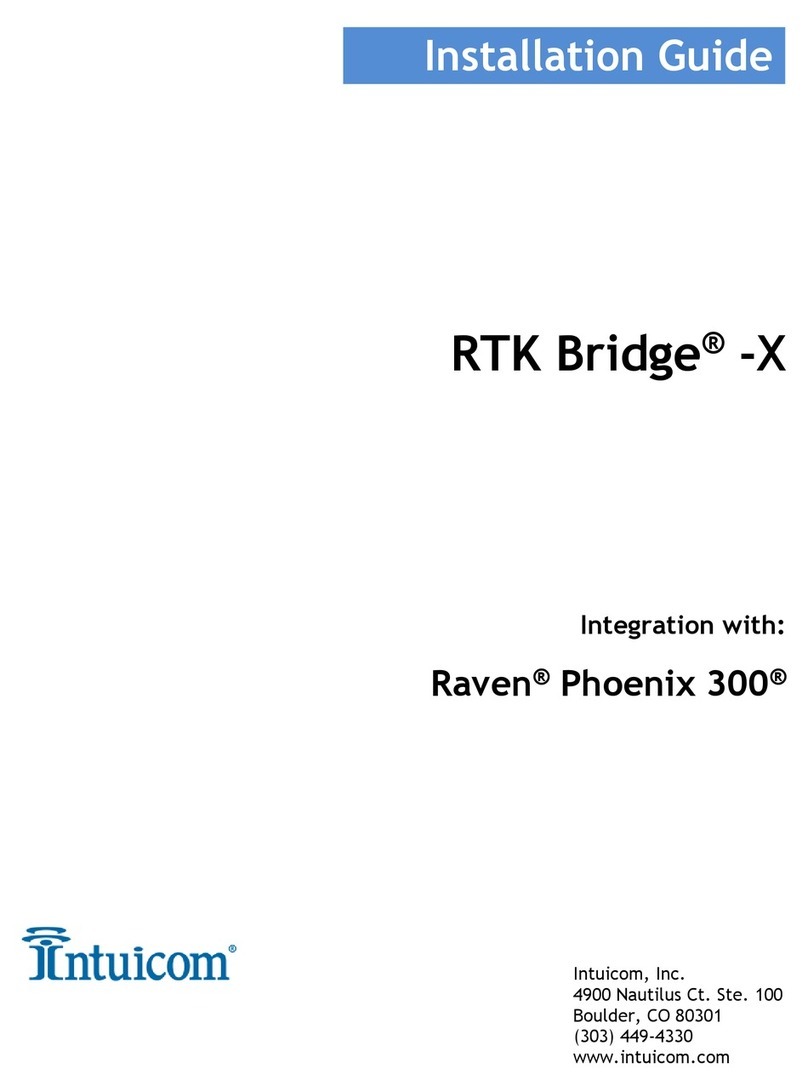

Intuicom RTK Bridge-X User manual

Intuicom, Inc.
4900 Nautilus Ct. Ste. 100
Boulder, CO 80301
[phone]
.intuicom.com
RTK Bridge
®
-X
Integration with:
Ag Leader® AgFiniti®
Installation Guide

Version 1.0 1 Intuicom, Inc.
This Document is for internal use by Intuicom Employees or by Resellers and Distributors who
are authorized and/or licensed to install Intuicom products. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, or for any
purpose without the express written permission of Intuicom Inc.
2000-2014 Intuicom Incorporated. All rights reserved.
Intuicom reserves the right to make changes to this document without notice. Unless otherwise
agreed to in writing, Intuicom assumes no responsibility or liability for the use of this document
or for the infringement of any copyright or other proprietary right and Intuicom shall deem
nothing contained in this document a warranty or guarantee.
Intuicom is a registered trademark of Intuicom, Inc.
Other product names mentioned in this guide may be copyrights, trademarks, or registered
trademarks of their respective companies and are hereby acknowledged.

Section 1: Installation Requirements
Version 1.0 2 Intuicom, Inc.
Overview
The Intuicom RTK Bridge
®
-X is designed to get an RTK Correction from a GNSS Network to
supply to a GNSS receiver and also allows for WiFi Internet access. The Ag Leader AgFiniti
system can connect to this WiFi and allow for Remote Support, Downloading/Uploading files to
the AgFiniti cloud based platform and more. This guide is intended for the dealer who is already
familiar with the Intuicom RTK Bridge and Ag Leader AgFiniti system/cloud based platform.
For additional assistance, consult the user manual or Technical Support.
1 Requirements for Installation
1.1 Required Information
In order to operate an Intuicom RTK Bridge-X, you are required to have the necessary
information to access and log in to the Real-Time Network. This information is entered
into the RTK Bridge-X and stored in a profile. More details on setting up an RTK
Bridge-X are available in the RTK Bridge-X User Guide.
• IP address
• TCP port
• NTRIP mount-point name
• username and password for access to the real-time GPS/GNSS network
1.2 Required Equipment
1.2.1 Intuicom Equipment and Accessories
1. Intuicom RTK Bridge-X with activated data provider account (Verizon, AT&T, etc…)
2. Intuicom RTK Bridge-X Cellular/GPS antenna:
[P/N: FIP4- FIP4-MMDM-MM (magnetic mount)]
3. Computer/Phone/Tablet with web browser for configuring the RTK Bridge-X
1.2.2 Other Equipment and Accessories
1. Compatible Ag Leader Technology display
2. Ag Leader USB Wi-Fi Adapter
3. Appropriate AgFiniti license

Section 2: Installation Instructions
Version 1.0 3 Intuicom, Inc.
2 Installation Instructions
Below is the installation Diagram for the recommended installation of the Intuicom RTK
Bridge-X Utilizing the equipment noted above.
Diagram 1

Section 2: Installation Instructions
Version 1.0 4 Intuicom, Inc.
2.1 Configuration
Once the RTK Bridge-X has been activated with the cellular carrier, Internet access will be
available through the WiFi connection. It is important to set an SSID and WPA2 passphrase
in the RTK Bridge-X setup. Otherwise the default settings will be used. Consult the RTK
Bridge-X User Manual for instructions on how to configure the SSID and WPA2 passphrase.
• Connect the Ag Leader USB WiFi Adapter to the Ag Leader display via the USB port.

Section 2: Installation Instructions
Version 1.0 5 Intuicom, Inc.
• Press the AgFiniti button to access the Options screen
• Options Screen

Section 2: Installation Instructions
Version 1.0 6 Intuicom, Inc.
• Press the Networking Button
• Select the SSID of the RTK Bridge-X

Section 2: Installation Instructions
Version 1.0 7 Intuicom, Inc.
• Enter the WPA2 Passphrase
• The monitor will show that it is connected via WiFi to the RTK Bridge-X

Section 2: Installation Instructions
Version 1.0 8 Intuicom, Inc.
• Access the AgFiniti Screen to login to AgFiniti account
• Login to AgFiniti

Section 2: Installation Instructions
Version 1.0 9 Intuicom, Inc.
• Once logged into AgFiniti, it is possible to Import/Export AgSetup files or Export an
AgData file to the AgFiniti cloud based platform
• From the Advanced page, it is possible to Log Files, Logout of account, Deregister
Display, or enable Remote Support

Section 2: Installation Instructions
Version 1.0 10 Intuicom, Inc.
• Press the Advanced options button to display the Preauthorization code for remote
support
• The Ag Leader monitor is now connected to the AgFiniti cloud based platform through
the Intuicom RTK Bridge-X.
For Technical Support of the RTK Bridge-X, Intuicom recommends
“Intuicom Remote Support”, please contact Intuicom for details on this real-
time support program.
For general technical support, please contact us at support intuicom.com or
call us at 303.449.4330.
