Invacare Pronto M50 Instruction Manual

Pronto® M50™ Pronto® M51™
with SureStep®
(Before 1/20/05)
MWD
Power Wheelchairs
Parts Catalog Issued: Mar 4, 2014

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 02-011. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2014 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Medallion Design, Pronto, and SureStep are registered trademarks and MKIV, MK5,
NX, SPJ, M50, and M51 are trademarks of Invacare Corporation.
Parts Catalog Usage Guide
1
Form No. 02-011
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Miscellaneous .................................................................................................... 95
Accessories - Oxygen Holder Assembly - Fold Down Medium Back Van Seat ....................... 91
Accessories - Oxygen Holder Assembly - Semi-Recline Van Seat (After 4/14/03) .................. 93
Accessories - Oxygen Holder Assembly - Semi-Recline Van Seat (Before 4/15/03) ............... 92
Accessories - Power Wheelchair Tool Kit ................................................................................ 96
Accessories - Walker Holder .................................................................................................... 90
Arms - Van Seat & Hardware (16" - 20" W) (After 8/31/02) ..................................................... 26
Arms - Van Seat & Hardware (18" W) (Before 9/1/02) ............................................................. 24
Arms - Van Seat & Hardware (20" W) (Before 9/1/02) ............................................................. 25
Base Frame & Van Seat Post Assembly (After 7/13/03) .......................................................... 9
Base Frame & Van Seat Post Assembly (Before 714/03) ........................................................ 8
Battery Covers & Harnesses (Before 10/8/03) ......................................................................... 40
Battery Harnesses (After 10/7/03) ............................................................................................ 41
Caster & Forks ......................................................................................................................... 35
Electronics - MK5 NX Controllers - Programmer & Battery Chargers (After 6/26/03) .............. 84
Electronics - MK5 SPJ (After 6/26/03) & SPJ+ (Introduced 8/16/05) Joystick & Mounting
Hardware
78
Electronics - MKIV Controllers - Programmer & Battery Chargers (Before 6/27/03) ................ 81
Electronics - MKIV RII Joystick & Mounting Hardware (Before 6/27/03) .................................. 76
Electronics - Quad Link Assembly (Before 4/07/06) ................................................................. 86
Electronics - Quad Link Assembly (QL) (After 4/06/06) ........................................................... 88
Frame Finish & Shroud Colors ................................................................................................. 5
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Frames - Seat Van & Mounting Hardware (9/1/02 - 7/13/03) ................................................... 15
Frames - Seat Van & Mounting Hardware (After 7/13/03) ....................................................... 17
Frames - Seat Van & Mounting Hardware (Before 9/1/02) ...................................................... 13
Front Riggings - Footboard Assembly - 90FB .......................................................................... 43
Front Riggings - Footrest & Hardware - PW93 (Before 9/1/02) ................................................ 47
Front Riggings - Footrest & Hardware - PW93ST (Before 9//02) ............................................. 55
Front Riggings - Footrest (Hemi) & Hardware - PHW93 (9/1/02-1/5/03) .................................. 49
Front Riggings - Footrest (Hemi) & Hardware - PHW93 (After 1/5/03) .................................... 52
Front Riggings - Front (Hemi) Riggings Attachment Kit (After 8/31/02) ................................... 46
Front Riggings - Front Riggings Attachment Kit (FRKTM5) (Before 9/1/02) ............................ 45
Front Riggings - Legrest Supports - Articulating - Hemi - PHAL4A (9/1/02-1/5/03) ................. 68
Front Riggings - Legrest Supports - Articulating - Hemi - PHAL4A (After 1/5/03) .................... 71
Front Riggings - Legrest Supports - Articulating - PAL4A (Before 9/1/02) ............................... 65
Front Riggings - Legrest Supports - Hemi - PH904A (9/1/02-1/5/03) ....................................... 60
Front Riggings - Legrest Supports - Hemi - PH904A (After 1/5/03) ......................................... 63
Front Riggings - Legrest Supports - P904A (Before 9/1/02) .................................................... 57
Front Riggings - Pivot/Slide Tube & Footplate - Legrests ........................................................ 74
Motors - Gearbox & Drive Wheel ............................................................................................. 37
Packaging - Literature & Decals ............................................................................................... 6
Seats - Van ............................................................................................................................... 19
Seats - Van - Upgrade Kits ....................................................................................................... 22
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Shrouds - Battery Cover & Attaching Hardware (After 7/13/03) ............................................... 32
Shrouds & Attaching Hardware (Before 7/14/03) ..................................................................... 29
SureStep Walking Beams & Hardware .................................................................................... 11
Warranty Replacement Parts ................................................................................................... 98
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Frame Finish
Color Number Part Number Bottle Size Color
Flat Black.6 oz104632734P
Shroud Colors
Color Number Color
Deep BlueDBLM Candy RedCRDM
Frame Finish and Shroud Colors
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Packaging, Literature and Decals
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Packaging, Literature and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1127752 Carton, Tray Top 1 11 1115174 Carton, Corner Reinforcement 1 42 1127753 Carton, Cover 1 13 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 14 40131X161 Insert, Plain Pad 1 15 1127755 Carton, Pad 1 16 1127756-NLA NLA - Carton, Tray 1 17 B 1127754 Carton, Insert 1 28 1110521 Owner's Manual 1 1A 1095273-NLA NLA - Instruction Manual, MKIV RII LP 1 1A 1110532 Instruction Manual, MK5 NX/NX-LP 1 1A 1110604-NLA NLA - Decal, Shroud - M50 1 2A 1110605 Decal, Shroud - M51 1 2A 1104797 Decal, Drive/Push 1 2A 1035900 Decal, Transportation 1 1A 1119281-NLA NLA - Plate, Name, Patent Numbers 1 1A 1107651 Decal, Front Battery Cover 1 1A 1107652 Decal, Rear Battery Cover 1 1A
A - Not Shown
B - No longer available, use 1127752 as its replacement.
NOTE
: When adjusting or replacing parts, please refer to your owner's manual for assistance.
NOTE:
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
40117X006 Bearing (5/8") 1 41 1105026 Plug Button, Head Tube, Black 1 22 1109484 Post, Adjustable Seat 1 13 60355X000 Locknut (3/8-24) 1 14 1110603 Base Frame Assembly 1 15 A 1111704 Screw, Socket Head (3/8-24 x 2-1/4") 1 16 1110539 Decal, Warning, Battery Cable 1 17 1112268 Base Frame and Adjustable Seat Post Assembly 1 18 B
A - Includes items 1 and 7
B - Includes items 2-7
NOTE:

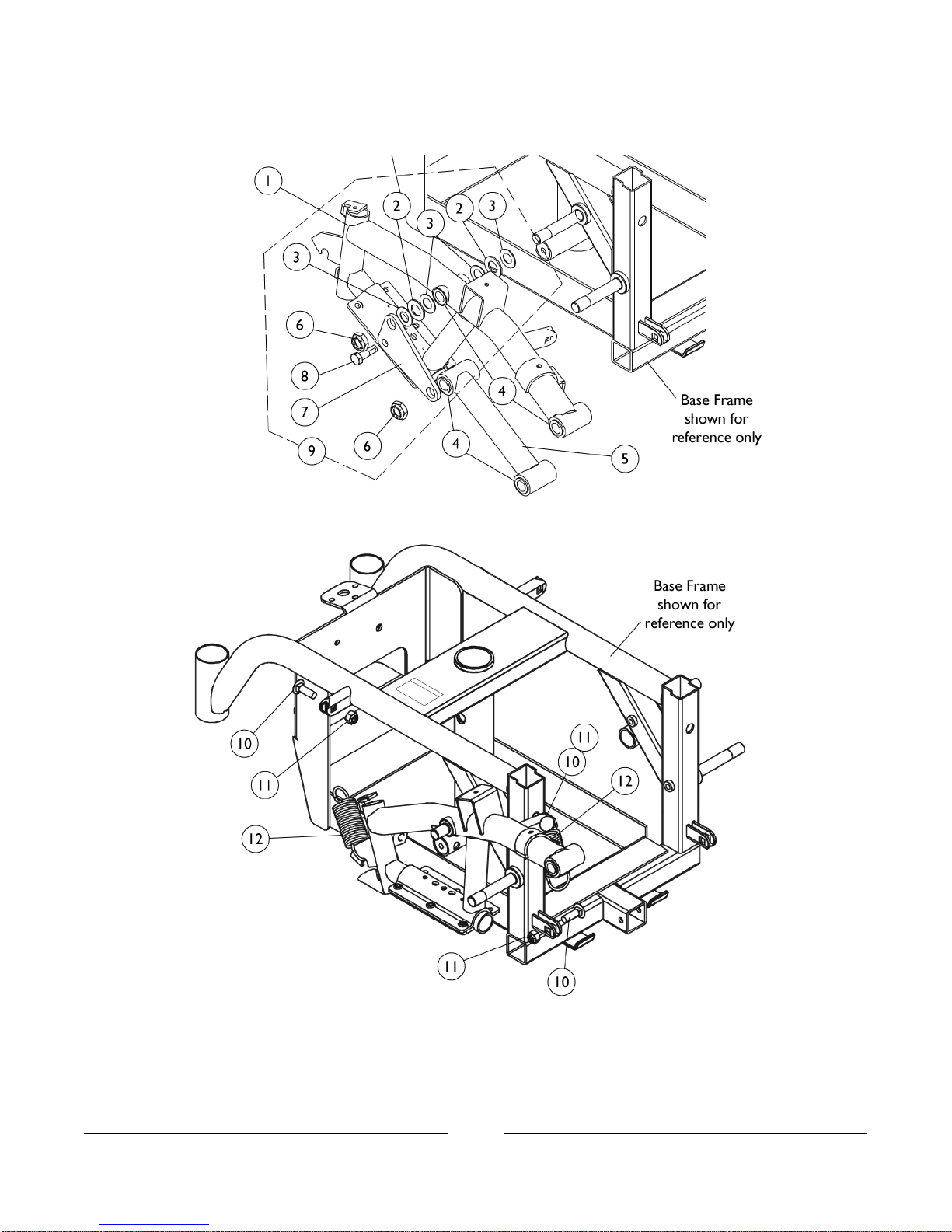

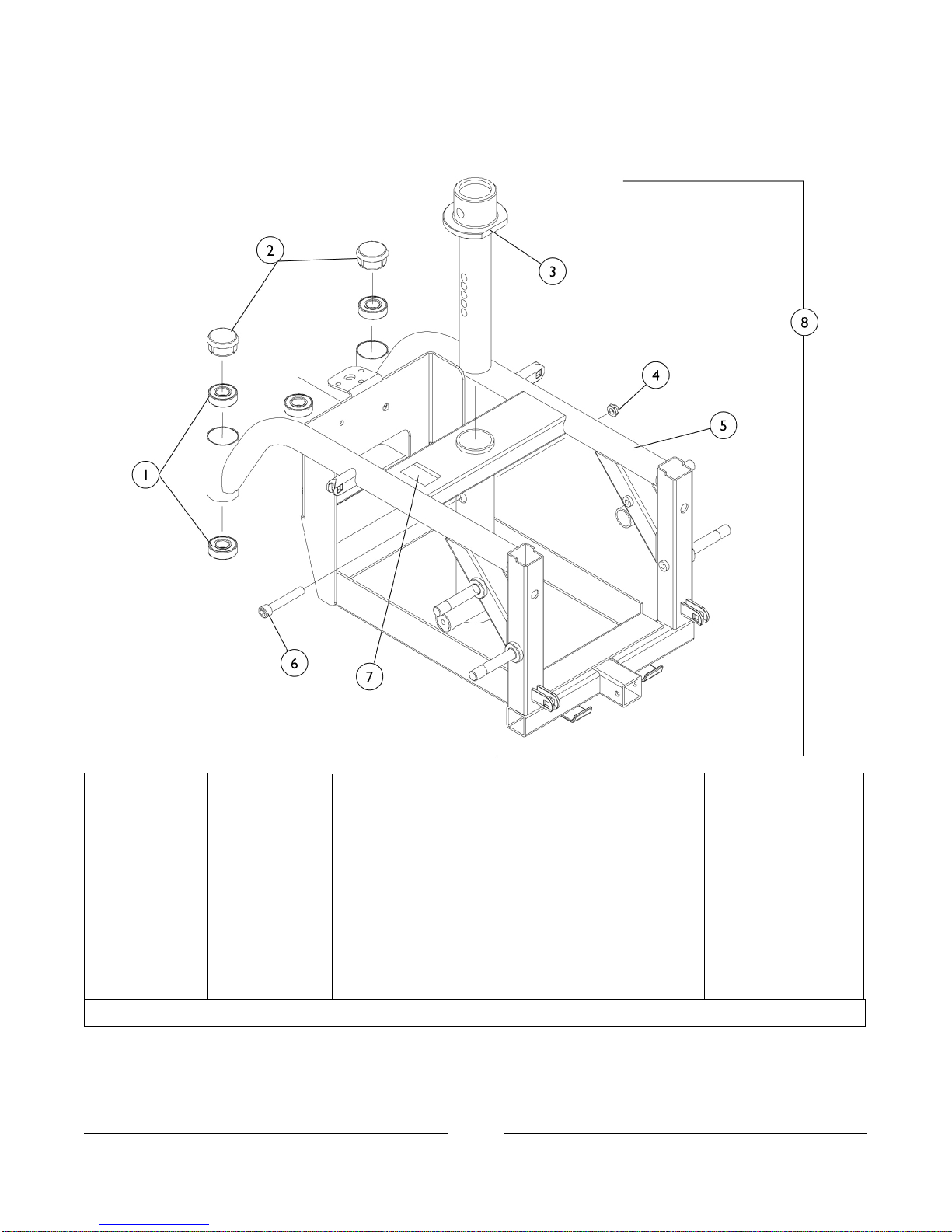

Base Frame and Van Seat Post Assembly
Before 7/14/03
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Base Frame and Van Seat Post Assembly
After 7/13/03
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Base Frame and Van Seat Post Assembly
After 7/13/03
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1116385 Post, Seat Pivot 1 11 1116402 Frame with Headtube Bearings, Black 1 12 1124252 Screw, Socket Head w/ Patch (3/8-16 x 2") 1 13 40117X006 Bearing (5/8") 1 44 1105026 Plug Button, Head Tube, Black 1 25 1116403 Frame with Seat Post and Hardware, Black 1 16 A 1119281-NLA NLA - Plate, Name, Patent Numbers 1 1B
A - Includes items 1-5
B - Not Shown
NOTE:
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

SureStep Walking Beams and Hardware
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

SureStep Walking Beams and Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1109025 Walking Beam, SureStep - Right 1 11 A 1109026 Walking Beam, SureStep - Left 1 11 A 40157X015-NLA NLA - Washer, Nylon (9/16 x 1 x 5/8") 1 22 1106492 Washer (1/2 x 29/32 x 1/32") 1 43 1106485 Bushing (1/2 x 5/8") 1 84 1109018 Tube, Pivot, Black 1 15 A 1025737 Locknut (1/2-20) 1 26 1106078-NLA NLA - Plate Reinforcement 1 17 1050161 Screw, Hex Head w/ Patch (5/16-18 x 1") 1 18 1108066 Kit, SureStep Walking Beam Hardware 1 19 B 1105030 Bolt, Round Head Square Neck (5/16-18 x 1") 1 310 1026158 Locknut (5/16-18) 1 311 1105028 Spring, Extension (1-1/4 x 3-1/2" L) 1 212
A - Includes item 4
B - Includes items 2, 3, 6-8
NOTE:
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Van Seat Frame and Mounting Hardware
Before 9/1/02
Note: Seat post can be found on the base frame assembly page.
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Van Seat Frame and Mounting Hardware
Before 9/1/02
Note: Seat post can be found on the base frame assembly page.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1110597 Frame, Van Seat, Black 1 11 B 1111696 Frame, Van Seat, Black 1 11 C 1114998 Knob Assembly, Black (3/8-16 x 9-1/4") 1 12 B 1114999 Knob Assembly, Black (3/8-16 x 10-1/4") 1 12 C 1088897-NLA NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/4") 1 43 1026900 Washer (1/4 x 23/32 x 1/16") 1 44 1029501 Plug Button, Black (1") 1 25 1114911-NLA NLA - Knob, Adjustment, Black (5/16-18 x 1-1/2") 1 16 1093289 Plug Button, Square, Black (1-1/4") 1 17 1109485 Hardware, Van Seat Mounting w/ Plug Buttons 1 18 A,B 1109491 Hardware, Van Seat Mounting w/ Plug Buttons 1 18 B,D 1111702 Hardware, Van Seat Mounting w/ Plug Buttons 1 18 A,C 1110623 Hardware, Van Seat Mounting w/ Plug Buttons 1 18 C,D
A - Includes Items 2-7
B - 18" Wide Seat
C - 20" Wide Seat
D - Includes Items 2-4, 6, 7
NOTE:
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Van Seat Frame and Mounting Hardware
9/1/02 - 7/13/03
Note: Seat post can be found on the base frame assembly page.
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Van Seat Frame and Mounting Hardware
9/1/02 - 7/13/03
Note: Seat post can be found on the base frame assembly page.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1113656 Frame, Van Seat, Black 1 11 C 1114349 Frame, Van Seat, Black 1 11 D 1026900 Washer (1/4 x 23/32 x 1/16") 1 62 1025713-NLA NLA - Screw, Hex Head (1/4-20 x 1") 1 43 1114911-NLA NLA - Knob, Adjustment, Black (5/16-18 x 1-1/2") 1 14 1114998 Knob Assembly, Black (3/8-16 x 9-1/4") 1 15 C 1114999 Knob Assembly, Black (3/8-16 x 10-1/4") 1 15 D 1088897-NLA NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/4") 1 26 1108410 Spacer (1/4 x 5/8 x 1/4") 1 27 1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 48 1109472-NLA NLA - Screw, Hex Head w/Patch (1/4-20 x 2-1/2") 1 29 1029501 Plug Button, Black (1") 1 210 1114794 Hardware, Van Seat Mounting w/ Plug Buttons 1 111 A,C 1114795 Hardware, Van Seat Mounting w/ Plug Buttons 1 111 B,C 1114792 Hardware, Wide Van Seat Mounting w/ Plug Buttons 1 111 A,D 1114793 Hardware, Wide Van Seat Mounting w/o Plug
Buttons 1 111 B,D
1113691 Bracket, Center Post, Black 1 112
A - Includes items 2-10
B - Includes items 2-9
C - 18" Wide Seat
D - 20" Wide Seat
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Van Seat Frame and Mounting Hardware
After 7/13/03
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

Van Seat Frame and Mounting Hardware
After 7/13/03
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1119577 Kit, Van Seat Mounting Hardware 1 112 A,B NLA - Knob, Adjustment, Black (5/16-18 x 1-1/2") 1 11 NLA - Screw, Hex Head w/ Patch (1/4-20 x 1") 1 42 Washer (1/4 x 23/32 x 1/16") 1 63 NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/4") 1 24 Spacer (1/4 x 5/8 x 1/4") 1 25 Spacer, Coved (1/4 x 11/16 x 1/2") 1 46 NLA - Screw, Hex Head w/Patch (1/4-20 x 2-1/2") 1 27 Plug Button, Black (1") 1 28 Locknut (5/16-18) 1 49 Washer, Steel (5/16 x 1-1/4 x 1/16") 1 410 Screw, Hex Head w/ Patch (5/16-18 x 1") 1 411 1116919 Bracket, Seat Mounting, Black 1 113 C 1129722 Bracket, Seat Mounting, Black 1 113 D 1116413 Pivot, Seat 1 114 1123391 Frame, Van Seat, Black (16" W) 1 115 1116392 Frame, Van Seat, Black (18" W) 1 115 1116393 Frame, Van Seat, Black (20" W) 1 115
A - Item 8, Plug Buttons, are only used in the absence of front riggings.
B - Includes items 1-11
C - Van Seats without Solid Seat Base
D - Van Seats with Solid Seat Base
NOTE:
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011

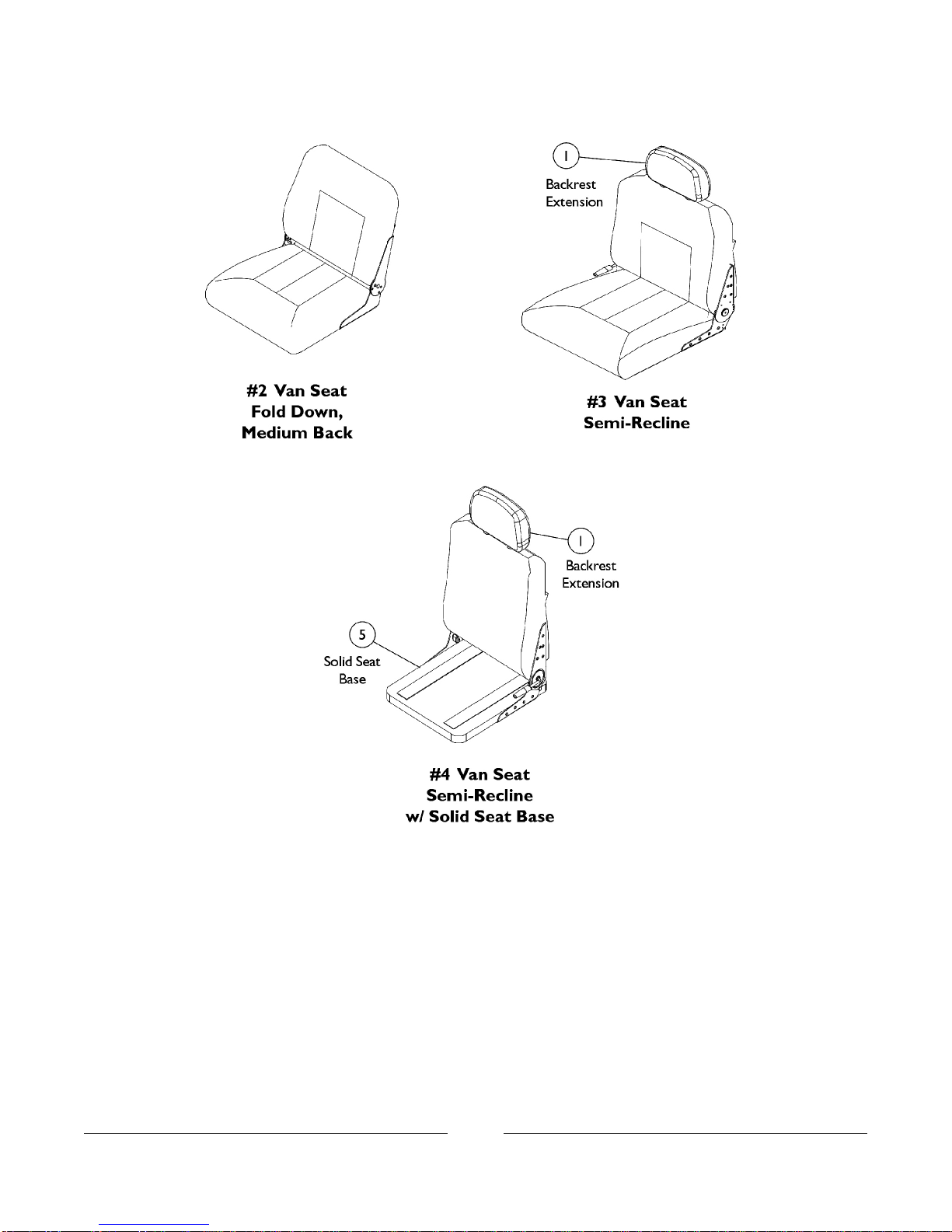

Van Seat Assembly
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 02-011
