Invacare Ranger IITM MWD Instruction Manual

Yes, you can. ™
Storm Series®
Ranger II™ MWD and
Chairs for WSBT
(Before 3/1/2000)
Power Wheelchairs
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 97-187. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., Storm Series, Arrow, and the Medallion Design are registered trademarks of Invacare
Corporation. Ranger II is a trademark of Invacare Corporation. Tash is a registered trademark of Tash International Inc.. Therafin is a registered trademark of
W/R/ Medical Electronics Co.. Bussman is a registered trademark of Cooper Industries. MIDI is a registered trademark of Littelfuse Inc.. Dynamic is a
registered trademark of Dynamic Controls Limited.
Parts Catalog Usage Guide
1
Form No. 97-187
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Headrest & Attaching Hardware - Sling Seat Only ............................................ 141
Accessories - Miscellaneous .................................................................................................... 143
Accessories - Oxygen Holder Assembly Kit - Captain Seat (After 4/14/03) ............................. 147
Accessories - Oxygen Holder Assembly Kit - Captain Seat (Before 4/15/03) .......................... 145
Accessories - Oxygen Holder Assembly Kit - Sling Seat Only ................................................. 149
Accessories - Power Wheelchair Tool Kit ................................................................................ 151
Arms - Adjustable Height Removable - Sling Seat Only .......................................................... 34
Arms - Captain Seat & Hardware ............................................................................................. 39
Arms - Fixed Height Removable - Sling Seat Only .................................................................. 36
Battery Boxes & Trays .............................................................................................................. 60
Battery Charger & Harnesses .................................................................................................. 62
Canes - Back & Attaching Hardware ........................................................................................ 20
Casters & Forks - Rear ............................................................................................................. 41
Crossbraces - Seat Extensions & Hardware - Sling Seat ........................................................ 14
Crossbraces & Hardware - Captain Seat (After 6/30/99) ......................................................... 18
Crossbraces & Hardware - Captain Seat (Before 7/1/99) ........................................................ 16
Electronics - MKIV Controller - Programmer & Attaching Hardware ........................................ 129
Electronics - MKIV Displays ..................................................................................................... 134
Electronics - MKIV Joystick Mounting Hardware & Joystick Accessories ................................ 114
Electronics - MKIV Joystick Options ......................................................................................... 136
Electronics - MKIV Joysticks - PS - PSF & PSR ...................................................................... 112
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Electronics - MKIV Joysticks - RII - RX - A - A+ - TCHJOY ..................................................... 109
Electronics - MKIV Mid-Line Swing Bracket Assembly ............................................................ 119
Electronics - MKIV Recliner Control & Recliner Cable ............................................................. 133
Electronics - MKIV Sip-N-Puff/Digital Interface - COM12 & COM34 ........................................ 131
Electronics - MKIV Swivel Joystick Hardware .......................................................................... 117
Electronics - Quad Link Assembly - QL (After 4/06/06) ............................................................ 125
Electronics - Quad Link Assembly (Before 4/07/06) ................................................................. 121
Electronics - Tash & Therafin Accessories ............................................................................... 139
Frame Finishes - Touch-Up Paint & Upholstery Options ......................................................... 6
Frames - Captain Seat & Actuator Hardware (After 8/31/02) ................................................... 32
Frames - Captain Seat & Actuator Hardware (Before 9/1/02) .................................................. 30
Frames - Side & Hardware ....................................................................................................... 12
Front Riggings - Adjustable Flip-Up Removable Footboard (After 2/29/2000) ......................... 103
Front Riggings - Adjustable Flip-Up Removable Footboard (Before 3/1/2000) ........................ 101
Front Riggings - Calf Pads & Attaching Hardware ................................................................... 94
Front Riggings - Footrest and Legrest Accessories ................................................................. 106
Front Riggings - Footrest Supports - P93M .............................................................................. 86
Front Riggings - Footrest Supports - PW93 ............................................................................. 80
Front Riggings - Footrest Supports - PW93E ........................................................................... 84
Front Riggings - Footrest Supports - PW93ST ......................................................................... 82
Front Riggings - Legrest Release Handles & Ratchets ............................................................ 92
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Front Riggings - Legrest Supports - Articulating - PAL4A ........................................................ 90
Front Riggings - Legrest Supports - P904A ............................................................................. 88
Front Riggings - Pivot/Slide Tube & 1450 - 1350 Standard Aluminum Footplates ................... 96
Front Riggings - Pivot/Slide Tube & Composite Footplates ..................................................... 99
Front Riggings - Reference Chart ............................................................................................ 77
Front Stabilizer Assembly (After 2/29/2000) ............................................................................. 45
Front Stabilizer Assembly (Before 3/1/2000) ............................................................................ 43
Front Stabilizer with Adjustable Flip-Up Footboard Conversion Kits ........................................ 47
Motors - 2-Pole - Gearboxes & Drive Wheel ............................................................................ 50
Motors - 4-Pole - Gearboxes & Drive Wheel ............................................................................ 54
Packaging - Literature & Decals - Sling Seat with Shrouds - Captain Seat & Weight Shifting Tilt 10
Packaging - Literature & Decals - Sling Seat without Shrouds ................................................ 8
Seats - Solid Folding & Inserts ................................................................................................ 23
Seats - Captain (After 8/31/02) ................................................................................................. 28
Seats - Captain (Before 9/1/02) ................................................................................................ 25
Shroud Covers - Weight Shifting Tilt (After 2/29/00) ................................................................ 74
Shroud Covers - Weight Shifting Tilt (Before 3/1/00) ............................................................... 72
Shroud Covers (After 2/29/00) ................................................................................................. 68
Shroud Covers (Before 3/1/00) ................................................................................................ 65
Upholstery - Back & Seat ......................................................................................................... 21
Warranty Replacement Parts ................................................................................................... 153
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Wheels - Drive & Hub Mount (14" x 3") (See Motors For 12" Drive Wheel) ............................. 58
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Frame Finishes, Touch-Up Paint and Upholstery Options
Frame Finishes and Touch-Up Paint
Color
Number Part Number Bottle Size Color
Pink Pearl.6 oz.103145202P Super Teal.6 oz.103145406P Deep Purple.6 oz.103145608P Cobalt Blue.6 oz.104631917P Anthracite.6 oz.103337622P Wet Black.6 oz.103145024P White.6 oz.103144729P Red.6 oz.103145533P Flat Black.6 oz.104632734P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P Metallic Blue.6 oz.104632464P Teflon Black.6 oz.1101320-NLA69P Silver VeinN/AN/A71P Evergreen w/Navy.6 oz.107389280P Dark Olive w/Copper.6 oz.107389381P Fruit Punch w/Fucshia.6 oz.107389482P Royal Blue w/Grape.6 oz.107389583P Lavender.6 oz.107389684P Jewled Green.6 oz.1101325101P Denim Blue.6 oz.1101327102P Mocha Frost.6 oz.1101324103P Electric Teal.6 oz.1101316104P Midnight Blue.6 oz.1101326105P
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Frame Finishes, Touch-Up Paint and Upholstery Options
Sparkle Frame Finishes
Color
Number Color
Twilight Sparkle72P Gold Sparkle73P Green Sparkle74P Blue Sparkle75P Red Sparkle76P Wet Black w/Twilight Sparkle88P
Upholstery Options
Vinyl
Colors Nylon Colors
U240 BlackU67 Black
U75 Dove Grey
U85 Dark Blue
U86 Ruby
U97 Sky Blue
U88 Camel
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Packaging, Literature and Decals
Sling Seat without Shrouds
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Packaging, Literature and Decals
Sling Seat without Shrouds
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1074356-NLA NLA - Insert, Carton 1 31 1023167 Carton, Battery Boxes 1 12 1074355 Carton 1 13 40131X039 Insert, Carton 1 14 40131X011 Carton, Front Riggings 1 15 1021866 Bag, Poly (26" L x 15" W) 1 46 1023165 Insert, Carton 1 17 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 18 40131X148 Carton, Hardware 1 19 1043198-NLA NLA - Tube, Paper 1 110 1090146-NLA NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 211 A 1095224-NLA NLA - Decal, Model, Black - Ranger II 1 212 A,B,D 1095225-NLA NLA - Decal, Model, White - Ranger II 1 212 A,E 1097104-NLA NLA - Decal - 250-S 1 213 1074139-NLA NLA - Decal, MWD 1 2C 1065145-NLA NLA - Decal, Virtual Service 1 2C 1035900 Decal, Transportation 1 1C 1119281 Plate, Name, Patent Numbers 1 1C 1100911 Decal, Stabilizer Patent 1 1C 1095272 Instruction Manual, MKIV RII 1 1C 1080722 Owner's Manual - Ranger II and R2 jr. 1 1C
A - Invacare logo added and model decals changed 1/11/00. When replacing side frames before 1/11/00 order decals in pairs
to match.
B - Used for chairs with frame colors 02P, 29P and 84P only.
C - Not Shown.
D - (Black) Weight Shifting Tilt After 2/29/00.
E - (White) Weight Shifting Tilt After 2/29/00.
NOTE:
When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Packaging, Literature and Decals
Sling Seat with Shrouds, Captain Seat and Weight Shifting Tilt
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Packaging, Literature and Decals
Sling Seat with Shrouds, Captain Seat and Weight Shifting Tilt
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 G 1031682 Carton, Cover 1 11 H 1043198-NLA NLA - Tube, Paper 1 12 1030362 Carton, Tray 1 13 See Note See Footnote 1 14 F 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 15 40131X161 Insert, Plain Pad 1 26 40131X011 Carton, Front Riggings 1 17 1076575-NLA NLA - Decal, Caution, Limit Switch 1 18 1090146-NLA NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 29 A 1095224-NLA NLA - Decal, Model, Black - Ranger II 1 210 A,B,D 1095225-NLA NLA - Decal, Model, White - Ranger II 1 210 A,E 1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 211 A 1097104-NLA NLA - Decal - 250-S 1 212 1074139-NLA NLA - Decal, MWD 1 2C 1065145-NLA NLA - Decal, Virtual Service 1 2C 1035900 Decal, Transportation 1 1C 1119281 Plate, Name, Patent Numbers 1 1C 1100911 Decal, Stabilizer Patent 1 1C 1043576 Service Manual, MKIV Electronics 1 1C 1095272 Instruction Manual, MKIV RII 1 1C 1080722 Owner's Manual - Ranger II and R2 jr. 1 1C 98007X005 Tie Wrap (11-1/2" L) 1 5C
A - Invacare logo added and model decals changed 1/11/00. When replacing side frames before 1/11/00, order decals in
pairs to match.
B - Used for chairs with frame colors 02P, 29P and 84P only.
C - Not Shown.
D - (Black) Weight Shifting Tilt After 2/29/00.
E - (White) Weight Shifting Tilt After 2/29/00.
F - Wooden skid not provided.
G - Sling Seat, Low Back Captain Seat and Weight Shifting Tilt.
H - High Back Captain Seat.
NOTE: Whe
n adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

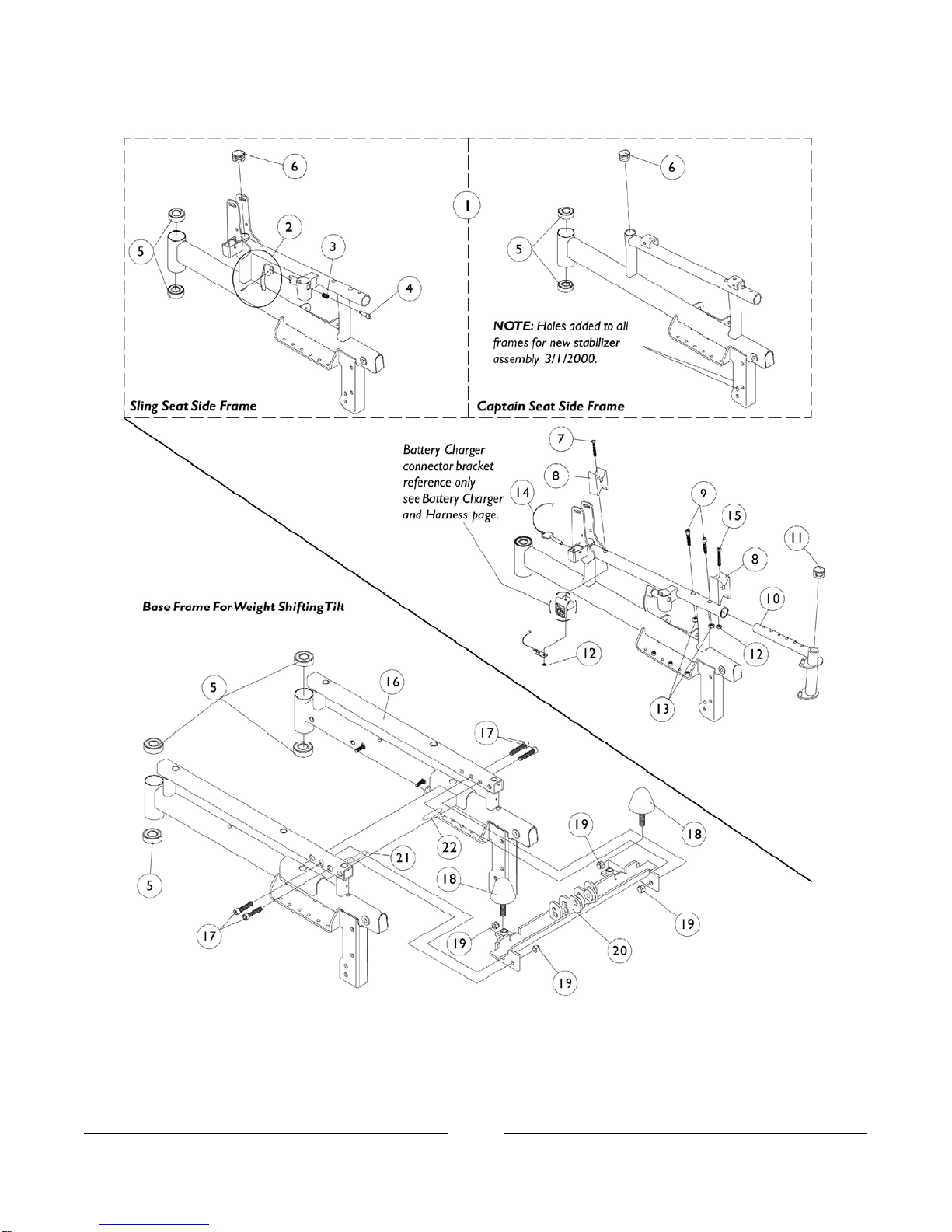

Frames and Hardware
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Frames and Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881071541 Frame, Side with Bearings, Sling Seat, Color - Right 1 11 A,B 8881071542 Frame, Side with Bearings, Sling Seat, Color - Left 1 11 A,B 8881074147 Frame, Side with Bearings, Captain Seat, Color -
Right 1 11 A,C
8881074148 Frame, Side with Bearings, Captain Seat, Color -
Left 1 11 A,C
1081016 Side Frame Assembly, Captain Seat - Right 1 11 C,E 1081017 Side Frame Assembly, Captain Seat - Left 1 11 C,E 1090768 Kit, Lock Handle w/Rivets (Pair) 2 12 47471X074 Spring, Arm Lock 1 13 1028594 Pin, Arm Lock, Black 1 14 40117X006 Bearing (5/8") 1 25 1029501 Plug Button, Black (1") 1 16 1085124-NLA NLA - Screw, Socket Flat Head (#10-32 x 1-3/4") 1 27 D 1007541 Clamp, Seat 1 28 7930304 Screw, Socket Head (1/4-20 x 1-1/4") 25 19 1060099 Hanger, Front Rigging, Black - Right 1 110 1060100 Hanger, Front Rigging, Black - Left 1 110 1027097 Plug Button, Black (3/4") 1 111 1025731 Locknut (#10-32) 1 212 7930333 Locknut (1/4-20) 25 113 1068039 Pin, Pull 1 114 D 1085134 Screw, Socket Flat Head (#10-32 x 1-5/8") 1 115 1079192 Base Frame with Bearings 1 116 A,B,F 1021344 Screw, Socket Head (5/16-18 x 1-1/2") 1 417 0225100-NLA NLA - Bumper, Tilt 1 218 1026158 Locknut (5/16-18) 1 419 1098615 Bracket, Link w/ Caution Decal, Black 1 120 1035900 Decal, Transportation 1 121 60106X013 Plate, Name, Patent Numbers 1 122
A - Decals not included with frames. See page titled, "Packaging, Literature and Decals."
B - Specify frame color when ordering. See page titled, "Frame Finishes, Touch-Up Paint and Upholstery Options."
C - Captain seat side frames come in 24P wet black only.
D - Screws changed 9/16/99 and serve as a direct replacement for chairs manufactured before 9/16/99.
E - Captain Seat Side Frames with serial numbers 98F39748 - 98F39877 must use #1081016 and/or #1081017.
F - Weight Shifting Tilt.
NOTE: S
ling seats with shrouds and Weight Shift Tilt seat frame with shrouds come in 24P wet black only.
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

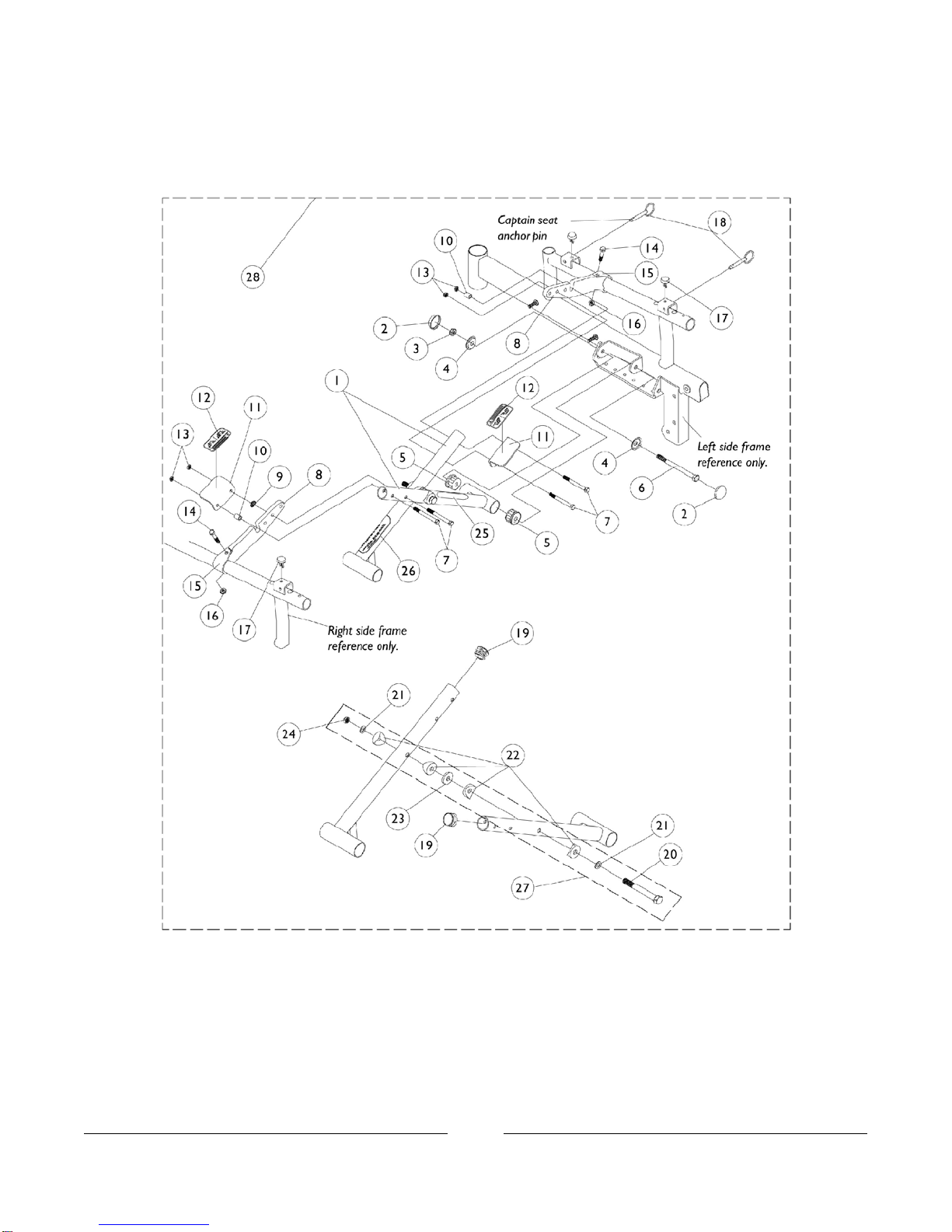

Crossbraces, Seat Extensions and Hardware
Sling Seat
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Crossbraces, Seat Extensions and Hardware
Sling Seat
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1071545 Crossbrace Assembly, Black (16" W) 1 21 C 1071546-NLA NLA - Crossbrace Assembly, Black (18" W) 1 21 C 1071547 Crossbrace Assembly, Black (20" W) 1 21 C 1028835 Cap, Hub, Black 1 42 7930363 Package, Locknut (5/16"-24) 25 13 1028491 Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 44 1056708 Plug, Pivot Tube 1 45 1038179 Screw, Hex Head (5/16-24 x 4-1/4") 1 26 1057830 Hardware, Crossbrace Pivot Tube 2 12-6 A,B,I 1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 27 1025736 Locknut (1/4-20) 1 48 1057382 Link, Pivot, Hemi, Black (16 - 18" W) 1 29 1057383 Link, Pivot, Hemi, Black (19 - 20" W) 1 29 1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 210 1057828 Strap, Pivot Link 1 211 7930323 Package, Locknut (1/4-20) 25 112 1029501 Plug Button, Black (1") 1 413 1025705 Screw, Hex Head (5/16-24 x 3-1/4") 1 214 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 115 1016263 Spacer, Coved (3/4 x 1 x 1/2") 1 416 7930313 Package, Washer, Nylon (5/16 x 7/8 x 1/8") 25 117 7930330 Locknut (5/16-24) 25 118 1086180 Hardware, Crossbrace Center Bolt Attaching 1 119 D 1035900 Decal, Transportation 1 120 1119281 Plate, Name, Patent Numbers 1 121 1071503 Hardware, Crossbrace 1 122 E,F 1058616-NLA NLA - Seat Extension Kit - 1" (Pair) 2 123 G 1058617 Seat Extension Kit - 2" (Pair) 2 123 H 1026298 Package, Screw with Washer (#10 x 7/8") (Pair) 2 124 1076284 Screw w/ Washer (#10 x 7/8") 1 224 40163X003 Screw, Phillips Pan Head (#10 X 5/8") 1 224 A
A - Solid Folding Seats only.
B - Includes items 2 through 6.
C - Decals not included with crossbraces. See items 20 and 21.
D - Includes items 14-18.
E - Less items 1 and 9.
F - Includes items 2-8, 10-18, 20 and 21.
G - For 17" Depth.
H - For 18" Depth.
I - Pair.
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Crossbraces and Hardware - Before 7/1/99
Captain Seat
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Crossbraces and Hardware - Before 7/1/99
Captain Seat
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1071586-NLA NLA - Crossbrace, Captain Seat (18" W) 1 21 A 1028835 Cap, Hub, Black 1 42 7930363 Package, Locknut (5/16"-24) 25 13 1028491 Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 44 1056708 Plug, Pivot Tube 1 45 1038179 Screw, Hex Head (5/16-24 x 4-1/4") 1 26 1057830 Hardware, Crossbrace Pivot Tube 2 12-6 B,C,F 1024796 Screw, Hex Head (1/4-20 x 2") 1 47 1074109-NLA NLA - Link, Pivot 1 28 A 1018739 Washer (1/4 x 5/8 x 3/32") 1 19 1071583-NLA NLA - Spacer (1/4 x 3/8 x 15/32") 1 210 A 1074141-NLA NLA - Bracket, Push, Black 1 211 A 1074142 Decal, Crossbrace 1 212 7930333 Locknut (1/4-20) 25 113 1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 214 1057828 Strap, Pivot Link 1 215 7930323 Package, Locknut (1/4-20) 25 116 1071604 Bumper, Nylon 1 417 1071602 Pin, Anchor (Captain Seat) 1 418 1029501 Plug Button, Black (1") 1 419 1025705 Screw, Hex Head (5/16-24 x 3-1/4") 1 220 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 221 1016263 Spacer, Coved (3/4 x 1 x 1/2") 1 422 7930313 Package, Washer, Nylon (5/16 x 7/8 x 1/8") 25 123 7930330 Locknut (5/16-24) 25 124 1035900 Decal, Transportation 1 125 1119281 Plate, Name, Patent Numbers 1 126 1086180 Hardware, Crossbrace Center Bolt Attaching 1 127 E 1074118-NLA NLA - Hardware, Crossbrace 1 128 A,D
A - Chairs manufactured before 7/1/99 need to be assembled with the crossbrace upgrade kit #1086801. Upgrade kit
components can be found on Crossbraces and Hardware page dated after 6/30/99
B - Not Shown.
C - Includes items 2 through 6.
D - Less items 1 and 8. Includes items 2-7 and 9-26.
E - Includes items 20-24.
F - Pair
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Crossbraces and Hardware - After 6/30/99
Captain Seat
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187

Crossbraces and Hardware - After 6/30/99
Captain Seat
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1086578 Crossbrace w/Support Bracket (18" W) 1 21 B 1028835 Cap, Hub, Black 1 42 7930363 Package, Locknut (5/16"-24) 25 13 1028491 Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 44 1056708 Plug, Pivot Tube 1 45 1038179 Screw, Hex Head (5/16-24 x 4-1/4") 1 26 1057830 Hardware, Crossbrace Pivot Tube 2 12-6 C,D,H 1057382 Link, Pivot, Hemi, Black (16 - 18" W) 1 27 7930323 Package, Locknut (1/4-20) 25 18 1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 29 1071604 Bumper, Nylon 1 410 1057828 Strap, Pivot Link 1 211 1071602 Pin, Anchor (Captain Seat) 1 412 1024796 Screw, Hex Head (1/4-20 x 2") 1 113 1026900 Washer (1/4 x 23/32 x 1/16") 1 214 1074142 Decal, Crossbrace 1 215 1086800 Bracket, Push, Black 1 216 B 7930333 Locknut (1/4-20) 25 117 1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 218 1035900 Decal, Transportation 1 119 1031884 Bushing, Black or Color Chairs (9/32 x 3/8 x 11/32") 1 220 1119281 Plate, Name, Patent Numbers 1 121 1026154 Screw, Hex Head (1/4-20 x 2-1/4") 1 122 1029501 Plug Button, Black (1") 1 223 7930330 Locknut (5/16-24) 25 124 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 225 1016263 Spacer, Coved (3/4 x 1 x 1/2") 1 426 7930313 Package, Washer, Nylon (5/16 x 7/8 x 1/8") 25 127 1025705 Screw, Hex Head (5/16-24 x 3-1/4") 1 128 1086180 Hardware, Crossbrace Center Bolt Attaching 1 129 G 1086794 Hardware, Crossbrace 1 130 E 1086801-NLA NLA - Kit, Crossbrace Upgrade 1 1A,D,F 1088895-NLA NLA - Instruction Sheet, Crossbrace Upgrade Kit 1 1D
A - When chairs manufactured before 7/1/99 have a support bracket welded on the crossbrace as illustrated for item 1, this
will verify that a crossbrace upgrade kit has been assembled.
B - Decals not included. See page titled, "Packaging, Literature and Decals."
C - Includes items 2 through 6.
D - Not Shown.
E - Less items 1 and 7. Includes items 2-6 and 8-28.
F - Includes items 1, 7, 30 and instruction sheet.
G - Includes items 24-28.
H - Pair
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 97-187
