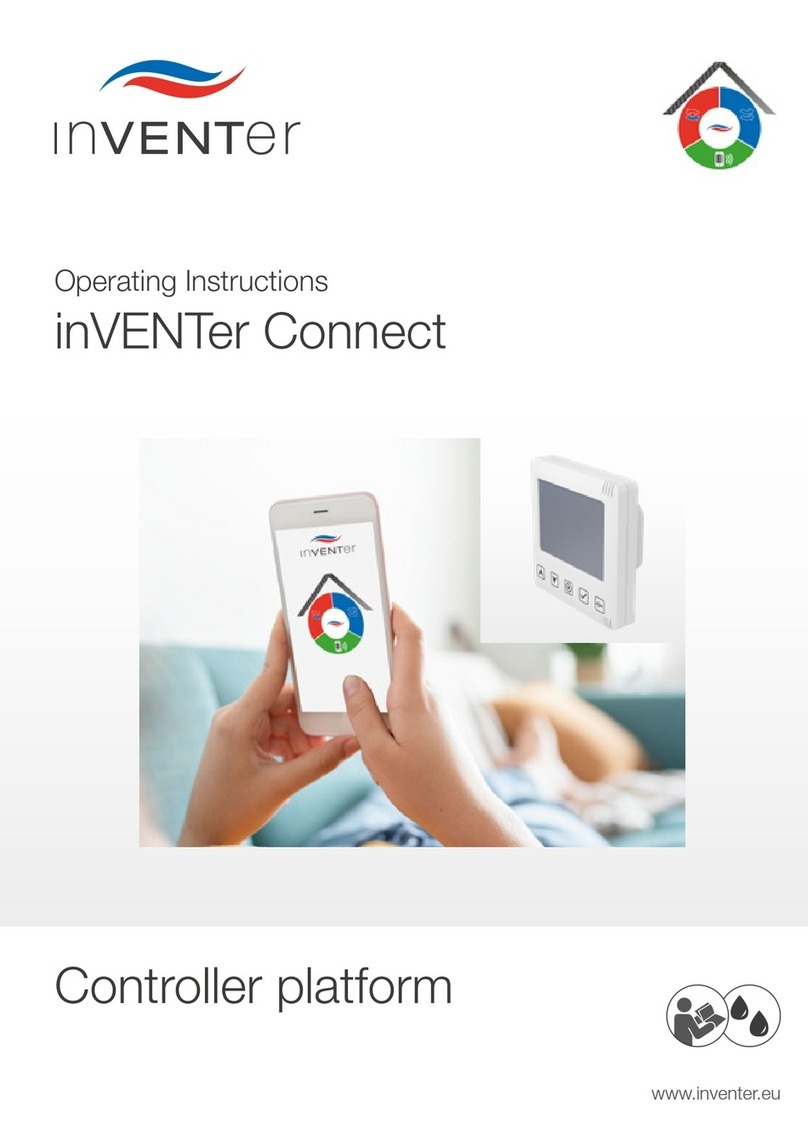

inVENTer Easy Connect e16 Manual
www.inventer.eu
inVENTer Connect
1505-0036
1505-0037
Quick Guide
Set-up
User and safety instructions
Before commissioning the system, read this manual carefully and follow
theinstructions given to avoid personal injury and damage to property.
Use all components of the system only according to their intended use.
Changes or modications are not permitted.
Any kind of use other than the intended use will exclude all liability claims.
All system components comply with the applicable technical safety
requirements and standards for electrical equipment. It may only be set up and
operated in conjunction with this documentation.
Installation, electrical connection and commissioning of the controller may only
be performed byqualied personnel. Qualied personnel within the meaning
of the safety notices in this documentation are persons who are authorised
to install, put into operation and identify equipment, systems and circuits in
accordance with established safety procedures.
Symbols used in this documentaion
NOTICE:
Indicates a direct or possible risk of property damage due to an adverse
event/state.
TIP:
A TIP symbol indicates practical and useful tips for handling
the inVENTer Connect system.
Action required: This prompts the user to perform a specifc action.
Check the results: requires the user to check the results of the action
performed.
Before the action sequences, tools and aids for the activities to be
carried out are listed.
Book: refers to another section in this documentation.
1
Download
Manual
Installation:
230 V AC
OFF
230 V AC
System overview and function
The inVENTer Connect controller platform is an innovative control system for
decentralised iV ventilation units with heat recovery from inVENTer. It allows
the individual devices of a usage unit to be integrated into an 868 MHz
wireless network, controlled and programmed wirelessly. The platform can
be assembled with the following components, depending on structural and
individual requirements:
The Easy Connect e16 controller is the central
node for the inVENTer Connect‘s wireless
network. Within the usage unit, the controller is
positioned at a central point and distributes the
control commands to the ventilation units via the
Connect inner covers while the sensor system
sends the sensor data to the controller.
The wireless control unit has aninformation display and offers quick access.
The controller also serves as the system interfacefor the „inVENTer Mobile“
app (Bluetooth interface, BLE).
The Connect inner cover is a wireless interiour
termination and replaces the standard inner
covers of the iV-Smart+, iV14-Zero,
iV-Compact and iV-Light ventilation units to
enable integration into the wireless network.
Inaddition to the wireless interface, the Connect
inner covers have local control electronics, a
power supply unit and an automatic closing ap.
Sensor technology (optional)
CS2-Connect CO2sensor
(incl. humidity/temperature sensor)
is a wireless sensor for monitoring carbon
dioxide, temperature and humidity levels within a
ventilation zone for demand-driven ventilation.
2
FTS19-Connect indoor humidity/
temperature sensor (battery operated)
is a wireless sensor for monitoring the
temperature and humidity values within a
ventilation zone for demand-driven ventilation.
FTS19-Connect outdoor humidity/
temperature sensor (battery operated)
is a wireless outdoor sensor for transmitting the
outside temperature to the system.
SK19-Connect switching contact
is a wireless interface for the integration of safety
devices while simultaneously operating the
ventilation system with replaces.
In addition to the xed system components, the free app „inVENTer Mobile“
is required forcomplete control and programming.
The system can also be put into operation without
the app andcan be controlled on a basic level via
the wireless controller. However, for a more in-depth
setup and full functionality access a mobile device
(mobile phone or tablet) with the„inVENTer Mobile“
app installed is required.
3 Installation
Install the components included in the scope of delivery according to the
instructions provided:
•Easy Connect e16 5040-0032
•Connect inner cover V-240x240 UP/AP 5040-0030
•CS2-Connect CO2sensor 5040-0034
•FTS19-Connect indoor humidity/temperature sensor
•FTS19-Connect outdoor humidity/temperature sensor 5040-0033
•SK19-Connect switching contact 5040-0039
4 Initial set up
Sensor keys for quick operation of the
ventilation unit
Navigation keys:
Navigate and change values,
setting of time.
Mode key:
Change between user specic
settings, complete settings.
Selection key:
Conrmation of settings.
Auto / Pause / Boost key:
Set ventilation units globally or by
zone in ventilation mode / Pause/
Boost function.
Display LED
Solid light
Flashing light
Step 2: Selecting the channel for the RF868-MHz radio connection
The controller searches for the best radio
channel, the LED ashes alternately
GREEN and TURQUOISE (1).
The best radio channel is indicated on
the controller‘s display (2).
There are 5 channels available.
A different channel can be selected
using the navigation keys .
The controller changes to the time and date setting.
Press the mode key (3) to conrm the
selection.
Establish the power connection.
The controller performs rmware and
hardware checks for the system, the
LED ashes RED, GREEN and BLUE
during this process. (1).
After a successful rmware and
hardware check, the LED lights up
WHITE (2).
The controller changes to the radio
channel setting.
Step 1: Connecting to mains power
The time and date setting can be skipped by pressing the mode key .
If set-up is carried out via the app, the time and date are automatically
taken from the app.
Setting the time
Initially the hour setting is ashing (1).
Press the navigation keys to set
the current hour.
Press the select key .
Afterwards the minute setting is ashing (2).
Press the navigation keys to set
the current minute.
Press the mode key .
Setting the date
The year setting is ashing (1).
Press the navigation keys to set
the current year.
Press the mode key .
Afterwards the month setting is ashing (2).
Press the navigation keys to set
the current month.
Press the select key .
Finally the day setting is ashing (3).
Press the navigation keys to set
the current day.
Press the mode key .
Optional: Step 3: Time and date setting
A ashing value/setting on the controller‘s
display can be changed/set using the navigation
keys.
Month
Year
Day
Hours Minutes
Before pairing the ventilation units, remove the panel/closing ap of the
Connect inner cover.
Device pairing
The display screen shows the
determined values for room temperature
and humidity at the controller‘s
installation location.
Initial set up of the Easy Connect e16
controller is executed.
Up to 16 system components (ventilation units [Connect inner covers],
sensors, switching contact) can be paired with the Easy Connect e16
controller and thus be integrated into the inVENTer Connect controller
platform. To do so:
•activate component pairing on the controller;
•activate all system components to be integrated;
•complete component pairing on the controller.
5
Press the mode key
(approx. 3 seconds, (1) ),
until the LED ashes WHITE (2).
The display illuminates.
Release the mode key.
The LED ashes WHITE (3).
Step 1: Activate component pairing on the Easy Connect e16 controller
„00“ appears on the controller display
aslong as no ventilation unit or sensor has
been detected and paired.
For a better overview it is useful to mark the sequence ofthe paired
components with the supplied numbers.
Mark the rst paired component (here
e.g. the inner cover) with the number 1.
Before activating an component mark
the paired devices consecutively in the
pairing order.
Step 2: Activating components to be integrated
Whlie the white LED ashes on the Easy Connect e16 controller
(approx. 5 minutes), all components to be integrated must be activated.
If there is not enought time to activate all components, component pairing
must be activated again on the Easy Connect e16 controller.
1
2
34
5
1
1
3 s
Activated components are automatically recognised and paired by the
controller. Activation of Connect system components is executed analogous
and is shown here as an example on the Connect inner cover.
Press the push-button on the respective
component to activate:
Connect inner cover: button inside the housing; tool
(pin Ø2 mm/50 mm long, e.g. small screw driver)
necessary to operate button inside housing.
FTS19-Connect outdoor: button inside the housing.
FTS19-Connect indoor: button on the underside of
the housing.
CS2-Connect | SK19-Connect: button on the
housing‘s front-side.
The LED lights up (1).
Press and hold the push-button again until
the LED lights up GREEN (approx. 3 s). (2)
The component is ready for pairing with
the controller.
The LED on the component ashes
GREEN during component pairing and
lights up solid GREEN when pairing has
been completed. (3)
On the controller display, the number
shown increases with each paired system
component.
LED
3 s
Step 3: Ending component pairing on the controller
After all components are paired, the pairing must be completed, if
•less then 16 components are paired, or
•time limit of 5 minutes after pairing activation on the controller is not exceeded.
Press the mode key to conrm the
paired components. (1)
The display screen shows the
information that the paired system
components (inner covers, external
sensors, switching contact) send to the
controller.
The system operates in the default
prole (factory settings).
Display screen
Time
Ventilation profile:
Default (can be modied)
Ventilation level
Ventilation mode
Heat recovery
Unidirectional
ventilation
Pause / Off
System display:
via sensor technology
transmitted values to
the controller system
Status
1 25 %
Air ow
volume
2 35 %
3 50 %
4 100 %
Ventilation system operates with
the pre-set ventilation prole
Ventilation system is paused
Ventilation system in Boost fuction
Once all system components are paired, ret the inner cover.
NOTICE: For this purpose the locking arm must be swivelled to the right!
Pause the ventilation unit:
press the pause key on the
controller twice.
The pause symbol II ashes.
The locking arm swivels to the right.
Conrm with the selection key .
Mount the cover by sliding the lower lugs into the guide and pressing the
cover against the Connect inner cover.
Putting the ventilation unit into operation again: Press the pause key
on the controller until the „automatic“ symbol ashes. The automatic
closing aps are opened again. The ventilation units start operating.
Time
Ventilation profile:
Default (can be modied)
2 x
6 Setup with the app
For advanced settings, like setting up ventilation zones or assigning and
changing ventilation proles the app „inVENTer Mobile“ is compulsory.
To connect the app to the controller, Bluetooth must be enabled and
the app must be given location access.
Download the „inVENTer Mobile“ app to
your mobile device.
After successful installation of the app,
the corresponding icon appears on the
screen.
Touch the icon of the „inVENTer Mobile“
app on the screen of your mobile device.
The start screen appears.
Touch the START button.
Inventer Mobile
Welcome to inVENTer Mobile!
Set up your new inVENTer product
in short and easy steps.
Schritten ein.
START
INSTALLATION
A window appears with aselection of
devices that can be paired with your
mobile device if necessary..
Select the „Easy Connect e16“ here.
Establish a Bluetooth connection by
Easy Connect e16
The display screen shows the request to
pair with the controller.
pressing the mode key , until the
LED turns BLUE.
The controller and mobile device
connect.
The LED on the controller
ashes BLUE.
While the LED on the controller is
ashing BLUE, press the „Connect“
button on your mobile device.
CONGRATULATIONS!
You have just completed the setup of your
inVENTer. The app allows you to set the unit’s
ventilator speed and automatic functions.
COMPLETE SETUP
CANCEL SETUP
A message appears on your mobile
device when the connection is
completed.
Select „COMPLETE SETUP“.
7
You can enter a freely selectable name
(max. 24 characters) in the window that
appears.
Conrm by pressing „OK“.
The controller appears on the display to
indicate that it is connected and available.
The Bluetooth symbol appears in blue.
Ventilation zone allocation
Once all desired components have been
integrated into the system, they can be
assigned to individual ventilation zones.
Press the area with the available
controller on the mobile device.
A window with the possible menus
appears:
• Ventilation zone overview
•Device overview
•Advanced settings
Select the „Device overview“.
All paired devices and their status are
displayed.
Enter the new
product name
Easy Connect e16
ABBRECHEN OK
CANCEL
Easy Connect e16
Controller
Device
available
Easy Connect e16
Controller
Device
available
Advanced settings
Device overview
Ventilation zone
overview
Easy Connect e16
Navigation bar: cross-zone control and
information.
The controller, as the central control unit, is
always displayed as the rst device and is
automatically assigned to ventilation zone 1.
This cannot be changed (in grey).
All other components are displayed in
the order in which they were paired and
designated (corresponds to numbering
whilst pairing). By default, all devices are
assigned to ventilation zone 1. They can
be assigned to one of the four ventilation
zones dened in the system (min. 2
ventilation units per zone and an even
number of units!).
Device symbol: Press the icon of a
paired device and rename it if necessary.
Press the „ventilation zone“ button
and change the ventilation zone
assignment. Text in gey: ventilation zone
cannot be changed.
The menu item „Device overview“ is described inthe inVENTer Connect
controller platform‘s detailed operating instructions (5022-0006).
Press the arrow in the upper left corner of
a display window to return to the menu
window. The arrow always takes you
back one application level.
26°C
26%
Device 5
25,4°C
22,1%
20,4°C
44,1%
CO2
Device 0
Device 1
Device 2
Device 3
Device 6
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Lorem ipsum
Device 4
Ventilation zone 1
Easy Connect e16
Controller
Device/Sensor
26°C
26%
Device 5
25,4°C
22,1%
20,4°C
44,1%
CO2
Device 0
Device 1
Device 2
Device 3
Device 6
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Lorem ipsum
Device 4
Ventilation zone 1
Easy Connect e16
Controller
Device/Sensor
8 Assigning ventilation profiles
If all ventilation zones have been assigned, predened ventilation proles can
be assigned to them. The assignment is based on ventilation planning and
room use..
Select the Ventilation zone overview in the
menu window.
In the window that opens, press the
symbol of the ventilation prole
(ex factory: Default)
A window appears in which the
properties of this ventilation zone are
displayed.
Press the prole symbol.
A selection window with the possible
ventilation proles appears.
Press a ventilation prole to select it for
the respective zone.
Advanced settings
Device overview
Ventilation zone
overview
Easy Connect e16
Easy Connect e16
Ventilation zone 1
Ventilation zone overview
25,8°C 24,9%
Default
Current ventilator power level 1
Ventilation zone 1
Override
25,8°C 24,9%
Lüftungszone1
Default
Default
Schlafzimmer
Kinderzimmer
Badezimmer
Wohnzimmer
Press the arrow in the upper left corner of the display window to return to
the menu „Ventilation zone overview“.
•The total number of points corresponds to the number of dened ventilation zones.
•The red dot shows which ventilation zone is currently selected.
•By scrolling/ swiping through the screens, you can access the properties of
the next dened ventilation zone.
Tap on the respective zone‘s prole symbol.
The window opens in which the values for this zone are displayed.
Default
Current ventilator power level 1
Ventilation zone 1
Override
25,8°C 24,9%
Current ventilator power level 1
Ventilation zone 2
Override
18,4°C 39,2%
Bedroom
Current ventilator power level 3
Ventilation zone 3
Override
22,8°C 33,7%
Kitchen
Current ventilator power level 4
Ventilation zone 4
Override
24,3°C 55,4%
Bathroom
For these settings, follow the menu navigation onyour mobile device or the
description in the inVENTer Connect controller platform‘s detailed operating
instructions (5022-0006).
Weitere Lüftungszonen auswählen:
Easy Connect e16
Ventilation zone 1
Ventilation zone overview
25,8°C 24,9%
Easy Connect e16
Ventilation zone 2
Ventilation zone overview
18,4°C 39,2%
Easy Connect e16
Ventilation zone 3
Ventilation zone overview
22,8°C 33,7%
Easy Connect e16
Ventilation zone 4
Ventilation zone overview
24,3°C 55,4%
9 Optional: Setting a signal amplifier
It is only necessary to set up this function if the radio signal from the
controller does not reliably reach all of the components integrated in
the ventilation system.
An internal search is made for devices
that are available as signal ampliers for
the device.
When setting up an amplier the use selects
a device that requires signal amplication.
The controller system searches for possible
repeaters.
Press the „Device overview“ button.
Press the „Radio signal weak“ symbol
of the component, that needs signal
amplication (repeater necessary).
Advanced settings
Device overview
Ventilation zone
overview
Easy Connect e16
26°C
26%
Device 5
25,4°C
22,1%
20,4°C
44,1%
Device 0
Device 1
Device 2
Device 6
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 1
Ventilation zone 4
Ventilation zone 1
Lorem ipsum
Device 4
Ventilation zone 1
Easy Connect e16
Controller
Device/Sensor
Device 3
Radio Performance
Improve device radio connection by
enabling repeater function.
Search for repeater
Other manuals for Easy Connect e16
3
This manual suits for next models
2
Table of contents
Other inVENTer Control System manuals
