Inverto IDLV-4100PM-ST User manual

Professional DVB Processor and Trans-Modulator
IDLV-4100PM

Professional DVB
Processor and
Trans-Modulator
User Manual
En
IDLV-4100PM

En
5
Table of Contents
6
7
7
8
9
9
9
9
9
9
9
10
10
10
10
10
11
11
12
12
14
15
16
16
17
18
19
20
Notices
Before using the device
1. General
2. Features
3. Installation
3.1 Unpacking
3.2 Operating voltage
3.3 Power-on the device
3.4 Power supply
3.5 The fuses
3.6 Connecting the device
4. Control panel and interfaces
4.1 Front panel diagram
4.2 LED indicators
4.3 LCD dispaly
4.4 Operating buttons
4.5 Common interface
4.6 Rear panel & device connnection
5. Menu Structure and Operation
5.1 IDLV-4100PM-XT series
5.2 IDLV-4100PM-XC series
5.3 Menu operation
5.4 Inputs menu
5.5 Outputs menu
5.6 System menu
6.Technical specications
7. Accessories
8. Safety

6
Notices
COPYRIGHT (Copyright © 2010 Inverto Digital Labs )
Not to be copied, used or translated in part or whole without Inverto prior consent in writing except approval of
ownership of copyright and copyright law.
WARRANTY
This warranty does not cover parts which may become defective due to misuse of the information contained in
this manual.
Read this manual carefully and make sure you understand the instructions provided. For your safety, be aware of
the following precautions.
WARNING! IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
•
To avoid explosion danger, do not dispose of batteries in an open re.•
CE MARK FOR EUROPEAN HARMONISED STANDARDS
The CE mark which is attached to these products means it conforms to EMC Directive (89/336/EEC) and Low
Voltage Directive (73/23/EEC).
IMPORTANT INFORMATION
Should you experience a problem with this unit, please refer to the trouble shooting section of this user
•
manual.
Please retain the original packaging, should it be necessary at some stage to return the unit.
•
Disposal of Old Electrical and Electronic Equipment (Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources. For more detailed information about
recycling of this product, please contact your local Civic Ofce, your household waste disposal service, or the shop
where you purchased the product.
COPYRIGHTS
Television programmes, movies, video tapes, discs, and other materials may be copyrighted. Unauthorized
recording of copyrighted material may be against the copyright laws in your region. Also, use of this product with
cable television transmissions may require authorization from the cable television operator or transmitter/owner.
The supplied AC power cable must be used to power this product. If the power cord becomes
•
damaged,
VENTILATION
Do not expose the product to high temperatures, such as placing it on top of other product that produce
•
heat or in places exposed to direct sunlight or spot lights.
The ventilation slots on top of the product must be left uncovered to allow proper airow into the unit.
•
Do not stand the product on soft furnishings or carpets. Do not stack electronic equipments on top of
the product.
Do not place the product in a location subject to extreme changes in temperature. The temperature
•
gradient should be less than 10 degrees C/hour.
Place the product in a location with adequate ventilation to prevent the build-up of heat inside the
•
product. The minimum ventilation space around the unit should be 7 cm. The ventilation should not
be impeded by covering the ventilation openings with items, such as newspapers, table cloth, curtains,
etc.
POWER SOURCES
The product is not disconnected from the AC power source (mains) as long as it is connected to the
•
power outlet or wall socket, even if the product is turned off.
If the product will not be used for a long period of time, disconnect it from the AC power outlet or wall
•
socket.

En
7
Before Using the Device
Thank you for purchasing the IDLV-4100PM series.
This User Manual is written for operators/users of the IDLV-4100PM Professional Digital TV Processor and
Trans-modulator to assist in installation and operation. Please read this user manual carefully before you
proceed to install and use the device
FOR YOUR SAFETY
This equipment is provided with a protective earthing ground incorporated in the power cord. The main plug shall
only be inserted in a socket outlet provided with a protective earth contact. Any interruption of the protective
conductor, inside or outside the device, is likely to make the device dangerous.
Do not remove the covers of this equipment. Hazardous voltages are present within this equipment and may be
exposed if the covers are removed. Only Inverto trained and approved service engineers are permitted to service
this equipment.
No operator serviceable parts inside. Refer servicing to Inverto trained and approved service engineers.
For the correct and safe use of the device, it is essential that both operating and servicing personnel follow
generally accepted safety procedures in addition to the safety precautions specied in this manual.
Whenever it is likely that safety protection is impaired, the device must be made in-operative and secured
against unintended operation. The appropriate servicing authority must be informed. For example, safety is likely
to be impaired if the device fails to perform the intended measurements or shows visible damage.
WARNINGS
The mounting environment should be relatively dust free, free of excessive vibration and the
•
ambient temperature between 0C°to 40C°. Relative humidity of 20% to 80% (non-condensed) is
recommended.
Avoid direct contact with water.•
Never place the equipment in direct sunlight.•
The outside of the equipment may be cleaned using a lightly dampened cloth. Do not use any cleaning•
liquids containing alcohol, methylated spirit or ammonia etc.
For continued protection against re hazard, replace line fused only with same type.•
Air intake for cooling is achieved via holes at the side of the device and the fans inside. The air ow •
should not be obstructed. Therefore, the device has to be placed on a at surface, leaving some space
at the sides of the device.
When in operation, the internal temperature should not exceed the limit of 70C
• °.

8
1. General
There are various models of IDLV-4100PM addressing different market requirements:
OPTIONS LIST
Model No.
Function
IDLV-4100PM-ST IDLV-4100PM-S2T IDLV-4100PM-CT IDLV-4100PM-DT IDLV-4100PM-TT
IP Output ● ● ● ● ●
IP Input ● ● ● ● ●
DS3 Input/Loop
through
●
DVB-S Input ●
DVB-S2 Input ●
DVB-C Input ●
DVB-T Input ●
PCMCIA Slot ● ● ● ● ●
ASI Input/Output ● ● ● ● ●
RF OUT ● ● ● ● ●
LAN control ● ● ● ● ●
Where the ‘●’ sign stands is a standard option.
2. Features
Comply with MPEG-2 (MP@ML) and DVB-S/-C/-T/S2 standards•
Support multiple Input/loop through methods such as QPSK, ASI, DS3•
Support various CA systems such as Ideto, Viaccess, NDS, etc•
Status display and parameters settings on LCD•
LAN control based on SNMP protocol, HTTP interface or HDMS PC software tool•
DS3 is compatible with multiple network adaptation protocols such as of Bacro, Huawei•
Support ASI output-original TS or processed TS (1+1Backup)•
Editing of PSI/SI table•
Support IP input/output•
Teletext VBI, EBU subtitle and DVB subtitle•
Upgradeable through LAN•
Auto-save when power off•

En
9
3. Installation
3.1 UNPACKING
Open the packaging box. Check if all accessories are in the box according to the packing list, and if the device
has any visible damage. Check that the power cord is suitable for the country where the device will be used.
Please contact the agent if there is any damage or accessory missing.
3.2 OPERATING VOLTAGE
Do not connect AC power until you have veried that the line voltage is correct and the proper fuses are
installed. The power supply of the device supports a wide-range of power signals. It is suitable for supply
voltages of 100-240 Vac -10% +6% at 50/60 Hz nominal. Please make sure the supply voltage is within the
specied range.
3.3 POWER-ON THE DEVICE
Make sure the device is mounted into a 19” EIA rack properly and rmly, and the signal cables are well connected
before applying power to the device. The main socket and fuse are located at the rear panel of the device.
Power the device and switch it on. The POWER LED will light. After the device is powered on, check if the following
message presents on the display on the front panel:
IDLV-4100PM (factory default unit-name) IP: 10.10.60.148 (factory default IP Address for LAN access)
If no message is presented or there is no light on the display, the device is defective and has to be returned for
servicing.
POWER REQUIREMENT
Input voltage 90-250 Vrms auto select
Frequency 47 to 63 Hz
Power 50 VA max. / 30 VA typical.
Current 110 V/0.27A or 240 V/0.125A typical
3.4 POWER SUPPLY
The power cord connects to an IEC main socket, which is located at the rear side of the device.
A standard power cord with a European DIN 49441 two pin main plug is supplied with the device.
3.5 THE FUSES
The line fuse is located in a small container beside the power connector on the rear panel. To check the fuse,
insert the tip of a screwdriver in the slot at the middle of the container where there is a little tap. Then, pull out
the fuse gently. The fuse should be attached to the line module and cannot be removed.
The fuse size should be 5 by 20 mm, rate T 2.0A, 250 V (UL and IEC approved).
3.6 CONNECTING THE DEVICE
Always use the specied cables supplied for signal integrity and compliance with EMC requirements.Connect the
input signal to the TUNER IN port on rear panel. The ASI OUT port may be connected to other devices. The RF
OUT port can be connected to your digital video broadcast network.
It is recommended to switch off and unplug the power cord when the device is not used for long duration of time.
The reboot interval should be more than 5 seconds.

10
4. Control Panel and Interfaces

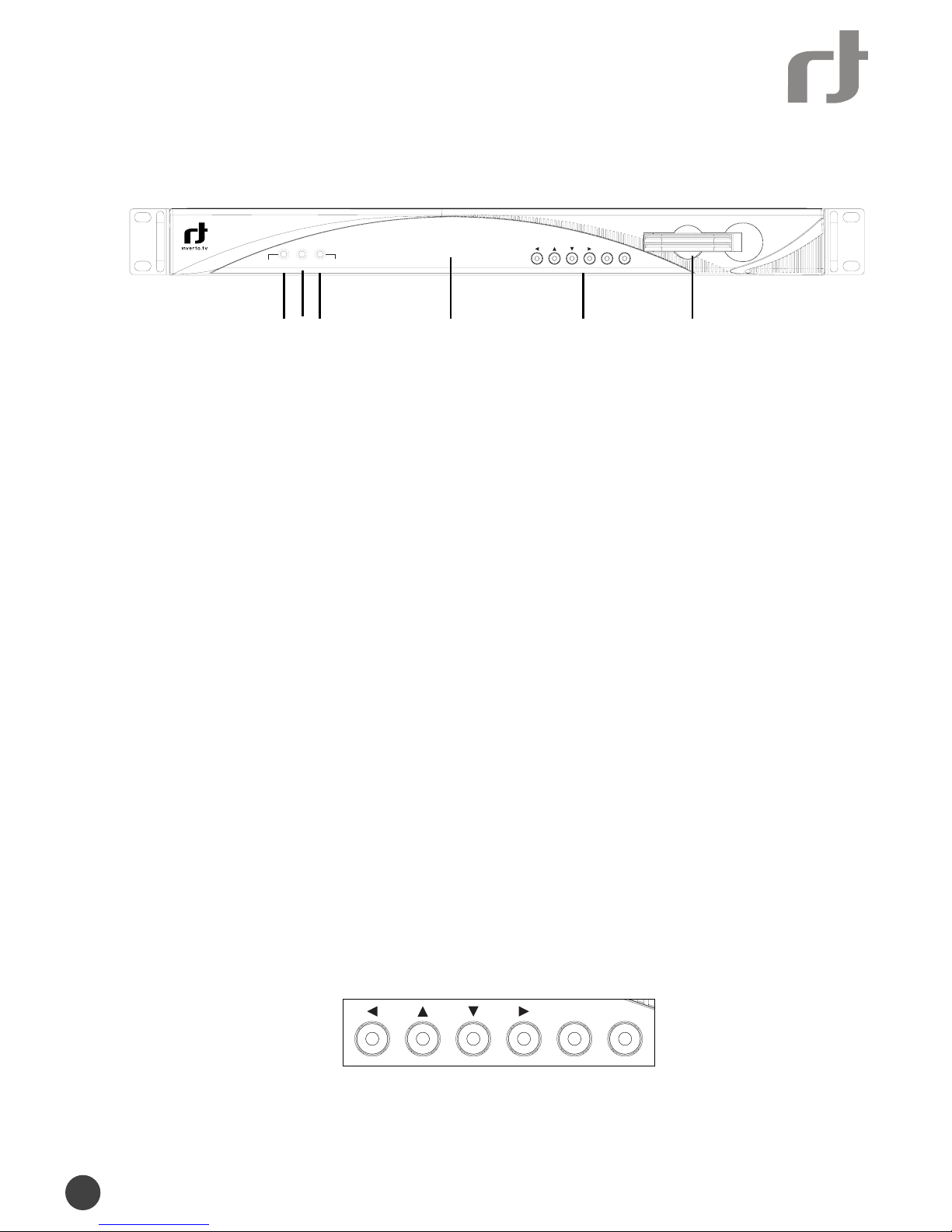

4.1 FRONT PANEL DIAGRAM
Enter Exit
Power Tuner Lock Alarm
IDL V -4100PM Professional DVB Processor and Trans-modulator
A1 A2 A3 A4 A5-A10 A11
A1 Power Power indicator, green light means power is ON
A2 Tuner lock Tuner lock indicator, Geen light means signal is locked; No light
means no input signal or wrong settings of the reception parameters..
A3 Alarm Alarm indicator
A4 LCD 2 × 20 character LCD
A5-A10 buttons <LEFT> <UP> <DOWN> <RIGHT> <ENTER> <EXIT> buttons
<UP> <DOWN> buttons are used to up/down pages of menu or increase/
decrease value when edit numbers
<LEFT> <RIGHT> buttons are used to move cursor
<ENTER> button is used to enter sub menu or conrm operation
<EXIT> button is used to return previous menu or cancel operation
A11 Common Interface PCMCIA Conditional Access Module (CAM) slots
4.2 LED INDICATORS
There are 3 LED-indicators:
Power: Status of the power supply
Green: the power is turned on
Off : the power is turned off
Tuner lock: Status of the tuner
Green: the incoming signal is locked by the tuner.
Off : there is no input signal or the signal is unlocked
Alarm: Status of source signal, which includes IP input, Tuner input signal and DVB-ASI TS
input.
4.3 LCD DISPLAY
The 2 x 20 character LCD display shows all the required information about the selected parameters.
The top row of the LCD shows the selected parameter. The bottom row indicates the present values and how
these can be adjusted.
4.4 OPERATION BUTTONS
Enter Exit
Power Tuner Lock Alarm
IDLV-4100PM Professional DVB Processor and Trans-modulator
The parameters are grouped in three menus:
-the Inputs, which provides access to inputs parameters
-the Outputs, which provides taccess to output parameters
-the Systems, which provides access to general system management parameters and device operating status.
When the symbols ‘->’ shown at the right side of the second row indicate that the user can use <ENTER>-to
navigate into sub-menus.

En
11
The 6 keys on the front panel allow you to navigate the information provided on the LCD and change parameters
when the device operates under local control.
The ENTER key is used to enter the main menu or a sub-menu. Inside a menu, ENTER is used to select the
parameter on the bottom line and to change its value. It also ends the input of new alphanumeric values and
conrms the changes.
The ▲ and ▼ keys are used to select between the main menus, sub-menus or programs. When a parameter is
selected inside a menu, they are also used to change its value. You may scroll through character positions using
the ◄ and ► keys. The EXIT key is used to exit a menu without any action taking place
4.5 COMMON INTERFACE
There are two Common Interface slots. You can insert up to two different CAM modules for descrambling.

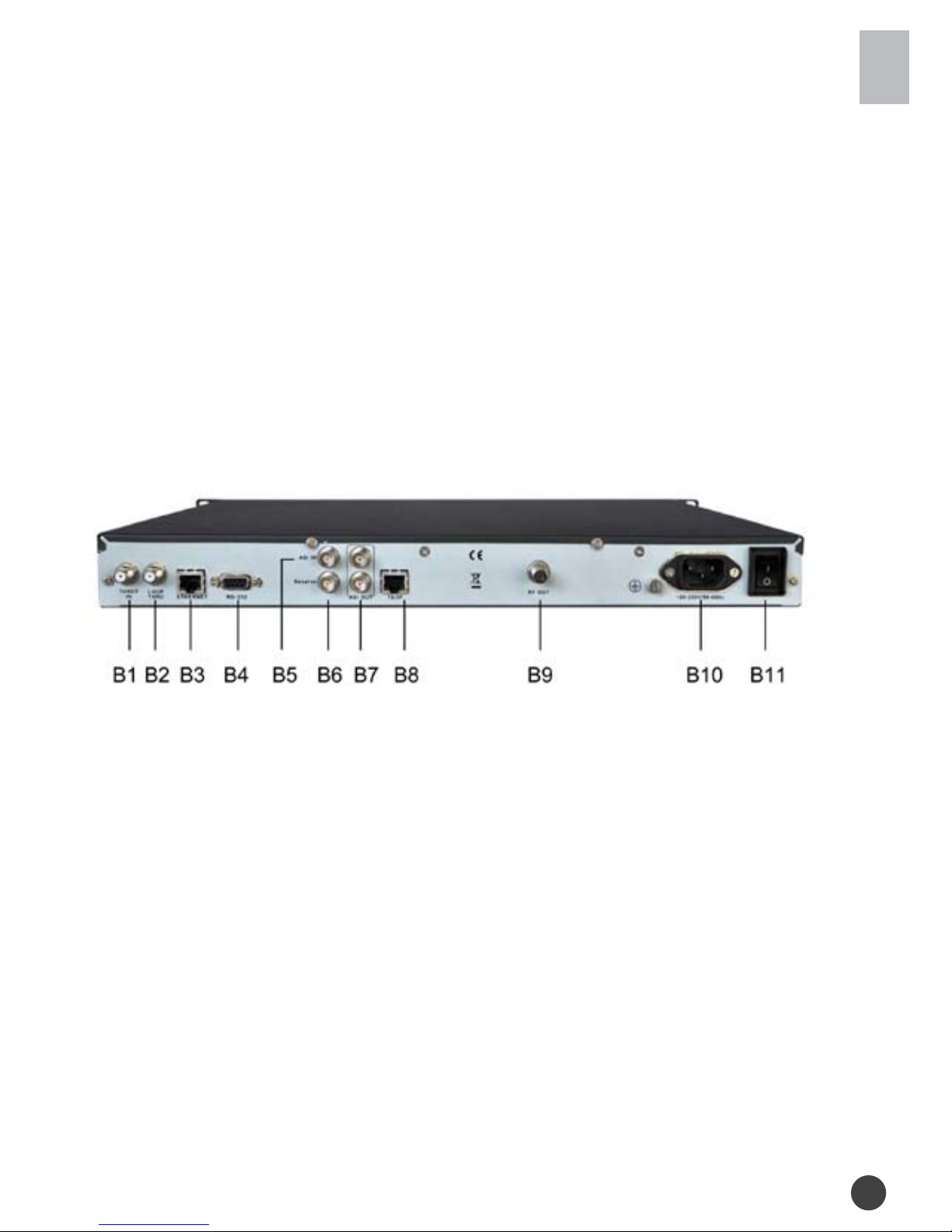

4.6 REAR PANEL & DEVICE CONNECTION
Always use the specied cables supplied for signal integrity and compliance with EMC requirements.
The rear panel is directly related to the input and output options tted. The gure below shows a typical rear
panel.
B1 RF Out RF signal output port
B2 TS/IP IP input/output port
B3 RS-232 Serial port for printing information
B4 LAN Control LAN port for software update
B5 ASI In ASI input port
B6,B7, ASI OUT Signals over ASI output port; B7 and B6 outputs are identical.
B8 Loop-through Tuner loop through signal
B9 TUNER IN Tuner input signal
B10 Power socket AC 90~250V input
Note:
This RS-232 interface is a 9-pins female sub-D connector that is only used for factory software upgrade and
conguration. You should not connect any cable to the RS-232 connector, as this may cause damage the device.

12
5. Menu Structure and Operation
5.1 IDLV-4100PM-XT SERIES
Note: the IP interface is set to Output and the Filter function is enabled (xed under optional function of the
System menu), the menu structure will be the following:
Main Menu
Status ASI: LOCK/UNLOCK
TUNER: LOCK/UNLOCK
Inputs
Status
DVB-S2 DVB-S2
LNB Frequency: 5150MHz
Satellite Frequency: 4000MHz
Symbol Rate: 26850Kb
LNB Voltage: oFF/18V/13V
LNB 22KHz: OFF/ON
Demodulator Mode:DVB-S/DVB-S2
Operation Mode:
QPSK 1/2,2/3,3/4,3/5,4/5,5/6,8/9,9/10
8PSK 2/3,3/4,3/5,5/6,8/9,9/10
Pilot: ON/OFF
Roll-Off Factor: 0.2/0.25/0.35
System
Local Setup: IP Address
NetworkMask
G ateway
Trap IP Address:
Unit Name:
Properties: MacAddress
FW Version
SW Version
CM Version
Factory Setting: YES/NO
Optional function
Machine Type:
Outputs
Status
CI
Filter
ASI
COFDM
Ethernet
Status Decoder: PMT/PN/AV/Video/Audio
CI: Slot1/Slot2
Ethernet:
COFDM: COFDM Status
Filter Filter switch: ON/OFF
Bit Rate
Source: TUNER/ASI Input/CI De-encrypted
Program list
A
SI ASI Source: ASI Input/CI De-encrypted/
TUNER/Mux TS
ASI Package Length: 188/Bypass
COFDM
SOURCE: ASI Input / MUX TS /
CI De-encrypted/ Tuner
QAM_ORDER: QPSK/16QAM/64QAM
Bandwidths: 6MHz/7MHz/8MHz
FEC: 1/2;2/3;3/4;5/6;7/8
Guard interval: 1/32;1/16;1/8;1/4
Modulation: Yes/No
RF Frequency 400MHz
SPEC: NORMAL / INVERT
RF ATTEN: 00dB~18dB
Ethernet
Stream IP Addr:
Stream Netmask:
Stream Gateway:
Stream Mac Address:
Mode: DVB/IPTV
Multicast setup: Multicast IP
Multicast UDP Port
Protocol: UDP/RTP
TS Packts per UDP: 1-7
Time to Live: 1-5
Type of Service: Normal/Min monetary cost/
Max Reliability/Max
Throughput/Min Delay
Source: ASI Input/CI De-encrypted/
TUNER/MUX TS
CI CI Source: Tuner/ASI Input
Setup: programs

En
13
MENU OPERATION
When the IP interface is set to Input and the Muxr function is enabled (xed under optional function of the
System menu), the menu structure will be the following:
Main Menu
System
Local Setup: IP Address
NetworkMask
G ateway
Trap IP Address:
Unit Name:
Properties: MacAddress
FW Version
SW Version
CM Version
Factory Setting: YES/NO
Optional function
Machine Type:
Status
ASI: LOCK/UNLOCK
TUNER: LOCK/UNLOCK
IP IN: 100M
IP IN
LOCK/UNLOCK
Inputs
Status
DVB-S2
Ethernet
DVB-S2
LNB Frequency: 5150MHz
Satellite Frequency: 4000MHz
Symbol Rate: 26850Kb
LNB Voltage: oFF/18V/13V
LNB 22KHz: OFF/ON
Demodulator Mode:DVB-S/DVB-S2
Operation Mode:
QPSK 1/2,2/3,3/4,3/5,4/5,5/6,8/9,9/10
8PSK 2/3,3/4,3/5,5/6,8/9,9/10
Pilot: ON/OFF
Roll-Off Factor: 0.2/0.25/0.35
Ethernet
Stream IP Addr:
Stream Netmask:
Stream Gateway:
Stream Mac Address:
Multicast IP
Multicast UDP Port
Protocol: UDP/RTP
Output smoothing: Auto/Disable/Fixed Rate
TS Bit Rate
Outputs
Status
CI
Mux
ASI
COFDM
Ethernet
Status Decoder: PMT/PN/AV/Video/Audio
CI: Slot1/Slot2
Ethernet:
COFDM: COFDM Status
Mux Mux switch: ON/OFF
Bit Rate
TS ID
Program list
A
SI ASI Source: ASI Input/CI De-encrypted/
TUNER/Mux TS
ASI Package Length: 188/Bypass
COFDM
SOURCE: ASI Input / MUX TS /
CI De-encrypted/ Tuner
QAM_ORDER: QPSK/16QAM/64QAM
Bandwidths: 6MHz/7MHz/8MHz
FEC: 1/2;2/3;3/4;5/6;7/8
Guard interval: 1/32;1/16;1/8;1/4
Modulation: Yes/No
RF Frequency 400MHz
SPEC: NORMAL / INVERT
RF ATTEN: 00dB~18dB
CI CI Source: Tuner/ASI Input
Setup: Programs

14
5.2 IDLV-4100PM-XC SERIES:
Main Menu
Status ASI: LOCK/UNLOCK
TUNER: LOCK/UNLOCK
Inputs
Status
DVB-S2 DVB-S2
LNB Frequency: 5150MHz
Satellite Frequency: 4000MHz
Symbol Rate: 26850Kb
LNB Voltage: oFF/18V/13V
LNB 22KHz: OFF/ON
Demodulator Mode:DVB-S/DVB-S2
Operation Mode:
QPSK 1/2,2/3,3/4,3/5,4/5,5/6,8/9,9/10
8PSK 2/3,3/4,3/5,5/6,8/9,9/10
Pilot: ON/OFF
Roll-Off Factor: 0.2/0.25/0.35
System
Local Setup: IP Address
NetworkMask
G ateway
Trap IP Address:
Unit Name:
Properties: MacAddress
FW Version
SW Version
CM Version
QAM Version
Factory Setting: YES/NO
Optional function
Machine Type:
Outputs
Status
CI
Filter
ASI
QAM
Ethernet
Status Decoder: PMT/PN/AV/Video/Audio
CI: Slot1/Slot2
Ethernet:
COFDM: COFDM Status
Filter Filter switch: ON/OFF
Bit Rate
Source: TUNER/ASI Input/CI De-encrypted
Program list
A
SI ASI Source: ASI Input/CI De-encrypted/
TUNER/Mux TS
ASI Package Length: 188/Bypass
QAM
RF Frequency: 193200KHz
QAM Constellation: 16/32/64/64B/128/256/256B
Symbol Rate: 3632KBaud
I/Q Inversion: Yes/No
RF Attenuation: 0~18dB
Modulation: ON/OFF
Source: ASI Input / MUX TS /
CI De-encrypted/ Tuner
Ethernet
Stream IP Addr:
Stream Netmask:
Stream Gateway:
Stream Mac Address:
Mode: DVB/IPTV
Multicast setup: Multicast IP
Multicast UDP Port
Protocol: UDP/RTP
TS Packts per UDP: 1-7
Time to Live: 1-5
Type of Service: Normal/Min monetary cost/
Max Reliability/Max
Throughput/Min Delay
Source: ASI Input/CI De-encrypted/
TUNER/MUX TS
CI CI Source: Tuner/ASI Input
Setup: programs

En
15
5.3 MENU OPERATION
The front panel LCD display will show bootup information after power is switched on. When booting ic completed,
the rst line will display the product model and the second line will display the IP address of the device. Press
the ENTER button to enter the main menu:
Main Menu
Inputs Outputs System
(1) Input Setup Set input parameters
(2) Output Setup Set output parameters
(3) System Set system parameters
5.4 INPUTS MENU
There are three options: Status, DVB-S2 and Ethernet (if IP port is congured as Input):
Inputs
Status DVB-S2 Ethernet
5.4.1 Status Menu
It contains two options, ASI and TUNER, to show the status of signal input:
ASI: When signal from ASI input port is locked, it will display package format and code rate; if signal is not
locked, it will show Unlock.
TUNER: When signal from tuner input port is locked, it will display package format and code rate; if signal is not
locked, it will show Unlock.
If Extend Board Type is set as “IP IN” in Optional Function of System menu, there will be one more option
appeared: IP IN
IP IN: When signal from IP input port is locked, it will display package format and code rate; if signal is not
locked, it will show Unlock.
5.4.2 DVB-S2 Menu
There are 9 options to set DVB-S2 parameters. After signal is locked, the TUNER LOCK indicator on front panel
will turn green.
LNB Frequency: Input LNB frequency
Satellite Frequency: Input downstream frequency of satellite
Symbol Rate: Input symbol rate of satellite
LNB Voltage: LNB power voltage. OFF/18V/13V selectable
LNB 22KHz: 0 or 22K switch. Can select OFF/ON
Demodulator Mode: Can select DVB-S/DVB-S2
Operation Mode: Can select QPSK 1/2,2/3,3/4,3/5,4/5,5/6,8/9,9/10
8PSK 2/3,3/4,3/5,5/6,8/9,9/10
Pilot: Can select ON/OFF
Roll-Off Factor: Can select 0.2/0.25/0.35

16
5.5. OUTPUTS MENU
Outputs
Status
CI
Filter
ASI
COFDM
Ethernet
Mux
QAM
5.5.1 Status Menu
It shows information of COFDM, CI and Ethernet
COFDM: Shows COFDM status
CI: Shows information of CI cards in Slot1/Slot2
Ethernet: Shows information of TS/IP port
5.5.2 CI Menu
It contains two options, CI Source and Setup, to set parameters of CI
CI Source: Set signal source - select TUNER or ASI Input
Setup: Press buttons to select the program which is expected to be descrambled; Press ENTER button to
select; then after pressing the EXIT button, the display will show “Conrm changed”, then select “YES”
0-xxxxx show program name whose signal source is ASI
1-xxxxx show program name whose signal source is TUNER
2-xxxxx show program name whose signal source is TS/IP
3-xxxxx undened
5.5.3 Filter Menu
(This menu becomes available only when the Filter Function is set to “Filter” under the Optional Function of the
System menu)
User can set the ltering function parameters:
Filter Switch: Select ON or OFF of lter switch.
Bit Rate: Set the bit rate
Source: it includes TUNER, ASI Input, or CI De-encrypted.
Program list: select programs which user wants to lter
5.5.4 ASI Menu
It contains two options, ASI Source and ASI Package Length, to set parameters of ASI
ASI Source: Select signal source, includes CI De-encrypted, TUNER, ASI Input or Mux TS
ASI Package Length: Can select 188 or Bypass
5.5.5 COFDM Menu (For IDLV-4100PM-xT series)
It contains nine options to set parameters of COFDM
SOURCE: Select input signal source, includes ASI Input, MUX TS, CI De-encrypted or Tuner
QAM-Order: Set COFDM modulation modes, includes QPSK/16QAM/64QAM
Bandwidths: Set bandwidths. Can select 6/7/8M
FEC: Set FEC parameters. Can select 1/2; 2/3; 3/4; 5/6; 7/8
Guard interval: Can select 1/32; 1/16; 1/8; 1/4
Modulation: Set carrier parameter. Can select ON/OFF
RF frequency: Set RF frequency. The range is 48MHz~862MHz
SPEC: Set frequency spectrum. Can select NORMAL or INVERT
RF ATTEN: Set RF attenuation. The range is 00dB~18dB
5.5.6 QAM Menu (For IDLV-4100PM-xC series)
It contains seven options to set parameters of COFDM
SOURCE: Select input signal source, includes ASI Input, MUX TS, CI De-encrypted or Tuner
RF frequency: Set RF frequency. The range is 48MHz~862MHz
QAM Constellation: Set QAM Constellation, includes 16/32/64/64B/128/256/256BQAM

En
17
Symbol Rate: Set symbol rate.
I/Q Inversion: Can select Yes or No
RF Attenuation: The range is 00dB~18dB
Modulation: Set carrier parameter. Can select ON/OFF
5.5.7 Ethernet Menu
(This menu becomes available only when the IP interface (Extend Board) is set to “IP out” under Optional
Function of the System menu) It includes Stream IP Addr, Stream Netmask, Stream Gateway, Stream Mac
Address, Mode, Multicast setup, Protocol, TS Pkts Per UDP, Time To Live, Type of Service and Source
Stream IP Addr: IP address of signal source
Stream Netmask: Netmask of signal source
Stream Gateway: Gateway of signal source
Stream Mac Address: Mac address of signal source
Mode: DVB or IPTV
Multicast setup: Multicast IP Addr: IP address of multicast
Multicase UDP Port: UDP port of multicast
Protocol: Can select UDP or RTP
TS Pkts Per UDP: the TS packets number per UDP. Can select 1~7
Time To Live: The quantity of effective routers. The range is 1~5
Type of Service: Can select Normal, Min Monetary Cost, Max Reliability, Max Throughput and Min Delay
Source: Output signal source. Can select ASI Input, CI De-encrypted, TUNER and Mux TS
5.5.8 Mux Menu
(This menu becomes available only When set Filter Function is set to “Mux” in Optional Function of the System
menu) It contains four options to set parameters of Mux function
Mux Switch: Select ON or OFF of mux switch.
Bit Rate: Set the bit rate
TS ID: set TS ID.
Program list: select programs which user wants to mux
5.6 SYSTEM MENU
There are seven sub-menus:
System
Local
Setup
Trap IP
Addr
Unit
Name
Properties
Factory
Settings
Machine
Type
Optional
Function
5.6.1 Local Setup: parameters of local device
IP Address: IP address of this device
Network Mask: Network mask of this device
Gateway: Gateway of this device
5.6.2 Trap IP Addr: SNMP trap IP address
5.6.3 Unit Name: Name of this device
5.6.4 Properties:
MAC Address: show MAC address of this device
FW Version: MCU software version
SW Version: FPGA software
QAM Version (IDLV-4100PM-xC series only)
5.6.5 Factory Setting: Recover to factory default setting
5.6.6 Optional Function: Set IP function and Filter/Mux function
Extend Board Type: Set type of extend board. The menu structure of 4100PM will be changed when
select different types: No Exist/IP IN/IP OUT
Filter function: Disable/Filter/Mux. The menu structure of 4100PM changes accordingly.
5.6.7 Machine Type: show machine type

18
6. Technical Specifications
RF Output
Output frequency range
Output frequency adjustment
Output level
Output level adjustment
Output impedance
Output return loss
Spurious rejection
Output frequency accuracy
DVB-C QAM Modulation
Constellation
Symbol rate
MER
Spectrum inversion
DVB-T COFDM Modulation
Constellation
FFT mode
Guard interval
FEC code rate
Bandwidth
Effective bit rate
TPS auto-generation
Spectrum inversion
SFN
Built-in re-multiplexer
Input PID range
Output PID range
PSI/SI generating
PID lter selection
Hierarchy
DVB-S2 8PSK/QPSK Demodulation
Input frequency range
Input level
Input impedance
Connector
Symbol rate
Rolling off factor
Punctured rate
LNB power supply
0/22K
DiSEqC
48~860 MHz
Min. step 10 kHz
95~120 dBμV
Min. step by 1 dB
75Ω, F-type
12 dB min.
60 dBc min.
VHF:±5 kHz, UHF:±10 kHz
J.83A, 16, 32, 64, 128, 256QAM J.83B: 64 or 256QAM
2~7.2MS/s
36dB min.
Inverted or Normal (selectable)
QPSK, 16-QAM, 64-QAM
2K
1/4, 1/8, 1/16 or 1/32
1/2, 2/3, 3/4, 5/6 or 7/8
6MHz, 7MHz or 8MHz
3.732~31.67 Mbps
Yes
Inverted or Normal (selectable)
not support
0x0000~0x1FFF
0x0000~0x1FFF
Auto or Manual
Service name or PID number
not support
950~2150MHz
-69~25dBm
75Ω
F type, female
2~45 MSps(SCPC or MCPC)
0.35 for QPSK 0.35, 0.25, 0.2 for DVB-S2
DVB-S2
QPSK:1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10
DVB-S2 8PSK:3/5, 2/3, 3/4, 5/6, 8/9, 9/10
DVB-S:1/2, 2/3, 3/4, 5/6, 6/7, 7/8
0, 13V, 18V (selectable)
0/22K (selectable)
DiSEqC 1.0
DVB-C QAM Demodulation
Input frequency range
Input impedance
Symbol rate
Constellation
Tuner bandwidth
FEC code rate
Input signal level
DVB-T COFDM Demodulation
Input frequency range
Input impedance
Input symbol rate range
50M~860MHz
75Ω, IEC-female(7/8MHz) or F-female(6MHz)
1~7MS/s (PAL), 1~6MS/s (NTSC)
J.83A: J.83B:
6MHz/7MHz/8MHz factory option
1/2, 2/3, 3/4, 5/6 or 7/8, K=7
-15~15dBmV
174~230MHz, 470~860MHz
75Ω, IEC-female
4.98~31.67Mbps (8MHz bandwidth)

En
19
Constellation
Tuner bandwidth
Input signal level
FFT mode
Guard interval
FEC code rate
DS3 Input
Input impedance
Max. input bit rate
Loop through output impedance
Max. output bit rate
Format
TS over IP I/O
Connector
Max. bit rate
Transport protocol
Control protocol
I/O Interface on Rear Panel
Tuner input/output
RS-232
Ethernet control port
TS over IP input or output
ASI input
ASI output
RF output
Management
Ethernet Connector
Protocol
Front panel control
General
Operating temperature
Storage temperature
Humidity
Power supply
Dimension
Weight
QPSK, 16-QAM, 64-QAM
6, 7 or 8MHz factory option
-20~-75dBm
2K/8K, auto-detected
1/4, 1/8, 1/16 or 1/32, auto-detected
1/2, 2/3, 3/4, 5/6 or 7/8, auto-detected
75Ω, BNC
44.736Mbps
75Ω, BNC
44.736Mbps
Unframed or framed Framing according to G.804/G.752(DS3)
RJ45, 10/100M
70Mbps
UDP/RTP, support for unicast or multicast
IGMPv2
1×input, 1×loop through output
1×9-pin D-sub male
1×RJ45 for Network management
1×RJ45, TS over IP (optional)
1×BNC ,75Ω
2×BNC ,75Ω (one for back-up)
1×F-type ,75Ω
RJ45 ,10/100M, for NMS and software upgrade
SNMP, TCP/IP, HTTP
LCD display and keypad
0-45°C
-20~70°C
<85%
AC 90V~260V 50Hz/60Hz
44mm×483mm×460mm
6Kg
7. Accessories
1x Power cord
1x User Manual
1x CD with the HDMS PC software tool
1x ASI cable
2x XLR connector

20
8. Safety
CAUTION!
Unauthorized maintenance or the use of non-approved replacements may affect the equipment specication and
invalidate any warranties.
This unit must be properly earthed
This unit should be operated only under
voltages of AC 250V±10% 50Hz±10%
Never attempt to disassemble the unit.
Only trained and approved persons are
permitted to service this unit.
×
Avoid any contact with liquid and
corrosive substances
