Invictus Active Trainer User manual

Congratulationson purchasing the Invictus Active Trainer.Your traineris manufactured using the very
highest standard of materials and is produced by experienced craftsmen. When used in accordance
with these operating instructions it will offer years of reliable service.
Warning:
Read and followall instructions carefully, the first time you use the trainer it isstrongly recommended
you have someone else in attendance and that they position themselvesin a manner that can help
you on and off the trainer should you need the support. The trainercomes with a retaining strap which
we strongly recommend you use until such time that you are completelyconfident that you will not flip
out of the backof your chair.
SafetyRecommendations:
*NEVER use trainer on uneven surfaces, alwayssetup your traineron flat, even surface
*ALWAYS make sure parts are tightened and that all equipment isin good working order, including
your chair!
*ALWAYS allowsufficient space to operate your trainer safely
*KEEP CHILDREN AND PETS CLEAR of trainerwhen in use
*NEVER touch the rollerswhen they are in motion
*USE the retaining strap until you are confident that you will not flip out of the back of your chair
*ALWAYS warm up properlybefore working out. Consult your Doctor before starting any workout
regime
For best results make sure that your tyres are inflated to the maximum pressure stated on
your tyres.

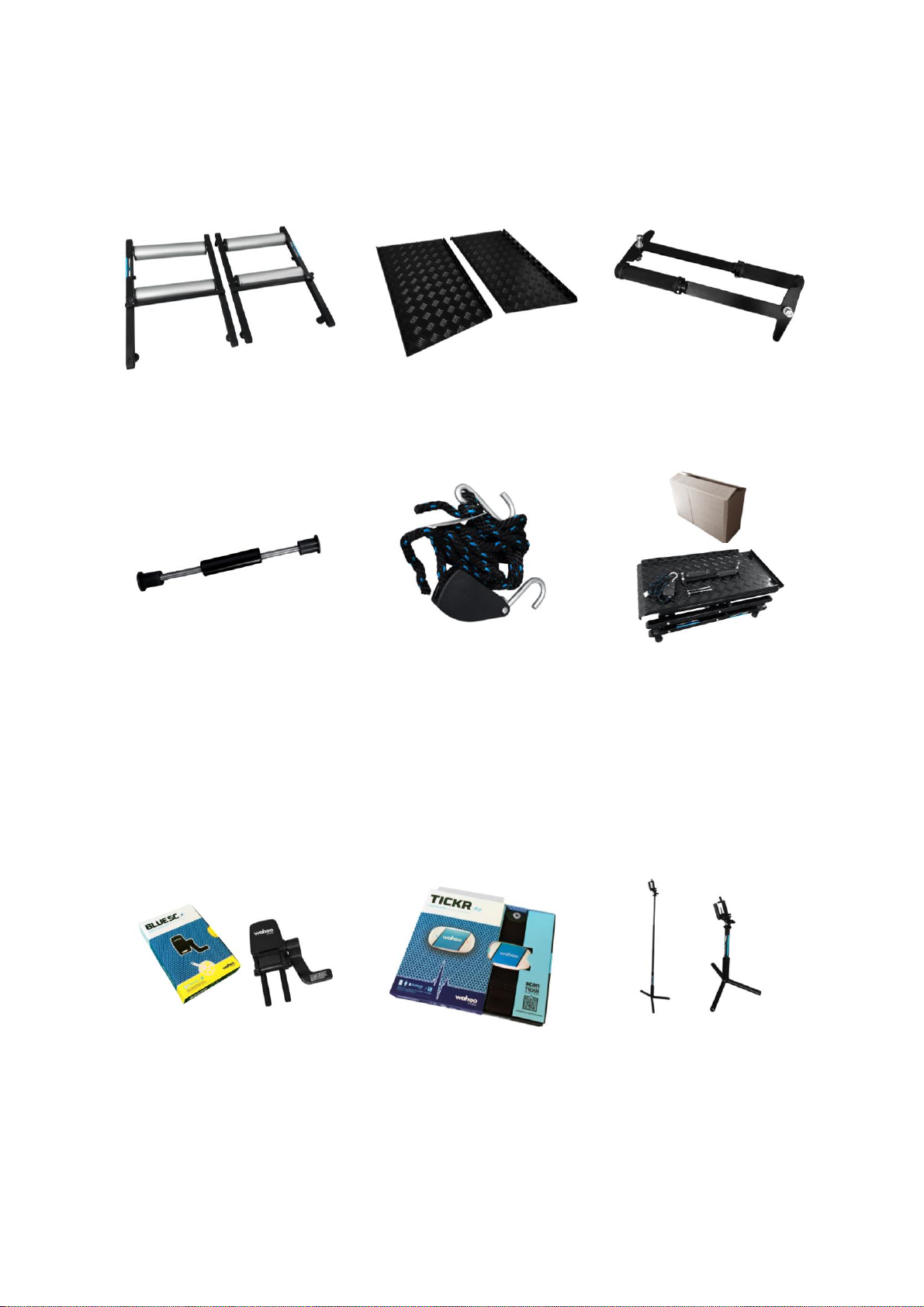

What’s in the box?
You should find the following itemsin yournewly opened InvictusActiveTrainerbox:
Trainer unit
x 2
Ramp
x 2
Brake
x 2
Spacer lock
x 2
Retaining strap
x 1
Trainer Smart:
Record your speed, distance and heartrate –available to upgrade at anytime.
Wahoo speed sensor
x 1
Wahoo heart rate sensor
x 1
Phone stand & holder
x 1

Setting upyour trainer:

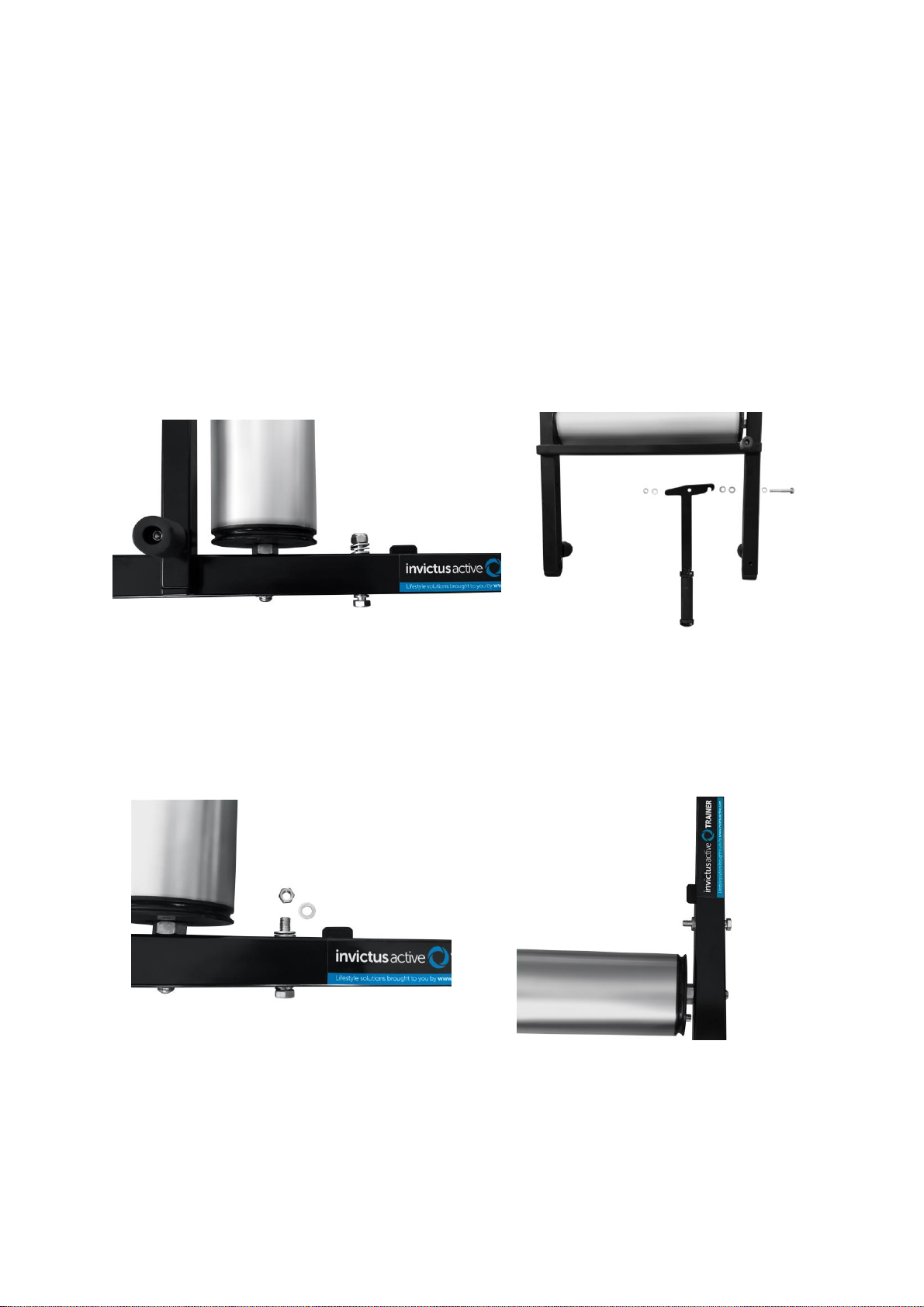

Brake assembly:
Your Trainerissupplied with the brakes unassembled and requires two 13mmspanners for
assembly.
The bolt, washers and nut are on each unit in the correct position and order –please take note of how
these are ordered as image below.
1) Using the 13mm spanners remove the nut andone of the washers –ensure two washers remain in
place.

2) Slide the brake on the bolt –ensure locking spigot (hook type end) isfacing down and brake rests
on stopper.
3) Slide the one washer back onto bolt and then tighten nut.
Important:
When assembled correctly your brake should be stiff to move - to operate correctly it relieson this
friction fit to engage the locking spigot on the rollers.

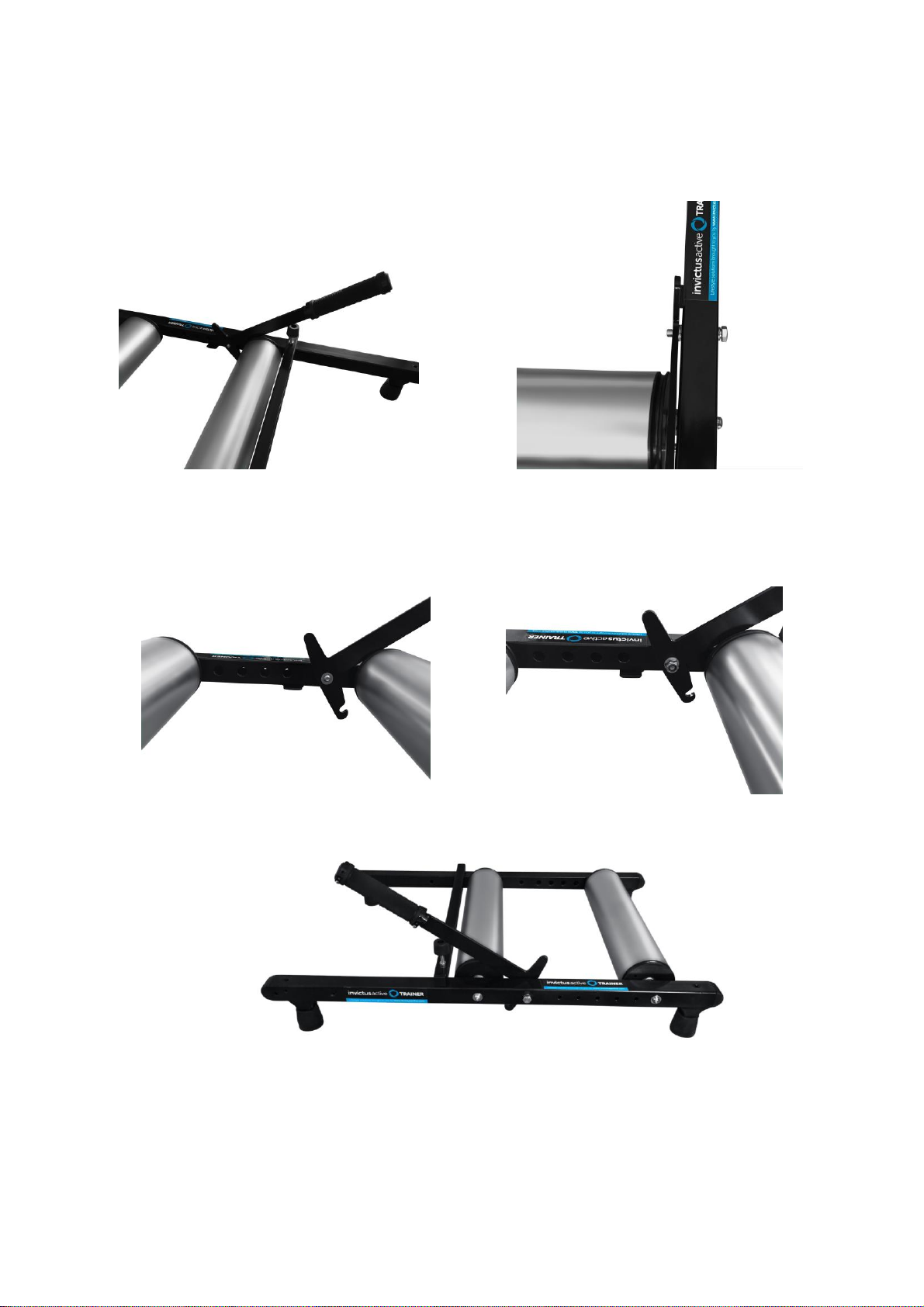

Trainer alignment:
1) Lay the units on a flat level surface side by side with the brakes on the outside.

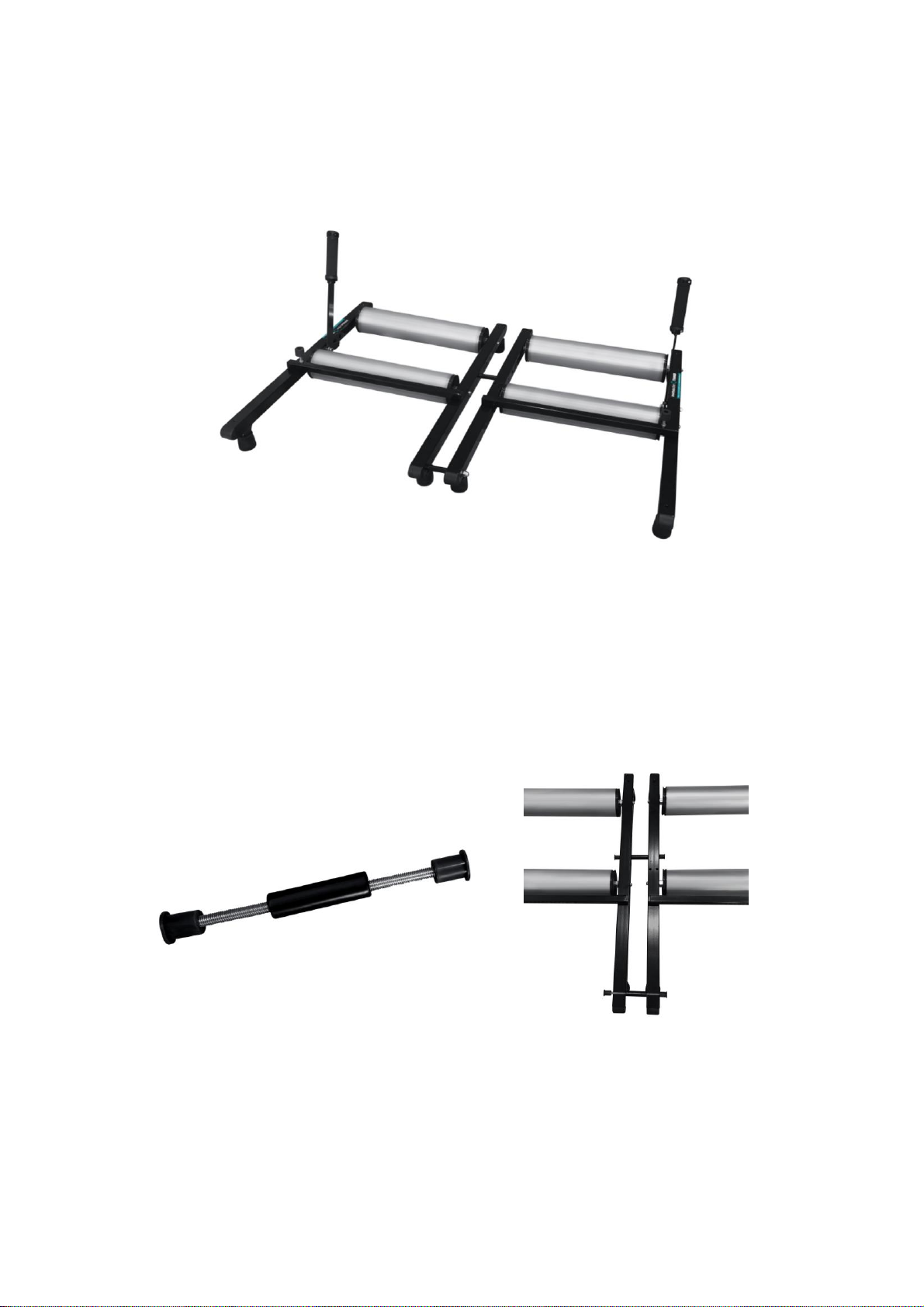

2) Align the unitsand then using the spacers lock the two unitstogether.
Undo one of the rubber thumb nuts, thread through putting spacer tube in the middle and screw
rubber thumb nut back on otherside.
There is one spacer lock at the front and one between rollers –first hole after rollers.

Important:
Ensure spacer are tight and secure as front spacer is used for retaining strap hook.

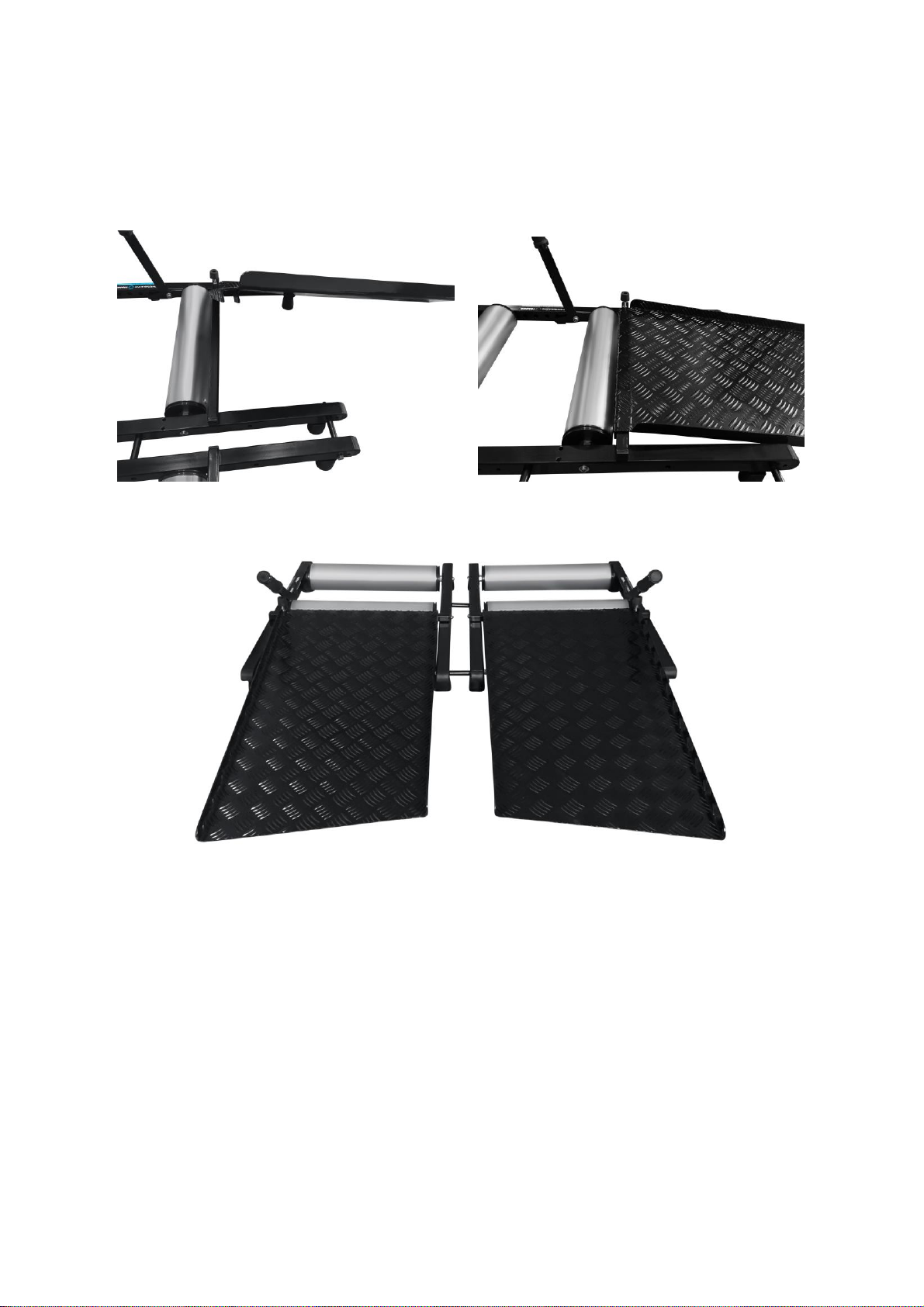

Ramps:
1) Slot the ramps in place with the longeredge on the outside.

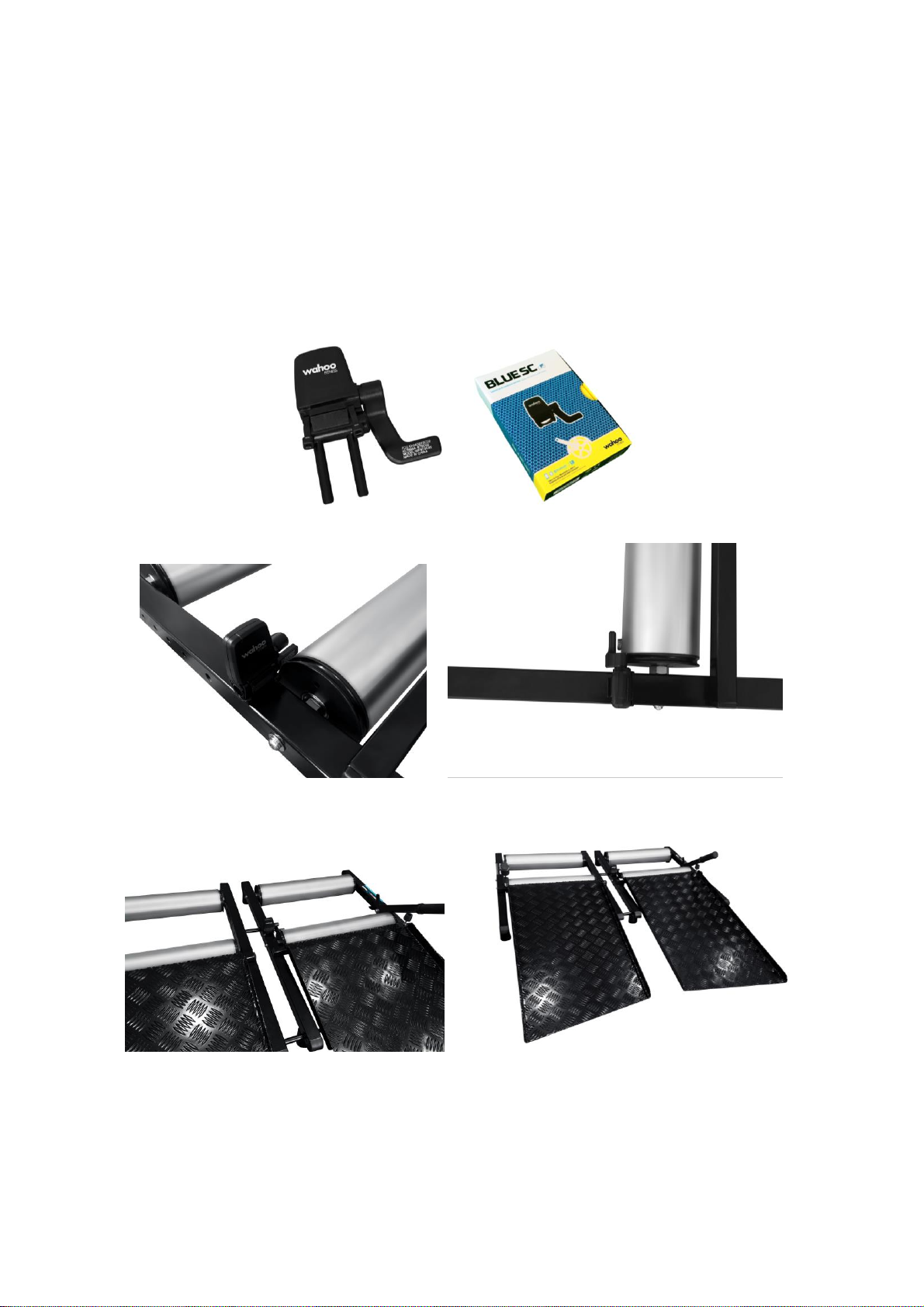

Trainer Smart assembly:
Record your speed, distance and heartrate –you can upgrade at any time.
1) Slot the sensor in position and ensure the sensor arm isin line with the magnet on the roller-
approx 4mm away from the magnet as it rotates. Gently adjust sensor arm so distance is correct.
You will see a blue light flashing on the sensor when it has connected and is in the correct position.
(To activate the sensor you may need to put the magnet close initially)
2) To record speed, distance and heart rate - see separate ‘setting up sensor’instructions and how to
connect to your phone.

Using the trainer:
Getting on:
Ensure the brake is in the off position - movement in the rollers helpsin getting on.
Brake on
Brake off
To get onto the trainerline each wheel in the middle of each ramp
Then reverse backwards slowly up the ramp - if possible leaning forward slightly –until you are on
rollers and in position. Check each wheel is approximately in the middle of each roller.

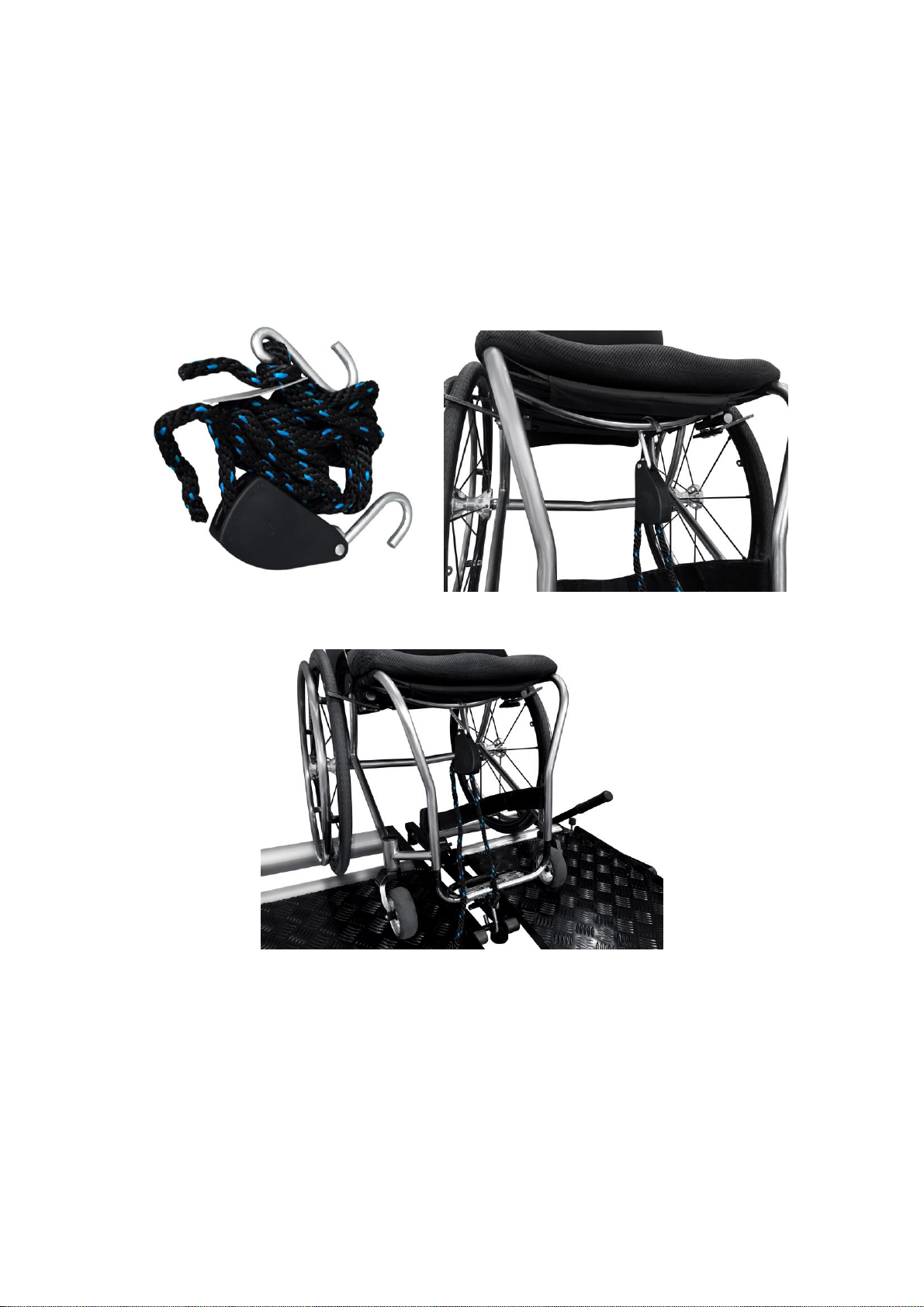

Retaining strap:
We advise that the retaining strap isused at all times.
Using the retaining strap, hook this to the front bar underyour wheelchair seat (NOT THE REAR
AXLE!) then hook the otherend onto the front spacer lock - pull the cord to tighten and secure
yourself in place.
To release there is a release ‘button’ on the unit which when pulled loosens the rope.
