INVISICLEAN Claro IC-4524 User manual

InvisiClean Claro 4-in-1 True HEPA Air Purifier
Model No.: IC-4524
If you have any questions, please email us at [e-mail] or call us
at 818-787-1188 Monday – Friday 9AM-5PM Pacific time for immediate assistance.

Content
-1-
Contents.………………………………………………………1
Safety Precautions…..………………………………..……2-3
Parts diagram…………………………………………………4
Controls & Use......……………………...……………………5-6
Features & Functions……………………...…………………7
Maintenance.………………………………...…………..……8-10
Troubleshooting…..………………..………..….……………11
Frequently Asked Questions……..………..….……………11-13
Warranty…..………………..………..….………………………15
Save on replacement filters………..………..….……………16
Specifications………..……….……….……..….……………17

-2-
READ AND SAVE THESE INSTRUCTIONS
WARNINGS
Failure to comply with the warnings listed below may result in electric shock or
serious injury.
This product should be used only in accordance with the specifications
outlined in this manual. Usage other than what has been specified here may
result in serious injury.
When using electrical appliances, basic precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons.
• Read all instructions before using appliance.
• IMPORTANT - This appliance has a polarized plug (one blade is wider than
the other). To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do not attempt to
defeat this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into an AC electrical
outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the
cord under rugs, near heat registers, radiator, stoves, and heaters.
• To protect against electrical hazards, DO NOT immerse in water or other
liquids. Do not use near water or near objects containing water like vases.
• Children cannot recognize the hazards associated with the usage of
electrical appliances. For this reason, always supervise children when they
are near the unit.

READ AND SAVE THESE INSTRUCTIONS
-3-
• Always unplug the air purifier before moving it, opening the grill, changing
filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the
plug and not the cord.
• NEVER drop or insert any object into any openings.
• DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from
traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails
to rotate, after the appliance malfunctions, or if it has been dropped or
damaged in any manner. Please contact the manufacturer for assistance.
• Use appliance only for intended household use as described in this manual.
Any other use not recommended by the manufacturer may cause fire, electric
shock or injury to persons.
• DO NOT use outdoors.
• DO NOT sit or place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such
as a bed or sofa, as this could cause the unit to tip over, blocking the air intake
or air outlet.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on
this unit. Doing so will void your warranty. The inside of the unit contains no
user serviceable parts. All servicing should be performed by qualified
personnel only.
• WARNING: To reduce the risk of fire or electric shock, do not use this fan with
any solid-state speed control device.
CAUTION: DISCONNECT POWER FROM UNIT BEFORE SERVICING OR
REPLACING UV LAMP

Parts diagram:
-4-
Front Door UV Lamp Back Housing
Carbon Pre-filter True HEPA Filter

-5-
Controls
Control panel
Button：
Touch Panel
# Description Function
1 Timer Timer with 1 / 2 / 4 / 8 hour options
2 UV/UV reset UV light switch / UV reset button
3 Power Power switch to turn unit on
4 Ionizer/Filter reset Ionizer button / Filters reset
6 Speed/Mode Fan speeds(1, 2, 3,Turbo, Auto and Sleep mode button)

-6-
How to Use
1. Power Button: Turn air purifier on and off.
2. Timer Button:
When you would like the air purifier to auto shut off after a preset
amount of time use this button to set the interval. Time can be
selected from 1, 2, 4, and 8 hours.
3. UV/ UV Reset Button:
Press UV button once to turn on the UV light; Press UV button again,
the UV light will turn off. When the UV light usage reaches 3,000
hours, the UV indicator light will flash indicating it is time to replace
the UV lamp. To reset the UV reset indicator, press and hold the UV
button for 3 seconds. The unit will beep and the indicator light will
turn off.
4. Ionizer/Filter Reset
Press Ionizer button once to turn the ionizer on; Press Ionizer button
again, the ionizer will turn off. After the air purifier has been in use
for 4,320 hours, the indicator light on the Ionizer button will flash
indicating it is time to replace the filter. To reset the filter reset
indicator, hold the Ionizer button for 3 seconds. The unit will beep
and the indicator light will turn off.
5. Fan Speed/Mode:
Press the Speed/Mode button to cycle between fan speeds 1, 2, 3,
& Turbo and Auto mode and Sleep mode.
6. The LCD display on the front will cycle between PM2.5 level,
temperature, and humidity.

-7-
Features & Functions
Features：
1.LCD display showing current PM2.5 levels, temperature, and humidity.
2.Three fan speeds + turbo and automatic and sleep mode.
3.True HEPA * filtration system + UV-C light and ionizer
Footnotes:
* True HEPA filter efficiency of 99.989% with respect to particles 0.1-0.3 μmin diameter indicated
by third-party testing conducted pursuant to method GB/T 6165-2008.

Maintenance
-8-
Filter Replacement:
1. Clean exterior of the air purifier with soft and clean cloth, do not use solvents
or harsh chemicals to clean the unit
2. Replace or clean the pre-filter often using the brush attachment of your
vacuum cleaner for optimum performance.
3. True HEPA filter needs to be cleaned or replaced every 6-12 months
depending on use. Follow the instructions in the diagram to clean or replace.
(Figures: A, B, C)

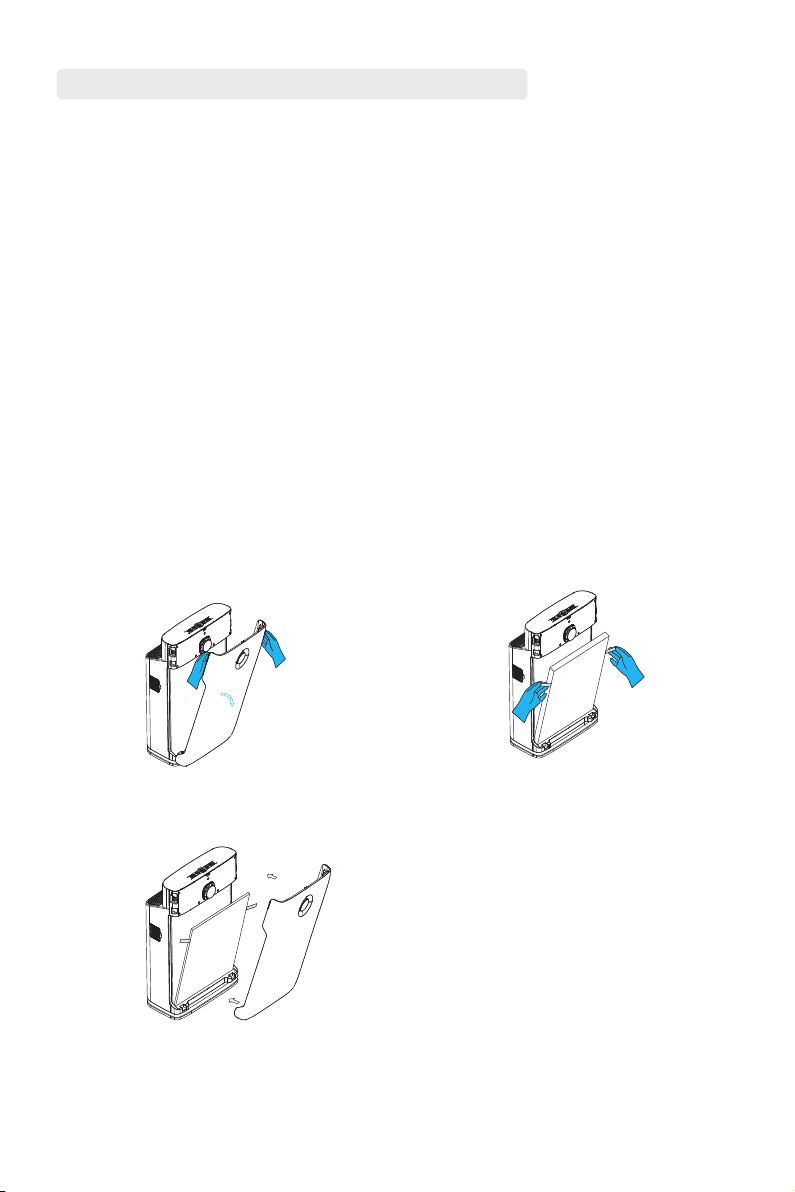

Figure A: Using both hands, pull to open the front cover, and lift up the front
cover to access the filters.
Figure B: Remove the filter using the pull tabs on the filter.
Figure C: Insert the replacement filter. For the front cover, please hook
the two lower hooks onto the bottom of the unit first then push forward to
latch the door in place. For your safety, the unit will not function without the
door latched in place.
Figure A Figure B
Figure C
→
→
1
2

Maintenance
-9-
UV bulb replacement:
When the UV light button starts blinking, it is time to change the UV bulb. To
replace the UV-C bulb, please follow the following steps.
A) Unplug the unit from the wall and remove the front cover and filter.
B) Unscrew the 4 screws holding UV bulb access door in place.
C) Pull the UV bulb from the unit and unscrew the bulb from the holder.
D) Using gloved hands or a towel to prevent fingerprints, carefully screw the
new bulb in place.
E) Insert bulb back into unit and replace door cover in place with 4 screws.
Note:
Never look at the operating UV lamp directly.
Use only replacement bulb sold by InvisiClean. Order parts on our website,
www.invisiclean.com.
Follow the instructions in the diagram on how to replace the UV bulb.
(Figures: A, B, C,D,E)
Figure A Figure B
→
→
1
2
Manage in accordance with Spills, Disposal and Site Cleanup
Requirements. In case of breakage, follow clean-up procedures
provided by contacts below.
www.epa.gov/cflcleanup
1-866-284-4010
LAMP CONTAINS MERCURY
Hg

Maintenance
-10-
Figure C Figure D
Figure E

-11-
Troubleshooting
Problem Solutions
Will not power on Try a different outlet
Front cover is not installed correctly in place. Remove
door, replace, and try again.
Make sure the air purifier is on the ground on a flat level
surface. Check to make sure filter is not clogged or
needs to be changed. Check air inlet and outlet for
obstructions.
Unit is in sleep mode. Press any button to exit.
Check to make sure filter is not clogged or needs to be
changed. Check air inlet and outlet for obstructions.
Sounds noisy or
makes abnormal
sounds
Unit is on with no
lights
Insufficient Air
Flow
Why is the ionizer
/filter reset light
blinking?
The replace filter light is set to automatically go off after
4,320 hours. It is only a reminder to check the filter to
keep the air purifier running smoothly. To reset the light,
please hold down the ionizer button while the unit is on
for 3 seconds and the unit will beep to reset the timer.
Why is the UV/UV
reset light
blinking?
The replace UV light is set to automatically go off after
3,000 hours. It is a reminder to replace the UV light bulb.
To reset the light, please hold down the UV button while
the unit is on for 3 seconds and the unit will beep to reset
the timer.
Frequently Asked Questions

Frequently Asked Questions
The bulb should be changed yearly for optimum
performance.
When should I
change the bulb?
You should see a blue glow from the UV bulb when
looking into the unit from above the air outlet on the
right side.
How do I tell if my
UV lamp is
working?
It is a measurement of PM (Particulate Matter) in the air
that is smaller than 2.5 micrometers. Human hair is
about 75 micrometers in diameter, so even the largest
PM2.5 particle is 30 times smaller than that. For further
information, please check page 14 in the manual.
What is PM2.5?
-12-
The filter replacement frequency varies greatly on
environment. We recommend checking the pre-filter
monthly. Vacuum off any visible dust and hair on the
pre-filter or replace the pre-filter with a new one. For
HEPA filter replacement, we recommend going by
looking at the backside of the filter. Once the backside
turns a grayish color indicating that dirt has penetrated
to the last layer of the filter, we recommend changing it.
How often should
I change filters?

-13-
Frequently Asked Questions
My unit is on but
the power light is
blinking
Please make sure the door is properly closed. Please
make sure the two hooks at the bottom of the door are
intact and not broken off. If they are broken off, please
contact us to replace the door.
What is auto
mode?
In auto mode, when the PM2.5 level rises, it will
automatically raise the fan speed to remove the
particles in the air as fast as possible. Once the pollution
source is gone, the fan speed will go back down. If your
goal is to prevent PM2.5 inhalation, our recommendation
is to leave it on auto. If you are trying to reduce dust and
allergens, our recommendation is to leave the air purifier
on the highest speed that is comfortable. That way the
air purifier is constantly working to move air around and
capture dust and allergens.

-14-
To put it simply, it is a measurement of PM (Particulate Matter) in the air that is
smaller than 2.5 micrometers. Human hair is about 75 micrometers in
diameter, so even the largest PM2.5 particle is 30 times smaller than that!
One common misconception of PM2.5 is that it is a count of particles in the air.
To clarify, PM2.5 is a weight measurement of µg (micrograms) per m³ (cubic
meter). It is not a quantity measurement but a mass measurement. The way
our PM2.5 meter works is by using a laser to radiate suspended particles in the
air, it collects the scattering light and estimates the mass of all particles 2.5µm
and under in size.
PM2.5 particulate matter contains microscopic solids or liquid droplets that
are so small that they can go deep inside the lungs and into the bloodstream
causing health problems. Another common misconception is that a PM2.5
measurement reflects the amount of "dust" in the air. Although it can
technically be classified as dust, it is not visible to the eye like normal
household dust. Household dust can be irritating but it will usually get filtered
out through your nose and mouth.
Some are emitted directly from a source, some examples are construction
sites, unpaved roads, fields, smokestacks or fires. Most particles in the air are
a result of complex chemical reactions of pollutants emitted from power plants,
industrial manufacturing, and automobiles.
The ideal levels are below 100 and if you are sensitive to PM2.5, below 50 is
ideal.
What is PM2.5?
Why does it matter?
Where does it come from?
What PM2.5 level is ok?

-15-
Warranty
1 Year Warranty
InvisiClean warrants this product to be free of defects in materials or
workmanship commencing upon the date of the original purchase. Save your
original sales receipt to validate start of warranty period. Warranty is not valid
without receipt. If this product should become defective within the warranty
period, we will repair or replace any defective parts free of charge. All
warranty repairs must be completed by InvisiClean. This warranty does not
cover unauthorized repairs. The warranty does not include unusual wear,
damage resulting from accident, or unreasonable use of the product. This
warranty only covers the product when used with genuine InvisiClean
accessories. This warranty covers product that was purchased from
authorized distributors. This warranty gives you specific legal rights and you
may also have other rights (other rights may vary from state to state in the
U.S.A.). To submit product under warranty the complete machine must be
delivered pre-paid to InvisiClean. Please include complete information
including: the problem, the model number of the product, the day of purchase,
and a copy of the original sales receipt along with your name, address, and
telephone (email optional). Please contact the original authorized retailer for
return authorization and instructions.

Save on replacement filters
-16-

Specifications
Input voltage：AC120V/60Hz
Rated power：55W
CFM：200CFM
3
Negative ion density：≥3000000/cm
Unit weight： 15.2 lbs
Product size：14.7 x 8.5 x 23.4 inches
-17-
