INYANSOLAR ISS20-12F User manual

Portable Solar Power System 20W
—ISS20-12F —
User Manual
Congratulations and thank you for purchasing our product.
Carefully read, understand and comply with all instructions before use.

1
Foreword：
Thank you very much for your purchasing portable solar power system 20W.
To use the system properly and securely, please read the warnings carefully.
This manual should be kept for future read.
If the information in this manual has alteration, forgiving not another notice in the line.
Safety precautions：
In order to ensure safety, please carefully read and obey the following safety precautions and
warnings.
Battery:
Never disassembling, heating or have a short circuit operating to the battery. It may
cause battery to break and lead to personal injury.
Solar panel:
Never press other objects on the solar panel. It may cause solar panel to to break and
lead to personal injury.
Usage environment:
Please do not use the product in high humidity, rain environment. Quickly shut off the
power switch and contact with the dealer or company in case of any liquid into the
product.
Disassemble:
Do not disassemble or modify the product. It may cause machine fail ， fire or risk of
electric shock. Any inner inspection, debugging and maintenance are not allowed. User
should pay for the maintenance cost of product failure or damage caused by
self-disassemble, modify, even it’s still under warranty.
Fall or strong impact:
Avoid to fall, trample or have a strong impact to the product as well as the accessories. It may
cause damage, fire or risk of electric shock if continue to use the product in these case. Please
quickly shut off the power switch and contact with the dealer or company.
Machine abnormality:
Immediately stop to use the product when smoking, abnormal odor situation happens. If use,
may result in machine fail , fire and risk of electric shock. Please turn off the power switch,
disconnect the electrical appliances and solar panel. Then contact with the dealer or company.
Do not disassemble repair.

2
Additional considerations:
WARNING
 Please do not use high power devices beyond the permissible range of the system (150
Watt)!
 The lights used are 12VDC LED light, make sure the power of each light is not exceed 5W.
 Do not keep the product on rickety table or high shelf such unstable place.
Otherwise it will cause injury by fall over and drop.
 Do not put heavy objects on the machine and accessories. It may damage the
product and cause injury by fall over or drop because of lose balance.
 Keep away from reach and use of children to avoid any accidents.
 It is necessary to charge and discharge battery one time in about one month when
long-term unused in order to enhance their lives, run them reliably and ensure the
batteries.
 If the product is not used for a long run, please full charge battery and make sure to turn off
system main switch. Please charge the battery in time while you hear buzzing or only the
red light of battery power is on. Otherwise the battery will be damaged and this situation is
outside the scope of free warranty.
Never connect AC appliances which rated power exceeds 150W!!!
No CRT TV No Air Condition No refrigerator No Washing machine
1. Principle of Operation：
1. Electric energy is generated from photoelectric current from the solar panel. The power is then
stored in the battery by the built-in charge controller of the product.
2. Direct current in the battery is inverted by the internal inverter when power is needed for
appliances; DC is also able to be output for DC drives to meet different requirements.
2. Main Features：
◆Direct output ofAC & DC
◆Simple structure, safe & convenience
◆Perfect protection function
◆Battery power indicator
◆Charged by solar & AC-DC adapter
◆Small size & light weight
◆Large arc shaped handle, easy to carry

3

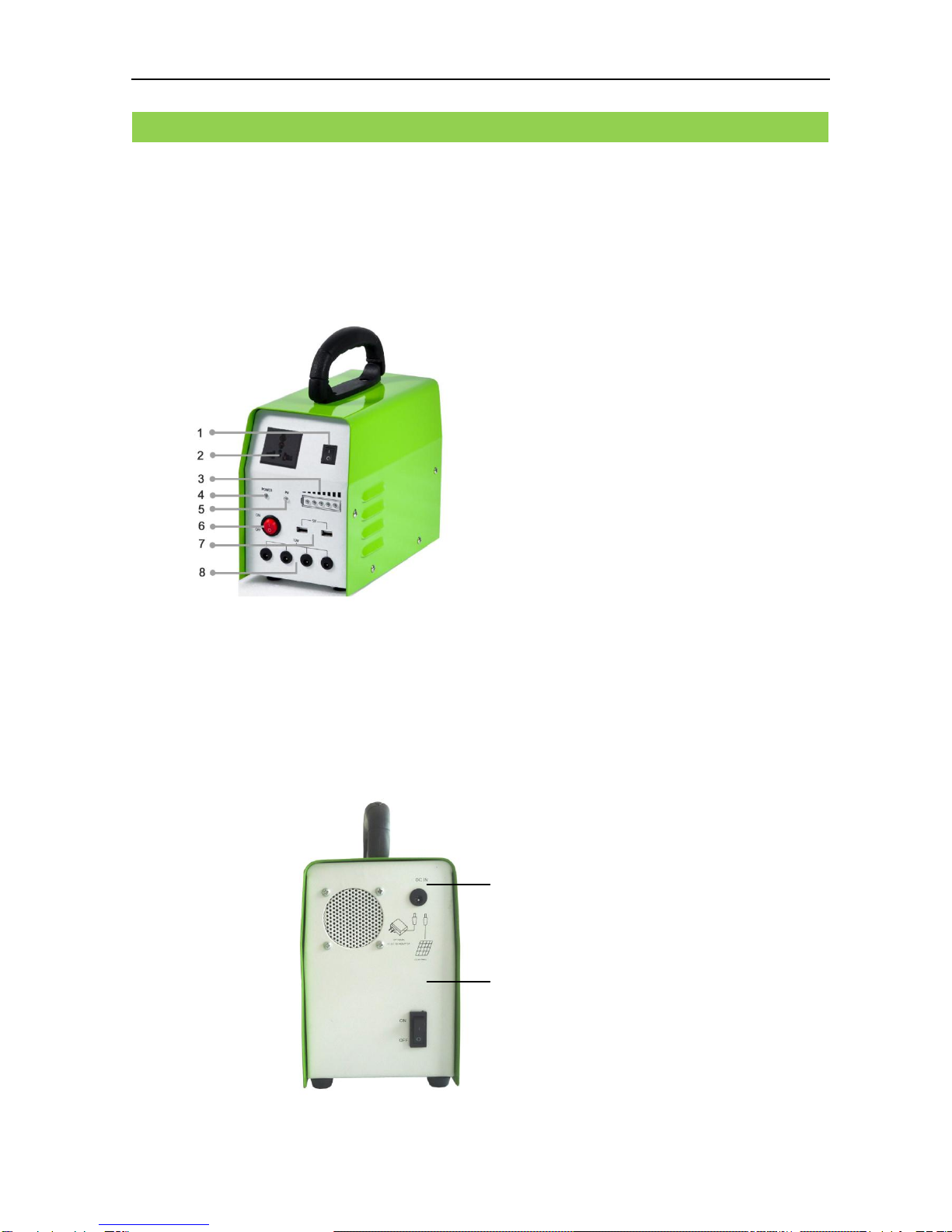

3. Instructions：
〈 Front 〉
〈 Back 〉
Power Switch
1. AC ON/OFF Switch
2. AC Output Socket
3. Battery Power Indicator
4. Power Indicator
5. Solar Charging Indicator
6. DC ON/OFF Switch
7. 2 x 5V USB(500mA)
8. 4 x 12VDC(5A)
DC IN Charge Connector
For solar panel & AC/DC adapter

4
4. Specifications：
Model
ISS20-12F
System Specification:
Rated Output Power
150W
Nominal Voltage:
12V
Solar Inverter:
240V 50Hz 150W, modified sine wave output
Solar Charge Controller
12V 5A
Solar Panel
18V 20W (2 x 10W) w/8m solar cable
Solar Charging Time
4.5 hours (efficiency sunlight)
Battery Capacity
12V 12Ah SMF lead acid type
Overload Protection
Yes
Under-voltage Protection
Yes
Overcharge Protection
Yes
Short-circuit Protection
Yes
Reverse polarity Protection
Yes
Accessories
4 x 12V 3W LED lights
4 x 5m light cables w/light holder
USB charge cable (10 adapters)
Mechanical Data:
System Box(mm)
L240*W130*H215
System Box(kg)
6.2
Appearance Color
White + Green
Solar Panel (mm)
L355*W285*H17*2
Solar Panel (kg)
3.0
Battery (mm)
L150*W98*H98
Battery (kg)
3.3
5. Operating steps：
1. Connect the solar panel to the DC2.1 connector on back of the machine.
2. Turn on the power switch, the power indicator, PV indicator and battery power indicators are on. It
means the battery is full or full charged when the battery power indicators are all on. When battery is
charging by solar panel or AC/DC charger, the indicators are fluid twinkling. Please reduce or shut off
the electric appliances while you hear the buzzing. The battery is nearly used out and should be
charged immediately when only red indicator is on. It’s necessary to charge battery or turn off the power
switch. Otherwise the battery may be damaged after some time.
3. Turn on the AC ON/OFF switch, then connect the 240VAC appliances to the AC OUT socket, never use

5
high power devices beyond the permissible range of the system (150 Watt)!
4. Connect the 12VDC light (max. power 5W/PC) or 12VDC fan, TV to 12Vdc ports, turn on the switch on
cable, the light is on.
5. Connect the USB cable to USB ports to charge mobile phone or any other 5V 500mA USB electric
appliances, such as DC fan. Then turn on the power switch.
6. Please turn off the power switch If does not use this machine for long time. Please charge at least once within
one month in order to prolong the lifetime of the battery.

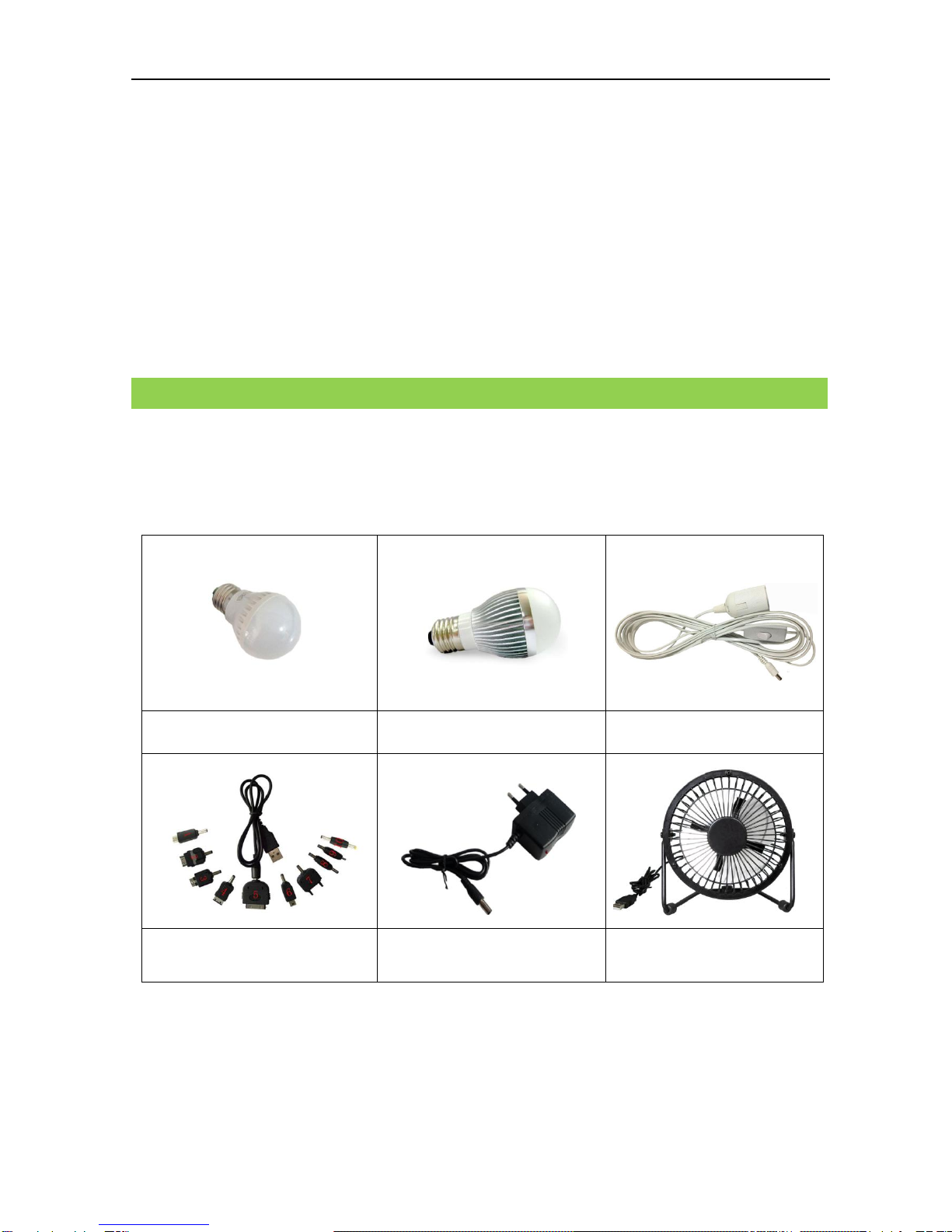

6. Optional Accessories：
Note: Pictures are only for information, take practicality as standard.
12V 2W LED bulb
12V 3W/5W LED bulb
5m/10m Lamp cable
USB charger cable
10 adapters
16V AC-DC charge
adapter
USB mini fan 5V 500mA

6
7. Warranties：
User File
User name
Sex
Age
Address
Telephone
Zip
Purchasing address
Retail price
Odd
Numbers
Commodity name
and specification
Model No.
Dealer
Signature
User
Signature
Guarantee Item
Keep the card for
guarantee to keep
in repair.
Guarantee
1. 1 year upon date of production, we will guarantee to keep the power box in
repair. (not including the battery and accessories.)
2. 1 year warranty on battery upon date of production.
3. 5 years warranty on solar panel upon date of production
4. Guarantee service is subject to normally using.
5. The guarantee do not cover any normal wear and tear, misuse, or which has
been damaged through abuse, alteration, improper installation or application,
unauthorized service or modification, storage, transportation or resulting from
any power failure surges, natural disaster, or other events outside the dealer’s
control.

7
Portable Solar Power System 20W
—ISS20-12F —
