ION Party Rocker Plus User manual

Confidential ION Audio Service Manual
ION Audio
Party Rocker Plus
[iPA75]
Service Manual
v1.0
2017-11-17
The information in this document contains privileged and confidential information. It is
intended only for the use of those authorized by ION Audio. If you are not the authorized,
intended recipient, you are hereby notified that any review, dissemination, distribution or
duplication of this document is strictly prohibited. If you are not authorized, please
contact ION Audio and destroy all copies of this document. You may contact ION Audio
at [email protected].
© Copyright ION Audio
ATTENTION!
This document contains sensitive proprietary information.
All recipients must have a current non-disclosure agreement
on file with ION Audio.
Do not make illegal copies of this document.

Confidential ION Audio Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and
repair of the ION Audio device. Together with the User Reference Manual, this document provides
a complete description of the functionality and serviceability of the Device. Any comments or
suggestions you may have pertaining to the document are welcome and encouraged.
Read This!
In addition to any purchase price that ION Audio may charge as consideration for ION Audio
selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service and
repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized Service
Center, ION Audio sells or transfers the Manual to you on the following terms and conditions:
Only Service Centers authorized by ION Audio in writing are authorized to perform service and
repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not
authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual is used
to perform, any service or repairs on any ION Audio product or part thereof, any and all warranties
of ION Audio as to that product and any service contract with ION Audio for that product shall be
voided and shall no longer apply for such product, even if your services or repairs were done in
accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your responsibility,
and ION Audio shall have no liability for any such repairs or service work. All such service or repairs
are performed at the sole risk of the person performing the service or repairs. You agree that all
such work will be performed in a competent, professional and safe manner at all times and to
indemnify and fully hold ION Audio and its successors and assigns harmless in the event of any
failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the
Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual, or
any new or superseding version thereof.
ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in
its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts supplied by
ION Audio to you (i) to repair or be used in products manufactured for or by third parties or (ii) to
any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of ION Audio or the
use thereof on behalf of ION Audio or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of ION
Audio.
All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO
WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the
enclosed product which may be of sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user to the
presence of important operating, maintenance and servicing instructions in
the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE
CENTER WILL VOID THE ION AUDIO WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY
ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF
REPAIR SERVICES OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE
CENTER SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND ION AUDIO SHALL HAVE
NO LIABILITY TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is
incorrectly replaced. Replace with only the same type or
equivalent type recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instruction.

Confidential ION Audio Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and in
the operating instructions. Keep the operating instructions and safety suggestions for reference in
the future.
1. Power Source. The product should only be connected to a power supply which is described
either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to
step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product’s
AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any
openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or
other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate ventilation.
Improperly ventilating the product may cause overheating, which may damage the product.
8. Mounting. The product should only be used with a rack which the manufacturer recommends.
The combination of the product and rack should be moved carefully. Quick movements,
excessive force or uneven surfaces may overturn the combination which may damage the
product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain situations
including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.

Part No. Part name Spec Qty
CR010989 IPA75 MOTOR IPA75 MOTOR ASSY 1
12040036 touch switch AN-S436,RM-021-01B 1
16040916 plug cable AN-W4476,2P,26#,UL1007,200mm 1
26020782 FR4 PCB board AN-B20552,MOTOR,147*130*1.6mm 1

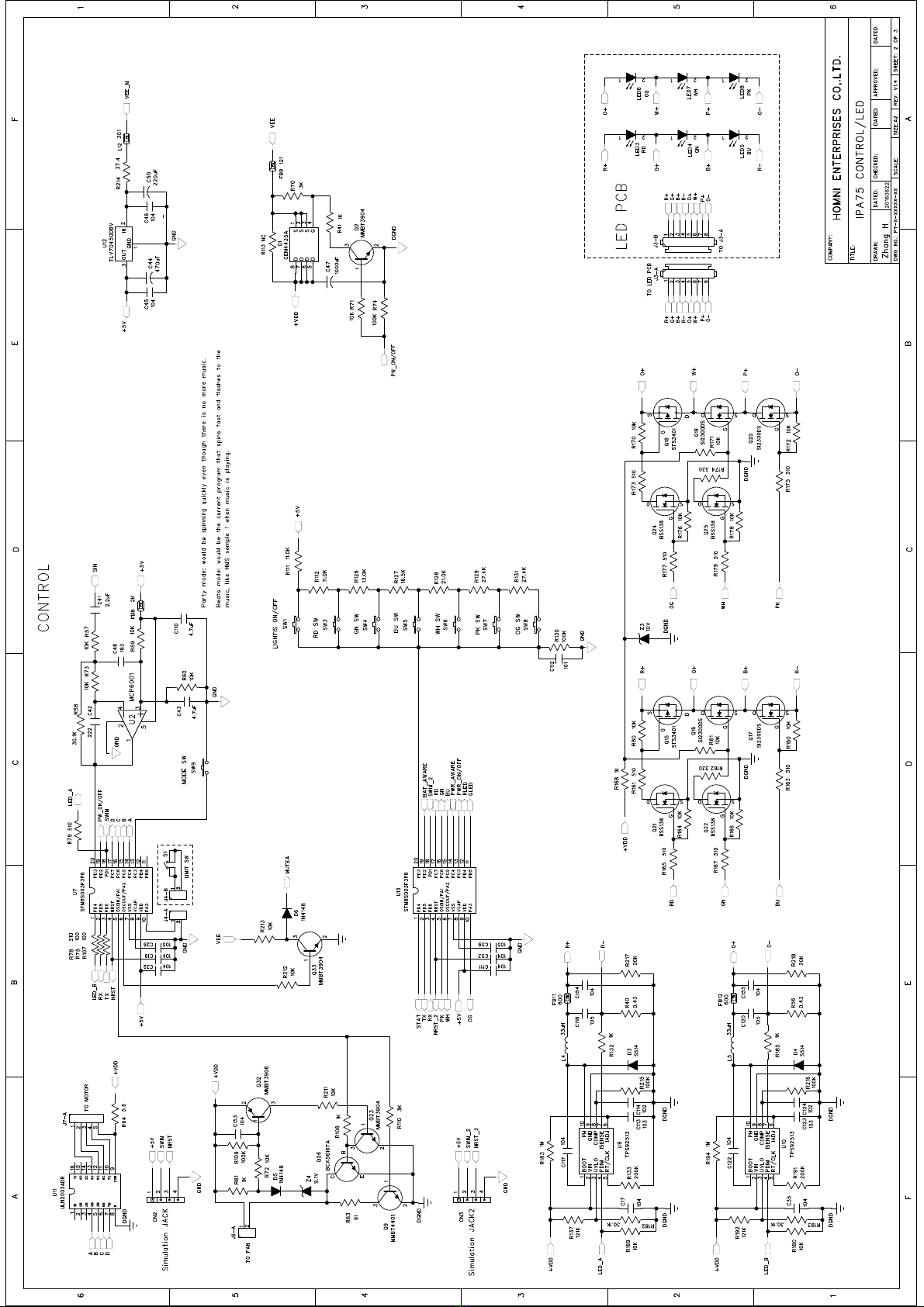

CR010990 IPA75 LED IPA75 LED ASSY 1
16080030 FFC connecting cable AN-WA28,CFF100-08T1-
370,P1.0,FFC,8P,L=370mm,44/88 1
18040187 LED AN-L0186,BRL-10C3A06-S, 3W, red, SMD 1
18040188 LED AN-L0187,BGL-10C3A06-S, 3W, green, SMD 1
18040189 LED AN-L0188,BBL-10C3A06-S, 3W, blue,SMD 1
18040220 LED AN-L0179,BYL-10C3A06-S,3W, yellow, SMD 1
18040244 LED AN-L0202,BWL-10C3A06, 3W, white, SMD 1
18040245 LED AN-L0203,BPL-10C3A06, 3W, pink, SMD 1
CR010994 IPA75 LED SMT IPA75 LED SMT ASSY 1
26100008 PCB铝基单面板 AN-B100008,IPA75,LED,47*45*1.6mm 1
40240026 FPC connecting cable AN-J2426,1.0-1-8P,FFC,P=1.0,8P 1
DR001755 IPA75 assembly IPA75 assembly ASSY 1
12030031 rocker switch AN-S331,RF-1003-BB4,BBG8E2L1T 1
13110025 power switch AN-T90025,K65P165400,100-
240VAC,50/60Hz,16.5VDC,4A 1
16040810 cable AN-W4370,2P,18#,UL1007,110mm 1
16040912 cable AN-W4472,2P,22#,UL1617,100mm 1
16040913 cable AN-W4473,2P,18#,UL1007,220mm 1
16040915 cable AN-W4475,2P,22#,UL1007,220mm 1
16060103 grounding wire AN-W700,18#,UL1015,230mm 1
20290069 支架 DN-PB0066,(3),ABS,80%,UL94V-2 1
20670034 button DN-PC67027,(1),PC,80%,UL94V-2 1
20670035 button DN-PC67028,(2),PC,80%,UL94V-2 1
30060458 foam EVA1030, bk, (2),T=10mm, V1.0 1
30090009 beam line 2.5*120mm, bk 5
40010051 power socket AN-J0150,DB-14-2,0.8T,3P 1
60100011 wireless 2.4G,2DBi, bk, ROHS 1
70010088 whole tooth screw Φ3*8mm 4
70010338 whole tooth screw Φ2.6*10mm 1
70010869 whole tooth screw Φ3*6mm 4
70010880 whole tooth screw Φ2.6*7mm 4
CR010987 IPA75 MAIN IPA75 MAIN ASSY 1
10070018 heat sink DN-MH7012,48*23.5 1
10490004 插片 E665, P=5.0mm,T250 2
14040978 IC LM317TG,TO220,ON 1
14041068 IC ZHD78L05,TO92,ZHIHUIDA 1
15010500 rotating potentiometer AN-V1200, A103,R09725N-FR15D7-A103-0X0 2
15010521 rotating potentiometer AN-V1221, A10K,R09702GOBJH1-A103A-15FA7B 1
16030065 Monochrome row line AN-W365,5P,26#,UL2651,L=55mm 1
17010205 electrolytic capacitor 100uF/25V,±20%,-40/+105℃,Φ5*11mm,P=2.5mm 7
17010217 electrolytic capacitor 220uF/25V,±20%,-40/+85℃,Φ6.3*11mm,P=2.5mm 1
17010278 electrolytic capacitor 1000uF/10V,-10/+30%,-40/+85℃,Φ８*12mm,P=3.5mm 2
17010287 electrolytic capacitor 1000uF/25V,±20%,-40/+85℃,Φ10*16mm,P=5mm 4
17010466 electrolytic capacitor 470uF/25V,±20%,-40/+85℃,Φ8*12mm,P=3.5mm 2
17040050
high frequency low
inpedance electrolytic
capacitance
470uF/6.3V,±20%,-40/+85℃,Φ6.3*11mm,P=2.5mm, 1

18040122 LED AN-L0122,DIP,BL-BB53C4,Φ3*5mm 1
18040212 LED DIP,LUEUG30292-R-P01, 1
20260086 LED cover LED3B-7.5 1
20260087 LED cover LED3*7.5 1
20500006 insulation grain W05-253，￠5.3*1.8MM 1
24060112 ferrite inductor AN-I6053,PFY014-010DR10*10,15uH,4.5A 2
30050006 mica sheet 13*18*0.1mm 1
30150156 copper foil IPA75,25*62*0.03mm, V1.0 1
40030050 6.35 socket AN-J0349,SJ6325B-3P 2
40040017 3.5 socket AN-J0418,PJK-0358 1
40240031 FPC connector AN-J2431,CF1005A-08T-S01-BB,FPC-P1.0-8P 1
40360350 pin header AN-JP413,1P,TJC1-1A 1
40370004 outlet AN-JP401,XH2.5-5A 1
40370112 outlet AN-JP412,3961-02 3
40370346 outlet AN-JP528,HT-2.5-02P-01D 2
40370357 outlet AN-JP512,PHS2.0-2P 1
50030210 金属化聚酯电容 225,VDC100,±5%,7.2*11*6mm 2
70010515 whole tooth screw AN-C10515,M3*10mm 1
CR010988 IPA75 MAIN SMT IPA75 MAIN SMT ASSY 1
11170009 chip resistor 1/8W,10Ω,±5%,0805 2
11170350 chip resistor 1/10W,0Ω,±5%,0603 6
11170356 chip resistor 1/10W,22Ω,±5%,0603 1
11170364 chip resistor 1/10W,100Ω,±5%,0603 9
11170374 chip resistor 1/10W,330Ω,±5%,0603 2
11170378 chip resistor 1/10W,510Ω,±5%,0603 10
11170394 chip resistor 1/10W,3KΩ,±5%,0603 4
11170417 chip resistor 1/10W,33KΩ,±5%,0603 1
11170421 chip resistor 1/10W,47KΩ,±5%,0603 3
11170429 chip resistor 1/10W,100KΩ,±5%,0603 15
11170434 chip resistor 1/10W,200KΩ,±5%,0603 2
11170444 chip resistor 1/10W,1MΩ,±5%,0603 4
11170453 chip resistor 1/10W,37.4Ω,±1%,0603 2
11170491 chip resistor 1/10W,1.82KΩ,±1%,0603 1
11170503 chip resistor 1/10W,3.16KΩ,±1%,0603 1
11170518 chip resistor 1/10W,4.99KΩ,±1%,0603 7
11170534 chip resistor 1/10W,9.1KΩ,±1%,0603 2
11170543 chip resistor 1/10W,15KΩ,±1%,0603 7
11170545 chip resistor 1/10W,16.5KΩ,±1%,0603 1
11170549 chip resistor 1/10W,20KΩ,±1%,0603 18
11170551 chip resistor 1/10W,21KΩ,±1%,0603 1
11170556 chip resistor 1/10W,27.4KΩ,±1%,0603 3
11170559 chip resistor 1/10W,30.1KΩ,±1%,0603 3
11170562 chip resistor 1/10W,37.4KΩ,±1%,0603 2
11170574 chip resistor 1/10W,86.6KΩ,±1%,0603 1
11170586 chip resistor 1/10W,392KΩ,±1%,0603 2
11170758 chip resistor 1/4W,10Ω,±1%,1206 2
11170779 chip resistor 1/10W,10KΩ,±1%,0603 47
11170785 chip resistor 1/10W,4.75KΩ,±1%,0603 5
11170788 chip resistor 1/10W,1KΩ,±1%,0603 18
11170901 chip resistor 1/10W,75KΩ,±1%,0603 1
11171027 chip resistor 1/10W,34.8KΩ,±1%,0603 1
11171045 chip resistor 1/10W,133KΩ,±1%,0603 2
11171120 chip resistor 1/2W,0.22Ω,±1%,2010 1

11171136 chip resistor 1/10W,27KΩ,±1%,0603 3
11171153 chip resistor 1/4W,5.6Ω,±5%,1206 1
11171167 chip resistor 1/10W,13KΩ,±1%,0603 1
11171184 chip resistor 1/10W,124Ω,±1%,0603 1
11171189 chip resistor 1/10W,11.5KΩ,±1%,0603 1
11171203 chip resistor 1/10W,40.2KΩ,±1%,0603 4
11171224 chip resistor 1/10W,11KΩ,±1%,0603 2
11171231 chip resistor 1/10W,249KΩ,±1%,0603 1
11171249 chip resistor 1/10W,4.99Ω,±1%,0603 2
11171255 chip resistor 1/10W,121K,±1%,0603 2
11171335 chip resistor 1/10W,52.3KΩ,±1%,0603 1
11171353 chip resistor 1/10W,21.5Ω,±1%,0603 1
11171354 chip resistor 3/4W,0.43Ω,±1%,2010 2
11171355 chip resistor 1W,91Ω,±5%,2512 1
12040024 touch switch AN-S424,SFKHRMA2321T,SMD 4.5*4.5*3.8mm 9
14010077 NPN audion MMBT3904LT1,SOT23,ONSEMI 10
14010079 NPN audion MMBT4401LT1,SOT23,ONSEMI 1
14010140 NPN audion BCX5616TA 80V 1A SOT-89 ZETEX 1
14010161 NPN audion KTC2875-B-RTK/P,SOT-23,KEC 2
14020070 NPN audion MMBT3906LT1,SOT23,ONSEMI 3
14040229 IC LM393DT,SOP8,ST 1
14040841 IC TPA3112D1,TSSOP-28 1
14040920 IC MCP6001T-I/OT,SOT23-5,Microchip 1
14040922 IC ULN2003ADR,SOIC16,TI 1
14040973 IC STM8S003F3P6,TSSOP20,ST 2
14041012 IC TPS560200DBVR,SOT23-5,TI,Mark:L562 1
14041013 IC TLV70450DBVR,SOT23-5,TI,Mark:PAX 1
14041018 IC SGM-2019-ADJ,SOT-23-5 1
14041062 IC PT2399-SN,SOP16,PTC 1
14041063 IC TPS92513DGQR,MSOP10-POWERPAD,TI 2
14041069 IC TLV6002,SOIC8,TI 5
14050040 NFET BSS138LT1G,SOT-23,ONSEMI 5
14050083 NFET Si2300DS,SOT23,Vishay,Mark:P2 4
14060010 PFET CEM4435A,SO-8,CET, 3
14060014 PFET HCR3401P-M3TR,-30V/-4.1A,SOT23-3,SAMHOP 4
18010075 diode AN-D10075,LL-34,1N4148 6
18010088 diode SOD-123,1N4002,SMD 1
18010123 diode AN-D0123,SS14,DO-214AC,VISHAY 2
18010152 diode BAT54CLT1G,SOT-23,ON 1
18010180 diode SS34 SMC,DO-214AB,TDD 4
18030105 voltage regulator diode LL-34,1/2W,5.1V 1
18030106 voltage regulator diode LL-34,1/2W,9.1V 1
18030165 voltage regulator diode AN-D30165,LL34,1/2W,10V,ZMM10 1
18030172 voltage regulator diode AN-D30170,RLZTE118.2B/RLZ8.2-K-T11,8.2V 1
24010016 chip bead FB120,3A,1206,BLM31PG121SN1L MURATA 2
24010020 chip bead FB2012-301 1
24010023 chip bead 2K,100MHZ,0.5A,±25%,0603 4
24010033 chip bead CB1608-721,200MHZ,720Ω,0603 4
24010044 chip bead PB2012-601,100MHZ,600Ω,0805 2
24040009 chip inductor AN-I4008,4.7uH,±5%,LQN3221F-4.7uH 1
24040071 chip inductor AN-I4049,2.2UH,±10%,0603,CI1608-2R2 3
24060137 ferrite inductor AN-I6123,CBP0650-33UH,6.8*6.8*5mm 2
26020982 FR4 PCB board AN-B20634,MAIN,273*136*1.6mm 1

40330016 CONNECTOR IPEX, IPEX-001,SMD 1
50050015 novacap syfer 10PF,VDC50,±5%,NPO,0603 1
50050031 novacap syfer 33PF,VDC50,±5%,NPO,0603 7
50050036 novacap syfer 47PF,VDC50,±5%,NPO,0603 6
50050045 novacap syfer 101,VDC50,±5%,NPO,0603 10
50050052 novacap syfer 102,VDC50,±10%,X7R,0603 3
50050063 novacap syfer 103,VDC50,±10%,X7R,0603 3
50050069 novacap syfer 104,VDC25,±10%,X7R,0603 23
50050073 novacap syfer 104,VDC50,±5%,X7R,0603 10
50050110 novacap syfer 183,VDC50,±10%,X7R,0603 1
50050115 novacap syfer 221,VDC50,±5%,NPO,0603 2
50050132 novacap syfer 224,VDC16,±10%,X7R,0603 5
50050136 novacap syfer 273,VDC50,±10%,X7R,0603 2
50050143 novacap syfer 332,VDC50,±10%,X7R,0603 1
50050151 novacap syfer 392,VDC25,±10%,X7R,0603 1
50050158 novacap syfer 471,VDC50,±10%,X7R,0603 2
50050170 novacap syfer 474,VDC50,±10%,X7R,0603 2
50050180 novacap syfer 561,VDC50,±10%,X7R,0603 2
50050241 novacap syfer 331,VDC50,±5%,X7R,0603 6
50050332 novacap syfer 105,VDC50,±10%,X5R,0603 6
50050355 novacap syfer 1UF,VDC25,±10%,X7R,0603 20
50050380 novacap syfer 2.2UF,VDC10,±10%,X7R,0603 1
50050414 novacap syfer 10UF,VDC50,±10%,X5R,0805 2
50050429 novacap syfer 334,VDC50,±10%,NPO,0603,X7R 2
50050435 novacap syfer 222,VDC50,±5%,NPO,0603 1
50050454 novacap syfer 3PF,VDC50,±5%,NPO,0402 1
50050455 novacap syfer 4.7UF,VDC10,±10%,X5R,0603 13
50050458 novacap syfer 22UF VDC6.3,±10%,X5R,1206 1
50050459 novacap syfer 823,VDC50,±10%,X7R,0603 2
60190108 ESD interference
suppressor 0603ESDA-TR1 4
CR011292
IPA75 AB1511
BLUETOOTH SMT
ASSY
IPA75,AIROHA bt name: party Rocker Plus 1
11171008 chip resistor 1/16W,0Ω,±1%,0402 1
11171018 chip resistor 1/16W,300Ω,±1%,0402 1
11171116 chip resistor 1/16W,4.7KΩ,±1%,0402 2
11171289 chip resistor 1/16W,10Ω,±1%,0402 1
14041033 IC KH25L4006E,SOIC8,Winbond 1
14041034 IC AB1511,QFN48_6X6,AIROHA 1
24040076 chip inductor AN-I4054,10uH,±10%,CB2012T100M,0805,TAIYO
YUDEN 1
24040077 chip inductor AN-I4055,6.8nH,±5%,LQG15HS6N8J02,0402,Murata 1
24040078 chip inductor AN-I4056,1.2nH,±0.3nH,LQG15HS1N2S02,0402,Murata 1
24040079 chip inductor AN-I4057,1nH,±0.3nH,LQG15HS1N0S02,0402,Murata 1
25020040 patch crystal resonator AN-0235,E3SB16.0000F09E11
3225,16MHz,SMD,Hosonic 1
26020837 FR4 PCB board AN-B20584,BLUETOOTH,168.49*61.4*0.8mm 1
50050298 novacap syfer 33PF,VDC50,±5%,NPO,0402 1
50050342 novacap syfer 4.7UF,VDC6.3,±10%,X5R,0603 2
50050344 novacap syfer 10UF,VDC10,±10%,X5R,0805 2
50050350 novacap syfer 0.75PF,VDC50,±0.25%,NPO,0402 1
50050394 novacap syfer
1u
,
X5R
,
±10%
,
6
.
3V
,
0402
,
Murata
,
GRM155R60J105KE19
D
3

50050451 novacap syfer 104,VDC25,±10%,X5R,0402 4
50050460 novacap syfer 1.5PF,VDC50,±0.25%,NPO,0402 1
DR001986 IPA75 housing
silkscreen ASSY DN-PC2107,ABS,UL94V-2, bk, cool gret 5C,V1.0 1
20020158 top panel DN-PC2107,ABS,80%,94V-2, ROHS,V1.0 1
ER000619 IPA75 packing IPA75 packing ASSY 1
10080239 heat sink DN-MH0160, V1.0 1
10330032 spring DN-MP3026, V1.0 4
10410180 grill DN-ME5135,SPCC,Φ3*4P,T=0.8mm, V1.0 1
10550008 压块 DN-SE009,SPCC,T=1mm, V1.0 2
16040918 cable AN-W4478,1P,18#,UL1015,500mm 1
16040919 cable AN-W4479,1P,18#,UL1015,500mm 1
16040929 cable AN-W4489,2P,18#,UL1015,L=450mm 1
16141043 cable 1P,22#,UL1007,L=350mm, bk 1
16141044 cable 1P,22#,UL1007,L=350mm, brown 1
16150041 3.5 cable AN-W1540,UL2547,26#,610mm 1
17050013 Non-polar electrolytic
capacitance 4.7uF/50V,±20%,-40/+85℃,Φ6*17mm 1
20290042 支架 DN-PB0032, ABS(UL94HB), ROHS,V1.1 1
20290068 支架 DN-PB0065,(2),ABS,80%,UL94V-2,bk ROHS,V1.0 1
20290079 支架 DN-PB0064,(1),PC,80%,UL94V-2,bk, ROHS,V1.1 1
20300009 foot pad Φ28*22.5*11mm, bk 4
20310044 corner DN-PE1028,(1),ABS,80%,UL94V-2, bk, ROHS,V1.0 2
20310045 corner DN-PE1029,(2),ABS,80%,UL94V-2, bk, ROHS,V1.0 2
20320030 handle DN-PE2030,ABS,80%,UL94V-2, ROHS,V1.0 2
20460013 固定扣 KY-CLT-2 1
20630126 反光罩 IPA73P,PC,UL94-V2, V1.0 1
20660041 layer DN-PC6039,ABS,80%,UL94V-2, ROHS,V1.0 3
21010535 cabinet DN-X10227,MDF,T=6mm, CARB,V1.0 1
22011043 english manual IPA75, english manual, V1.0 1
22011120 safety manual ION, safety manual, 7-51-1340-B 1
22050006 drying agent 50g, DMT,SGS 1
23010534 packing bag 600*600*0.06mm, V1.1 1
23010562 packing bag PE,120*280*0.06mm, V1.0 1
23010563 packing bag PE,160*260*0.025mm, V1.0 1
23020279 ESPS foam IPA75, foam, 432*317*95mm, V1.0 2
23031413 carton IPA75,A3A,T=3.5mm,413*338*460mm, V1.0 1
23070032 pearl sheet 320*350*2mm 2
23100092 mic box 250g+CE,270*65*60mm.V1.0 1
24100046 magnet ring RF5M,T18*6*10,EMI 1
30060079 foam 50*150*5mm 5
30060095 foam 10*1000*1mm,EVA1030 1.5
30060227 foam 12*1000*2.0mm, EVAE1030, bk 0.5
30060336 foam EVA1030,1000*8*0.5mm, V1.0 1.3
30060337 foam EVA1030,1000*5*0.5mm, V1.0 1.6
30060457 foam EVA1030, bk,(1),T=40mm, V1.0 1
30090009 beam line 2.5*120mm, bk 5
30090011 beam line YJ-80 2
30150154 double faced adhesive
tape 3M, V1.0 1
30160013 rubber pad T=2mm,Φ4*Φ12mm, V1.0 4
60090030 MIC AN-E0926,PM-353 ION,ROHS 1
60110048 fans AN-E1147,PY-7530L12S,12V,24#2468 1

60190082 battery AN-E1904,RT1250,12V,5AH,90(L)*70(W)*101(H) 1
60230005 motor AN-E2305,28BYJ48-031,12VDC 1
70010048 whole tooth screw AN-C10048,M3*6mm 2
70010054 whole tooth screw Φ3*6mm 8
70010088 whole tooth screw Φ3*8mm 1
70010151 whole tooth screw Φ3*15mm 6
70010244 whole tooth screw Φ4*18mm 4
70010338 whole tooth screw Φ2.6*10mm 2
70010467 whole tooth screw AN-C10467,M4*30mm 4
70010488 whole tooth screw Φ3*20mm 1
70010653 whole tooth screw Φ3*18mm 4
70010693 whole tooth screw Φ3*12mm 4
70010771 whole tooth screw Φ2.5*8 4
70010806 whole tooth screw M2.5*15mm 1
70010870 whole tooth screw Φ3*16mm 16
70010871 whole tooth screw Φ4*15mm 8
70010872 whole tooth screw Φ3*12mm 6
70070014 hex nut Φ6*M3*2.5mm 2
70090009 gasket AN-C90009,Ф5.6*Ф3.2*0.8mm 1
70090106 gasket 内Φ6*外Φ13.5*5mm 4
80270001 6.5" woofer AN-LB27001,4Ω,30W,99-08-Y625LI-00 1
80330001 2" tweeter AN-S2001,4Ω,10W,JFD20151012-01 1
90021605 serial no. label IPA75, 64*13mm, V1.1 5
90041524 barcode label IPA75, 38*26mm, V1.0 2
90060158 compliance label IPA75, 82*50mm,V1.1 1
90080001 destination label GA0/GA1/GA2 3
90220431 special label 40.5*6.5mm, V1.0 1
90250046 CARB label ION,78*23mm, V1.1 1
90270014 date label ION, 13*6mm, V1.2 1
90270019 date label 45*10mm, V1.1 1
DR001987 IPA75 lens silkscreen
ASSY DN-PL1111,PC, V1.0 1
20110142 lens DN-PL1111, V1.0 1
DR001988 IPA75 knob silkscreen
ASSY DN-PN2115,ABS,80%, V1.0 3
20210156 knob DN-PN2115,ABS,80%, 11010,ROHS,V1.0 3
GR000678 IPA75 packing option IPA75 packing options ASSY 1
16070013 power cable AN-W915,3C,18#,SVT,1830mm, bk, for UL 1
16070017 power cable AN-W920,3C,1.0mm2,H05VV-F,1830mm, bk, for UK 1
16070050 power cable AN-W953,3G,0.75mm2,H05VV-F,1830mm, bk 1
16070095 power cable AN-W995,3C,0.75mm2,H05VV-F,1830mm, bk, for Korea 1
22150001 service card ION, V1.1 1
23090634 giftbox IPA75,300g+B3+B3(T=6mm),403*330*451mm,V1.0 1
23090648 giftbox IPA75,300g+B3+B3(T=6mm),403*330*451mm,出CA,V1.
01
90041525 barcode label IPA75,76*50mm, for UL, V1.0 1
90041560 barcode label IPA75, 76*50mm, for CA,V1.0 1
90200056 mark label BLACK&361C, Φ30mm, V1.0 1
90200071 mark label green round label 1
