IONA GLSF163 User manual

16 in. Stand Fan
instruction manual
取扱説明書
GLSF163
家庭用
Congratulations on your
purchase of a new Iona fan.
Please read this instruction
manual before use and excer-
cise care when using this
appliance.
Keep this instruction manual well
for future references.
This fan is designed for household
use and not for commercial
usage.
Contents
Safety Precautions
Specifications
Parts Identification
Assembly Instructions
Operating Instructions
Cleaning Instructions
Trouble Shooting
1 2
2
3
4 5
6
7
8
EN Register your warranty online
at: www.iona.com.sg
Register your product and get support at
www.iona.com.sg/e-warranty
GOLDLAND INTERNATIONAL PTE LTD
233 UBI AVENUE 4
INTREPID WAREHOUSE COMPLEX
SINGAPORE 408818
WEBSITE: www.iona.com.sg
EMAIL: [email protected]
TEL: [phone] - Ext 0
FAX: [phone]

Deformation or operation failure may occur
when used in unstable environments or
close to heating source.
Unplug the fan before cleaning,
transportation and after use.
Do not operate the appliance if cord or
plug is damaged. It must be replaced by
the service agent or qualified agent to
avoid any hazards.
Avoid contact with moving parts. Do not operate in the presence of
explosives or flammable fumes.
12
Safety Precautions
本文警告符号
Warning Symbols
Ordinary Warning
Wet Water Warning
Dismantle Warning
Contact Warning
Wet Hands Warning
Compulsory Warning
一般禁止 拆卸、分解禁止 手湿禁止
湿水禁止 接触禁止 强制禁止
Should the appliance mulfunction or be
damaged in any manner. Do not attempt
any repairs on this appliance but return to
it’s agent for examination, repair or
adjustment.
分解禁止 浴室の水
場禁止
Do not use appliance in bath room or
toilet. Avoid using on wet areas.
Never place the appliance, power cord
and cable into water or any other liquids.
Never spray liquids onto fan.
湿水禁止
Always plug power cord into a
220-240V outlet.
プラグ  を
抜く
Never leave the appliance within
children’s reach without supervision.
チャイル
ド禁止
Do not use outdoors, this product
is designed for indoor use.
アウトド ア
プラグ  を
抜く
コード の
損傷
接触禁止 可燃物禁止
安全指示
高熱環境 附属書
禁止
The use of other attachments is not
recommended.
Always use on a flat surface.
平面使用
Ensure fan is properly assembled
before use.
アセンブ
ル
Do not use outdoors, this product
is designed for indoor use.
アウトド ア
Model GLSF163
Size 16”
Rated Voltage 220-240V~
Rated Power 50W
Rating Frequency 50/60Hz
型号
ワット数
電圧
ヘルツ
Safety Precautions 安全指示
Specifications 仕様書
サイズ

1. Install stand pipe onto base
Insert the outer pipe through the center base plate
opening, pass the L-Screw throught the base weight
and base plate and tighten to secure. Unscrew the
height adjustment knob and raise the inner pipe.
Caution, the inner pipe may fall into the outer pipe. If
inner pipe falls into outer pipe, simply flip the pole
assembly around and use fingers to pull inner pipe out.
34

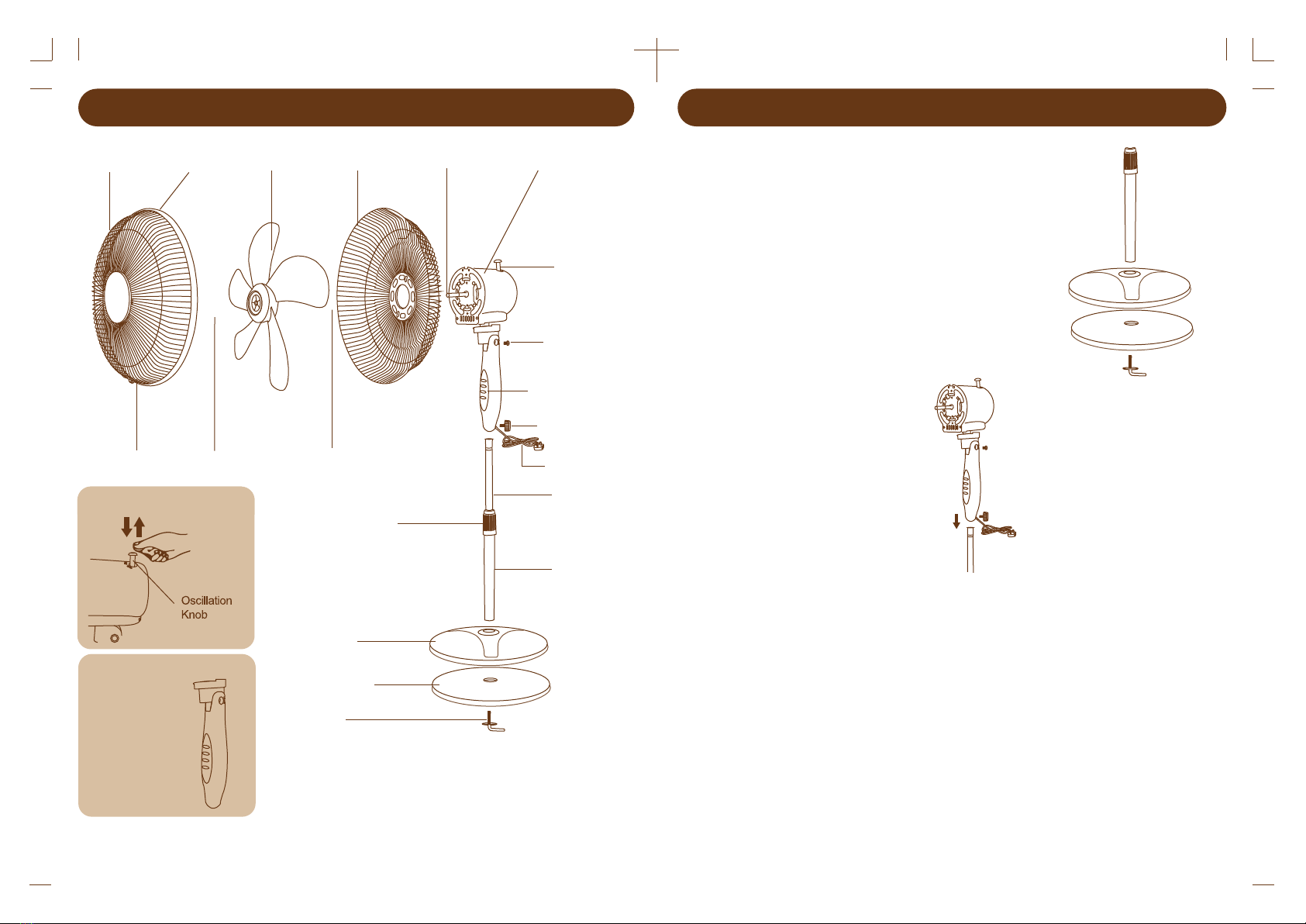

Parts Names 部品名 Assembly インストール方法
This product requires assembly.
発振ノブ Oscillation Knob
Press to
select desired
speed.
風速 Wind Speed
3 : HIGH
2 : MEDIUM
1 : LOW
0 : OFF
2. Insert fan assemby
Front Grille Grille Clip
Clip Locks Fan blade Knob
Fan Blade Rear Grille Motor AssemblyMotor Shaft
Oscillation
Knob
Base Weight
Height Adjustment
Knob
Power Cord
Rear Grille Nut
(on the motor assembly)
Control Panel
Outer Pipe
Base Plate
L-Screw
Tools required: A cross head screw driver.
Insert the fan assembly into the inner
pole. Tighten the screw fixer on the
back of the control panel to secure the
fan assembly.
Screw Fixer
Inner Pipe
Neck Screw

56
Operation 操作説明
1. Power on
Plug into a 220-240V power outlet.
Adjust the fan speed by rotating the speed switch
on the motor cover.
0. Off
I. Low Speed
II. Medium Speed
III. High Speed
2. Set wind speed
3. Set oscillation
Set oscillation by pulling and depressing oscilla-
tion knob on the motor cover.
Pull up: Stop Oscillation
Depress: Oscillation
5. Power off
Switch to “0” to power off and remove
plug from power outlet.
Adjust fan tilt angle by gently pushing
upwards or downwards.
Ensure that fan is switched off before
adjustment.
4. Fan Tilt
Assembly インストール方法

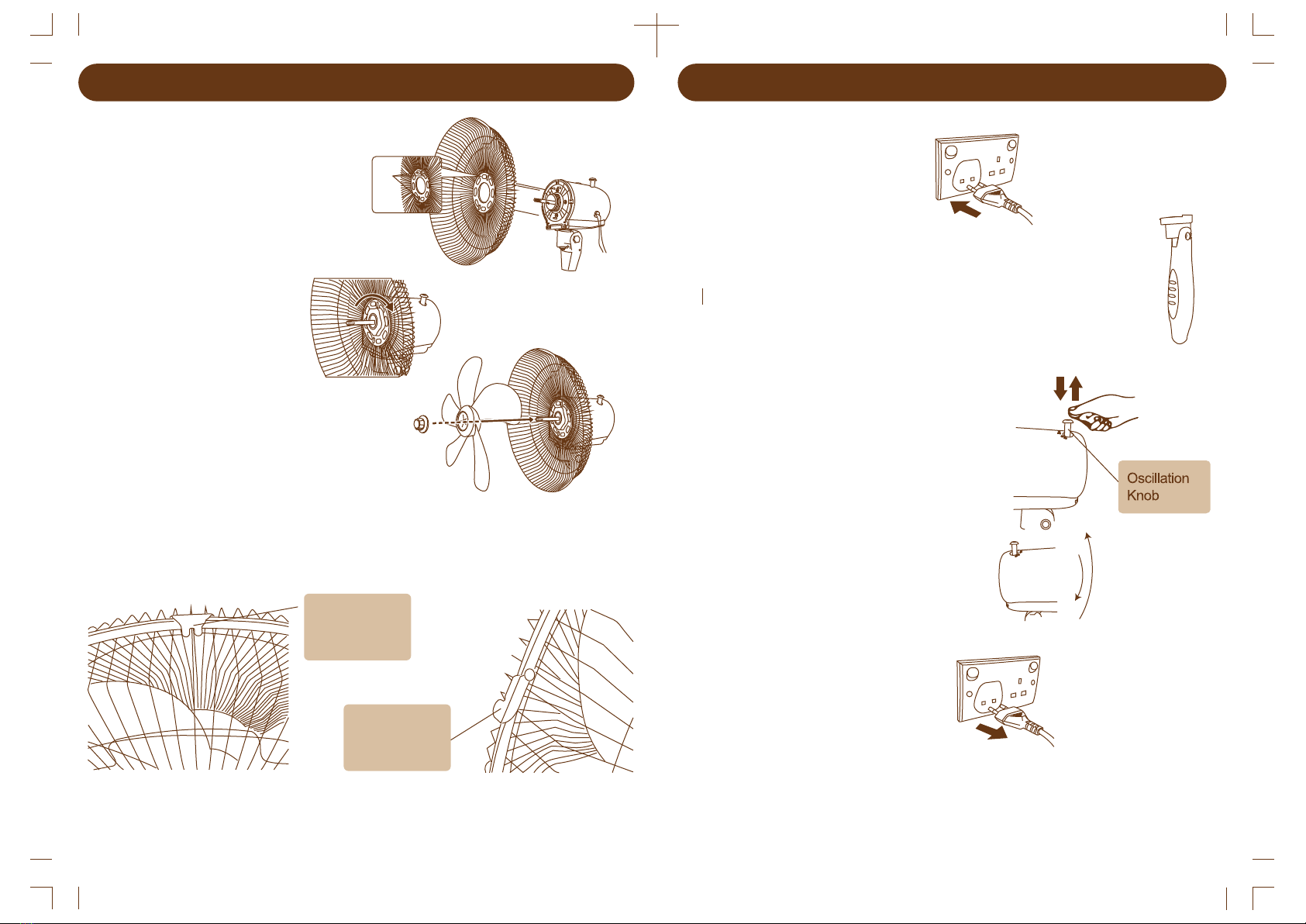

4. Install rear grille
Align the rear grille to the fan assembly.
5. Secure the rear grille nut
(1) Slide the fan blade into the blade slot
until it is fully inserted into the shaft pin.
7. Install front grille
Mount the front grille (logo in upright
position) with the rear grille with the top U
clip.
Mount front
grille U Clip on
rear grille.
6. Insert fan blade
(2) Screw on the blade knob tightly in an
anti-clockwise direction.
Hole
Press to select
desired speed.
3 : HIGH
2 : MEDIUM
1 : LOW
0 : OFF
Secure the 4
fastening clips
on the grille
Fasten the 4 clips around the grille.

Fan Blade
Clean fan blade with a soft damp cloth.
Before cleaning, always power off and remove plug from power socket.
Never place the fan assembly and power plug in any liquids or spray water onto fan assembly.
Never clean appliance
with flammable fluids or
harsh chemicals. Do not
use harsh abrasive pads
to prevent damage to fan
body.
How to clean
Remove the front grille, fan blade and rear
grille in a reverse manner it was installed.
After cleaning, allow parts to dry before
assembling back.
Fan Gille
Clean fan Grille using a vacuum cleaner, soft
brush or cloth.
Fan Body and lock nuts
Clean body and lock nuts with a soft cloth.
No Power Check if main power plug is on and speed
selection on control panel is pressed.
No Wind Check if grille is blocked by dust. It may be time
for cleaning.
Noisy Check rear and front grille, is it properly
fastened? Check fan blade if it is tightly secured.
7
Issue Solution
Protecting the environment
Separate collection. This product must not be disposed of
with normal household waste.
Should you find one day that your IONA product needs replace-
ment, or if it is of no further use to you, do not dispose of it with
household waste. Make this product available for separate collec-
tion.
Seperate collection of used product and packaging allows
materials to be recycled and used again. Re-use of
recycled materials helps prevent environmental pollution
and reduces the demand for raw materials.
Local regulations may provide for seperate collection of electrical
products from the household or at municipal waste sites.
Trouble shooting トラブルシューティング
Cleaning クリーニング
8
