IP Camera WB-H811 User manual

1/45
User Manual
Video Transceiver

2/45
WARINGS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

3/45
Content
PREFACE ..............................................................................................................................................................4
I. PRODUCT SPECIFICATIONS.................................................................................................................4
II. PRODUCT INSTALLATION.....................................................................................................................6
A. MONITOR SETTING.....................................................................................................................................6
B. HARDWARE INSTALLATION ........................................................................................................................7
C. IPASSIGNMENT .........................................................................................................................................9
D. INSTALLACTIVEXCONTROL:...................................................................................................................11
III. LIVE VIDEO.........................................................................................................................................13
IV. VIDEO TRANSCEIVER CONFIGURATION ..................................................................................15

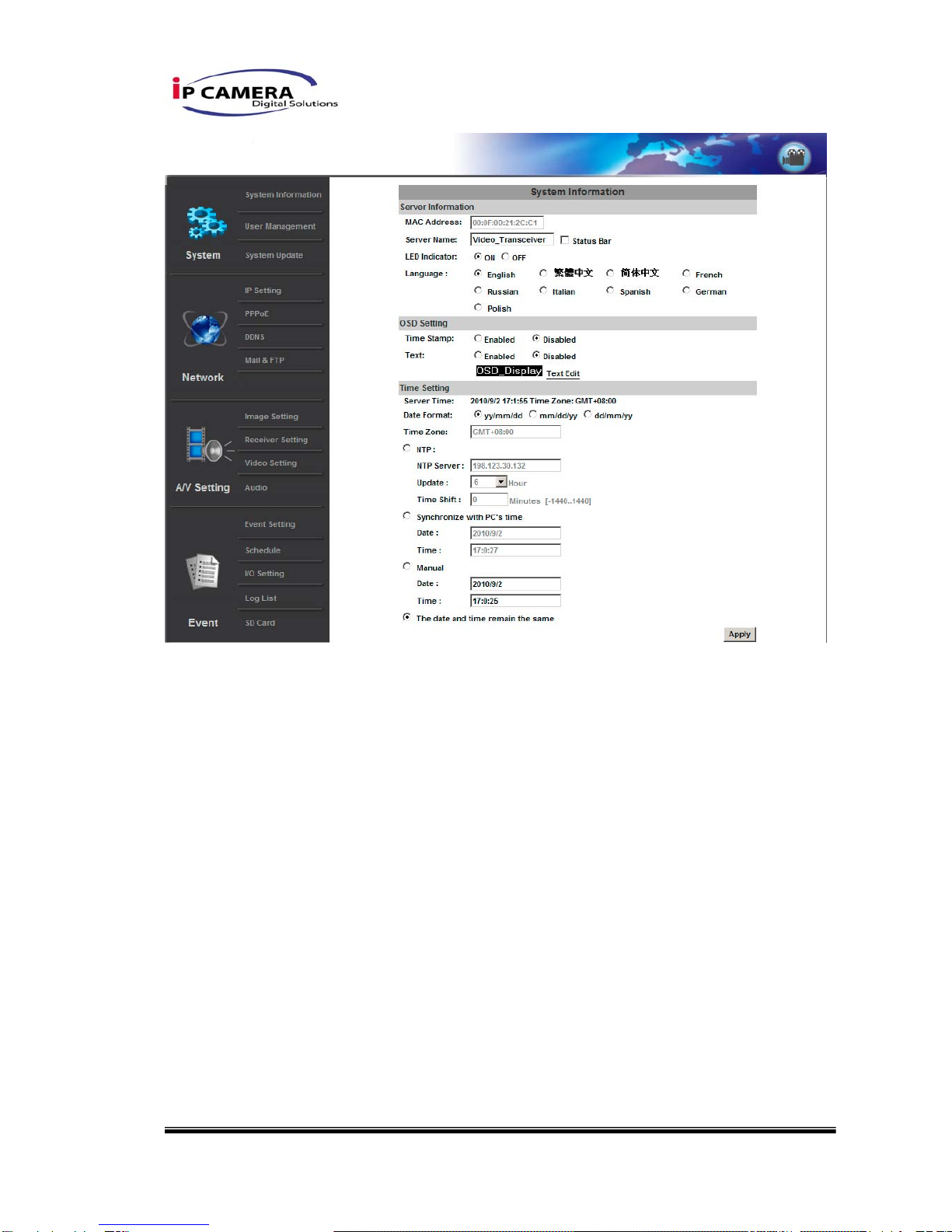

A. SYSTEM INFORMATION.............................................................................................................................17
B. NETWORK................................................................................................................................................21
C. A/V SETTING ...........................................................................................................................................29
D. EVENT......................................................................................................................................................39
V. NETWORK CONFIGURATION.............................................................................................................43
VI. FACTORY DEFAULT..........................................................................................................................45
VII. PACKAGE CONTENTS......................................................................................................................45
APPENDIX I........................................................................................................................................................45

4/45
PREFACE
VIDEO TRANSCEIVER provides function which is a combination of Video Server
and Video decoder with IE built-in.
It encodes analogue signals of traditional cameras to digital signals; user can
monitor real-time video via IE browser. H.264/MPEG4 /JPEG compression format
support smooth video quality.
VIDEO TRANSCEIVER supports SD card backup to save video files and playback
on any PC.
User can use VIDEO TRANSCEIVER to connect any Video Transceiver via IE
browser within Internet or Intranet. It can decode MPEG4 or JPEG compression
format and transfer analogue signals to TVs, CRT monitors or DVR systems.
I. Product Specifications
z1-CH Input/Output
zH.264/ MJPEG/MPEG4 compression
zSD card backup
z2-way audio
zSupport Cell Phone/PDA/3GPP
z3 Streaming
zPower Over Ethernet available
zSDK for Software Integration
zWireless (Optional)
zFree Bundle 36 ch recording software

5/45
Hardware
CPU ARM 9 ,32 bit RISC
DDR2 256MB
Flash 16MB
Video in / Video Server 1-ch BNC type, (CBVS Camera input)
Video out / Video Decoder 1-ch BNC type (CBVS Monitor output)
Audio in/ out 1 in/ 1 out
I/O 2 in/ 2 Relay out (COM. & N.O. & N.C.)
Relay Out: DC 24V@1A AC 1[email protected]
RS-485 1, for PTZ control
RS-232 YES
Power Over Ethernet YES (optional)
Power Consumption DC 12V, 350mA, 4W
Dimensions 134mm (W) x 42mm (L) x 107mm (D)
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP,
DDNS, NTP, UPnP, 3GPP
Wireless (Optional)
Wireless 802.11b/gSecurity WEP,WPA-PSK,WPA2-PSK
Video Encoding
Video Resolution NTSC - 720x480, 704x480,352x240, 176x144
PAL – 720x576, 704x576, 352x288, 176x144
Video adjust Brightness, Contrast, Saturation, Hue,
Sharpness
Triple Streaming Yes
Image snapshot Yes
Compression format H.264/ JPEG/ MPEG4 (3GPP only)
Video bitrates adjust CBR, VBR
Motion Detection Yes, 3 different areas
Privacy Mask Yes, 3 different areas
Video Decoding
Video Output Resolution D1/ VGA/ CIF/ QCIF
Decompression Format H.264/ MJPEG/MPEG4(3GPP only)

6/45
TV Out Yes
Output OSD Yes
Remote IPCAM Rotation Yes. 10 Channels
Stream Server IP Camera, Video Server
System
Full screen monitoring Yes
Triggered action Mail, FTP, Save to SD card, Relay
Pre/ Post alarm Yes, configurable
Security Password protection
Firmware upgrade HTTP mode, can be upgraded remotely
Simultaneous
connection Up to 10
Audio Yes, 2-way
SD card management
Recording trigger Motion Detection, IP check, Network break down
(wire only),schedule, Alarm
Video format AVI, JPEG
Video playback Yes
Delete files Yes
Web browsing requirement
OS Windows 2000, XP, 2003, Microsoft IE 6.0 or above
Hardware Suggeste
d Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB
Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB
II.Product Installation
A. Monitor Setting

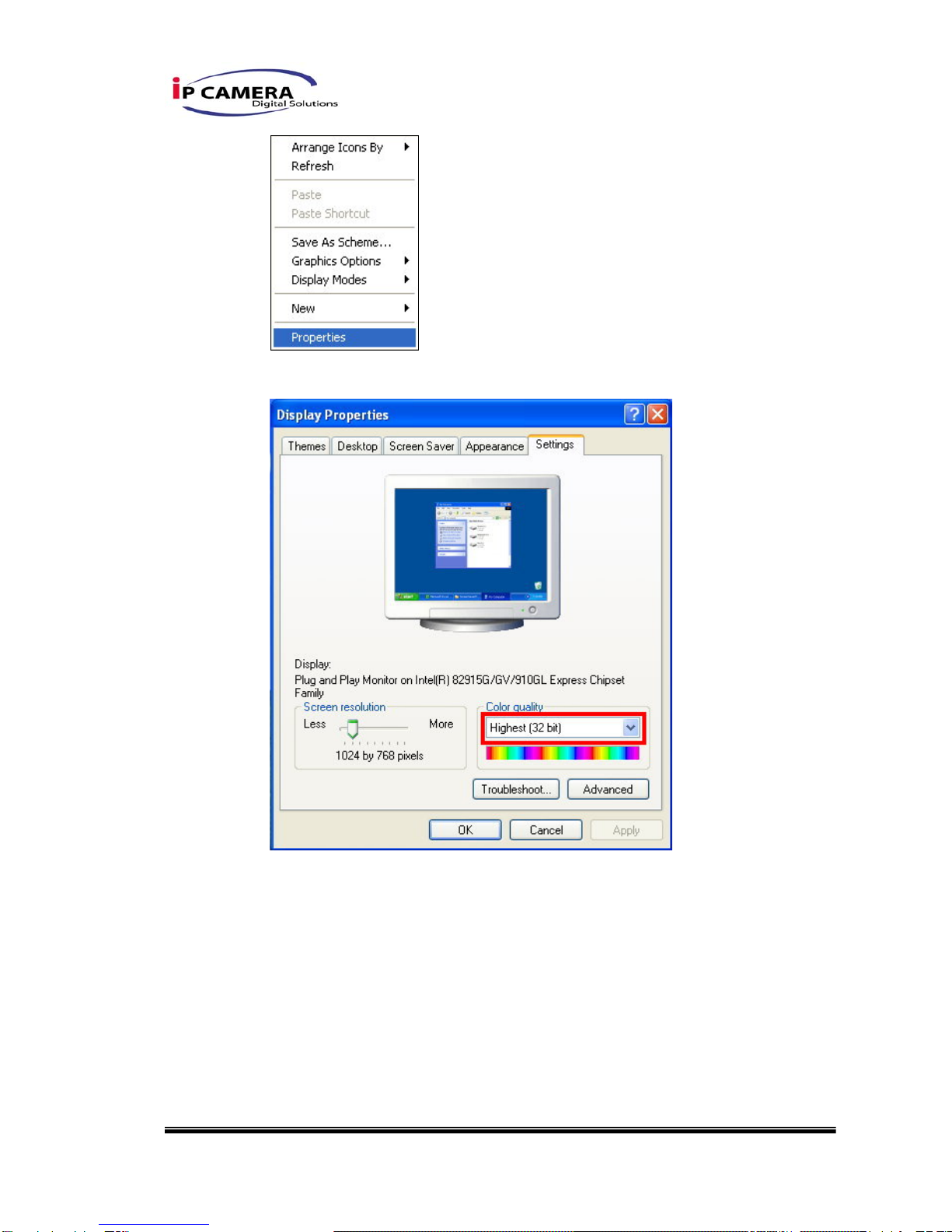

i. Right-Click on the desktop. Select “ Properties”

7/45
ii. Change color quality to highest (32bit).
B. Hardware Installation
B-1: Hardware Connection
i. Connect power adaptor

8/45
1 2 3 5 6 7
4
ii. Connect Video Transceiver to PC or network with Ethernet cable
iii. Set up the network configurations according to the network environment.
For further explanation, please refer to chapter VI, “Network
Configuration for Video Server”.
B-2: Front plane assignment
1. Power Supply (DC 12V)
2. Ethernet (RJ-45)
3. VIDEO OUT BNC JACK
4. VIDEO IN BNC JACK
5. AUDIO IN RCA JACK
6. RS-485 / PTZ header.
7. GPIO I/O

9/45
C. IP Assignment
i. Use the software, “IP Installer” to assign the IP address of Video
Transceiver. The software is in the attached software CD.
ii. There are two languages for the IP installer
i. IPInstallerCht.exe：Chinese version
ii. IPInstallerEng.exe：English version
iii. There are 3 kinds of IP configuration.
i. Fixed IP (Public IP or Virtual IP)
ii. DHCP (Dynamic IP)
iii. Dial-up (PPPoE)
iv. Execute IP Installer
v. For Windows XP SP2 user, it may popup the following message box.
Please click “Unblock”.
vi. IP Installer configuration：

10/45

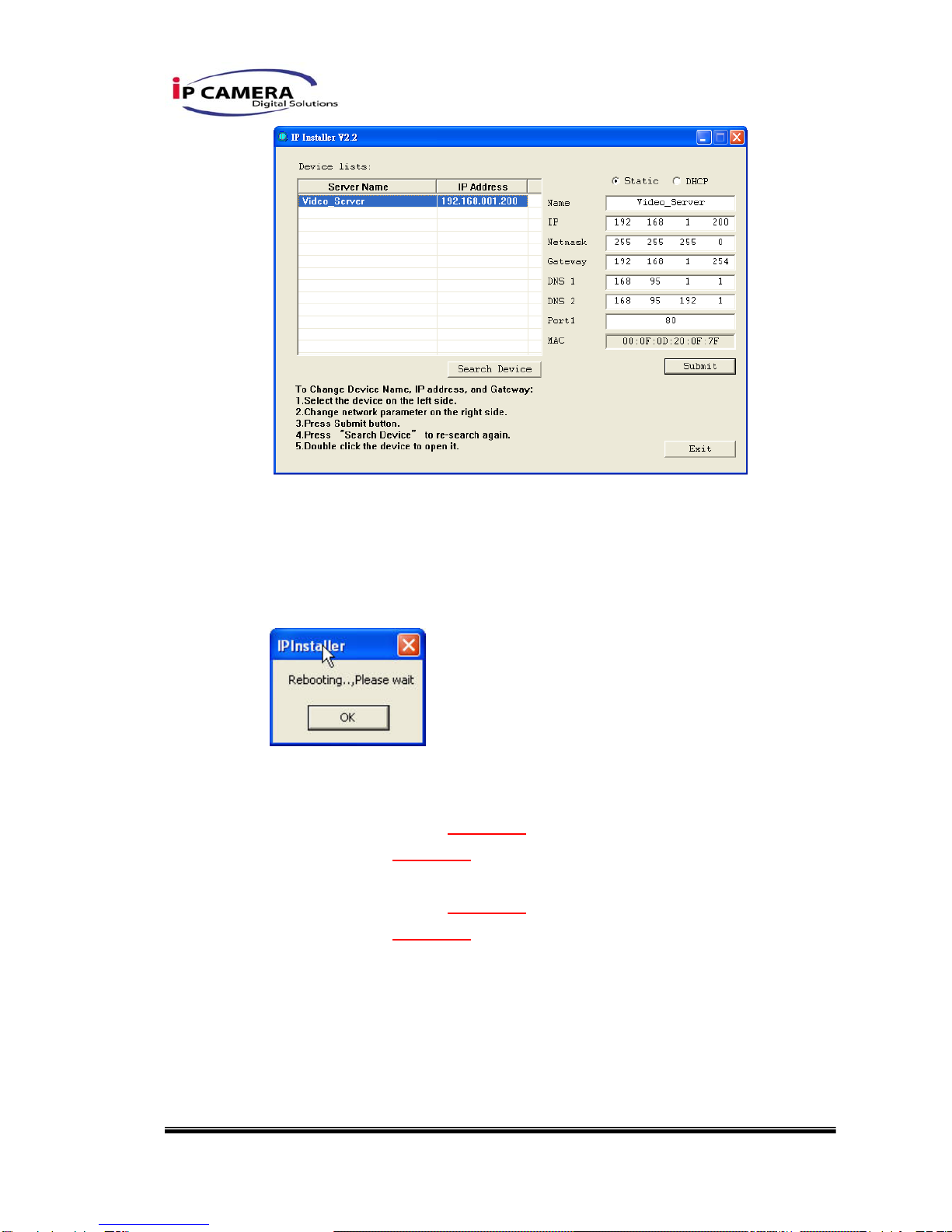

vii. IP Installer will search all IP Devices connected on Lan. The user can
click “Search Device” to search again.
viii. Click the Video Transceiver listed on the left side. The network
configuration of this Video Server will show on the right side. You may
change the “name” of the Video Server to your preference (eg: Office,
warehouse). Change the parameter and click “Submit” then click “OK”. It
will apply the change and reboot the Device.
ix. Please make sure the subnet of PC IP address and Video this IP
product IP address are the same.
The same Subnet:
IP product IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP product IP address: 192.168.2.200
PC IP address: 192.168.1.100

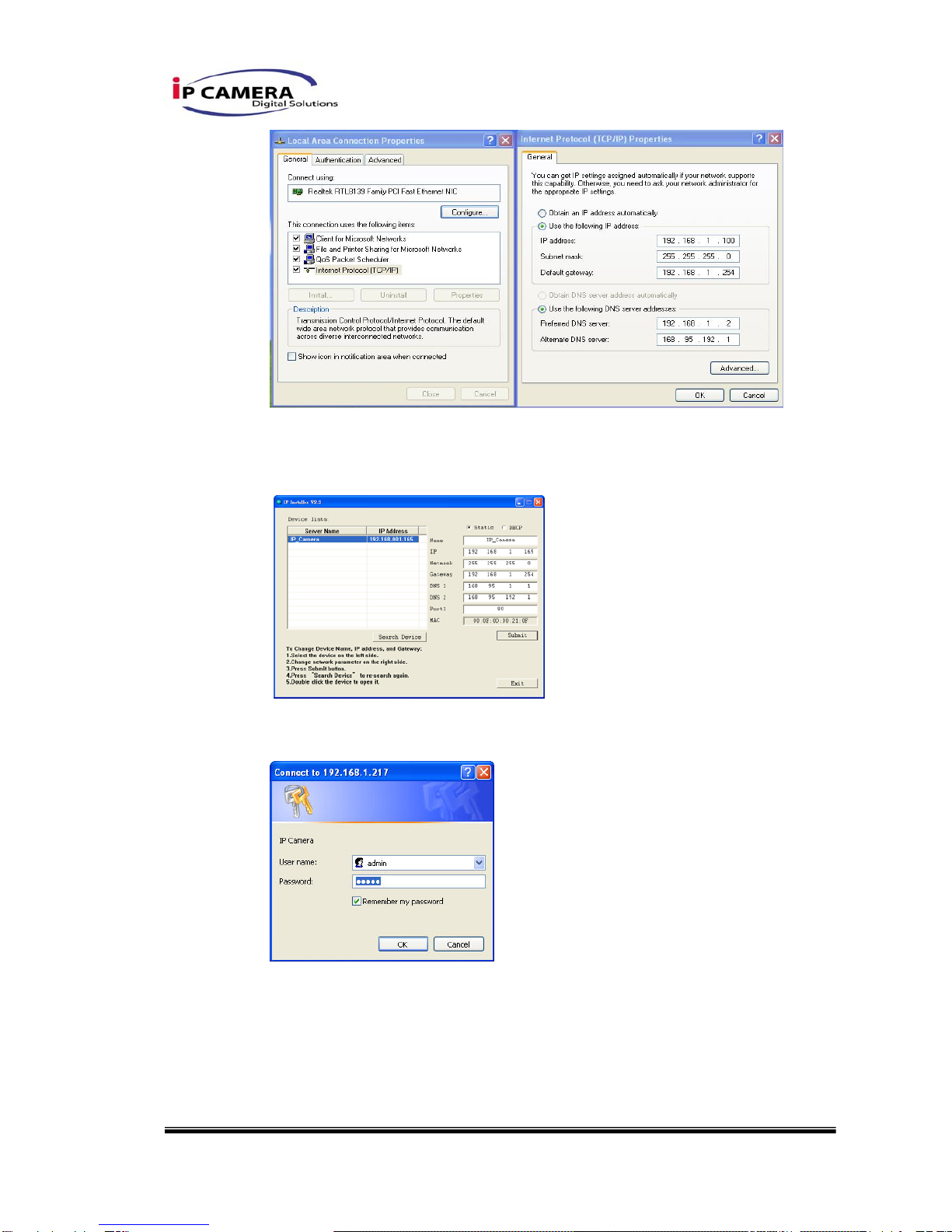

To Change PC IP address:
Control PanelÆNetwork ConnectionsÆLocal Area Connection
PropertiesÆInternet Protocol (TCP/IP) ÆProperties
Please make sure this IP product and PC have the same Subnet. If not,
please change this IP product subnet or PC IP subnet accordingly.
