IP EDH-01 User manual

1/43
User Manual
Video Transceiver
EDH-01

2/43
WARINGS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

3/43
Content
PREFACE ..............................................................................................................................................................4
I. PRODUCT SPECIFICATIONS.................................................................................................................4
II. PRODUCT INSTALLATION.....................................................................................................................6
A. M ONITOR S ETTING .....................................................................................................................................6
B. H ARDWARE I NSTALLATION ........................................................................................................................7
C. IP A SSIGNMENT .........................................................................................................................................8
D. I NSTALL A CTIVE X CONTROL :...................................................................................................................11
III. LIVE VIDEO.........................................................................................................................................12
IV. VIDEO TRANSCEIVER CONFIGURATION ..................................................................................14
A. S YSTEM I NFORMATION .............................................................................................................................16
B. N ETWORK ................................................................................................................................................19
C. A/V S ETTING ...........................................................................................................................................25
D. E VENT ......................................................................................................................................................36
V. NETWORK CONFIGURATION.............................................................................................................40
VI. FACTORY DEFAULT ..........................................................................................................................43
VII. PACKAGE CONTENTS......................................................................................................................43
APPENDIX I........................................................................................................................................................43
2007/12/27

4/43
PREFACE
VIDEO TRANSCEIVER provides function which is a combination of Video Server
and Video decoder with IE built-in.
It encodes analogue signals of traditional cameras to digital signals; user can
monitor real-time video via IE browser. MPEG4 /JPEG compression format
support smooth video quality.
VIDEO TRANSCEIVER supports SD card backup to save video files and playback
on any PC.
User can use VIDEO TRANSCEIVER to connect any Video Transceiver via IE
browser within Internet or Intranet. It can decode MPEG4 or JPEG compression
format and transfer analogue signals to TVs, CRT monitors or DVR systems.
I. Product Specifications
Support MPEG4 and JPEG compression format.
RS-485 interface
SD card backup.
Two-way audio
Support Cell Phone/PDA/3GPP
Support Dual Streaming
Wireless network connection (Optional)
Online firmware upgrade.
Support to connect with 10 Video Transceivers.

5/43
Hardware
CPU ARM 9 ,32 bit RISC
RAM 64MB
ROM 8MB
Image sensor
Network
Ethernet 10/ 100 Base-T
Wireless 802.11b/g (Optional)
WEP 64/ 128 bit
Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, 3GPP,
UPnP
System
Video Resolution (NTSC/PAL) NTSC: 720x480, 704x480, 352x240, 176x120
PAL: 720x576, 704x576, 352x288, 176x144
Video adjust Brightness, Contrast, Saturation, Hue
Image snapshot Yes
Full screen monitoring Yes
Compression format MPEG-4, MJPEG
Video bitrate adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered action Mail, FTP, Save to SD card
Pre/ Post alarm Yes, configurable
Security Password protection
Firmware upgrade HTTP mode, can be upgraded remotely
Simultaneous connection Up to 10
SD card management
Recording trigger Motion Detection, Network break down
Video format AVI
Video playback Yes
Delete files Yes
Web browsing requirement
OS Windows 2000, 2003, XP
Browser IE 6.0 or above

6/43
II.Product Installation
A. Monitor Setting
i. Right-Click on the desktop. Select “ Properties”
ii. Change color quality to highest (32bit).

7/43
1 2 3 5 6 7
4
B. Hardware Installation
B-1: Hardware Connection
i. Connect power adaptor
ii. Connect Video Transceiver to PC or network with Ethernet cable
iii. Set up the network configurations according to the network environment.
For further explanation, please refer to chapter VI, “Network
Configuration for Video Server”.
B-2: Front plane assignment
1. Power Supply (DC 12V)
2. Ethernet (RJ-45)
3. VIDEO OUT BNC JACK
4. VIDEO IN BNC JACK
5. AUDIO IN RCA JACK
6. RS-485 / PTZ header.
7. GPIO I/O

8/43
C. IP Assignment
i. Use the software, “IP Installer” to assign the IP address of Video
Transceiver. The software is in the attached software CD.
ii. There are two languages for the IP installer
i. IPInstallerCht.exe：Chinese version
ii. IPInstallerEng.exe：English version
iii. There are 3 kinds of IP configuration.
i. Fixed IP (Public IP or Virtual IP)
ii. DHCP (Dynamic IP)
iii. Dial-up (PPPoE)
iv. Execute IP Installer
v. For Windows XP SP2 user, it may popup the following message box.
Please click “Unblock”.

9/43
vi. IP Installer configuration：
vii. IP Installer will search all IP Devices connected on Lan. The user can
click “Search Device” to search again.
viii. Click the Video Transceiver listed on the left side. The network
configuration of this Video Server will show on the right side. You may
change the “name” of the Video Server to your preference (eg: Office,
warehouse). Change the parameter and click “Submit” then click “OK”. It
will apply the change and reboot the Device.
ix. Please make sure the subnet of PC IP address and Video this IP
product IP address are the same.
The same Subnet:
IP product IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP product IP address: 192.168.2.200
PC IP address: 192.168.1.100
To Change PC IP address:
Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties

10/43
Please make sure this IP product and PC have the same Subnet. If not,
please change this IP product subnet or PC IP subnet accordingly.
x. A quick way to access remote monitoring is to left-click the mouse twice
on a selected IP products listed on “Device list” of IP Installer. An IE
browser will be opened.
xi. Then, please key in the default “user name: admin” and “password:
admin”.

11/43
D. Install ActiveX control:
For the first time to view the video via IE, it will ask you to install theActiveX
component.
If the installation failed, please check the security setting for the IE browser.
i. IE Tools Internet Options… Security Tab Custom Level… 
Security Settings Download unsigned ActiveX controlsSelect
“Enable” or Prompt.
ii. IE Tools Internet Options… Security Tab Custom Level…
Initialize and script ActiveX controls not marked as safe Select
“Enable” or Prompt.
1 2
3 4

12/43
5
When popup the following dialogue box, click “Yes”.
III. Live Video
Start a IE browser, type the IP address of this IP product in the address field. It will
show the following dialogue box. Key-in the user name and password. The default
user name and password are “admin” and “admin”.

13/43
When connect to this IP product。The following program interface shows.
1. ：Get into the administration page
2. ：Video Snapshot
3. Shows how many people connect to this IP product
4. Show system time, video resolution, and video refreshing rate
5. Video Transceiver supports 2-way audio. Click the “Chatting” check box. Then
you can use microphone which connect to the PC to talk to server side, which is
Video Server side.

14/43
6. Control the relay which is connected to this Video Transceiver
7. Select PTZ protocol to control the PTZ camera which is connected to this video
server. The PTZ function will be slightly different depends on which protocol to
use.
Double-click the video, it will change to full screen mode. Press “Esc” or double-click
the video again, it will change back to normal mode.

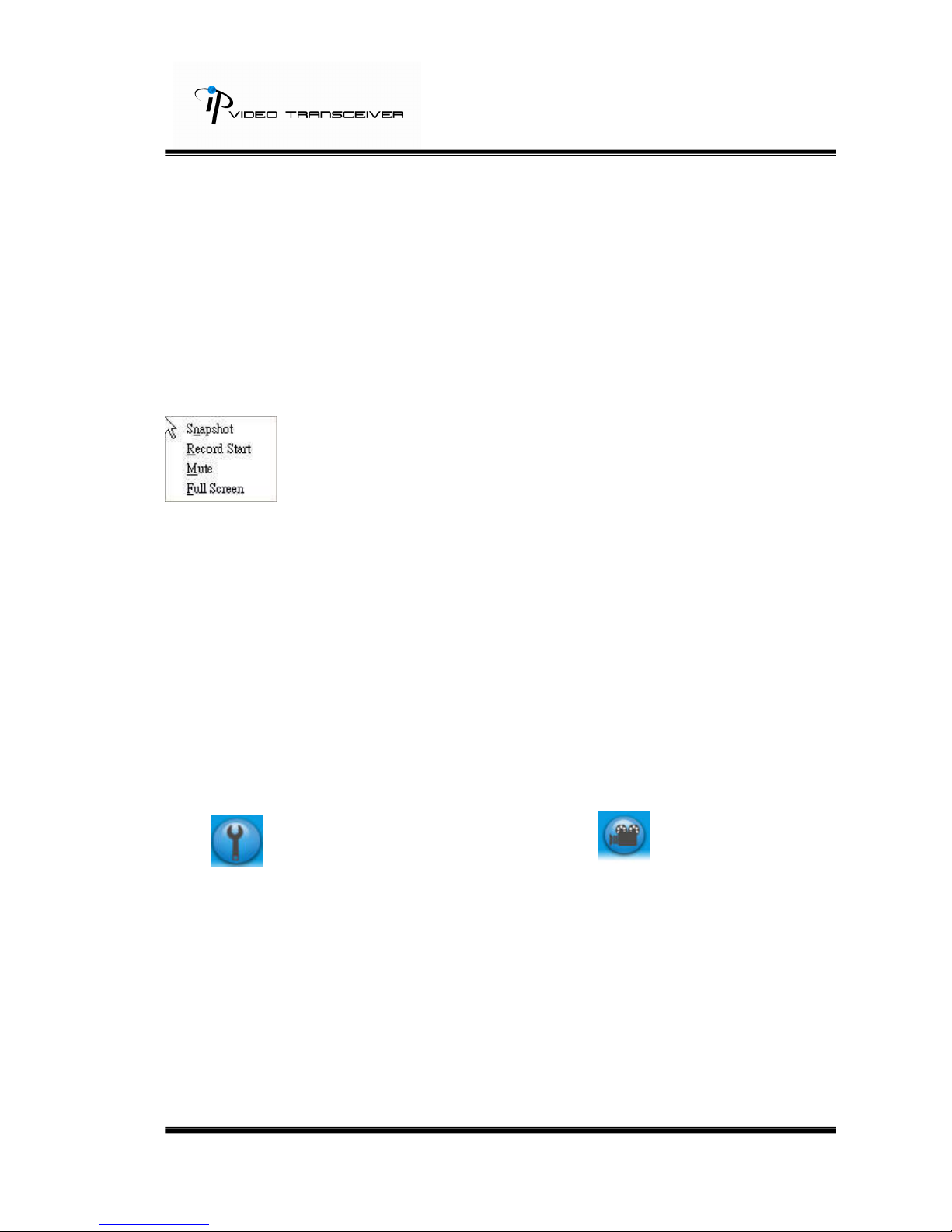

Right-Click the mouse on the video, it will show a pop-up menu.
1. Snapshot：Save a JPEG picture
2. Record Start：Record the video in the local PC. It will ask you where to save the
video. To stop recording, right-click the mouse again. Select “Record Stop”. The
video format is AVI. Use Microsoft Media Player to play the recorded file.
3. Mute：Turn of the audio. Click again to turn on it.
4. Full Screen：Full-screen mode.
IV. Video Transceiver Configuration
Click to get into the administration and click on to return to the live
viewing as follows.

15/43

16/43
A.System Information
i、System Information：
a. Server Information：Set up the camera name, select language, and
set up the camera time.
1. Server Name：This is the Camera name. This name will show
on the IP Installer.
2. Select language：There are English, Traditional Chinese, and
Simplified Chinese to select. When change, it will show the
following dialogue box for the confirmation of changing
language.
b. Server time setting：Select options to set up time - “NTP”,
“Synchronize with PC’s time”, “Manual”, and “The date and time
remain the same”.

17/43
ii、User Management
VIDEO TRANSCEIVER supports three different users, administrator,
general user, and anonymous user.
a. Anonymous User Login：
Yes：Allow anonymous login
No：Need user name & password to access this Video Transceiver
b. Add user：
Type the user name and password, then click “Add/Set”.
Note: Allow guest to login as a Guest. Guest is only allowed to
browse the page.
c. Click “edit” or “delete” to modify the user.

18/43
iii、System update：
a. To update the firmware online, click “Browse…” to select the
firmware. Then click “Upgrade” to proceed.
b. Reboot system：re-start the Video Transceiver
c. Factory default：delete all settings and restore defaults system.
d. Setting Management：User may download the current setting to PC,
or upgrade from previous saved setting.
1. Setting download:
Right-click the mouse button on Setting Download Select
“Save AS…” to save current IP CAM setting in PC Select
saving directory Save
2. Upgrade from previous setting
Browse search previous setting open upgrade 
Setting update confirm click index.html. to return to main
page

19/43
B.Network
i、IP Setting
Video Transceiver supports DHCP and static IP.
a. DHCP：Using DHCP, Video Transceiver will get all the network
parameters automatically.
b. Static IP：Please type in IP address, subnet mask, gateway, and DNS
manually.
c. Port Assignment: user may need to assign different port to avoid conflict
when setting up IP assignment.
1. Web Page Port: setup web page connecting port and video
transmitting port (Default: 80)
2. RTSP Port: setup port for RTSP transmitting (Default: 554)
3. RTP Start and End Port: in RTSP mode, you may use TCP and
UDP for connecting. TCP connection uses RTSP Port (554). UDP
connection uses RTP Start and End Port.

20/43
d. UPnP
This Video Transceiver supports UPnP, If this service is enabled on your
computer, the camera will automatically be detected and a new icon will
be added to “My Network Places.”
Note: UPnP must be enabled on your computer.
Please follow the procedure to activate UPnP
1. open the Control Panel from the Start Menu
2. select Add/Remove Programs
3. Select Add/Remove Windows Components and open
Networking Services section
4. Click Details and select UPnP to setup the service
5. The IP device icon will be added to “MY Network Places”
6. User may double click the IP device icon to access IE browser
ii、PPPoE：
Select “Enabled” to use PPPoE.
Key-in Username and password for the ADSL connection.
Send mail after dialed：When connect to the internet, it will send a mail
to a specific mail account. For the mail setting, please refer to “Mail and
FTP” settings.
