iPazzPort KP-810-16BAR User manual

Bluetooth Keyboard with Air Mouse
Model (型号):KP-810-16BAR
使用说明书
iPazzPort 艾拍宝
R
蓝牙键盘+空中飞鼠
R

1.Introduction:
Bluetooth keyboard with air mouse is designed small and portable, it is widely used for:
People who need to be apart from their base equipment and yet control it for their
entertaiment, training, presentation.
External keyboard/remote for tablet PC, Car PC, Android devices, Smart TV, etc..
As an external keyboard for iPAD, iPhone4, and Samsung Galaxy mobile phone,etc
Enhance Apple TV box’s operation with the sleeve for Apple TV remote.
2.Package:
Bluetooth wireless with air Mouse 1
USB Receiver 1
USB cable for recharging the unit 1
User manual 1
Silicone sleeve 1
3.Feature and Specifications:
connection
Max distance:10m
QWERTY keyboard
Ultra sensitive 3 axial Gyro-sensor - in-air cursor control using natural hand motions
Rechargeable lithium-ion battery
Battery Capacity: 400mA
Charge Voltage: DC 5V/300mA
Standby Time: 400 hours
Size: 125.8x56.5x13 mm
Weight: 71g
Bluetooth
English
4.System Requirement:
Windows
Linux
Mac OS
Android PC
(With USB or Bluetooth HID driver/Profile, supports USB or bluetooth HID keyboard.
The air mouse feature does not work for iOS mobile, Apple TV box )

5.How to use
ON OFF
English

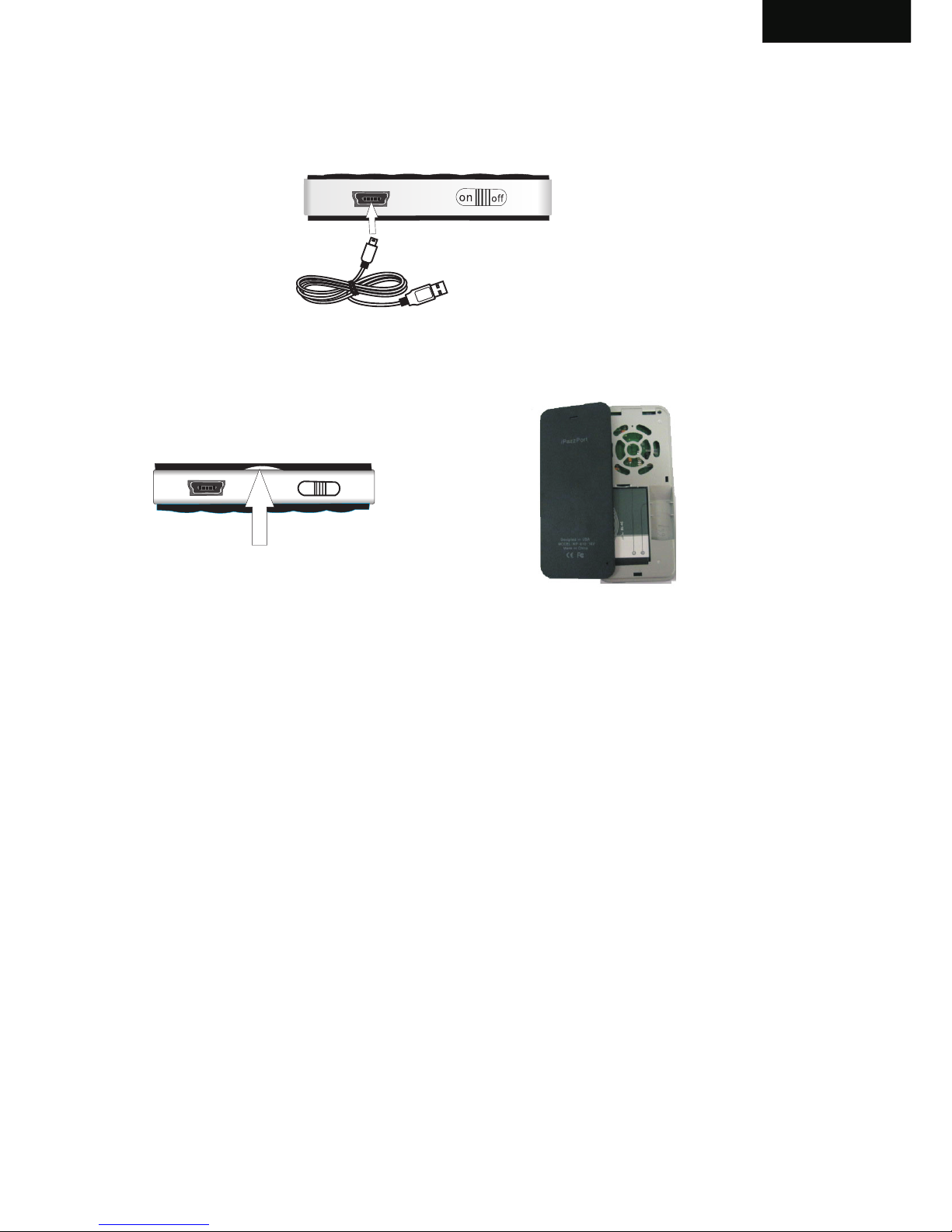

5.2. Recharge your keyboard: when your keyboard backlit flash without any
operation that means your keyboard is in low charge, and need to recharge
connect your keyboard to your computer with mini end of USB cable to
your keyboard and another end to computer, then orange led will light up
with steady on, and go out when it is fully recharged.
Power Switch
5.1.
5.3 Change battery:
Take Battery out
Battery
Lift back case up
ON OFF

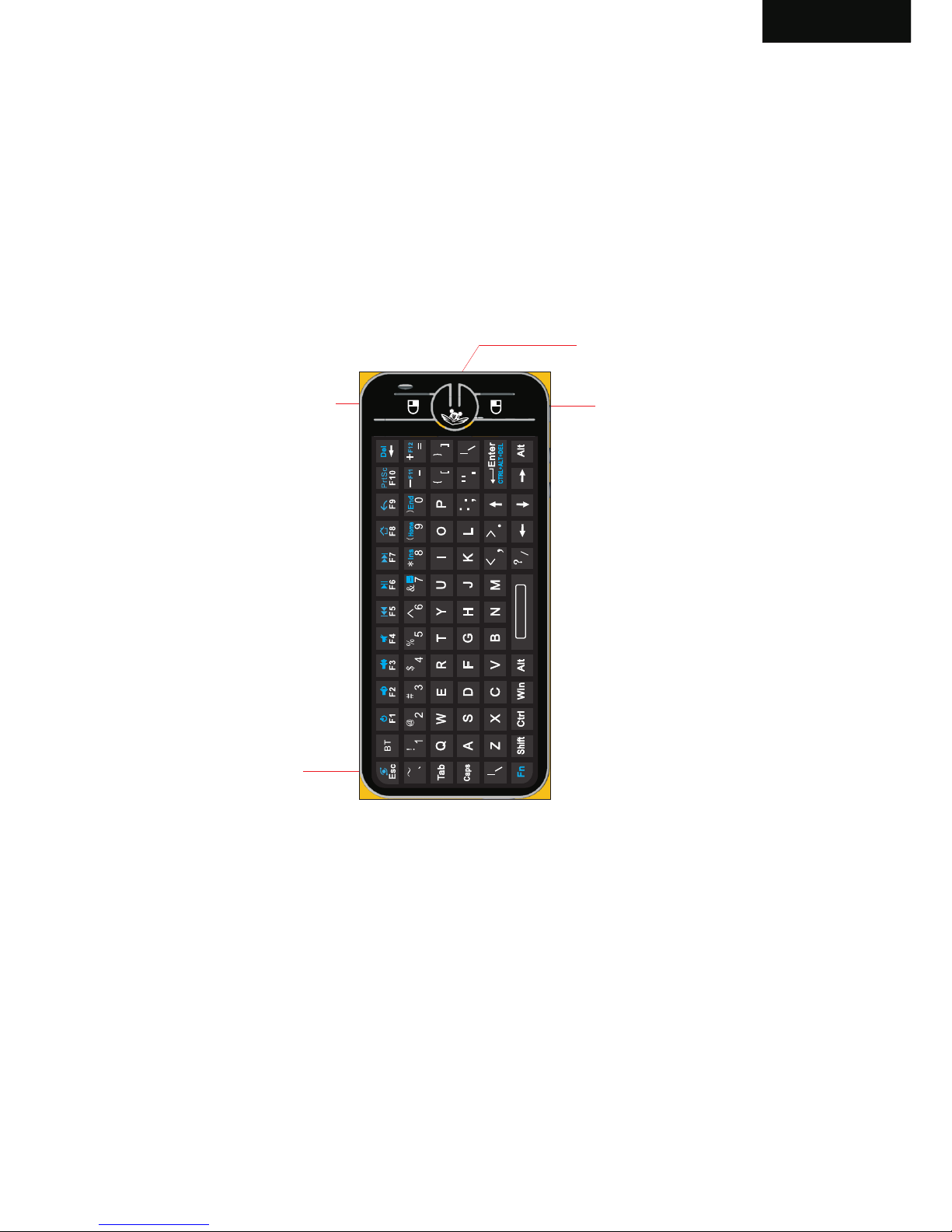

6. Air Mouse
6.1 There are 2 ways to activate the mouse function:
a: The first method is to press and hold the mouse button. while the button is held down,
you can control the mouse cursor as you wave your hand. When you release the
button, the mouse cursor stops moving.
b. In the second mode,you press-release the buutton, the air mouse goes into mouse
mode, and operates as you wave your hand. Press-release again to disable the
mouse mode
Mouse right Mouse left
Mouse button
Press to active mouse
Binds key:
Fn+Esc to change
operation direction
English

English
6.2 Change mouse operation directions:
As we know, some times, we want to operate the bluetooth keyboard vertically, and some
times horizontally, when operation direction is changed from vertical to horizontal, but
mouse will not, for example and supposed your operation direction is vertical, now
change your operation direction to horizontal, then move your hand vertically, and moue
cursor still move horizontally, in this situation, press key Fn+Esc to change its operation
direction, then mouse cursor will move with your hand motions.

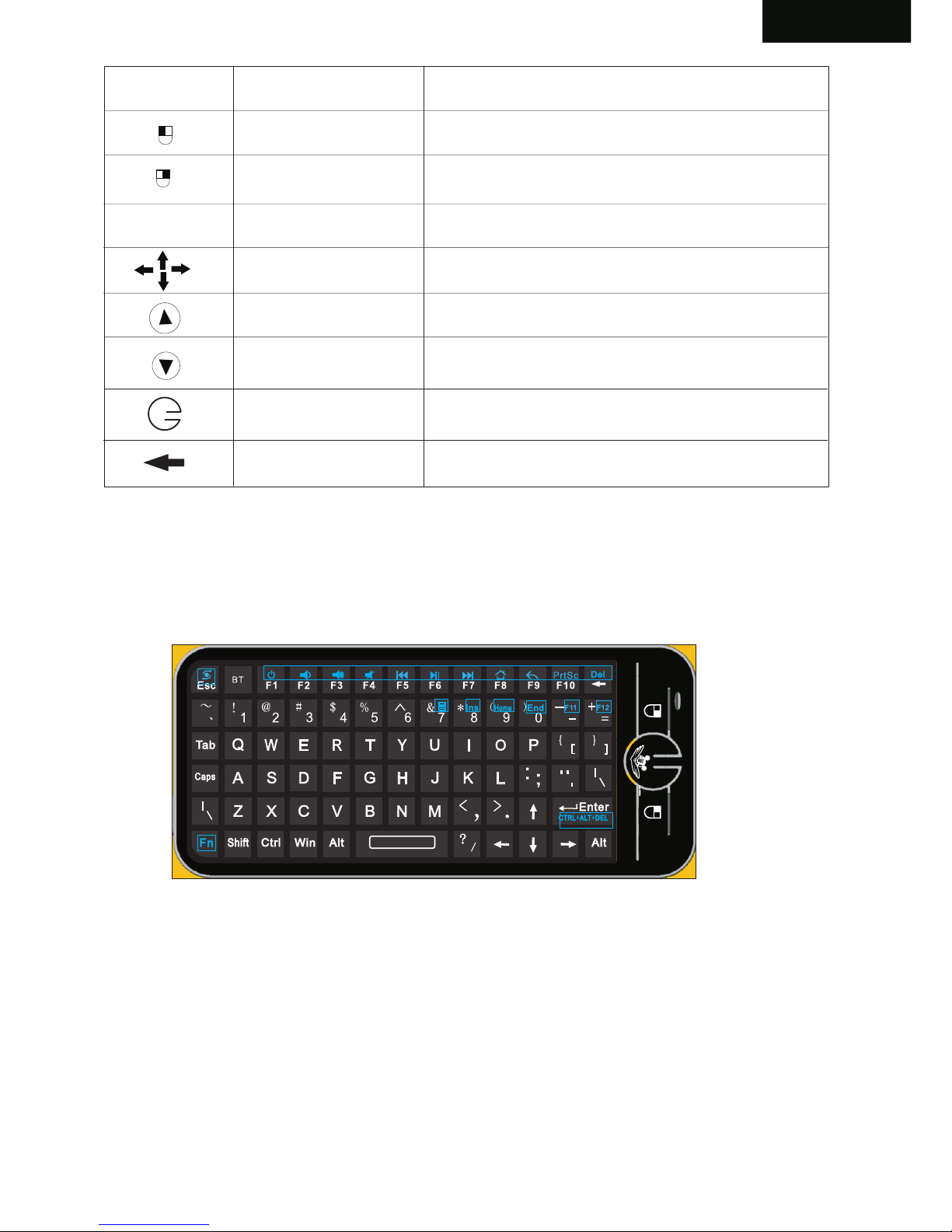

7. Function description of keyboard
Page down
Page up
Navigate key Mouse left
Mouse button
Mouse right
Key BT Back sapce

Item Function Operation
Mouse left Press to operate like left mouse key
Mouse right Press to operate like right mouse key
Key BT Press to pair keyboard and USB receiver
Cursor up,down
left, right
Press the four keys to move cursor up,
down, left,and right
Page up Press to scroll page up
Page down Press to scroll page down
Activate mouse Press to activate mouse
English
BT
Equal “back space” Tap
8. Binds keys description
all binds key must work with Fn, for example: if you want to operate key “Home”, you
have to press key “Fn” and key “9” together,

F12 F12
PrtSc
Work with other binds keys Press this key and other
binds key together
Change operation directions Press “Esc” and “Fn” together
Press “F1” and “Fn” together
Press “F2” and “Fn” together
Press “F3” and “Fn” together
Press “F4” and “Fn” together
Press “F5” and “Fn” together
Press “F6” and “Fn” together
Press “F7” and “Fn” together
Press “F8” and “Fn” together
Press “F9” and “Fn” together
Press “F10” and “Fn” together
Press “ ” and “Fn” together
Press “9” and “Fn” together
Press “=” and “Fn” together
Press “-” and “Fn” together
Press “0” and “Fn” together
Press “8” and “Fn” together
Press “7” and “Fn” together
Press “Enter” and “Fn” together
Restart
Volume down
Volume up
Mute
Previous
Stop
Next
Return to main page
Back to previous page
Print screen
Delete
Home
Home
F11 F11
End End
Ins
Del
Fn
Insert
Hot key for shortcut
English
Ctrl+Alt+Del Ctrl+Alt+Del

Pairing and establishing connection with computor.
Windows XP/2000
Let's take Microsoft Bluetooth Software as an example to describe Bluetooth Search,Pairing and
Connection, other Bluetooth software please refer to its own user manual.
Insert Bluetooth adaptor into any vacant USB port on your computor, please be patient to wait
system search and install new hard driver. Then bluetooth icon will appear on the taskbar.
If your computing device has integrated bluetooth receiver refer to the user manual to enable
that receiver
Note: during operation, do not press this key, or your bluetooth keyboard will
be disconnected from your computor
1, 3 Click “Start”, “Control Panel” (make sure you're in Classic View), and then double-click
Bluetooth Devices. Select “Add”.

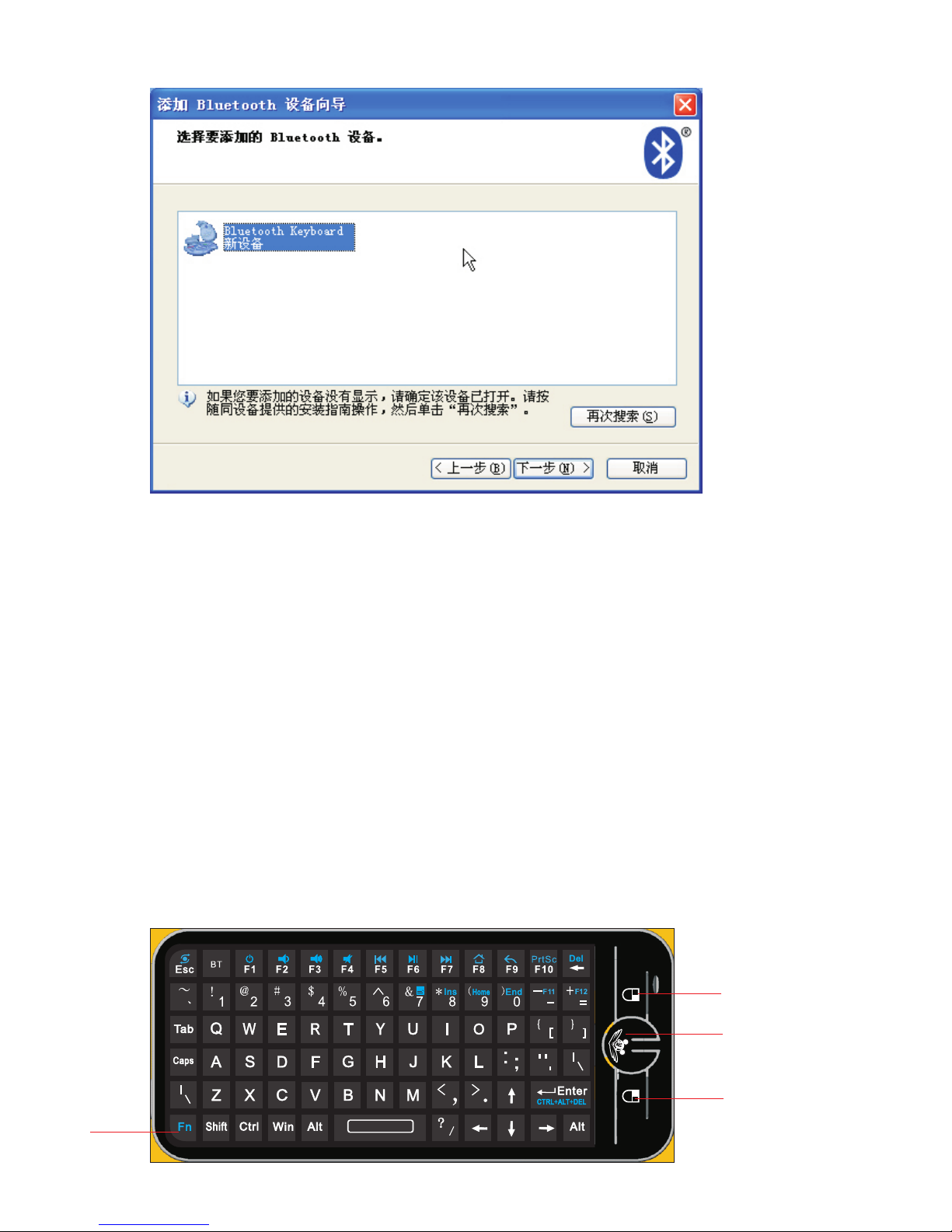

1.4, In the Add Bluetooth Device Wizard, select the “My device is set up and ready to be found
check box”, and then click “Next”.
1.5, After icon of “Bluetooth keyboard” appear, click “Bluetooth keyboard”, and then click “Next”.
1.2 Turn on unit by moving the power switch to ON, (see arrow 10), press key BLUETOOTH RESET
indicated by arrow 4 till LED3 blink then release it(about 2-5 seconds) , that means your unit is
ready and searching other Bluetooth device for pairing.
Bluetooth icon
Bluetooth keyboard
New Device
1.6, When the wizard asks you which passkey you want to use, click “Choose a passkey for me”.
Then click “Next”.
1.7 After you are prompted to enter your passkey, please type the passkey with keys on Mini
Bluetooth Keyboard, and then press Enter. You also can choose no passkey to go next step.
PLEASE DO REMEMBER TO USE THE KEY OF MINI BLUETOOTH KEYBOARD WHEN
INPUT PASSKEY
1.8, In the final page of the wizard, click Finish, it maybe take a few seconds for new hardware driver
installation before click finish. So please be patient.
Your Mini Bluetooth Keyboard should now be successfully paired with your PC and ready to use.
1.9 LED3 will goes out when connection is established successfully
Bluetooth Reset

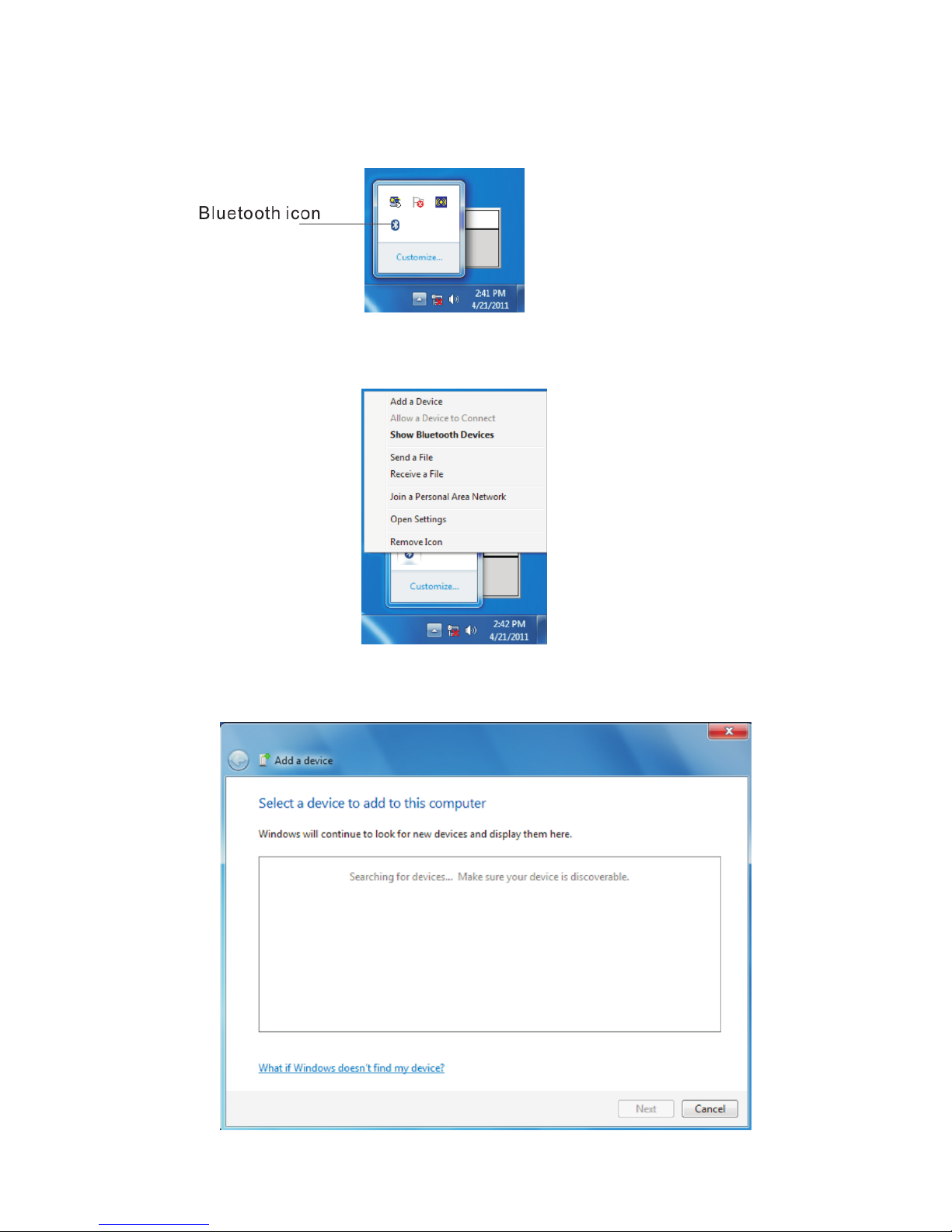

Windows 7
Plug bluetooth receiver into any vacan USB port on your computor, please be patient to wait
the system recognize your device, it maybe take several minutes. When new hardware has
finished driver installation, an icon will appear in the task bar.
Right click icon of bluetooth, select “Add a Device”
An window like below will popup indicating that system is search a devie to add...

Turn Bluetooth keyboard on by sliding the power switch to ON, LED3 will flash one time, then press
key “bluetooth reset” till LED3 flash. Bluetooth iPazzPort and Bluetooth Keyboard will appear
in the window. Select it and click “Next”
Then you will be promoted to input a pass code for your device, please do type the code with
Mini bluetooth keyboard, then press Enter
NOTE:1.
2. keyboard functions WILL NOT work until a bluetooth connection with the computing
device is completed.
Do not tap key “Bluetooth Reset” or you will disconnect its connection during
operation.
Bluetooth keyboard
Bluetooth
keyboard
Bluetooth Reset

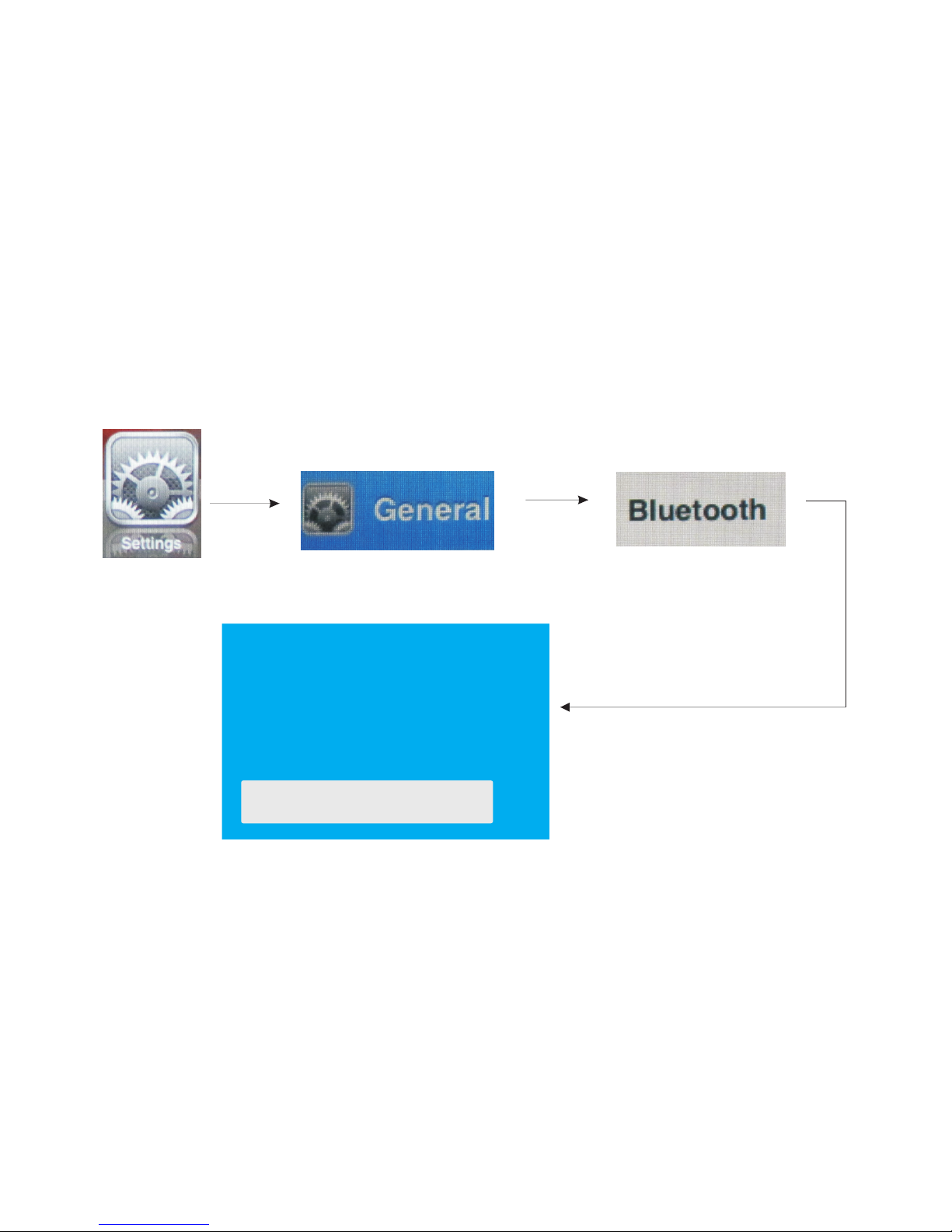

CONNECT TO iPAD/ iPhone 4
1.Turn your Bluetooth Keyboard on by switch button to on, press Bluetooth Reset key till
LED3 flash.
2.Turn on your iPhone 4, tap “settings” => “General” => “Bluetooth” then you
you will find device list, tap “Bluetooth ...” to on, then your iPhone will search the other
Bluetooth for pairing, “Bluetooth keyboard” will be listed when system find your Bluetooth
keyboad.
3. Tap “Bluetooh keyboard”, then system will install driver and prompt you to input pass code
you must type the pass code with your Bluetooth keyboard.
4. When it is connected to your iPhone, Bluetooth iPazzPort will appear in the list.
5. For re-connect to your iPhone: turn your Bluetooth keyboard on, then go to “Bluetooth”
device list, and tap “ Bluetooth keyboard”, then connection will be built again.
Bluetooth keyboard would
like to pair with your iPad
Enter the passkey”136956 on
“bluetooth keyboard”, followed by
the return or enter key.
Cancel
Connect to other smart mobile with Android O.S
1. Activate bluetooth device of your mobile and make sure it is searchable and be able to pair
2. Tap search menu to make it in searching state.
3. Turn on keyboard and press bluetooth Reset key till LED3 flash,
4. Icon of Bluetooth iPazzPort will appear in the list when bluetooth keyboard is found, tap
this icon to pair
5. Type 0000 or 1234 with your mobile virtual keyboard when you are asked for a pass code.
6. Type 0000 or 1234 with bluetooth keyboard and press Enter to confirm. Which must be the
same with step 5.
7. When them pair successfully, tap icon of Bluetooth iPazzPort ==> wireless keyboard to
connect.
Please be noted that your mobile can’t be connected and can’t be used if your mobile have
no HID profile.

WEEE Directive & Product Disposal
At the end of its serviceable life, this product
should not be treated as household or general
waste. It should be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment, or returned to the supplier
for disposal
Notice to customers:
This symbol on the battery indicates that the battery
is to be collected separately.
The following applies only to users in European countries.
 This battery is designed for separate collection at
an appropriate collection point.
Do not dispose of as household waste
For more information, contact the retailer or local
authorities in charge of waste management.
Caution :
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Compliance statement:
1: This device is verified to comply with Part 15 of the FCC Rules.
Operation subject to the following two conditions:
(1) this device may not cause harmful interference, and
English

(2) this device must accept any interference received, including interference
that may cause undesired operation.
2: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interferenc
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed
And used in accordance with the instructions, may cause harmful interference
to radio communications. However,there is no guarantee that interference
will not occur in a particular installation.If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
English

Manual Tuning :
When the cursor appears an adnormal shifting or shaking .
Please do the following steps :
1. Please place the devise flat on the table until the cursor stabilized .
2.Initialization- press and hold ESC +G keys for around 3 seconds
until the LED-flashing lite off .
Auto-Tuning
A.The Cursor may be drifted or shaking due to sudden voltage or
temperature changed. Please run the Auto-tuning. Place the devise
flat on the table around 5 seconds, the cursor should be stay and
recovered from shaking.
B. The Cursor may stop or no response during devise power on.Run the
Auto-tuning. Place the devise flat on the table for around 5 seconds,
the cursor should be re-activated.
C.The Devise is able to operate bidirectional (horizontal or vertical ) by
press and hold ESC+FN keys simultaneously for 3-5 seconds. If the
cursor is not effectively response, please run the auto-tuning .Place
the devise flat on the table for around 3-5 seconds, the devise should
be auto-adjusted to the commands in selecting of either working
horizontally or vertically.
FQA

2.特点与规 格：
a.蓝牙连接 ，最远距离 达10米半径。
b.三轴螺陀 仪设计，精 确操作鼠标
c.QWERTY键盘布 局
d.造型小巧, 126.5*56.5*13 毫米/重量: 71克
e.带可充电 锂电池：400毫安,待机时间：400小时
f.工作电压 ：3.3V
g.充电：DC 5V/300mA
3.包装：
a.无线键盘+空 中飞鼠
b.USB接收器
c.USB充电线
d.说明书
e.硅胶外套
5.使用说明
5.1 此时打开键盘的电 源开关。 蓝色 指示灯会一 直亮着，按 下BT键蓝色灯 会
有规律的闪烁,键盘配对上 蓝色指示灯 熄灭，如图:
ON off
中文
图1
4.支持系统 ：
- Windows
- linux
- Android/Google/Smart TV
- Mac OS
1.应用：
- 多媒体家庭娱乐，教育培训，会议演讲，投影仪
- HTPC遥控，谷歌/安卓/智能电视遥控器
- iPAD、iPhone和三星等智能手机的外接键盘

中文
5.2 充电：当键盘未进行任何操作时，工作指示灯突然闪烁,说明键盘要进行充电，用USB线
将键盘与电脑连接 好， 红色 指示灯会亮起来，在充电过程中，红色指示灯会长亮。当键
盘电充满时红色指 示灯 熄灭 ，此时将USB线从电脑上拔下来。
图2
5.3 更换电池：如 下图 所示
ON off
图3
图4
5.4 蓝牙连接
5.4.1 连接建立：首先要确定 你要连接的 电脑是否具 有蓝牙功能 ，如果没有 的话，
你必须要有一个蓝牙适 配器使之与 电脑相连接 。
5.4.1.1打开电脑中蓝牙通信软件,使之处于可搜寻其它蓝牙设备的状态.具体操作
请参考其蓝牙设备说明 书.这里所描述 的只是作为 参考。打开 “控制面板 ”，
找到蓝牙设备图标，右 击该图标， 选择“打开 ”，在弹出 来的对话框 里
单击“贴加”，在接下 来弹出的对 话框中选择 “我设备已 连接并设置 好，
可以查找”然后单击“ 下一步”。 电脑会自动 搜索已打开 的其它蓝牙 设备。
5.4.2 拔动蓝牙键盘的开关至ON处,打开电源.单击一下蓝牙重启按键直到LED3闪
烁然后松开该键，LED3闪几秒钟后熄灭。这说明蓝牙键盘与电脑已建立连接
注：在操作过程中，不 要再按蓝牙 重启键，否 则连接会断 开的，
5.4.3 连接成功后会出现如下对话框,单击该图标,选择"下一步"

5.4.4 在接下来弹出 的对话框里 ，软件会要 求你输入连 接密码，此 时你可以按 要求
输入你软件给你的随机 密码，同时 你也可以选 择不要输入 密码。然后 软件会
自动安装，至此连接配 对成功，你 可以使用蓝 牙键盘。
鼠标左键
鼠标右键
鼠标按钮
组合键：
操作方向转换
（Fn+Esc)
6.空中鼠标的操作 ：
6.1 空中鼠标有两 种操 作模 式:
第一种操作模式:按住 鼠标 按钮 不放，去移动键盘，显示 屏上 的光 标会随着手的移动而移动 。
在这种操作模式下 ，当 你将 鼠标移到你想要的位置， 然后 松开 手指，此时的光标将停住
不动,如果你再移动键 盘， 显示 屏上的光标也不会动。
第二种操作模式:按一 下鼠 标按 钮然后松开手指，此时移 动键 盘， 鼠标会随着手的移动而
的移动。
6.2 你可以通过按一下鼠标按钮来进行两种模式的切换
图5

中文
6.3鼠标操作方向转换：
不同人有不同的习惯，有人喜欢竖着使用键盘，有人喜欢橫向使用键盘，比方说，你当前
如果是橫向使用键盘，你上下左右移动键盘时，光标会随着你的手势而移动，但如果你突
然转向竖着使用键盘时，这时你如果上下移动键盘时，那么光标就有可能与你的手势方向
不一致，这时你只 需按 住Fn+Esc一次进 行转 换就可以了。然后光标的 移动 方向 就会与你的
手的姿势方向一致 了。
鼠标按钮
鼠标右键
BT
7.键盘功能 描述
鼠标左键
导航键
向上翻页
向下翻页
删除
图6
图7

鼠标左键 鼠标左键
BT
BT
按住以激活鼠标
鼠标右键 鼠标右键
向上翻页 向上翻页
向下翻页 向下翻页
按住BT与接收器配对
上，下，左，右移动光标
上下左右移动光标
功能描述 操作
激活鼠标
等于标准键盘上的
Back Space
单击
中文
8.组合键Fn:
所有的组合键都必须与Fn配合使用，例如你想操作Home键，你就要按住Fn+数字键9
图8

F12 F12
PrtSc
下一曲
Home
Home
F11 F11
End End
Ins
Del
Fn
Insert
菜单快捷键
配合其它的键使用 按 住该 键以 及其它的键
鼠标操作方向转换 键
重启
音量减小
音量增大
静音
前一曲
暂停
返回到主页
返回到上一页
抓屏
删除
按住Fn+Esc
按住Fn+F1
按住Fn+F2
按住Fn+F3
按住Fn+F4
按住Fn+F5
按住Fn+F6
按住Fn+F7
按住Fn+F8
按住Fn+F9
按住Fn+F10
按住Fn+9
按住Fn+=
按住Fn+-
按住Fn+0
按住Fn+8
按住Fn+7
按住Fn+Enter
按住Fn+
功能说明 操作
Ctrl+Alt+Del Ctrl+Alt+Del
中文
常见问题
1 .陀螺仪校验：
手动校验：当光标 出现 漂移 的情况，请将本机平放于 桌面 保持 静止，同时按住ESC+G键
保持3秒，LED闪烁进入初始化状态，此时松开按键。直到LED熄灭，表示初始化成功。
2. 自动校验：
A.使用过程中由于电 压和 温度 变化引起光标漂移，请将 本机 平放 于桌面保持静止，直到
光标停止，表示校 验完 成。
B .当开机鼠标不工作时，需放置水平桌面5秒，让其自动校正。
C .当按F N + E S C键转换鼠标方向 时， 鼠标 无法正常工作，需放置水 平桌 面5秒钟左右，
让键盘自动校正。
3 .3 D校验（：当飞鼠方向不对时，需进行3 D效验）
请将本机按键面朝上平放于桌面保持静止，同时按住ALT+ESC键保持3秒，LED闪烁 进入
3D校验状态, 此时松开 按键 ，按 方向右键确认后LED常亮，松开方向右 键键 后；等待LED
闪烁提醒校验垂直 方向 ，此 时将本机垂直方向正面朝 左， 再按 方向右键确认LED长亮，
松开方向右键键后 ，LED熄灭，此时表示3D校验完成。
