IPCOMM IPC191V4 User manual

Walter-Bouhon-Straße 4
90427 Nuremberg
Germany
Edition Oct 2015
Version 1.3
Phone:
Fax:
Internet:
Email:
[phone]
[phone]
http://www.ipcomm.de
[e-mail]
Industrial PC
IPC191V4
(Linux OS)
General Operating-, Maintenance- and
Installation Manual
Hardware Platform
Gateway

Subject to alterations Version 1.3
IPCOMM GmbH - 1 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
History
Version
Date
Chapter
Modification
Author
1.0
21-01-15
Initial version
P. Kauschat
1.1
27-04-15
2.1
4
Explanation of function test
Modification of technical data
P. Kauschat
1.2
12-05-15
2.2.5
Replacement of CompactFlash by CFast card
P. Kauschat
1.3
19-10-15
2.2.1
2.2.5
5
Optional deactivation of the USB interfaces
Possibility to install the CFast card inside the device
New chapter
‚Nomenclature of the IPC191V4 article number‘
P. Kauschat

Subject to alterations Version 1.3
IPCOMM GmbH - 2 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
Table of Contents
1Introduction...................................................................................................................................... 3
2Hardware Description...................................................................................................................... 4
2.1 General.................................................................................................................................... 4
2.2 Hardware Components............................................................................................................ 5
2.2.1 Mainboard........................................................................................................................ 5
2.2.2 Onboard RS-232 Interfaces............................................................................................. 6
2.2.3 8/16 Port RS-232 Serial Interface (RS-232 Interface for Remote Communication)........ 6
2.2.4 Ethernet Interfaces .......................................................................................................... 7
2.2.5 CFast Memory Card ........................................................................................................ 7
2.2.6 CMOS Lithium Battery..................................................................................................... 8
2.2.7 CPU LED ......................................................................................................................... 8
2.2.8 Power Supply................................................................................................................... 8
2.2.8.1 AC Power Supply......................................................................................................... 9
2.2.8.2 DC Power Supply ........................................................................................................ 9
3Overview of Variants / Interface Configuration.............................................................................. 10
3.1 Variant A................................................................................................................................ 10
3.2 Variant B................................................................................................................................ 11
3.3 Variant E8.............................................................................................................................. 12
3.4 Variant E4M........................................................................................................................... 13
3.5 Variant L ................................................................................................................................ 13
3.6 Variant PSM........................................................................................................................... 14
3.7 Variant PMM.......................................................................................................................... 14
4Technical Data............................................................................................................................... 15
5Nomenclature of the IPC191V4 article number............................................................................. 18
6IPC191 CAD Drawing.................................................................................................................... 19

Subject to alterations Version 1.3
IPCOMM GmbH - 3 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
1 Introduction
All technical information, descriptions and illustrations contained in this ‘Operating, Maintenance and
Installation Manual’ remain our property and shall not be used otherwise than for operating this
system, nor shall they be copied, reproduced or passed on to third parties or brought to their notice
without our prior written consent.
The information represented in this manual is in keeping with current standards and is subject to later
alterations.
This manual contains important instructions referring to safe installation, commissioning, operation and
maintenance.
Read this manual carefully before starting up the gateway and observe the instructions.
In order to comply with the guidelines for electro-magnetic compatibility in industrial PCs (or other
variants) only CE-certified components are used in compliance with project-specific requirements.
It is to be noted that the gateway (IPC191V4) has not been protected against lightning and the
operator should, if desired, take appropriate protective precautions.
Our RS-232 isolator provides efficient protection of your data and equipment against external
influences. We will be pleased to draw up a non-binding offer for you.
Finally we want to draw your attention to the fact that any warranties with respect to the industrial PC
will be invalid in the event that:
Operation, servicing and maintenance are not carried out accurately according to the
instructions; repairs are not carried out by our personnel or without our prior written consent.
Commissioning is not carried out by our personnel or we have not given our approval for the
commissioning or the commissioning is carried out by untrained personnel.
The unit is used inadequately, incorrectly, negligently or inappropriately or for a purpose other
than that originally intended.
The serial number is removed from the product.
For your protection, observe the following safety precautions when setting up your equipment:
Follow all cautions and instructions marked on the equipment.
Ensure that the voltage and frequency of your power source match the voltage and frequency
inscribed on the equipment's electrical rating label.
Never push objects of any kind through openings in the equipment. Dangerous voltages may
be present. Conductive foreign objects could produce a short circuit that could cause fire,
electric shock, or damage to your equipment.
The industrial PC must be mounted on an equipment carrier (1U) in a 19" rack.
A free floating or unilateral mounting may cause defects.
It is imperative to ensure a consequent strain relief to avoid damage to the connector of the
‘8 port DB9-male connector cable’.
All trademarks or brand marks mentioned in this document are used for identification purposes only
and are property of their respective owners.

Subject to alterations Version 1.3
IPCOMM GmbH - 4 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
2 Hardware Description
2.1 General
As hardware platform for the protocol converter a 19" industrial PC is used. This solution offers a high
degree of flexibility, performance and reliability.
Mounting and intensive tests of the industrial PC are done in our company. Each device runs through
an intensive function test. This function test includes a burn-in test with full communication of all
interfaces (min. 48 hours). Drops of communication, transmission errors and every important
component with regard to function, temperature, voltages etc. are monitored.
Hundreds of restarts are executed whereby a connection to all interfaces is established at each
reboot.
Quality assurance is done according to the four-eye principle. Each device passes a number of quality
inspections.
All components are cooled passively. Only if critical system temperatures have been reached two
independent housing fans are switched on automatically. Important for the selection of our
components are particular items like quality, availability and a high durability.
The IPC191V4 captivates with its significantly higher processor performance compared to the previous
model. It is equipped with 4 CPU cores and up to 8 GB RAM and offers many more interfaces
(serial/LAN).
The industrial PC consists of a 19" chassis (1U) with two PCIe extension slots for inserting the
appropriate cards.
The mains power supply are 90 –264 V AC, 104 –373 V DC auto range, optional 9 –32 V DC power
supply (other on request). The basic system can be equipped as requested with corresponding PCIe
plug-in cards.

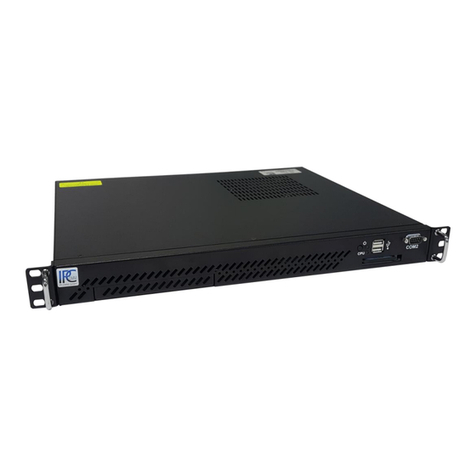

Figure 1: IPC191V4 front view
S/N, model, voltage
CFast card
power LED
power button
HDD/SSD caddy or
DVD RW drive
(optional)
CPU LED
or
HDD LED
COM 2
CFast activity
LED

Subject to alterations Version 1.3
IPCOMM GmbH - 5 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
Figure 2 shows the reverse side of the device. The pin assignments vary according to execution. An
overview of the different models can be found in chapter 3 “Overview of Variants / Interface
Configuration”.
Figure 2: interfaces overview (example shows variant E4M)
Figure 3: 8-port DB9-male connector cable for 8-port serial interface card
It is imperative to ensure a consequent strain relief to avoid damage to the connector, see
figure above!
2.2 Hardware Components
2.2.1 Mainboard
The Mini-ITX Mainboard is an ultra-compact x86 platform with five integrated network interfaces und
all other necessary interfaces. Its heart consists of a fanless Intel processor. The mainboard provides
two DIMM slots for DDR3 memory modules and supports up to 8 GB system memory.
Additional interfaces:
2 x RS-232
2 x SATA
5 x LAN 10/100/1000 Mbps BaseT (RJ45)
HDMI
VGA
Keyboard- / mouse port
USB 2.0 and USB 3.0 connections (it is possible to order the deactivation of the USB
interfaces on customer request)
2 x PCIe
mouse
LAN1
LAN2
LAN3
LAN4
PCIe2
main power supply
input
COM1
keyboard
monitor
VGA
PCIe1
LAN5
HDMI
USB 3.0
USB 2.0
USB 2.0
8 port DB9-male connector cable
for 8-port serial interface card
(optional: DB25 male/female)

Subject to alterations Version 1.3
IPCOMM GmbH - 6 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
2.2.2 Onboard RS-232 Interfaces
The installed mainboard provides 2 serial interfaces.
COM 1 –COM2
SERIAL PORT
RS232 DTE
DB9 male connector
Pin
Direction
Description
1
INPUT
DCD Data Carrier Detect
2
INPUT
RXD Receive Data
3
OUTPUT
TXD Transmit Data
4
OUTPUT
DTR Data Terminal Ready
5
GND Masse
6
INPUT
DSR Data Set Ready
7
OUTPUT
RTS Request To Send
8
INPUT
CTS Clear To Send
9
INPUT
RI Ring Indicator
Figure 4: pin assignment of DB9 DTE RS-232 mainboard interface (COM1-COM2)
Note: For the adequate protection against the impact of switching interferences (Burst) and surge
voltage, we recommend the use of our 4 kV isolated RS-232 isolator. The used RS-232 transceivers
have ESD protection up to 15 kV. The isolator was tested according to EMC guidelines, climatic and
mechanical requirements in compliance with the standard IEC 61850-3.
2.2.3 8/16 Port RS-232 Serial Interface
(RS-232 Interface for Remote Communication)
Depending on the model each IPC191V4 can be equipped with up to two 8/16-port serial interface
cards. The following pin assignment is realized with an 8-port DB9 male connector cable (see Figure
3). Other cables (e.g. DB25) are possible on request.
SERIAL PORT
RS232 DTE
DB9 male connector
Pin
Direction
Description
1
INPUT
DCD Data Carrier Detect
2
INPUT
RXD Receive Data
3
OUTPUT
TXD Transmit Data
4
OUTPUT
DTR Data Terminal Ready
5
GND Masse
6
INPUT
DSR Data Set Ready
7
OUTPUT
RTS Request To Send
8
INPUT
CTS Clear To Send
9
Figure 5: pin assignment of DB9 serial interface
See note chapter 2.2.2

Subject to alterations Version 1.3
IPCOMM GmbH - 7 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
2.2.4 Ethernet Interfaces
The industrial PC features five 10/100/1000 Mbps BaseT (RJ45) interfaces. Further interfaces with
10/100/1000 Mbps BaseT are possible on request. The IPC191V4 can be equipped with up to
13 Ethernet interfaces.
Figure 6: RJ45 network interface
2.2.5 CFast Memory Card
The CFast card serves as a mass storage device, i.e. for storing the operating system, the
applications and configuration data. As a result the disadvantages involved with the use of a rotating
hard disk are avoided, thus improving the reliability of the system substantially since a CFast has an
MTBF of at least 4,000,000 hours.
The CFast adapter is simply connected to the SATA bus of the CPU module and treated just like a
hard disk.
Figure 7: CFast adapter
When the power supply is switched off the CFast card with the entire software can simply be taken out
or inserted enabling a quick change to different hardware.
It is possible to install the CFast card inside the device, inaccessible from the outside.
Push to take out
CFast

Subject to alterations Version 1.3
IPCOMM GmbH - 8 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
2.2.6 CMOS Lithium Battery
The onboard CMOS RAM stores system configuration data and has an onboard battery power supply.
The long-life lithium battery has normally a lifetime of at least 5 years.
If the CMOS battery is empty and the CMOS information has been deleted, the CMOS-RAM is
programmed by the BIOS with default settings.
The converter can be operated faultlessly even if the CMOS RAM is not provided by the battery. After
the battery has been changed only time and date must be input.
For opening the case 6 screws on the top must be removed. The battery holder is soldered in the
mainboard and well visible.
Attention: Open-frame power supplies are used. Because of this, the process should be carried out
only by experienced electronic engineers. The device must be completely disconnected from any
power supply. Before opening please push the power button (without electricity supply) several times
to eliminate residual voltages of the power supply.
Battery replacement must be carried out by qualified specialists.
CAUTION! Incorrect replacement might cause the danger of explosion. Replace the battery
exclusively by the same type (3 V DC, CR2032). Used batteries are to be disposed absolutely in
accordance with the manufacturer's instructions.
Please pay attention to the correct polarity!
2.2.7 CPU LED
The CPU LED shows the states of conversion software and operating system.
Following figure shows all possible indications:
Figure 8: CPU LED indications
2.2.8 Power Supply
Power supplies with different input voltages can be used in the IPC191V4. Please pay attention to the
correct polarity and input voltage. The input voltage of the respective device is labeled on top of the
housing (see Figure 1).
ON
OFF
0.5 s
ON
OFF
0.5 s
5 s
ON
OFF
passive
mode
(standby)
active
mode
software has
stopped

Subject to alterations Version 1.3
IPCOMM GmbH - 9 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
2.2.8.1 AC Power Supply
By using AC voltages a specific power supply cable (see figure below) is supplied. Please use this
cable exclusively:
Figure 9: power cable
2.2.8.2 DC Power Supply
By using DC voltages only a male connector is supplied. This connector has to be used. By
connecting the cable with the male connector the correct polarity must be kept. The wire cross-section
must be at least 1.5 mm².
Figure 10: DC power connection socket
connection
for earth
potential
power supply
input
+
power supply
input
-
DC power cable
(example - not
scope of delivery)

Subject to alterations Version 1.3
IPCOMM GmbH - 10 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
3 Overview of Variants / Interface Configuration
The following tables represent the configuration of the individual interfaces of miscellaneous variants.
3.1 Variant A
Assembly
Linux
Device
I/O port
IRQ
Label
Connector
Mainboard
ttyS0
3F8
4
COM1
(Chassis rear)
DB9ST
ttyS1
2F8
3
COM2
(Chassis front)
DB9ST
eth0
PCIe (Onboard)
Auto
LAN1
RJ45
eth1
PCIe (Onboard)
Auto
LAN2
RJ45
eth2
PCIe (Onboard)
Auto
LAN3
RJ45
eth3
PCIe (Onboard)
Auto
LAN4
RJ45
eth4
PCIe (Onboard)
Auto
LAN5
RJ45
UART
Adapter 8X
ttyMUE0
PCIe (Slot 2)
Auto
COM4
DB9ST
ttyMUE1
PCIe (Slot 2)
Auto
COM5
DB9ST
ttyMUE2
PCIe (Slot 2)
Auto
COM6
DB9ST
ttyMUE3
PCIe (Slot 2)
Auto
COM7
DB9ST
ttyMUE4
PCIe (Slot 2)
Auto
COM8
DB9ST
ttyMUE5
PCIe (Slot 2)
Auto
COM9
DB9ST
ttyMUE6
PCIe (Slot 2)
Auto
COM10
DB9ST
ttyMUE7
PCIe (Slot 2)
Auto
COM11
DB9ST
Table 1: variant A

Subject to alterations Version 1.3
IPCOMM GmbH - 11 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
3.2 Variant B
Assembly
Linux
Device
I/O port
IRQ
Label
Connector
Mainboard
ttyS0
3F8
4
COM1
(Chassis rear)
DB9ST
ttyS1
2F8
3
COM2
(Chassis front)
DB9ST
eth0
PCIe (Onboard)
Auto
LAN1
RJ45
eth1
PCIe (Onboard)
Auto
LAN2
RJ45
eth2
PCIe (Onboard)
Auto
LAN3
RJ45
eth3
PCIe (Onboard)
Auto
LAN4
RJ45
eth4
PCIe (Onboard)
Auto
LAN5
RJ45
UART
Adapter 8X
ttyMUE0
PCIe (Slot 1)
Auto
COM4
DB9ST
ttyMUE1
PCIe (Slot 1)
Auto
COM5
DB9ST
ttyMUE2
PCIe (Slot 1)
Auto
COM6
DB9ST
ttyMUE3
PCIe (Slot 1)
Auto
COM7
DB9ST
ttyMUE4
PCIe (Slot 1)
Auto
COM8
DB9ST
ttyMUE5
PCIe (Slot 1)
Auto
COM9
DB9ST
ttyMUE6
PCIe (Slot 1)
Auto
COM10
DB9ST
ttyMUE7
PCIe (Slot 1)
Auto
COM11
DB9ST
UART
Adapter 8X
ttyMUE8
PCIe (Slot 2)
Auto
COM12
DB9ST
ttyMUE9
PCIe (Slot 2)
Auto
COM13
DB9ST
ttyMUE10
PCIe (Slot 2)
Auto
COM14
DB9ST
ttyMUE11
PCIe (Slot 2)
Auto
COM15
DB9ST
ttyMUE12
PCIe (Slot 2)
Auto
COM16
DB9ST
ttyMUE13
PCIe (Slot 2)
Auto
COM17
DB9ST
ttyMUE14
PCIe (Slot 2)
Auto
COM18
DB9ST
ttyMUE15
PCIe (Slot 2)
Auto
COM19
DB9ST
Table 2: variant B

Subject to alterations Version 1.3
IPCOMM GmbH - 12 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
3.3 Variant E8
Assembly
Linux
Device
I/O port
IRQ
Label
Connector
Mainboard
ttyS0
3F8
4
COM1
(Chassis rear)
DB9ST
ttyS1
2F8
3
COM2
(Chassis front)
DB9ST
eth0
PCIe (Onboard)
Auto
LAN1
RJ45
eth1
PCIe (Onboard)
Auto
LAN2
RJ45
eth2
PCIe (Onboard)
Auto
LAN3
RJ45
eth3
PCIe (Onboard)
Auto
LAN4
RJ45
eth4
PCIe (Onboard)
Auto
LAN5
RJ45
Ethernet
Adapter 4X
eth5
PCIe (Slot 1)
Auto
LAN6
RJ45
eth6
PCIe (Slot 1)
Auto
LAN7
RJ45
eth7
PCIe (Slot 1)
Auto
LAN8
RJ45
eth8
PCIe (Slot 1)
Auto
LAN9
RJ45
Ethernet
Adapter 4X
eth9
PCIe (Slot 2)
Auto
LAN10
RJ45
eth10
PCIe (Slot 2)
Auto
LAN11
RJ45
eth11
PCIe (Slot 2)
Auto
LAN12
RJ45
eth12
PCIe (Slot 2)
Auto
LAN13
RJ45
Table 3: variant E8

Subject to alterations Version 1.3
IPCOMM GmbH - 13 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
3.4 Variant E4M
Assembly
Linux
Device
I/O port
IRQ
Label
Connector
Mainboard
ttyS0
3F8
4
COM1
(Chassis rear)
DB9ST
ttyS1
2F8
3
COM2
(Chassis front)
DB9ST
eth0
PCIe (Onboard)
Auto
LAN1
RJ45
eth1
PCIe (Onboard)
Auto
LAN2
RJ45
eth2
PCIe (Onboard)
Auto
LAN3
RJ45
eth3
PCIe (Onboard)
Auto
LAN4
RJ45
eth4
PCIe (Onboard)
Auto
LAN5
RJ45
Ethernet
Adapter 4X
eth5
PCIe (Slot 1)
Auto
LAN6
RJ45
eth6
PCIe (Slot 1)
Auto
LAN7
RJ45
eth7
PCIe (Slot 1)
Auto
LAN8
RJ45
eth8
PCIe (Slot 1)
Auto
LAN9
RJ45
UART
Adapter 8X
ttyMUE0
PCIe (Slot 2)
Auto
COM4
DB9ST
ttyMUE1
PCIe (Slot 2)
Auto
COM5
DB9ST
ttyMUE2
PCIe (Slot 2)
Auto
COM6
DB9ST
ttyMUE3
PCIe (Slot 2)
Auto
COM7
DB9ST
ttyMUE4
PCIe (Slot 2)
Auto
COM8
DB9ST
ttyMUE5
PCIe (Slot 2)
Auto
COM9
DB9ST
ttyMUE6
PCIe (Slot 2)
Auto
COM10
DB9ST
ttyMUE7
PCIe (Slot 2)
Auto
COM11
DB9ST
Table 4: variant E4M
3.5 Variant L
Assembly
Linux
Device
I/O port
IRQ
Label
Connector
Mainboard
ttyS0
3F8
4
COM1
(Chassis rear)
DB9ST
ttyS1
2F8
3
COM2
(Chassis front)
DB9ST
eth0
PCIe (Onboard)
Auto
LAN1
RJ45
eth1
PCIe (Onboard)
Auto
LAN2
RJ45
eth2
PCIe (Onboard)
Auto
LAN3
RJ45
eth3
PCIe (Onboard)
Auto
LAN4
RJ45
eth4
PCIe (Onboard)
Auto
LAN5
RJ45
Table 5: variant L

Subject to alterations Version 1.3
IPCOMM GmbH - 14 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
3.6 Variant PSM
Assembly
Linux
Device
I/O port
IRQ
Label
Connector
Mainboard
ttyS0
3F8
4
COM1
(Chassis rear)
DB9ST
ttyS1
2F8
3
COM2
(Chassis front)
DB9ST
eth0
PCIe (Onboard)
Auto
LAN1
RJ45
eth1
PCIe (Onboard)
Auto
LAN2
RJ45
eth2
PCIe (Onboard)
Auto
LAN3
RJ45
eth3
PCIe (Onboard)
Auto
LAN4
RJ45
eth4
PCIe (Onboard)
Auto
LAN5
RJ45
Profibus
Adapter 1X
PCIe (Slot 1)
Auto
Profibus
Profibus Slave
Table 6: variant PSM
3.7 Variant PMM
Assembly
Linux
Device
I/O port
IRQ
Label
Connector
Mainboard
ttyS0
3F8
4
COM1
(Chassis rear)
DB9ST
ttyS1
2F8
3
COM2
(Chassis front)
DB9ST
eth0
PCIe (Onboard)
Auto
LAN1
RJ45
eth1
PCIe (Onboard)
Auto
LAN2
RJ45
eth2
PCIe (Onboard)
Auto
LAN3
RJ45
eth3
PCIe (Onboard)
Auto
LAN4
RJ45
eth4
PCIe (Onboard)
Auto
LAN5
RJ45
Profibus
Adapter 1X
PCIe (Slot 1)
Auto
Profibus
Profibus Master
Table 7: variant PMM

Subject to alterations Version 1.3
IPCOMM GmbH - 15 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
4 Technical Data
Diagnostic LEDs
Power LED
LED to show different software conditions
HDD LED
CFast activity LED
Mass storage CFast
Rugged CFast card, industrial –grade
Max. 64 GB supported
MTBF ≥ 4,000,000 hours
No moving parts
Removable flash card
Bad Block Scanning/Handling
Wear-Leveling system
ECC
Very short access time
Mass storage SATA HDD, Raid Level 1 or 0 possible (optional)
up to two server HDDs for continuous operation
MTBF ≥ 1,200,000 hours
Mass storage SATA 2,5" SSD or removable HDD (optional)
No moving parts
Very short access time
Very high write/read performance
Supported operating systems
Linux
Additional functions
Battery buffered real time clock (RTC)
Watchdog
Standards
The device is CE certified and tested according to type of test
EN 61000-6-2: 2005
EN 61000-6-4: 2007+ A1:2011
EN 61000-3-2: 2006 + A1:2009 + A2:2009
EN 61000-3-3: 2008
(The test report is available on request.)
Housing
19" rack mount chassis (1U)
2x PCIe
Excellent air flow with temperature controlled fans which are switched on only if a
certain CPU temperature and system temperature respectively has been
exceeded (configurable)
MTBF
> 100,000 hours

Subject to alterations Version 1.3
IPCOMM GmbH - 16 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
Power supply AC
(delivery model 1 –standard)
Fanless
90 –264 V AC, 104 –373 V DC auto range
Starting current max. 30 A
Input frequency 47 –63 Hz
Hold up time ≥ 20 ms, 230 V AC
Power consumption max. 50 W (depending on the used type)
Power supply 24 V DC
(delivery model 2 –optional)
Fanless
9 –32 V DC
Starting current max. 30 A at 24 V DC
Hold up time > 1 ms at +24 V DC and rated load
Power consumption max. 50 W (depending on the used type)
Further power supplies available on request.
Mainboard
Intel® Celeron® Embedded Quad-Core 64-bit processor, up to 2.16 GHz,
passively cooled (up to 3x faster than CPU of IPC191V3)
DDR3 RAM max. 8 GB
SATA interface
2 serial ports
Real-time clock/calendar
5 x RJ45 10/100/1000BaseT LAN interface,
more on request (over PCIe)
6x USB (5x USB 2.0, 1x USB 3.0) (more on request)
RAID SATA functionality (RAID Level 0 or RAID Level 1)
Serial cards
up to 32 RS-232 ports
DB9 male connectors, optional RJ45, DB25 (male, female)
Baud rate 50 bps to 921,600 bps
15 KV ESD protection
optional 4 kV surge protection
Optical drive (optional)
CD/DVD writer with slot-in technology
Video
Standard VGA interface
HDMI interface (DVI possible with an adapter)
Dimensions
Height 1 U
19" x 1.75" x 15" (W/H/D)
482.6 mm x 44.45 mm x 381 mm (W/H/D)
Weight
ca. 5.20 kg (depending on the used type)

Subject to alterations Version 1.3
IPCOMM GmbH - 17 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
Operating environment
Operating temperature:0° C to 50° C
Storage temperature: 0° C to 60° C
Relative humidity (non condensing): 5 % to 95 %
Assembled by IPCOMM GmbH / Germany

Subject to alterations Version 1.3
IPCOMM GmbH - 18 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
5 Nomenclature of the IPC191V4 article number
The IPC191V4 article number gives information about the equipment of the gateway.
product abbreviation
Value
Description
I5
IPC191i5
V4
IPC191V4
operating system
Value
Description
L
LINUX
S1
Special model:
- CFast card installed inside the device
- Deactivation of the USB interfaces
power supply
Value
Description
A
85 –265 V AC
B
24V DC
RAM
Value
Description
H
4 GB
I
8 GB
CFast / storage medium
Value
Description
F
4 GB
G
8 GB
H
16 GB
I
32 GB
J
64 GB
S
Reserved (see SSD storage medium)
SSD
Value
Description
S1
64 GB
S4
120 GB
The combination of CFast and SSD is hyphenated, e.g. D-S4
(CFast = 1 GB, SSD = 120 GB)
PCI Slot 1/2
Value
Description
0
Not equipped
1
8port RS-232 interface card
2
Ethernet 4port
3
Ethernet 2port
4
4port RS-232 interface card
5
Ethernet 1port
6
Profibus Slave
7
Profibus Master
8
-
9
16port RS-232 interface card
HP.V4x.ABC0-0.1
Version
CFast
Storage medium
PCI Slot 2
PCI Slot 1
Product
abbreviation
RAM
Power supply
Operating system

Subject to alterations Version 1.3
IPCOMM GmbH - 19 - Industrial PC IPC191V4
Walter-Bouhon-Straße 4 Copyright © IPCOMM GmbH, 2015
90427 Nuremberg All rights reserved
Germany
6 IPC191 CAD Drawing
