IPEX PH232Ui User manual
DocNo:PH232Ui‐UM‐001
USER’SMANUAL
IPEX
(IP Electronix)
25June2017
PH232U
i
USBtoRS‐232andTTLUSARTBi‐DirectionalConverte
r
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page2of24 DocNo.:PH232Ui‐UM‐001
25June2017
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page3of24 DocNo.:PH232Ui‐UM‐001
25June2017
Contents
1.INTRODUCTION....................................................................................................................................4
2.SPECIFICATIONS...................................................................................................................................4
3.PACKAGECHECKLIST.............................................................................................................................5
4.INSTALLATIONONWINDOWSXP..........................................................................................................6
5.INSTALLATIONINWINDOWS7...........................................................................................................13
6.CHANGINGCOMPORTNUMBER.........................................................................................................19
7.DISTINGUISHDEVICEPORTSCOMNUMBER........................................................................................22
8.PINASSIGNMENTS..............................................................................................................................23
9.GUARANTEE.......................................................................................................................................24
10.TECHNICALSUPPORT......................................................................................................................24
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page4of24 DocNo.:PH232Ui‐UM‐001
25June2017
1. Introduction
IPEX PH232Ui™ seriesisUSBtoRS‐232ConverterthataddsaWindowsserialCOMPortviaitsUSBconnection
andiscompatiblewithRS‐232standarddevicesRXD&TXDsignals.PH232Ui™seriesisfullyPlug&Playandno
externalpowersupplyisrequiredasPH232Ui™takesitspowerfromtheUSBBus.Ithasbeendesignedfor
industrialusageandisusefulforIndustrialAutomation,Telecommunications,SCADASystems,DCSSystems…
ProtectionagainstSurge,ESDandMagneticNoiseshasbeenforeseeninitsdesignandithas3kVisolation
betweenUSBandRS‐232sides.PH232Ui™isFull‐DuplexconverterandsupportsPoint‐to‐Pointconnection.
PH232Ui™comescompletewithdriversforMicrosoftWindowsXP/CE/2003/2008/7/8.Driversarealsoavailable
forLinux,MacOSandAndroid.
2. Specifications
USBtoRS‐232Bi‐DirectionalConverter
Hi‐speedUSB2.0supported(upto480Mbps)
AddoneCOMPorttoyourPC
FullyPlug&Play
BusPowered(NoExternalPowerSupplyRequired)
Serialtransmissionspeedupto230.4kbps
DriverSupported:MicrosoftWindowsXP/CE/2003/2008/7/8,Linux,MacOSandAndroid(32&64Bits)
OperatingSystems
Power(Green)LEDIndicator
Transmit(Blue)andReceive(Yellow)LEDIndicatorforAllPorts
OperatingTemperature:‐10°Cto+70°C(+14°Fto+158°F)
1YearGuaranteeand5YearsSupport
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page5of24 DocNo.:PH232Ui‐UM‐001
25June2017
3. PackageChecklist
BeforeinstallingthePH232Ui,verifythatthepackagecontainsthefollowingitems:
1) PH232Ui
2) USBCable
3) InstallationCD‐ROM
NOTE:Notifyyoursalesrepresentativeifanyoftheaboveitemsismissingordamaged.
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page6of24 DocNo.:PH232Ui‐UM‐001
25June2017
4. InstallationonWindowsXP

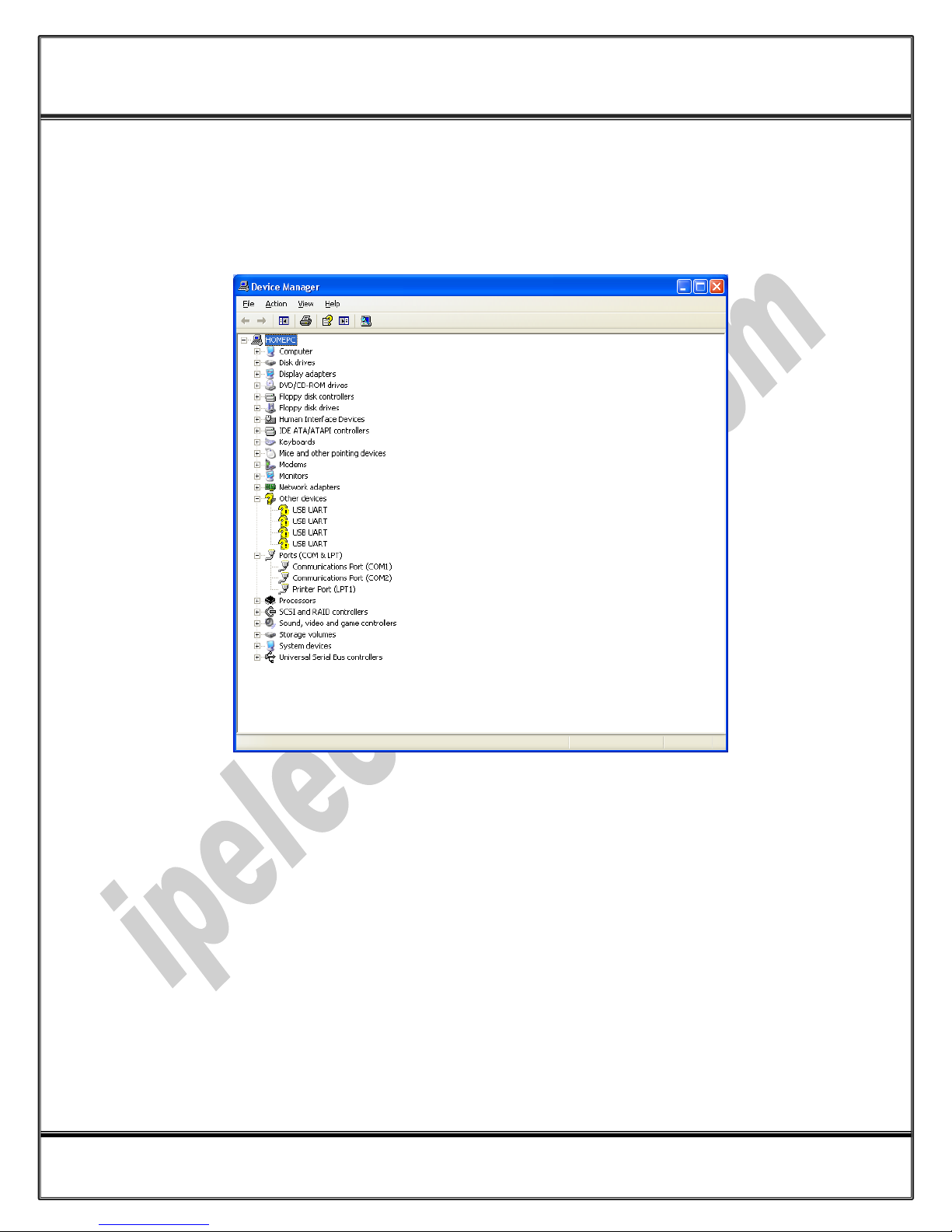

AfteryouplugPH232UitoUSBport,youcanseeanewdeviceintheDeviceManagerwindowasbelow:
(TorunDeviceManager,rightclickonMyComputer,selectPropertiesandthenselectHardwaretab,finally
clickonDeviceManagerbuttonlikefollowingpictureorsimplyuse"WIN‐KEY+R"andthentypeDEVMGMTand
pressEnter)
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page7of24 DocNo.:PH232Ui‐UM‐001
25June2017
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page8of24 DocNo.:PH232Ui‐UM‐001
25June2017

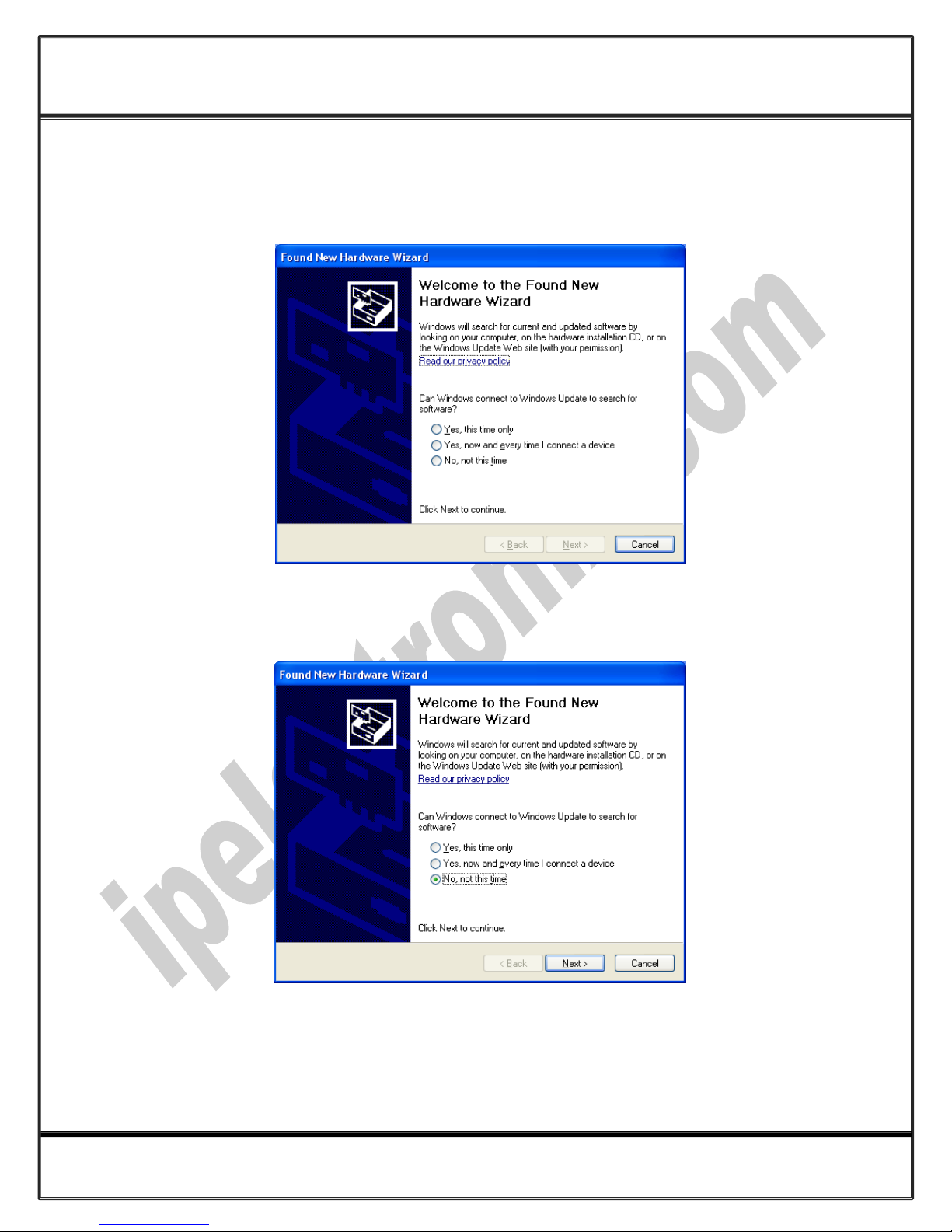

However,installationprogresswillbestartautomatically,andfollowingwindowwillbeseen,
Selectoption"No,notthistime"andthenclick"Next",
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page9of24 DocNo.:PH232Ui‐UM‐001
25June2017
Select"Installfromalistorspecificlocation(Advanced)"andclick"Next",
Select"Includethislocationinthesearch:"andclickon"Browse",
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page10of24 DocNo.:PH232Ui‐UM‐001
25June2017
Select"DriverFolder"ontheInstallationCDandclickOK.
Now,clickon"Next",
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page11of24 DocNo.:PH232Ui‐UM‐001
25June2017

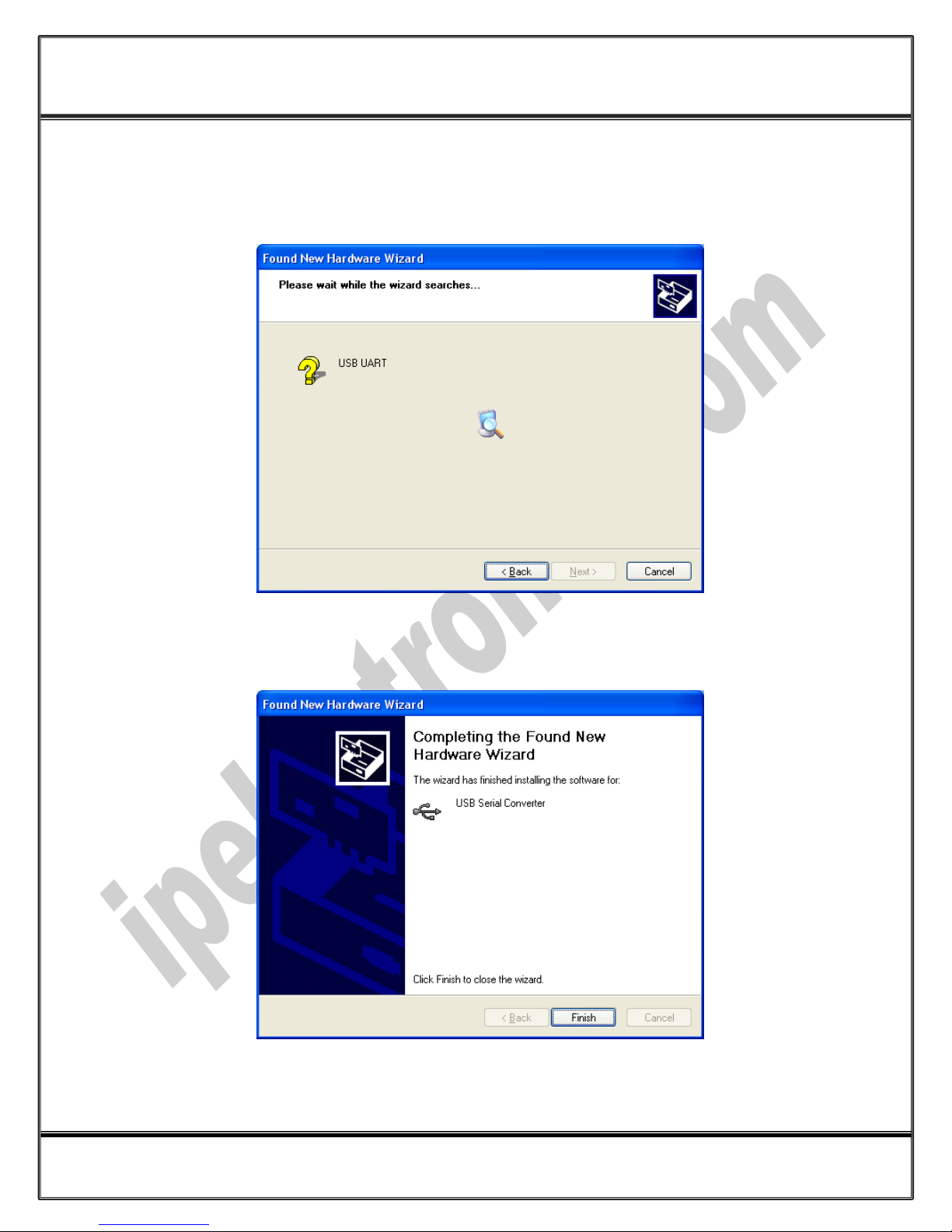

Thedriverwillbeinstalled,
Now,click"Finish",
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page12of24 DocNo.:PH232Ui‐UM‐001
25June2017

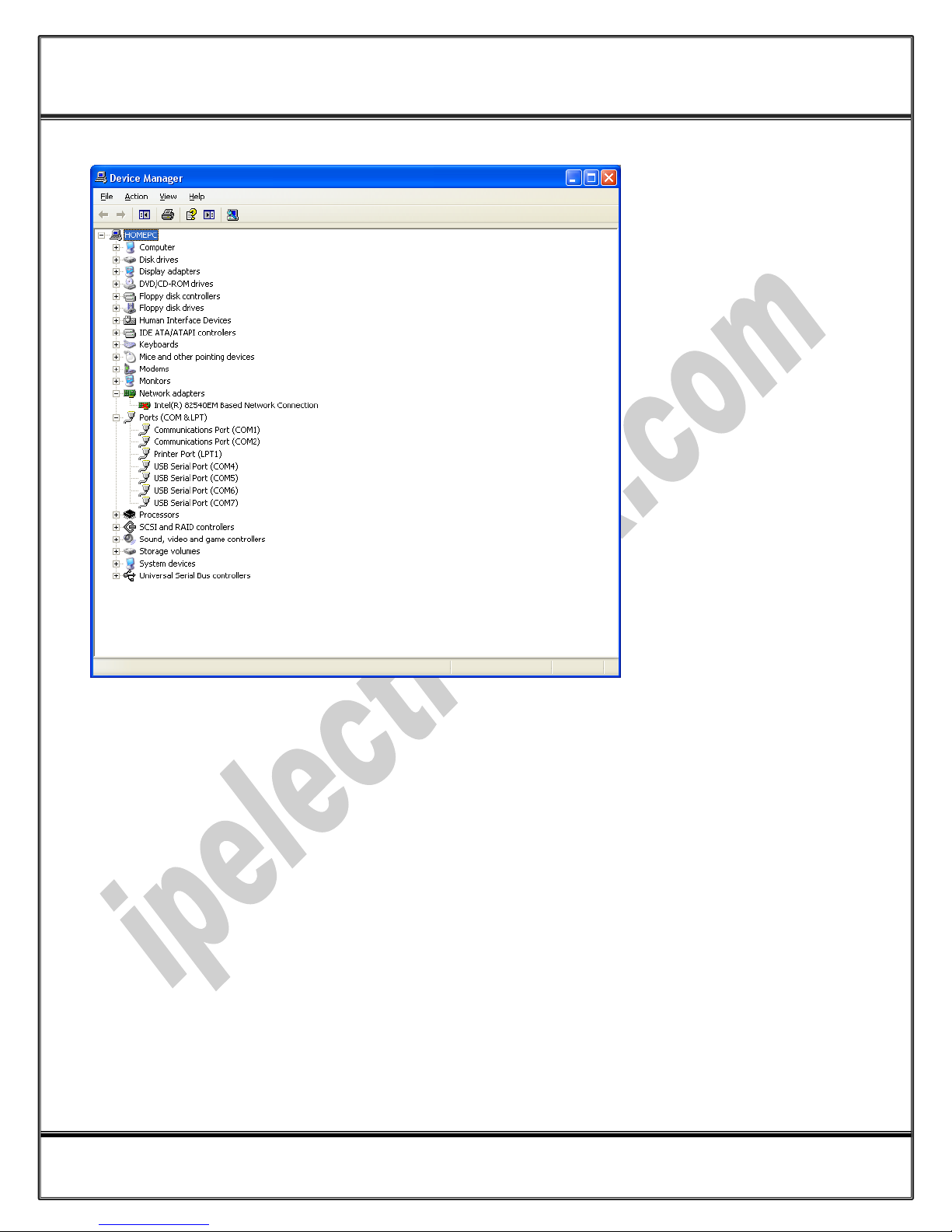

Afterfinishinginstallation,youshouldseeanew"USBSerialPort"in"Ports(COM&LPT)"sectionofDevice
Manager.
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page13of24 DocNo.:PH232Ui‐UM‐001
25June2017
5. InstallationinWindows7

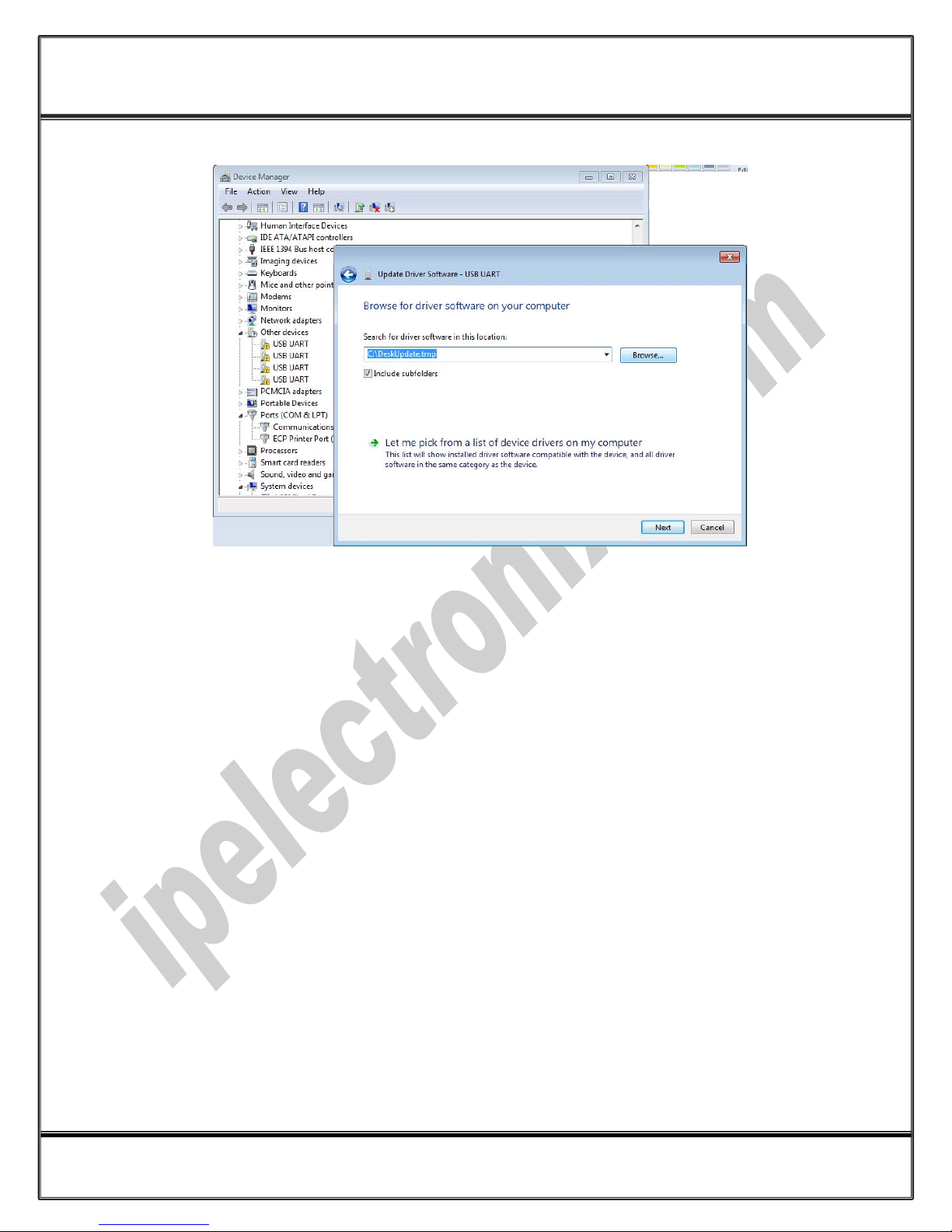

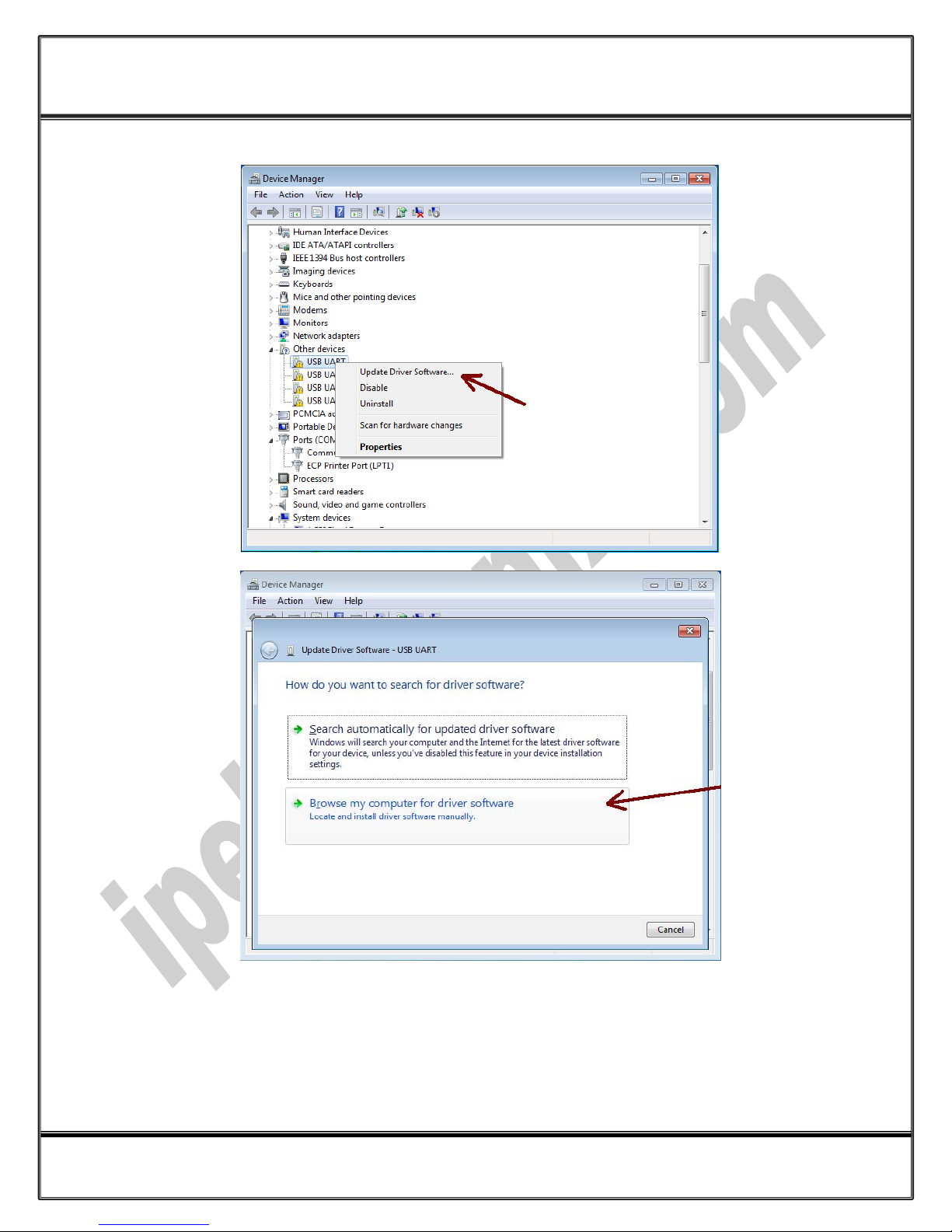

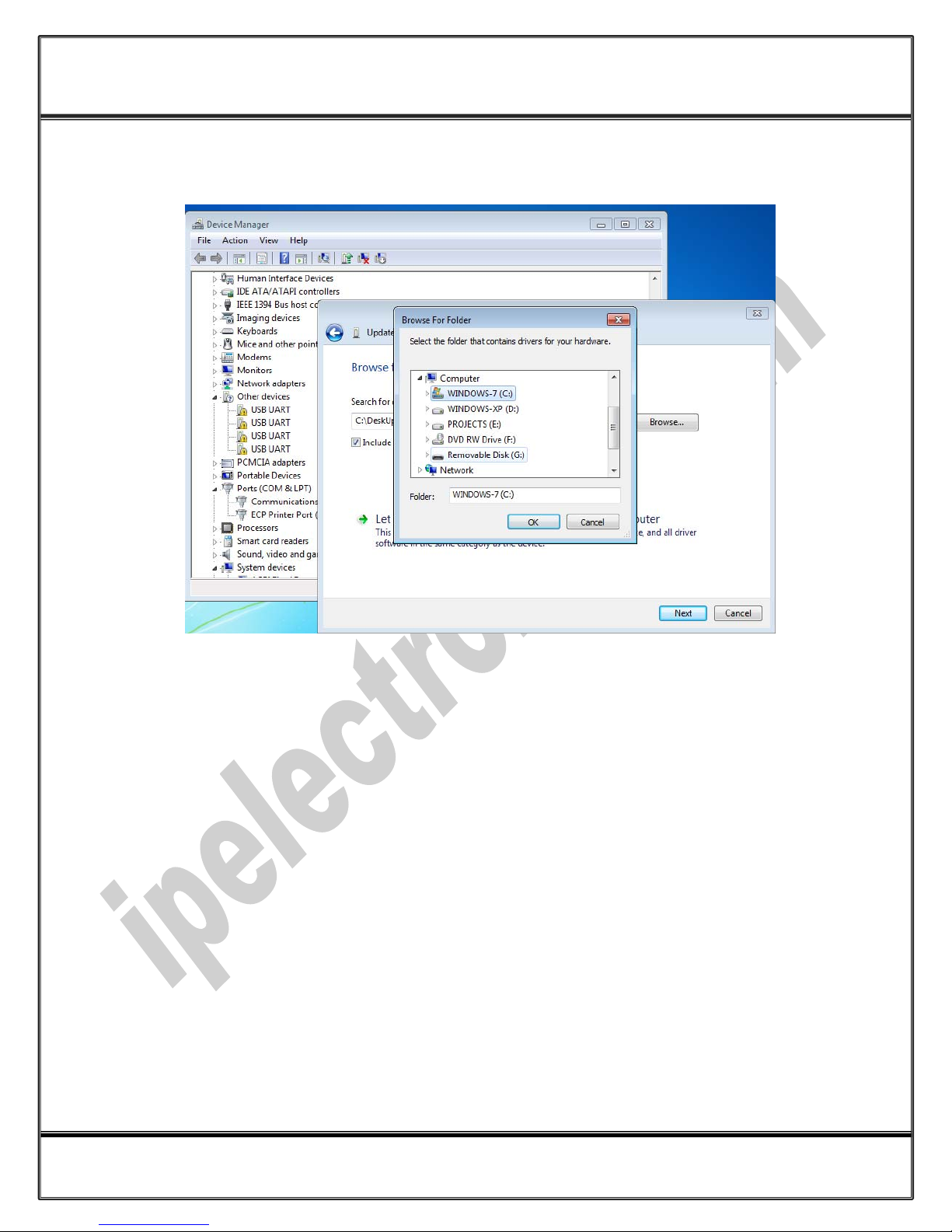

InstallationinWindows7,issameasWindowsXP,incasethatinstallationprogressdonotbestart
automatically,youcaninstalldrivermanuallyasfollow:
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page14of24 DocNo.:PH232Ui‐UM‐001
25June2017
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page15of24 DocNo.:PH232Ui‐UM‐001
25June2017
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page16of24 DocNo.:PH232Ui‐UM‐001
25June2017
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page17of24 DocNo.:PH232Ui‐UM‐001
25June2017
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page18of24 DocNo.:PH232Ui‐UM‐001
25June2017
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page19of24 DocNo.:PH232Ui‐UM‐001
25June2017
6. ChangingCOMPortNumber
TochangeCOMPortNumber,rightclickontheUSBCOMPortonDeviceManagerandselectproperties,
www.ipelectronix.com
IPEX (IP Electronix) PH232Ui:User’sManual
Page20of24 DocNo.:PH232Ui‐UM‐001
25June2017
Selectportsetting:
