IPEX PH232Ux2 User manual

Doc No: PH232Ux2-UM-001
USER’S MANUAL
IPEX
(IP Electronix)
30 November 2013
PH232Ux2
USB to #2 RS-232 Bi-Directional Converter

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 2 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 3 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
Contents
1. INTRODUCTION.......................................................................................................................................4
2. SPECIFICATIONS ......................................................................................................................................4
3. PACKAGE CHECKLIST ............................................................................................................................... 5
4. TOP PANEL ..............................................................................................................................................5
5. FRONT PANEL.......................................................................................................................................... 5
6. INSTALLATION ON WINDOWS XP ............................................................................................................6
7. INSTALLATION IN WINDOWS 7.............................................................................................................. 13
8. CHANGING COM PORT NUMBER ........................................................................................................... 19
9. DISTINGUISH DEVICE PORTS COM NUMBER.......................................................................................... 22
10. RS-232 SERIAL PORTS PIN CONFIGURATION (PORT #1, PORT #2) ...................................................... 23
11. RS-232 CONNECTING METHODS........................................................................................................ 24
12. GUARANTEE ...................................................................................................................................... 27
13. TECHNICAL SUPPORT ........................................................................................................................ 27

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 4 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
1. Introduction
IPEXPH232Ux2™is a USB to RS-232 Converter that adds two serial COM Port via its USB connection and is
compatible with RS-232 standard devices RXD, TXD, RTS, CTS, DTR, DSR, DCD, RI and GND signals and enables
your laptop or workstation with the ability to communicate between a USB port and up to #2 RS-232 serial
peripherals with baud rate from 300bps to 230400bps simultaneously. PH232Ux2™ is fully Plug & Play and no
external power supply is required as PH232Ux2™ takes its power from the USB Bus. It is designed for industrial
usage and is useful for Industrial Automation, Telecommunications, SCADA Systems, and DCS Systems …,
Protection against Surge, ESD and EMI also is considered in its design. PH232Ux2™ is Full-Duplex converter and
supports Point-to-Point connection.
PH232Ux2™ comes complete with drivers for Microsoft Windows XP/CE/2003/2008/7/8. Drivers are also
available for Linux, Mac OS and Android.
2. Specifications
USB to RS-232 Bi-Directional Converter
Number of Ports: #2 RS-232 Serial Port, #1 USB Port
Serial Standard: Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
RS-232 Signal (Full Handshake Support): TxD, RxD, DTR, RTS, DSR, DCD, CTS, RI, GND
RS-232 Parity: Even, Odd, None, Mark and Space; Selectable
Hi-speed USB 2.0 supported (up to 480 Mbps)
Fully Plug & Play
Bus Powered (No External Power Supply Required)
Serial Transmission Speed up to 230.4 kbps
Driver Supported: Microsoft Windows XP/CE/2003/2008/7/8, Linux, Mac OS and Android (32 & 64 Bits)
Operating Systems
Power (Green) LED Indicator
Transmit (Blue) and Receive (Yellow) LED Indicator for All Ports
ESD Protection: RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
Dimensions: 36.41mm x 121.82mm x 140 mm (1.43inch x 4.79inch x 5.51inch)
Operating Temperature: -10°C to +70°C (+14°F to +158°F)
1 Year Guarantee and 5 Years Support

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 5 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
3. Package Checklist
Before installing the PH232Ux2, verify that the package contains the following items:
1) PH232Ux2
2) USB Cable
3) Installation CD-ROM
NOTE: Notify your sales representative if any of the above items is missing or damaged.
4. Top Panel
5. Front Panel

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 6 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
6. Installation on Windows XP

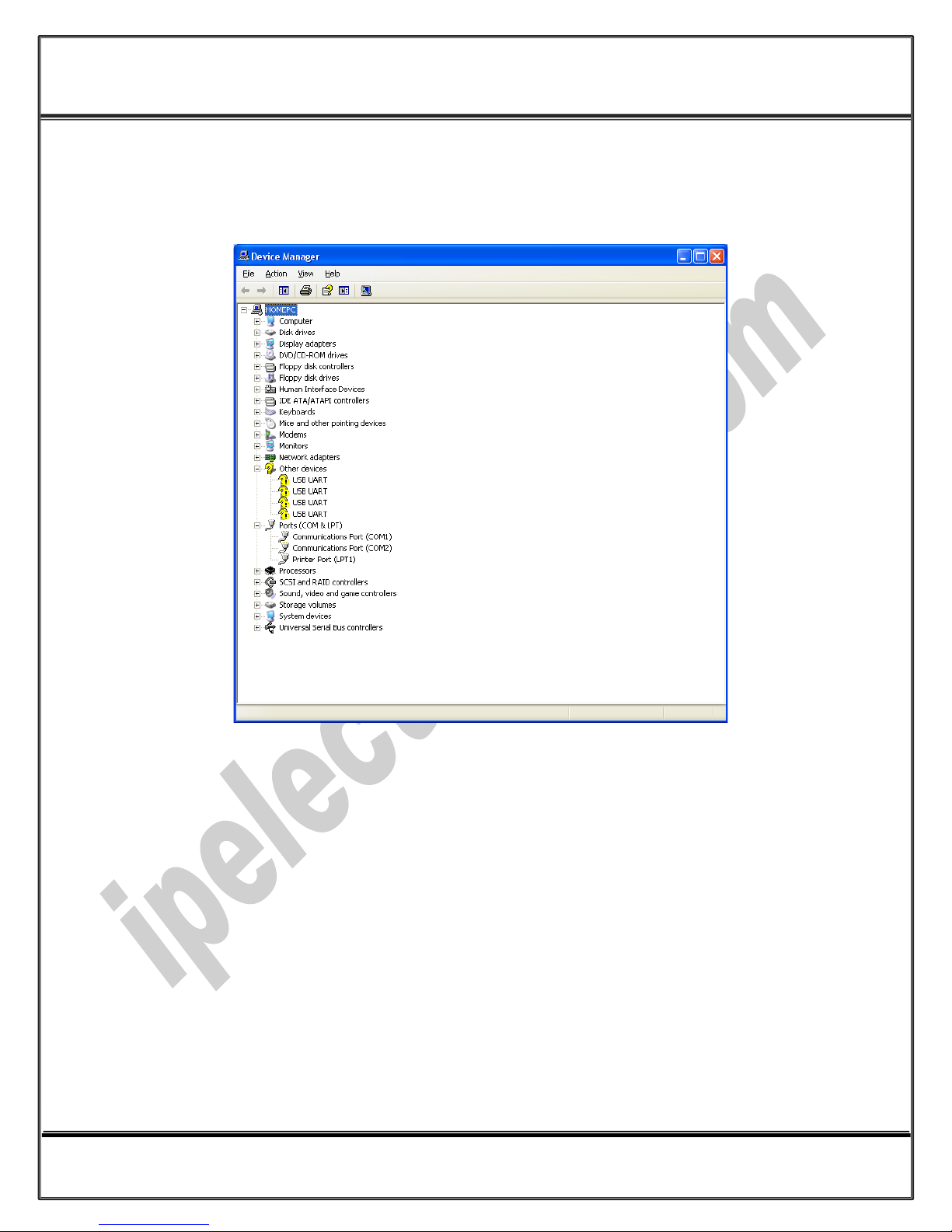

After you plug PH232Ux2 to USB port, you can see a new device in the Device Manager window as below:

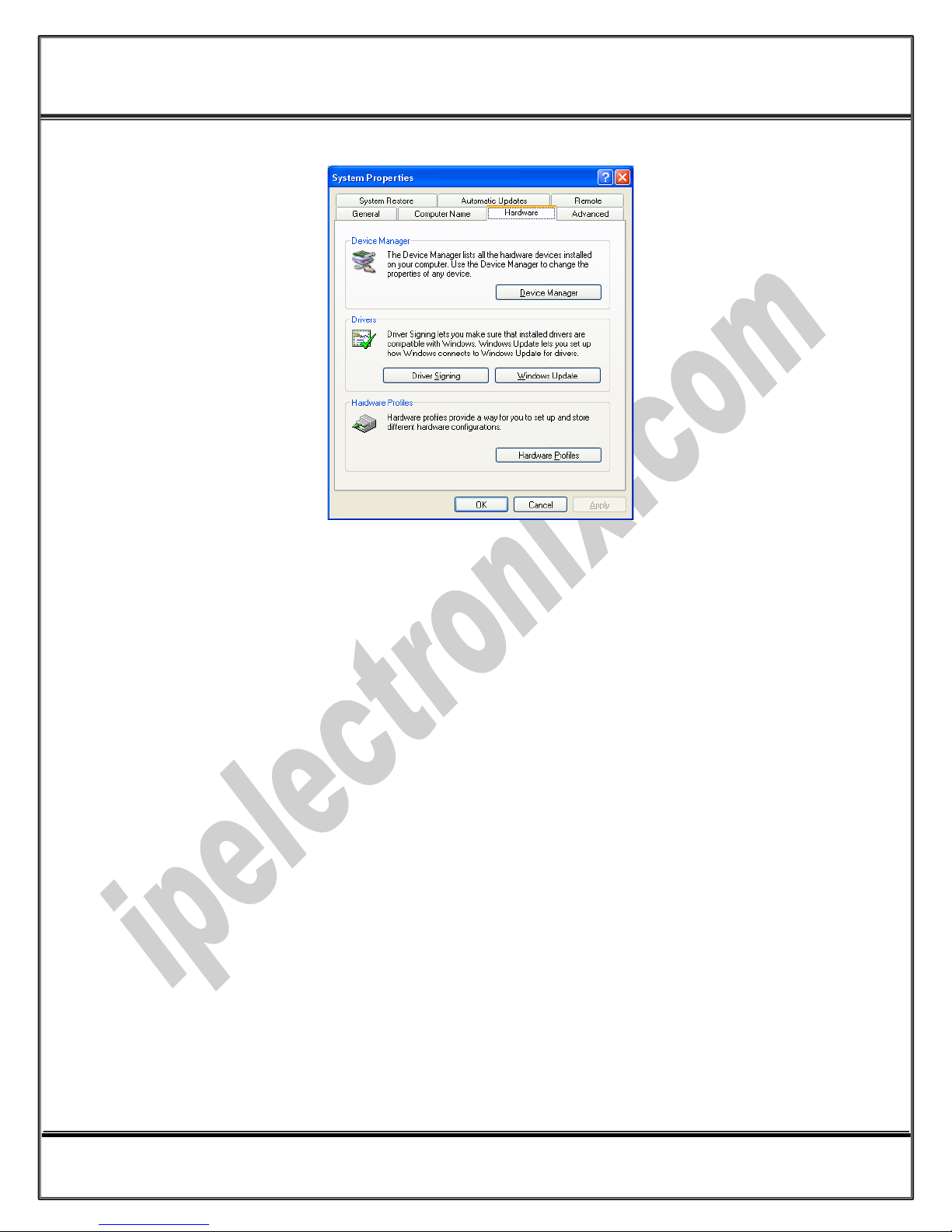

(To run Device Manager, right click on My Computer, select Properties and then select Hardware tab, finally
click on Device Manager button like following picture or simply use "WIN-KEY + R" and then type DEVMGMT and
press Enter)

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 7 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 8 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
However, installation progress will be start automatically, and following window will be seen,
Select option "No, not this time" and then click "Next",

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 9 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

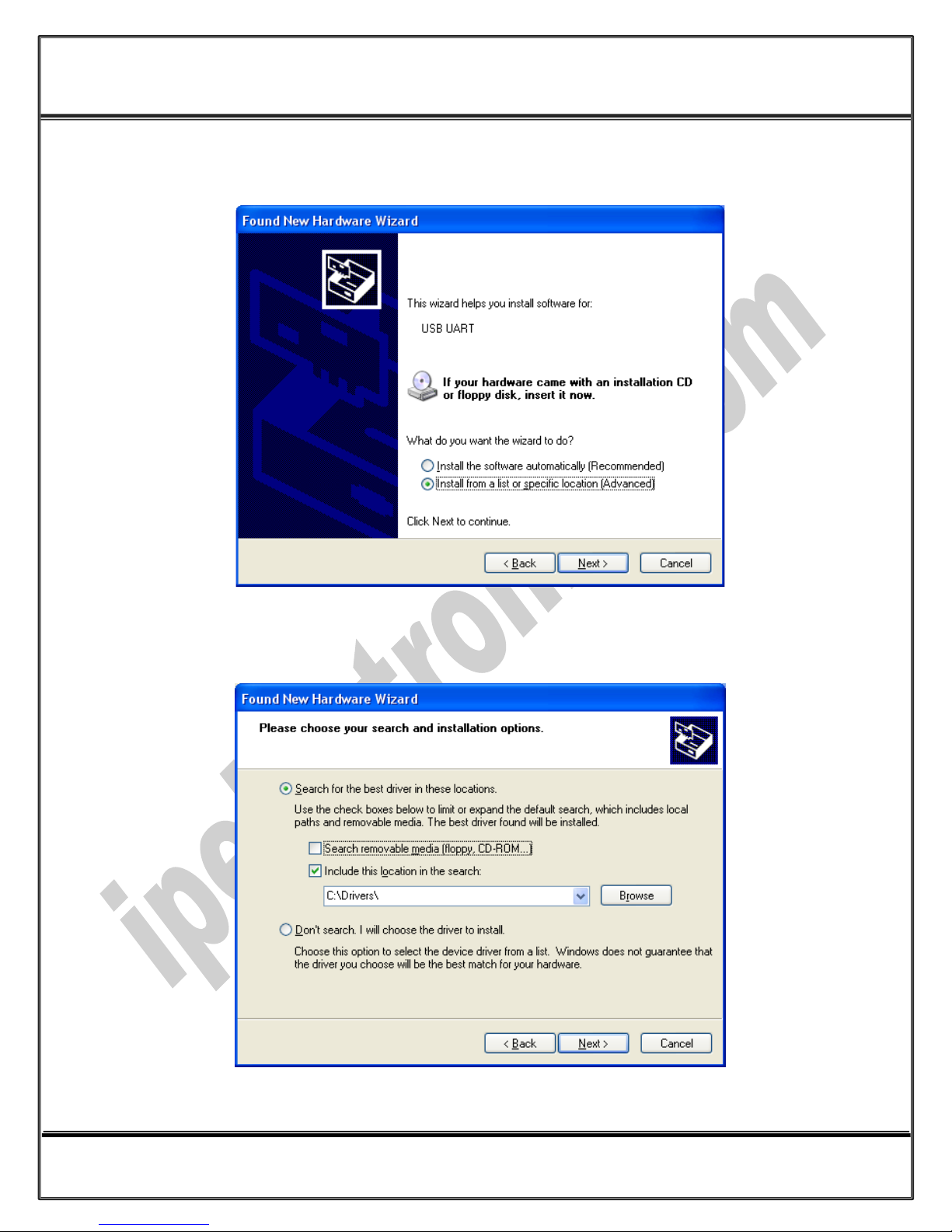

Select "Install from a list or specific location (Advanced)" and click "Next",
Select "Include this location in the search:" and click on "Browse",

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 10 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
Select "Driver Folder" on the Installation CD and click OK.
Now, click on "Next",

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 11 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

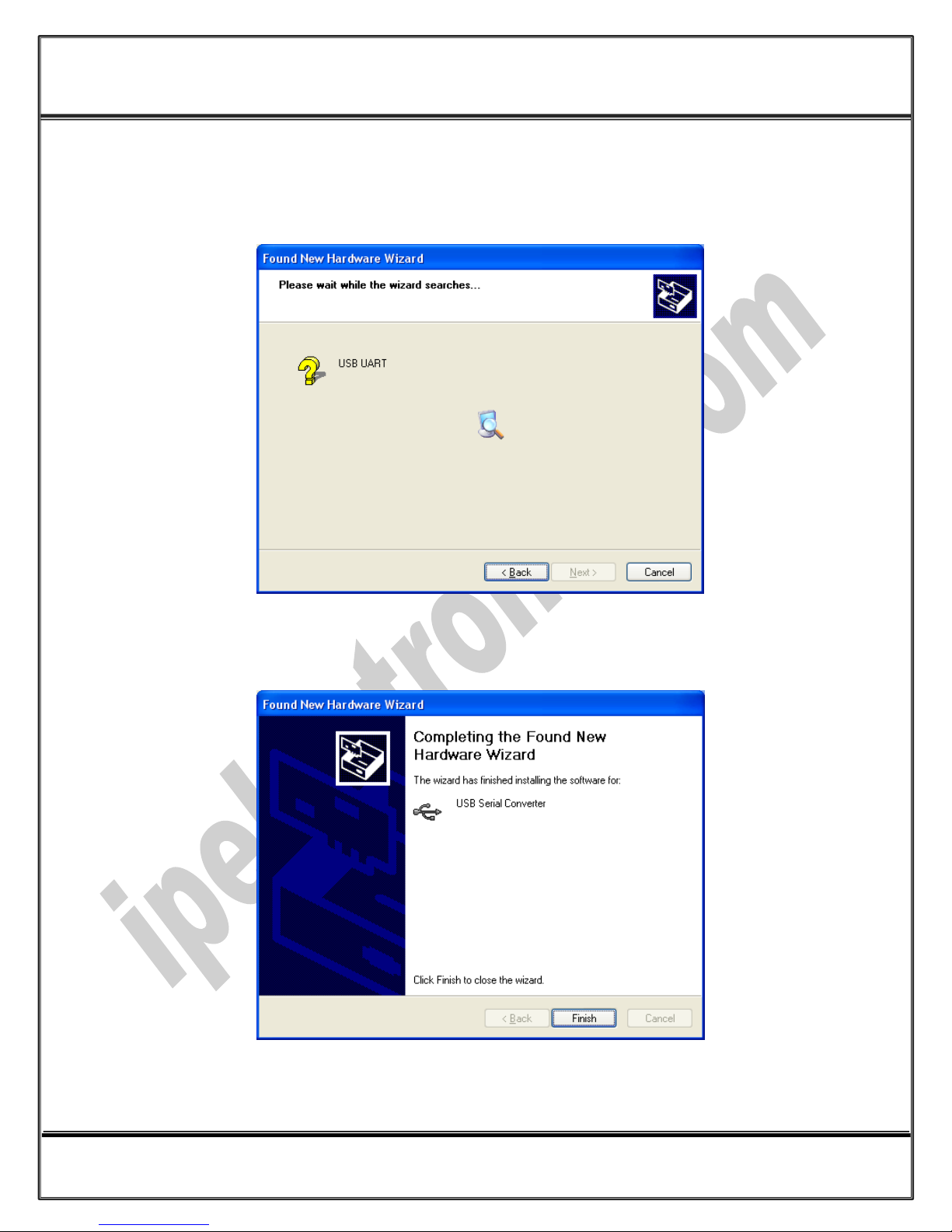

The driver will be installed,
Now, click "Finish",

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 12 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

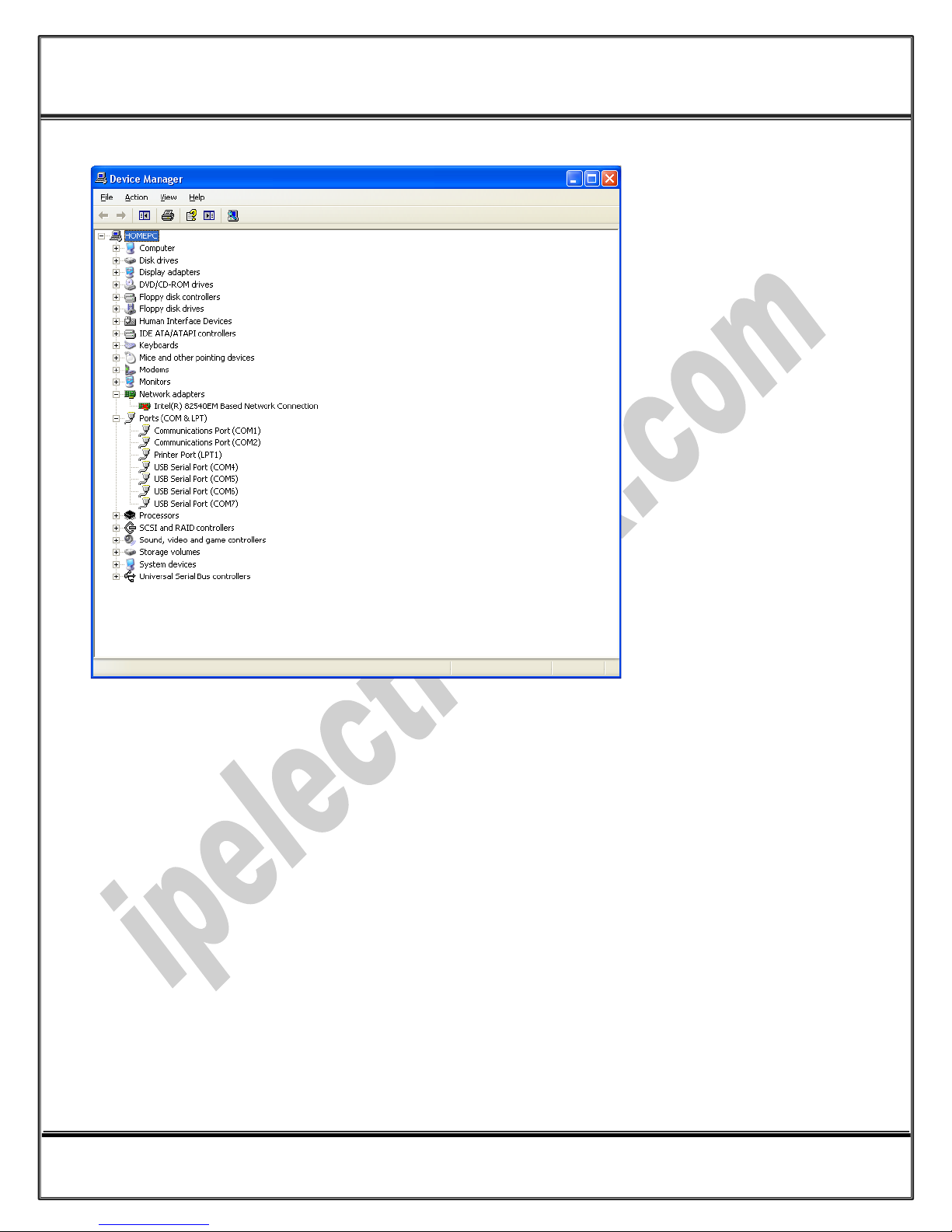

After finishing installation, you should be able to see a new "USB Serial Port" in "Ports (COM&LPT)" section of
Device Manager.

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 13 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
7. Installation in Windows 7
Installation in Windows 7, is same as Windows XP, in case that installation progress do not be start
automatically, you can install driver manually as follow:

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 14 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 15 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 16 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 17 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 18 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 19 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
8. Changing COM Port Number
To change COM Port Number, right click on the USB COM Port on Device Manager and select properties,

www.ipelectronix.com
IPEX (IP Electronix) PH232Ux2
: User’s Manual
Page 20 of 27 Doc No. : PH232Ux2-UM-001
30 November 2013
Select port setting:
