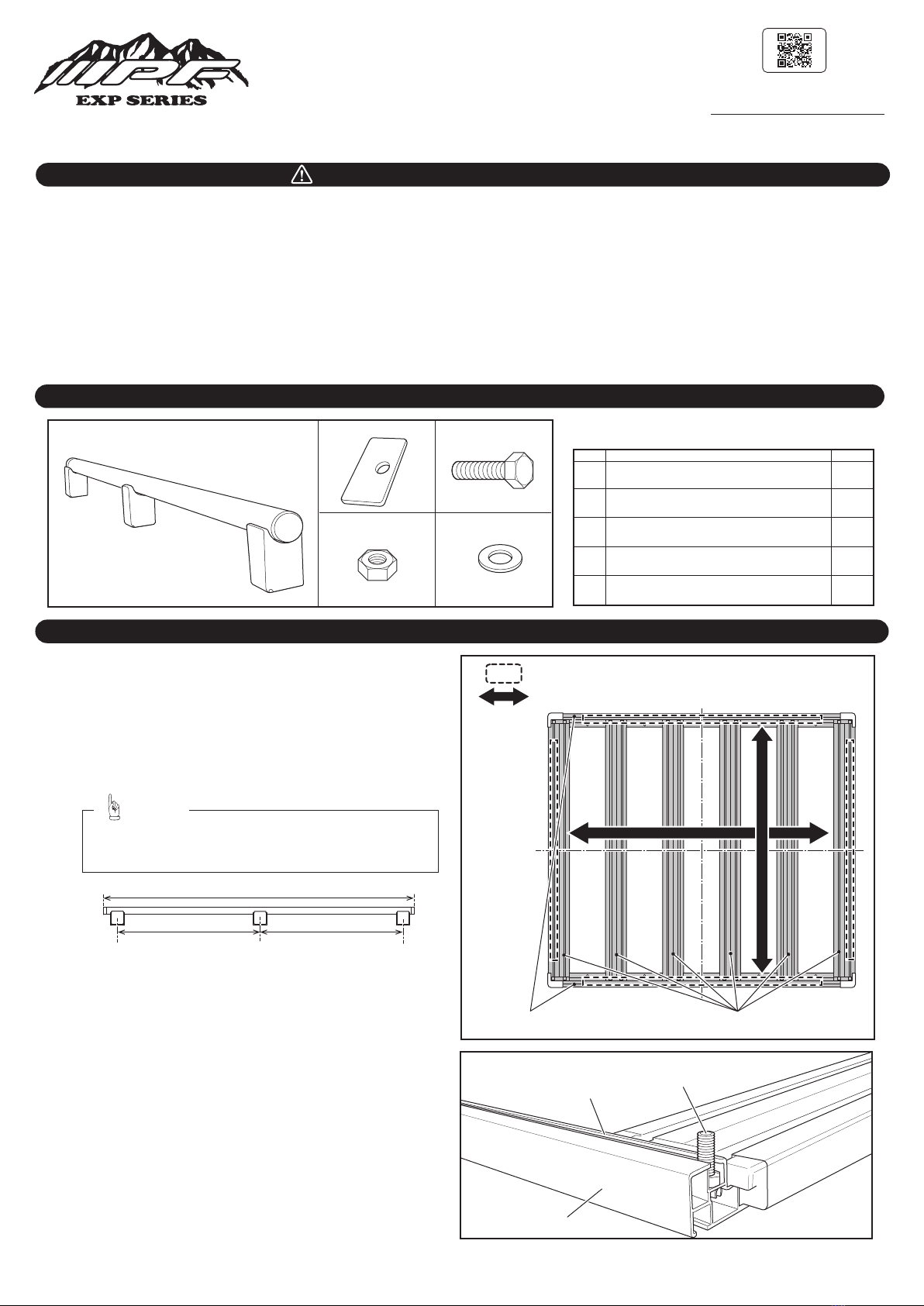

ipf EXP Series User manual

EXPRoofRackRail
InstallationManual
③
№
①
②
③
④
⑤
1
3
3
3
3
① ② ③
④ ⑤
Railmountingpositions
Use the spacer plates to match the different
heights of the side frames and floor bars.
Rail ASSY
Spacer plate
(for height adjustment)
Hex bolt
Nut
Washer
Adjust mounting positions of the rails according to
intended use.
In addition to the recommended mounting positions,
it is possible to mount the rails on each floor bar and
also in a vertical direction to the bars. Refer to the
figure right.
：Recommended mounting positions for the rail
：Possible area of rail mounting
Front of
vehicle
Side frame
1. Remove the corner cap from EXP roof rack and
1. insert the three hex bolts supplied into the
1. slot as shown in the figure right.
Fittherailassembly
ontothesideframe Hex bolt
Slot channel
Side frame
Floor bar
520mm
1120mm
520mm
When correctly installed,
the bolts and nuts are hidden from view.
ThankyouforpurchasingIPFEXProofrack.
Pleasereadthismanualcarefullypriortoinstallationtofollowcorrectfittingprocedure.
Storethismanualinsafelocationforfuturereference.
Handlingprecautions Caution
・Strictly follow the installation manual. Incorrect installation causes damage or loss to your vehicle.
・No liability is accepted for accidents or damage to your vehicle or product caused by installation methods other than those
・described in this manual.
・This product must not be modified in any way.
・It is recommended that this product be installed by a professional.
・Turn off the engine and ignition before installation.
・DO NOT put your weight on the vehicle with your hands. Vehicle body panels, a roof panel in particular, can easily be deformed
・or damaged by the weight.
・Take care to avoid falling when using a stepladder.
・Make sure to protect your vehicle from corrosion with touch-up paint etc., if the installation of this product caused any damage to
・your vehicle.
・DO NOT use a rope or belt on the rail. Vibration causes them to move and become loose, and excessive tension can damage the
・slot channel.
Componentparts
No. of pcs
Part name
Howtoinstall
Advice
PN :
EXR-01P

④
1．Check to see if any bolts or nuts are left untightened or loose.
2. Periodically check all bolts and nuts to see if they are loose, and retighten if needed.
2656 KURAGANO-MACHI TAKASAKI-CITY GUNMA-PREF 370-1201 JAPAN
Fittherailassembly
ontothefloorbar
2. Insert the rail assembly into the hex bolts,
2. and set preferred mounting position. Tighten the
2. rail assembly with washers and nuts,
2. and place the corner cap back in place.
1. Insert the three hex bolts supplied into the slot
1. in the floor bar.
Recommended tightening torque for nuts: 10 N-m
Hex bolt
Hex bolt
Rail ASSY
Nut
Washer
Floor bar
2. Insert the spacer plates and rail assembly into
2. the hex bolts, and set preferred mounting
2. position. Tighten the rail assembly with washers
2. and nuts, and place the corner cap back in
2. place.
・ For vertical mounting of the rail to the floor bar,
・ insert the hex bolts into the slot in the floor bar
・ and tighten the rail assembly with washers and
・ nuts.
Rail ASSY
Hex bolt
Nut
Washer
Spacer plate
Checkafterinstallation
Slot channel
