IPG Interpack USA 3036-SB Installation and operation manual



USA 3036-SB
Serial Numbers TM509 XX X XXX
UNIFORM SEMI-AUTOMATIC CASE SEALER

UM509TW UDM10009-04
2
TABLE OF CONTENTS
TABLE OF CONTENTS................................................................................................2
SERVICE INSTRUCTIONS............................................................................................4
WARRANTY..............................................................................................................5
DESCRIPTION OF USA 3036-SB................................................................................6
SAFETY ISSUES ........................................................................................................7
SAFETY ISSUES ........................................................................................................8
SPECIFICATIONS.....................................................................................................10
SPECIFICATIONS.....................................................................................................11
SPECIFICATIONS.....................................................................................................12
SET-UP PROCEDURES............................................................................................13
SET-UP PROCEDURES............................................................................................14
SET-UP PROCEDURES............................................................................................15
SET-UP PROCEDURES............................................................................................16
SET-UP PROCEDURES............................................................................................17
OPERATING INSTRUCTIONS......................................................................................18
MAINTENANCE........................................................................................................19
TROUBLESHOOTING................................................................................................20
RECOMMENDED SPARE PARTS LIST.........................................................................21
APPENDIX A–ILLUSTRATIONS AND PARTS LISTS ......................................................22

UM509TW UDM10009-04
3
REVISION CONTROL
REV02 ……………………………………………………………….............. UPDATED
REV03……………………………………………………... UPDATED SPARE PARTS
REV04 ……………………………………………………………….............. UPDATED

UM509TW UDM10009-04
4
SERVICE INSTRUCTIONS
Service
This is the Interpack Model USA 3036-SB Uniform Side Belt Case Sealer you ordered. It
has been set up and tested in our factory with Intertape manufactured pressure sensitive
tapes. If any problems occur when setting up or operating this equipment, please contact
the authorized distributor from where you purchased this item.
Should you need to contact Interpack Technical Support, please have the Case Sealer
model number and serial number available. This information can be found on the
nameplate of the side panel of the machine. Interpack Technical Support is available
during normal business hours (Eastern Time).
PHONE [phone] x101
If you have a technical question that does not require an immediate response, you may
contact Interpack by fax.
FAX [phone]
Replacement Parts
Order parts by item number, part name and quantity required. Replacement parts are
available from your Authorized Interpack Distributor exclusively.
Should you require assistance selecting the correct part, you may call:
Intertape Polymer Group
Interpack Machinery
9940 Currie Davis Drive, Suite 23B
Tampa, FL, 33619
Tel: [phone] Option 3
Fax: [phone]
MODEL:
SERIAL NUMBER:
DISTRIBUTOR PURCHASED FROM:
DATE OF PURCHASE:

UM509TW UDM10009-04
5
WARRANTY
EQUIPMENT WARRANTY AND LIMITED REMEDY: The following warranty is made in lieu of all other
warranties, express or implied, including, but not limited to, the implied warranty of
merchantability, the implied warranty of fitness for a particular purpose, and any implied warranty
arising out of a course of dealing, a custom or usage of trade:
Intertape sells its Interpack Tape Heads, Case Tapers and Case Erectors with the following
warranties:
1. The HSD2000 Tape Heads' knife blades, springs and wipe down rollers will be free
from all defects for a period of ninety (90) days.
2. All other HSD2000 Tape Head parts will be free from all defects for one (1) year after
delivery.
3. Water Activated Tapers’ blades and brushes will be free from defects for ninety (90) days
after delivery
4. Drive Belts will be free from defects for ninety (90) days after delivery
5. The Gear Motors will be free from defects for one (1) year after delivery.
6. All other components for Case Tapers and Case Erectors will be free from defects for
one (1) year after delivery.
If any part is proven defective within its warranty period, then the exclusive remedy and
Intertape's and the seller's sole obligation shall be, at Intertype’s option, to repair or replace the
part, provided the defective part is returned immediately to Intertape's factory or an authorized
service station designated by Intertape.
A part will be presumed to have become defective after its warranty period unless the part is
received or Intertape is notified of the problem no later than five (5) calendar days after the
warranty period.
If Intertape is unable to repair or replace the part within a reasonable time, then Intertape, at its
option, will replace the equipment or refund the purchase price. Intertape shall have no obligation
to install the repaired or replacement part.
Intertape shall have no obligation to provide or pay for the labor required to install the repaired or
replacement part. Intertape shall have no obligation to repair or replace (1) those parts failing
due to: operator misuse, carelessness, or due to any accidental cause other than equipment
failure, or (2) parts
1. Failure or damage is due to misapplication, lack of proper maintenance, abuse,
improper installation or abnormal conditions such as temperature, moisture, dirt
or corrosive matter, etc.
2. Failure due to inadequate cleaning, improper operating environment, improper
utilities or operator error.
3. Failure due to operations above the rated capacities, or in any other improper
manner, either intentional or otherwise.
4. Failure is due to equipment, which has been altered by anyone other than an
authorized representative of Intertape Polymer Group.
5. Failure is due to an attempt by the purchaser to correct alleged defective
equipment. In this event the purchaser is responsible for all expenses incurred.
LIMITATION OF LIABILITY: Intertape and seller shall not be liable for direct, indirect, special,
incidental or consequential damages based upon breach of warranty, breach of contract,
negligence, strict liability or any other legal theory.
The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be
changed only by written agreement signed by authorized officers of Intertape and seller.

UM509TW UDM10009-04
6
DESCRIPTION OF USA 3036 -SB
Figure 1
The Interpack USA 3036-SB Carton Sealing Machine with HSD2000 ETII Tape Heads
is designed to apply Intertape brand pressure sensitive carton sealing tape to the top
and bottom center seam of regular slotted corrugated cartons. The USA 3036-SB is
manually adjustable to a wide range of carton sizes (see Carton Size Capacity, page 12)
and permits processing of underfilled and overfilled applications by means of
compression guides and a one-inch floating top tape head assembly. The self-centering
Side Belt Drive system makes carton width adjustment effortless. The USA 3036-SB
Carton Sealer features mirror image controls to facilitate its adaption into an existing
conveyor line.

UM509TW UDM10009-04
7
SAFETY ISSUES
There are a number of safety labels used on Interpack Carton Sealers. These labels are
placed at different locations (refer to figure 2) on the machine to warn operators and
service personnel of possible dangers. Please read the labels on the machine and the
following safety precautions before using the machine.
Read this manual for other important safety operating and service
information.
Only trained personnel are to operate and service machine.
Wear safety glasses.
Shut off power to machine before adjusting.
Unplug electrical power before servicing.
All covers and guards must be in place before operating.
Stay clear of moving parts which can shear and cut.
Never operate the Tape Heads with the Knife Guard removed.
Turn electrical supply off before servicing the Tape Heads, including tape
loading and threading.

UM509TW UDM10009-04
8
SAFETY ISSUES

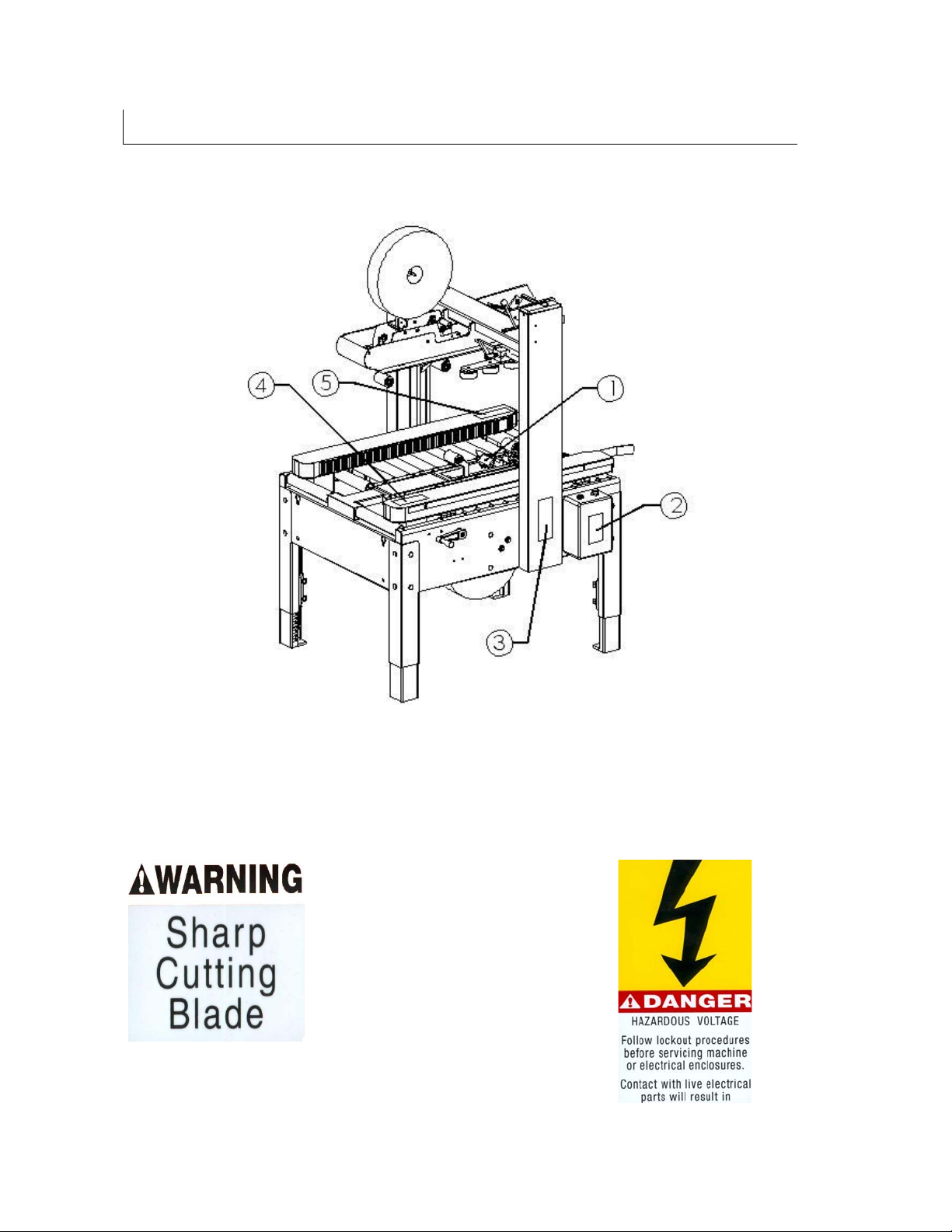

PLACEMENT OF WARNING LABELS
Figure 2
1)
(The same label can be found on the top
tape head as well)
2)

UM509TW UDM10009-04
9

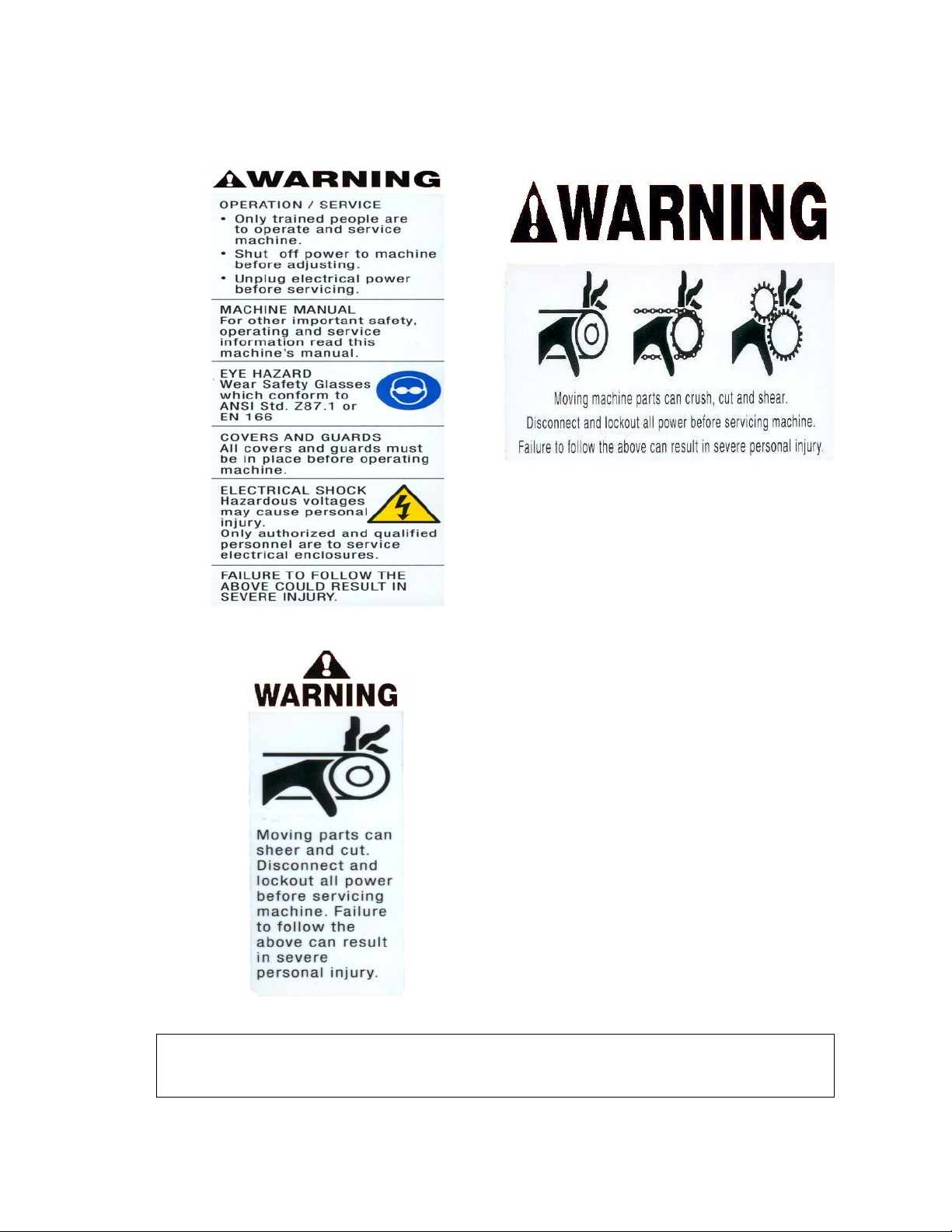

3)
4)
5)
Note: Should any of the safety labels shown in Figure 2 be damaged or
destroyed, replacements are available.

UM509TW UDM10009-04
10
SPECIFICATIONS

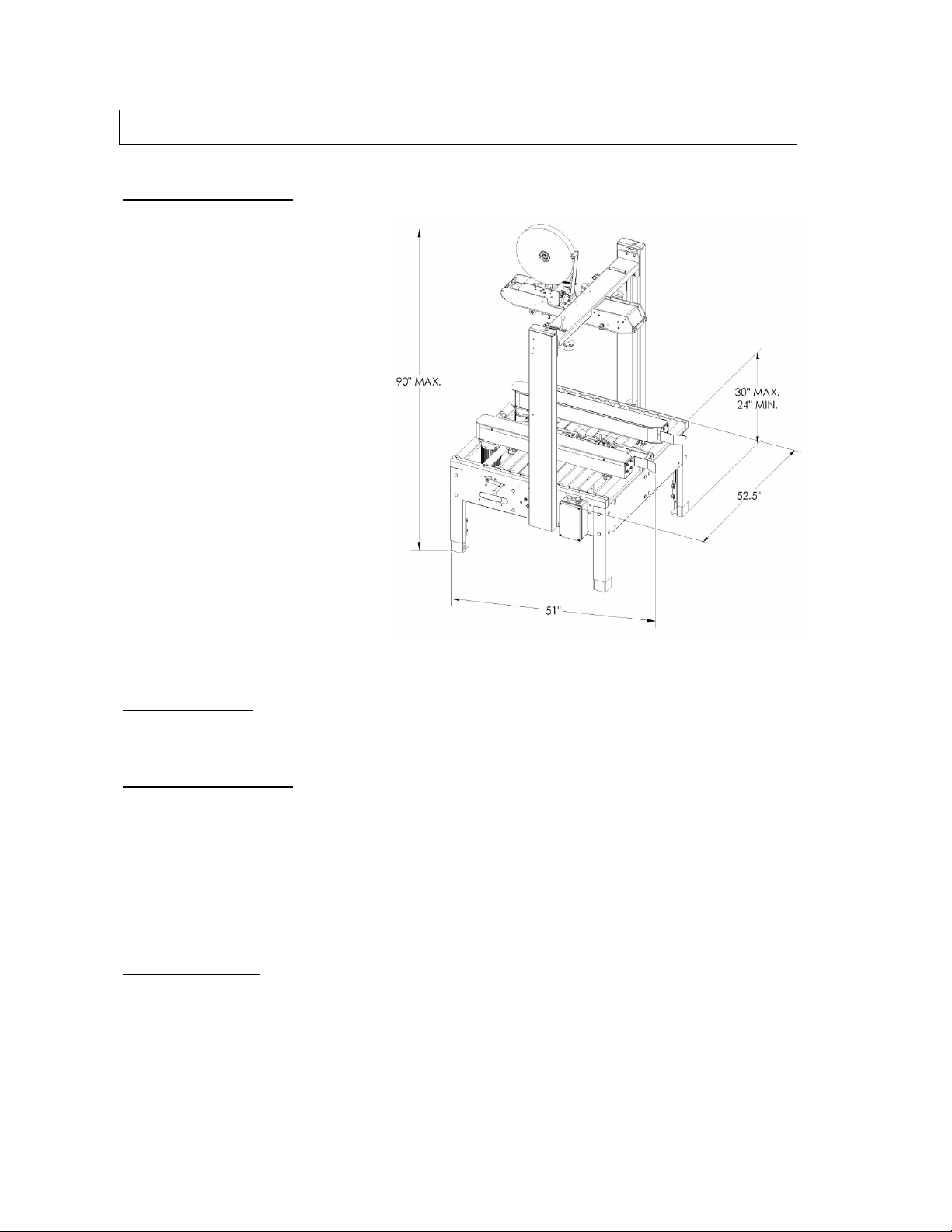

Machine Dimensions
Overall outside dimensions:
Height: 90 inches
maximum
Length: 51 inches
Width: 52 ½ inches
Figure 3
Machine Weight
The machine weighs 645 lbs.
Power Requirements
Electrical - 115 VAC, 60 HZ, 9.6 A.
Standard electrical equipment:
Two (2) 1/3 H.P. gear motors,
A neoprene power cord, and
A grounded plug.
Contact your Intertape representative for power requirements not listed above.
Operating Speed
Belt speed is 82 feet per minute. Actual production rate is dependent on operator's
dexterity and the case size mix.

UM509TW UDM10009-04
11
SPECIFICATIONS
Operating Conditions
Use in a dry, relatively clean environment at 40º to 105º F (5º to 40º C) with clean dry
cartons.
Tape
1) General
Use Intertape brand Pressure Sensitive Carton Sealing Tape.
2) Tape Width
2.5 to 3 inch wide tape (65 to 75 mm) maximum.
3) Tape Roll Diameter
Maximum of 16 inches (405 mm) on a 3-inch (76.2 mm) diameter core.
(Accommodates all Intertape brand film tape machine roll lengths).
4) Tape Application Leg Length – Standard
2.5 inches (+0.25", -0") (63.5 mm, +6.3 mm, -0 mm).
5) Tape Application Leg Length – Optional
2 inches (+0.25", -0") (50.8 mm, +6.3 mm, -0 mm). Refer to HSD2000
ET II Tape Head manual for adjustment of tape application leg length.
Box Board
Style: regular slotted containers (RSC)
125 to 275 psi bursting test, single or double wall B or C flute.
Carton Weight Capacity
Up to 125 lbs.

UM509TW UDM10009-04
12
SPECIFICATIONS
Carton Size Capacity
Height (inches) Width (inches) Length (inches)
Standard
minimum 5 4.5 6
maximum 36 30 Infinite

UM509TW UDM10009-04
13
SET-UP PROCEDURES
Receiving and Handling
The machine is shipped to the customer in a box and fixed to a pallet.
Remove the strapping and the staples at the bottom of the box.
Lift off the box cover and sleeve.
Remove the mounting bolts and nuts, which secure the USA 3036-SB to the
shipping pallet.
Lift the machine off the pallet and install it on your packaging line.
Remove all tie wraps and other shipping materials.
Note: After unpacking the machine, look for any damage that may have
occurred during shipping. Should the machine be damaged, file a claim
with the transport company and notify your Intertape representative.
Setting-up
1) General
The Carton Sealer must be installed on a near level ground.
Ensure that the machine is level and firmly on the ground (no rocking). Adjust
the roller height with the four (4) telescopic adjustment legs to accommodate
conveyor heights from 24 to 30 inches.

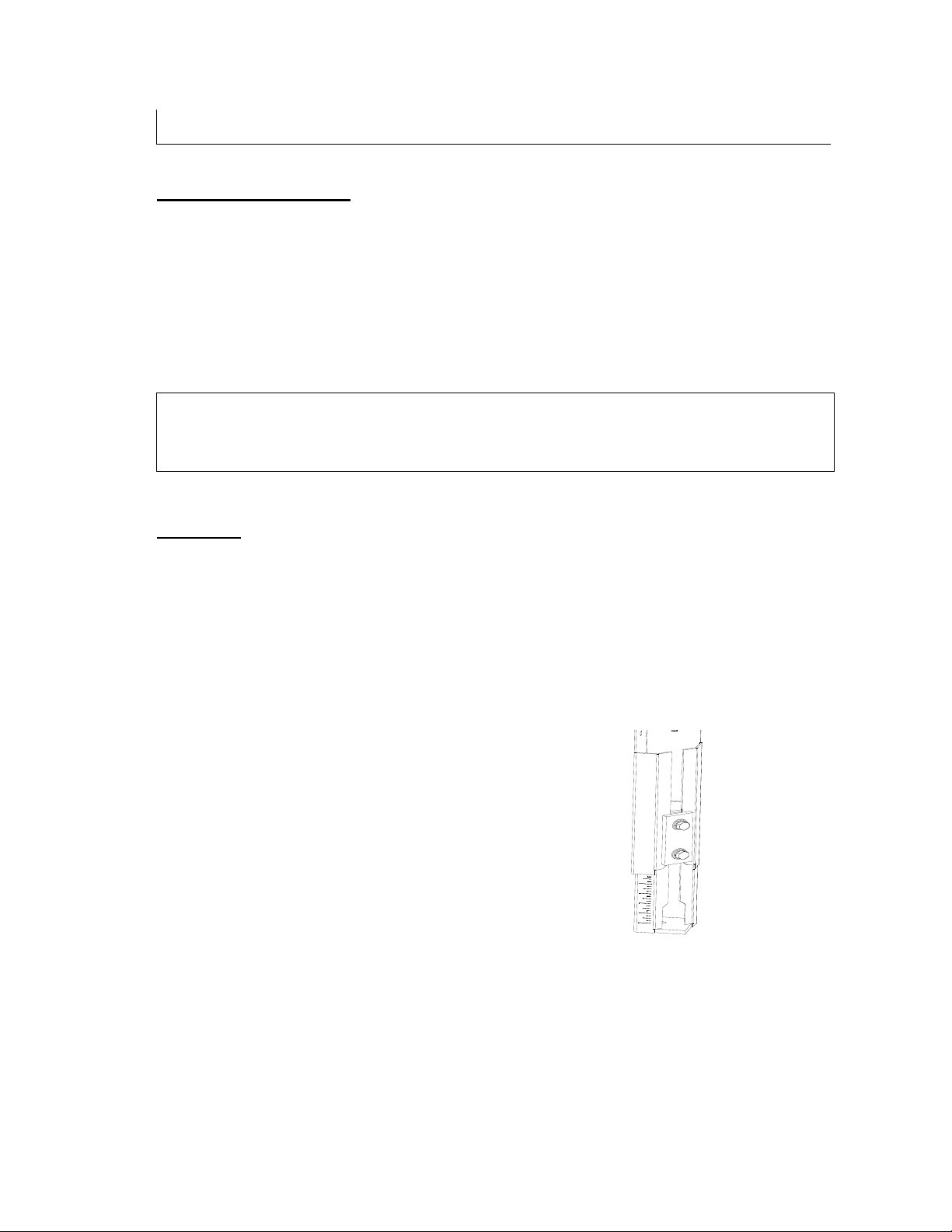

To adjust the Carton Sealer height,
jack up the machine to give ample
room to extend the legs. Using a
9/16" box end wrench, loosen the
eight (8) 1/2" hex head bolts. Adjust
the legs to the desired conveyor
height and tighten the bolts. Etched
scales on the legs facilitate
proportionate leveling.
Figure 4

UM509TW UDM10009-04
14
SET-UP PROCEDURES
Customer supplied infeed and exit conveyors (or rollers) must be level with the machine,
otherwise, the performance of the machine may be affected. The customer-supplied
infeed conveyor (if used) should provide straight and level entry. The customer-supplied
exit conveyor (if used) should be straight and declined no more than 1/4 inch per foot
away from the machine.
2) Electrical Connection

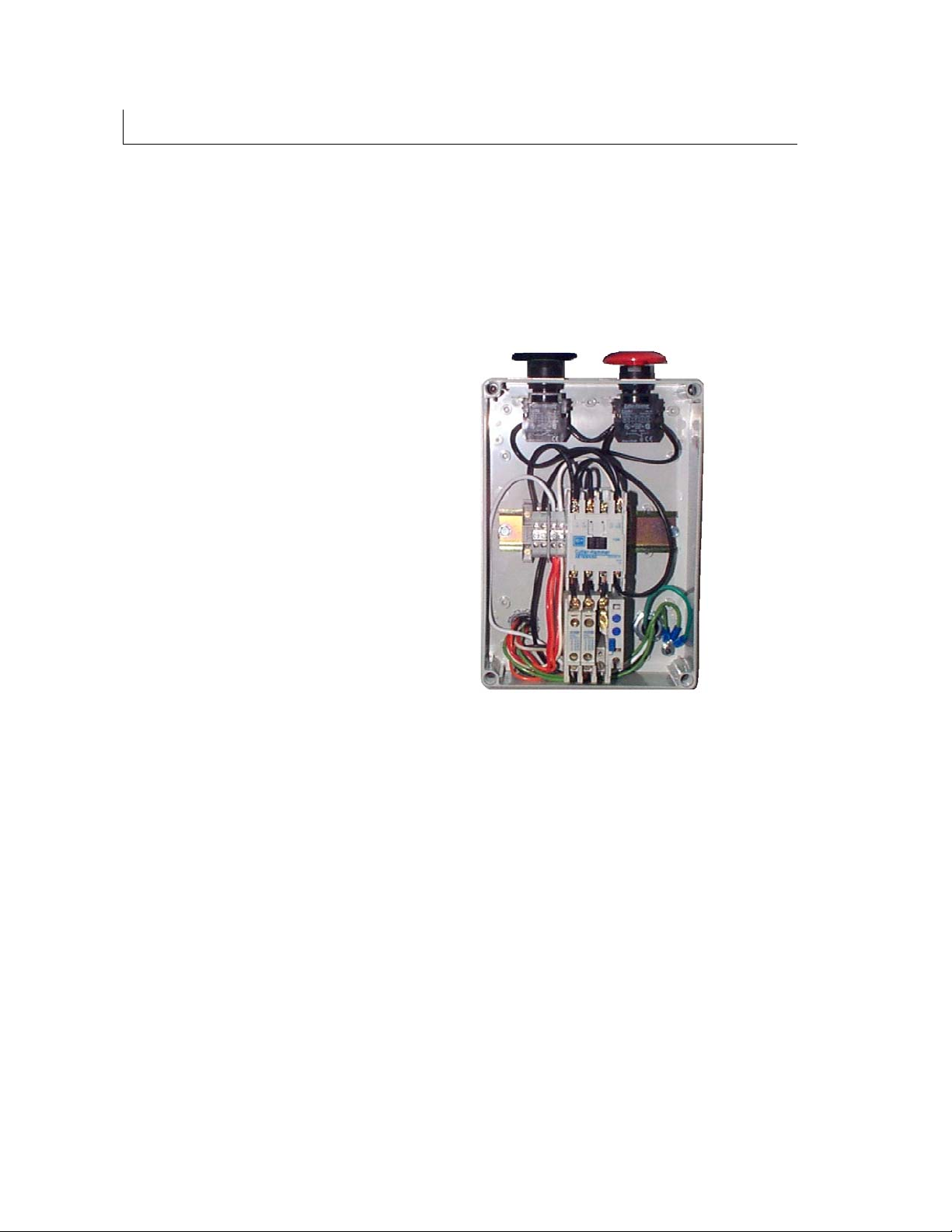

The electrical control can be located
on either side of the Carton Sealer
for customer convenience. It
contains the green "on" push button
and the red "E-Stop" mushroom push
button, which is to be used both for
emergency stops as well as regular
halting of the machine.
Figure 5
An eight (8) foot standard three conductor power cord with plug is provided for 115 V, 60
Hz, 15 amp electrical service. The servicing receptacle must be properly grounded.
Before the machine is plugged into the receptacle, ensure that all materials are removed
from the machine. The electrical control is protected with an automatic circuit breaker
with resettable overload.

UM509TW UDM10009-04
15
SET-UP PROCEDURES
3) Mirror Image Controls
Other than the electrical control box, there are three (3) other mirror image controls that
can be placed on the right or the left hand side of the machine for easier operation.

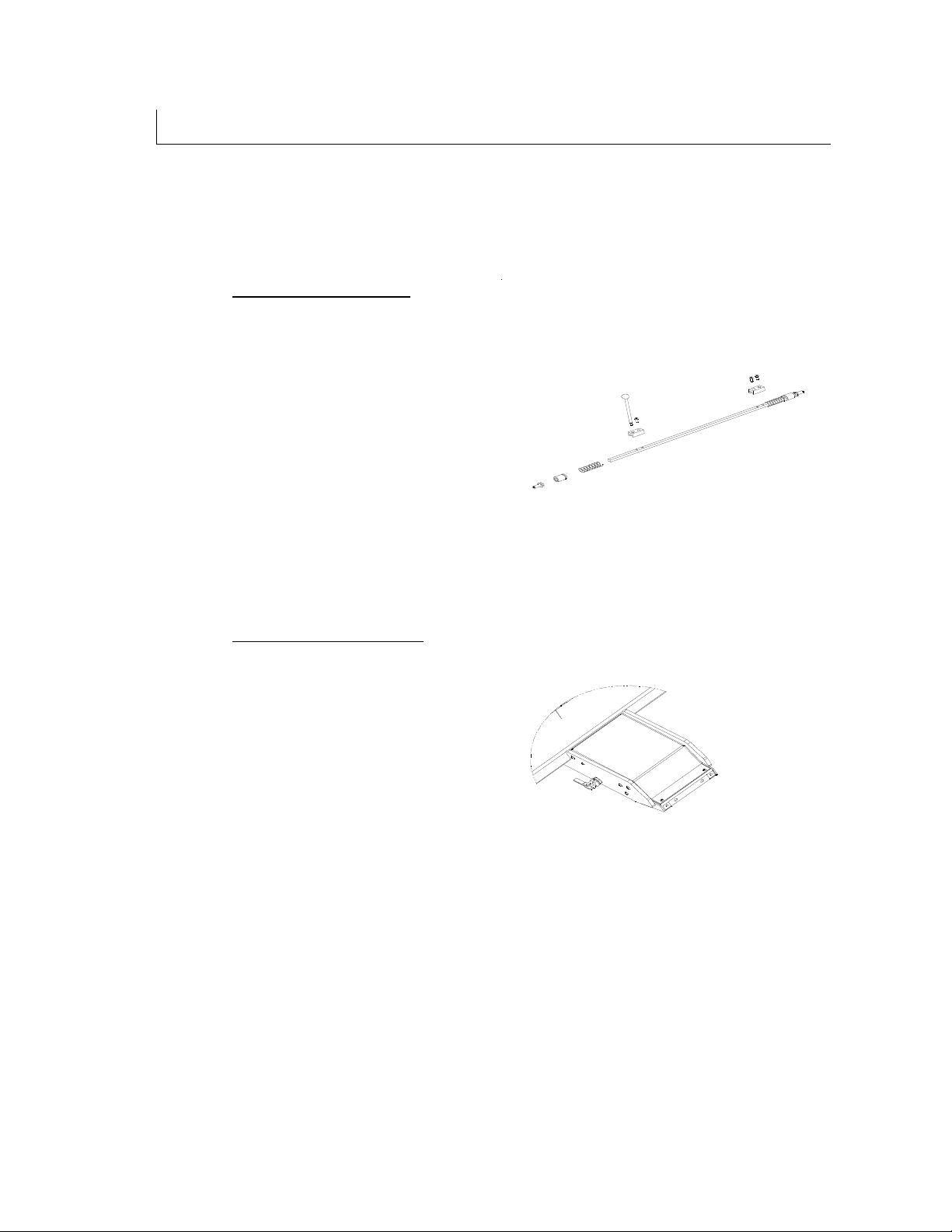

1) Single Locking System
This system is located on
the bridge of the Top Tape
Head Box and is used to
adjust the height of the
Top Tape Head to the
height of the carton. The
lever is assembled on the
left hand side. To change
sides, simply remove the
cap on the right, unscrew
the lever and screw it back
on the right side. Replace
the cap on the left side.
Figure 6
2) Locking Floating System
The lever for this system is
located on the left side of
the Top Tape Head Box. It
has toggle clamp used to
lock or unlock the floating
system. For opposite side
installation: remove red
cover cap on right hand
side, unscrew the toggle
clamp with ¾” wrench,
replace one with the other,
secure the toggle’s
position with the locknut.
Figure 7
ITEMNO.QTY.PARTNO.DESCRIPTION
$$
11UPM0698FLANGEDSCREW1/2-13L.H.

UM509TW UDM10009-04
16
SET-UP PROCEDURES

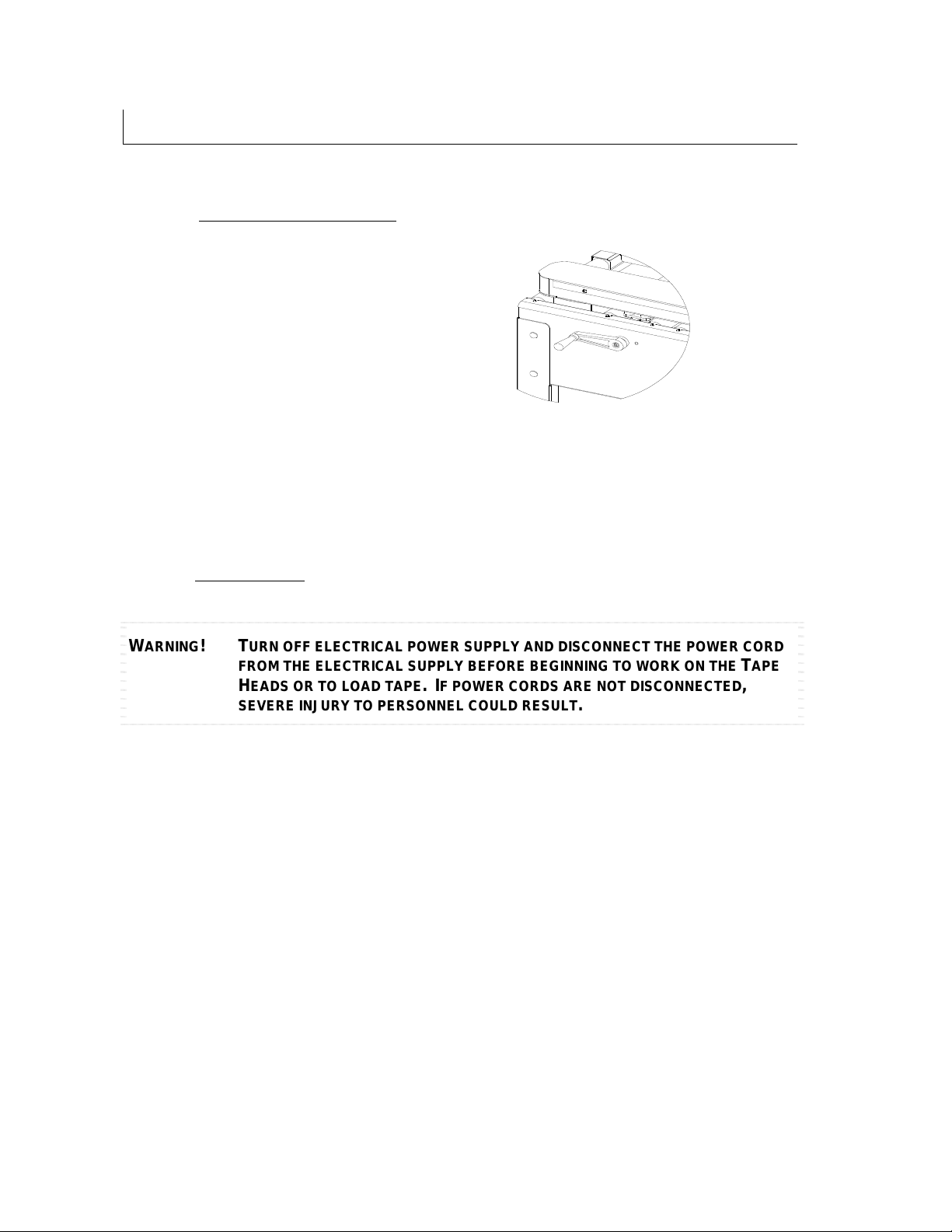

3) Width Adjustment Handle
The foldable handle that is
used to adjust the width of
the self-centering side rails
is located on the left hand
side of the machine.
Unscrew and change
sides.
Figure 8
4) Tape Loading and Threading
A) Tape Loading
WARNING! TURN OFF ELECTRICAL POWER SUPPLY AND DISCONNECT THE POWER CORD
FROM THE ELECTRICAL SUPPLY BEFORE BEGINNING TO WORK ON THE TAPE
HEADS OR TO LOAD TAPE.IF POWER CORDS ARE NOT DISCONNECTED,
SEVERE INJURY TO PERSONNEL COULD RESULT.
The HSD2000ET II/2’’ tape heads accommodate 2-inch wide tape rolls, while the
optional HSD2000ET II/3’’ tape heads accommodate 3-inch wide rolls. See the label
on the side of the HSD2000ETII tape head for the loadable tape sizes.
Push the roll of tape onto the mandrel with the adhesive side up (refer to threading
diagram on the HSD2000ETII tape head) until the core is set against the mandrel
flange. This ensures the tape will be aligned when feeding into the tape head.

UM509TW UDM10009-04
17
SET-UP PROCEDURES
B) Tape Threading
WARNING! THE KNIFE CONTAINED IN THE TAPE HEAD IS EXTREMELY SHARP.USE
CAUTION WHEN REMOVING THE BLADE GUARD AND THREADING THE
TAPE TO AVOID PERSONNEL INJURY.
To thread the tape in the upper Tape Head, you do not require any special tools.
Push the Tape Head towards the front of the machine and lift up.
Pull approximately twelve (12) inches of tape from the roll and fold in half
lengthwise. This allows you to thread the tape without it adhering to the guide
and clutch rollers inside the Tape Head.
Follow the tape-threading diagram on the side plate of the HSD2000 ETII Tape
Head. Refer to your Tape Head manual for further information if required.
Remove the blade guard from the knife in the Tape Head.
Cut off the folded tape.
Replace the upper Tape Head to its initial position.
To thread the lower Tape Head, no special tools are required.
Lift the top Tape Head box to the uppermost position.
Remove the lower Tape Head by grasping the tape application rollers and lifting
straight up.
Pull approximately twelve (12) inches from the roll and fold in half lengthwise.
This allows you to thread the tape without it adhering to the guide and clutch
rollers inside the Tape Head.
Follow the tape-threading diagram on the side plate of the HSD2000 ET II Tape
Head. Refer to your Tape Head manual for further information if required.
Remove the blade guard from the knife in the Tape Head.
Cut off the folded tape.
Replace the lower Tape Head to its initial position.

UM509TW UDM10009-04
18
OPERATING INSTRUCTIONS
Once the HSD2000 ETII Tape Heads (both bottom and top) have been loaded with
tape and threaded, the machine is ready to process regular slotted cartons. The
following instructions are presented in the order recommended for processing cartons
successfully through the USA 3036-SB Carton Sealing machine.
1. Unlock the Single locking System and raise the Top Tape Head Box to its
maximum.
2. Turn the Width Adjustment Handle to open the drive base in order to allow an
empty test carton to slide on the machine
3. Place an empty test carton with the flaps held in closed position under the bridge
of the Top Tape Head Box.
4. Adjust the self-centering side rails by turning the Width Adjustment Handle.
5. Block the Floating System by pushing the toggle clamp to "lock".
6. Lower the Top Tape head Box until it touches the top of the carton. Lock the
Single Locking System.
7. Adjust the Compression Guides on the side of the carton.
8. Remove the test carton from the machine.
9. Ensure that the electrical power is on.
10. Switch the machine "on" with the start push button.
11. Process the first carton with the flaps in the closed position.
12. When the carton exits the Carton Sealer, process the next carton.
WARNING! ENSURE THAT THE OPERATOR'S HANDS ARE AWAY FROM THE MOVING BELTS
OF THE SIDE DRIVE BASE ASSEMBLY.
Note: Should any problem occur during processing that requires halting the
machine, press the red "E-Stop" mushroom button.
Note: The machine should never be washed down or subjected to conditions
causing condensation on components.

UM509TW UDM10009-04
19
MAINTENANCE
Depending on usage, grease acme shaft on a three months interval.
Open up drive base by winding handle, apply grease to the acme
shaft between the cast iron drive base supports, then close the drive
base and repeat application to the outside of cast iron drive base
supports. Recommended lubricants are: 1st Beacon 325 (ESSO
brand), 2nd graphite base greases, and 3rd standard ball-bearing
grease.
Spray column shaft once a month with silicon based dry film lubricant.
This won’t attract dust and lint from the surroundings.
No other lubrication is necessary to operate the machine.

UM509TW UDM10009-04
20
TROUBLESHOOTING
Interpack Carton Sealers are fabricated with high quality components that provide
trouble-free operation for a long period. However, should a problem occur, we
recommend that you consult the following table. If the problem you encounter is not
discussed in this table, call Intertape Customer Service Department (see page 2 of this
document).
TROUBLE POSSIBLE CAUSES SOLUTIONS
Main power is turned "on"
and nothing happens. Overload protection by circuit breaker. Check that all circuits are "on".
Cartons are not taped
properly. Tape Head is not adjusted correctly. Refer to Tape Head manual.
Single Locking System is
locked, still the Bridge of
Top Tape Head Box is loose
on one side
Brass pin is worn out and
has lost contact with
column shaft.
Lock Tape Head Box at its
maximum height. On loose
side, under the bridge,
remove socket completely
from screw head, unlock the
Tape Head Box with the
lever and re-insert socket.

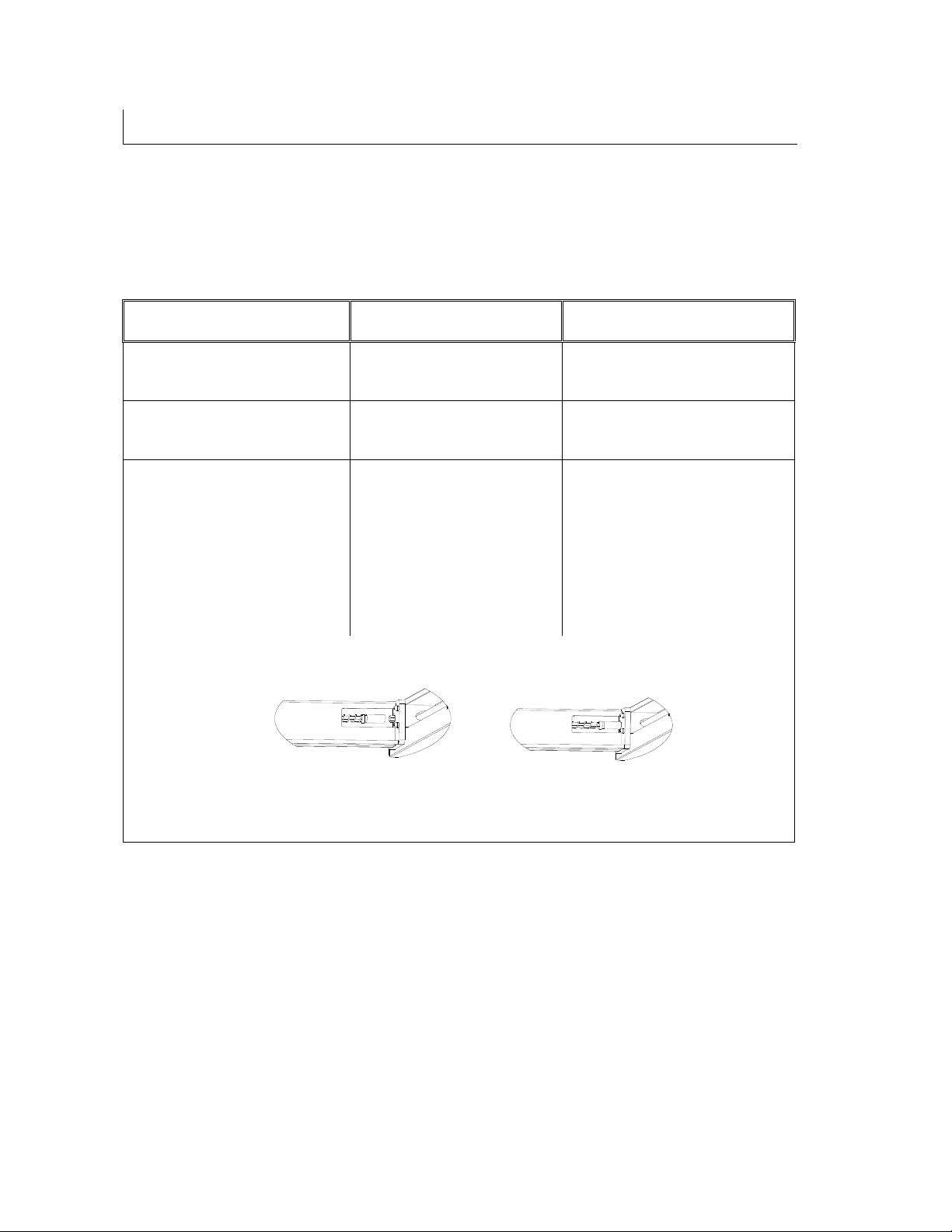

Refer to Figure 9
Figure 9
