IPSO 170 Technical manual

Refer to Installation manual for full instructions.
4-08-45R4
June 2011
On-Premise
Laundry
Planning
Handbook
120 and 170 Pound Tumblers
Through Serial No. 0907000048
TMB1268C
TMB1268C

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Published by permission of the copyright owner.
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
4-08-45
1
Table of
Contents
Tumblers – 120 and 170 ..................................................................... 2
Introduction...................................................................................... 2
Model Identification .................................................................. 2
Specifications and Dimensions ........................................................ 4
120 Pound Tumbler Dimensions and
Exhaust Outlet Locations ......................................................... 5
170 Pound Tumbler Dimensions and
Exhaust Outlet Locations ......................................................... 6
Electric and Gas Connection Locations for
Gas Models............................................................................... 7
Electric and Steam Connection Locations for
Steam Models........................................................................... 8
Installation........................................................................................ 9
Pre-Installation Inspection ......................................................... 9
Tumbler Enclosure..................................................................... 10
Exhaust Requirements ..................................................................... 11
Layout ........................................................................................ 11
Make-Up Air.............................................................................. 11
Venting ...................................................................................... 11
Individual Venting ..................................................................... 12

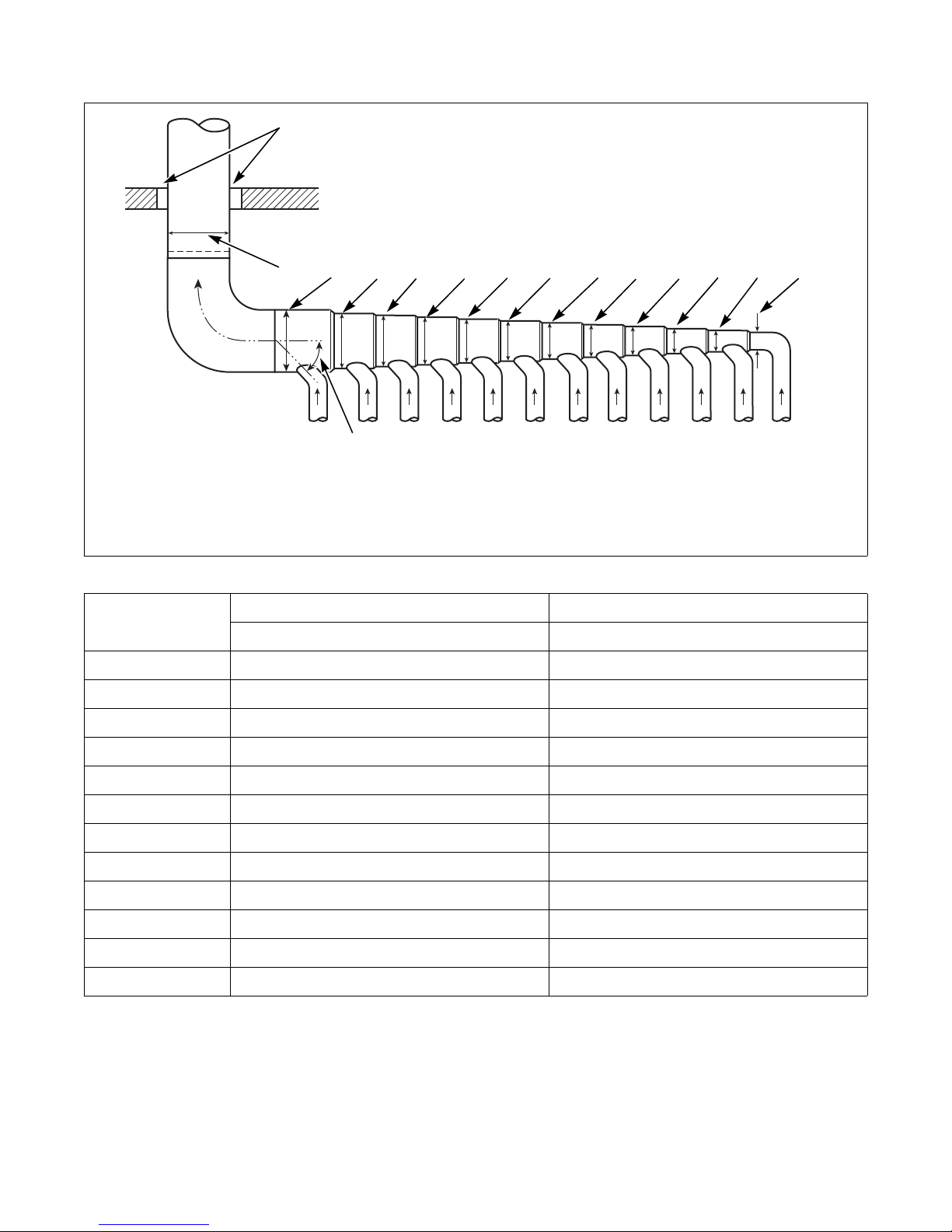

Manifold Venting....................................................................... 14
Electrical Requirements ................................................................... 17

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 2
4-08-45
Tumblers – 120 and 170
Introduction
Model Identification
Includes models with the following control suffixes:
TMB1268C
TMB1268C
Gas Steam/Thermal Oil
120 Pound IPD120G2-IT120L IPD120G2-IT120N IPD120S2-IT120S IPD120S2-IT120T
170 Pound IPD170G2-IT170L IPD170G2-IT170N IPD170S2-IT170S IPD170S2-IT170T
RD – reversing DMP OPL RQ – reversing dual digital timer

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
4-08-45
3
TMB1298N
1Serial Plate
TMB1298N
120 POUND TUMBLER
1
1
170 POUND TUMBLER
Conversion Table
Multiply By To Obtain Multiply By To Obtain
Btu 0.252 kCal Pounds/sq. inch 0.06895 Bars
Btu 1055 Joules Pounds/sq. inch 0.070 kg/sq. cm
Inch 25.4 Millimeters Pounds (lbs.) 0.454 Kilograms
Inches W.C. 0.036 Pounds/sq. inch Boiler Horsepower 33,479 Btu/hr.
Inches W.C. 0.249 kPa Boiler Horsepower 34.5 lbs. steam/hr.
lb./inch2(psi) 6.895 kPa CFM 0.471 liters/second
ft.328.32 Liters kW 3414 Btu/hr.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
4
4-08-45
Specifications and Dimensions
N/A = Not Applicable
Specifications 120 Pound 170 Pound
Noise level measured during operation
at operator position of 3.3 feet (1 meter)
in front of machine and 5.2 feet
(1.6 meters) from floor.
66 dBA 66 dBA
Cylinder Size:
Inches (mm)
44 x 41
(1118 x 1041)
50.75 x 42.5
(1289 x 1080)
Cylinder Capacity dry weight:
Pounds (kg)
120
(54.4)
170
(77.1)
Cylinder Motor Horsepower 0.75 0.75
Fan Motor Horsepower 13
Air Outlet Diameter:
Inches (mm)
10
(254)
12
(300)
Maximum Static Back Pressure:
W.C.I. (mbar)
0.3
(0.8)
0.3
(0.8)
Maximum Airflow:
C.F.M (L/sec.)
1600
(755)
2450
(1156)
Gas Models
Net Weight (approximate):
Pounds (kg)
1275
(580)
1575
(716)
Gas Connection 3/4 in. NPT 1 in. NPT
Gas Burner Rating:
Btu/hr. (Mj/hr.)
300,000
(316)
395,000
(421)
Steam Models
Net Weight (approximate):
Pounds (kg)
1375
(625)
1675
(761)
Steam Connection 3/4 in. NPT inlet
3/4 in. NPT outlet
3/4 in. NPT inlet
1 in. NPT outlet
Steam Coil Rating at 100 psig:
Boiler Horsepower (Btu/hr.)
(recommended operating pressure
80-100 psig)
11.7
(405,000)
18.8
(648,000)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
4-08-45
5
120 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
TMB2333N
TMB2333N
A
B
C
D
U
V
X
H
F
Z
Y
I
W
TOP VIEW OF
EXHAUST
DUCT
EG
Cabinet Dimensions
ModelsABCDEFGH I
120L/N 31.38 in.
(797 mm)
32.5 in.
(826 mm)
48.91 in.
(1242 mm)
49.91 in.
(1268 mm)
67.92 in.
(1725 mm)
45.38 in.
(1153 mm)
46.38 in.
(1178 mm)
85.7 in.
(2177 mm)
70 in.
(1778 mm)
120S 31.38 in.
(797 mm)
32.5 in.
(826 mm)
48.91 in.
(1242 mm)
49.91 in.
(1268 mm)
67.92 in.
(1725 mm)
45.38 in.
(1153 mm)
46.38 in.
(1178 mm)
83.5 in.
(2121 mm)
70 in.
(1778 mm)
Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
120L/N 63.45 in.
(1612 mm)
8.44 in.
(214 mm)
5 in.
(127 mm)
8.18 in.
(208 mm)
6.82 in.
(173 mm)
8.18 in.
(208 mm)
120S 60.7 in.
(1542 mm)
8.44 in.
(214 mm)
5 in.
(127 mm)
8.18 in.
(208 mm)
6.82 in.
(173 mm)
8.18 in.
(208 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
6
4-08-45
170 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
TMB2334N
A
B
C
D
W
H
F
Y
X
V
TOP VIEW OF
EXHAUST
DUCT
EG
I
Cabinet Dimensions
ModelsABCDEFGH I
170L/N/S
33.86 in.
(860 mm)
32.5 in.
(826 mm)
50.75 in.
(1289 mm)
51.75 in.
(1314 mm)
68.85 in.
(1749 mm)
52.12 in.
(1324 mm)
53.12 in.
(1349 mm)
94 in.
(2388 mm)
75.12 in.
(1908 mm)
Exhaust Outlet Dimensions and Locations
Models V W X Y
170L/N/S 42.38 in.
(1076 mm)
6.75 in.
(171 mm)
6 in.
(152 mm)
7 in.
(178 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
4-08-45
7
Electric and Gas Connection Locations
for Gas Models
NOTE: These figures are approximate dimensions only.
TMB1301N
AC
C
A
B
D
BD
120L/N 170L/N
Models Electrical Connection Gas Connection
ABCDDiameter
Non-CE
120L/N 27.63 in.
(702 mm)
72.24 in.
(1835 mm)
12.78 in.
(325 mm)
70.12 in.
(1781 mm)
3/4 in. NPT
170L/N 31.12 in.
(790 mm)
76.11 in.
(1933 mm)
14.5 in.
(368 mm)
77.38 in.
(1965 mm)
1 in. NPT
CE
120L/N 19.69 in.
(500 mm)
74.98 in.
(1904 mm)
12.78 in.
(325 mm)
70.12 in.
(1781 mm)
3/4 in. NPT
170L/N 23.18 in.
(589 mm)
78.85 in.
(2003 mm)
14.5 in.
(368 mm)
77.38 in.
(1965 mm)
1 in. NPT

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
8
4-08-45
Electric and Steam Connection Locations
for Steam Models
TMB1461N
A1
B1
120S 170S
A2
B2
DEF
A1
B1
B2
A2
D
EF
CC
Models Steam Inlet
Diameter A1 A2 F
120S 3/4 in. NPT 35.875 in.
(911 mm)
13.375 in.
(340 mm)
82.75 in.
(2102 mm)
170S 3/4 in. NPT 37.625 in.
(956 mm)
15.25 in.
(387 mm)
88 in.
(2235 mm)
Models Steam Outlet
Diameter B1 B2 D
120S 3/4 in. NPT 34.625 in.
(879 mm)
13.125 in.
(333 mm)
68.5 in.
(1740 mm)
170S 1 in. NPT 44.625 in.
(1133 mm)
8.75 in.
(222 mm)
71.75 in.
(1822 mm)
Models Electrical Connection
CE
Non-CE 120S 27.63 in. (702 mm) 72.24 in. (1835 mm)
170S 31.12 in. (790 mm) 76.11 in. (1933 mm)
CE 120S 19.69 in. (500 mm) 74.98 in. (1904 mm)
170S 23.18 in. (589 mm) 78.85 in. (2003 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
4-08-45
9
Installation
Pre-Installation Inspection
Upon delivery, visually inspect the crate, carton and
parts for any visible shipping damage. If the crate,
carton, or cover is damaged or signs of possible
damage are evident, have the carrier note the condition
on the shipping papers before the shipping receipt is
signed, or advise the carrier of the condition as soon as
it is discovered.
Remove the crate and protective cover as soon as
possible and check the items listed on the packing list.
Advise the carrier of any damaged or missing articles
as soon as possible. A written claim should be filed
with the carrier immediately if articles are damaged or
missing.
IMPORTANT: Warranty is void unless tumbler is
installed according to instructions in this manual.
Installation should comply with minimum
specifications and requirements detailed herein,
and with applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Due to varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
work arranged for accordingly.
