IPSO CHM2172N Technical manual

5-08-53R2
June 2011
Refer to Installation manual for full instructions.
On-Premise
Laundry
Planning
Handbook
IHF Washer-Extractors
CHM2172N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Published by permission of the copyright owner.
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
5-08-53
1
Table of
Contents
Washer-Extractors................................................................... 2
Introduction............................................................................ 2
Model Identification - IHF Washer-Extractors .................. 2
Specifications and Dimensions - Model IHF033.................... 3
Specifications and Dimensions - Model IHF045.................... 5
Specifications and Dimensions - Model IHF055.................... 7
Installation - Models IHF033, IHF045 and IHF055 ................ 10
Specifications and Dimensions - Model IHF075.................... 11
Installation - Model IHF075.................................................... 14
Specifications and Dimensions - Model IHF100.................... 15
Specifications and Dimensions - Model IHF135.................... 18
Installation - Models IHF100 and IHF135 .............................. 21
Specifications and Dimensions - Model IHF165.................... 22
Installation - Model IHF165.................................................... 25

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 2
5-08-53
Washer-Extractors
Introduction
Model Identification - IHF Washer-Extractors

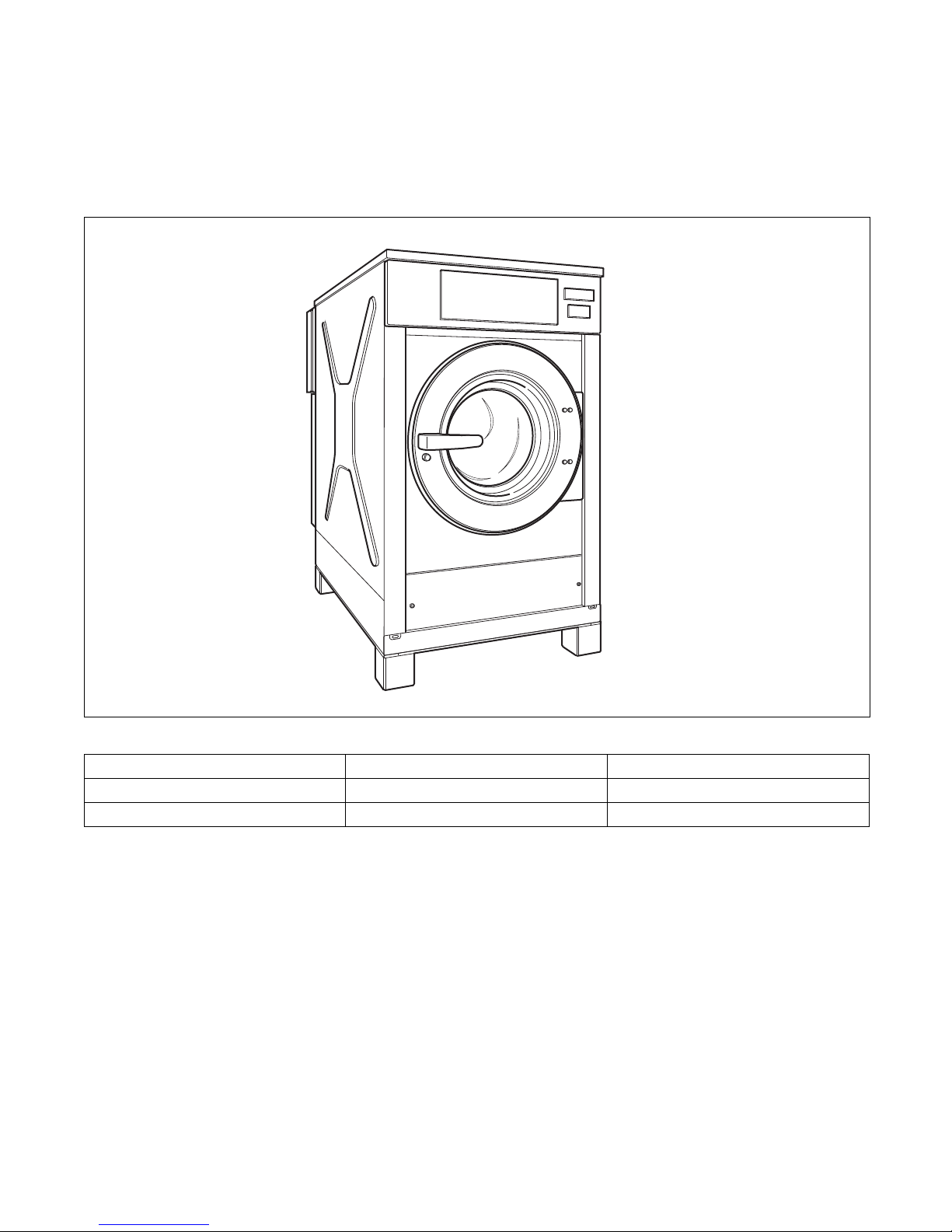

Figure 1
CHM2172N
IHF033 IHF075 IHF165
IHF045 IHF100
IHF055 IHF135

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
3
Specifications and Dimensions - Model IHF033
Capacity (dry weight) Ratio (kg/l)
1:11 29 lbs. (13 kg)
1:10 32 lbs. (14.5 kg)
1:9 35 lbs. (16 kg)
Cylinder
Cylinder diameter, in. (mm) 26.8 (680)
Cylinder depth, in. (mm) 15.76 (400)
Cylinder volume, ft.3(l) 31.9 (145)
Cabinet
Overall height, in. (mm) 53.11 (1348)
Overall width, in. (mm) 30.73 (780)
Overall depth, in. (mm) 33 (840)
Front Loading
Door opening size, in. (mm) 15.6 (395)
Height of door bottom above floor, in (mm) 22.26 (565)
Height of door center above floor, in (mm) 30.34 (770)
Speed
Wash 10-50 tr/min - RPM
Distribution 85 tr/min - RPM
Low Spin 250-500 tr/min - RPM
High Spin 500-1000 tr/min - RPM
G-factor
Low Spin/High Spin 94 / 380
Motor (3 phase), 4p, 1470 tr/min 2.95 HP/2.2 kW
Drain Valve, in. (mm) 2 (51)
Water Supply (hard, soft, warm water), in. (mm) .75 (19)
Direct Steam Heating
Steam inlet connection size, in. (mm) .38 (10)
Heating
Electrical Heating (230/400 V) 12/15/18 kW
Electrical Heating (400V) 21/24 kW
Steam 87 psi (6 bar)
Warm Water (without additional heating) Not Applicable
Warm Water (with additional heating) Not Applicable
Packing Dimensions (height X width X depth), in. (mm) 58.86 X 33.46 X 36.61
(1495 X 850 X 930)
Weight
Net weight, lbs. (kg) 935 (424)
Gross weight, lbs. (kg) 970 (440)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
4
5-08-53

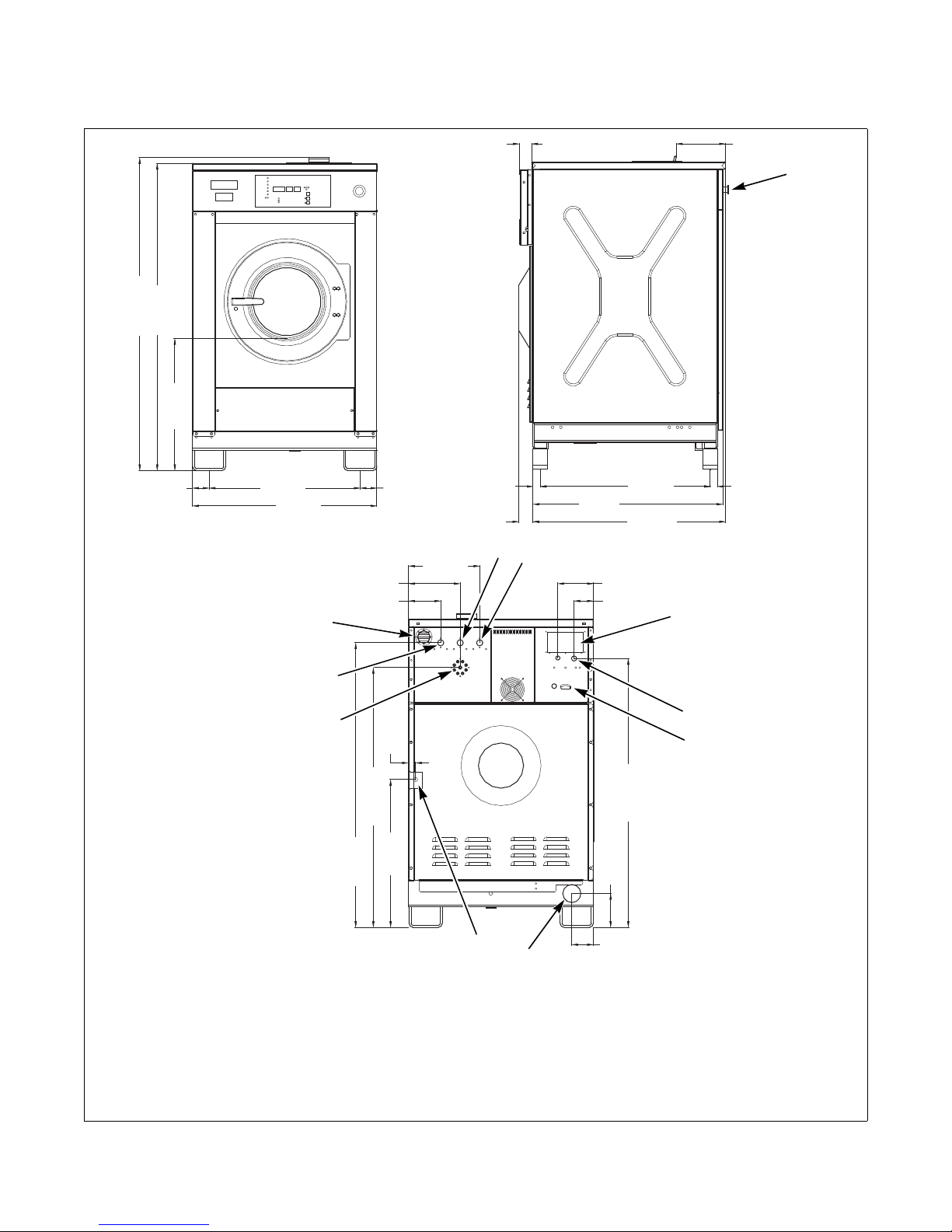

Machine Dimensions - Model IHF033
1Warm Water Connections .75 in. 7Hard Water Connections .75 in.
2Soft Water Connections .75 in. 8Drain Valve
3Connections Clamps 9Steam Connections
4Electrical Connections 10 Liquid Soap Connections
5Emergency Button 11 Ventilation Soap Dispenser
6Ventilation Tub
Figure 2
CHM2173N
CHM2174N
54.15 in.
(1375.5 mm)
53.07 in.
(1348 mm)
1.34 in.
(34 mm)
8.66 in.
(220 mm)
26.77 in.
(680 mm)
1.97 in.
(50 mm)
22.24 in.
(565 mm)
30.71 in.
(780 mm) 3.41 in.
(86.5 mm)
26.18 in.
(665 mm)
29.65 in.
(753 mm)
28.86 in.
(733 mm)
CHM2174N
CHM2173N
CHM2175N
6.10 in.
(155 mm)
7.95 in. (202 mm) 7.87 in.
(200 mm)
44.94 in.
(1141.5 mm)
36.81 in.
(935 mm) 41.99 in.
(1066.5 mm)
27.70 in.
(703.5 mm)
6.69 in.
(170 mm)
11
10
2
3
5
7
6
8
1
4
13.07 in. (332 mm)
1.97 in.
(50 mm)
3.46 in.
(88 mm)
1.34 in.
(34 mm)
10.51 in. (267 mm)
4.13 in. (105 mm)
1.38 in.
(35 mm)
46.52 in.
(1181.5 mm)
7.28 in.
(185 mm)
9

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
5
Specifications and Dimensions - Model IHF045
Capacity (dry weight) Ratio (kg/l)
1:11 36 lbs. (16.4 kg)
1:10 40 lbs. (18 kg)
1:9 44 lbs. (20 kg)
Cylinder
Cylinder diameter, in. (mm) 26.8 (680)
Cylinder depth, in. (mm) 19.7 (500)
Cylinder volume, ft.3(l) 39.8 (181)
Cabinet
Overall height, in. (mm) 53.11 (1348)
Overall width, in. (mm) 30.73 (780)
Overall depth, in. (mm) 37 (940)
Front Loading
Door opening size, in. (mm) 15.6 (395)
Height of door bottom above floor, in (mm) 22.26 (565)
Height of door center above floor, in (mm) 30.34 (770)
Speed
Wash 10-50 tr/min - RPM
Distribution 85 tr/min - RPM
Low Spin 250-500 tr/min - RPM
High Spin 500-1000 tr/min - RPM
G-factor
Low Spin/High Spin 94 / 380
Motor (3 phase), 4p, 1470 tr/min 2.95 HP/2.2 kW
Drain Valve, in. (mm) 2 (51)
Water Supply (hard, soft, warm water), in. (mm) .75 (19)
Direct Steam Heating
Steam inlet connection size, in. (mm) .38 (10)
Heating
Electrical Heating (230/400 V) 12/15/18 kW
Electrical Heating (400V) 21/24 kW
Steam 87 psi (6 bar)
Warm Water (without additional heating) Not Applicable
Warm Water (with additional heating) Not Applicable
Packing Dimensions (height X width X depth), in. (mm) 58.86 X 33.46 X 40.55
(1495 X 850 X 1030)
Weight
Net weight, lbs. (kg) 1001 (454)
Gross weight, lbs. (kg) 1036 (470)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
6
5-08-53

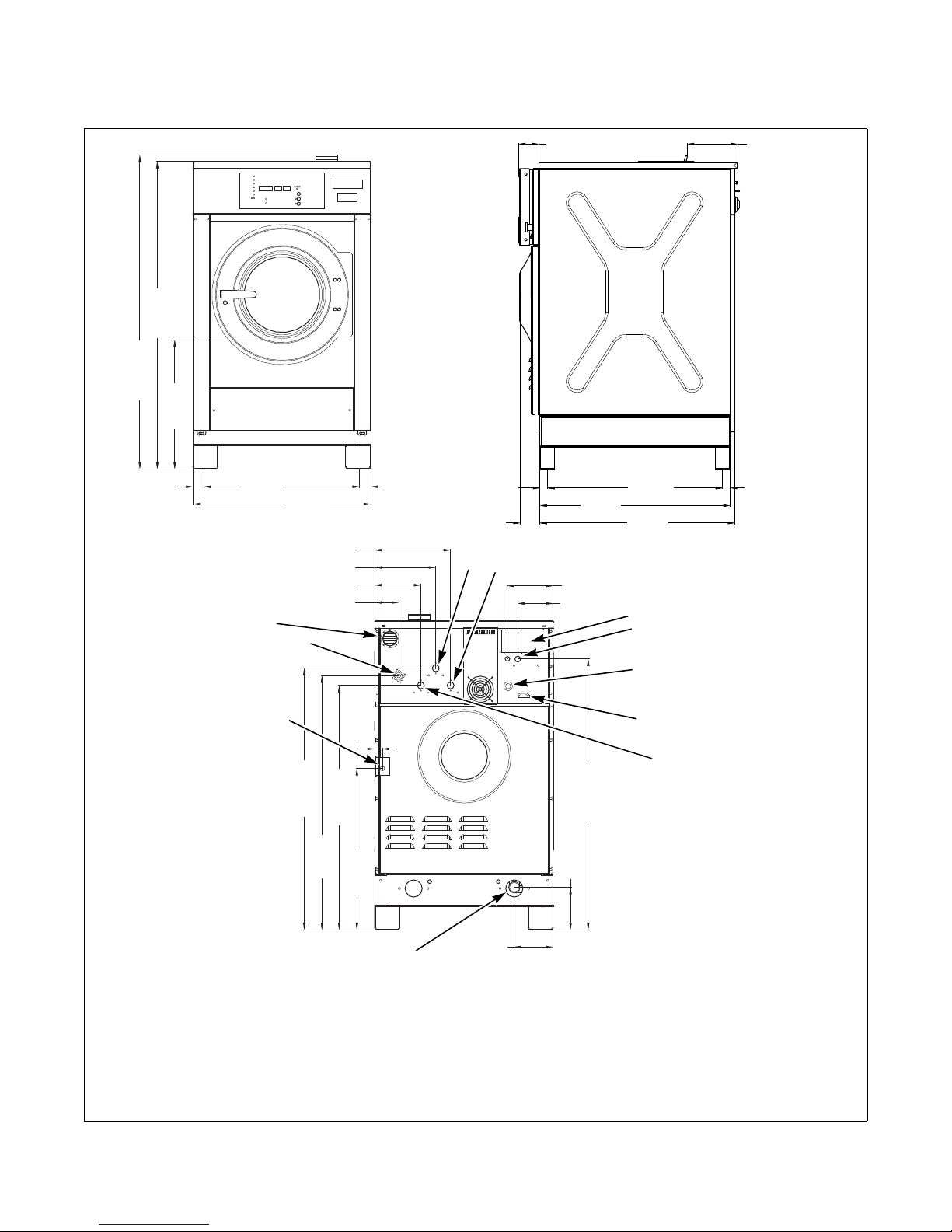

Machine Dimensions - Model IHF045
1Warm Water Connections .75 in. 7Hard Water Connections .75 in.
2Soft Water Connections .75 in. 8Drain Valve
3Connections Clamps 9Steam Connections
4Electrical Connections 10 Liquid Soap Connections
5Emergency Button 11 Ventilation Soap Dispenser
6Ventilation Tub
Figure 3
CHM2173N
CHM2174N
54.15 in.
(1375.5 mm)
53.07 in.
(1348 mm)
1.34 in.
(34 mm)
8.66 in.
(220 mm)
26.77 in.
(680 mm)
1.97 in.
(50 mm)
22.24 in.
(565 mm)
30.71 in.
(780 mm) 3.41 in.
(86.5 mm)
30.12 in.
(765 mm)
33.58 in.
(853 mm)
32.80 in.
(833 mm)
CHM2174N
CHM2173N
CHM2175N
6.10 in.
(155 mm)
7.95 in. (202 mm)
7.87 in.
(200 mm)
44.94 in.
(1141.5 mm)
36.81 in.
(935 mm) 41.99 in.
(1066.5 mm)
27.70 in.
(703.5 mm)
6.69 in.
(170 mm)
11
10
2
3
5
7
6
8
1
4
13.07 in. (332 mm)
1.97 in.
(50 mm)
3.46 in.
(88 mm)
1.34 in.
(34 mm)
10.51 in. (267 mm)
4.13 in. (105 mm)
1.38 in.
(35 mm)
46.52 in.
(1181.5 mm)
7.28 in.
(185 mm)
9

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
7
Specifications and Dimensions - Model IHF055
Capacity (dry weight) Ratio (kg/l)
1:11 47 lbs. (21.3 kg)
1:10 52 lbs. (23.4 kg)
1:9 57 lbs. (26 kg)
Cylinder
Cylinder diameter, in. (mm) 29.53 (750)
Cylinder depth, in. (mm) 20.87 (530)
Cylinder volume, ft.3(l) 51.5 (234)
Cabinet
Overall height, in. (mm) 59.25 (1505)
Overall width, in. (mm) 35.43 (900)
Overall depth, in. (mm) 38.78 (985)
Front Loading
Door opening size, in. (mm) 15.6 (395)
Height of door bottom above floor, in (mm) 24.8 (630)
Height of door center above floor, in (mm) 32.28 (820)
Speed
Wash 10-50 tr/min - RPM
Distribution 100 tr/min - RPM
Low Spin 250-500 tr/min - RPM
High Spin 500-1000 tr/min - RPM
G-factor
Low Spin/High Spin 74 / 373
Motor (3 phase), 4p, 1470 tr/min 4.08 HP/3.0 kW
Drain Valve, in. (mm) 3 (76)
Water Supply (hard, soft, warm water), in. (mm) .75 (19)
Direct Steam Heating
Steam inlet connection size, in. (mm) .5 (13 )
Heating
Electrical Heating (230/400 V) 12/15/18 kW
Electrical Heating (400V) 24 kW
Steam 87 psi (6 bar)
Warm Water (without additional heating) Not Applicable
Warm Water (with additional heating) Not Applicable
Packing Dimensions (height X width X depth), in. (mm) 65 X 41 X 46
(1650 X 1020 X 1150)
Weight
Net weight, lbs. (kg) 1257 (570)
Gross weight, lbs. (kg) 1389 (630)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
8
5-08-53

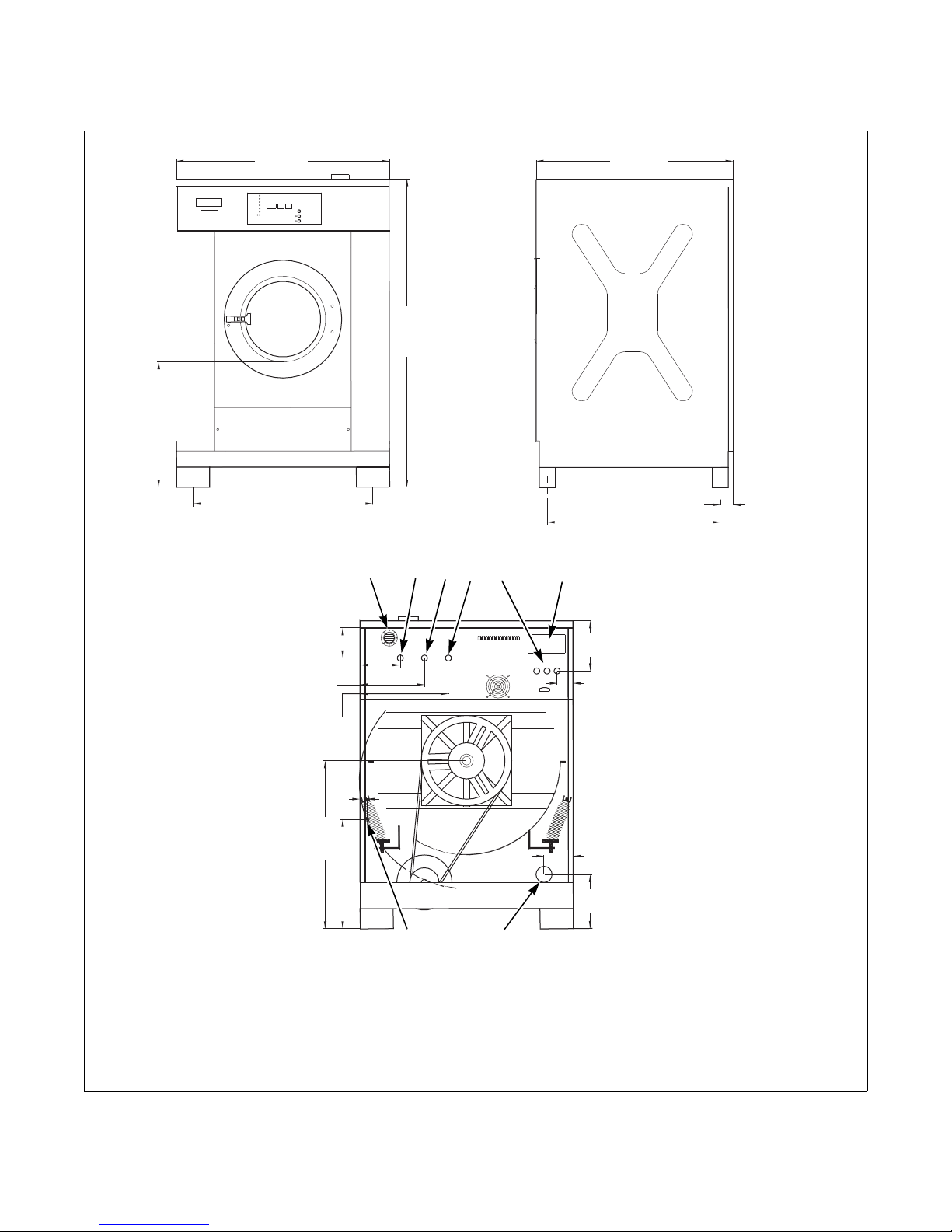

Machine Dimensions - Model IHF055
1Emergency Button 7Drain Valve
2Warm Water Connections .75 in. 8Steam Connections
3Soft Water Connections .75 in. 9Liquid Soap Connections
4Connections Clamps 10 Hard Water Connections .75 in.
5Electrical Connections 11 Ventilation Soap Dispenser
6Ventilation Tub
Figure 4
CHM2178N
CHM2176N
CHM2177N
60.14 in.
(1527.5 mm)
59.06 in.
(1500 mm)
1.38 in.
(35 mm)
9.45 in.
(240 mm)
29.06 in.
(738 mm)
3.19 in.
(81 mm)
25.39 in.
(645 mm)
35.43 in.
(900 mm) 2.76 in.
(70 mm)
32.68 in.
(830 mm)
36.99 in.
(939.5 mm)
36.46 in.
(926 mm)
CHM2177N
CHM2176N
CHM2178N
3.70 in.
(94 mm)
6.12 in.
(155.5 mm)
6.81 in.
(173 mm)
54.57 in.
(1386 mm) 49.82 in.
(1265.5 mm)
28.35 in.
(720 mm)
4.13 in.
(105 mm)
11
10
3
4
6
7
2
5
13.62 in.
(346 mm)
3.19 in.
(81 mm)
2.36 in.
(60 mm)
1.38 in.
(35 mm)
9.88 in.
(251 mm)
1.38 in.
(35 mm)
51.56 in.
(1309.5 mm)
6.50 in.
(165 mm)
8
9
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
9

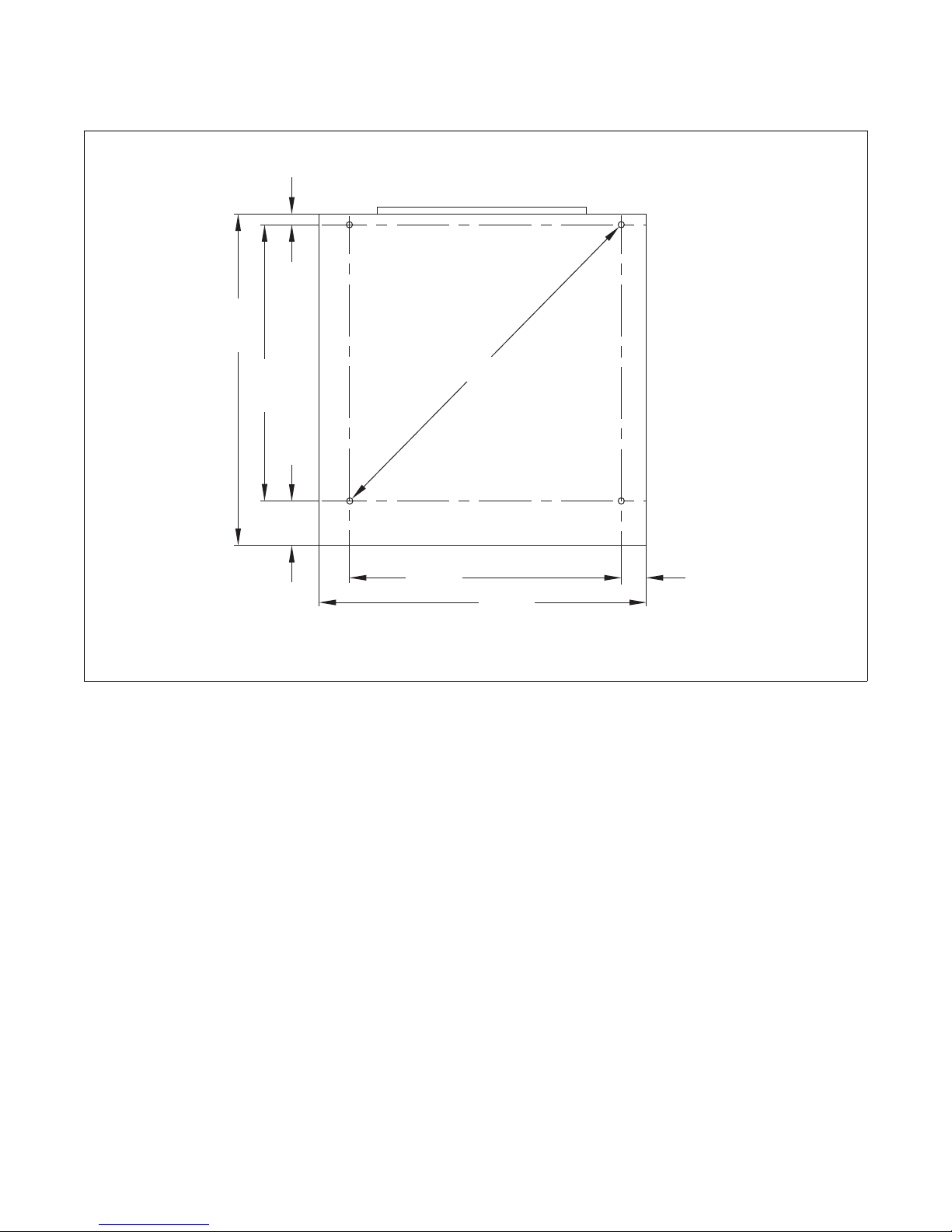

Mounting Bolt Hole Locations - Model IHF055
CHM2179N
Figure 5
CHM2179N
3.19 in.
(81 mm)
29.06 in.
(738 mm)
1.73 in.
(44 mm)
36.57 in.
(929 mm)
32.68 in.
(830 mm)
2.36 in.
(60 mm) 35.43 in.
(900 mm)
43.7 in.
(1110 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
10
5-08-53
Installation - Models IHF033, IHF045
and IHF055
Ground
The machine must be placed on a flat, solid surface
(metal base, concrete or solid ground). It is
recommended that the machine be anchored on the
provided places (1) in the base, especially in case of a
plinth. Refer to Figure 6.

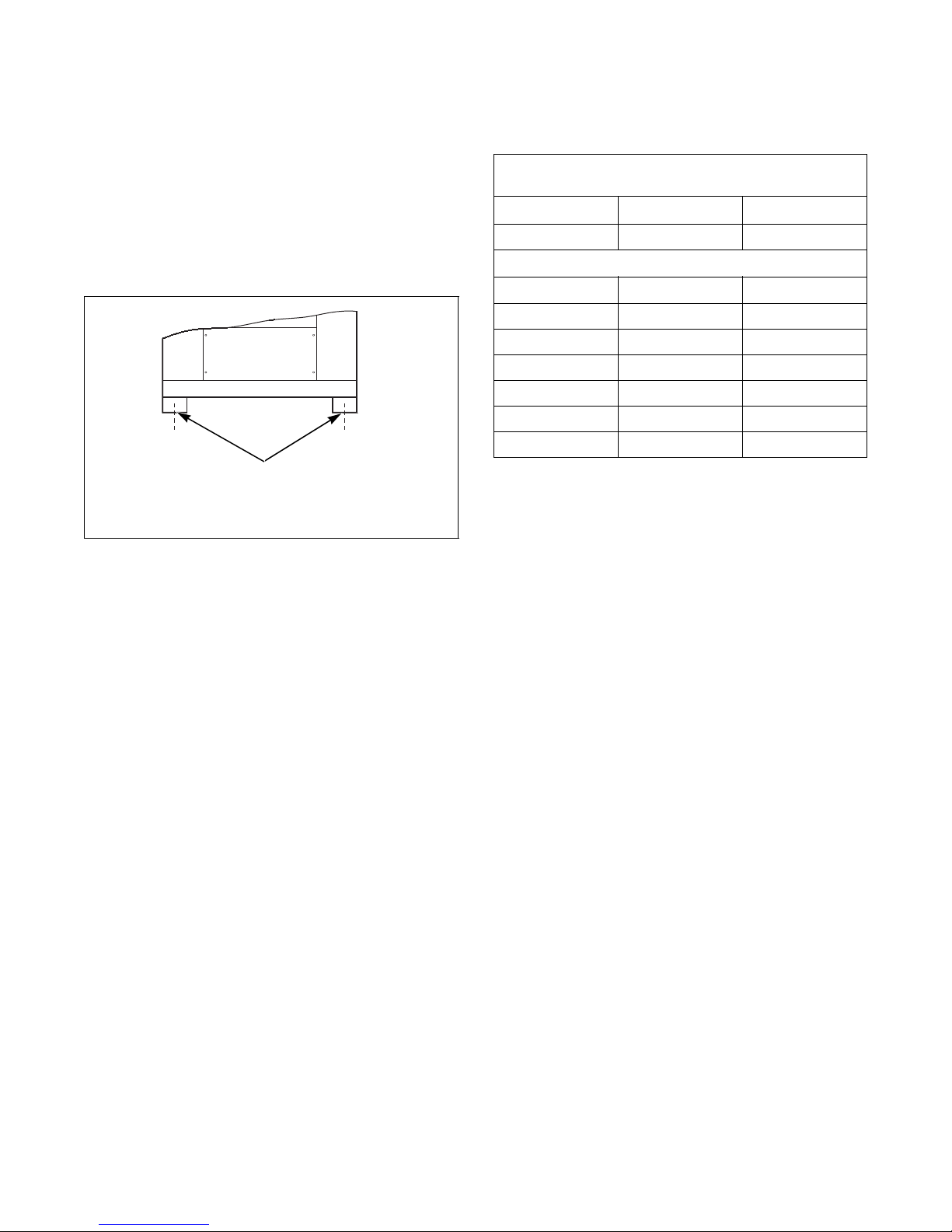

Figure 6
The machine must be placed entirely level. For easy
maintenance it is recommended to keep a minimal
distance of 23.62 in. (600 mm) between the wall and
the back of the machine.
If several machines are placed next to each other, there
should be a minimal distance of 1.18 in. (30 mm)
between each machine.
Electrical Installation Requirements
- Models IHF033, IHF045 and IHF055
Table 1
CHM2180N
1Mounting Bolt Holes
1
Machine with steam heating or boiler fed
machines without additional electrical heating
220V 3AC 380V 3AC + N
16 A 16 A
Machine with electrical heating
220V 3AC 380V 3AC + N
9 kW 25 A 16 A
12 kW 40 A 20 A
15 kW 50 A 25 A
18 kW 50 A 32 A
21 kW N/A 40 A
24 kW N/A 40 A

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
11
Specifications and Dimensions - Model IHF075
Capacity (dry weight) Ratio (kg/l)
1:11 62 lbs. (28 kg)
1:10 67 lbs. (30.4 kg)
1:9 73 lbs. (33.3 kg)
Cylinder
Cylinder diameter, in. (mm) 33.46 (850)
Cylinder depth, in. (mm) 21.14 (537)
Cylinder volume, ft.3(l) 66.9 (304)
Cabinet
Overall height, in. (mm) 60.23 (1530)
Overall width, in. (mm) 41.73 (1060)
Overall depth, in. (mm) 38.58 (980)
Front Loading
Door opening size, in. (mm) 15.55 (395)
Height of door bottom above floor, in (mm) 24.80 (630)
Height of door center above floor, in (mm) 32.28 (820)
Speed
Wash 10-50 tr/min - RPM
Distribution 100 tr/min - RPM
Low Spin 250-500 tr/min - RPM
High Spin 500-1000 tr/min - RPM
G-factor
Low Spin 84
High Spin 383
Motor (3 phase), 4p, 1470 tr/min 5.36 HP/4.0 kW
Drain Valve, in. (mm)
Depend-O-Drain 3 (76)
Option 2 (51)
Water Supply (hard, soft, hot water & cool-down), in. (mm) .75 (19)
Direct Steam Heating
Steam inlet connection size, in. (mm) .5 (13)
Electrical
Electrical Heating (220/380 V) 18 kW
Electrical Heating (380V) 18 kW - 24 kW - 30 kW
Steam Not Applicable
Warm Water (without additional heating) Not Applicable
Warm Water (with additional heating) Not Applicable
Packing Dimensions (height X width X depth), in. (mm) 68 X 46 X 48
(1730 X 1160 X 1230)
Weight
Net weight, lbs. (kg) 1907 (865)
Gross weight, lbs. (kg) 2090 (948)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
12
5-08-53
Machine Dimensions - Model IHF075
Figure 7
1Output Steam Valve 5Electrical Connection
2Hard Water Connections .75 in. 6Electrical Connection Clamps
3Warm Water Connections .75 in. 7Water Drain
4Soft Water Connections .75 in. 8Steam Connection
CHM2183N
CHM2181N
CHM2182N
60.24 in.
(1530 mm)
5.71 in.
(145 mm)
42.52 in.
(1080 mm)
34.25 in.
(870 mm)
24.80 in.
(630 mm)
41.73 in.
(1060 mm)
2.56 in.
(65 mm)
37.80 in.
(960 mm)
CHM2182N
CHM2181N
7.87 in. (200 mm)
5.91 in.
(150 mm)
32.28 in.
(820 mm) 1.38 in.
(35 mm)
22.83 in.
(580 mm)
3.15 in.
(80 mm)
11.02 in.
(280 mm)
11.42 in.
(290 mm)
1246
3
7
8
5
12.60 in. (320 mm)
17.32 in.
(440 mm)
CHM2183N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
13
Mounting Bolt Hole Locations - Model IHF075
CHM2179N
Figure 8
CHM2179N
3.84 in.
(97.5 mm)
34.06 in.
(865 mm)
1.38 in.
(35 mm)
41.73 in.
(1060 mm)
37.8 in.
(960 mm)
2.56 in.
(65 mm) 41.73 in.
(1060 mm)
50.87 in.
(1292 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
14
5-08-53
Installation - Model IHF075
Ground
The machine must be placed on a flat, solid surface
(metal base, concrete or solid ground). It is
recommended that the machine be anchored on the
provided places (1) in the base, especially in case of a
plinth. Refer to Figure 9.
Figure 9
The machine must be placed entirely level. For easy
maintenance it is recommended to keep a minimal
distance of 23.62 in. (600 mm) between the wall and
the back of the machine.
If several machines are placed next to each other, there
should be a minimal distance of 1.18 in. (30 mm)
between each machine.
Electrical Installation Requirements
- Model IHC075
Table 2
CHM2180N
1Mounting Bolt Holes
1
Machine with steam heating or boiler fed
machines without additional electrical heating
220V 3AC 380V 3AC + N
16 A 16 A
Machine with electrical heating
220V 3AC 380V 3AC + N
18 kW 50 A 32 A
21 kW N/A 40 A
24 kW N/A 40 A
30 kW N/A 50 A

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
15
Specifications and Dimensions - Model IHF100
Capacity (dry weight) Ratio (kg/l)
1:11 90.17 lbs. (40.9 kg)
1:10 99.21 lbs. (45 kg)
1:9 110.23 lbs. (50 kg)
Cylinder
Cylinder diameter, in. (mm) 38.58 (980)
Cylinder depth, in. (mm) 23.50 (597)
Cylinder volume, ft.3(l) 118.9 (450)
Cabinet
Overall height, in. (mm) 76.77 (1950)
Overall width, in. (mm) 47.24 (1200)
Overall depth, in. (mm) 46.85 (1190)
Front Loading
Door opening size, in. (mm) 15.55 (395)
Height of door bottom above floor, in (mm) 31.50 (800)
Height of door center above floor, in (mm) 39.37 (1000)
Speed
Wash 10-50 tr/min - RPM
Distribution 100 tr/min - RPM
Spin 250-400 tr/min - RPM
High Spin 500-800 tr/min - RPM
G-factor
Spin 87
High Spin 350
Motor (3 phase), 4p, 1470 tr/min 10.05 HP/7.5 kW
Drain Valve, in. (mm) 3 (76)
Water Supply (hard, soft, hot water), in. (mm) .75 (19)
Direct Steam Heating
Steam inlet connection size, in. (mm) .5 (13)
Electrical
Electrical Heating (220/380 V) 27 kW
Electrical Heating (380 V) 36 kW
Steam Not Applicable
Warm Water (without additional heating) Not Applicable
Warm Water (with additional heating) Not Applicable
Packing Dimensions (height X width X depth), in. (mm)
Without Liquid Soap Pumps 83 X 53 X 56
(2100 X 1350 X 1430)
With Liquid Soap Pumps 83 X 61 X 56
(2100 X 1550 X 1430)
Weight
Net weight, lbs. (kg) 2205 (1000)
Gross weight, lbs. (kg) 2646 (1200)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
16
5-08-53
Machine Dimensions - Model IHF100
Figure 10
1Ventilation Tub 6Water Drain
2Electrical Connections 7Soft Water Connections .75 in.
3Electrical Connection Soap Pumps 8Warm Water Connections .75 in.
4Main Switch 9Hard Water Connections .75 in.
5Steam Connection .5 in. 10 Connection of the Liquid Soap Hoses
CHM2186N
CHM2187N
75.59 in.
(1920 mm)
52.56 in.
(1335 mm)
40.94 in.
(1040 mm)
37.80 in.
(960 mm)
47.24 in.
(1200 mm)
4.53 in.
(115 mm)
4.33 in.
(110 mm)
39.76 in.
(1010 mm)
CHM2187N
CHM2186N
CHM2188N
12.01 in.
(305 mm)
8.46 in.
(215 mm)
9.25 in.
(235 mm)
27.36 in.
(695 mm)
7.28 in.
(185 mm)
2.17 in.
(55 mm)
1.97 in.
(50 mm)
1
3
9
5
4
10
6
8.86 in.
(225 mm)
6.89 in.
(175 mm)
4.53 in.
(115 mm)
4.13 in.
(105 mm)
8.66 in.
(220 mm)
6.5 in.
(165 mm)
6.5 in.
(165 mm)
2.95 in.
(75 mm)
8.46 in.
(215 mm)
6.69 in.
(170 mm)
9.84 in.
(250 mm)
8
2
2
2
7

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
17
Mounting Bolt Hole Locations - Model IHF100
CHM2179N
Figure 11
CHM2179N
3.19 in.
(81 mm)
40.87 in.
(1038 mm)
1.73 in.
(44 mm)
44.33 in.
(1126 mm)
46.65 in.
(1012 mm)
2.76 in.
(70 mm) 47.24 in.
(1200 mm)
57.09 in.
(1450 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
18
5-08-53
Specifications and Dimensions - Model IHF135
Capacity (dry weight) Ratio (kg/l)
1:11 114 lbs. (51.8 kg)
1:10 126 lbs. (57 kg)
1:9 140 lbs. (63.3 kg)
Cylinder
Cylinder diameter, in. (mm) 38.58 (980)
Cylinder depth, in. (mm) 30.51 (775)
Cylinder volume, ft.3(l) 150.6 (570)
Cabinet
Overall height, in. (mm) 76.77 (1950)
Overall width, in. (mm) 47.24 (1200)
Overall depth, in. (mm) 55.31 (1405)
Front Loading
Door opening size, in. (mm) 15.55 (395)
Height of door bottom above floor, in (mm) 31.50 (800)
Height of door center above floor, in (mm) 39.37 (1000)
Speed
Wash 10-50 tr/min - RPM
Distribution 100 tr/min - RPM
Spin 250-400 tr/min - RPM
High Spin 500-800 tr/min - RPM
G-factor
Spin 87
High Spin 350
Motor (3 phase), 4p, 1470 tr/min 10.05 HP/7.5 kW
Drain Valve, in. (mm) 3 (76)
Water Supply (hard, soft, hot water), in. (mm) .75 (19)
Direct Steam Heating
Steam inlet connection size, in. (mm) .5 (13)
Electrical
Electrical Heating (220/380 V) 27 kW
Electrical Heating (380 V) 36 kW
Steam Not Applicable
Warm Water (without additional heating) Not Applicable
Warm Water (with additional heating) Not Applicable
Packing Dimensions (height X width X depth), in. (mm)
Without Liquid Soap Pumps 83 X 53 X 64
(2100 X 1350 X 1630)
With Liquid Soap Pumps 83 X 53 X 64
(2100 X 1550 X 1630)
Weight
Net weight, lbs. (kg) 2425 (1100)
Gross weight, lbs. (kg) 2866 (1300)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Washer-Extractors
5-08-53
19
Machine Dimensions - Model IHF135
Figure 12
1Ventilation Tub 6Water Drain
2Electrical Connections 7Soft Water Connections .75 in.
3Electrical Connection Soap Pumps 8Warm Water Connections .75 in.
4Main Switch 9Hard Water Connections .75 in.
5Steam Connection .5 in. 10 Connection of the Liquid Soap Hoses
CHM2186N
CHM2187N
75.59 in.
(1920 mm)
59.06 in.
(1500 mm)
40.94 in.
(1040 mm)
37.80 in.
(960 mm)
47.24 in.
(1200 mm)
4.53 in.
(115 mm)
4.33 in.
(110 mm)
46.65 in.
(1185 mm)
CHM2187N
CHM2186N
CHM2188N
12.01 in.
(305 mm)
8.46 in.
(215 mm)
9.25 in.
(235 mm)
27.36 in.
(695 mm)
7.28 in.
(185 mm)
2.17 in.
(55 mm)
1.97 in.
(50 mm)
1
3
9
5
4
10
6
8.86 in.
(225 mm)
6.89 in.
(175 mm)
4.53 in.
(115 mm)
4.13 in.
(105 mm)
8.66 in.
(220 mm)
6.5 in.
(165 mm)
6.5 in.
(165 mm)
2.95 in.
(75 mm)
8.46 in.
(215 mm)
6.69 in.
(170 mm)
9.84 in.
(250 mm)
8
2
2
2
7
