IREM EX-100D/1 User manual

Electronic power supply
Alimentatore elettronico
INSTALLATION AND OPERATION MANUAL
INSTALLAZIONE ED USO
MAN02774E/1
IREM SpA a socio unico
Via Abegg 75 - 10050 Borgone Torino (Italy) - tel. ++39 0119648211 - fax ++39 0119648222 - E-mail: [email protected] - www.irem.it

3
MAN02774E/1
Warnings
You should read this manual before attempting any intervention inside the appliance.
This appliance is intended for professional use only.
Any use not in accordance with the instructions given in this manual is not allowed nor
guaranteed and will be solely at the risk of the purchaser and / or user.

at the risk of the purchaser and / or user.
The noncompliance with the instructions given in this manual can lead to serious da-
mages to the appliance which will invalidate the warranty.
IREM SpA a socio unico disclaims all liability for damages to persons, animals and / or
property that may result from improper use and / or nonobservance of the instructions
contained in this manual.
During the warranty period, the replacement of defective parts and / or repair works
must be carried out by IREM Service Dept., or by a servicing centre authorized by
IREM, otherwise the warranty will be invalidated .
Keep this manual along with the unit .
IREM SpA a socio unico has intellectual property rights on information and data

not be disclosed to third parties and / or used improperly.
The receipt and possession of the manual does not give or transfer any right to repro-
duce, use, or transfer to others, in whole or any part of the information and data therein
contained, without the written consent of IREM SpA a socio unico.
EC conformity declaration is available on demand.
The information contained in this manual is provided as is without warranty of any kind
and is subject to change without prior notice.

MAN02774E/1
4
Table of contents
DESCRIPTION
Description .............................................................................................. 5
BLOCK DIAGRAM
Block diagram ......................................................................................... 6
TECHNICAL CHARACTERISTICS
Technical characteristics ......................................................................... 7
FUNCTIONS AND CONTROLS
Control devices ....................................................................................... 8
CONNECTION AND OPERATING INFORMATION
Receiving the unit.................................................................................... 9
Delivery arrangement.............................................................................. 9
Storage.................................................................................................... 9
Package removing and handling............................................................. 9
Installation-environment .......................................................................... 9
Warnings ................................................................................................. 10
Mounting position .................................................................................... 10
Connecting input/output cables............................................................... 12
Protective plate ....................................................................................... 13
Auxiliary connectors ................................................................................ 14
.............................................................................................. 15
DIRECTIONS FOR USE
Start-up ................................................................................................... 16
Getting started......................................................................................... 16
FUNCTIONS AND CONTROLS
Synoptic panel......................................................................................... 17
DIRECTIONS FOR USE
Display menu .......................................................................................... 21
Changing the current set-point................................................................ 22
Directions for data entering ..................................................................... 23
Entering the password ............................................................................ 25
Parameter setting.................................................................................... 26
Operation modes..................................................................................... 30
Resetting the lamp hor meter.................................................................. 32
ALARM/FAULT DISPLAYING
Corrective steps ...................................................................................... 33

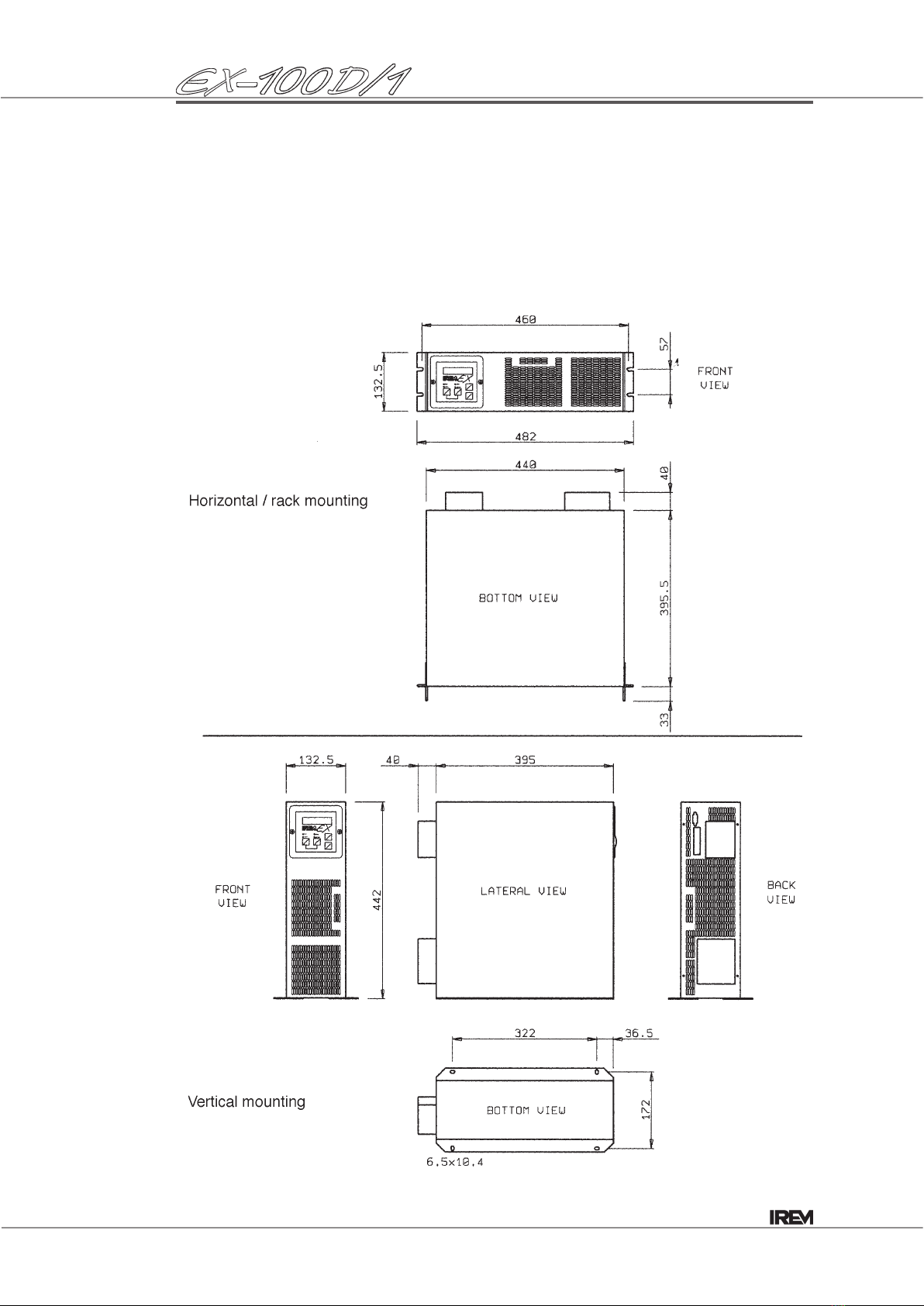

OVERALL DIMENSIONS
Overall dimensions.................................................................................. 36

5
MAN02774E/1
This electronic power supply for single phase or double phase 230Vac 50/60Hz input,
has been designed to feed from 1000W to 3000W short arc Xenon lamps, meeting all
the requirements of lamp manufacturers to ensure correct operation, long life to the
lamp, and high reliability.
This compact and lightweight power supply has been designed to meet the requirements
of a unit to be installed inside/outside a cabinet or “rack mounted”.
Its particularly compact design, the advanced circuitry, the synoptic panel and the
enhanced range of control options, make this unit suitable for a wide variety of appli-


- show and event lighting
- theatre applications
- architectural applications
- solar simulations.
The main characteristics of this power supply are:
- mains connection PH-N-PE or PH-PH-PE
- DSP supervisor (Digital Signal Processor)
- digital setting of parameters and operation modes
- internal control of the delivered power
- synoptic panel
- RS232 communication interface
- dry contact remote control
- PFC (Power Factor Corrector)
Description

MAN02774E/1
6
Block diagram
1. Input lter
Limiting the high frequency interferences (complying with EMC/EC Standards).
2. PFC
Converting the alternated voltage from the mains and reducing the emission of
harmonic currents (in compliance with EN 61000-3-12 Standard).
3. Inverter
 
4. High frequency transformer
Ensuring the galvanic insulation between input and output
5. Output rectier circuit
Composed by fast low noise and loss diodes
6. Output current lter
Eliminating the residual of HF current ripple coming from the inverter
7. EMC output lter
Limiting the high frequency interferences (complying with EMC/EC Standards).
8. Auxiliary supplying
9. DSP control and interface board
10. Synoptic board
11. Igniter
12. Discharge lamp

7
MAN02774E/1
Ordering code 00811005
Max. output power [W] 3400
Lamp capacity [W] 1000 to 3000
Nominal voltage [VAC] 230, 1Ph+N+PE (2Ph+PE)
Input voltage range [VAC] 185-265
Input frequency [Hz] 50/60
Input frequency range [Hz] 47-63
Max. input current [A] 22
Power factor corrector provided
DC output current range [A] 40-110
DC voltage range [V] 15-34
DC max. output voltage at 110A [V] 31
No-load voltage [VDC] 130
No-load voltage rising time [s] < 0.35
Max. output current supplied
by no-load voltage [mA] 200
0-10V signal bandwidth [Hz] 1-30
Ripple [%] <1.5
 
Control system DSPs
Output overload protection electronic programmable power limit
Lamp striking soft-start ignition current
Input circuit protection fuse
Input extra voltage protection provided
Output current stabilisation provided
Synoptic panel LCD displaying: current, rated power,
voltage unit internal temperature,
operation hours (in total), operation
hours (for each lamp)
ON/OFF control keyboard, external switch, se-
rial line
Lamp current adjustment keyboard, 0-10V signal, serial line
Remote control RS232 serial line - baud rate: 9600,
parity: none data bit: 8, communica-
tion protocol: IREM
Output signals [dry contacts] lamp ON, alarms ON
Input signals 0-10V signal, emergency, ON/OFF
remote, stand-by mode
Operating temperature [°C] -5 to +45
Storage temperature [°C] -20 to +60
Degree of protection IP20
CE conformity Directives 2006/95/EC (LVD) and
2004/108/EC (EMC)
Isolation class CL1
Cooling system forced
Dimensions [mm] 440x400x132.5
Weight [kg] 19.5
Mounting position horizontal / vertical / rack
Technical characteristics

MAN02774E/1
8

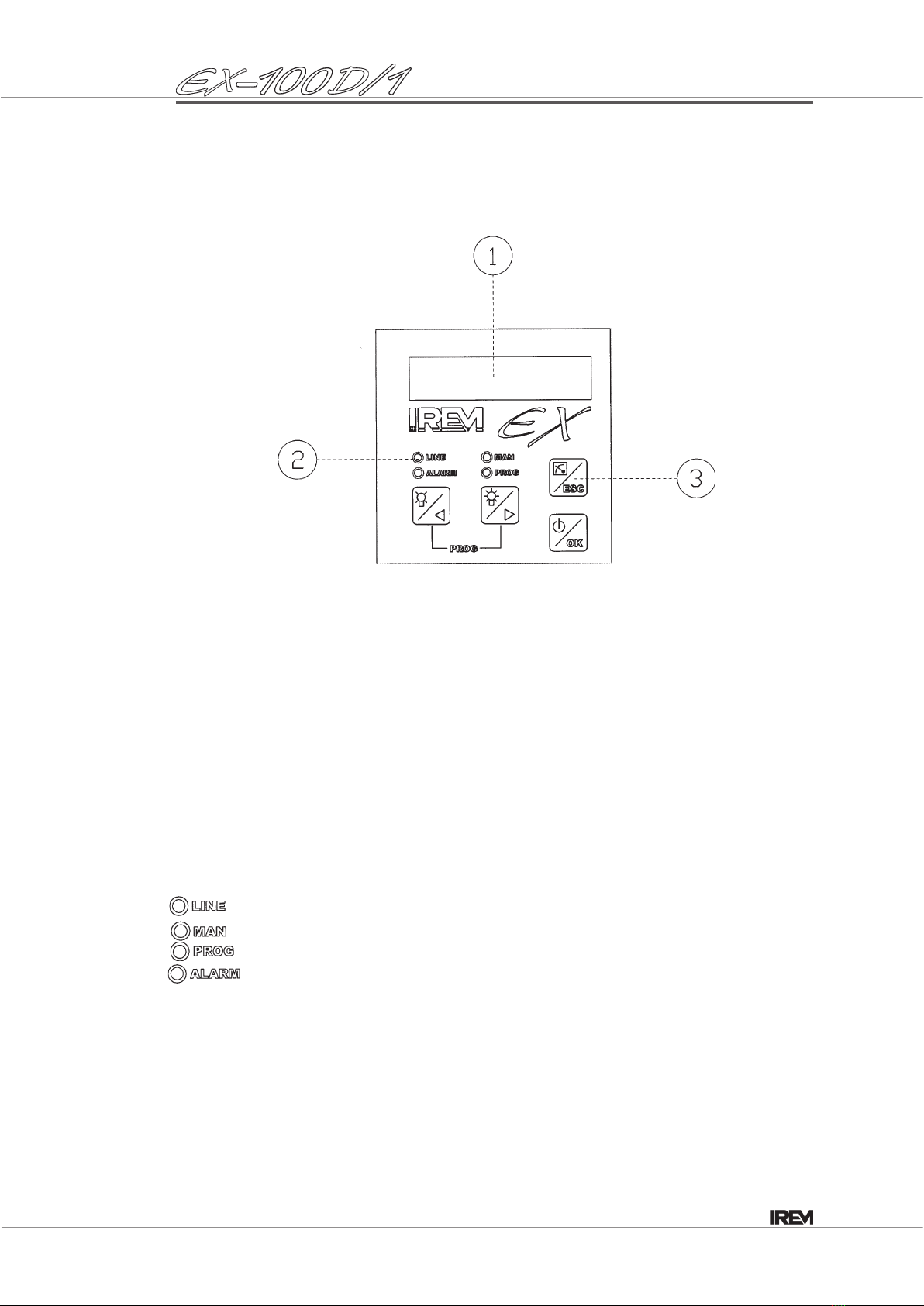

1. Synoptic panel
2. Output terminal block
3. Input terminal block
4. RS232 connector
5. Auxiliary connector
Functions and controls
Control devices

9
MAN02774E/1
Connection and operating information
Receiving the equipment
After receipt, check that the unit is in good condition. When necessary, contact the
forwarding agent.
Delivery arrangement
The supply consists of:
EX-100D/1 electronic power supply
metal brackets for vertical mounting
metal brackets for horizontal mounting
auxiliary connector
carrying handles
installation and operation manual
warranty card.
Storage
If the unit is stored before installation, check that it is kept dry and cannot come into
contact with water in any form. Do not expose the unit to the sun rays or other sources
of heat.
Package removing and handling
Remove the packing and keep it in case of future transportation needs.
Carefully lift the unit by means of its handles. Avoid any shock when moving.
Installation - environment
The performance of the EX-100D/1 electronic power supply
is guaranteed for a temperature range variable between -5°C
and +45°C. Check that the place where the equipment is to

the unit from exceeding this limit. Avoid dusty environments.
Ensure that the ventilation slots are unobstructed.
To prevent blockages caused by excessive temperatures, do not expose the unit to
the sun rays or other sources of heat.
45°C max.

MAN02774E/1
10
Caution: do not install the unit in areas with risk of explosion.
Important note: The electronic power supply must not be used without
a proper earth connection. The rst connection to be performed must
be the earth (ground) to be connected to the terminal marked PE.
The unit has no main breaker to cut off the mains.
Caution: dangerous voltage inside the power supply. Disconnect the unit
from the mains before checking the internal components.
Prevent water, liquids in general and/or foreign objects from getting in-
side the appliance (do not open the unit, contact IREM servicing centre!).
Installation must be carried out by skilled personnel only.
This power supply must be installed inside a grounded cabinet provided
with a circuit breaker duly rated.
Important note: the unit is tted with internal fuses.
To avoid the intervention of the thermal protection, be sure that a 20
mm free space is left on the left side (vertical mounting) or on the upper
side (horizontal mounting).
If the plant is provided with a residual current breaker having a tripping
value of 30mA, this breaker could trip when switching on the power
supply. This does not normally mean a failure, but is due to the capac-
itors of the EMI lter. Switch on the residual current breaker again to
alleviate the problem.
The power supply has been intended for installation in controlled EMC
environment (emissions according to the EN55103-1 standard, environ-
ment e4). Non-residential use.

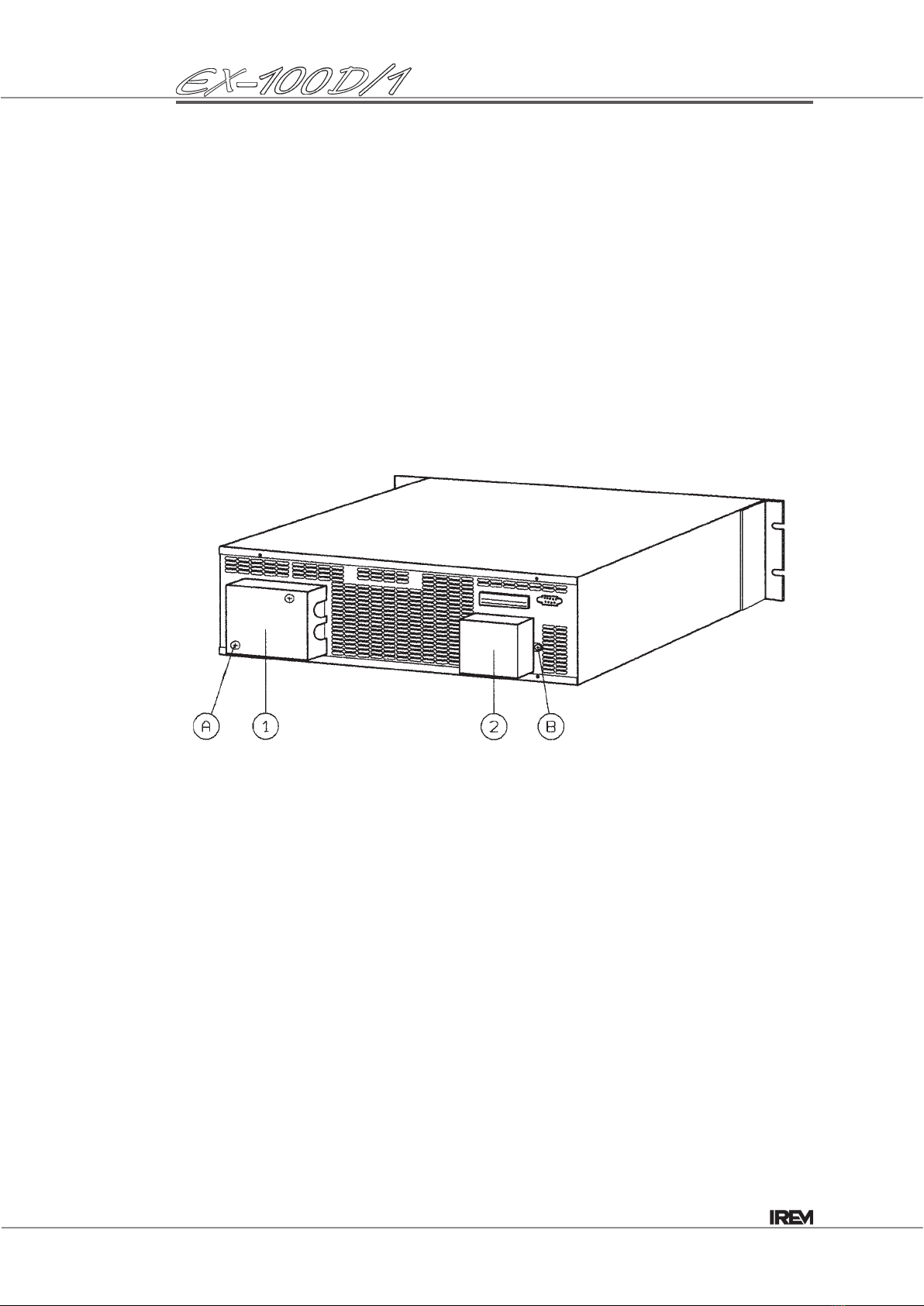

Mounting position
EX-100D/1-
dles that may be used as an anchoring for the unit (see on picture below). The picture
below also shows the synoptic panel displacement for the two mounting featurings.
Important note: disconnect the unit from the mains before moving the synoptic
panel.


screws again.
Connection and operating information
Warnings

11
MAN02774E/1
Connection and operating information
Feet mounting

pictures:

MAN02774E/1
12

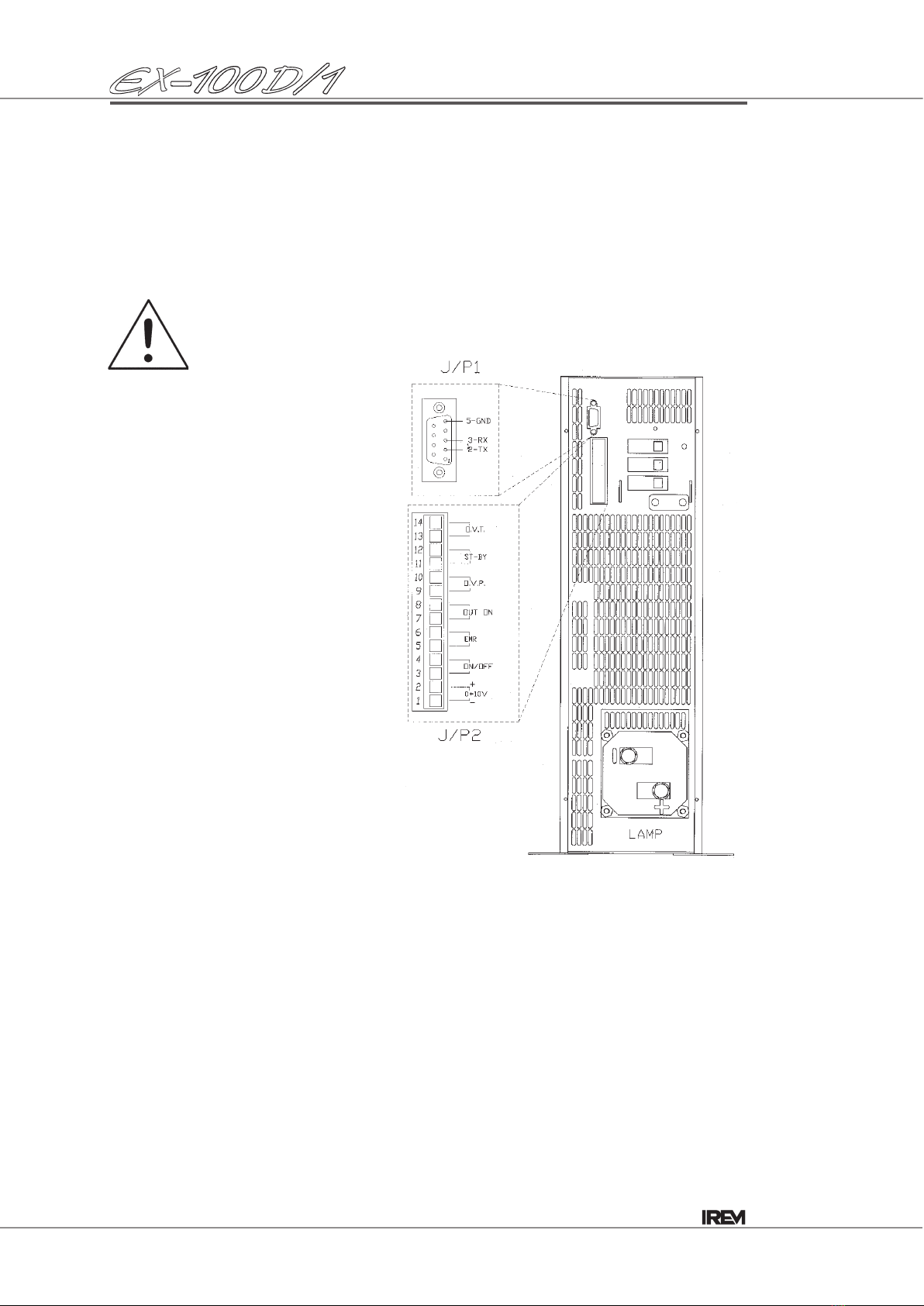

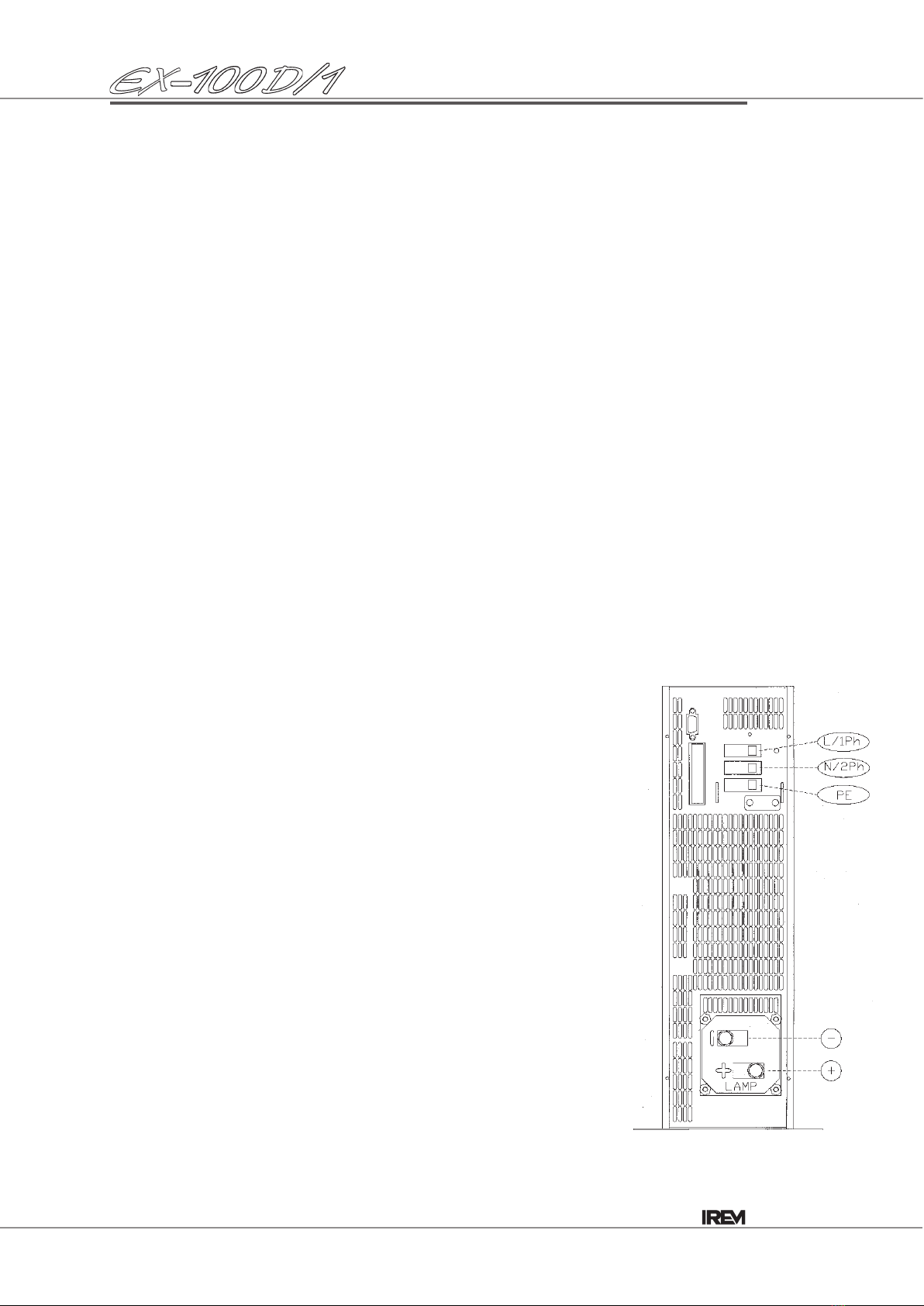

The connection must be carried out in compliance with the current safety stan-
dards. For a correct operation of the unit, please strictly follow these recom-
mendations:
- the mains voltage has to be within the two operating limits i.e.: 185-265V, 50/60Hz
(L,N,PE or 1Ph,2Ph,PE) withstanding a line current of 22 A.
- the earth installation must comply with current standards
- the output cables must have a section suitable to the lamp current. The cables must
also be suitable for a negligible voltage drop.
During connection pay attention to the lamp polarity.
Important note: the ground connection of the power supply must be equipotential
with respect to the ground connection of the lamphouse. To do this, perform a
connection between the ground (PE) of the power supply and the ground of the
lamphouse.
Connecting input/output cables
Connect the input/output cables to the relevant terminal board.

Input terminals Output terminals
L/1Ph: phase +: positive
N/2Ph: neutral (or phase)
PE: ground
-: negative
After having performed the cable connection, take in place the pro-
tective plates (see directions on next page).
It is recommended to keep separate input cables from output
cables.
Connection and operating information

13
MAN02774E/1
Take off the metal protective plates as per following steps:
- Be sure the unit is not powered
 
- Take off the metal plates
- Perform the electrical connections
- Take in place the metallic plates (1-2)
- Tighten the screws (A-B).
Connection and operating information
Protective plate

MAN02774E/1
14
Connection and operating information
Auxiliary connectors
When using the remote control perform connections through JP/1 or J/P2 connectors
placed on the rear of the unit.
Important note: different connections may cause dangerous failures
to the unit !
J/P1 connector
RS-232 serial port for remote control
J/P2 connector
1-2 (INPUT*) 0-10V analog input for lamp current monitoring (under Ext_10V mode)
3-4 (INPUT*) ON/OFF remote
Input for lamp striking under manual mode (from remote control)
and Ext_10V mode (close the contact to strike the lamp)
5-6 (INPUT*) Input for switching off the power supply in emergency
(insert a jumper if not used)
7-8 (OUTPUT) Lamp ON output (normally open dry relay contact - 30V 1A max.**)
9-10 (OUTPUT) Overpower alarms
(normally open dry relay contact - 30V 1A max.**)
11-12 (INPUT*) Stand-by
13-14 (OUTPUT) Overtemperature alarms
(normally open dry relay contact - 30V 1A max.**)
* opto-isolated ** isolated voltage
It is recommended to keep separate the signal cables from input and output
cables.

15
MAN02774E/1
Thanks to the DSP processor control some safety functions, related to the power supply
and the lamp connected to it, have been improved.
A password (125 ) protects the operating parameters of the power supply. This pass-
word may be customized by the user. If forgotten, please contact IREM After-Sales
dept. to “unlock” the unit through a passe-partout password.
The max. power is one of the parameters that can be set now. During the operation,
the power supply checks that the delivered power is not exceeding the preset value.
When exceeding, it reduces the delivered current down to a power (voltage by current)
equal or lower than the preset limit.
If the preset power value is referred to the lamp in use, an automatic protection of the
max. power applied to the lamp will be obtained. The default value (3400W) aims at
protecting the power supply.
Moreover, the possibility to set different operating modes permits an optimum use of
the power supply avoiding incorrect use.
The operation modes are exclusive i.e. when a mode has been entered, the others will
be automatically ignored (i.e. if the RS232 mode has been entered, then possible com-
mands from synoptic panel or from 0-10V analogue input will be automatically ignored).
Enter the password to modify the operation modes.
The operation modes are: manual from synoptic panel, manual from remote control,
through serial line and through 0-10V analogue input.
The two hour meters (total and partial operating hours of the lamp) have been improved
in order to facilitate the check of the lamp useful life.
A remote contact (JP/2, pins 11-12) activates the stand-by mode. Under this mode
the delivered current corresponds to the value set in “input parameters”. This mode is
useful during the projection timeout when the lamp must stay on. This contact can be
activated under any operation mode.
-
nector with no need to open the unit.
Whatʼs new
Connection and operating information

MAN02774E/1
16
Directions for use
Start-up
- Be sure the emergency terminals 5-6 on JP/2 are shorted through a wire if there
is no emergency push button. Otherwise the power supply cannot operate and the
following message will be displayed on the synoptic panel:
- If the switching on of the unit has to be performed remotely , insert a switch or two
N.O. dry relay contacts between terminals 3 and 4 on JP/2 (remote ON-OFF)
- Before connecting the unit, be sure that the input voltage corresponds to the one
shown on the data plate.
- The power supply must be fed for at least 10 seconds before starting the normal
operation.
Getting started
- Be sure the unit has been correctly connected to the mains supply and to the lamp
- Switch on the unit.
- Enter the lamp parameters (according to the lamp type). Otherwise the default
parameters (i.e. the factory setting) will be ON.
- Enter the operation mode. Otherwise the default mode (i.e. the factory setting) will
be ON.
- Strike the lamp according to the preset operation mode.

17
MAN02774E/1
Functions and controls
Synoptic panel
The synoptic panel is composed by:
1) Display
2) LEDs
3) Keys for programming/displaying purposes
In details:
1) Display
two 16-characters lines. It is useful for displaying menus, machine parameters and
measurements performed.
2) LEDs, lit to indicate
green LED input mains ON
yellow LED manual mode ON
yellow LED program mode/remote commands ON
red LED Alarms ON
3) Program/display keys
Dual-function keys, according to the check or setting modes selected through the
synoptic panel.

MAN02774E/1
18
Functions and controls
Synoptic panel
When switching on the unit, the synoptic panel will display:
1) DISPLAY mode
This mode is highlighted by the coming on of the following LEDs on the synoptic panel:
. LINE LED
. MAN LED
Keys:
to decrease the current value (active under manual operation from
synoptic panel only)
to increase the current value (active under manual operation from
synoptic panel only)
inverter ON/OFF (active under manual operation from
synoptic panel only)
enables the output current
This key is helpful to display:
. output current
. output power (not displayed if the lamp has been turned off)
. output voltage (not displayed if the lamp has been turned off)
. unit operating temperature (not displayed if the lamp has been turned off)
. lamp operating hours
Access the password screen by pressing and holding the keys “left” and “right” for at
least 2 seconds. Afterwards, current set-point or output current set-point screens are
active, independently from the displayed menu. Current set-point has been factory-set
to 40A.

19
MAN02774E/1
Functions and controls
Synoptic panel

keys:
XXX: operation modes:
Rem = ON/OFF remote (Manual LED is ON)
Vdc = 0-10V mode
RS = RS232 mode

The manual LED is ON.
S*: system status:
 
S: (if present) the delivered current corresponds to the stand-by current
YYYY: numerical value of the displayed quantity
w: unit of measurement of the displayed quantity

 
aa: alarms ON signals and precisely:
e1 = power operating limits have been exceeded
e2 = overtemperature
e3 = bad frequency
e4 = unused
e5 = input voltage out of range
ZZZ: presence of current to the output terminals
OFF = power supply is OFF.
ON = current is available, power supply is ON
To switch from MANUAL to PROGRAM mode press the keys
at the same time.
Perform this operation in the OFF status (otherwise the power supply will turn off au-
tomatically).
X X X SYY Y Y w a a ZZZ
S*

MAN02774E/1
20
2) Under PROGRAM mode.
This operating condition is highlighted by the coming on of the following LEDs on the
synoptic panel:
. LINE LED
. PROG LED
Important note: enter the password to modify the operating parameters !
The password is: 125
-
charts.
Keys:
to increase/decrease the values to be entered
   
   
Parameter/operation modes to be entered under program mode are:
1. lamp max. power *
2. lamp max. current *
3. lamp min. current *
4. lamp stand-by current *(remote-operated)
5. current set-point
6. password
7. manual mode (from synoptic panel or remote command)
8. or RS232 operation mode
9. or Ext_10V operation mode
to quit the submenu
* user is compelled to enter the above parameters only in this sequence.
When pressing ESC at any entering, one will swap to operation mode selection.
Functions and controls
Synoptic panel
