iCAM 7100 Quick User’s Manual

1. Summary

• The Device called as iCAM 7100, is a kind of access controlling and time attendance

device using iris recognition with DC power.

• This Device can support smart card and Serial and Wiegand input and output for

external existing system.

• It is designed for enrollment and recognition by capturing user’s face and iris in stand-

alone mode.

• It has backward compatibility with previous model and can support time attendance

market with RTC function

2. Functionality

• The face camera has AF (auto focus) function and the resolution is about 5Mpixel

• The adjustable motor is adopted for various user’s height with left and right button.

• The iris cameras use multiple mono image sensor.

• With LCD display in front panel, user can enroll user’s face by oneself. The LCD can

display recognition result and user’s information.

• The LED in cold mirror display user’s distance. The green and orange mean in range and

out of range alternatively.

• After finishing recognition, the result will be showed through voice and 3 color LED in

center bottom place.

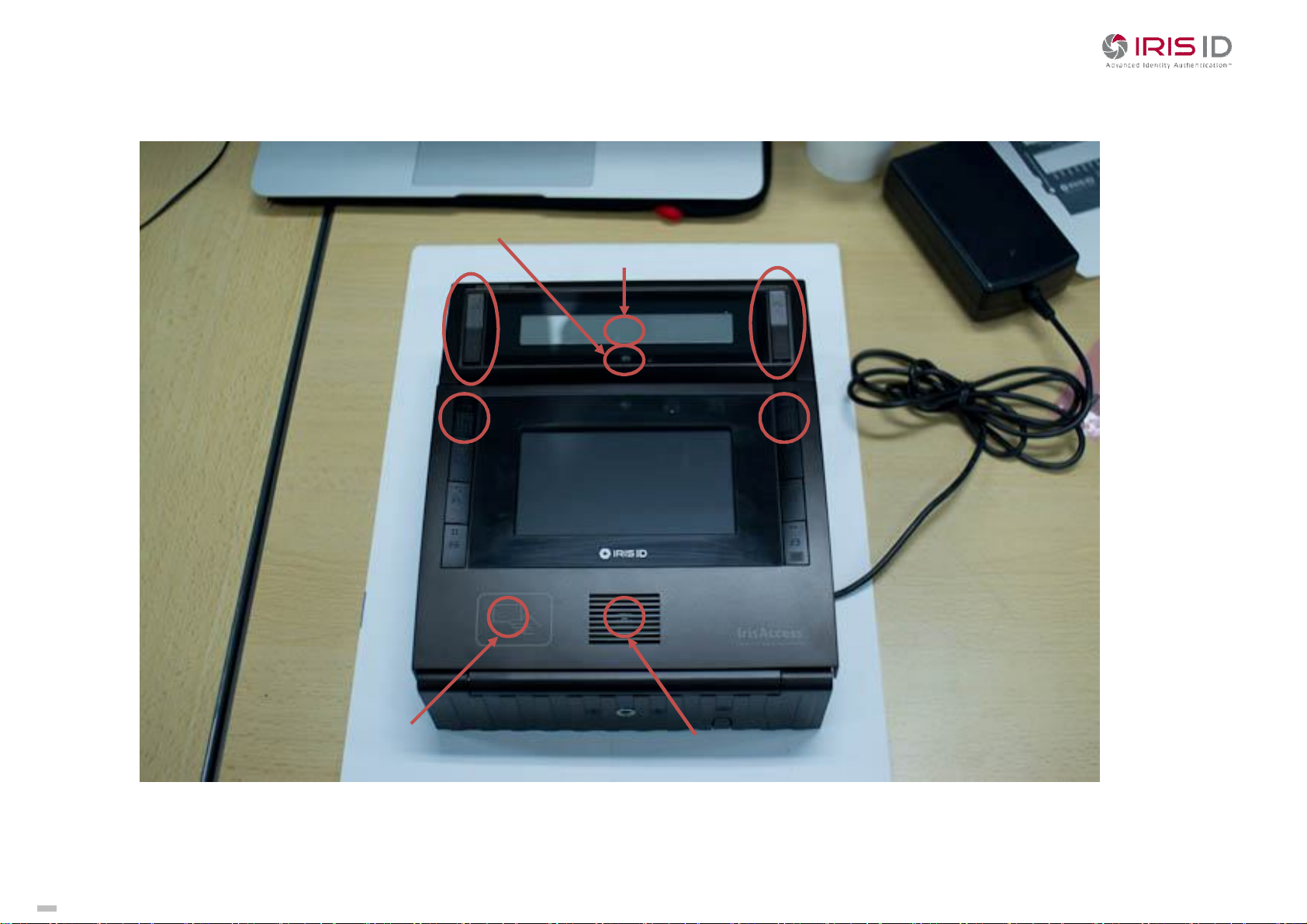

Motor Button Motor Button

Indication LED

5M Face Camera

MIC Input USB 2.0

3 Color LED & Speaker

USB type Smart Card

3. Specification(Main Part)

Item Specification

Dimension 178 x 213.4 x 76.7 mm

Weight 1.6Kg

CPU Samsung S3C6410

Memory 256MB(m-DDR)

Storage 1GB(On-board)

4GB(Up to 16GB SD)

Iris Sensor 752 x 480 (B/W WVGA)

Face Sensor 5M with AF

Display 4.3” LCD

Operating Range 33±2cm

Power Input Allowable Operation Voltage: 12 V DC

During Operation Voltage: 12 ~24 V DC

Operation Temperature -20~55℃

Operating Humidity 0~90% R.H

Button Power (Internal)

Motor Tilt(On both sides), 6 Function Keys

Connectivity 10/100Mbps LAN, USB 2.0, Wiegand, RS232, RS422, Relay

Sound In/Out Mono/external speaker Output, Mono Input

RTC CR2032(Replaceable)

Motor 12V DC

4. Specification(USB typed RF)

Item Specification

Dimension 26 x 94 x 15mm

Weight 17g

Power Supply Bus Power

USB Speed USB 2.0 Full Speed

Standard ISO7816

Power Consumption 60mA

MTBF 500K Hour

LED Blue

Card interface Speed 420Kbps

Card clock Frequncy Up to 8MHz

Supporting Card type iClass,Mifare,Desfire

Operation Temperature -20~55℃

Operating Humidity 0~90% R.H

5. Operation Procedures

① Un-plugged screws on both sides as shown below

② Pull the front door

③ Power on after connecting power and LAN

LAN

Power Input(12~24V DC)

Power Switch

④ After power on, please check message in LCD as below and press “Enroll”.

⑤ Enroll face image. Touch user’s image in the LCD for capturing, then assign user’s ID

automatically. Press “Next” for enrolling iris.

Image 1. Image 2.

터치

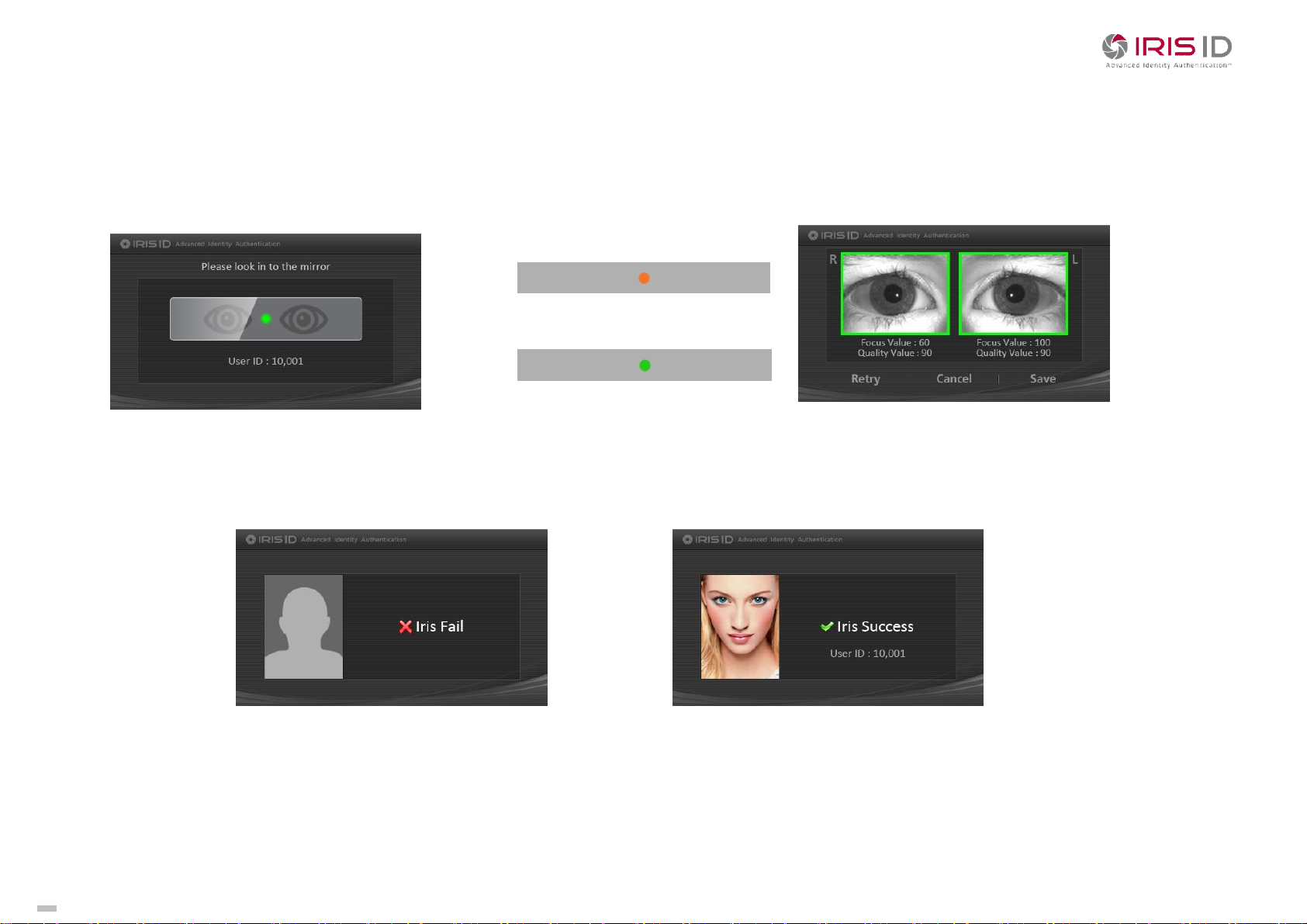

⑥ Enroll user’s iris. When starting enrollment, the first image will be displayed.

Adjusting user’s iris with cold mirror. If user is in range , green will be shown.

Otherwise, orange will be shown. Stay in range for a second, the second image will

appear like second image. Press “Save” for finishing enrollment

⑦ After finishing enrollment, the device will run in the continuous recognition mode.

The result will be displayed either failure or success

Out of range

In range

Image1. Starting enrollment Image2. Enrollment complete

Image 1. Recognition fail Image 2. Recognition success

6. Warranty Period

The period of device warranty is 2 years.

7. A/S Policy and contact point

If there is any problem without customer’s fault, the repair fee is free within 2 years.

Contact Point: 032-820-5300(Factory)

8. FCC notice to users and product statements

This device complies with part15 of the FCC Rules. Operation is subject to the following

two conditions

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received,

including interference that may not cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Change or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

9. Other notices.

Installation location is indoors, cable lengths exceeding 10 meters are available.
