Iris Ohyama KJ220F-ACMS User manual

K KJ220F-ACMS
EN
Air purifier
KJ220F-ACMS
User manual
Indoor·for home use
Preparation before use
Safety instructions ....................................................... 2
Usage precautions....................................................... 4
Placement method....................................................... 4
Parts ............................................................................ 5
Preparations before use .............................................. 8
Filter screen................................................................. 9
Operation instructions
Operation instructions.................................................. 9
Indoor air quality monitor............................................. 11
Cleaning and maintenance.......................................... 12
Others
Troubleshooting........................................................... 14
Specifications .............................................................. 15
Consumables............................................................... 15
Contents
CODE：808395_ ㊥ＰＨ取説空清ＡＣＭＳＤＣＭＳ
サイズ：210 × 297(A4) 16 ページ
材質：上質紙 四六判 70kg（81.4g ／㎡）
刷色：1C(BLACK)

K KJ220F-ACMS
EN
2
Information to be considered. Actions to be avoided. Actions to be taken.
Safety instructions
Please read the
“Safety instructions”
carefully and strictly follow these when using the product, so as to
avoid injury to people and unnecessary property damage.
The Safety instructions are divided into two parts:
“Warning”
and
“Attention”
, both of which provide
important information on safe use and need to be strictly adhered to.
Must be
performed
●
In case of any abnormality, stop using the
product immediately, turn off the power, and
unplug the power plug from the power socket
Failure to do so may lead to smoking,
fire, or electric shocks.
[Examples of abnormalities]
· Scorching smell or abnormal noise
during operation
· Abnormal heating of the power plug
and power cord
· The power source is unstable when
the power cord is moved
· The product frequently stops running
during operation
· U ser feels numb or suffers an electric
shock while touching the product
→
In case of any of the above abnormalities,
please stop using the product and contact the
store where the product was purchased from or
Iris Customers Service Center.
No contact
with water
●D
o not use this product in damp
environment such as near water
sources or bathrooms
●D
o not wet the product or immerse it in water
Doing so may cause fire or electric shocks.
Must be
performed
●T
hie appliance is not intended for use by
persons(including children)with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety
●C
hildren should be supervised to ensure
that they do not play with the appliance
●l
f the supply cord is damaged, it must be
replaced by the manufacturer,its service
agent or similarly qualified persons in order
to avoid a hazard
No
disassembling
●Do not disassemble, repair or
modify the product by yourself
Doing so may cause fire, electric shocks or injury.
Non-professionals are strictly prohibited from
repairing the product to avoid danger.
For repairs, please consult with the store
where the product was purchased from or Iris
Customers Service Center.
Correctly use the power plug and power cord
Must be
performed
●Please periodically clean the dust
from the power plug
The accumulation of dust may cause fire or
electric shocks due to insulation faults.
●Insert the power plug into the
socket thoroughly
Otherwise it may cause fire or electric
shocks due to short circuits.
Pull off
the plug
●Be sure to unplug the power plug
from the socket before repairing,
checking or moving
Failure to do so may cause electric shocks or injury.
No
wet hand
●Do not plug or unplug the power
plug with wet hands
Doing so may cause electric shocks or injury.
Prohibited
●Do not use a damaged power cord
or power plug, or a loose socket
Doing so may cause fire or electric
shocks due to short circuits.
●Do not power on the product when
the power cord is bundled
Doing so may cause empyrosis or re due to over-
heating. Be sure to extend the power cord for use.
●Do not pull the power cord while
moving and storing
Doing so may cause fire or electric shocks.
●Do not damage the power cord
Do not damage or press the power cord,
forcibly bend or stretch the power cord, or
place heavy objects on the power cord.
Doing so may cause fire or electric shocks
due to the damaged power cord.
●D
o not use a power source other than 220-240V~
Doing so may cause fire or electric shocks.
Warning Faulty operations may lead to death or serious injury.
Meanings of signs

K KJ220F-ACMS
EN
3
Prohibited
●Do not block the air
inlet or outlet
Doing so may cause
deformation, failure or fire due
to overheating of the product.
●D
o not insert fingers or
metal objects into the air
inlet or outlet
Doing so may cause electric shocks or failure.
Prohibited
●Do not use this product in places
within the spray range of water
vapour, such as a humidifier
Doing so may
shorten the
service life of the
filter screen and
cause electric
shocks or failure.
Prohibited
●D
o not spray liquids onto this
product, such as insecticides,
hair care products, or
lubricating oil, etc.
●D
o not use this product near
ignitable or flammable objects, such
as kerosene, gasoline, and thinners
●Do not use this product in or near
places with lampblack
Doing so may cause fire.
Must be
performed
●Be sure to hold the handle when
picking up the product
Failure to do so
may cause a fall of
the product, which
results in personal
injury or damage.
●Be sure to install
the front panel
firmly
Failure to do
so may cause
a fall of the
product due to
the loosing front
panel, which
results in personal injury or damage.
Prohibited
●Do not run this product when
using fume-type insecticides that
may emit smoke
The pharmaceutical ingredients can
accumulate inside the machine and re-
discharge when running the product
again, causing damage to health.
After using an insecticide, please only
run this product after fully ventilating.
Prohibited
●Do not lean on the product
●Do not leave the product within
the reach of children
●K
eep the product away from children
Failure to do so may cause injury when
the product is toppled.
●The product should not be
used by children, persons with
physical, cognitive and intellectual
deficiencies, a lack of experience
or a lack of common sense
●Do not use the product outdoors
Doing so may cause short circuits or fire
due to failure.
Must be
performed
●B
e sure to carry out ventilation
when using with a burning appliance
Failure to do so may cause carbon
monoxide poisoning.
※This product is not able to remove harmful
gases such as carbon monoxide.
Attention Faulty operation may lead to slight injury or damage to the
product.
Pull off
the plug
●To unplug the power plug, hold
the plug part and do not pull on
the power cord
Failure to do so may cause fire or electric
shocks due to a damaged power cord.
●Be sure to unplug the power plug
when it is out of using for a long
period
Failure to do so may cause electric
shocks or fire due to insulation aging of
the power cord.
No fire
●Do not use this product near fire
sources and heating equipment
Doing so may cause fire.
●Be sure to keep the product away
from flammable materials, burning
cigarettes or incense sticks, etc.
Failure to do so may cause fire.

K KJ220F-ACMS
EN
4
●Do not operate this product with the filter
screen removed.
Doing so may cause failure to achieve the
purification effect.
●Do not use damaged or broken filter
screens.
Doing so may cause failure or reduction in
performance.
●Be sure to use and correctly install
dedicated filter screens.
●Do not use the product as a ventilator.
●Do not use the product in smoky places.
Doing so may shorten the service life of the
product or cause failure.
●D
o not use the product near TVs, radios, etc.
Doing so may generate interference.
●A
beep will sound when pressing the button.
When the product stops running, long beep
sound, and a beep sounds at other times.
A beep also sounds when the display switching
button is pressed in the stop state.
Usage precautions
Waste Treatment
●Please dispose the products and packagings in accordance with China's environmental
protection regulations.

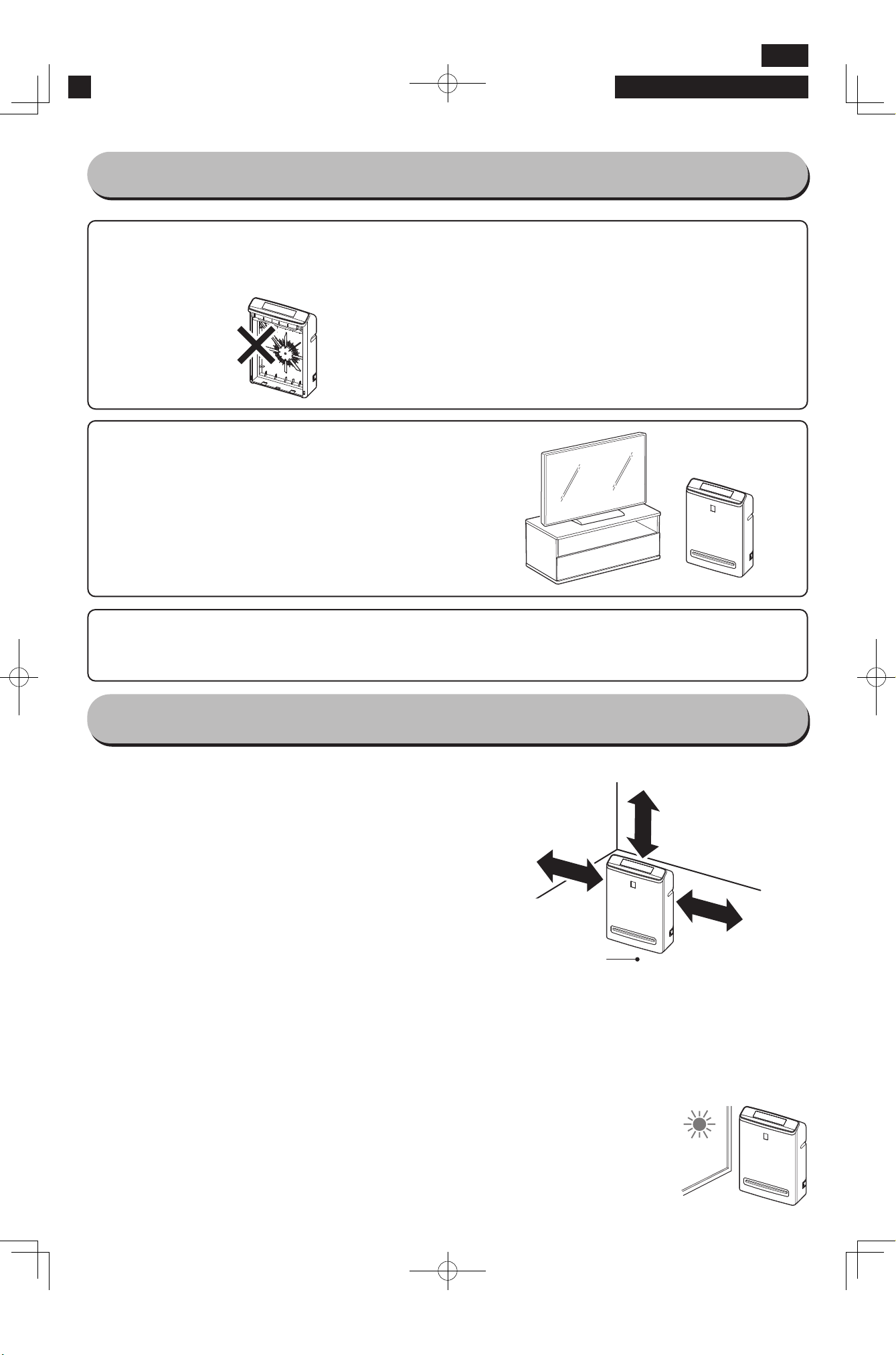

Placement method
■Keep the product a distance
from the surrounding items
●P
lace the product in a spot with good air circulation, and
do not place it near cooling or heating equipment.
■Keep the product on a flat
and stable surface
●Do not use it on unstable surfaces.
●Do not use it while it is at an angle.
Doing so may cause injury or failure due to falling.
■Attention
●It is recommended that the product should be
used at a room temperature ranging from 0 to
35℃.
●Do not use it in places prone to condensation or
that experience major fluxes in temperature.
●Do not aim the air outlet at ornamental plants,
etc., so as to avoid drying out the plants.
●Stains may appear on walls and the like around
the air purifier. Be sure to clear them after having
it in the same place for a long time.
●Do not use it in a place exposed to direct sunlight
so may cause failure or discolouring.
Above 60 cm
20cm以上
Above 20 cm
20cm以上
Above 20 cm
Smooth place

K KJ220F-ACMS
EN
5

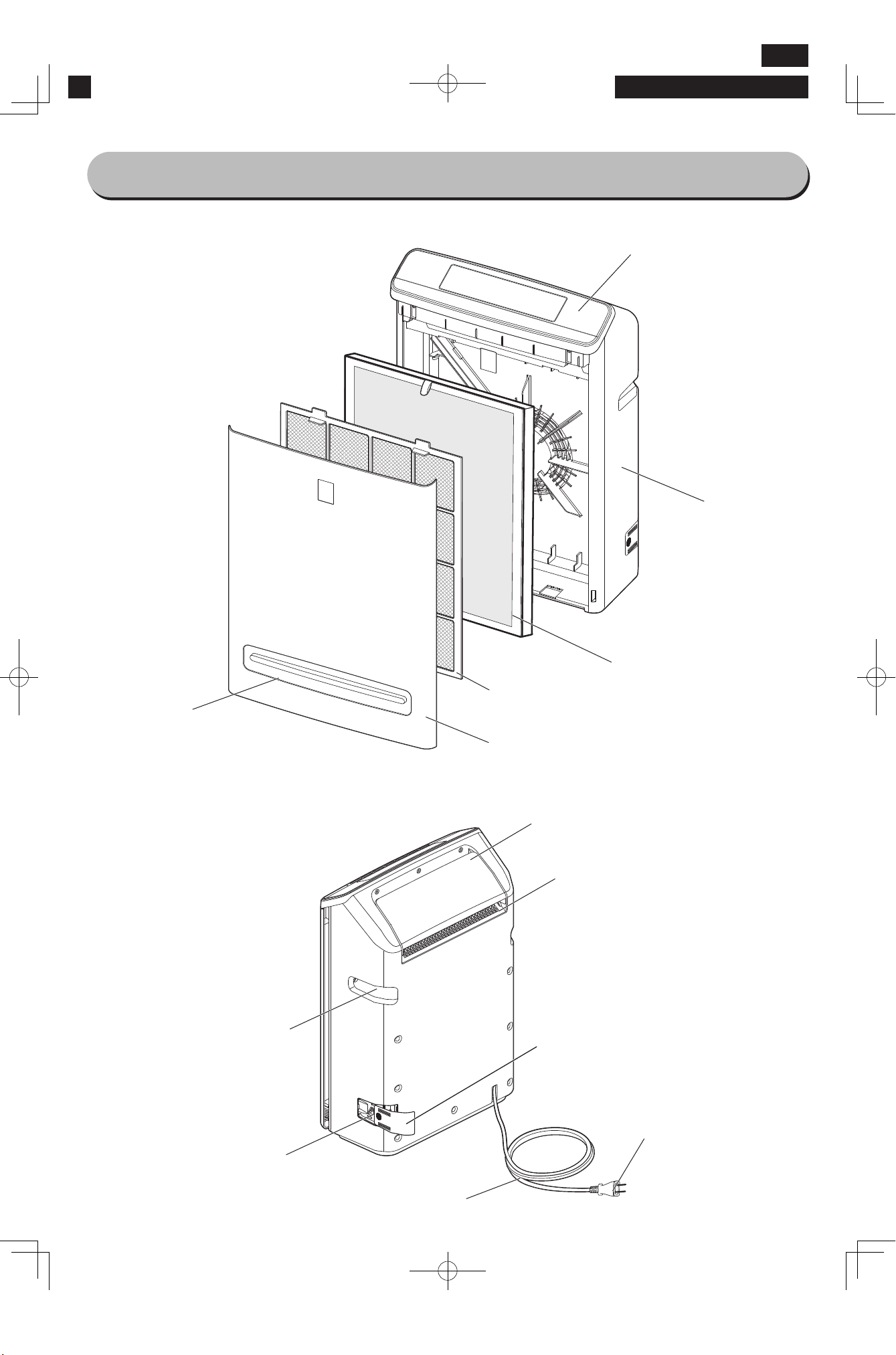

Parts
■Front
■Back
Operation panel
Pre-filter screen
Front panel
Body
Air deflector
Air outlet
Power plug
Power cord
Dust sensor cover
Dust sensor
Handle (Left/Right)
Air inlet
(Left and right sides and
below of the front panel)
HEPA activated carbon
composite filter screen

K KJ220F-ACMS
EN
6
Parts Continued

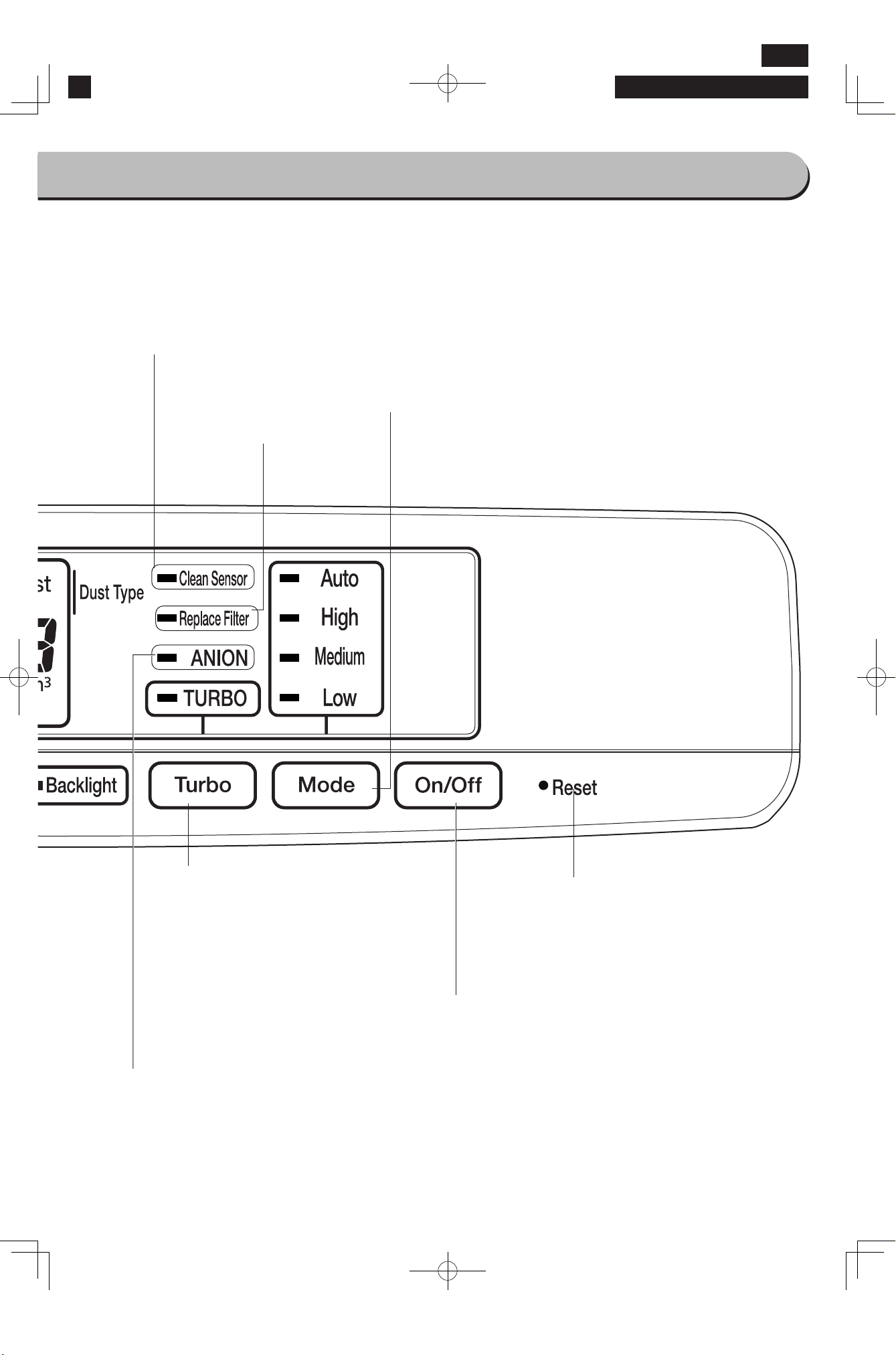

■Operation panel
Backlight button
Press the button to turn on the backlight, and the indoor
air quality monitor is constantly on. Press the button again
to turn off the backlight. While pressing the button during
the operation, the backlight of the indoor air quality monitor
keeps on for 2 minutes.
SEV ——— severe
L ———— light
H ———— high
STD —— standard
M ———— moderate
Exc —— excellent

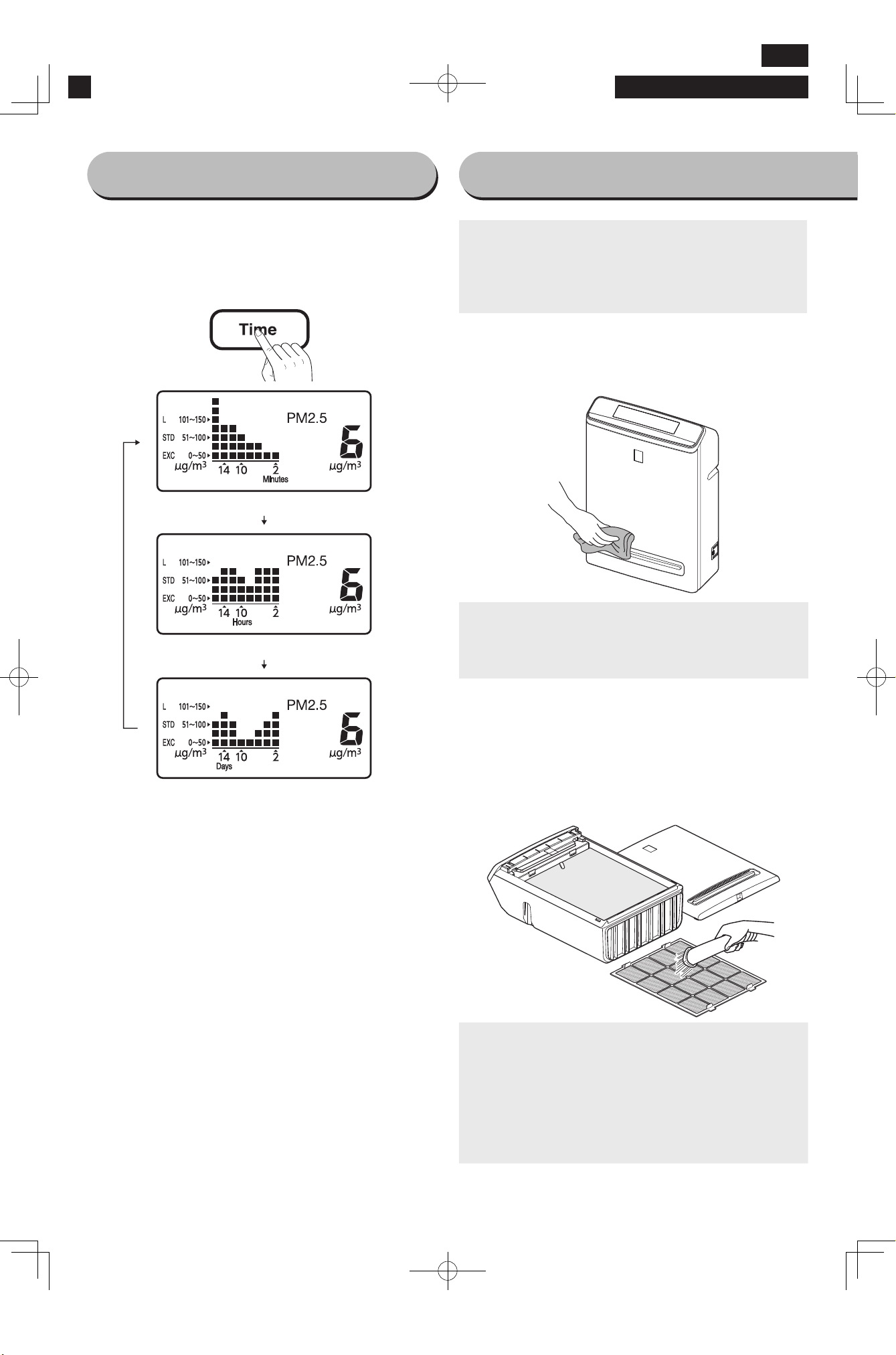

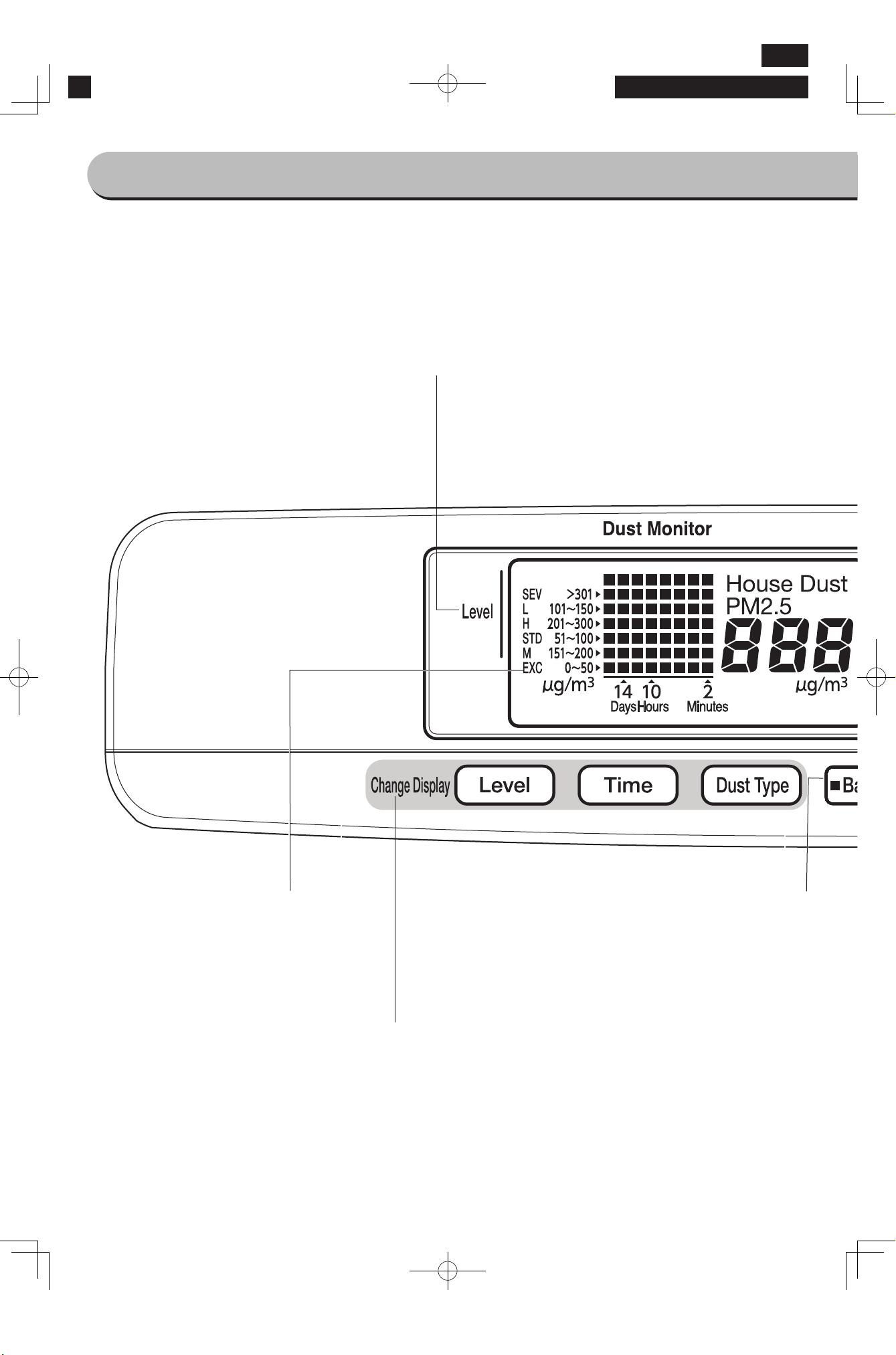

Indoor air quality monitor
Display the PM2.5 concentration of indoor air
monitored by the sensor, and graphically display
the concentration changes within 14 minutes and
14 hours or 14 days ago.

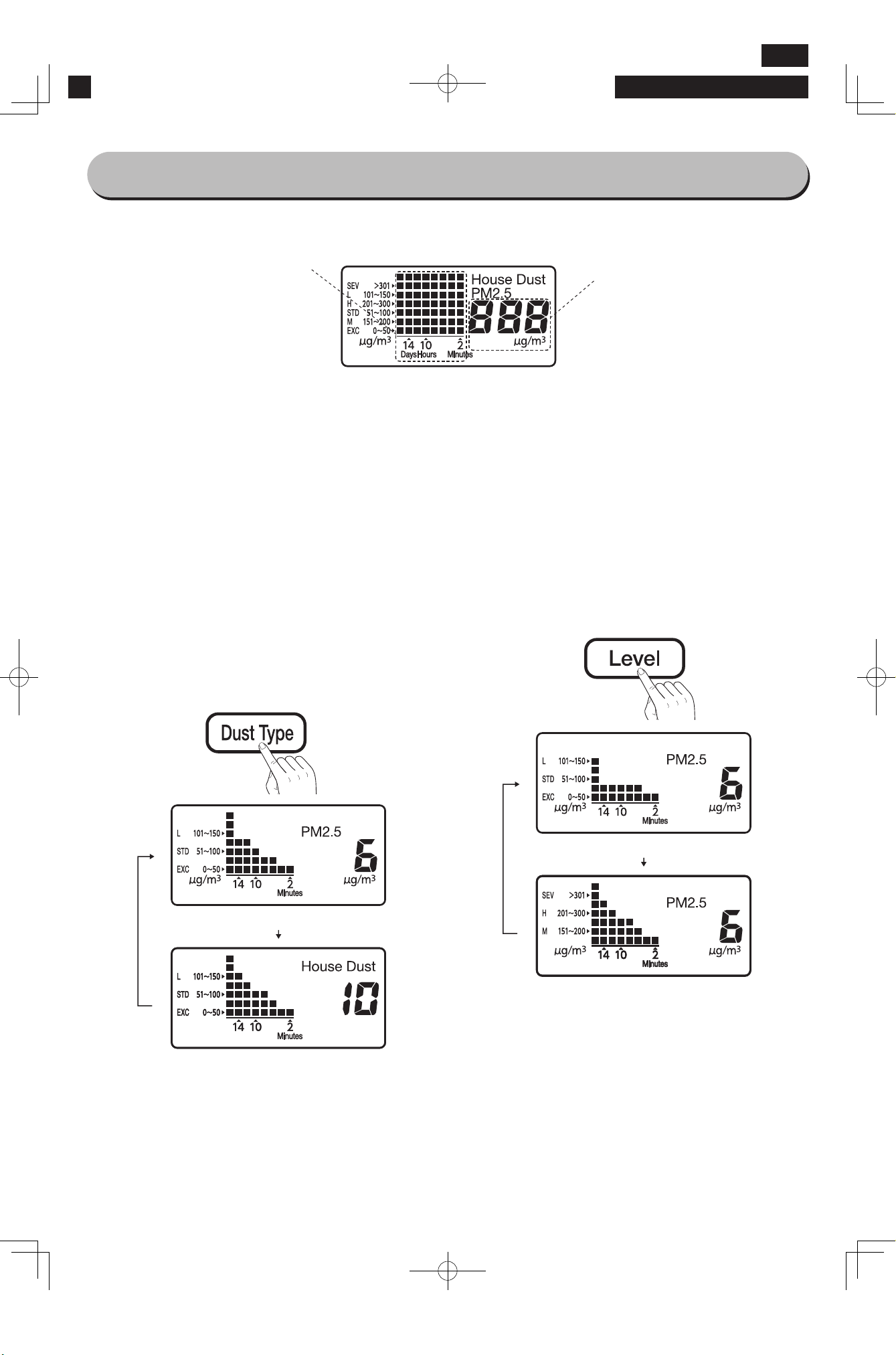

Change display (level, time, dust type)
Switching the indoor air quality detection display.
Time button
Switch the time unit on the display.
Dust type button
Switch between the House Dust and PM2.5 displays.

K KJ220F-ACMS
EN
7
Turbo button
Press the button, the indicator light
goes on. KJ220F-ACMS runs for about
10 minutes.
On/Off button
Press this button to turn on the power
and start the Auto operation mode at
low speed. Press the button again to
stop running.
Reset button
After replacing the filter screen and
cleaning the sensor, press this button to
turn off the Replace and Clean sensor
indicator lights.
Mode indicator light and button
Press the button, the running mode
switches to Low →Medium →High →Auto
in turn.
Replace filter light
The indicator light goes on
when the filter screen needs to
be replaced.
Clean sensor indicator light
The indicator light goes on when the
sensor needs to be cleaned.
ANION indicator light
The ANION indicator lights up at
the beginning of the operation,
producing anion.

K KJ220F-ACMS
EN
8
■Installation of filter screen
Be sure to install the filter screen before plugging the
power plug into the socket.
1
Tilt the body down horizontally to remove
the front panel
• Lift the lower ends of the front panel to remove the
front panel.
2
Remove the pre-filter screen
• Pull the upper two claws outward.
• Pull the lower two claws outward to remove the
pre-filter screen.
Pre-lter screen
3
Take the HEPA activated carbon
composite filter screen from the plastic
bag
Composite filter screen
●In order to ensure the quality, the filter screen
is directly installed into the body in the state of
packed in a plastic bag. Be sure to take it out
before use.
Preparations before use
4
Install the composite filter screen
• Keep the HEPA activated carbon composite filter
screen surface towards the direction of front panel
during installation.
※Reverse installation of the composite filter screen
will reduce its performance.
5
Install the pre-filter screen
• Embed the lower two claws into the body.
• Embed the upper two claws into the body.
6
Install the front panel
• Engage the buckle on the front panel with the claws
on the body, and embed the lower claws into the
body.
■Connection to the power
• Place the product on a stable place, hold the power
plug to insert it to the socket.

K KJ220F-ACMS
EN
9

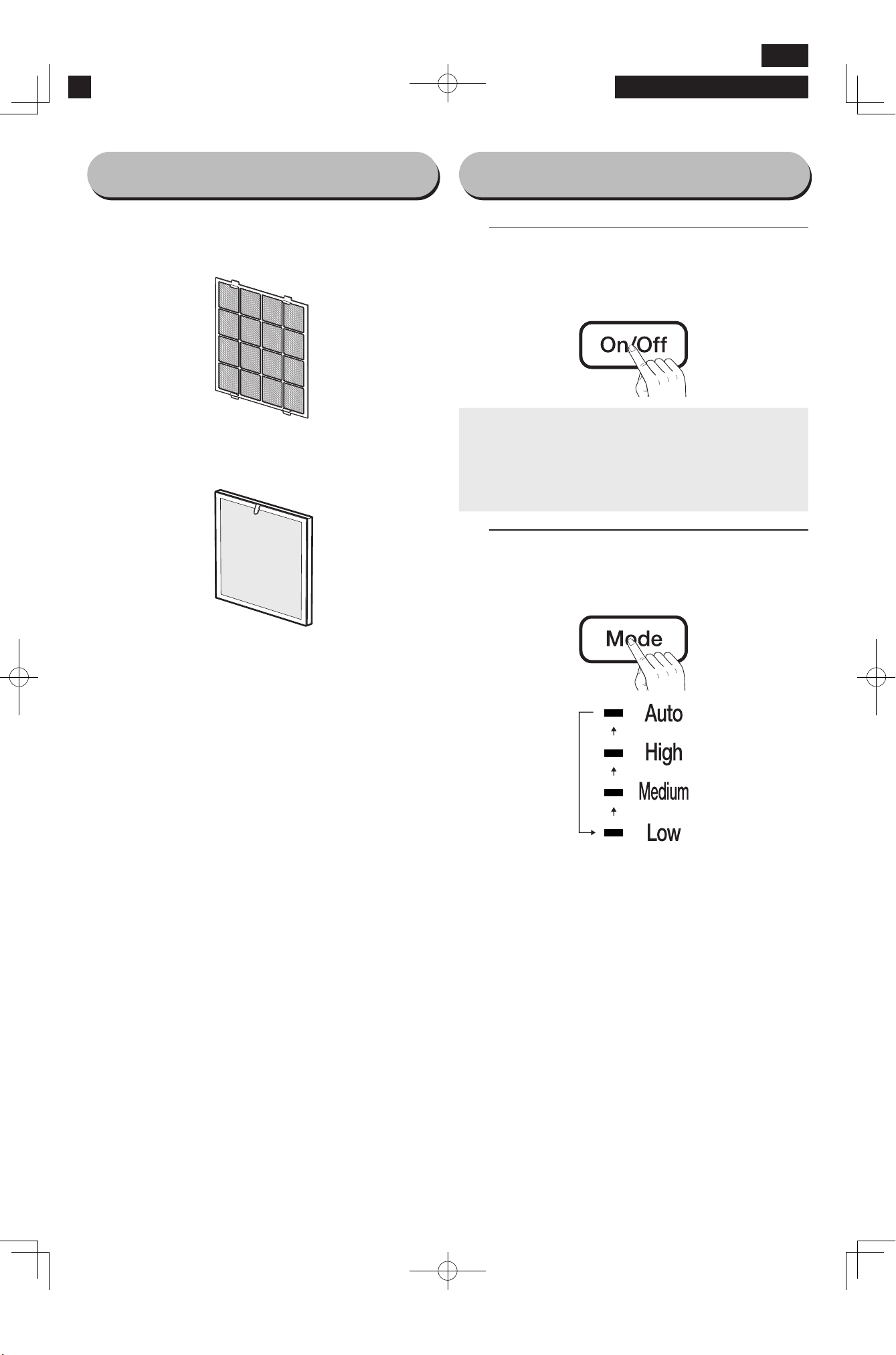

Operation instructions Filter screen
■Functions of filter screen
Pre-filter screen
Pet hairs and furs dust and dirts
HEPA activated carbon composite filter screen
PM2.5
Formaldehyde
1
Press the On/Off button
• Run the product in Auto mode at low speed.
※You need to wait for a period of time from connection
to the power to monitoring by the sensor.
Attention
●Due to high sensitivity of the sensor,
even invisible mist may cause the
sensor to run when an ultrasonic
humidifier or sprayer is used near
the sensor.
2
Choose the running mode
• Press the Mode button to switch the mode.
<Auto>
In the Auto mode, the product automatically switches
the air volume according to the concentration monitored
by the sensor.
※
If the indoor air quality detector is switched to
the PM2.5 display, the air volume is adjusted in
response to the concentration of PM2.5; If the
detector is switched to the House Dust display,
the air volume is adjusted using to the House Dust
indicator.
<Low, Medium, High>
In the modes of Silent, Standard, and Fast, the product
can constantly run without being affected by the sensor.

K KJ220F-ACMS
EN
10
■Air direction adjustment
Use the air deflector of the air outlet to adjust the air
direction.
Do not pull the air deflector
Please install the air deflector according to the
following steps after it is disengaged.
1.
Insert the left rotating shaft into the hole.
2.
Bend the air deflector.
3.
Insert the right rotating shaft into the hole.
■Turbo mode
It’s a high speed running mode in a short period in
case of serious indoor air pollution.
• When the turbo mode is required, press the Turbo
button to light the indicator light.
• PMMS-DC200 runs for about 10 minutes in turbo
mode.
• To stop the turbo mode running, press the On/Off
button.
• After the turbo mode stops running, the product
switches to Auto mode at low speed.
■Stop running
• The product stops running and the power is cut off
after pressing the On/Off button while running.
■Backlight button
• Press the button to turn on the backlight, and the
indoor air quality monitor is constantly on.
• Press the button again to turn off the backlight.
While pressing the button during the operation, the
backlight of the indoor air quality monitor keeps on
for 2 minutes.
※The backlight light is off after the product stops
running.
■Anion
• Built-in ANION generator. Anion is generated at the
start of the operation.
Operation instructions Continued

K KJ220F-ACMS
EN
11
Indoor air quality monitor
Display the PM2.5 concentration of the indoor air.
Display the changes in concentration
within 14 minutes, within 14 hours, or
14 days ago.
The new value is displayed on
the right side of the graph every 2
minutes, 2 hours, or 2 days.
Display PM2.5 concentration. (“0”
is displayed during the period
from the connection to the power
to running of sensor)
• The current concentration value and concentration change can still be displayed when the operation is stopped.
• The button can still be pressed for switching when the operation is stopped.
• After the power is cut off or the power plug is unplugged, the monitoring operation is reset; after the power-on, the monitoring
operation is restarted. Press the Reset button (the Replace and Sensor and House Dust indicator lights are turned off) to monitor
the reset.
※The maximum display value of the indoor air quality monitor, PM2.5 is 500. The displayed value does not exceed the
maximum value when the high-concentration cigarettes and cooking fumes are monitored.
■Change display
• Pressing the dust type button switches between the
PM2.5 and House Dust displays.
• In automatic operation mode, PM2.5 is displayed
according to the concentration of PM2.5, while
House Dust Index is displayed according to the
index of House Dust, and the air volume is switched
automatically.
PM2.5 display
House Dust display
Standard concentration display
High concentration display
■Level display
• Levels can be switched when the PM2.5
concentration is displayed.

K KJ220F-ACMS
EN
12
●Be sure to turn off the power and unplug the
power plug from the electric socket before
cleaning and maintaining the product.
●Do not use detergent, thinner, gasoline, and
bleach, etc. for cleaning.
■Body About once a month
• Wring out the soft cloth soaked in water or warm
water (below 40°C) to wipe the body.
●Do not pour water onto the body, otherwise it may
cause electric shock, injury, or malfunction.
●Please follow the precautions when using
chemical wet wipes.
■Cleaning and maintenance of
filter screens
About once a month
• The dust accumulation on the pre-filter screen may
reduce product performance. After opening the
front panel and removing the pre-filter screen, be
sure to clean them with a vacuum cleaner.
Attention
Do not carry out maintenance for HEPA
activated carbon composite filter screens.
●Do not use a vacuum cleaner to absorb dust from the
HEPA activated carbon composite filter screens, and
do not rinse them with water.
●Do not press or bend the filter screens hard. Otherwise
the purification effect will be lost once damaged.
※In case of any damage to the pre-filter screen,
please consult Iris Customers Service Center.
■Time display
• After pressing the Time button, the displayed time
in the graph is switched in the following order:
Concentration change within 14 minutes
Concentration change within 14 days
Concentration change within 14 hours
■Indoor air quality monitor
picture light
• While pressing the button during the operation, the
backlight of the indoor air quality monitor keeps on
for 2 minutes.
• After pressing the button, the indicator light and
backlight go on. The indoor air quality monitor is
always on.
Indoor air quality monitor Continued Cleaning and maintenance

K KJ220F-ACMS
EN
13
■

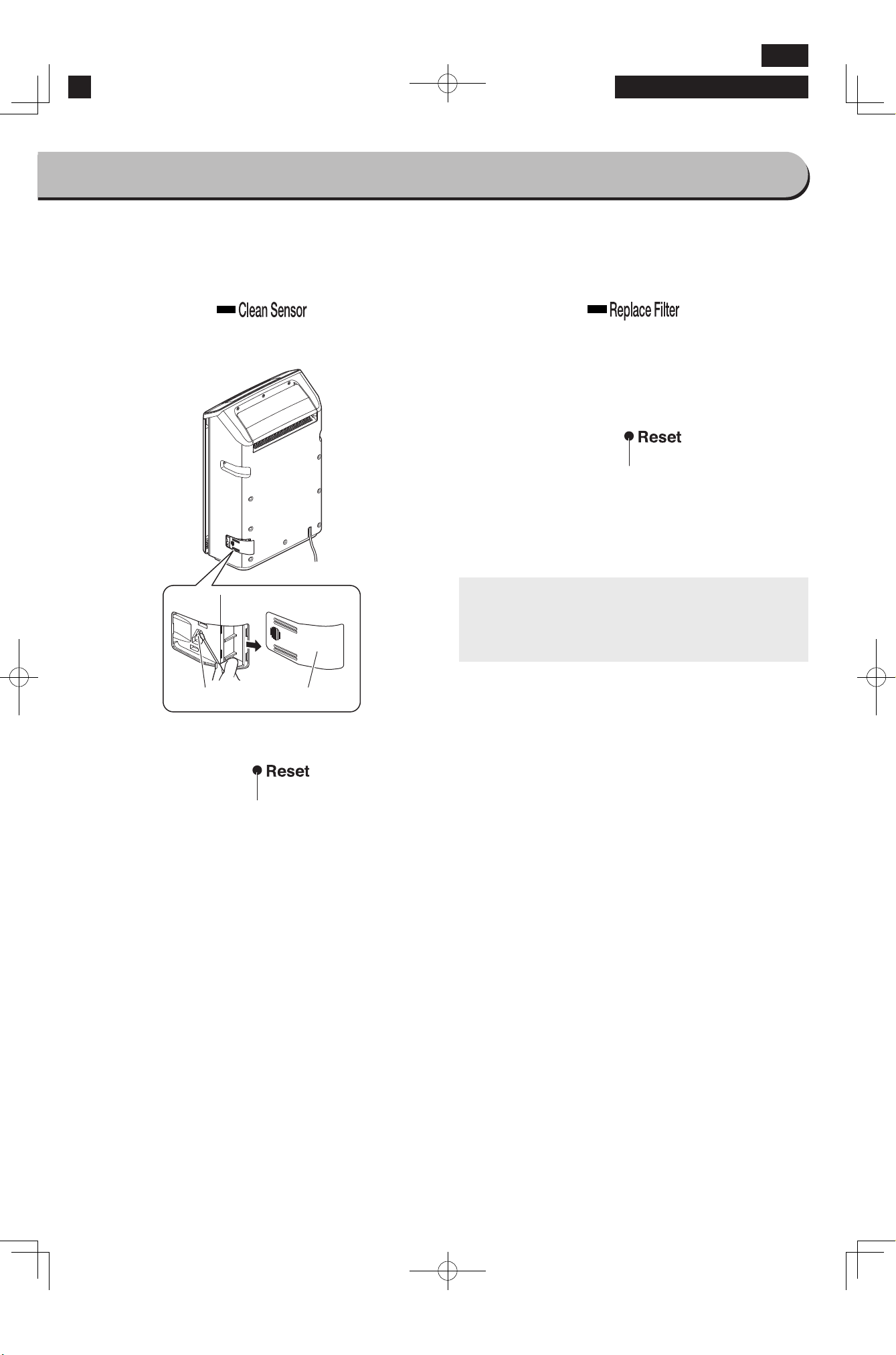

Clean sensor indicator light on
The indicator light goes on when the sensor needs to
be cleaned.
• Remove the sensor cover on the side of the body,
and wipe the lens with a dry cotton swab.
Sensor coverLens
• Press the Reset button after cleaning is completed
to turn off the clean sensor indicator light.
Press the button in the reset hole on the
operation panel.
※The sensor works normally even after the stop of
the operation. Therefore, whether the products runs
or not, the indicator light will go on for reminding
clean sensor after about 3 months.
■Replace filter light
The indicator light goes on when the filter screen
needs to be replaced.
• Purchase consumable filter screens and refer to the
procedures in
“Preparation before use”
to replace
the filter screen.
• Press the reset button after the replacement is
completed to turn off the Replace filter light.
Press the button in the reset hole on the
operation panel.
※
The filter replacement cycle is related to the
running frequency and the concentration of air
pollution.
●When the Clean sensor and Replace filter lights
go on at the same time, pressing the Reset
button, and both the indicator lights will turn off
at the same time.
Cleaning and maintenance

K KJ220F-ACMS
EN
14
Out of operation
Weak air volume
Big noise
The Replace filter light
does not go on, and the
smell or smoke removal
effect becomes weaker
The product vibrates
●The power plug is not plugged
into the socket
●The product is used in an
environment where air pollution
is more severe than in ordinary
households
●The product is placed in an
unstable place
●Insert the power plug into the socket.
●Replace the filter screen as soon as
possible.
●Place the product in a smooth place.
Common faults Possible reasons Solutions
●The filter screen is not taken
out from the plastic packing bag
●Take the filter screen from the plastic
packing bag for proper installation.
Smell and smoke cannot
be removed
●Filter screen is not installed
Troubleshooting
Please read the following content carefully before sending to repair to confirm whether it is abnormal due to the following
reasons.
The displayed value of the
indoor air quality monitor
is always 500
The indoor air quality
monitor screen does not
darken
●The air pollution concentration
exceeds the maximum
displayed value
●The backlight is always on
●When the high-concentration
cigarettes and cooking fumes are
monitored, the displayed value does
not exceed the maximum displayed
value of 500 for PM2.5.
●When the backlight is off, the
backlight light of the indoor air
quality monitor goes on for 2 minutes
while the button is pressed during
operation.
If the problem is not solved with the
above measures
Please contact the store at the time of purchase or Iris
Customers Service Center.
Warning
●Do not disassemble, repair or
modify the product without
approval.
Anion indicator light
doesn’t turn off
●Anion generator is in an on
state during operation
●It is not fault.

K KJ220F-ACMS
EN
15
Specifications
Model No KJ220F-ACMS
Rated voltage 220-240V〜
Rated frequency 50/60Hz
Rated power 55W
Product size W400×D164×H536mm
Product weight (Approximately) 5.9kg
Power cord length (Approximately) 2.0m
※No other notification will be delivered in condition of changes on specifications of the product.
Warranty and after-sales services
Be sure to carefully read the following contents.
■Warranty card
Be sure to get the warranty card from the shop where you
purchase, and confirm that the relevant items have been
filled out.
If the warranty card cannot be shown within the warranty
period, the maintenance cost will be paid. So please
properly keep it.
■Within the warranty period
Warranty period: one year from the date of purchase.The
company will maintain for free according to Warranty Terms
if failure occurs within the warranty period.
■Beyond the warranty period
Please consult the shop where you purchase. It is
necessary to pay the relevant maintenance cost.
■About the warranty period for components
The warranty period for the important components of the
product shall be one year after the company suspends
production.
■About after-sales service
For other after-sales services not mentioned here, please
consult the shop where you purchase.

K KJ220F-ACMS
EN
808395
170522_CZH_HYJ_01
Warranty provisions
1. This carry-in warranty starts on the date of purchase and expires in ONE (1) year to cover manufacturing defects
caused during a normal use according to the operating manual as well as the precautions stated on the product and
packaging.
2. To claim the carry-in warranty service, customers should bring the complete unit and accessories to our service centre
in local market during the operational hours together with this warranty card and dated original receipt/invoice.
3. If the product is conrmed to be defective by the distributor’s authorized personnel, the company at its own discretion
may repair or replace the complete or part of the product at no cost.
4. Carry-in Warranty claim will be invalid and repair cost shall be paid by customer in the following situations.
(a) Failure and damage caused by improper use and unauthorized maintenance.
(b) Failure and damage caused by careless drop after purchase.
(c) Failure and damage caused by re, earthquake or other natural disasters.
(d) Failure and damage caused when the product is used for commercial purposes such as used in an industry for a
long time, or in a vehicle or a ship.
(e) Failure and damage caused by handling, transportation and other processes.
(f) Failure to show the warranty card and dated original receipt/invoice.
(g) Date of purchase, customer name, shop name not indicated on the warranty card or altered.
5. The carry-in warranty services are applicable only for products purchased in local market.
Air purifier KJ220F-ACMS
This warranty card is a certificate for providing free repair according to the following warranty terms in case of failure within the following
period from the date of purchase.
Date of purchase ※Warranty period
From the date of purchase:
1 year (except consumables)MM DD YY
Name Address and shop name
Address and postal code
Tel （ ） - Tel （ ） -
Instruction to Shop: please fill out items with ※before handing over the warranty card to the customer.
※Shop
E-WARRANTY
Scan the QR Code to register
your product's e-warranty today!
Terms & conditions apply.
A product of Japan
Made in China
www.innitebrands.ph
Imported By:
MACZA CONSUMER GOODS TRADING
Room 704,7th oor 1010 Bldg.
1010 A Mabini Street Ermita
Manila,Philippines 1000
Customer
