IROAD NX7 User manual

Read user manual carefully in order to protect
the user's safety and ensure the accurate use of the product.
IROAD NX7
USER GUIDE

BEFORE USING
USER INFORMATION
PRECAUTION
............................ 1
................................... 2~3
LCD MENU
LIVE SCREEN
MAIN SCREEN
PLAYBACK
CAMERA
TIME
SOUND
ADAS
EVENT
VOLTAGE
MEMORY SPACE MANAGEMENT
SECRET MODE
LCD
VERSION
.................................. 17~18
..................................... 19
............................................ 20
............................................... 21
..................................................... 22
................................................. 23
.............................................. 24~25
............................................ 26~27
........................................ 28~29
.......... 30
..................................... 31
................................................ 32~33
.............................................. 34
DEDICATED PC VIEWER
DEDICATED PC VIEWER
LIST OF RECORDINGS &
FRONT/ REAR PALYBACK
BACKUP
SETTINGS
....................... 35
..................... 36
................................................ 37
............................................ 38
PRODUCT INFORMATION
PRODUCT OVERVIEW
PACKAGE COMPONENT
NAME OF EACH PART
SPECIFICATION
............................ 4
......................... 5
............................. 6
..................................... 7
SET UP
INSTALLATION
UNINTERRUPTED FUSE CABLE
................................... 8~9
........... 10
USING THE DEVICE
PRODUCT FUNCTION
BUTTON SCENARIO GUIDE
RECORDING MODE
VOICE GUIDANCE
VIDEO FOLDERS IN SD MEMORY CARD
FIRMWARE UPDATE
.......................... 11
................. 12
.............................. 13
................................. 14
. 15
............................. 16
TROUBLESHOOTING ... 39
INDEX

1. USER INFORMATION
THANK YOU FOR CHOOSING JAEWONCNC IROAD VEHICLE RECORDER.
This manual contains how to operate product and guide you to use correctly, please read carefully before using product.
Please read carefully and follow the instructions given. This manual will guide you through on the instructions for the device.
This manual is based on IROAD NX7 model. Please be informed that there might be some unintended errors.
Contents of the manual might be modified without prior notice.
- Please visit our website at www.iroadkr.com
Global website address( Global - www.iroadkr.com / Singapore - www.iroad.sg / HongKong - www.iroad.hk / Malaysia - www.iroad.my )
- Please download the dedicated viewer, latest firmware and other product information from the IROAD website.
- JAEWONCNC is not responsible for any problem caused by illegal use of the product.
- Though this product records and saves footages in the event of accident, it does not guarantee every single accident scenes are fully recorded.
- If the impact on the vehicle is minor, the accident scene may not be recorded as the impact sensor is unable to detect minor ones.
- The recordings obtained from the product might be used as a proof of accident. However,
JAEWONCNC will not be responsible for any gain or loss caused by the accident.
GUARANTEE AND SUPPORTING
- This manual is legally protected by copyrights, all copyrights reserved to JAEWONCNC.
- This manual is reserved by JAEWON CNC. No one is allowed to make an unauthorized duplication, revision and publication of this manual.
- IROAD is the trademark of JAEWON CNC. The JAEWON CNC has rights to IROAD (Name, Design, and Brand Image).
Any unauthorized uses of IROAD is prohibited and is punishedable by the law.
COPYRIGHTS AND TRADEMARK

2. PRECAUTION
- Please make sure to use recommended / stable voltage only.
Otherwise, misusing may cause product failure, fire accidents, explosion or damage to the vehicle.
- Do not arbitrarily disassemble and modify the product. Otherwise, it might cause damage of the product and electric shock.
It should be considered user's fault and void the warranty.
- Make sure that the power cable is not cut or damaged when attaching other electronic gadgets on the vehicle,
otherwise it can cause product failure or danger of electric shock, and please use qualified power cable which is produced by JAEWON CNC.
- It is highly recommended not to arbitrarily connect the uninterrupted power cable to vehicle as it can cause malfunction of the product
by different conditions of vehicle and surrounding environments. (Please contact professional engineer if you need to install it)
VOLTAGE RELATED ISSUES
- Do not mount dash cam on where sight might be disturbed. It may cause an accident.
- Connect all the cables provided into right slots. That may be parts of the problem.
INSTALLATION
- Do not use dash cam while driving. Please park your vehicle in safe place for use
- Do not force a product or its lens because it may cause product malfunction.
- Keep the device away from flammable or explosive stuff causing explosion and fire.
- Do not cover the device with fabric or other tools. Malfucntion or fire would cause once it is overheated.
- When the device is used for too long, it may cause skin burns.
- The quality of image could deteriorate while the car is passing through tunnel or at very dark night with no light.
- Recording quality might be reduced by excessive tint.
- Image quality could deteriorate when the temperature of the device exceeds the optimal operating temperature.
THE RIGHT USE

3. PRECAUTION
- Please turn off the dash cam when exposed to direct sunlight or used for too long. Otherwise, malfunction or breakdown would occur.
- Please check whether the device is working before driving a car.
- Do not remove SD card or turn off the power cable during the firmware update. It may cause malfunction or loss of data.
MANAGEMENT
- There is the lifetime of memory card which is expendable.
Some errors could occur if the lifetime of memory card reached or being stayed in high temperature environment.
Periodic maintenance is required.
- The device must be turned off when inserting / removing memory card.
It may cause to lose data or malfunction of memory card if the memory card is removed or inserted during product.
- Keep memory card in case all the time when not in use.
- Please avoid places where are humid and very hot.
- Genuine IROAD memory card is recommended. Failure to use a genuine one may cause error or malfunction of product.
Memory card is expandable and the memory card's warranty is 6 month period.
(it may cause to reduce life cycle of memory card if using with constant power cable)
- Please regularly format the memory card twice a month for stability.
(Format function supported by a dedicated viewer is recommended.)
- Product is only permitting recording files and NX7 program. Any other files will be deleted in order to keep stability.
(Please use the SD card for the product only, otherwise it will be deleted.)
- It takes up to 5 minutes depending on the memory capacity to use SD card if the first time of using it is.
Please do not remove the SD card while the device is running.
MEMORY CARD AND PRECAUTION

4. PRODUCT OVERVIEW
High Definition Vivid FHD
Front : Full HD 1920x1080p 30frames
Rear : HD 1280x720p 30frames
3.5inch TN Touch LCD
3.5inch TN Panel
Easy to use with GUI
SAFEGUARD for All Yours Safety
Automatic low voltage cutoff function is embedded
in the device for the safety of the car battery.
Uninterrupted Power
High Intensity Security LED
High intensity LED makes it possible to check
outside whether product is working.
Variable Recording Mode
Automatic parking mode and motion detection function,
24 hours recording mode.
Night Vision
Record the brightest and the cleanest images
even in low light environments.
ADAS - Advanced Driver Assistance System
LDWS, FCWS
FVDW
Time Lapse -Long Parking Recording
Compressa the video while driving in a constant frame (1FPS),
Low capacity, Long Driving Recording
Hyper Lapse - Long Driving Recording
Compress video while driving at constant frame (1FPS)
Low capacity, Long Driving Recording
Dedicated PC Viewer & Smartphone Playback
Playback recorded data,
set various functions on dedicated PC Viewer.
Playback on PC and Smartphone playback available.
Voice Recording & Voice Guidance
High Quality Sound Recording
Clearer Voice Guidance by Built in Speaker
External GPS
Driving information through external GPS.
Time, Driving Path, Direction with recorded video.

5. PACKAGE COMPONENT
Front Camera
Rear Camera
IROAD Genuine
Micro SD
Rear Camera Cable
User Manual
The picture of this package may differ form the real.
The images of components can be different from the real and some can be changed.
Users are able to purchase the optional components from IROAD website.
(Please refer to page 1 for IROAD website)
External GPS Antenna
Uninterrupted
Fuse Cable
Cigar Jack Power Cable
Cradle
Basic Components
Optional Components
SD Card Reader
아이로드 NX7
사용설명서
The picture of this package may differ form the real.
The images of components can be different from the real and some may be changed.
Product has a built in memory card.(32GB)
32

6. NAME OF EACH PART
1Front Camera Lens
2Security LED
3Transparent Cradle
4Cradle Screws
53.5 inch Touch LCD
12 Rear Camera Cable Slot
13 Security LED
14 Rear Camera Lens
15 Transparent Cradle
11 Micro SD Card Slot
7Power Connector
8Rear Camera Cable Slot (V-IN)
9External GPS Connector
10 Power Button
6REC LED
5
6
11
10
78 9
12
3
4
1
2
15
13 14

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
7. SPECIFICATION
Model
Image Sensor
Resolution / Frame / Viewing Angle
LCD
ADAS
Audio Input
Video / Audio Compression
Vibration Sensor
External GPS Sensor
Capacity
Recoding Modes
Uninterrupted Power
Power Supply
Operating Temperature
LED
Viewer
IROAD NX7
2.0 Mega Pixel Image Sensor
Front Full HD 1920x1080p 30fps, Rear HD 1280x720p 30fps / Front 140˚, Rear 130˚
3.5 inch (480x320) Touch Panel
LDWS, FCWS, FVDW
Mic embeded
H.264 / ADPCM
3-axis acceleration sensor (Start recording when it senses external impact)
Synched with Google map, Inform the location and travelling speed of the vehicle.
Micro SD 16GB~128GB
Driving / Event(Impact), Parking / Motion Detection, Time Lapse, Hyper Lapse
Low voltage cut off, overheating prevention is embedded.
DC 12V - 24V
-20 ~ 60˚c
Security LED embedded
IROAD PC Viewer: Windows XP/Vista/7/8/10, 32bit/64bit support

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
8. INSTALLATION
Use dry fabric to wipe out the spot
where the product will be attached on the windscreen.
Make sure to install the product on
where sight is not disturbed.
1. Use soft cloth to wipe out the spot where the product will be attached.
(Wipe out with soft cloth or tissue)
2. Attach product.
(Remove the protective film from the adhesive tape of front/rear camera)
3. Connect the cable of rear camera.
(Connect the rear camera cable V-IN slot)
Placing Cameras Mounting a Cradle for Front Camera
Product Installation
Tuck a transparent cradle( ① ) into
the main body( ) and then push the cradle in.
1
2
2CH I FHD DIGITAL RECORDER
1
2
2CH I FHD DIGITAL RECORDER

Make sure to insert SD card in the right way.
The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
9. INSTALLATION
Push the SD card into the memory card slot until you hear clack sound.
When using memory card for the first time /
When the memory card is reused after format.
The system will be in standby mode for 3~5 minutes to create
system files and checking the memory card.
Recording starts with voice guide saying "Start Recording".
Connect external GPS to the GPS slot of the top.
It provides vehicle speed, location and other
additional information if connect external GPS.
Please make sure to have some distance
between main product and GPS.
Product Installation
Connect External GPS. Inserting SD Memory Card
4. Connect power cable to DC-IN slot.
5. Other side of cable connect to vehicle fuse or cigar jack cable.
In order to install uninterrupted power cable,
refer to the webiste www.iroadkr.com or look at this instrcution page 10.
10
15
10
10
20
20
15
15
10
10
10
15
10
15
10
10
20
VCC
2CH I FHD DIGITAL RECORDER
GPS
2CH I FHD DIGITAL RECORDER
6. Make sure that the product is operating normally.
7. Clean up the power cable and rear camera wiring
with cable holder or using edge part of vehicle.

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
10. UNINTERRUPTED FUSE CABLE
It prevents battery discharge beforehand while in parking mode. The uninterrupted power function ensures your battery is protected.
The discharge of battery voltage will be prevented in advance for 24 hours if the battery level goes down the minimum preset level.
(There might be able to occur natural battery discharge caused by the long term parking hours or each vehicle status.
Please change voltage level up to high especially in winter season, refer to the instruction.)
Find right fuse using electric tester from fuse box of the vehicle.
[VCC]Line (Yellow Line): Make sure engine's off and connect to a current flowing fuse.
[ACC]Line (Red Line): Connect to fuse which should be not electric current.
Connect GND line to vehicle itself which has to connect iron part of vehicle itself.
Do not connect bolt of dash board where current is not flowing.
Connect the power cable to confirm the operation of product, and then neatly organize cables to finish installation work.
1
2
3
4
+
The colors of the VCC, ACC, and GND wires may change, so please check and install them.
Please refer to website www.iroadkr.com for the details of uninterrupted power installation, contact a technician for accurate installation.
Please perform switching test (Driving mode <->Parking mode) before completing the installation.
12 3
Uninterrupted power function?
How to Install Uninterrupted Fuse Cable
10
15
10
10
20
20
15
15
10
10
10
15
10
15
10
10
20
4

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
11. PRODUCT OPERATION
Power ON
Power OFF
External GPS
- All LED will be turned on when the engine is on.
- Start normal recording along with voice guidance.
- All LED will be turned off when the engine is off or the constant cable is disconnected.
- GPS LED flickers while external GPS is connected.
(GPS LED will be on constantly while connected to satellite)
- Please recheck the connection if there is not LED on despite external GPS installed.
Product Operation

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
12. BUTTON SCENARIO GUIDE
Button Scenario Guide 1
Power OFF
Power ON
Manual Recording
- Press the button for 5 seconds.
- The power is turned off along with voice guidance.
- Press the button for 5 seconds.
- Start recording along with voice guidance.
- Please press button.
- Start manual recording along with voice guidance.

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
13. RECORDING MODE
Normal Recording
Event Recording
Parking Recording
Motion Detection Recording
- Normal recording starts when power is connected.
- Security LED flashes once every second.
Hyper Lapse - It compresses and records the video which recorded for 8 minutes (driving mode)
at 1 frame per second (1 FPS).
Time Lapse - It compresses and records the video which recorded for 8 minutes (driving mode)
at 1 frame per second (1 FPS).
- It will be recorded for event recording mode if it detects any shock. (REC LED flickers)
- It will return to Normal recording mode after completing event recording.
- It records if there is any movement within a range of 3 meters distance.
- Security LED will blink quickly.
- It will switch to parking mode if G sensor does not detect movement for 5 minutes.
- It is recorded with 10 frames in order to extend recording time.
- When the ignition is on, it automatically switches to normal recording mode.
Recording Mode

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
14. VOICE GUIDANCE
Voice Guidance
Power ON
Normal Recording
Menu Entry
Parking Recording
Motion Detection Recording
Manual Recording
GPS Connection
System Off
Change Settings
Firmware Update
Firmware Completed
Firmware Failed
Memory Card Invalid
No Memory Card
Memory Card Format
LBP ON
LBP Booting
Driving mode starts, Safe driving
Start recording
Stop recording
Start parking mode
Impact occurred during the parking
Manual recording
GPS is connected
Shut down system
Setting is changed, reboot the system
Program is installing, do not turn off the power
Restart the system by completed updating
Program file is damaged and cannot be installed
Memory card is damaged, restart the system
No memory card
Format the memory card. Please wait
Shut down the system to protect the car battery
Restart the system to protect car battery

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
15. VIDEO FOLDERS IN SD MEMORY CARD
.driving_text event normal log manual
loT Module(option) Folder
Event (Impact) Recording Folder
- Save Event (Impact, Parking, Motion) Recording.
Normal (Driving) Recording Folder
- Save Normal (Driving, Hyperlapse, Timelapse) recording.
Save the operation status as log file.
Save data of manual recording. (Up to 10 files are saved, and old files are overwritten when the number is full.)
.driving_text
event
normal
log
manual
Saving Directory

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
16. FIRMWARE UPDATE
Disconnect the power cable.
Remove the SD card from the product and connect it to the PC/Laptop.
After decompressing the firmware which downloads from IROAD website, please copy the file to the Micro SD card.
Please turn the ignition on to supply power stably.
Insert SD card back onto the device.
Connect the power cable.
Start the update along with voice guidance.
The device is rebooted once the update is completed
1 .
2 .
3 .
4 .
5 .
6 .
7 .
Manual Update
Firmware update

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
17. LIVE SCREEN
Live Screen
When the dash cam is turned on, the above screen is displayed on the LCD with the voice guidance.
Recording mode, GPS, Voltage Status / Date, Time
Press the manual record button to start the manual recording.
Audio Recording On/Off
Voice Guidance On/Off
LCD Screen OFF
Main Menu
Status
Manual recording
Audio recording
Sound
LCD OFF
Menu

The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary.
18. LIVE SCREEN
Live Screen
When the dash cam is turned on, the above screen is displayed on the LCD with the voice guidacne.

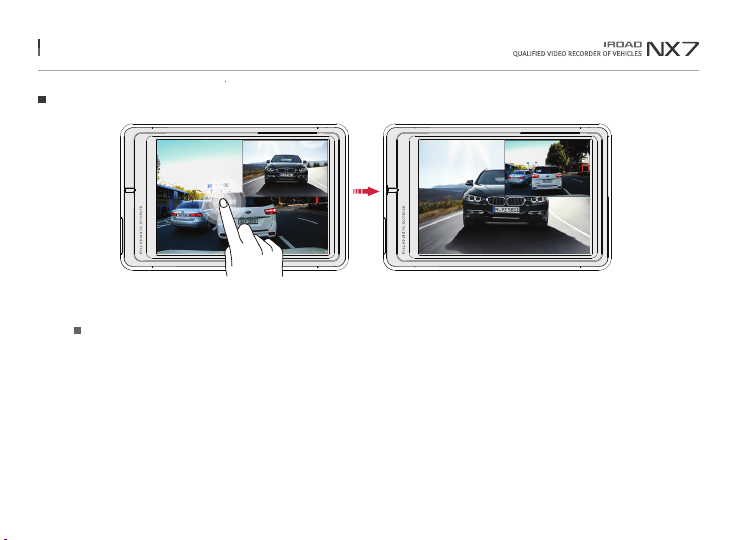

Tap on the screen, switch to the front, rear recording and PIP.
