Ironton 63502 User manual

READ & SAVE THESE INSTRUCTIONS
10Ft. x 10Ft. Pop-Up Straight-Leg
Gazebo with Awnings
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #63502

Page 2 of 15
Thank you very much for choosing an Ironton™product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This gazebo is designed for certain applications only. Northern Tool and
Equipment is not responsible for issues arising from modification or
improper use of this product such as an application for which it was not
designed. We strongly recommend that this product not be modified
and/or used for any application other than that for which it was designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 15
Table of Contents
Intended Use..........................................................................................................................................4
Packaging Contents..............................................................................................................................4
Technical Specification........................................................................................................................4
Important Safety Information...............................................................................................................4
Specific Operation Warnings...............................................................................................................5
Main Parts of Gazebo............................................................................................................................6
Before Each Use....................................................................................................................................6
Assembly Instructions..........................................................................................................................6
After Each Use.....................................................................................................................................10
Maintenance ........................................................................................................................................12
Parts Diagram......................................................................................................................................13
Parts List..............................................................................................................................................13
Replacement Parts..............................................................................................................................13
Limited Warranty.................................................................................................................................14

Page 4 of 15
Intended Use
The Ironton 10Ft. x 10Ft. Pop-Up Straight-Leg Gazebo with Awnings is ideal for backyard parties,
camping, tailgating activities, and much more. The gazebo is not intended to be a permanent or semi-
permanent structure. It is designed to be used for short periods of time only. The gazebo should be
taken down and stored when not in use.
Packaging Contents
Small Gazebo Top
Large Gazebo Top
Frame
Steel Pole
Carrying Bag
8 Stakes
Owner’s Manual
Technical Specification
Property
Specification
Coverage Area
240 square feet
Construction
Integrated steel frame (one piece)
Dimensions
10 feet x 10 feet
Center Height
119 inches
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this tool. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
Do not allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
Do not modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product
was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.

Page 5 of 15
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to cutting tools and rotating parts.
Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence
of flammable liquids, gases, or dust. The product can create sparks, which may ignite the
flammable liquids, gases, or dust.
Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your
work area. Some of these hazards may be hidden from your view and may cause personal injury
and/or property damage if contacted.
⚠CAUTION
GAZEBO USE AND CARE
Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
Store the gazebo when it is not in use. Store it in a dry, secure place out of the reach of children.
Inspect the tool for good working condition prior to storage and before re-use.
Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool.
Specific Operation Warnings
⚠WARNING
Read and understand all instructions. Failure to follow all instructions listed below may result in
serious injury.
Always check for damaged or worn out parts before using the canopy. Broken parts will affect the
canopy operation. Replace or repair damaged or worn parts immediately.
Adult assembly only. Do not allow children or those under the influence of drugs or alcohol to
assemble this canopy.
For use in low to moderate wind only. Do not assemble this canopy where it could encounter high
winds. There is a danger of it being carried by the wind and it could cause personal injury if it
becomes untethered. Ensure the canopy is properly anchored at all times.
Sunburn Warning: This canopy only provides sun ray protection in the shade area. Depending on
the sun’s position, this may not be directly under the canopy. Also, there may be additional sun
exposure off reflective surfaces that cannot be prevented by this canopy. Ensure that users are
aware of the sun’s position, that they wear sunscreen, and that they actively avoid overexposure

Page 6 of 15
to the sun.
When canopy is not in use, store it inside, and in a secure place out of the reach of children.
Inspect it for good working condition prior to storage and before re-use.
⚠WARNING
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the
flammability requirements of CAPAI-84 and NFPA 701, The fabric may burn if left in continuous
contact with any flame source. The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
Main Parts of Gazebo
Subassembly
Gazebo Top
Frame
Steel Pole
Carrying Bag
Stakes
Before Each Use
Verify the Package Contents
Verify the package contents by emptying the contents of the bag and confirming all parts are included
and undamaged.
Note: Find the stakes in the pocket of the carrying bag. Verify all contents before setting up the
gazebo.
Assembly Instructions
Step 1: Pull and extend the frame.
A) Select a smooth, level site for setting up the gazebo.
B) With two people on diagonal corners of the structure, have each person take a leg. One person
should stand in place while the other walks the frame out, unfolding the frame enough to allow
you to comfortably drape the fabric shell over the frame.

Page 7 of 15
Step 2: Cover the frame with the fabric top.
A) Cover the cupola with the smaller piece of fabric. Slide the ends of the cupola poles into the pole
pockets on the underside of the fabric.
B) Open the frame a little more.
C) Lay the larger piece of fabric over the roof. Be careful around the middle hole and make sure the
hole in the middle is hugging the cupola.
D) After securing each piece of fabric corner to frame, slide the safety lock mechanisms, found on
each upper leg, toward the top corners of the roof until the roof corners lock into place.

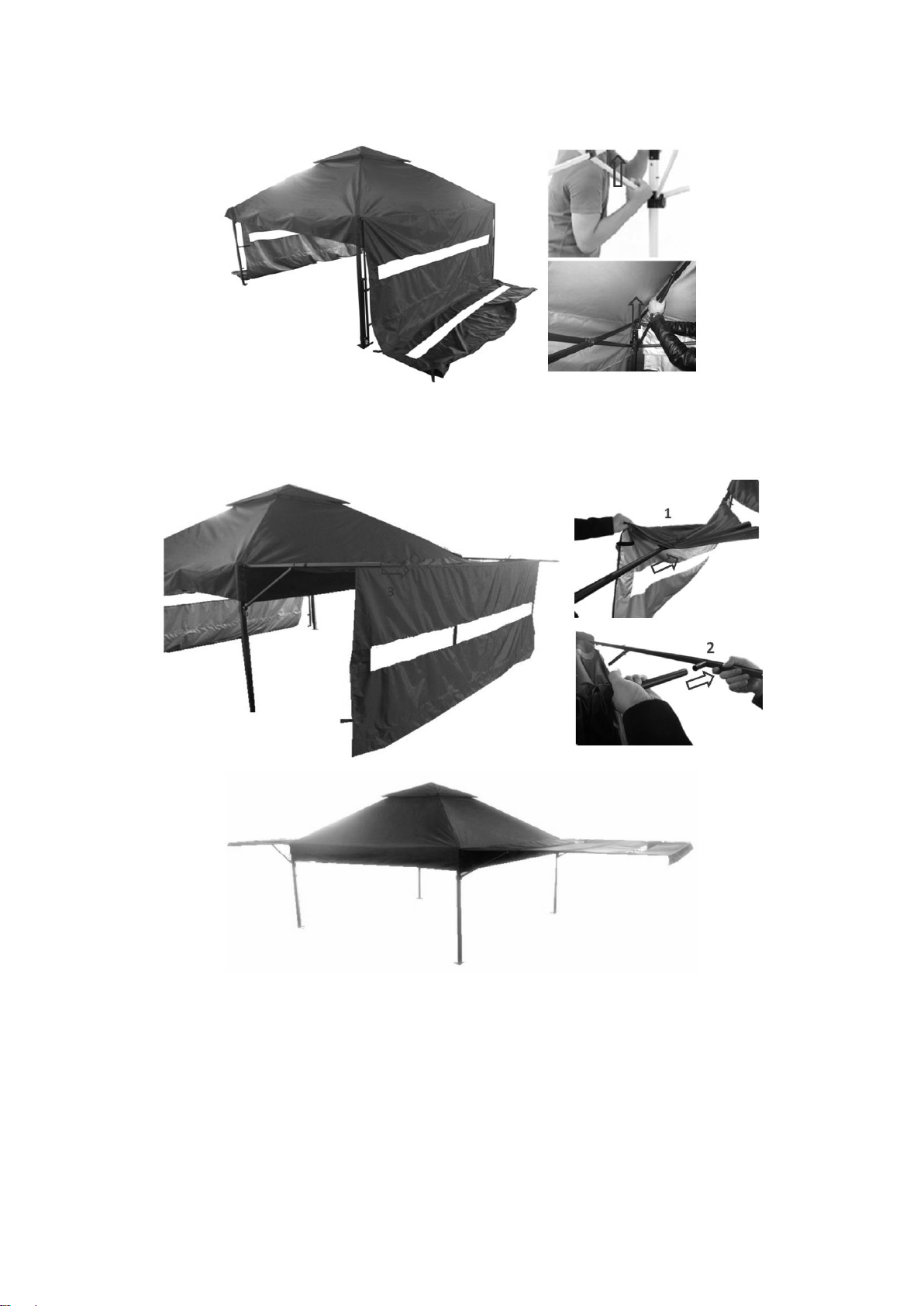

Note: If you find it difficult to lock the mechanisms, go inside the gazebo and push up the support tube.

Page 8 of 15
The leg safety lock mechanisms MUST BE locked into place to ensure a successfully installed gazebo.
Step 3: Assemble the awning.
Add the steel tube to the pocket on the back of the fabric (1), and attach it (2). Now pull out the inner
tube to extend the awning (3) and attach the magic tape. Repeat the same steps for the other awning.

Page 9 of 15
Step 4: Extent the frame.
Raise each side of the gazebo. Raise the leg to the HIGHEST position. There are 3 positions for the
gazebo height.
Step 5: Adjust the awning.
Pull the pull-pin out to bring down the awning.
Awning Positions
Raise the gazebo to the HIGHEST position for position 3.
Note: In order to place the side awning all the way down to the ground and stay together with the
gazebo legs, the gazebo top needs to be raised to the highest position.

Page 10 of 15

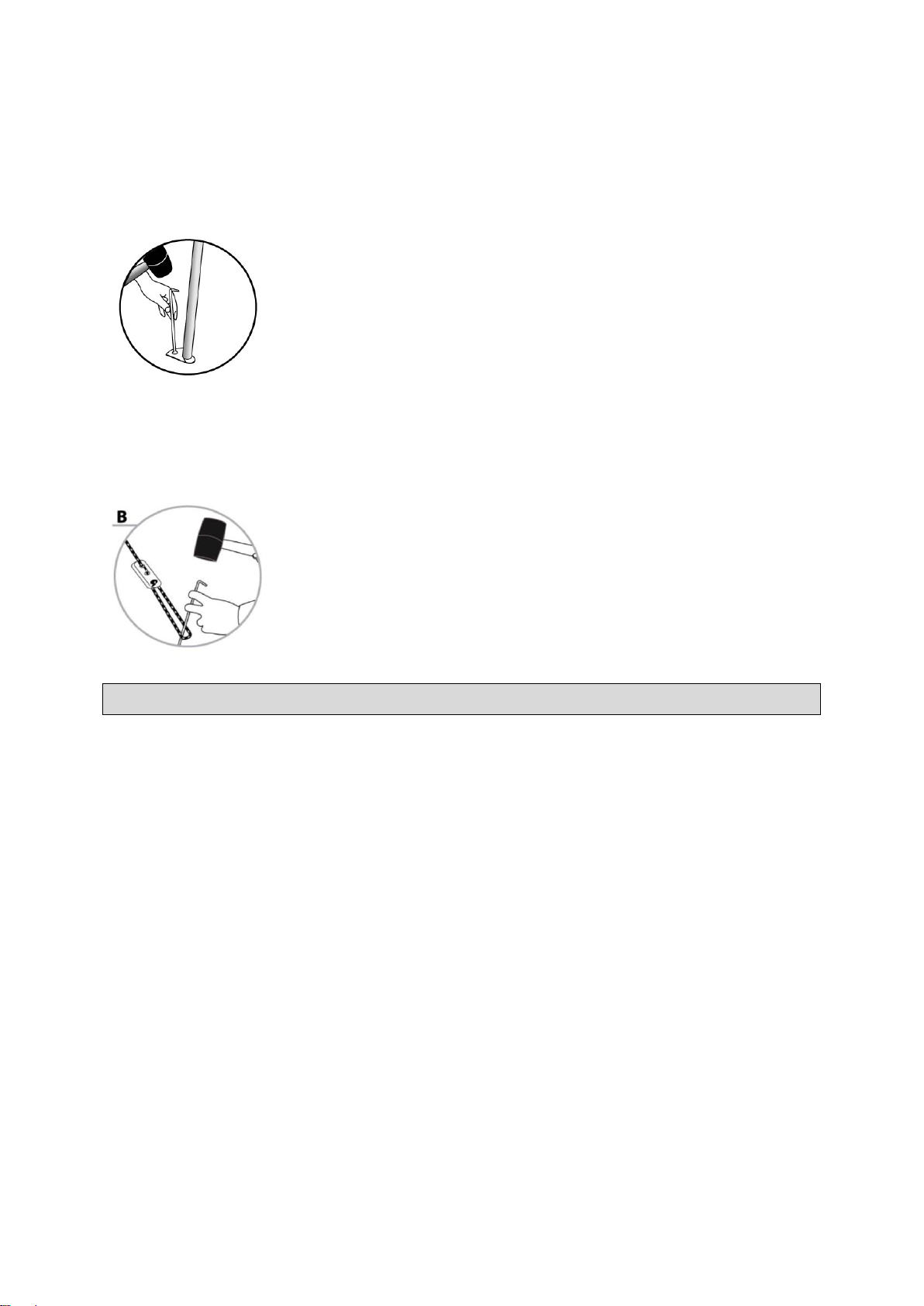

Step 6: Anchor and install the frame.
A) Stake the gazebo by driving stakes through the holes at the foot of each leg.
Note: For setting up on a beach or in soft soil, use weights (sand bags or other heavy objects) on
each foot or place legs twelve inches down into sand or soil to help secure the set-up. Stakes alone
will not secure the gazebo in sand or soft soil.
B) To stabilize the gazebo, unroll the guy rope attached to the webbing loops. Make a loop at the
opposite end of the guy line using the plastic slider and place the loop over the gazebo stake.
Drive the stake into the ground to secure. Adjust the plastic slider to tighten the guy rope. Repeat
for each guy rope.
After Each Use
Disassembling the Gazebo
Store all parts (like stakes) in their corresponding bags to prevent possible tearing or damage to the
fabric.
Step 1: Remove the stakes.
A) Carefully remove the stakes by pulling out the hook ends.
B) Remove any excess soil from the stakes and store the stakes in their bag.

Page 11 of 15
Step 2: Take down the gazebo.
A) Remove any accessories, if installed. Fold for storage.
B) Pull the pull-pin, located in the middle of each leg, and carefully lower each leg, making sure each
leg is level before proceeding. Repeat until the frame is lowered to the ground.
C) Remove the steel tube for the awning.
D) Take down the awning.

Page 12 of 15
E) Pull the pull pin out on each corner to take the roof down.
Step 3: Store all parts in the carrying bag.
A) To prolong the life of the gazebo, you will need to store it correctly. Place the folded frame ‘feet
first’toward the carrying bag wheels.
B) Return the stakes to their stake bag and place alongside the frame.
C) Lastly, place folded fabric into the carrying bag, making sure all parts are completely tucked inside
the carrying bag. Carefully zip the bag closed.
⚠CAUTION
Never store fabric on the frame. You may damage the fabric, frame, or both.
Note: After packing the bag, double check the contents and surrounding area for loose parts.
Maintenance
Clean the gazebo fabric gently with a damp cloth only. Do not clean the gazebo fabric with soaps
or a washing machine.
Store the gazebo in a clean, dry place with proper ventilation like a garage, a walk-out basement,
or a storage area.

Page 13 of 15

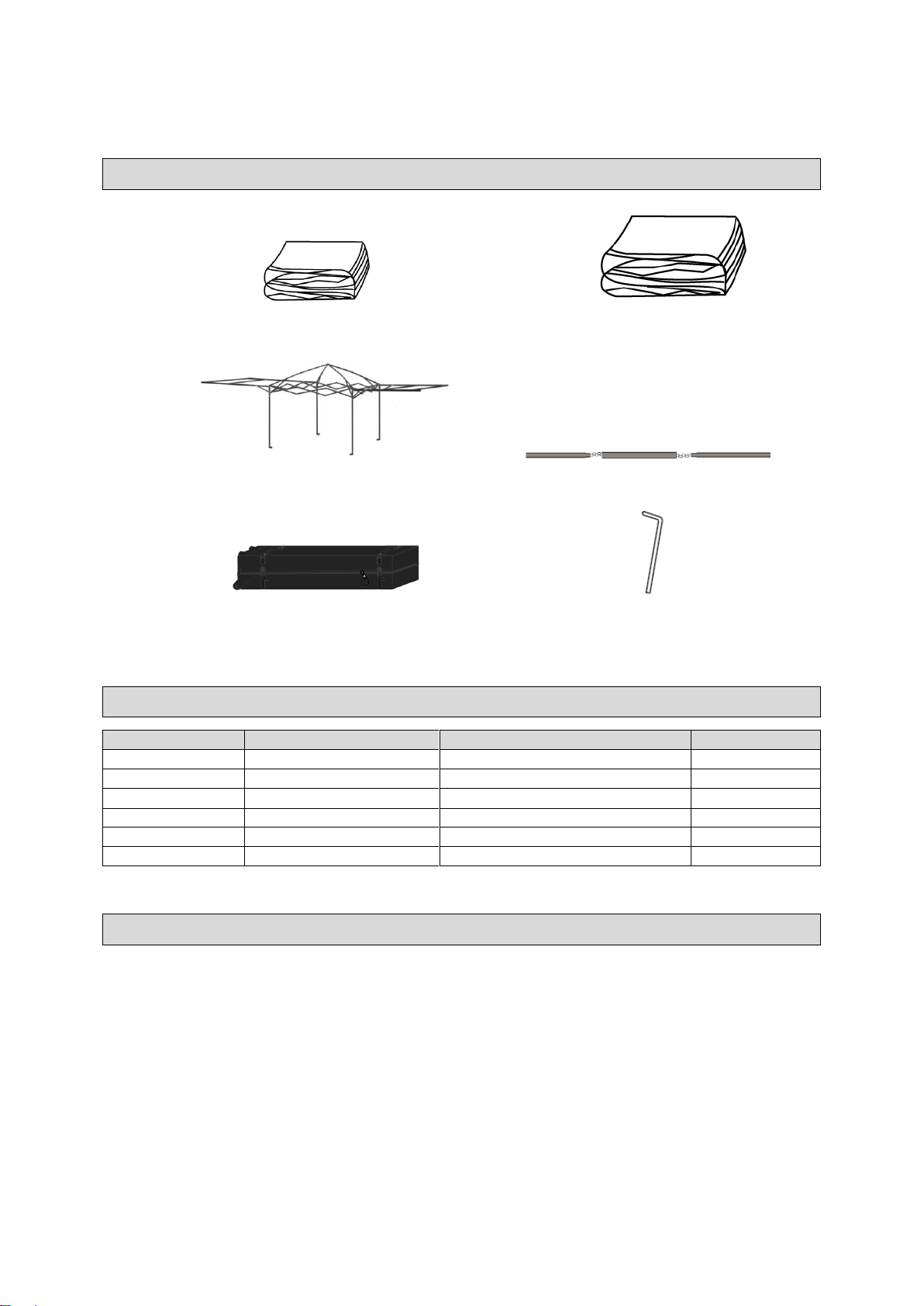

Parts Diagram
CTOP-1024C-S CTOP-1024C-L
FPTY-1024C CPOLE-1024C
CBAG-1024C SSET-1024C
Parts List
Reference
Part Number
Part Description
Quantity
1
CTOP-1024C-S
Small Gazebo Top
1
2
CTOP-1024C-L
Large Gazebo Top
1
3
FPTY-1024C
Frame
1
4
CPOLE-1024C
Steel Pole
4
5
CBAG-1024C
Carrying Bag
1
6
SSET-1024C
Stake
8
Replacement Parts
For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.

Page 14 of 15
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only
(''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of six months from date of
purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in
accordance with product instructions. There are no other warranties, express or implied, including the
warranty of merchantability or fitness for a particular purpose. If the product does not comply with this
limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a
commercially reasonable time, either replace the product or product component without charge to You
or refund the purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 15 of 15
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in China
