ISAFE MOBILE ADVANTAGE 1.X Operator's manual

ADVANTAGE 1.x
Quick Start Manual
and
Safety Instructions
Schnellstartanleitung
und
Sicherheitshinweise

Template: TEMPMD01REV00
Document No. 1005DI01REV00
Version: 2012-10-23
Reservation: Technical Data is subject to change without no-
tice. Changes, errors and misprints may not be used as a basis
for any claim for damages.
All rights reserved.
i.safe MOBILE GmbH cannot be held responsible for any data
or other loss and direct or indirect damages caused by any
improper use of this phone.
Vorbehalt: Technische Änderungen behalten wir uns vor.
Änderungen, Irrtümer und Druckfehler begründen keinen
Anspruch auf Schadensersatz.
Alle Rechte vorbehalten.
Für Datenverluste oder andere Schäden gleich welcher Art,
die durch den unsachgemäßen Gebrauch des Mobiltelefons
entstanden sind, übernimmt die i.safe MOBILE GmbH keine
Haftung.
(c) 2012 i.safe MOBILE GmbH
i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 14
97922 Lauda-Koenigshofen
Germany
Tel. [phone]
[e-mail]
www.isafe-mobile.com

Note / Hinweis
3
This document contains a quick start guide and the safety
instructions necessary for the safe use of the mobile phone
ADVANTAGE 1.x in explosive atmospheres. The first part de-
tails the English instructions, the second part the German
translation.
More detailed instructions on the use of the phone can be
found at www.isafe-MOBILE.com or directly at i.safe MOBILE
GmbH.
Dieses Dokument enthält die notwendigen Sicherheitshinwei-
se für die sichere Verwendung des Mobiltelefons
ADVANTAGE 1.x in explosionsfähigen Bereichen. Der erste
Teil enthält die englischen Anweisungen, der zweite Teil die
deutsche Übersetzung.
Detailliertere Informationen erhalten sie unter www.isafe-
MOBILE.com oder direkt bei der i.safe MOBILE GmbH.

Contents
4
1Introduction 5
2Ex-Specifications 6
3Faults and Damages 7
4Ex-relevant Safety Regulations 8
5Further Safety Advises 9
6Keys 12
7First Steps 13
7.1 Battery 13
7.1.1 Installing and Extracting the Battery 13
7.1.2 Charging the Battery 13
7.1.3 Battery Use 14
7.2 Installation of the SIM Card 14
7.3 Installation of the Micro-SD Card 15
8i.safe PROTECTOR 15
9Status Icons 16
10 Specifications 17
11 Troubleshooting 17
12 Maintenance 19

Safety Instructions
5
1Introduction
This document contains information and safety regulations
which are to be observed without fail for safe operation of
the mobile phone ADVANTAGE 1.x under the described con-
ditions. Non-observance of this information and instructions
can have serious consequences and / or may violate regula-
tions.
Please read the manual and these safety instructions before
using the phone. In case of contradicting information, the text
of these safety instructions shall apply.
In case of any doubt, the German version shall apply.
The current EC declaration of conformity, EC and IECEx certifi-
cates of conformity, safety instructions and manual can be
found at www.isafe-mobile.com, or requested from i.safe
MOBILE GmbH.

Safety Instructions
6
2Ex-Specifications
The ADVANTAGE 1.x is a mobile phone suitable for use in
potentially explosive atmospheres (zones 1, 21, 2 and 22) in
accordance with directives 94/9/EC (ATEX 95) and 99/92/EC
(ATEX 137), as well as the IECEx scheme.
Ex-markings
ATEX II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X
EPS 12 ATEX 1 463 X
2004
IECEx: Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
IECEx EPS 12.0022X
Temperature range: -20 ... +60°C
Manufactured by:
i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 14
97922 Lauda-Koenigshofen
Germany
3Variants
ADVANTAGE 1.0 is equipped with a 2 MP camera,
ADVANTAGE 1.1 is not equipped with a camera.

Safety Instructions
7
4Faults and Damages
If there is any reason to suspect that the safety of the phone
has been compromised, it must be withdrawn from use and
removed from any ex-hazardous areas immediately.
Measures must be taken to prevent any accidental restarting
of the phone.
The safety of the phone may be compromised, if, for exam-
ple:
malfunctions occur.
the housing of the phone or the battery shows damage.
the phone has been subjected to excessive loads.
the phone has been stored improperly.
markings or labels on the phone are illegible.
It is recommended that a phone which shows or which is
suspected of faults and damages is returned i.safe MOBILE
GmbH for inspection.

Safety Instructions
8
5Ex-relevant Safety Regulations
Use of this phone assumes that the operator observes the
conventional safety regulations and has read and understood
manual, safety instructions and certificate.
The following safety regulations must also be complied with:
Inside ex-hazardous areas all openings of the phone must
be closed. The battery has to be fixed by the two screws
and the covers of the USB and Headset interfaces have to
be closed.
The battery may only be exchanged or charged outside ex-
hazardous areas.
The phone may only be charged outside ex-hazardous
areas using the i.safe PROTECTOR USB-cable or other
equipment approved by i.safe MOBILE GmbH.
USB-connections to other equipment are only allowed
outside ex-hazardous areas using the i.safe PROTECTOR
USB-cable or other equipment approved by i.safe MOBILE
GmbH.
Use only the appropriate battery type BPA01A.
It is not allowed to carry spare batteries into ex-hazardous
areas.
The phone may be charged only at temperatures in be-
tween 0°C ... 45°C.
The phone must not be exposed to abrasive acids or bases.
The phone must not be taken into zones 0 or 20.
Only accessories approved by i.safe MOBILE GmbH may be
used.

Safety Instructions
9
6Further Safety Advises
Do not touch the screen of the phone with sharp objects.
Dust particles and nails may scratch the screen. Please
maintain the screen clean. Remove dust on the screen with
a soft cloth gently, and do not scratch the screen.
Charge the phone under indoor conditions only.
Please do not put the phone in environments with exces-
sive temperatures, as this could lead to heating of the bat-
tery, resulting in fire or explosion.
Do not charge the phone near any flammable or explosive
substances.
Do not charge the phone in environments with much dust,
humidity, or excessively high or low temperatures (the
permitted charging temperature range is 0 ... 45°C).
Do not use the phone in areas where regulations or legisla-
tives prohibit the use of a mobile phone.
Do not expose the phone, battery or charger to strong
magnetic fields, such as are emitted from induction ovens
or microwave ovens.
Do not attempt to open or repair the phone. Improper
repair or opening can lead to the destruction of the phone,
fire or explosion. Only authorized personnel are allowed to
repair the phone.
Only use accessories approved by i.safe MOBILE GmbH.
Please do not directly connect the poles of the battery to
avoid short-circuiting the battery.
Power off the phone in hospitals or other places where the
use of mobile phones is prohibited. This phone may affect
proper work of medical equipment, such as pacemakers, so
always keep a distance of at least 15 cm between the
phone and these devices.
Observe all corresponding laws that are in force in the
respective countries regarding the use of mobile phones
while operating a vehicle.

Safety Instructions
10
Please power off the phone and disconnect the charging
cable before cleaning the phone.
Do not use any chemical cleaning agents to clean the
phone or the charger. Use a damp and anti-static soft cloth
for cleaning.
Do not discard old and abandoned lithium batteries into
the trash, send them to designated waste disposal loca-
tions or return them to i.safe MOBILE GmbH.
The user alone is responsible for any and all damages and
liabilities caused by malware downloaded when using the
network or other data-exchange functions of the phone.
i.safe MOBILE GmbH cannot be held responsible for any of
those claims.
Warning
i.safe MOBILE GmbH will not assume any liability for damages
caused by disregarding any of these advices or by any inap-
propriate use of the phone.

Quick Start
11
Introduction
Dear customer, thank you very much for choosing the
ADVANTAGE 1.x mobile phone. This quick start manual gives
you access to the basic functions of the phone.
With high IP protection and rugged housing, the
ADVANTAGE 1.x is the ultimate mobile phone for zone 1, 2,
21, and 22 explosion hazardous areas.
To ensure the IP protection of the phone please make sure
that the seals of the battery, the USB port cover and all the
screw covers are in place correctly.
Please read this Quick start manual before using the phone
and follow the tips and advices in order to be able to use the
phone for your full satisfaction and safety.

Quick Start
12
7Keys
(1) Power: Long press to power up or power down
the phone.
Short press to lock the phone.
(2) Send: Bring up the call log or answer a call when
the phone is ringing.
(3) End: Return to homescreen from any menu.
End or reject a call.
(4) Menu: While on the homescreen: enter settings.
(5) Clear: Deletes your selection.
(6) Navigation: 4-way navigation through menus.
(7) OK: Confirm the selected item or function.
(8) Keypad: Use for text or number entry.
(9) Volume: Adjust the volume.
(10) Camera: Take a photo when in camera mode
(only valid for ADVANTAGE 1.0).
(11) SOS key: Long press to activate the SOS-alert and
call a pre-defined number sequence.

Quick Start
13
8First Steps
8.1 Battery
The battery is inserted into the back of the mobile phone. The
battery is not fully charged when the mobile phone is pur-
chased, but it contains enough energy to power on the
phone. To obtain best battery performance and battery life,
let the battery discharge completely before charging it com-
pletely for the first three charging cycles.
8.1.1 Installing and Extracting the Battery
When installing the battery, insert the teeth at the top of the
battery into the corresponding notches of the mobile phone,
then press the battery down and secure it by turning the two
screws with the delivered screw driver (TORX T8). Ensure that
the battery is safely in place before powering on the phone.
8.1.2 Charging the Battery
Connect the i.safe PROTECTOR USB-cable with the phone as
indicated in the picture below:

Quick Start
14
Connect the plug with the socket of the power supply.
After charging, remove the USB-cable from the charger.
8.1.3 Battery Use
In actual use, the standby time and talk time of the mobile
phone varies with the network status, working environment
and usage.
When the power of the battery is lower than normal, the
phone will prompt you to charge it. Please charge the battery;
otherwise you may lose any files which are not saved.
If you do not charge for a long time, the phone will be pow-
ered off automatically.
Warning:
The phone may only be charged at ambient temperatures in a
range from 0°C ... 45°C. Please do not use charging equipment
if the temperature exceeds this range. Only use the i.safe
PROTECTOR USB-cable to connect to a charger. Using any
other cable may cause danger and will void the warranty.
8.2 Installation of the SIM Card
The SIM-card holder is placed in the battery compartment.
Please remove the battery to gain access to the holder.
Unlock the SIM-card-holder by sliding it forward as indicated
on the holder. Open the holder and insert the SIM-card. Close
the holder and lock it again to safely retain the SIM-card.
Warning:
Do not try to insert or remove the SIM card when any exter-
nal power supply is connected, otherwise the SIM card or the
mobile phone may be damaged.

Quick Start
15
8.3 Installation of the Micro-SD Card
The SD-card holder is placed in the battery compartment.
Please remove the battery to gain access to the holder.
Unlock the SD-card-holder by sliding it forward as indicated
on the holder. Open the holder and insert the SD-card. Close
the holder and lock it again to safely retain the SD-card.
9i.safe PROTECTOR
The ADVANTAGE 1.x contains specially designed safety cir-
cuits.
Connecting the phone to non-ex-approved equipment like a
computer can endanger the safety of the phone, as faults in
the non-approved equipment could lead to a power surge
into the phone large enough to destroy the safety circuits.
The i.safe PROTECTOR is a USB-cable for connecting the
phone with non-ex-approved equipment. It contains addi-
tional safety circuits to protect the phone from possible faults
in the non-ex-approved equipment.
For this reason, charging and USB-connections are only al-
lowed using the i.safe PROTECTOR.

Quick Start
16

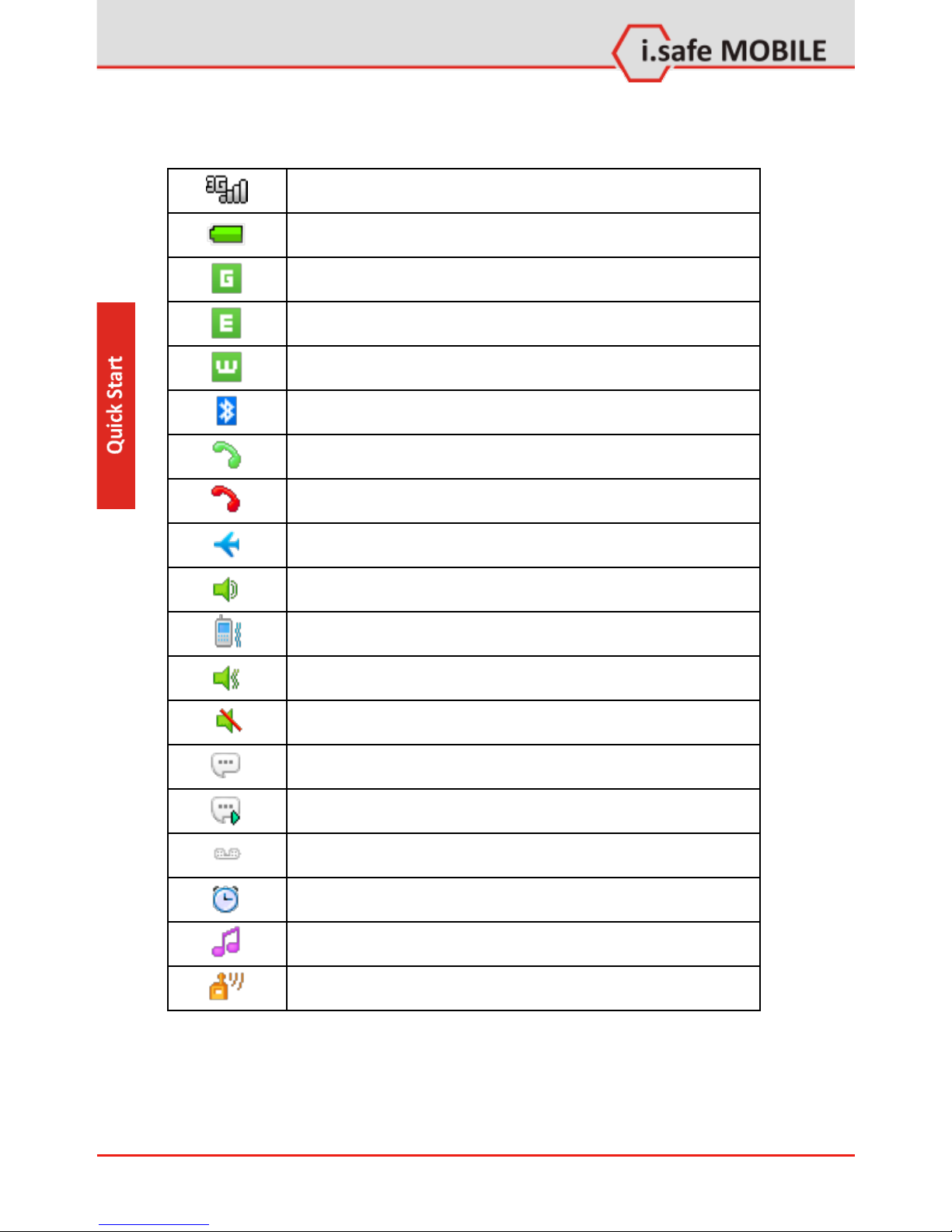

10 Status Icons
Current Signal Strength
Battery power level indicator
GPRS Connection
EDGE Connection
UMTS Connection
Bluetooth active
Call in progress
Missed calls
Airplane mode
ringtone only
vibration only
vibration and ringtone
mute
New SMS
New MMS
New voice mails
Alarm clock active
MP3 playing
FM radio active

Quick Start
17
11 Specifications
Frequencies: GSM 850 / 900 / 1800 / 1900 MHz
3G 850 /1900 / 2100 MHz
Supported networks: WWAN (HSPA/EDGE/GPRS/GSM)
Dimension: 63 mm X 127 mm X 24 mm
Screen size: 2,2" QVGA
Camera: 2,0 MP (only ADVANTAGE 1.0)
Wireless technologies: Bluetooth
Battery: 1000 mAh
Operating Temperature: -20°C ... 60 C
Memory: Micro-SD, supports up to 16GB
12 Troubleshooting
If problems occur when using the mobile, please try the fol-
lowing tips. If the problem is not solved, please contact
your vendor or i.safe MOBILE GmbH directly.
The mobile phone cannot be powered on
1. The battery voltage is too low.
Please recharge the battery.
2. The power on key is not pressed long enough.
Please press power on key for more than three seconds.
3. The connection to the battery is bad.
Please assemble the battery again or carefully clean the
contact points of the battery.
4. The SIM card has a failure.
Please check or replace the SIM card.
The phone has insufficient standby time
1. The battery performance is reduced because of the age
of the battery.
Please contact your vendor or i.safe MOBILE GmbH for a
replacement battery.

Quick Start
18
2. Too many programs running.
Please reduce the number of running programs.
The phone is not charging
1. Poor electrical contact.
Please check and replace any dirty or broken plugs.
2. Input voltage is too low.
Please charge for about 1 hour first, remove the plug,
wait a minute and then continue charging. During this
time it is possible that the phone cannot be powered on,
as the voltage is too low.
3. A battery fault has occurred.
Please replace the battery.
Failures during calls occur
1. SIM Card failures occur.
Please check the contacts of the SIM card or replace the
card.
2. Network error.
Please change to a network provider with a stronger sig-
nal.
Other people are answering my calls
The mobile phone has been set into divert your calls to
another phone number.
Please check and cancel call divert.
The phone powers off automatically
1. The charge of the battery is too low.
Please recharge the battery.
2. There was an error during operation.
Please restart the phone. If the problem reoccurs, please
contact your vendor or i.safe MOBILE GmbH directly.

Quick Start
19
13 Maintenance
Thank you for using the ADVANTAGE 1.x. If there is a problem
with the mobile phone, please contact your vendor or consult
the service center. If your mobile phone is in need of repair,
you can either contact the service center or your vendor.

Quick Start
20
Recycling
The crossed-out wheeled-bin symbol on your product, bat-
tery, literature or packaging reminds you that all electrical
and electronic products, batteries and accumulators must be
taken to separate collection at the end of their working life.
This requirement applies in the European Union. Do not dis-
pose of these products as unsorted municipal waste.
Always return your used electronic products, batteries and
packaging materials to dedicated collection points. This way
you help prevent uncontrolled waste disposal and promote
the recycling of materials.
More detailed information is available from the product re-
tailer, local waste authorities, national producer responsibility
organisations, or your local i.safe MOBILE GmbH representa-
tive.
The content of this document is presented as it currently
exists. i.safe MOBILE GmbH does not provide any explicit or
tacit guarantee for the accuracy or completeness of the con-
tent of this document, including, but not restricted to, the
tacit guarantee of market suitability or fitness for a specific
purpose unless applicable laws or court decisions make liabil-
ity mandatory. i.safe MOBILE GmbH reserves the right to
make changes to this document or to withdraw it any time
without prior notice.
