ISAFE MOBILE innovation 2.0 Operator's manual

INNOVATION 2.
Quick Start Manual
and
Safety Instructions
Schnellstartanleitung
und
Sicherheitshinweise
X

Template: TEMPMD01REV00
Document No. 1008DI02REV01
Version: 2013-11-04
Reservation: Technical Data is subject to change without notice. Changes,
errors and misprints may not be used as a basis for any claim for damages.
All rights reserved.
i.safe MOBILE GmbH cannot be held responsible for any data or other loss
and direct or indirect damages caused by any improper use of this phone.
Vorbehalt: Technische nderungen behalten wir uns vor. nderungen, ä ä
Irrt mer und Druckfehler begr nden keinen Anspruch auf Schadensersatzü ü .
Alle Rechte vorbehalten.
F r üDatenverluste oder andere Sch den ägleich welcher Art, die durch den
unsachgem en Gebraäßuch des Telefons entstanden sind, bernimmtü die
i.safe MOBILE GmbH keine Haftung.
(c) 2013 i.safe MOBILE GmbH
i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 14
97922 Lauda-Koenigshofen
Germany
Tel. [phone]
info@isafe -mobile.com
www.isafe-mobile.com

Note / Hinweis
3
This document contains a quick start guide and the safety instructions
necessary for the safe use of the smartphone INNOVATION 2.0 in ex-
plosive atmospheres. The first part details the English instructions, the
second part the German translation.
More detailed instructions on the use of the phone can be found at
www.isafe-MOBILE.com or directly at i.safe MOBILE GmbH.
Dieses Dokument enth lt die notwendigen Sicherheitshinweise f r die ä ü
sichere Verwendung des Smartphones INNOVATION 2.0
in explosions-
f higen Bereichen. Der erste Teil enth lt die englischen Anweisungen, ä ä
der zweite Teil die deutsche bersetzuüng.
Detailliertere Informationen erhalten sie unter www.isafe-MOBILE.com
oder direkt bei der i.safe MOBILE GmbH.

Contents
4
1 Introduction 5
2 Ex-Specifications 6
3 Faults and Damages 7
4 Ex-relevant Safety Regulations 8
5 Further Safety Advises 9
6 i.safe PROTECTOR 12
7 Keys 13
8 First Steps 14
8.1 Battery 14
8.2 Installation of the SIM Cards 16
8.3 Installation of the Micro-SD Card 17
8.4 First Use 17
8.5 Locking and Unlocking the phone
18
8.6 Using the Touchscreen 19
8.7 Connecting the phone with a computer
19
9 Display Layout 20
9.1 Status Bar 20
9.2 Quick Access Panel 22
9.3 Home Screen 23
10 Specifications 25
11 Troubleshooting 26
12 Maintenance 27

Safety Instructions
5
1 Introduction
This document contains information and safety regulations which are to
be observed without fail for safe operation of the smartphone
INNOVATION 2.0 under the described conditions Non.-observance of
this information and instructions can have serious consequences and /
or may violate regulations.
Please read the manual and these safety instructions before using the
phone. In case of contradicting information the text of these safety .
instructions shall apply.
In case of any doubt, the German version shall apply.
The current EC declaration of conformity, EC and IECEx certificates of
conformity, safety instructions and manual can be found at www.isafe-
mobile.com, or requested from i.safe MOBILE GmbH.
Note
This document contains only the instructions necessary for setting up
and safe use of your phone. A complete Quick Start Manual can be
found in the root folder of the Micro-
SD card
of the phone
or at
www.isafe-mobile.com.
Please consult 8.7 to learn how to access the Micro-SD card from any
computer.

Safety Instructions
6
2 Ex-Specifications
The INNOVATION 2.0 is a smartphone suitable for use in potentially
explosive atmospheres (zones 1, 21, 2 and 22) in accordance with direc-
tives 94/9/EC (ATEX 95) and 99/92/EC (ATEX 137), as well as the IECEx
scheme.
Ex-markings
ATEX II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135 C Db IP6X
EPS 13
ATEX 1 579 X
2004
IECEx: Ex ib IIC T4 Gb
Ex ib IIIC T135 C Db
IP6X
IECEx EPS 13.0025X
Temperature range: -20 ... +60 C
Manufactured by: i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 14
97922 Lauda-Koenigshofen
Germany

Safety Instructions
7
3 Faults and Damages
If there is any reason to suspect that the safety of the phone has been
compromised, it must be withdrawn from use and removed from any
ex-hazardous areas immediately.
Measures must be taken to prevent any accidental restarting of the
phone.
The safety of the phone may be compromised, if, for example:
malfunctions occur .
the housing of the phone or the battery shows damage.
the phone has been subjected to excessive loads.
the phone has been stored improperly.
markings or labels on the phone are illegible.
It is recommended that a phone which shows or which is suspected of
faults and damages is returned i.safe MOBILE GmbH
for inspection.

Safety Instructions
8
4 Ex-relevant Safety Regulations
Use of this phone assumes that the operator observes the conventional
safety regulations and has read and understood manual, safety instruc-
tions and certificate.
The following safety regulations must also be complied with:
Inside ex-hazardous areas the phone must be closed. The battery has
to be fixed by the two screws and the cover of the USB interface has
to be closed.
The battery may only be exchanged or charged outside ex-hazardous
areas.
The phone may only be charged outside ex-hazardous
areas using the i.safe PROTECTOR USB-cable or other equipment ap-
proved by i.safe MOBILE GmbH.
USB-connections to other equipment are only allowed outside ex-
hazardous areas using the i.safe PROTECTOR
USB-cable or other
equipment approved by i.safe MOBILE GmbH.
Use only the appropriate battery type BPI02A.
It is not allowed to carry spare batteries into ex-hazardous areas.
The phone may be charged only at temperatures in between 0 C
...
45 C.
The phone must not be exposed to abrasive acids or bases.
The phone must not be taken into zones 0 or 20.
Only accessories approved by i.safe MOBILE GmbH
may be used.

Safety Instructions
9
5 Further Safety Advises
Do not touch the screen of the phone with sharp objects. Dust parti-
cles and nails may scratch the screen. Please maintain the screen
clean. Remove dust on the screen with a soft cloth gently, and do not
scratch the screen.
Charge the phone under indoor conditions only.
Please do not put the phone in environments with excessive temper-
atures, as this could lead to heating
of the battery, resulting in fire or
explosion.
Do not charge the phone near any flammable or explosive substanc-
es.
Do not charge the phone in environments
with much dust, humidity,
or excessively high or low temperatures
(the permitted charging
temperature range is 0 ... 45 C).
Do not use the phone in areas where regulations or legislatives pro-
hibit the use of a mobile phone.
Do not expose the phone, battery or charger
to strong magnetic
fields, such as are emitted from induction ovens or micro-waves.
Do not attempt to open or repair the phone.
Improper repair or
opening can lead to the destruction of the phone, fire or explosion.
Only authorized personnel are allowed to repair the phone.
Only use accessories approved by i.safe MOBILE GmbH.
Please do not directly connect the poles of the battery, to avoid
short-circuiting the battery.
Power off the phone in hospitals or other places where the use of
mobile phones is prohibited. This phone
may affect proper work of
medical equipment, such as pacemakers, so always keep a distance
of at least 15 cm between the phone and these devices.
Observe all corresponding laws that are in force in the respective
countries regarding the use of mobile phones while operating a vehi-
cle.
Please power off the phone and disconnect the charging cable before
cleaning the phone.
Do not use any chemical cleaning agents to clean the phone or the
charger. Use a damp and anti-static soft cloth for cleaning.

Safety Instructions
10
Do not discard old and abandoned lithium batteries into the trash,
send them to designated waste disposal locations or return them to
i.safe MOBILE GmbH.
The user alone is responsible for any and all damages and liabilities
caused by malware downloaded when using the network or other da-
ta-exchange functions of the phone. i.safe MOBILE GmbH cannot be
held responsible for any of those claims.
Warning
i.safe MOBILE GmbH will not assume any liability for damages caused by
disregarding any of these advices or by any inappropriate use of the
phone.

11
Introduction
Dear customer, thank you very much for choosing the INNOVATION 2.0
smartphone. This quick start manual gives you access to the basic func-
tions of the phone.
With IP protection, rugged housing and a touchscreen, the
INNOVATION 2.0 is the ultimate dual SIM ANDROID
smartphone for
zone 1, 2, 21, and 22 explosion hazardous areas.
To ensure the IP protection of the phone please make sure that the
seals of the battery, the USB port cover and all the screw covers are in
place correctly.
This document contains only the instructions necessary for setting up
and safe use of your phone. A complete Quick Start Manual can be
found in the root folder of the Micro-SD card of
the phone or at
www.isafe-mobile.com.
Please consult 8.7 to learn how to access the Micro-SD card from any
computer.
Please read the Quick Start Manual before using the phone and follow
the tips and advices in order to be able to use the phone
for your full
satisfaction and safety.

Quick Start
12
6 i.safe PROTECTOR
The INNOVATION 2.0 contains specially designed safety circuits.
Connecting the phone to non-ex-approved equipment like a computer
can endanger the safety of the phone, as faults in the non-approved
equipment could lead to a power surge into the phone large enough to
destroy the safety circuits.
The i.safe PROTECTOR is a USB-cable for connecting the phone with
non-ex-approved equipment. It contains additional safety circuits to
protect the phone from possible faults in the non-ex-approved equip-
ment.
For this reason, charging and USB-connections are only allowed using
the i.safe PROTECTOR.

13
7 Keys
(1) Power: Lock the phone.
Long press to power up or down the phone.
(2) Menu: Bring up a list of options.
(3) Home: Returns to the Home Screen.
Long press to see a list of last accessed apps.
(4) Back: Return to the previous screen.
(5) Volume: Context-sensitive volume regulation.
(6) SOS: Long press to activate the SOS-alert
(7) PTT: Activate the Push-to-Talk function

Quick Start
14
8 First Steps
8.1 Battery
The battery is inserted into the back of the phone. The battery is not
fully charged when the phone is purchased, but it contains enough en-
ergy to power on the phone. To obtain best battery performance and
battery life, let the battery discharge completely before charging it
completely for the first three charging cycles.

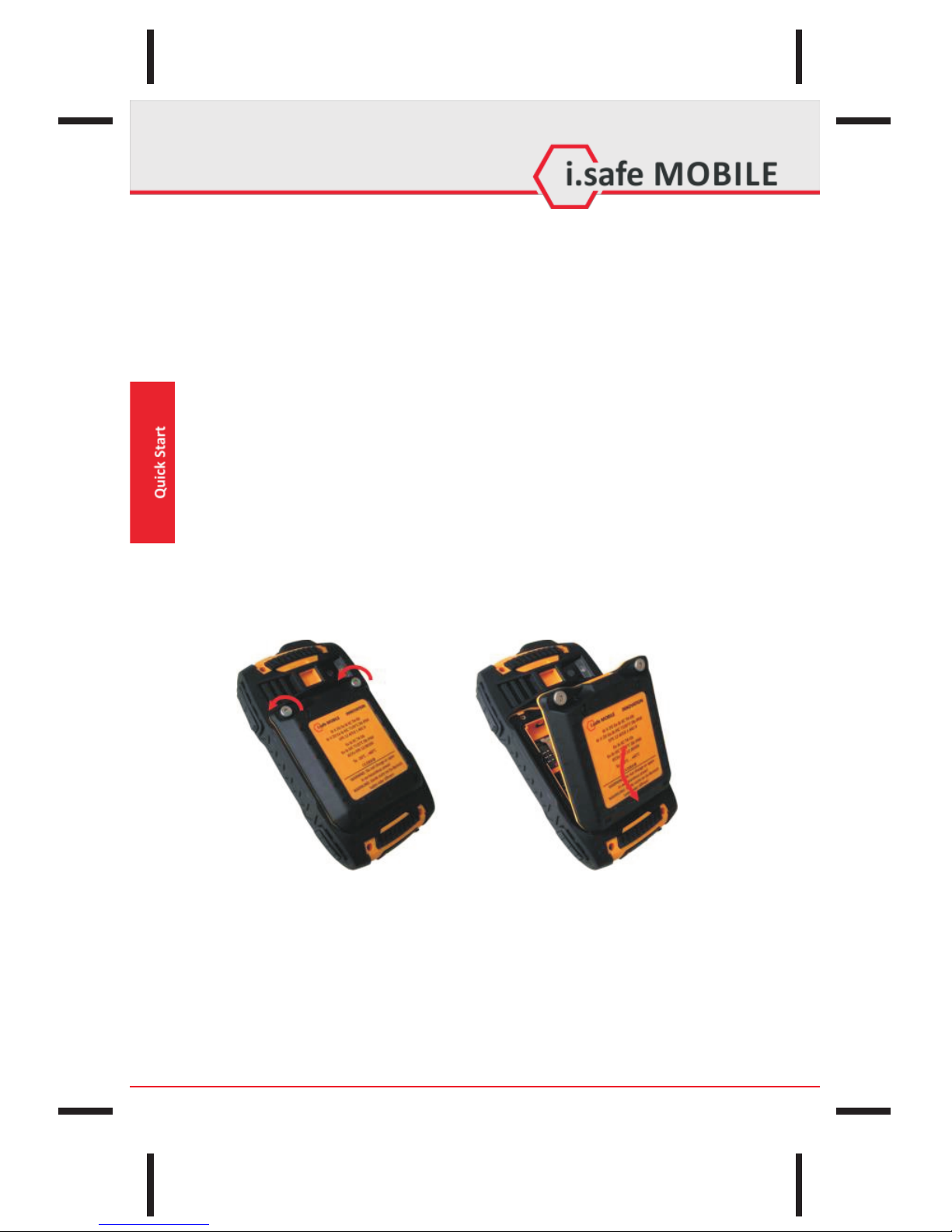

8.1.1 Installing and Extracting the Battery
When installing the battery, insert the teeth at the bottom of the bat-
tery into the corresponding notches of the phone, then press the bat-
tery down and secure it by turning the two screws with the delivered
screw driver (TORX T8). Ensure that the battery is safely in place before
powering on the phone.
Turn the phone upside down, turn the screws and remove the battery.
Insert the battery into the phone as indicated in the pictures below.

15
8.1.2 Charging the Battery

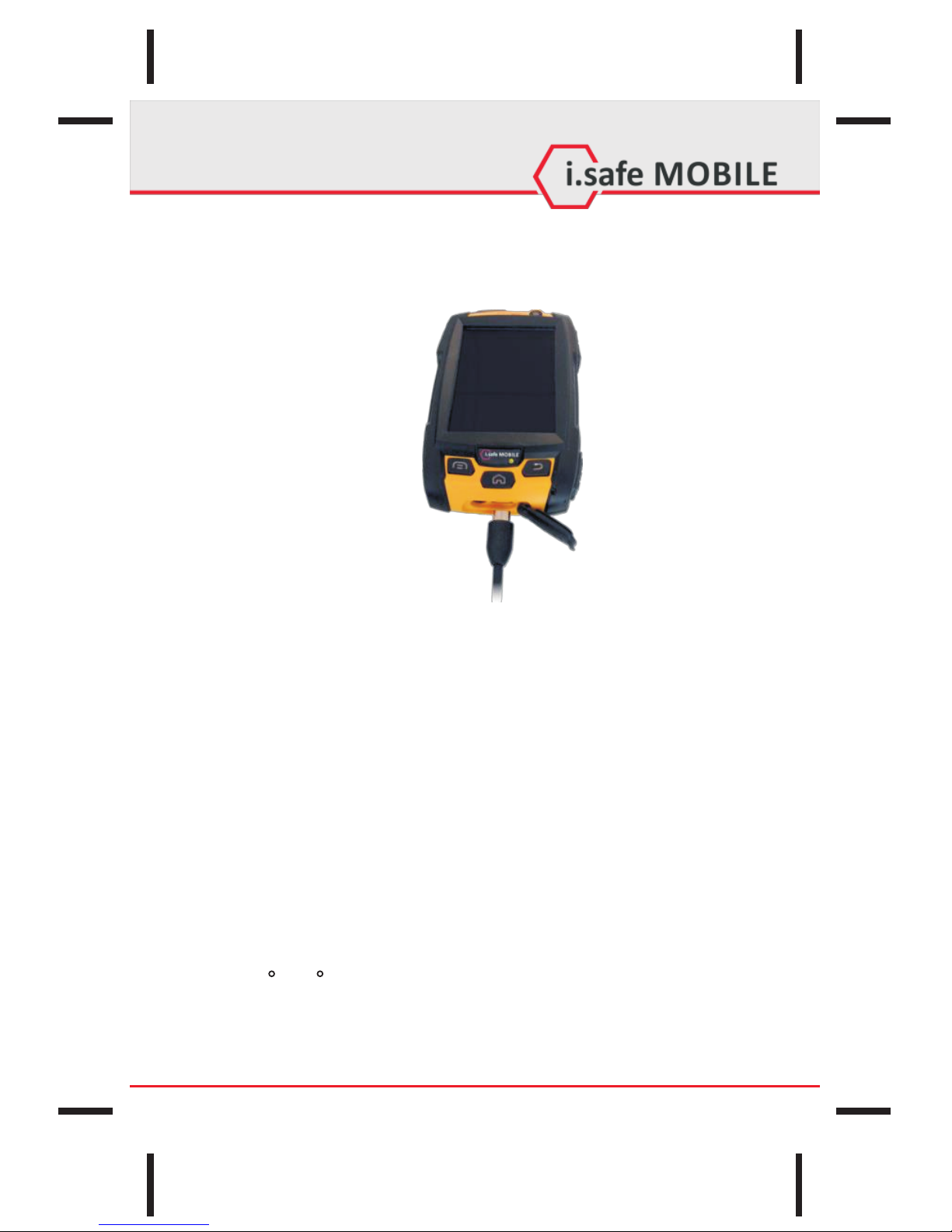

Connect the i.safe PROTECTOR USB-cable with the phone as indicated
in the picture below:
Connect the plug with the socket of the Power Supply.
After charging, remove the USB-cable from the charger.
8.1.3 Battery Use
In actual use, the standby time and talk time of the phone
varies with
the network status, working environment and usage.
When the power of the battery is lower than normal, the phone will
prompt you to charge it. Please charge the battery; otherwise you may
lose any files which are not saved.
If you do not charge for a long time, the phone will be powered off au-
tomatically.
Warning
The phone may only be charged at ambient temperatures in a range
from 0 C…45 C. Please do not use charging equipment if the tempera-
ture exceeds this range. Only use the i.safe PROTECTOR USB-cable to
connect to a charger. Using any other cable may cause danger and will
void the warranty.

Quick Start
16
8.2 Installation of the SIM Cards
The phone features two SIM card slots.
If you have installed two SIM
cards, you can choose your primary card in <Settings>
→ <SIM man-
agement>.
Warning
Do not try to insert or remove any of the SIM cards when any external
power supply is connected, otherwise the SIM cards or the phone may
be damaged.

17
8.3 Installation of the Micro-SD Card
Open the Micro-SD card holder, and insert the Micro-SD card into the
slot, then close the Micro-SD card holder.
8.4 First Use
8.4.1 Powering On Your Phone
Press the [Power key] until the screen lights up.
Depending on the security settings of your SIM card, the phone may ask
you for your personal identification number (PIN) before starting up.
The first time you power on your phone, you may
be prompted to as-
sign a language, date and time zone and enter your personal infor-
mation.
You will also be asked to sign in or set up your Google account. You can
do this later but please note that some of the functions of the phone
like the Google Play Store depend on a Google account.

Quick Start
18
8.4.2
Powering Off Your Phone
1.
Press and hold the [Power key] to open the Phone options menu.
2. Tap <Power off>.
3. Tap <OK>.

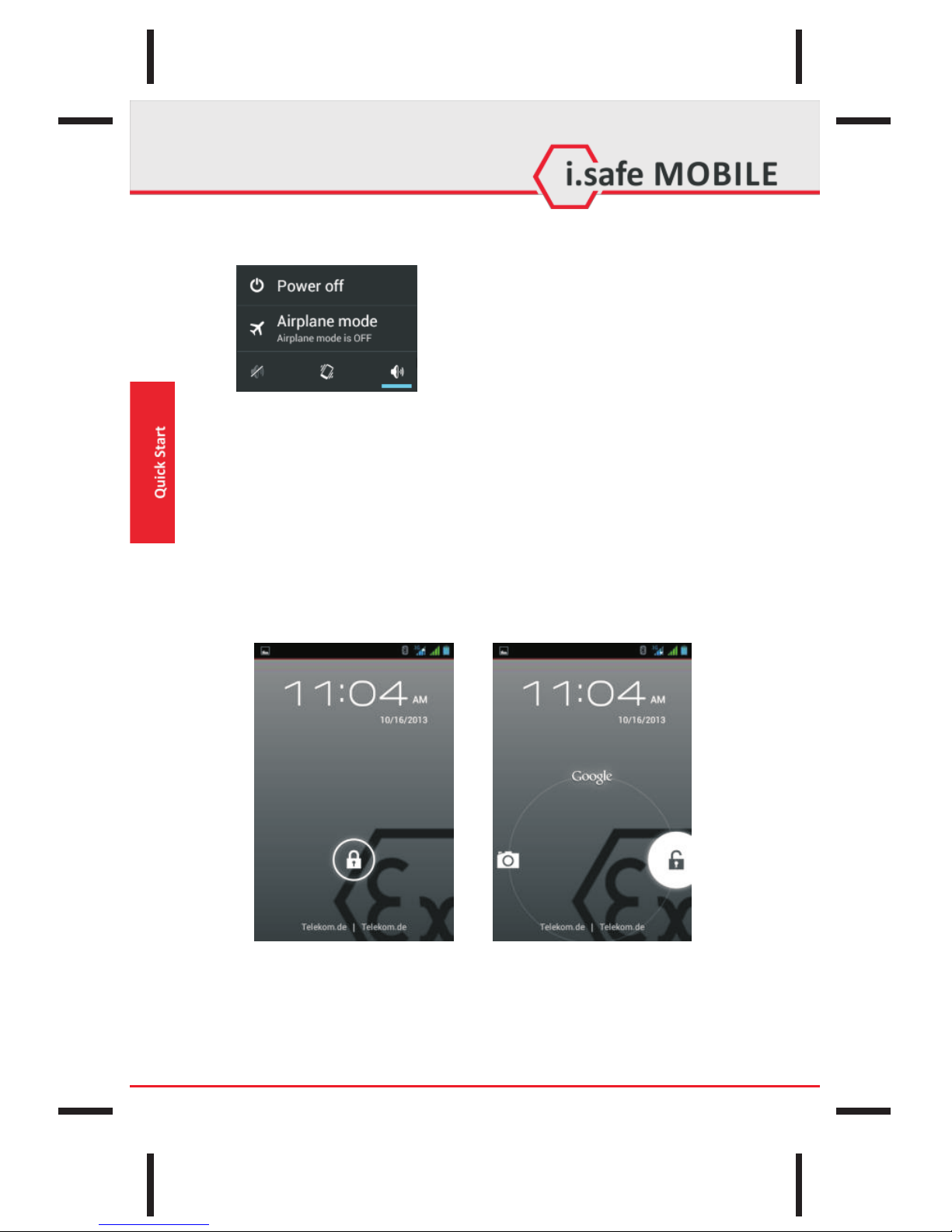

8.5 Locking and Unlocking the phone
Press the [Power key] to lock the phone. When the screen is locked,
you can still receive messages and calls.
If you leave your phone undisturbed for a while, the screen will lock
automatically.
To unlock the phone, press the [Power key] again. After the screen has
lit up, drag the lock icon to the unlock icon to unlock the phone.
Depending on your security settings, the phone may ask for a PIN to
unlock. Please note that this is NOT the PIN of your SIM card, but a code
that can be assigned under <System settings> → <Security> → <Screen
lock>.

19
8.6 Using the Touchscreen
This phone features a capacitive touchscreen. It is not necessary to
press the screen for it to work, a simple touch is enough.
The following gestures can be used with this phone:
Tap
To open an application (app), or to enter a character using the on-
screen keyboard, tap it with a finger.
Tap and hold
Tap and hold your finger to the screen for more than two seconds to
access further options where available.
Drag
Tap an icon and hold your finger to the screen. Then drag it to where
you would like to place it.
Double tap
Perform two taps onto a webpage or image to zoom in. Double tap
again to zoom out.
Flick
Touch the screen and flick your finger left, right, up, or down to scroll
through available panels or lists.
Pinch
Touch the screen with two fingers near together. While touching the
screen, put your fingers farther apart to zoom into a webpage or pic-
ture. Do the reverse to zoom out again.
8.7 Connecting the phone with a computer
You can access the Micro-SD Card of the phone by any compatible
computer via the i.safe PROTECTOR USB cable. The card will be ac-
cessed as a mass storage device.
1. Connect your phone to the computer with the i.safe PROTECTOR
USB cable. When connecting the phone to a computer for the first
time, the computer will install the necessary drivers automatically.

Quick Start
20
2. Tap <turn on USB storage> in the dialog box that opens on the
phone and tap
<OK>
to confirm your choice. Your computer will de-
tect the Micro-SD card as a removable disk. You can now transfer
files from and to the Micro-SD card.
Note
While USB mass storage function is enabled, some functions of the
phone may not be available.

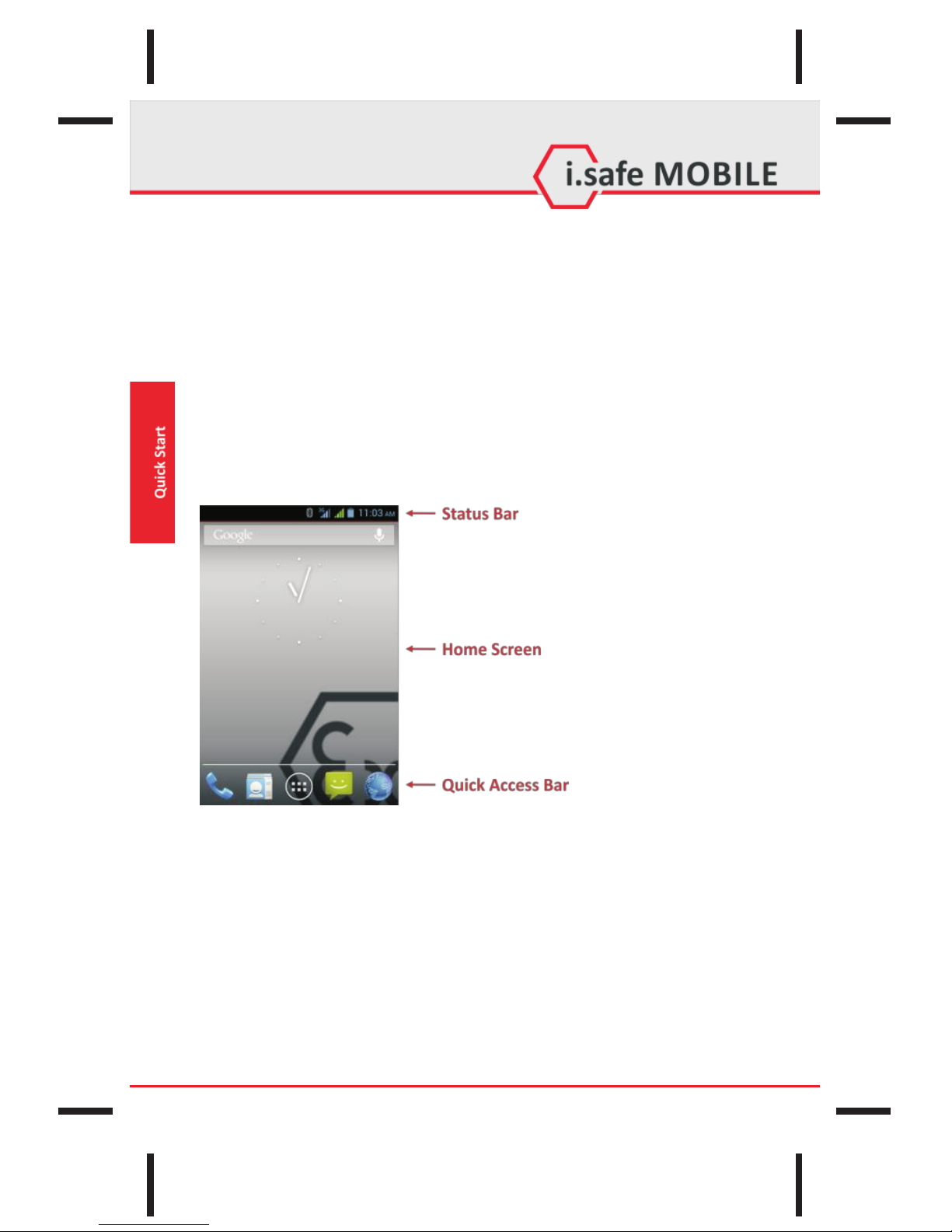

9 Display Layout
After you sign in, or when you power on the phone, by default the
Home Screen opens:
The Home Screen is your starting point to access all the features on
your phone. It displays application icons, shortcuts, and other features.
You can customize the Home Screen and display the items you need.
9.1 Status Bar
The status bar appears at the top of every screen.
On the right side, it displays phone status icons, such as the status of
the battery, GPS, data or mobile connections, and the time.
On the left side, it displays notifications icons, such as missed calls or
received messages.
