Isotech TWIST User manual

Twist 20110E
ISO ITALIA GROUP S.r.l.
Italian Spa Beauty and Tanning Equipment
[email protected]
www.isobenessere.com www.isoitalia.com
USER’S MANUAL
Read all precautions and instructions in this manual
before using this equipment
www.steril-line.com
TWIST

2
Congratulations for this fabulous purchase!
ISO Italia Group thanks you for choosing its own product from the line
ISO TECH STERILE LINE
WARNING:
Carefully read this user and maintenance manual and in particular the recommendations, warn-
ings and safety precautions contained therein.
For proper use of the appliance all the instructions and instructions contained in this manual must
be followed
Keep this manual in a safe place, within easy reach of operators for immediate reference.
FOLLOW THE INDICATIONS AND WARNINGS ON THE SIGNS AND INFORMATION LABELS THAT
MUST ALWAYS BE KEPT IN GOOD CONDITION.
WARNING!
ONLY SUITABLY INFORMED AND TRAINED PERSONNEL MAY OPERATE THIS APPLIANCE.
IMPROPER USE OF THE APPLIANCE MAY COMPROMISE THE SAFETY OF PERSONS AND ANIMALS
AND VOID THE WARRANTY.
Correct use of the appliance includes: compliance with the instructions, warnings and safety pre-
cautions provided in this manual as well as the correct execution of all maintenance procedures
provided by ISO ITALIA GROUP
WARNING:
UNPACKING, ASSEMBLY, INSTALLATION, COMMISSIONING OF THE APPLIANCE, AS
WELL AS OPERATIONS OF EXTRAORDINARY MAINTENANCE AND PERIODIC-PRO-
GRAM CHECKS, MUST ONLY BE CARRIED OUT BY TECHNICAL PERSONNEL, SUITABLY
TRAINED USING ONLY ORIGINAL SPARE PARTS.
AFTER REMOVING THE PACKAGING ENSURE THE INTEGRITY OF THE PRODUCT.
If in doubt, do not use it and contact the point of sale for a suitable analysis
of the problems encountered.
The manufacturer acknowledges their responsibility for the safety of the appliance only if
commissioning and technical interventions are carried out by suitably informed and trained
personnel who operate according to the instructions provided by the manufacturer; as such the
manufacture declines any responsibility for non-compliance with the contents of this manual.
Note: The information contained in this manual is subject to change without notice – the manufacturer assumes no
responsibility for any error that may be contained in this manual – the copy, reproduction or partial dissemination, by
any means of this document is prohibited without the express written permission of ISO Italia Group, which reserves
all rights under law No. 633 of 22/4/1941, and subsequent amendments, in order to protect copyright and other
rights related to its activities.

3
DANGER
The electrical safety of this appliance also depends on the characteristics of the electrical system
that supplies it, which must therefore be made by qualied installers and comply with the laws
and safety standards in force (in Italy DM 37/08 and CEI 64-8 standard).
THIS APPLIANCE MUST BE CONNECTED
TO GROUND IN A SAFE AND RELIABLE MANNER
If in doubt, consult the installation and maintenance company of the electrical system.
ISO ITALIA GROUP does not make and does not modify the electrical system and assumes no
responsibility in this regard, it advises against the use of plug boards, adapters or extension leads
to connect the appliance to the system.
GENERAL METHODS OF USE AND MANAGEMENT
(Some aspects may not affect the product of this manual)
• ONLY USE THE EQUIPMENT FOR ITS INTENDED PURPOSE AS DESCRIBED IN THIS MANUAL.
• AVOID ELECTRICAL CONNECTIONS IN THE EVENT OF A WET FLOOR, DISCONNECT THE MAIN POW-
ER SUPPLY
• DO NOT PERFORM ANY TYPE OF TECHNICAL INTERVENTION ON THE APPLIANCE OR SYSTEM OUT-
SIDE THE PROVISIONS OF THIS MANUAL.
• DO NOT REPLACE THE COMPONENTS WITH NON-ORIGINAL MATERIALS OR IN ANY CASE NOT SUP-
PLIED BY THE ISO ITALIA GROUP AS THEY MAY COMPROMISE THE CORRECT OPERATION OF THE
APPLIANCE.
• DO NOT DAMAGE, PUNCTURE, CUT OR OPEN ANY COMPONENT THAT IS PART OF THE EQUIPMENT.
• AVOID ANY CONTACT BETWEEN THE EQUIPMENT AND POSSIBLE OPEN FLAMES, INCANDESCENT OR
BLUNT OBJECTS THAT MAY DAMAGE SURFACE INTEGRITY.
• AVOID THE USE OF CLEANING SPRAY DETERGENTS THAT MAY COME INTO CONTACT WITH INTER-
NAL ELECTRICAL PARTS DAMAGING THEM DURING OPERATION.
• DO NOT INSERT OBJECTS OF ANY KIND INTO GRILLES OR SLOTS AS YOU RISK DAMAGING THE
PRODUCT
• DO NOT OBSTRUCT GRILLES OR SLOTS IN ANY WAY AS YOU RISK DAMAGING THE PRODUCT
ENVIRONMENTAL REQUIREMENTS
Before installing make sure that:
• the oor, support surfaces, walls are stable and adequate to support the weight of
the appliance
• the room has enough space to accommodate the overall dimensions of the equipment
and the type of treatment planned according to the tables in the technical characteristics section
• the room is equipped with an electrical system
• the ambient temperature where the appliance will operate never exceeds 28/30°C.

4
AIR STERILIZER
TWIST
Other technical-constructive characteristics of the product.
Characteristic References code ISO for spare
parts
N ° 2 55W UVC lamps for each Twist module Type 55W (double ended) MPI17623
Lamp life 9000 hours (about 1 year in continuous
service)
N ° 2 electronic ballasts with PFC - 2 x 58W Type VS ELXc 258.248 n° rif183132 MPI17642
UVC wavelength 253,7nm
Ultraviolet Energy x each lamp 1.7 W / m² at a distance of 1mt
K400-2M electronic timer K400-2M 200-240Vac MPI17618
Internal hour counter not resettable MPI17603
Operating temperature -10 °C + 55°C
ELECTRICAL CHARACTERISTICS
Model Single-phase power supply
[Vac]
Mains frequency
[Hz]
Max.electrical power
for each module
[W]
Corner UVC 230 50 200
ELECTROMAGNETIC FIELDS
Model Maximum weighted value measu-
red
Maximum limit imposed
(CEI EN 62233) result
Steril Room 0,07 1 COMPLIANT
Storage conditions
Temperature -5 ° C / 45 ° C
Humidity 10 - 75%
Pressure 500-1060 hPa
Before proceeding with the installation, check the integrity of the device; if there are any
signs of damage, do not operate the appliance.

5
DIMENSIONS AND MECHANICAL CHARACTERISTICS
The control console is designed for external installation on the walls; it also has a predisposition for fixing
to three-module flush-mounting boxes of civil systems. On the internal sheet of the electrical panel, the
passage for the electrical connections is provided in the center, in the upper part.
Overall dimensions
Control console dimensions
Width 265 mm Height 175 mm Depth 80 mm
Indicative weight: about 2Kg
Wall electrical panel inside the control console.
Passage for IN and OUT connections on the con-
trol console
Fixing on both sides for the
console cover.
When removing the cover it
is necessary to pay attention
to the presented electrical
connections
Interruttore ON - OFF per il
sistema di sanificazione

6
The Twist module is designed for different fixings and passages for electrical connections to be prepared on site
Overall dimensions of the internal body ush with the ceiling without nishing frame
Product dimensions Twist internal body
Length 1440 mm Width 160 mm Height 140 mm
Weight: About 13 Kg
In the drawing above, the 4 red points with center distance 1330mm on the length and 200mm on the width indicate the positions of
the mechanical fastening to the bearing wall or ceiling; The two blue points indicate the position for the entry of electrical connec-
tions. For both mechanical fixing methods.
Mechanical fixing can be done in the following ways:
1)
Directly on the support surface by means of 4 plugs (suitable for the type of support - those supplied are masonry support) to which
the central body is fixed from inside the structure.
front view
side view
2)
Spaced from the support surface, by means of 4
M8 threaded bars with a length of about 23 cm (for
different lengths specific requests must be made);
the threaded bars on the Twist side are fixed in the
same anchoring points as in point 1, while on the
side of the false ceiling special supports / hooks
must be provided by the customer
Ø 8 anchors for brickwork
M8 threaded rods + nuts

7
ceiling level
B) With the internal mechanical body at
the level of the ceiling, without side fini-
shing frames, but with the predisposition
for connecting two flush ceiling vents
for the recirculation of sanitized air.
In the next section related to assembly, the functions for air recirculation and sanitation will then be clarified.
Average noise 48/50 dB Liquid protection IP20
Noise: IP Grade:
Depending on the type of fixing chosen, described above, the
Twist product can be installed in the following ways:

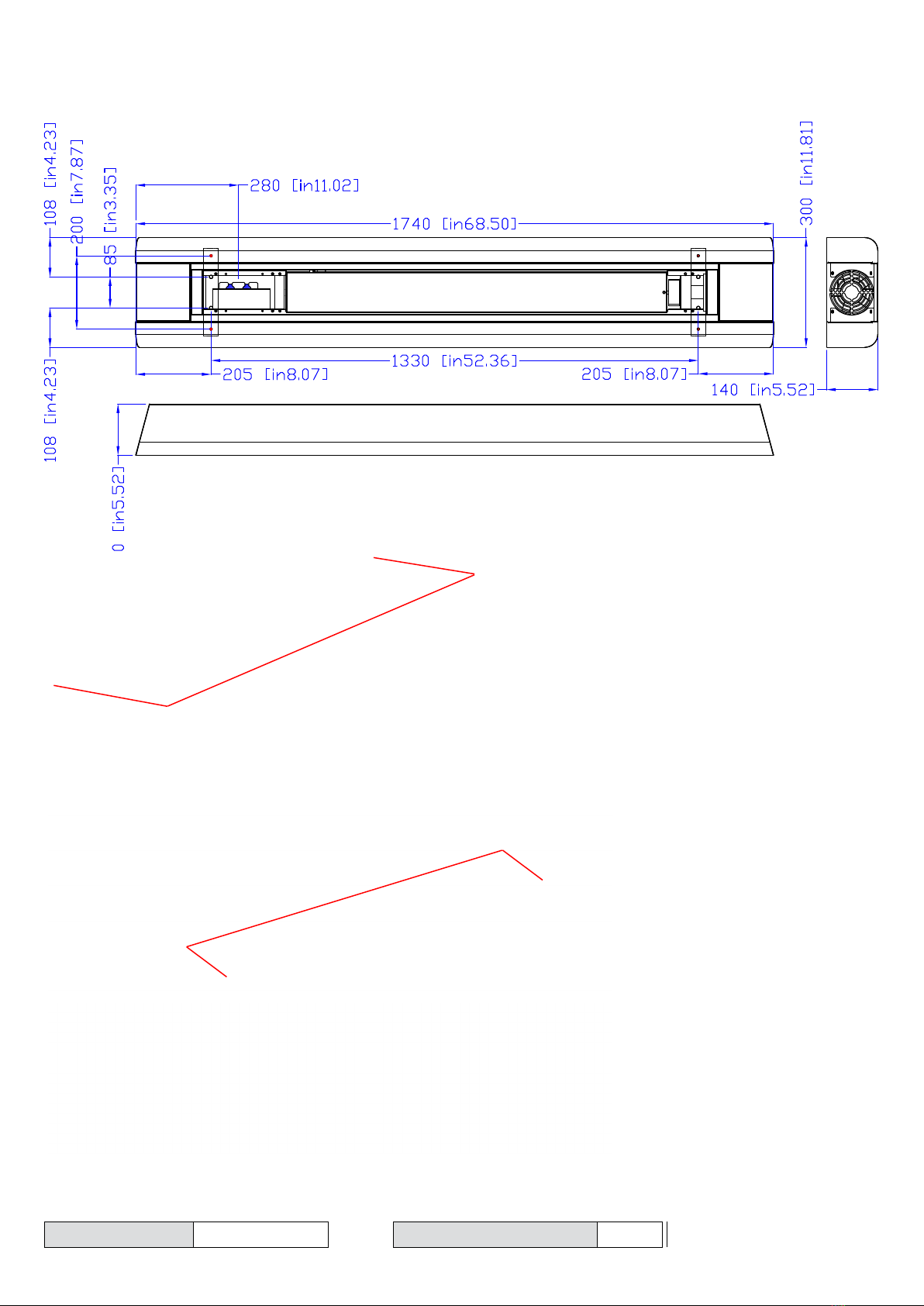

A) Externally at the level of the ceiling with all the mecha-
nical structure in sight having the two side finishing frames
Overall dimensions of the external body ush with the ceiling with nishing frame
Product dimensions Twist internal body
Length 1740 mm Width 300 mm Height 140 mm
Weight: about 17Kg
ceiling level
front view
side view

8
CE DECLARATION OF CONFORMITY
IN RELATION TO SAFETY STANDARDS AND EEC DIRECTIVE
The manufacturer shall:
ISO Italia Group S.r.l.
Via G. Di Vittorio 30
30029 S. Stino di Livenza (VE) - ITALY
in the person of its Chairman, legal representative, under his own personal responsibility,
Hereby DECLARES that the Model
TWIST Code: TWIST X X (X corresponds to the number of ceiling-mounted products installed to-
gether)
Device for the sterilization of surfaces, environments and objects with the use of UVC lamps
is in accordance with the requirements of the following Community Directives, including the latest amendments, and
with the relevant national transposition legislation:
· DIRECTIVE 2014/35/EU - Low voltage
· DIRECTIVE 2014/30/EU - Electromagnetic compatibility
· DIRECTIVE 2011/65/ EU - RoHS
The harmonised standards used as a reference for compliance with the essential requirements are as follows:
For safety:
CEI EN 60335-1 - Safety of household and similar electrical appliances. Part I
For magnetic elds:
CEI EN 62233 - measurement methods for electromagnetic elds of household and similar electrical appliances
with reference to human exposure
The product covered by this declaration has been marked in accordance with the aforementioned
Directives, as of September/2020
Note: Compliance refers to installation in suitable environments and equipped with an electrical system that com-
plies with the relevant safety standards. In addition, the assembly, installation and use methods must be those indi-
cated in the documentation accompanying the appliance.
Places of issue S. Stino di Livenza (VE) ITALY
Release date September /2020
ISO ITALIA GROUP S.r.l.
Sole Director
(Dr. Valentino Astol)
SERIAL LABEL POSITION
ELECTRICAL DATA
DATE OF MANUFACTURE

9
SAFETY WARNINGS
This product is only intended for indoor air sanitation purposes, and for surface
sanitization (non-medical devices).
The product is not suitable for sanitizing / sterilizing / disinfecting medical devices.
• This product must not be equipped with a general lighting lamp, also the UVC
lamp used in this product shouldn’t be installed in general lighting devices.
• This product is intended for professional use only. The installation must be carried out by spe-
cialized technical personnel able to verify its correct functioning and subsequent maintenance.
• By purchasing this product you declare that you are purchasing it for professional use only and
you undertake to instruct and inform the staff for correct use.
• It is strictly forbidden to use this product in environments where ammable and explosive
materials are present.
This product emits UVC light During operation, always avoid direct or reected exposure of UVC
light with people or animals.
The UVC radiation produced during operation can cause severe damage to the eyes or
skin even after relatively short exposure times.People or animals are not
allowed to remain in the environment where the UVC lamps are in use.
Start the sanitation process only if the environment has been cleared of
people and animals.
Here are some indications to follow in order to operate in complete safety; one or more options
listed below can support the achievement of this goal.
• Lock or block access to the environment while the UVC lamps are operating
• Pay attention to the warning lights on the control console of the product be-
fore accessing the environment in which sanitation is in progress.
• The product must only be operated by trained personnel informed on regular
use.
• The control console must be positioned outside the environment to be sanitized, if this is not
possible, it is necessary to exit the environment to be sanitized within the delay time provided
for the lighting of the lamps after the start command.
• The product includes a device to detect any presences in conjunction with the operation of
the UVC lamps; this safety device blocks the control system in case it is activated. The system
remains blocked until a forced reset which must be done by trained personnel.
• In case of inactivity of the system for extended periods it is recommended to switch off the
device from the switch positioned on the side of the control console, or the switch of the sy-
stem supply.

10
The product is equipped with an IR sensor that detects the presence of people
inside the work space, the activation of this sensor sends a shutdown command to
the control console which is placed in a lockout condition.
This safety measure is to be considered as second level therefore it is not to rely only on the
operation of the sensor which must be integrated with one or more provisions indicated above.
• The sensitivity of the sensor may decrease in the presence of ambient temperatures above
35 ° C.
• Do not cover the sensor or block its view in any other way.
• This product must be installed correctly by referring to the instructions given
in the appropriate paragraph in order to avoid damage to the light source and other compo-
nents.
• il n° delle plafoniere da utilizzare è legato alla dose UVC che si vuole ottenere in funzione alle
dimensioni dell’ambiente da sanicare. Una dose insufciente di UVC potrebbe non raggiun-
gere l’effetto di sanicazione previsto. La dose inoltre può variare in funzione del tempo di
servizio impiegato.
• The UVC radiation can age the non-metallic materials such as plastics, rubber etc. any com-
ponents considered delicate must be protected against direct exposure.
• Do not expose plants to direct UVC radiation.
• When using this sanitization system, it is necessary to keep the spaces dry and clean, close
doors and windows in order to avoid the circulation of air from the outside.
• The UVC lamps used on this sanitization system are Ozon Free.

11
STERILIZZATORE D’ARIA
TWIST
+ Timer Room
FUNCTIONAL CHARACTERISTICS
With UVC TWIST® your environment is completely saniti-
zed. UVC TWIST® is a UWC lamp system designed and pa-
tented by Isotech, which sanitizes both air and surfaces depen-
ding on the need and the moment.Two powerful 55 Watt UVC
lamps with a T8 diameter are installed on the UVC TWIST®
with a 2-pin double terminal. The installed lamps have a typi-
cal UVC irradiation with the maximum output at a wavelength
of 253.7 nm with an irradiance of 1.7 watts/m2 at one meter distance.
When the lamps are turned towards the inside of the channel that contains them, they act by sanitizing the air,
when the lamps are turned towards the outside of the channel they radiate the environment towards which they
are turned, sanitizing it. The air sanitization is activated continuously and in the presence of people in the envi-
ronment, thus ensuring maximum reduction the risk of breathing viruses or bacteria. With an empty environment,
ie without people, the “Clean Surface” command can be activated, the lamps facing the channel turn 180 degrees
and radiate the surface towards which they are facing, emitting their UV irradiation for inactivation of microor-
ganisms by sanitizing surfaces and the whole irradiated environment.
The controls for choosing the “Clean Air” or “Clean Surface “ function are located outside the room. In the pre-
sence of people entering during the “Clening Surface” function, a presence sensor switches off the lamps which,
by turning 180, automatically return to the position that sees them facing the inside of the sanitizing chamber.
UVC TWIST® has separate controls. The “Cleaning Air” air sanitization can be programmed while the “Clea-
ning Surface” function can only be activated manually through a timer.
UVC TWIST® can be installed individually or in parallel (multiple units connected within the same environment).
To facilitate installation, the UVC TWIST® is equipped with hooks (to be hung from the ceiling) and anges
(to be attached to the plasterboard or to the wall). A rotation “closure” system prevents UVC light from escaping
when the lamps are facing the germicidal chamber.
Caution !!
This product must be considered and used only as a device for the disinfection of environments, therefore surfa-
ces and air in a confined environment, depending on the mode chosen with the use of UVC lamps.
Use is allowed only in the absence of people or other living beings during the sanitization
treatment in the “Cleaning Surface” mode. Use is also allowed with people present but only
in the “Cleaning Air” mode.
Any other use is to be considered improper and therefore dangerous.
The ISO ITALIA GROUP company declines any responsibility in the event of improper, erroneous and
unreasonable use that goes beyond the provisions of this manual.

12
TIMES OF USE UVC TWIST
Referring to the declared irradiance for the lamps used in terms of UVC energy,
1.7 w / m² at a distance of one meter in relation and to the doses reported in the official tables for the destruction
of microorganisms, we can indicate that, with the cycles shown below in the different configurations, the killing
of 99% of bacteria on surfaces and objects is achieved that are irradiated.

13
From the locked condition with the red security
lock light on, it is possible to reactivate the system
by pressing the illuminated reset button for a few
seconds.
Caution !!
Before starting each sanitation cycle in the
“Cleaning surface” mode, it is mandatory to make
sure that there are no people or other living beings
in the environment to be treated as poten-
tially harmful UVC radiation is used.
The presence detection system could determi-
ne the block even outside the sanitation cycles
in the “Cleaning Surface” mode. It will therefore be necessary to press the reset command before giving
the start.
The timer emits a 10-second sound at the end of the work session, only when the cycle is carried out correctly for
the entire set time.
COMMANDS
A control console is provided for the operation of the system, to be installed outside the environment to be sani-
tized. (For dimensional indications refer to the paragraph on technical characteristics).
The components present on the console are:
• A control console is provided for the operation of the system, to be installed outside the environment to be
sanitized. (For dimensional indications refer to the paragraph on technical characteristics).
• The components present on the console are:
• A reset button for reactivating the system following the detection of movement in the environment where the
Twist products are installed.
• Un switch on the right side for selecting the “Cleaning Air” or “Cleaning Surface” operating mode correspon-
ding to the switch pressed.
• on the right side of the console there are also two indicator rectangles that indicate:
• green square lit> sanitation cycle is in progress
• red box illuminated and timer off> system locked for safety to detect the presence of movement in the envi-
ronment to be sanitized.

14
TECHNICAL INFORMATION ON THE USE OF UVC IN ISO TECH PRODUCTS
UV-C radiation is a proven and effective technology for destroying micro-organisms
Iso Italia Group, with over 30 years of experience in UV lamp sector presents its product line for disinfection with
UVC Steril Line germicidal lamps.
Germicidal lamps emit very short ultraviolet waves, deadly to micro-organisms.
Some information about Germicide lamps
Ultraviolet rays emit a very high energy level light with a wavelength between 200-400nm. In particular, radiation
with a 254nm wavelength has been scientically proven to be extremely effective for disinfection. More than 90%
of the total UV radiation emitted is just 254nm. Wavelengths of 200-280nm are called UVC. Thus disinfection
using 254nm wavelength is called UVC Disinfection. Radiation of 254nm destroys micro-organisms by changing
the genetic information contained in their DNA, ensuring a 99.99% reduction.
Safety of UVC germicidal systems
Since UV-C rays present a danger to the skin and eyes, direct exposure to the rays should always be avoided. The
UV-C is blocked by a number of materials, including glass and most transparent plastics, so you can safely observe
a UV-C system if you look through a shielding system. UV-C provides disinfection without residues of any kind,
however these systems do not imply the need to eliminate or neutralise dangerous products after disinfection.
UVC germicidal systems are fast, inexpensive and eco-friendly, as no chemicals are added to air / water and there
are no hazardous or toxic chemicals to dispose of.
Benets of UVC germicidal systems
Disinfection times are rapid, with a typical disinfection cycle lasting about 15 minutes (excluding germicidal air
systems). This allows extremely fast turnover times for sanitising environments. For its simplicity, UV-C disin-
fection is extremely easy to use. All surfaces within a certain distance, will observe a certain level of disinfection
for a certain period of time, provided that the light is not blocked and can reach the surface. It becomes very easy
to plan the use of a UV-C disinfection system when you are familiar with the simple usage protocols.
Applications of UVC germicidal systems
The applications of our germicidal systems are many and ever more numerous.
Systems are available for the disinfection of environments, air, objects and equipment, air conditioning ducts,
ambulances and other vehicles, ducts, belt conveyors and many other applications.
The guaranteed effectiveness of UVC systems
Out manufacturing unit knows the energy produced by all pieces of equipment, calculated by the number and
from the type of lamp used and by its designated function (application) (air purication, objects, environments).
From these technical values we determine the “DOSE” of UVC produced by each device (i.e. the energy of the
device multiplied by the ignition time. This type of calculation allows us to be sure of the germicidal efciency,
as in medicine, on a global level, tables are used that indicate the required "DOSE" of UVC required to eliminate
all bacteria, spores and viruses.

15
UV BASICS
Ultraviolet light belongs to the electromagnetic spectrum with a wavelength between 200 and 400 nm (nanome-
ters), which is shorter than visible light, but longer than X-rays. All UV rays and bands are invisible to the human
eye.
The UV spectrum can be divided into the following bands:
UV-A (Long Waves; 400-315 nm): Used for Black Lights, Skin Tan, Ink/Resin Hardening.
UV-B (medium waves; 315 – 280 nm): used to treat psoriasis, may cause sunburn, skin cancer.
UV-C (short waves; 280 – 200nm): more effective for germicidal disinfection.
UV-V (UV under vacuum, less than 200 nm): may produce ozone in the air.
All of the above wavelengths of UV light are emitted from the sun, but only the longest wavelengths, UV-A
and UV-B reach Earth. UV-C rays, which are the shortest wavelength but the highest energy, are blocked by the
ozone layer.
INACTIVE MICRO-ORGANISMS
Because UV-C rays are blocked by the ozone layer, micro-organisms have not developed a natural defence
against UV-C energy. When the DNA of a micro-organism absorbs UV-C energy, molecular instability occurs,
resulting in interruption of the DNA sequence. This makes the cell unable to grow or reproduce. Without the
ability to reproduce, the cell cannot infect and dies quickly.
The application of UV-C energy to inactivate micro-organisms is
known as germicidal irradiation or UVGI. It has been used for this
purpose since the early 1900s. Artificial UV-C energy is produced
in germicidal ultraviolet lamps that produce UV radiation by ion-
ising mercury vapour at low pressure. These lamps are similar to
typical fluorescent lamps for domestic use, but do not have the
phosphorescent coating that transmits soft white light. Most com-
mercial UV-C lamps are low-pressure mercury lamps that emit
UV energy at 253.7 nm, which is an ideal wavelength for disrupt-
ing the DNA of micro-organisms.
UV-C lamps and devices are increasingly used worldwide in vari-
ous configurations and applications to disinfect water, air and sur-
faces.

16
DOSAGE DETERMINES EFFICACY
The amount of UV-C energy required to inactivate a given micro-organism is measured on the basis of the dose,
which is determined by a combination of radiation energy and exposure time. A key difference between surface
inactivation and airflow inactivation of micro-organisms is exposure time. The residence time in the UV field for
micro-organisms in the airflow is in the order of seconds and would require a much higher UV-C dose compared
to surface application. Scientists have determined the rates at which various microbial populations decrease due
to exposure to biocidal factors such as UV-C irradiation. Organisms differ in their susceptibility to UV-C inac-
tivation; in general, viruses are the most sensitive to UV-C rays followed by bacteria with fungal moulds and
spores that are the least sensitive.
UV-C irradiation also obeys the inverse-square law of light, where the intensity at a given point is inversely
proportional to the square of its distance from the light source.
To date, the dose in Joules has not yet been officially established to inactivate COVID-19 because to obtain the
exact data means waiting for the technical laboratory times, which should be made official by the end of October.
However, all bacteria and viruses tested to date (many hundreds over the years, including coronaviruses) are
eliminated by UV disinfection. UVC rays (or germicidal range), inactive (i.e., “kill”, “eliminate”) at least two
other coronaviruses that are the closest relatives of the COVID-19 virus: SARS-CoV and MERS-CoV (“Large-
scale preparation of UV-inactivated SARS coronavirus virions for vaccine antigen”, Tsunetsugu-Yokota Y et al.
Mol Biol Methods. 2008; 454:119-26. doi: 10.1007/978-1-59745-181-9_11.; “Efficacy of an Automated Mul-
tiple Emitter Whole-Room Ultraviolet-C Disinfection System Against Coronaviruses MHV and MERS-CoV,
“Bedell K et al. ICHE 2016 May; 37(5):598-9. doi:10.1017/ice.2015.348. Epub 2016 Jan 28.; Focus on Surface
Disinfection When Fighting COVID-19”; William A. Rutala, PhD, MPH, CIC, David J. Weber, MD, MPH;
Infection Control Today, March 20, 2020 (https://www.infectioncontroltoday.com/covid-19/focus-surface-disin-
fection-when-fighting-covid-19). However, the efficacy condition of UVC light remains related to THE DOSE,
i.e. the energy with which the light reaches the target to inactivate it. UVC systems must therefore be designed
to ensure the DOSE required to inactivate the viruses for the environments and applications for which they were
designed.
For example, an excerpt from the Virus table ( at this link:
https://www.iuvanews.com/stories/pdf/archives/180301_UVSensitivityReview_full.pdf the full table).

17

18
SETTINGS AND COUNT-DOWN FUNCTIONALITY
To set the time of a work cycle, press the SET key once.
The numbers corresponding to the “seconds” will flash first; then adjust the value with the UP and DOWN keys.
Subsequently, if you want to further increase the time, press the SET button again.
The digits corresponding to the minutes will flash; then adjust the value with the UP and DOWN keys.
(Note that after a few seconds, if the SET key is not pressed, the set time is automatically memorized).
Once the desired time for the work cycle has been set, to start the countdown, press the START key, the display will begin
to show the passage of time in the decrease mode.
By pressing the STOP key the countdown can be stopped at any time and the timer will return to the previously set time.
When the time reaches zero, the timer will beep for about 10 seconds.
To reset the set time, keep the SET key pressed for a few seconds.
FEATURES:
Microprocessor based on a timer with LED display
Simple operation and easy to use
The time is highlighted by an LED on panels of 4 x 7 segments
A 16A (heavy duty) SPST relay used to control external devicesi
ELECTRICAL PARAMETERS:
Power supply: 200-240 VAC; 45-55 Hz
Current supplied: 16A resistant
Operating temperature: from 0 ° C to 70 ° C
TIMER MPI17618 FUNCTIONING DESCRIPTION

19
TWIST COMPONENTS DESCRIPTION
CAUTION!!
UNPACKING, ASSEMBLY, INSTALLATION AND COMMISSIONING OF THE VARIOUS COMPONENTS
MUST BE PERFORMED BY TECHNICAL PERSONNEL ONLY
REMOVAL OF PACKAGING
The components that make up the assembly kit are supplied with adequate external packaging.
During the unpacking operations, be careful not to damage the surfaces and the particular places
inside the packaging as they are delicate against bumps and scratches.
Keep the packaging for the duration of the warranty. The packaging materials must then be disposed of in accor-
dance with the regulations in force in the country of destination of the product.
Before proceeding with the installation, check the integrity of the devices; in case of transport damage,
contact the retailer.
Warning!
The product uses potentially dangerous UV radiation; do not use the product in the presence of people or
other living beings in the “Cleaning Surface” mode; EYE AND SKIN DAMAGE ARE POSSIBLE.
THE PRODUCT IS INTENDED ONLY AND EXCLUSIVELY FOR INTERNAL USE AND IS NOT SUITABLE
FOR HUMID ENVIRONMENTS
TO AVOID THE RISK OF FIRE OR ELECTRIC SHOCK, THE APPLIANCE MUST NOT BE USED WHERE
CONTACT WITH WATER IS POSSIBLE.
THE APPLIANCE MUST NOT BE USED IN POTENTIALLY EXPLOSIVE ATMOSPHERES.
UVC TWIST module with passive IR sensor
for detecting the presence of people.
INSTALLATION
TWIST + Command console
Control console composed of:
• a metal support where the electrical compo-
nents are housed
• closing cover with adhesive serigraphy on
which the timer, the reset button and the switch
for selecting the operating mode are incorporated.
A single control system can manage several UVC TWIST modules up
to a maximum of 5.
The positioning of the UVC Corner module must be carried
out considering the following aspects to avoid anomalous in-
terventions of the safety systems.
Since a passive infrared PIR sensor is used, it is necessary:
• Avoid positioning where there may be interference with systems
that have sudden changes in temperature (eg radiators, air condi-
tioners, fireplaces, stoves and the like).
• Avoid direct exposure to sunlight.
• Avoid positioning towards particularly close reflective surfaces.
• Avoid positioning in rooms where there is a high presence of fumes / fog, such as to cause condensation;
IT IS RECOMMENDED TO DIRECT THE PRESENCE DETECTOR TOWARDS THE ENTRANCE OF THE ENVI-
RONMENT WHERE THE UVC TWIST MODULE IS INSTALLED

20
In both types the central body is the same therefore the following assembly indications can be considered for both cases.
The Twist product is delivered assembled in all its parts except for the air pipes and relative grids to be used in the built-in
model.
To carry out the mechanical fixing, proceed with the following steps:
The UVC TWIST + Control console components are each supplied with mechanical accessories (screws and plugs) for
their assembly but without electrical connections between one component and another; these connections must be prepared
in advance by the customer at the place of installation of the products; for the various connections and connection to the
electricity grid, it is necessary to refer to the paragraph, Connection to the electricity grid.
WARNING! VERIFY THAT THE PLATE DATA ARE COMPATIBLE WITH THOSE OF THE POWER
SUPPLY LINE PENALTY DAMAGING THE PRODUCT.
The UVC TWIST module can be installed in the following ways with respect to the ceiling level of a room:
exterior therefore visible (image below left), in this case the equipment has side finishing frames
internal then retractable (image below right), in this case the equipment is composed of the central body that will be ancho-
red inside the ceiling; in this second mode, components are provided to convey air recirculation when using the “Cleaning
Air” mode and vents to be positioned in the ceiling.
References for mechanical fasteners are specified in the mechanical characteristics section.
ASSEMBLY AND START-UP
Right side
The IR sensor is fixed on the out-
side of the lid, while part of the
electromechanical components
connected to the control console
are positioned inside to manage
the various functions.
Sensore IR
ceiling level
ceiling level
Left side
The gearmotor that manages the ro-
tation of the lamp body is installed
inside the cover
Front View
view from the back
Left side
Bracket for ceiling fixing
Already arranged on the cen-
tral body
Right side
Bracket for ceiling fixing
Already arranged on the cen-
tral body
Right side
Arrangements for electrical
connections to be made on
site between the twist module
and the control console.
Seat for inserting electrical
connections after making
them
NB. it is advisable to keep a distance of at least 1-1.5 cm between the ceiling and the support brackets in
order to facilitate the positioning of the electrical connections coming from the console
