Itm TM356-10270 User manual

www.itmtools.com.au
Ver: 1.0
OPERATOR’S MANUAL
SCREW TYPE
AIR COMPRESSORS
TM356-10270
(10hp, 270L Tank)

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
LIMITED WARRANTY
Industrial Tool & Machinery Sales (hereinafter referred to as ITMS) will, within twelve (12) months
from the original date of purchase, repair or replace any goods found to be defective in materials or
workmanship.
This warranty is void if the item has been damaged by accident, neglect, improper service or other causes
not arising out of defects in materials or workmanship. This warranty does not apply to machines and/
or components which have been altered, changed, or modified in any way, or subjected to overloading
or use beyond recommended capacities and specifications. Worn componentry due to normal wear and
tear is not a warranty claim. Goods returned defective shall be returned prepaid freight to ITMS or agreed
repair agent, which shall be the buyer’s sole and exclusive remedy for defective goods. ITMS accepts no
additional liability pursuant to this guarantee for the costs of travelling or transportation of the product or
parts to and from ITMS or the service agent or dealer, such costs are not included in this warranty.
Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
You are entitled to replacement or refund for a major failure and to compensation for other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure.
THE MANUFACTURER RESERVES THE RIGHT TO MAKE IMPROVEMENTS AND
MODIFICATIONS TO DESIGN WITHOUT PRIOR NOTICE.
PRODUCTS IMPORTED AND DISTRIBUTED NATIONALLY BY:
INDUSTRIAL TOOL & MACHINERY SALES
18 BUSINESS ST, YATALA QLD 4207
T: 07 3287 1114 E: [email protected]
F: 07 3287 1115 W: www.itmtools.com.au
TRADEMASTER
Magnetic Base Drilling Machines
Tools and Machinery
AIR
English
2
Code 1641003212 - Edition 10/2020
CONTENTS
INFORMATION FOR THE USER
1.0 GENERAL CHARACTERISTICS
2.0 INTENDED USE
3.0 OPERATION
4.0 GENERAL SAFETY STANDARDS
5.0 DESCRIPTION OF DANGER SIGNALS
6.0 DANGER ZONES
7.0 SAFETY DEVICES
8.0 POSITION OF SIGNS & DATA PLATES
9.0 COMPRESSOR ROOM
10.0 TRANSPORT AND HANDLING
11.0 UNPACKING
12.0 INSTALLATION
13.0 DIMENSIONS AND TECHNICAL DATA
14.0 MACHINE ILLUSTRATION
15.0 MAINTENANCE
16.0 PERIODS OF INACTIVITY
17.0 SCRAPPING THE UNIT
18.0 LIST OF SPARE PARTS FOR ROUTINE MAINTENANCE
19.0 TROUBLE-SHOOTING AND EMERGENCY REMEDIES
PART A: INFORMATION FOR THE USER
1.0 GENERAL CHARACTERISTICS ........................................................... 4
2.0 INTENDED USE..................................................................................... 4
3.0 OPERATION .......................................................................................... 4
4.0 GENERAL SAFETY STANDARDS ........................................................ 5
5.0 DESCRIPTION OF DANGER SIGNALS................................................ 5
6.0 DANGER ZONES................................................................................... 6
7.0 SAFETY DEVICES................................................................................. 7
8.0 POSITION OF SIGNS & DATA PLATES ............................................... 8
9.0 COMPRESSOR ROOM ......................................................................... 9
10.0 TRANSPORT AND HANDLING ........................................................... 10
11.0 UNPACKING ........................................................................................ 11
12.0 INSTALLATION.................................................................................... 12
13.0 DIMENSIONS AND TECHNICAL DATA .............................................. 13
14.0 MACHINE ILLUSTRATION .................................................................. 14
15.0 MAINTENANCE ................................................................................... 15
16.0 PERIODS OF INACTIVITY................................................................... 25
17.0 SCRAPPING THE UNIT....................................................................... 25
18.0 LIST OF SPARE PARTS FOR ROUTINE MAINTENANCE................. 26
19.0 TROUBLE-SHOOTING AND EMERGENCY REMEDIES.................... 26
20.0 PARTS LISTS....................................................................................... 27
2www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
3
Code 1641003212 - Edition 10/2020
INTRODUCTION
In the event of breakdown or malfunction of the machine, switch it off and do not tamper with it.
If repairs are needed, contact to a technical assistance centre approved by the manufacturer and insist
on the use of original spare parts.
Failure to comply with the above may endanger the safety of the machine.
Keep this manual with care for future consultation; the use and maintenance manual is an
integral part of the machine.
Read this manual carefully before carrying out any operations on the compressor unit.
The installation of the compressor unit and all operations involving it must be performed in
conformity with the regulations in force concerning electric plants and personal safety.
CHARACTERISTICS AND SAFETY PRECAUTIONS
MACHINE WITH AUTOMATIC START
BEFORE REMOVING THE PROTECTION DEVICES FOR ANY MAINTENANCE
WORK ON THE MACHINE, DISCONNECT THE ELECTRICAL POWER
SUPPLY.MAKE SURE THAT THERE IS NO INTERNAL RESIDUAL PRESSURE.ALL
WORK ON THE ELECTRIC PLANT MUST BE CARRIED OUT BY
PROFESSIONALLY SKILLED PERSONNEL.
The manufacturer does not accept responsibility for damage caused as a result of negligence of
failure to abide by the instructions given above.
THIS MACHINE IS NOT SUITABLE FOR EXTERNAL INSTALLATION
FIG. 1
3
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
4
Code 1641003212 - Edition 10/2020
1.0 GENERAL CHARACTERISTICS
The compressor units use single-stage screw rotary air compressors with oil injection.
The central unit comprises:
compressor; oil separator; oil cooler; fan; electric start; safety and regulation devices; instrument panel.
The system is self-bearing and does not require bolts or other devices to anchor it to the floor.
The unit is completely assembled in the factory; the necessary connections for setting it up are:
connection to the power mains (see installation chapter)
connection to the compressed air network (see installation chapter)
The compressor-motor unit is fitted on the machine chassis by means of flexible supports: this allows
the compressor unit to be laid directly on the floor without any need of further vibration-damping
systems.
2.0 INTENDED USE
The compressor has been built to supply compressed air for industrial use.
The machine cannot be used in premises where there is a risk of fire or explosion or where work is
carried out which releases substances into the environment which are dangerous with regard to safety
(for example: solvents, inflammable vapours, alcohol, etc.).
In particular the appliance cannot be used to produce air to be breathed by humans or used on direct
contact with foodstuffs. These uses are allowed if the compressed air produced is filtered by means of
a suitable filtering system as per the applicable standards.
(Consult the manufacturer for these special uses.)
This appliance must be used only for the purpose for which it was specifically designed.
All other uses are to be considered incorrect and therefore unreasonable.
The Manufacturer cannot be held responsible for any damage resulting from improper, incorrect or
unreasonable use.
3.0 OPERATION
The electric motor and the compressor unit are coupled by means of a belt transmission.
The compressor unit takes in the outside air through the unloader. The air taken in is filtered by panel
pre-filter fitted on the panel of the external covering and by the suction filter fitted upstream from the
unloader. Inside the screw compressor, the air and the lubricating oil are compressed and sent to the
air-oil preseparator where the oil is firstly separated from the compressed air; the air-oil mixture is then
filtered again by the air-oil separator to reduce the amount of suspended oil particles to a minimum. At
this point the oil flow is sent to oil cooler where it is cooled, using a flow of air taken from the
environment by a special fan inside the machine.The cooled oil returns to the circuit while the
compressed air is sent to the using network.Refer to figure 2.
4www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
5
Code 1641003212 - Edition 10/2020
1 SUCTION FILTER 10 AFTER COOLER
2 UNLOADER 11 OIL COOLER
3 SCREW COMPRESSOR 12 BALL VALVE
4 NON-RETURN VALVE 13 AIR OUTLET
5 AIR-OIL SEPARATOR
6 OIL
7 AIR-OIL PRESEPARATOR
8 MINIMUM PRESSURE VALVE
9 OIL FILTER
4.0 GENERAL SAFETY STANDARDS
The appliance may be used only by specially trained and authorized personnel.
Any tampering with the machine or alterations are not approved beforehand by the Manufacturer relieve
the latter of responsibility for any damage resulting from the above actions.
ATTENTION: UPSTREAM OF THE MACHINE INSTALLAN ISOLATOR KNIFE-SWITCH WITH AN
AUTOMATIC CUTOUT AGAINST CURRENT SURGES AND EQUIPPED WITH A DIFFERENTIAL
DEVICE FOR CALIBRATIONS SEE WIRING DIAGRAM ON LAST PAGE.
ALL WORK ON THE ELECTRIC PLANT, HOWERE SLIGHT, MUST BE CARRIED OUT BY
PROFRSSIONALLY SKILLED PERSONEL.

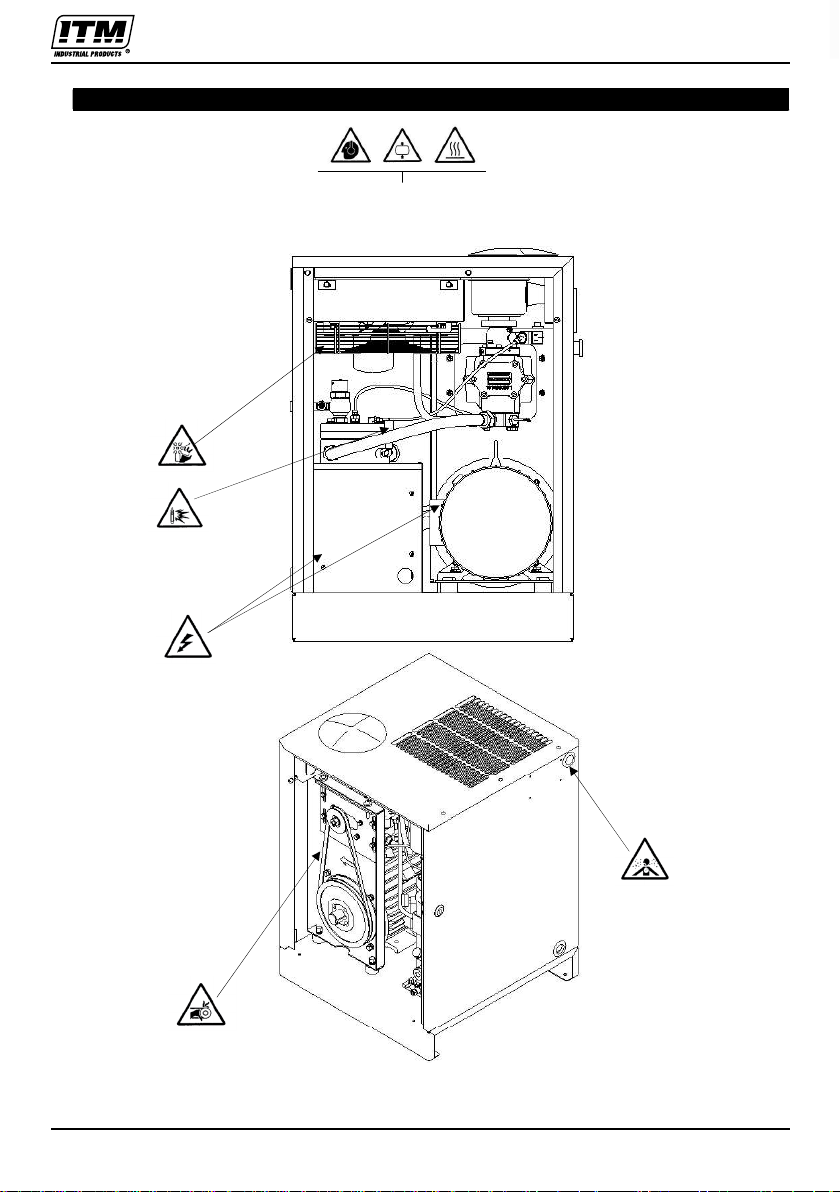

5.0 DESCRIPTION OF DANGER SIGNALS
1) FLUID EJECTION 5) HIGH PRESSURE
2) DANGEROUS ELECTRIC
VOLTAGE 6) HOT PARTS
3) AIR NOT FIT FOR
BREATHING
7) MOVING PARTS
4) NOISE 8) FAN ROTATING
FIG. 3
9) MACHINE WITH
AUTOMATIC START
FIG. 2
5
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
6
Code 1641003212 - Edition 10/2020
6.0 DANGERS ZONES
FIG. 4
Risks present on the whole machine
6www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
7
Code 1641003212 - Edition 10/2020

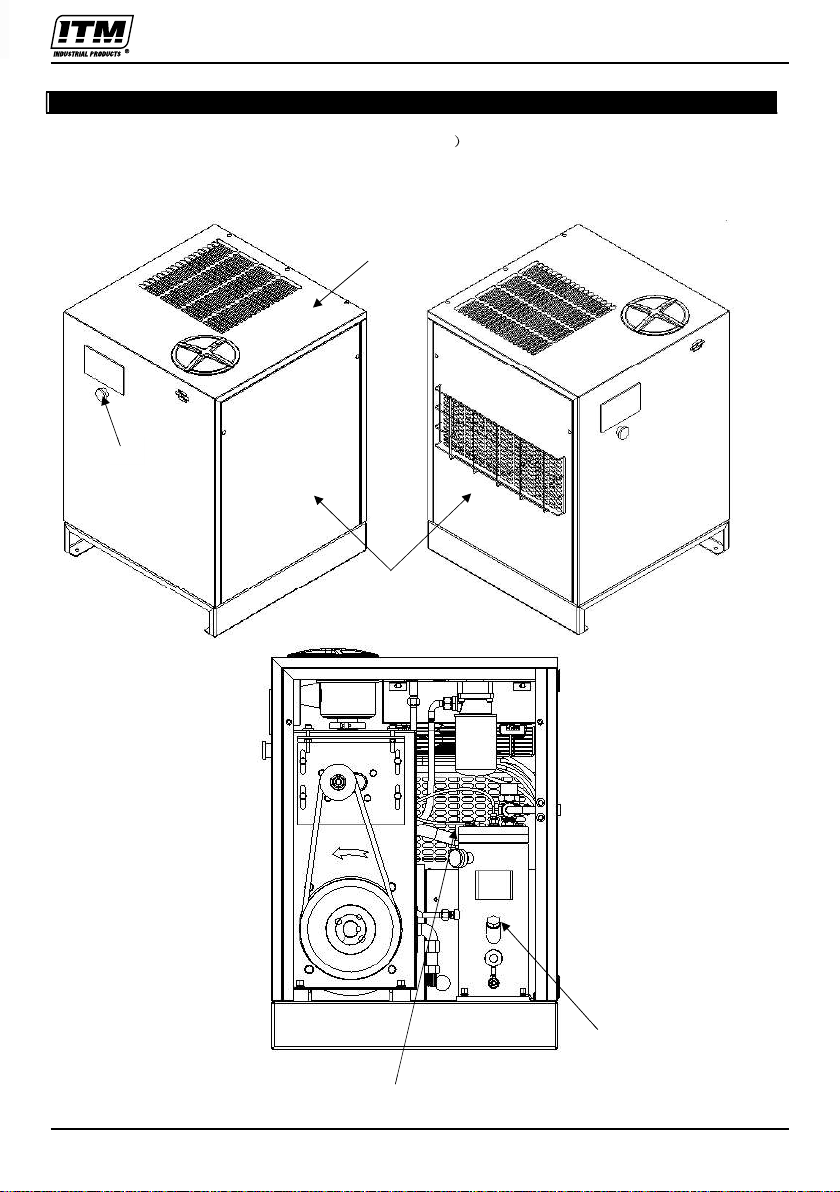

7.0 SAFETY DEVICES
1) Safety screws 4Oil filling cap (with safety breather)
2) Emergency stop 5) Safety valve
3) Side guard and electric board door can be opened using a
internal hexagonal wrench.
FIG. 5
1
3
2
4
5
7
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
8
Code 1641003212 - Edition 10/2020
8.0 POSITION OF SIGNS & DATA PLATES
8.1 POSITION OF THE DANGER PLATES
The plates fitted on the compressor unit are part of the machine; they have been applied for safety
purposes and must not be removed or spoiled for any reason.
1 Machine with automatic start
2 Air not filt for breathing Code
3 Dangers plate
8.2 POSITION OF THE DATA PLATES
1) Maintenance program
2) Identification plate
3) Rotation Direction
FIG. 6
FIG. 7
8www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
9
Code 1641003212 - Edition 10/2020
9.0 COMPRESSOR ROOM
9.1 FLOOR
The floor must be even and of industrial type for the total weight of the machine(Please refer to
technical data).
Remember the total weight of the machine when positioning it. (See chapter 13.0)
9.2 VENTILATION
When the machine is operating, the room temperature must not be higher than 40 °C or lower than 1 °C.
The volume of the room must be about 30 m3
The room must be provided with 2 openings for ventilation with a surface area of about 0,3 m2each.
The first opening must be in a high position to evacuate the hot air, the second opening must be low to
allow the intake of external air for ventilation.
If the environment is dusty it is advisable to fit a filtering panel for this opening.
The hot air ejected by the compressor may be led outside with a duct.
This duct must have a minimum section of 0,5 m2and it must not be longer than 2 m.
For longer ducts an extra exhaust fan must be fitted.
9.3 EXAMPLES OF VENTILATION OF THE COMPRESSOR ROOM
FIG. 8
FAN AIR OUTPUT
HOT AIR EJECTION
HOT AIR PIPE
ATTENTION: REMOVABLE PIPE TO
ALLOW CLEANING OF THE
RADIATOR
9
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
10
Code 1641003212 - Edition 10/2020
10.0 TRANSPORT AND HANDLING
IT IS FORBIDDEN TO USE METAL CABLES FOR LIFTING
ATTENTION: DO NOT STAND OR WALK PASS UNDER OVERHEAD WEIGHTS
The machine must be transported as shown in the following figures.
11.0 UNPACKING
CUTTING THE METAL STRAPPING IS A DANGEROUS OPERATION, SEE FIG.10 DO NOT
ABANDON THE CUT PIECES IN THE ENVIRONMENT.
After removing the packing, ensure that the machine has no visibly damaged parts. If you are in doubt,
do not use the machine but contact the manufacturer technical assistance service or your dealer. The
packing material (plastic bags, polystyrene foam, nails, screws, wood, metal strapping, etc.) must not
be left within the reach of children or abandoned in the environment, as they are a potential source of
danger and pollution. Dispose of these materials in the approved collection centres.
FORK LIFT TRUCK
FIG. 9
CARDBOARD PROTECTION
AVOID DAMAGING THE
BODYWORK
FIG. 10
10 www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
11
Code 1641003212 - Edition 10/2020
12.0 INSTALLATION
12.1 POSITIONING
After unpacking the equipment and preparing the compressor room, put the machine into position,
checking the following items:
ensure that there is sufficient space around the machine to allow maintenance (see Fig.11).
ENSURE THAT THE OPERATOR CAN SEE THE WHOLE MACHINE FROM THE CONTROL
PANEL AND CHECK THE PRESENCE OF ANY UNAUTHORIZED PERSONS IN THE
VICINITY OF THE MACHINE.
12.2 ELECTRICAL CONNECTION
Check that the supply voltage is the same as the value indicated on the machine dataplate.
Check the condition of the line leads and ensure that there is an efficient earth lead.
Ensure that there is an automatic cut-out device upstream for the machine against overcurrents,with a
differential device (see Ref. 1 wiring diagram).
Connect the machine power cables with the greatest care, according to the local standards in force.
These cables must be as indicated on the machine wiring diagram.
Connect the cables to the charging clamps on the electric panel and make sure they are properly
tightened. After the first 50 working hours, check that the screws on the electric terminals are tight.
ONLY PROFESSIONALLY SKILLED PERSONNEL MAY HAVE ACCESS TO THE ELECTRIC
PANEL. SWITCH OFF THE POWER BEFORE OPENING THE DOOR OF THE ELECTRIC
PANEL.
COMPLIANCE WITH THE REGULATIONS IN FORCE CONCERNING ELECTRIC PLANTS IS
FUNDAMENTAL FOR OPERATOR SAFETY AND FOR THE PROTECTION OF THE
MACHINE.
12.3 CONNECTION TO THE COMPRESSED AIR NETWORK
Fit a manual isolation valve Ref. 2 Fig. 11 between the machine and the compressed air network so
that the compressor may be isolated during maintenance operations.
Condensate must be drained Ref. 3 Fig. 11 from the oil receiver (manually) in conformity with the local
regulations in force.
ALL DAMAGE DUE TO THE FAILURE TO COMPLY WITH THESE INDICATIONS CANNOT
BE ATTRIBUTED TO THE MANUFACTURER AND MAY CAUSE INVALIDITY OF THE
WARRANTY CONDITIONS.
FIG. 10
FIG. 11
Protect the power cable with a suitable
channel.
3
11
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
12
Code 1641003212 - Edition 10/2020
12.4 STARTING UP
BEFORE CARRYING OUT ANY OPERATION ON THE MACHINE, ENSURE THAT THE
ELECTRIC POWER SUPPLY HAS BEEN DISCONNECTED.
12.4.1 PREPARING FOR SETTING UP
After checking everything as indicated in Chap. 12, follow the instructions in Fig. 12.
12.4.2 PRELIMINARI CHECKS
- Check the oil level Ref.1 Fig.12 when supplied the machine is filled with oil;if the oil is not at the
correct level, top up with the same oil as the original type.
- If more than 3 months have passed between the inspection in the factory and the date of installation,
lubricate the screw before starting up. Refer to manufacturer or dealer for further instruction:
- If more than 6 months have passed between the inspection in the factory and the date of installation,
consult the manufacturer.
12.4.3 CHECK THE DIRECTION OF ROTATION
- Check that all fixed guards are in their correct position.
- Connect the control board to the power supply with the automatic circuit-breaker.
- . A.
- If YES there may be lack of phase or wrong sequence.
First check if the voltage is stable. If YES then change any two phases.
- If NO Compressor is safe to start (It will be good to check motor rotation direction if possible) Fig. B.
ALL WORK ON THE ELECTRIC PLANT, HOWEVER SLIGHT, MUST BE CARRIED OUT BY
PROFESSIONALLY SKILLED PERSONNEL.
FIG.A
FIG. B
FIG. 12
3
1
12 www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
13
Code 1641003212 - Edition 10/2020
IT IS ADVISABLE NOT TO DO ANYTHING ON THE MACHINE CONTROL PANEL.
IF ALL THE INSTRUCTIONS FOUND IN THIS MANUAL HAVE BEEN OBSERVED THE MACHINE
CAN BE STARTED.

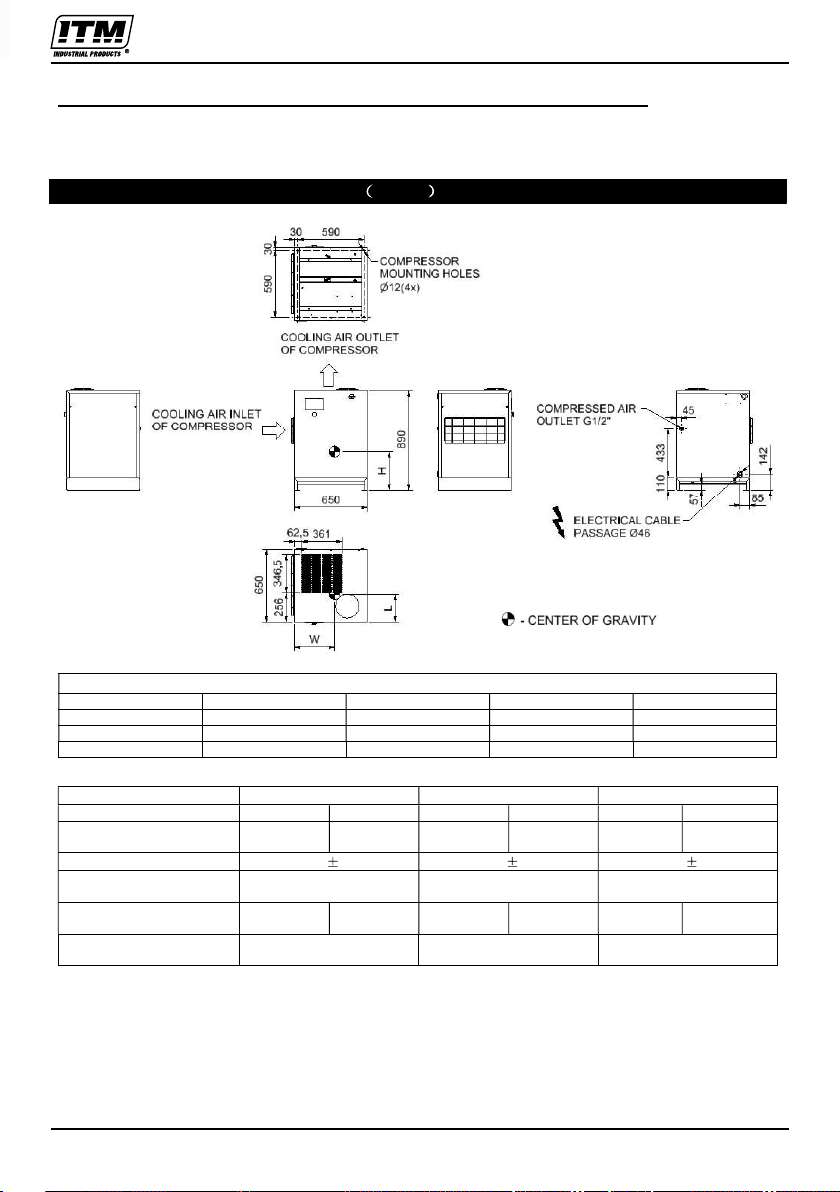

13.0 DIMENSIONS AND TECHNICAL DATA 4-7.5kw
COG
Name L(mm) W(mm) H(mm) Weight(kg)
DME4 308 231 319 130
DME 5.5 280 273 319 160
DME 7.5 277 275 319 167
Motor Power/kW
4 5.5 7.5
Max. pressure MPa 0.8 1.0 0.8 1.0 0.8 1.0
FAD
m3/min 0.51 0.46 0.8 0.65 1.05 0.85
Noiose product.dB(A) 66 2 66 2 66 2
Net weight
kg
130 160 167
Power input
kW 4.4 4.6 6.6 6.2 8.5 8.8
Oil load
L ~3.3 ~3.3 ~3.3
13
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
14
Code 1641003212 - Edition 10/2020

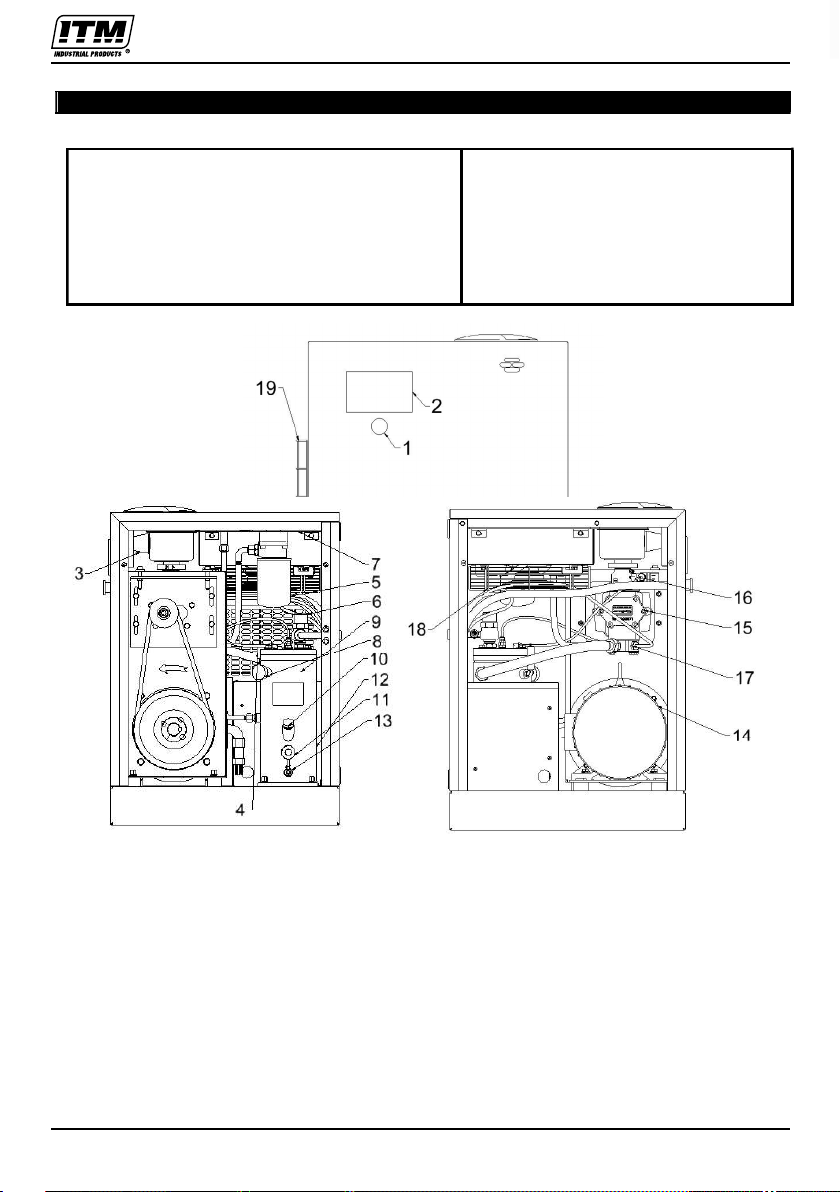

14.0 MACHINE ILLUSTRATION
14.1 GENERAL LAY-OUT
1 Emergency stop
2 Controller
3 Air suction filter
4 Safety valve(Change the relief valve set point is prohibited)
5 Oil filter
6 Minimum pressure valve
7 Cooler
8 Vessel Pressure gauge
9 Oil separator
10 Oil filling cap
11 Oil level sight glasses
12 Vessel
13 Oil outlet valve
14 Motor
15 Element
16 unloader valve
17 Thermostat valve
18 Cooling fan
19 Pre-filter
22 Converter
*IT IS FORBIDDEN TO TAMPER WITH THE SETTING VALUES OF THE SAFETY VALVE
FIG. 13
14 www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
15
Code 1641003212 - Edition 10/2020
14.2 COMMAND AND CONTROL PANEL
BEFORE CARRYING OUT THE OPERATION TEST, READ CAREFULLY AND ACQUIRE A
GOOD KNOWLEDGE OF THE COMMAND FUNCTIONS.
NOTICE
Please read instruction manual before usage
Installation of AM-100 can be performed only by professional technicians
Assembling position shall be considered carefully during mechanical installation in order
to ensure good heat dissipation and reduce electromagnetism interferences
Wiring shall be performed respectively according to regulations for heavy and weak
current to reduce electromagnetism interferences
Surge absorber must be communicated with inductive load such as AC contactor of
output control of relay
Output wiring shall be inspected carefully before switch on
Earthing terminal of this body part shall be earthed correctly (the third type of earthing) to
Features
LCD Chinese / English display
With control functions of starting, stopping and operation for motor.
With protection functions of preventing reverse rotation of air compressor.
Temperature measurement and control
Automatic adjusting of rate of load and controlling of pressure balance
Selections of remote and local control
14.2.1 Basic Operation
FIG. 14
15
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
16
Code 1641003212 - Edition 10/2020
FIG. 15
Start Button: Press this button to start the compressor.
Stop button Press this button to stop the compressor.
Set Button/ Loading / unloading Button: After modification, press this to confirm and save
modified data When the compressor is running ,press this button to load or unload under a
certain pressure.
Move up button/increase button: Data at current position is increased by pressing this button
when data are modified; Menu is moved upwards when menu is selected.
Move down button / Descending button: Data at current position is descended by pressing
this button when data are modified; menu is moved downwards when menu is selected.
Shift button /Enter button: This button services as shift button when data are modified and
services as enter button when menu is selected.
Back button / Reset button: This button services as back button when blowsing through menu
to come back to parent menu. Resetting is carried out by pressing this button for a little long
time when failure / shutdowns occur.
Power After controller power on, power LED light
Run Compressor operation run LED light.
Alarm Early warning, the fault light flashes; fault shutdown, fault lights lit, clear fault, reset off.
The display screen will be as follow when the units are powered on:
After power on, screen show this page
After 5 seconds, the main page will show up as:
Main page
Press shift button, the main page will show up as:
Main page
SCREW
COMPRESSOR
PRES: 0.60MPa
SYS STOP C01
TEMP: 80
SYS STOP C01
16 www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
17
Code 1641003212 - Edition 10/2020
to enter into Menu Selection Interface:
Level 1 menu screen
Level 1 menu screen
Press or to move the black cursor to RUN PARA. , press
enter button to pop up submenu:
parameters and run state parameters
as follows:
Fan current, Total run time, Total load time, This run time, This load time,Oil filter time, O-a
filter time, Air filter time, Lube time, Grease time, Belt time etc.
In primary menu,, press the move button to move the black slider to the "USER PARA" menu,
press the shift button to switch to the following menu:
In this menu, Press shift button Switch to the following interface requirements to enter a user
password
After showing this interface The first bit data of password started flashing press
or dto modify the flashing data equal to the first bit of password
Press the shift button, move the cursor to the next data bit,similarly modify the third and fourth
Finally, press the Set he system verify the password is correct,
switch to the following interface:
The upper right corner with "* "prompt said the
System has passed the password authentication
When in this menu(as shown above), press enter button , then the data of loading pressure
start to flash, users can press to modify the data.
When finished, press Set Button to confirm and save. the controller will keep to confirm.
14.2.2 Early-Warning and Prompts
OIL FILTER LIFE END
RUN PARA.
USER PARA.
MOTOR(A) A-0100
B-0100 C-0100
FACTORY PARA.
MOD PARAMETER
LOAD PRES:
00.65MPa
PASSWORD:0***
LOAD PRES: *
00.65MPa
17
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
18
Code 1641003212 - Edition 10/2020
O/A FILTER LIFE END terminates.
HIGH TEMPERATURE
14.2.3 Protection Functions of Controller
The air compressor controller provides all-round protection functions of short-circuit, locking, phase
failure, overload, imbalance for motor.
When the element outlet temperature is higher than the upper limit of set temperature,
the controller will stop the machine,The display will show HIGHT T
When three-phase supply phase sequence connected to the air compressor is not the same with that
set for the controller PHASE REVERSAL as a result, the controller cannot
start up the motor. Then just change any arbitrary two-phase power lines leading to check the rotation
of motor.
When the air discharge pressure is higher than the upper limit of set pressure, the controller will stop
HIGH P
When pressure sensor or temperature sensor is disfunctional, the controller will stop the machine. the
**SENSOR FAULT
14.2.4 Removal of Common Failures
Electronic
failure Failure Display Reason
Short circuit
Wrong setting of short circuit or rated
current
Blocked Too large load, bearing wear and other
mechanical failure
Overload Too large load, bearing wear and other
mechanical failure
Phase
failure
Power supply, contactor or phase failure
of motor
Unbalance Poor contact of contactor, inside open-
loop of motor
18 www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
19
Code 1641003212 - Edition 10/2020
When a fault occurs, the controller in the main interface displays the current fault content.
For example, when the pressure sensor failure, it displays the following interface:
Failure Reason Disposal method
Air Exhaust
Temperature too
high
Bad vent condition, Oil lacking etc. Check the vent condition and lubricant
amount etc.
Temperature
Sensor Failure Cable off or PT1OO damaged Checking the wiring and PT100
Over Pressure The pressure too high or the
pressure sensor failure
Check the pressure and the pressure
sensor
Pressure Sensor
Failure
Cable or Sensor damaged or
incorrect cable connection. Check the wiring and sensor
Lack Phase Power phase lacking or the
Contactor terminal damaged Check the power and contactors
Overloaded
Voltage too low, cooler blocked,
Bearing Wear off or other
mechanical failure or wrong set data
etc.
Check the set data, Voltage, motor
bearings, cooler and other mechanical
system.
Unbalance
Power unbalance, Contactor
damaged or the internal short-circuit
of the motor
Check the power, contactors and the
motor
Rotor Lock
Voltage too low, pipes blocked,
Bearing Wear off or other
mechanical failure or wrong set data
etc.
Check the set data, Voltage, bearings,
pipes and other mechanical system.
Short Circuit Wrong Wiring, Incorrect Data
setting etc.
Checking the wiring and set the data
correctly
Wrong Phase
Sequence
Reversed Phase sequence or
phase off Check the wiring
Overload or
Rotor locking
during starting
process
Host start time set to a value less
than the star - delta time delay
Reset the host starting time to be longer
than star-delta delay + Load delay time
Main Contactor
activate time to
time
The emergency button loose Check the wiring
Air Exhaust
Temperature too
high
Bad Ventilation, Low Oil etc. Check the vent condition and Oil level
etc.
Temperature
Sensor Failure Cable off or PT1OO damaged Checking the wiring and PT100
Over Pressure The pressure too high or the
pressure sensor failure
Check the pressure and the pressure
sensor
14.2.5 Maintenance Alarm
We have set an alarm to remind for ordinary maintenance.
When reaching the maintenance cycle, the corresponding maintenance alarms will appear on the
display. After the implementation of maintenance related to the content, the controller has to be reset
Process as follows:
STOP:
P SENSOR FAULT
19
www.itmtools.com.au

SCREW AIR COMPRESSOR OPERATOR’S MANUAL TM356-10270
English
20
Code 1641003212 - Edition 10/2020
Starting from the main screen (see main menu):
1. Press the down button until the "user parameter" menu.
2. Press the right button to activate the submenus of the user menu
3. Press the down button to"maintenance timer reset" for
Oil Filter, Oil/Air Filter, Air Filter, Lube, Grease, Belt
4. Select Parameter & re-set to 0000.
5. Confirm the Reset.
Note: Check (15.2) MAINTENANCE SCHEDULE for componets to be changed at respective service
interval.
15.0 MAINTENANCE
BEFORE CARRYING OUT ANY MAINTENANCE JOBS IT IS OBLIGATORY TO STOP THE
MACHINE AND DISCONNECT IT FROM THE POWER MAINS.
The maintenance jobs described in this chapter may be carried out by the user.
The more complex maintenance jobs require professionally skilled personnel to carry out.
15.1 GENERAL INFORMATION
Routine maintenance must be carried out according to the maintenance schedule displayed on the
machine.
15.2 DRAINING CONDENSATE FROM THE OIL TANK
If the compressor work cycle contemplates long pauses during which the machine cools down, a certain
amount of condensate may collect in the oil tank. This happens, for example, when stopping overnight
or at weekends.
The condensate must be drained off every 50 hours or every week. This operation may be performed
only when the machine is cold, that is when it has been switched off for at least 8 hours.
BEFORE DRAINING THE CONDENSATE IT IS OBLIGATORY TO STOP THE MACHINE
AND DISCONNECT IT FROM THE POWER MAINS.
Proceed as follows:
- 6.
- Wait for the machine to cool down.
- Remove the panels with the key provided.
- SLOWLY turn on the tap Ref. 3 Fig. 16 and let the condensate flow out.
- When the first traces of oil appear, turn off the tap.
CONDENSATE MUST BE DISPOSED OF IN CONFORMITY WITH THE LOCAL
REGULATIONS IN FORCE.
- Check the oil level on the indicator Ref. 4 Fig. 16.
- If the oil level is low, top up as described in 15.4.
FIG. 16
1
2
5
4
3
20 www.itmtools.com.au
