ITT Industries Goulds Pumps ANSI Series Manual

Installation, Operation and Maintenance Instructions
ANSI FAMILY

2ANSIFAM IOM - 12/03
Pump Safety Tips
Safety Apparel:
•Insulated work gloves when handling hot
bearings or using bearing heater
•Heavy work gloves when handling parts with
sharp edges, especially impellers
•Safety glasses (with side shields) for eye
protection, especially in machine shop areas
•Steel-toed shoes for foot protection when
handling parts, heavy tools, etc.
•Other personal protective equipment to protect
against hazardous/toxic fluids
Coupling Guards:
•Never operate a pump without a coupling guard
properly installed
Flanged Connections:
•Never force piping to make a connection with a
pump
•Use only fasteners of the proper size and
material
•Ensure there are no missing fasteners
•Beware of corroded or loose fasteners
Operation:
•Do not operate below minimum rated flow, or
with suction/discharge valves closed
•Do not open vent or drain valves, or remove
plugs while system is pressurized
Maintenance Safety:
•Always lock out power
•Ensure pump is isolated from system and
pressure is relieved before disassembling pump,
removing plugs, or disconnecting piping
•Use proper lifting and supporting equipment to
prevent serious injury
•Observe proper decontamination procedures
•Know and follow company safety regulations
Observe all cautions and warnings highlighted in
pump Installation, Operation and Maintenance
Instructions.

FOREWORD
This manual provides instructions for the Installation, Operation, and Maintenance of the
Goulds Models 3196, CV 3196, HT 3196, LF 3196, NM 3196, 3198, and 3796. This manual
covers the standard product plus common options that are available. For special options,
supplemental instructions are supplied. This manual must be read and understood before
installation and start-up.
This instruction manual covers several different pump models that all have a common power
end. Most assembly, disassembly, and inspection procedures are the same for all the pumps.
However, where there are differences, they are called out separately within the manual. The
design, materials, and workmanship incorporated in the construction of Goulds pumps makes
them capable of giving long, trouble-free service. The life and satisfactory service of any
mechanical unit, however, is enhanced and extended by correct application, proper installation,
periodic inspection, condition monitoring and careful maintenance. This instruction manual was
prepared to assist operators in understanding the construction and the correct methods of
installing, operating, and maintaining these pumps.
Goulds shall not be liable for physical injury, damage, or delays caused by a failure to
observe the instructions for installation, operation, and maintenance contained in this
manual.
When intalled in potentially explosive atmospheres, the instructions that follow the Ex symbol
must be followed. Personal injury and/or equipment damage may occur if these instructions are
not followed. If there is any question regarding these requirements or if the equipment is to be
modified, please contact a Goulds representative before proceeding.
Warranty is valid only when genuine Goulds parts are used.
Use of the equipment on a service other than stated in the order will nullify the warranty,
unless written approval is obtained in advance from Goulds Pumps.
Supervision by an authorized Goulds representative is recommended to assure proper installation.
Additional manuals can be obtained by contacting your local Goulds representative or by
calling 1-800-446-8537.
THIS MANUAL EXPLAINS
nProper Installation
nStart-up Procedures
nOperation Procedures
nRoutine Maintenance
nPump Overhaul
nTrouble Shooting
nOrdering Spare or Repair Parts
ANSIFAM IOM - 12/03 3

4ANSIFAM IOM - 12/03

TABLE OF CONTENTS
PAGE SECTION
7 SAFETY
11 GENERAL INFORMATION
19 INSTALLATION
35 OPERATION
45 PREVENTIVE MAINTENANCE
53 DISASSEMBLY & REASSEMBLY
109 SPARE AND REPAIR PARTS
117 APPENDIX
117 I Frame Lubrication Conversion
121 II Installation Instructions for Goulds ANSI B15.1 Coupling Guards
125 III Set Up and Alignment
129 IV Labyrinth Seal Installation Instructions
131 V C-Face Adapter Installation Instructions
133 VI 3198 Teflon®Sleeve Field Replacement Procedure
135 VII-1 Double Row Angular Contact Bearing Installation Instructions
137 VII-2 Duplex Angular Contact Bearing Installation Instructions
139 VIII Inpro Labyrinth Oil Seal Installation Instructions
ANSIFAM IOM - 12/03 5
1
2
3
4
5
6
7
8

6ANSIFAM IOM - 12/03

SAFETY
DEFINITIONS .................................. 7
GENERAL PRECAUTIONS........................... 7
DEFINITIONS
These pumps have been designed for safe and
reliable operation when properly used and maintained
in accordance with instructions contained in this
manual. A pump is a pressure containing device with
rotating parts that can be hazardous. Operators and
maintenance personnel must realize this and follow
safety measures. Goulds Pumps shall not be liable
for physical injury, damage or delays caused by a
failure to observe the instructions in this manual.
Throughout this manual the words WARNING,
CAUTION,ELECTRICAL, ATEX, and NOTE are
used to indicate procedures or situations which
require special operator attention:
s
!WARNING
Operating procedure, practice, etc. which, if not
correctly followed, could result in personal
injury or loss of life.
l
!CAUTION
Operating procedure, practice, etc. which, if not
followed, could result in damage or destruction
of equipment.
If equipment is to be installed in a
potentially explosive atmosphere and these
procedures are not followed, personal
injury or equipment damage
from an explosion may result.
Particular care must be taken when
electrical power source to the equipment is
energized.
NOTE: Operating procedure, condition, etc.
which is essential to observe.
EXAMPLES
s
!WARNING
Pump shall never be operated without coupling
guard installed correctly.
l
!CAUTION
Throttling flow from the suction side may cause
cavitation and pump damage.
Improper impeller adjustment could cause
contact between the rotating and
stationary parts, resulting in a spark and
heat generation.
Lock out driver power to prevent electric
shock, accidental start-up and physical
injury.
NOTE: Proper alignment is essential for long
pump life.
ANSIFAM IOM - 12/03 7
1

GENERAL PRECAUTIONS
s
!WARNING
Personal injuries will result if procedures
outlined in this manual are not followed.
s
!NEVER apply heat to remove impeller. It may
explode due to trapped liquid.
s
!NEVER use heat to disassemble pump due to
risk of explosion from trapped liquid.
s
!NEVER operate pump without coupling guard
correctly installed.
l
!NEVER operate pump beyond the rated
conditions to which the pump was sold.
l
!NEVER start pump without proper prime (all
models), or proper liquid level in self-priming
pumps (Model 3796).
l
!NEVER run pump below recommended
minimum flow or when dry.
s
!ALWAYS lock out power to the driver before
performing pump maintenance.
s
!NEVER operate pump without safety
devices installed.
s
!NEVER operate pump with discharge valve
closed.
l
!NEVER operate pump with suction valve
closed.
DO NOT change conditions of service
without approval of an authorized Goulds
representative.
EXPLOSION PREVENTION
In order to reduce the possibility of accidental explosions in atmospheres containing explosive
gasses and/or dust, the instructions under the ATEX symbol must be closely followed. ATEX
certification is a specification enforced in Europe for non- electrical and electrical equipment
installed in Europe. The usefulness of the ATEX requirements are not limited to Europe, and
are useful guidelines for equipment installed in any potentially explosive environment.
SPECIAL ATEX CONSIDERATIONS
All installation and operation instructions in this manual
must be strictly adhered to. In addition, care must be
taken to ensure that the equipment is properly
maintained. This includes but is not limited to:
1. Monitoring the pump frame and liquid end
temperature.
2. Maintaining proper bearing lubrication.
3. Ensuring that the pump is operated in the
intended hydraulic range.
8ANSIFAM IOM - 12/03

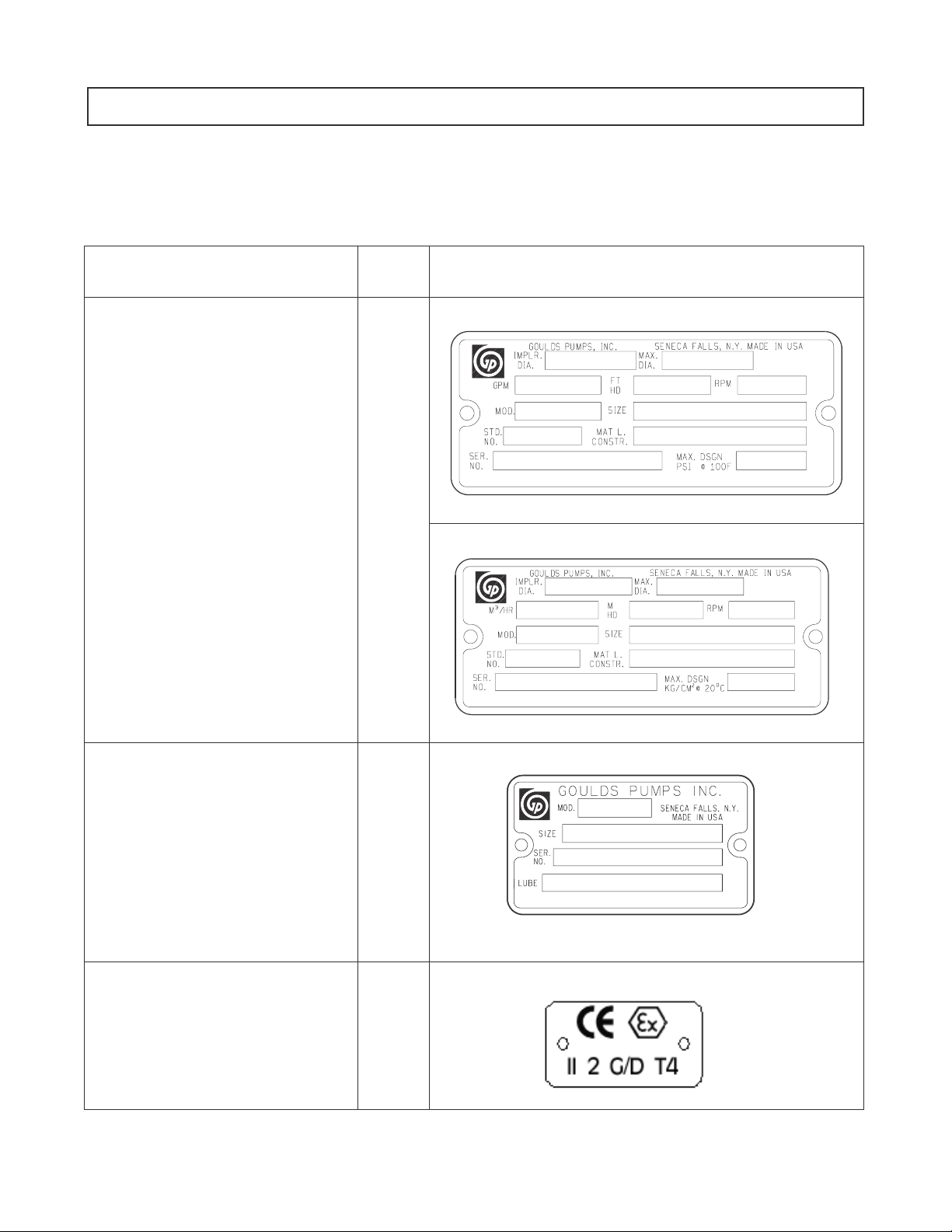

ATEX IDENTIFICATION
For a pumping unit (pump, seal, coupling, motor and
pump accessories) to be certified for use in an ATEX
classified environment, the proper ATEX identification
must be present.
The ATEX tag would be secured to the pump or the
baseplate on which it is mounted. A typical tag would
look like this:
The CE and the Ex designate the ATEX compliance.
The code directly below these symbols reads as
follows:
II = Group 2
2 = Category 2
G/D = Gas and Dust present
T4 = Temperature class, can be T1 to T6
(see Table 1)
Table 1
Code
Max permissible
surface temperature
oF (oC)
Max permissible
liquid temperature
oF (oC)
T1 842 (450) 700 (372)
T2 572 (300) 530 (277)
T3 392 (200) 350 (177)
T4 275 (135) 235 (113)
T5 212 (100) Option not available
T6 185 (85) Option not available
The code classification marked on the equipment
should be in accordance with the specified area
where the equipment will be installed. If it is not,
please contact your ITT/Goulds representative before
proceeding.
INTENDED USE
The ATEX conformance is only applicable when the
pump unit is operated within its intended use. All
instructions within this manual must be followed at all
times. Operating, installing or maintaining the pump
unit in any way that is not covered in this manual can
cause serious personal injury or damage to the
equipment. This includes any modification to the
equipment or use of parts not provided by ITT/Goulds.
If there is any question regarding the intended use of
the equipment, please contact an ITT/Goulds
representative before proceeding.
CONDITION MONITORING
For additional safety precautions, and
where noted in this manual, condition
monitoring devices should be used. This
includes, but is not limited to:
♦Pressure gauges
♦Flow meters
♦Level indicators
♦Motor load readings
♦Temperature detectors
♦Bearing monitors
♦Leak detectors
♦PumpSmart control system
For assistance in selecting the proper instrumentation
and its use, please contact your ITT/Goulds
representative.
ANSIFAM IOM - 12/03 9
1

10 ANSIFAM IOM - 12/03

GENERAL INFORMATION
PUMP DESCRIPTION ............................. 11
PARTS COMMONALITY ........................... 13
NAMEPLATE INFORMATION......................... 16
RECEIVING THE PUMP ............................ 17
Storage Requirements ........................... 17

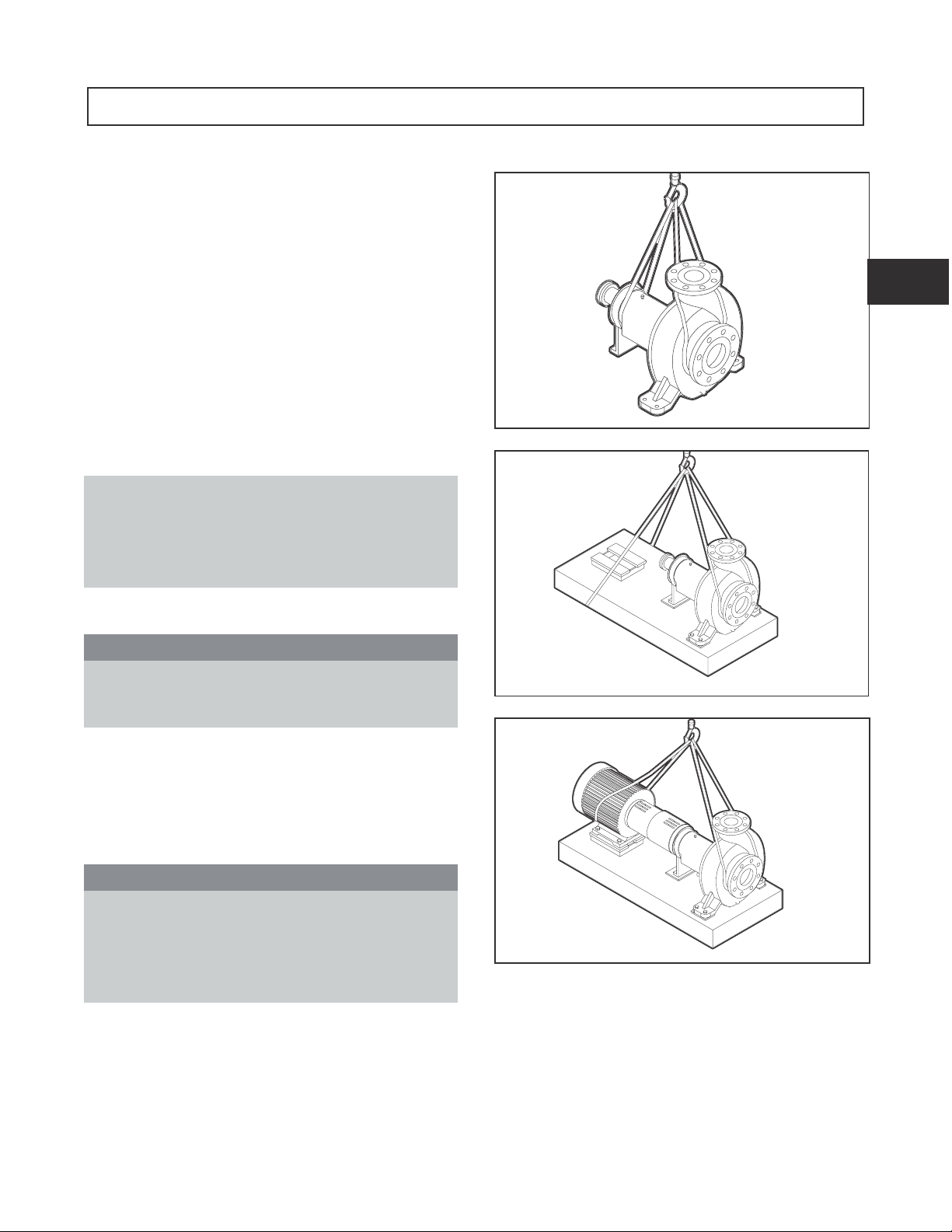

Handling .................................. 17

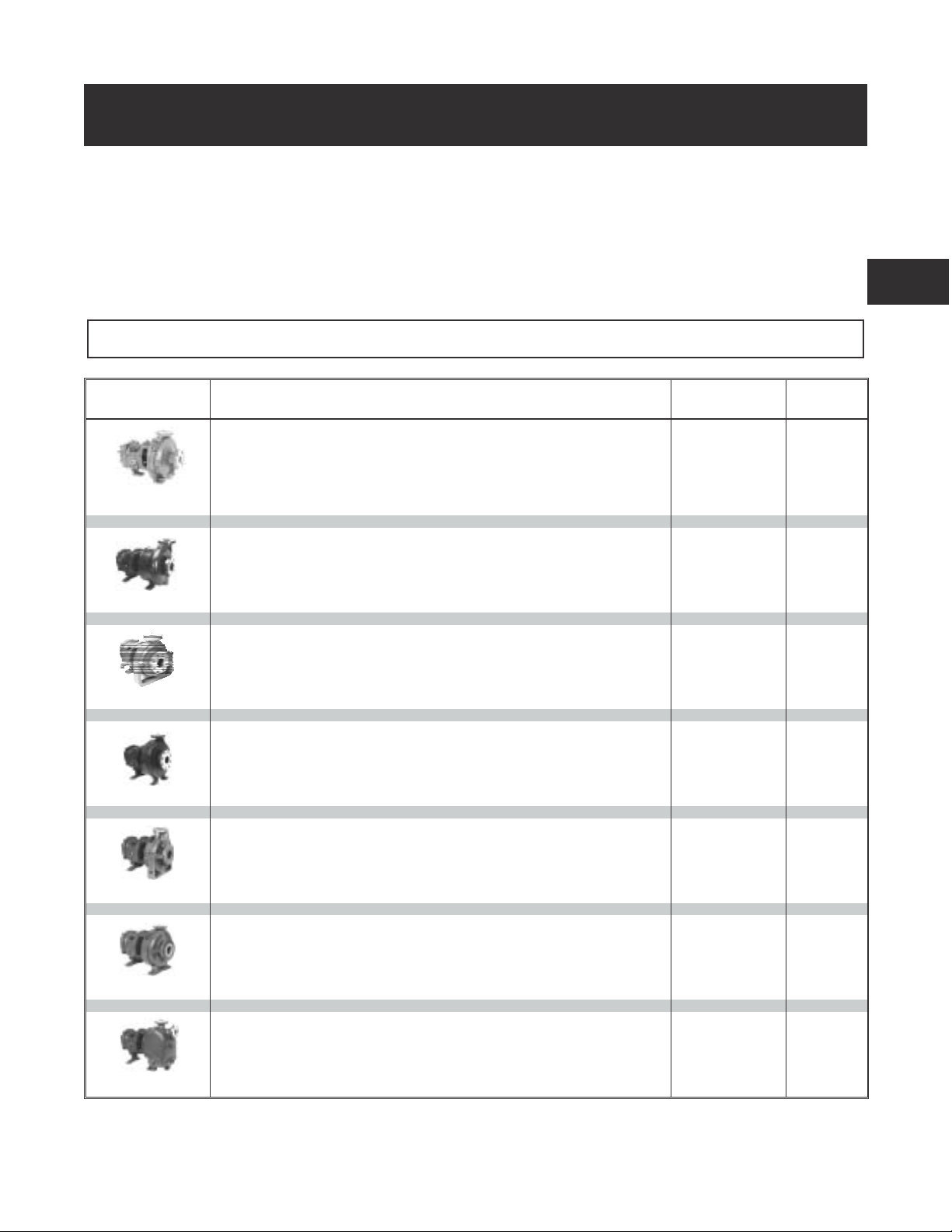

PUMP DESCRIPTION
ANSIFAM IOM - 12/03 11
2
Model Pump Description Size Groups
No. of
Sizes
3196
The model is based on 5 power ends and 29 hydraulic pump sizes.
The 3196 is a horizontal overhung, open impeller, centrifugal pump that meets the
requirements of ANSI B73.1.
STX
MTX
LTX
XLT-X
X-17
5
15
15
5
4
CV 3196
The model is based on four power ends and seven hydraulic pump sizes.
The CV 3196 is a horizontal overhung, recessed impeller, centrifugal pump. It is
specifically designed to handle bulky or fiberous solids, air or gas entrained liquids, or
shear sensitive liquids.
STX
MTX
LTX
XLT-X
1
4
5
1
HT 3196
The model HT 3196 is based on 4 power ends and 28 hydraulic pump sizes.
The HT 3196 is a horizontal, centerline mounted, overhung, open impeller, centrifugal
pump that meets the requirements of ANSI B73.1
STX
MTX
LTX
XLTX
6
16
17
5
LF 3196
The model is based on 3 power ends and 4 hydraulic pump sizes.
The LF 3196 is a horizontal overhung, open impeller, centrifugal pump that meets the
requirements of ANSI B73.1. It is designed specifically for low flow high head
applications.
STX
MTX
LTX
2
2
2
NM 3196
The model is based on 2 power ends and 13 hydraulic pump sizes.
The NM 3196 is a horizontal overhung, open impeller, centrifugal pump that meets the
requirements of ANSI B73.1. It is made of a fiber reinforced vinylester to handle severe
corrosives.
STX
MTX
5
8
3198
The model is based on 2 power ends and 4 hydraulic pump sizes.
The 3198 is a horizontal overhung, open impeller, centrifugal pump that meets the
requirments of ANSI B73.1. It is made of a Teflon®lined ductile iron to handle severe
corrosives.
STX
MTX
1
3
3796
The model is based on 3 power ends and 8 hydraulic pump sizes.
The 3796 is a horizontal overhung, self priming, open impeller, centrifugal pump.
STX
MTX
LTX
2
6
6

This Page Intentionally Left Blank
12 ANSIFAM IOM - 12/03

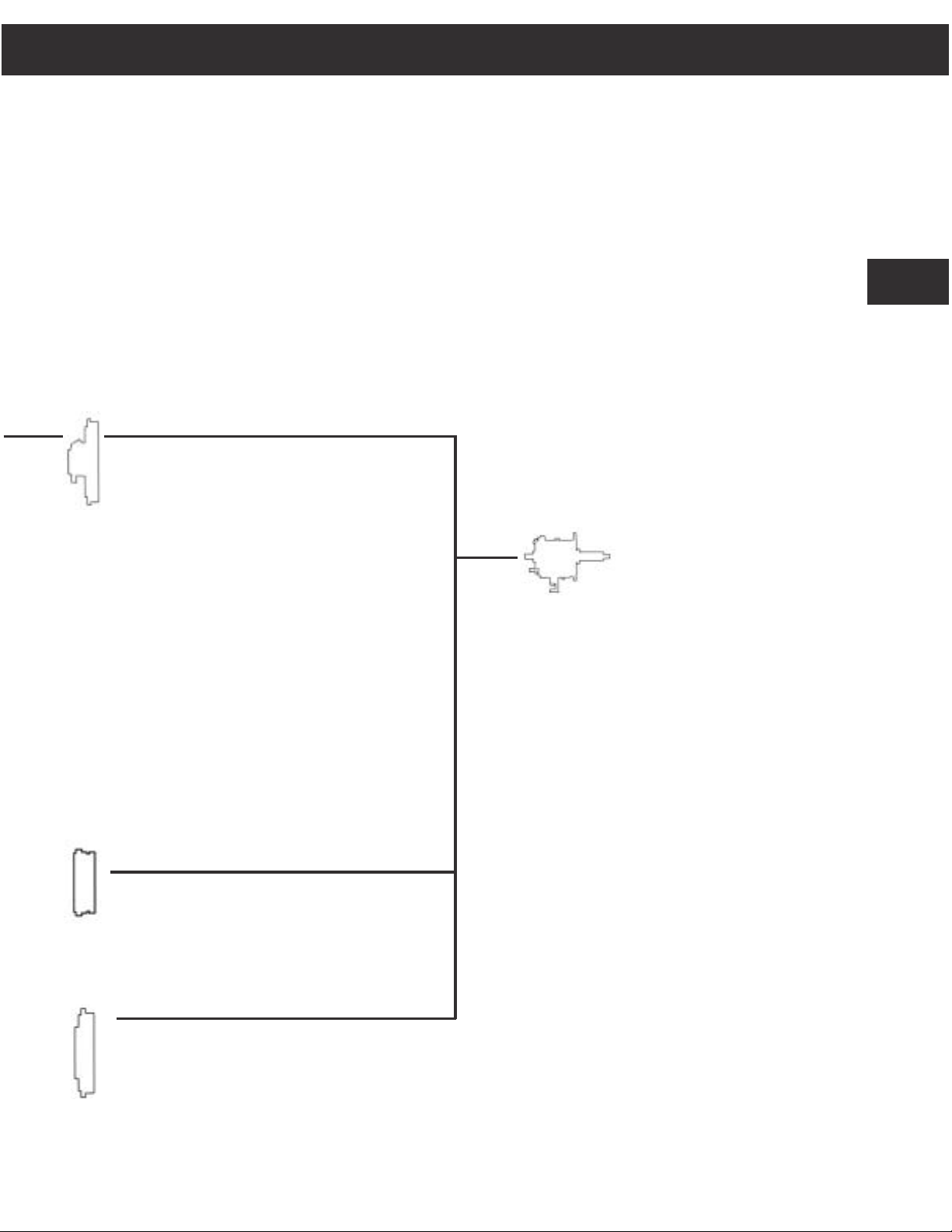

ANSI Family Parts Commonality
ANSIFAM IOM - 12/03 13
2
All of Goulds Pumps horizontal ANSI pumps are based on the same power end. All
of the metallic units share the same stuffing box covers and seal chambers. The
non-metallic units all have unique casings, impellers, and seal chambers. The
chart on the following pages demonstrates the parts commonality and the
relationship between the model lines.

14 ANSIFAM IOM - 12/03
Model Casing Impeller
The casing is top centerline discharge and self-venting.
The gasket is fully confined. An integral foot support is
used for maximum resistance to misalignment and
distortion from piping loads. ANSI flat faced serrated
flanges are standard. ANSI class 150 raised face
serrated, ANSI class 300 flat face serrated, and ANSI
class 300 raised face serrated are available.
The impeller is fully open and threaded to
the shaft. The threads are sealed from
the pumpage by a Teflon®O-ring for the
3196 and 3796. The HT 3196 uses a
Graphite O-ring.
3196
The casing is top centerline discharge and self-venting.
It has an integrally cast priming chamber that allows the
pump to evacuate air to prime itself. The gasket is fully
confined. An integral foot support is used for maximum
resistance to misalignment and distortion from piping
loads. ANSI class 150 raised face serrated flanges are
available as an option. The casing comes with a
provision to accept an immersion heater to keep the
liquid in the priming chamber from freezing in outdoor
applications.
3796
The casing is top centerline discharge, self-venting,
and centerline mounted. The casing support is used
for maximum resistance to misalignment and distortion
from thermal piping loads. The centerline mounted
casing maintains vertical alignment at elevated
temperatures. ANSI class 300 raised face serrated
flanges are standard.
HT 3196
The impeller is fully open and recessed
from the casing. It has curved vanes and
is threaded to the shaft. The threads are
sealed from the pumpage by a Teflon®
O-ring.
CV 3196 The casing is tangential discharge and available with
optional connections for venting, flushing, and solids
cleanout. The gasket is fully confined. An integral foot
support is used for maximum resistance to misalign-
ment and distortion from piping loads. ANSI class 150
flat face serrated flanges are standard on all sizes.
The casing is top centerline discharge and self-venting.
The gasket is fully confined An integral foot support is
used for maximum resistance to misalignment and
distortion from piping loads. ANSI class 150 rasied
face serrated flanges are stanard on 4, 8, and 10”
sizes. ANSI class 300 raised face serrated flange are
standard on the 13” size and optional on 4, 8, and 10”
sizes.
The impeller is fully open with radial
vanes and balance holes. The impeller
is threaded to the shaft and sealed from
the pumpage by a Teflon®O-ring.
LF 3196
The casing is top centerline discharge and self-venting.
It is constructed from a fiber reinforced vinylester that is
ribbed for strength. It is sealed using a Viton®O-ring
as standard. An integral foot support is used for
maximum resistance to misalignment and distortion
from piping loads. ANSI class 150 flat face flanges are
standard.
The casing is top centerline discharge and self-venting.
The ductile iron casing is lined with PFA Teflon®for
corrosion resistance and is offered with ANSI class 150
raised face flanges. The casing gasket is a Teflon®
envelope with a compressible filler that provides a
positive seal with low bolt torque.
The impeller is fully open and threaded
to the shaft. It is a fiber reinforced
vinylester over a Hastelloy C insert that
provides support and rigidity to the
impeller while securing it to the shaft.
The threads are sealed from the
pumpage by a Teflon®O-ring.
The impeller is fully open and threaded to
the shaft. It is constructed of a PFA Teflon®
covered steel insert. The insert provides
support and rigidity to the impeller while
securing it to the shaft. The threads are
sealed from the pumpage by a Teflon®
O-ring.
3198
NM 3196

ANSIFAM IOM - 12/03 15
2
Cover / Chamber Power Ends
The 3196, CV 3196, HT 3196, LF 3196, and 3796
are available with a stuffing box cover designed
for packing and BigBore™ or TaperBore™ PLUS
seal chambers for improved performance of
mechanical sales.
An optional dynamic seal is available which
uses a repeller to pump liquid out of the
stuffing box while the pump operates. A
static seal prevents leakage when the pump
is shutdown.
The NM 3196 is supplied with a fiber reinforced
vinylester backplate to accommodate a clamped
outside single seal. The backplate is also available
with an internal bypass flush. An optional bolt on
seal chamber is available for conventional back-to-
back double seals.
The 3196 is supplied with a PFA Teflon®lined backplate
to accommodate a clamped outside single seal. Also
available for the backplate is a bolt-on metallic seal
chamber for conventional back-to-back double seals.
An optional PFA Teflon®lined standard bore stuffing box
cover is available for conventional single clamped seat
inside or outside seals. For cartridge seals, an ETFE
Tefzel®lined BigBore™ seal chamber is available.
Frame Adapter - The ductile iron frame adapter
has a machined rabbet fit to the seal chamber/
stuffing box cover and a precision dowel pin fit to
the bearing frame. The 3198 frame adapter has
the same features but different dimensions to
accommodate the pump’s Teflon®lining.
Shaft - The shaft is available with or without a
sleeve. When supplied with a Teflon®sleeve,
the 3198 shaft is knurled under the sleeve to
provide a positive drive for the sleeve.
Bearings - The inboard bearing carries only
radial loads. It is free to float axially in the
frame. The outboard bearing is shouldered and
locked to the shaft and housing to enable it to
carry radial and thrust loads. All fits are
precision machined to industry standards. The
inboard bearing is a single row deep groove
ball bearing. The outboard bearing is a double
row angular contact bearing, except for the LTX
which uses a pair of single row angular contact
ball bearings mounted back-to-back.
Power End - The oil level is viewed through a
sight glass. Optional oil cooling is provided by
a finned tube cooler. A finned tube cooler is
standard with HT 3196. Flood oil lubrication is
standard. The power end is sealed with
non-metallic labyrinth seals. No machining is
requried to convert from oil to grease or oil mist
lubrication. Regresable bearings and oil mist
lubrication are optional.

NAMEPLATE INFORMATION
Every pump has two Goulds nameplates that provide
information about the pump. The tags are located on
the casing and bearing frame.
When ordering spare parts, you will need to identify
pump model, size, serial number, and the item number
of required parts. Information can be taken from the
pump casing tag. Item numbers can be found in this
manual.
.
16 ANSIFAM IOM - 12/03
Description Fig. No. Example
Pump Casing Tag - provides
information about the pump’s
hydraulic characteristics. Note the
format of the pump size: Discharge x
Suction - Nominal maximum Impeller
Diameter in inches. (Example: 2x3-8)
(Figs. 1 & 2).
Fig. 1
English
Fig. 2
Metric
Bearing Frame Tag - provides
information on the lubrication system
used (Fig. 3).
Fig. 3
ATEX Tag - If applicable, your pump
unit may have the following ATEX tag
affixed to the pump and/or baseplate.
See the Safety section for a
description of the symbols and codes
(Fig. 4).
Fig. 4

RECEIVING THE PUMP
Inspect the pump as soon as it is received. Carefully
check that everything is in good order. Make notes of
damaged or missing items on the receipt and freight
bill. File any claims with the transportation company
as soon as possible.
STORAGE REQUIREMENTS
Short Term: (Less than 6 months) Goulds normal
packaging procedure is designed to protect the pump
during shipping. Upon receipt, store in a covered and
dry location.
Long Term: (More than 6 months) Preservative
treatment of bearings and machined surfaces will be
required. Rotate shaft several times every 3 months.
Refer to driver and coupling manufacturers for their long
term storage procedures. Store in a covered dry location.
NOTE: Long term storage treatment can be
purchased with the initial pump order or can be
applied to pumps already in the field that were
not treated at the factory. This service can be
supplied by contacting your local Goulds sales
representative.
HANDLING
s
!WARNING
Pump and components are heavy. Failure to
properly lift and support equipment could result in
serious physical injury or damage to pumps. Steel
toed shoes must be worn at all times.
Use care when moving pumps. Lifting equipment
must be able to adequately support the entire
assembly. Hoist bare pump using a suitable sling,
under the suction flange and bearing frame. Base-
plate mounted units are moved with slings under the
pump casing and driver. Refer to Figs. 4-7 for
examples of proper lifting techniques.
s
!WARNING
Refer to the Installation section of this manual
for detailed instructions for lifting a Polyshield®
ANSI Combo with installed equipment. Never
lift a Polyshield®ANSI Combo with pump and
motor mounted using the procedure shown in
Fig. 5 and Fig. 6.
ANSIFAM IOM - 12/03 17
Fig. 4
Fig. 5
Fig. 6
2

NOTE: When lifting the NM 3196 or metallic
units with integral suction flanges that do not
have a way to secure the strap on the suction
flange, the strap shown in Figures 4-6 around
the suction flange should be secured around
the frame adapter (Fig. 7).
18 ANSIFAM IOM - 12/03
Fig. 7

INSTALLATION
BASEPLATE INSPECTION .......................... 19
SITE / FOUNDATION ............................. 19
LEVEL BASEPLATE ............................. 20
Cast Iron / PermaBase™ / Fab. Steel .................... 20
Feature Fab. Steel /Advantage Base.................... 21
Stilt Mounted ................................ 21
Spring Mounted .............................. 22
Polyshield®ANSI Combo.......................... 23
BASEPLATE LEVELING WORKSHEET ................... 28
ALIGNMENT.................................. 29
Alignment Checks ............................. 29
Alignment Criteria ............................. 29
ALIGNMENT TROUBLESHOOTING ..................... 30
GROUT BASEPLATE ............................. 31
Alignment Check .............................. 31
PIPING ..................................... 31
General ................................... 31
Suction Piping ............................... 32
Discharge Piping .............................. 34
Final Piping Check ............................. 34
Equipment that is to be installed in a potentially explosive environment must be done so in
accordance with the following installation instructions.
BASEPLATE INSPECTION
1. Remove all equipment.
2. Completely clean the underside of baseplate. It is
sometimes necessary to coat the underside of the
baseplate with an epoxy primer. This may have
been purchased as an option.
3. Remove the rust preventative solution from the
machined pads with an appropriate solution.
SITE / FOUNDATION
A pump should be located near the supply of liquid
and have adequate space for operation, maintenance,
and inspection.
Baseplate mounted pumps are normally grouted on a
concrete foundation, which has been poured on a
solid footing.
The foundation must be able to absorb any vibration
and to form a permanent, rigid support for the
pumping unit. The location and size of the foundation
bolt holes are shown on the outline assembly
drawing, provided with the pump data package.
ANSIFAM IOM - 12/03 19
33

All equipment being installed must be
properly grounded to prevent unexpected
static electric discharge. This includes
ensuring that the PFA lined pumps (Model
3198) and the non-metallic liquid end pumps
(Model NM3196) are pumping fluids that are
conductive. If not, a static electric
discharge may occur when the pump is
drained and disassembled for maintenance
purposes.
Foundation bolts commonly used are sleeve type
(Fig. 8) and J type (Fig. 9). Both designs permit
movement for final bolt adjustment.
1. Inspect foundation for dust, dirt, oil, chips, water,
etc. and remove any contaminants. Do not use
oil-based cleaners as grout will not bond to it.
2. Prepare the foundation in accordance with the
grout manufacturer’s recommendations.
LEVEL BASEPLATE
CAST IRON/PERMABASE™/FAB. STEEL
1. Place two sets of wedges or shims on the
foundation, one set on each side of every
foundation bolt. The wedges should extend .75 in.
(20mm) to 1.50 in. (40mm) above foundation, to
allow for adequate grouting. This will provide
even support for the baseplate once it is grouted.
2. Remove water and/or debris from anchor bolt
holes/sleeves prior to grouting. If the sleeve type
bolts are being used, fill the sleeves with packing
or rags to prevent grout from entering.
3. Carefully lower baseplate onto foundation bolts.
4. Level baseplate to within .125 in. (3.2mm) over length
of the baseplate and to within .088 in. (1.5mm) over
the width of the base by adjusting wedges.
5. A level should be placed across the pump
mounting pads and the motor mounting pads.
6. Hand tighten the bolts.
20 ANSIFAM IOM - 12/03
Fig. 8
Fig. 9
Fig. 10
Fig. 11
