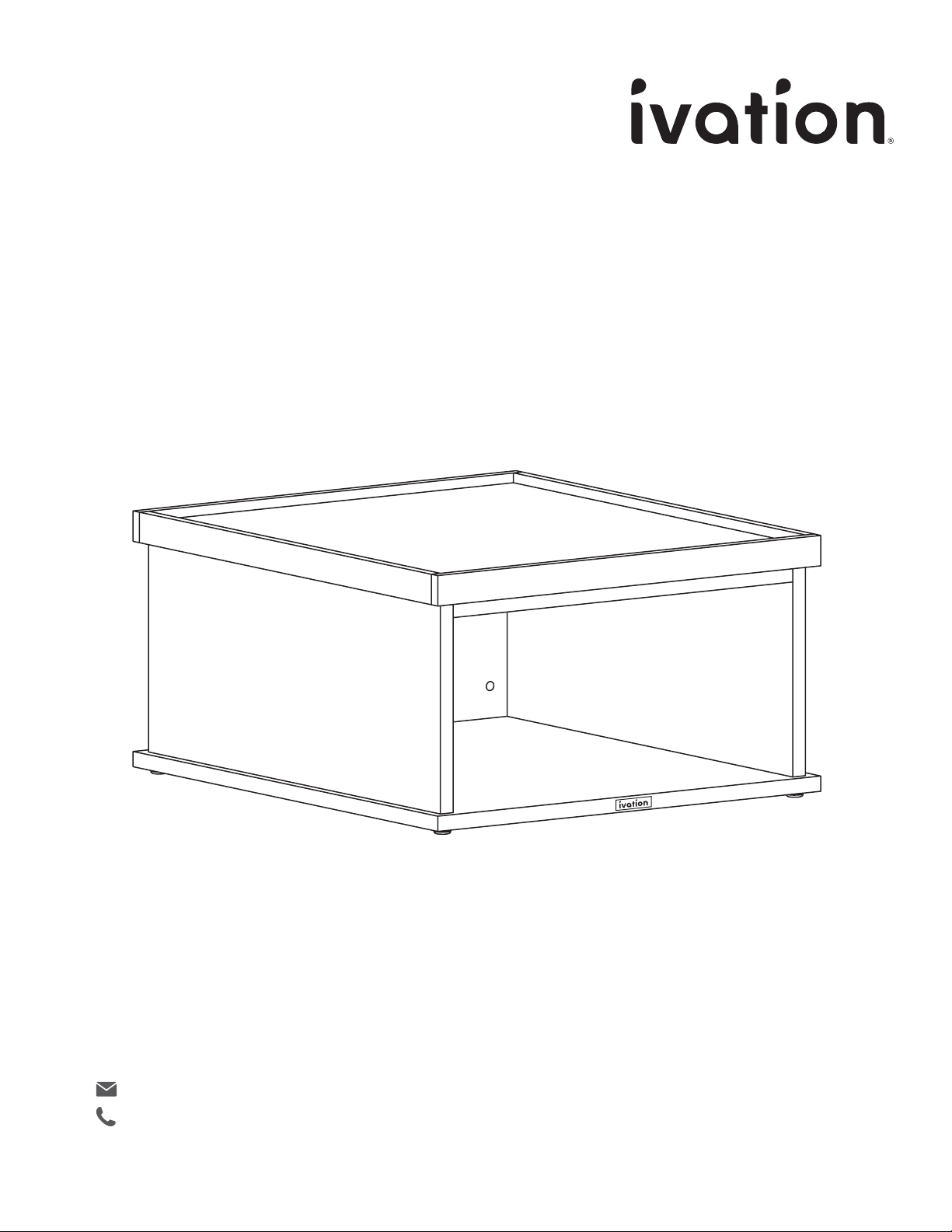

Ivation IVAWMP User manual

Wooden Laundry Pedestal for
Washer/Dryer
User Guide
SKU: IVAWMP
NEED HELP?
[e-mail]
1-866-849-3049

2
INTRODUCTION
INTRODUCTION
Thank you for purchasing the Ivation Wooden Laundry
Pedestal for Washer/Dryer. This User Guide is intended to
provide you with guidelines to ensure that operation of this
product is safe and does not pose risk to the user. Any use
that does not conform to the guidelines described in this
User Guide may void the limited warranty.
Please read all directions carefully before using the product
and retain this guide for reference. This product is intended
for household use only. It is not intended for commercial
use.
This product is covered by a limited one-year warranty.
Coverage is subject to limits and exclusions. See warranty
for details.
SAFETY PRECAUTIONS
PRODUCT OVERVIEW
INSTRUCTIONS
SPECIFICATIONS
WARRANTY
GET IN TOUCH!
3
4
5
14
15
16
TABLE OF CONTENTS

3
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
WARNING! Please read all safety precautions and
instructions carefully before using this product. Failure to
properly follow the guidelines established here could result
in serious injury. This product is not recommended for
children under 3 years old.
WARNING! Choking hazard – Small parts associated with this
product are a choking hazard for children under 3 years old.
WARNING! Adult assembly required – During assembly, this
product contains small components and sharp edges and
points that are potentially hazardous. Keep unassembled
parts away from children.
• USE & MAINTENANCE: Use on level surfaces only. Regularly
check the assembly and tighten hardware as needed.
Failure to do so may result in reduced structural integrity
and potential hazards.
• Adult setup is required to assemble this product safely.
• Remove all packaging before using this product. Please
keep all packaging materials out of reach of children and
pets.
• Set up indoors on an even surface.
• Do not allow children to tip the product over. This can
cause injury to children and damage to the product.
• Do not drag the product to avoid damaging your floor and
the base of the product.
• Keep pets away from the product to avoid it tipping over
and causing injury to pets/children and product damage.
• Do not allow children to climb on this product. This can
lead to injury and product damage.

4
PRODUCT OVERVIEW
PRODUCT OVERVIEW
Assembly parts (x11)
Hardware (spare parts included)
User guide
Screwdriver or electric screwdriver
Sets of cam locks
& screws x 30
*Spare hardware parts are included.
Wooden pegs
x 42
Screws x 11 Adjustable
rubber feet x 5
Protective pads
x 4
PACKAGE CONTENTS RECOMMENDED TOOLS:
PARTS
1
4
5
6
6
7
7
8
8
A B C D E
3
2

5
1
7
7
A
B
INSTRUCTIONS
PREPARATIONS BEFORE ASSEMBLY
It is recommended that this assembly be done with two (2) people.
It is recommended that this product be assembled on a table.
ASSEMBLY INSTRUCTIONS

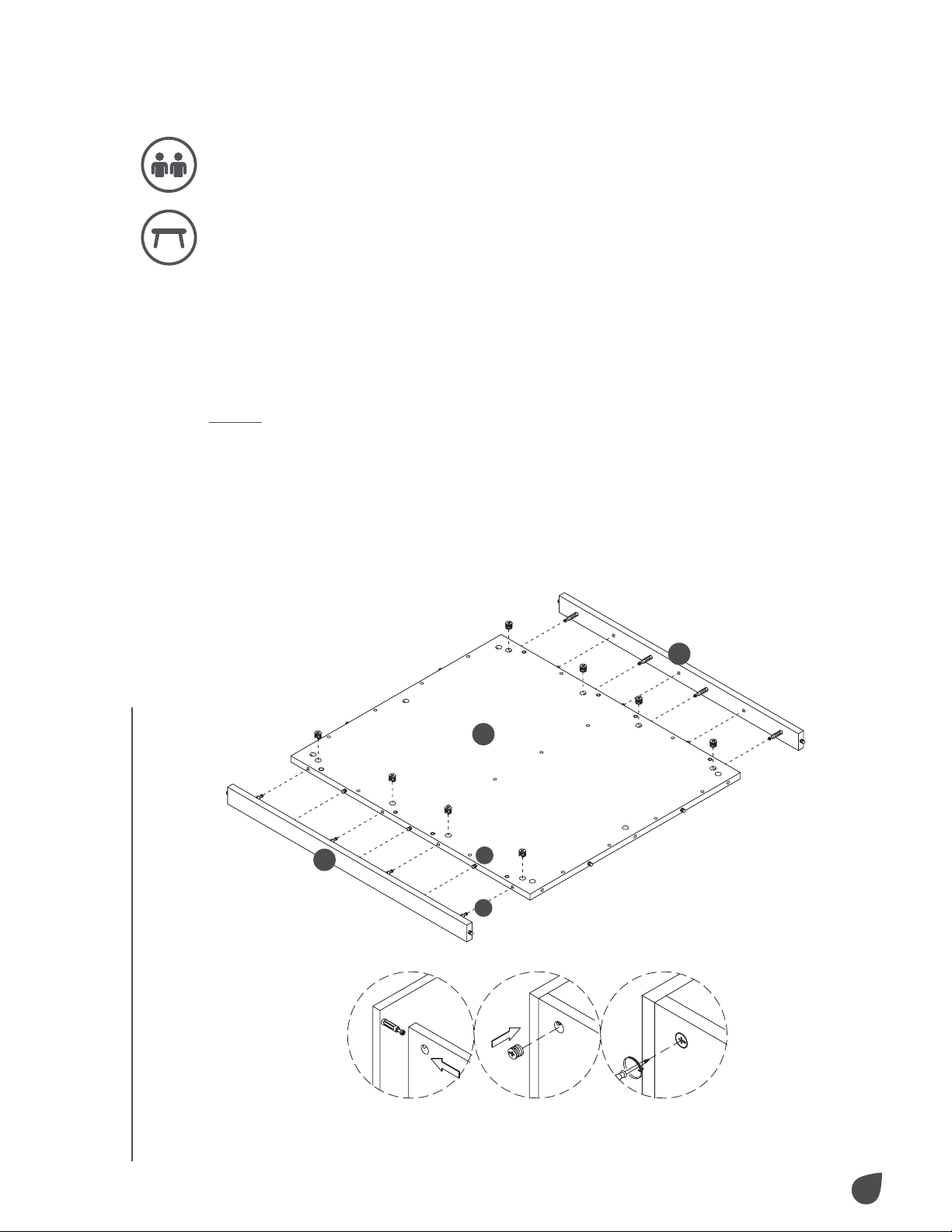

Step 1
Insert six (6) B wooden pegs into the holes on the longer sides of
panel 1 and insert eight (8) A cam screws into panels 7, as shown
in the image below. Three (3) wooden pegs and four (4) A cam
screws should be used for each side. Then, fasten panels 7 to panel
1 using eight (8) A cam locks.
INSTRUCTIONS

6
1
8
8
7
7
A
B
INSTRUCTIONS
Step 2
Insert eight (8) B wooden pegs into the holes on the shorter sides
of panel 1 and panels 7. Then, insert six (6) A cam screws into
panels 8, as shown in the image below. Four (4) wooden pegs and
three (3) A cam screws should be used for each side. Then, fasten
panels 8 to panel 1 using six (6) A cam locks.
INSTRUCTIONS

7
INSTRUCTIONS
Step 3
Insert two (2) B wooden pegs into the holes on panel 4 and four
(4) A cam screws into the holes on panel 3, as shown in the image
below. Then, fasten panels 4 and 6 to panel 3 using four (4) A cam
locks.
NOTE: When fastening panels 6 to panel 3, make sure holes on
panels 6 are facing inward towards panel 4.
INSTRUCTIONS
6
6
4
A
B
3

8
INSTRUCTIONS
Step 4
Insert two (2) B wooden pegs into the holes on panel 4 and four (4)
A cam screws into the holes on panel 2, as shown in the image below.
Then, fasten panels 4 and 6 to panel 2 using four (4) A cam locks.
INSTRUCTIONS
4
3
2
6
6
A
B

9
INSTRUCTIONS

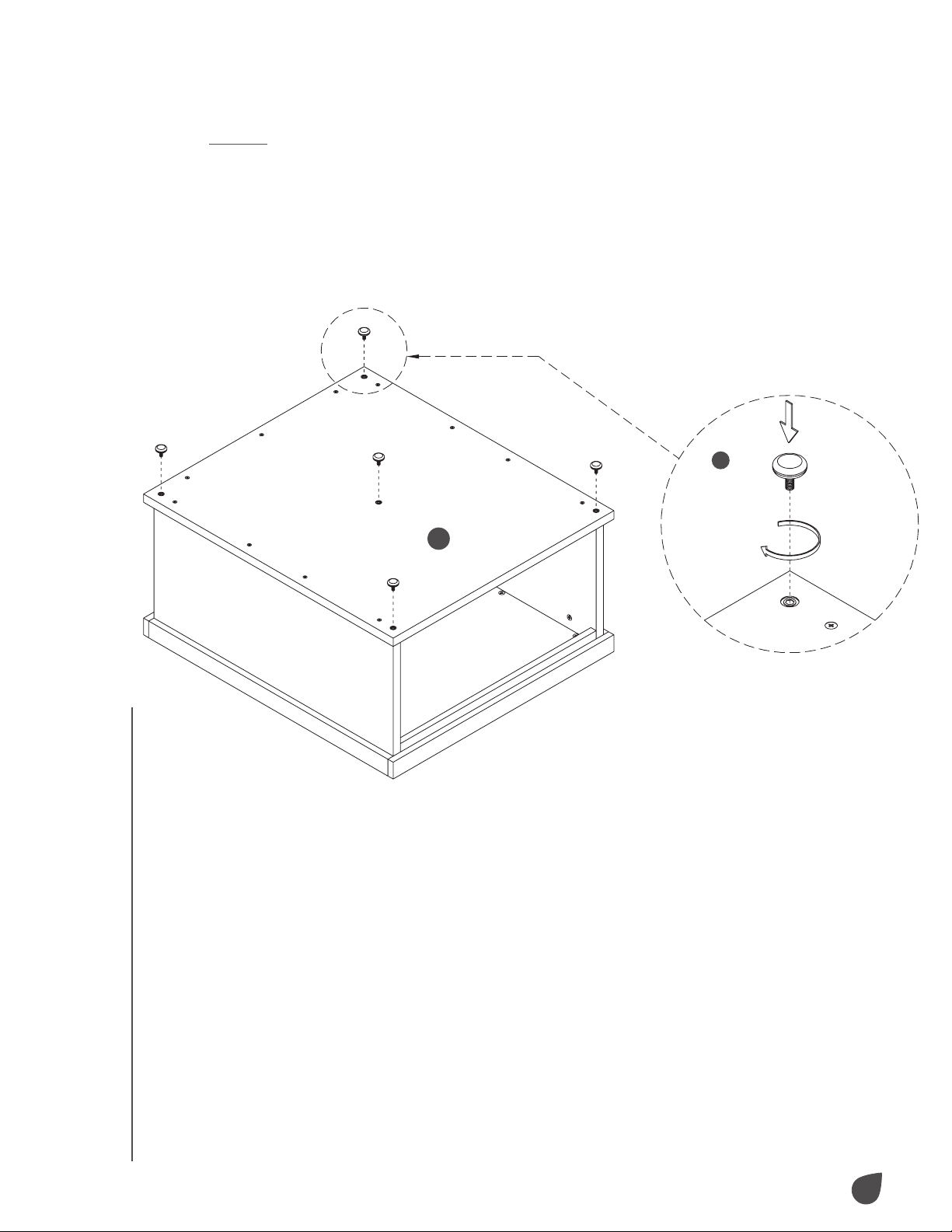

Step 5
Insert 16 B wooden pegs and eight (8) A cam screws into the holes
along the edge and in the center of panel 1, as shown in the image
below.
Step 6
Lift and place the assembled section of panels 2, 3, 4 and 6 over panel
1. Finally, fasten panel 1 to the rest of assembly using eight (8) A cam
locks. Make sure any heavy lifting of this product is done with two or
more people.
INSTRUCTIONS
1
A
B

10
INSTRUCTIONS
Step 7
Insert eight (8) B wooden pegs into panels 2, 3, and 4, as shown in
the image below.
NOTE:
When inserting
B wooden pegs,
make sure pegs
are inserted into
the bigger holes in
panels 2, 3, and 4.
INSTRUCTIONS
B
