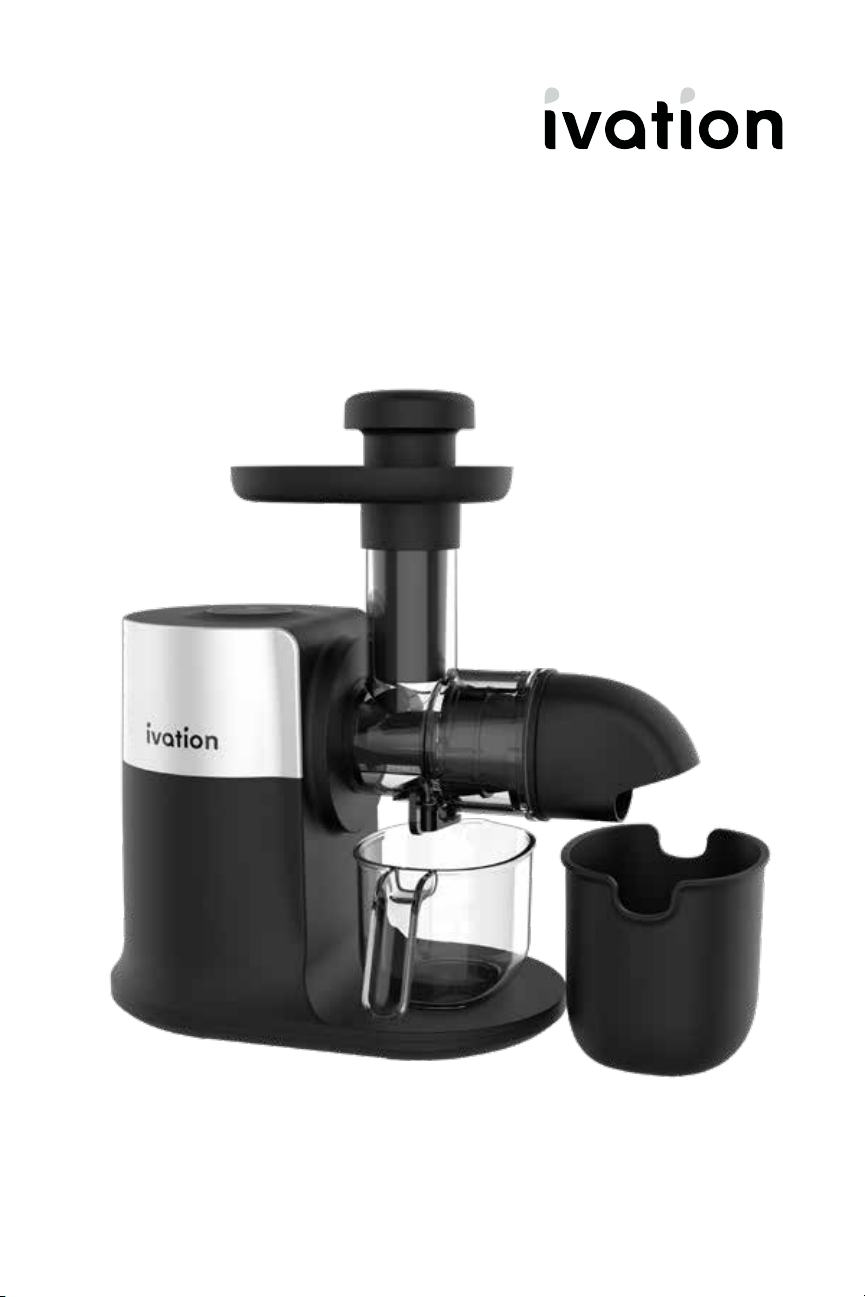

Ivation IVMJ401B User manual

Ivation® Masticating Juicer
SKU: IVMJ401B
User Guide

INTRODUCTION
Thank you for purchasing the Ivation® Masticating
Juicer. This User Guide is intended to provide you
with guidelines to ensure that operation of this
product is safe and does not pose risk to the user.
Any use that does not conform to the guidelines
described in this User Guide may void the limited
warranty.
Please read all directions before using the product
and retain this guide for reference. This product is
intended for domestic use only and is not intended
for commercial use.
This product is covered by a limited one-year
warranty. Coverage is subject to limits and exclusions.
See warranty for details.
2
INTRODUCTION
FEATURES:
• Delivers a nutritious, healthy juice by conserving
produce nutrients
• Mastication reduces harmful oxidation and prevents
enzyme deterioration
• Slow juicing process allows for a thorough breakdown
of fibers with less pulp
• Experience a delicious, full-flavored juice free from
chemicals or added sugars
• Works with leafy greens such as wheatgrass, spinach,
kale and others

• Don’t try to operate this device without reading the instructions.
• Never attempt to plug the juicer in with wet hands, as this could
result in a severe electric shock.
• Do not submerge the main body of this juicer in water or any other
liquids.
• Do not insert utensils, hands, fingers, or other objects and/or
appendages into the feed barrel or juice outlet as this could cause
severe injury or damage to the juicer.
• Never touch the screw bolt, electric motor, or any other parts when
the machine is on, as this could result in severe injuries.
• Do not put your eyes, hands, face, or other appendages close to the
feed inlet while the juicer is running, as this could result in serious
injuries.
• Always be sure to turn o and disconnect the juicer from the power
source before disassembling, installing, or cleaning the unit, to avoid
any electrical shock or other hazards.
• If you would like to disassemble this machine after juicing, make sure
to first turn it o, unplug it, and wait until the motor and screw have
completely stopped.
• Always operate your juicer on a stable, horizontal surface such as a
table or a counter.
• Never operate the juicer on an inclined or uneven surface, or on
materials such as a carpet or towel.
• Always keep the juicer away from the edges of the surface to prevent
injuries and/or product damage.
• The speed of this juicer has been pre-set and does not need
adjusting. Never attempt to adjust the speed of the motor.
• Always make sure to switch the power o and unplug the juicer after
use to prevent any damage or injury.
3
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS

• Make sure to familiarize yourself with the appliance before using it.
• Before using this appliance, check all the parts to make sure they
function properly, and are undamaged.
• Make sure that every detachable part has been properly installed
before you plug the unit in.
• Never run the juicer without something to juice.
• Always inspect the cord and other parts of this unit for signs of damage
before attempting to plug it in. If the power cord is damaged, it must be
replaced by Ivation® Customer Service or a qualified service technician.
• Never use this unit in an area subject to excessive moisture, heat, or
humidity, or in the immediate surroundings of a bath, shower, swimming
pool, or similar bodies of water, as this presents an electrical shock
and/or fire hazard.
• Never use this juicer in an environment with flammable or explosive
gases or strong magnetic fields, as this could damage the product or
cause a fire.
• Do not attempt to juice sugar cane with this machine.
• Always make sure the rated voltage of the outlet is within the
recommended range of 120V ~ 50/60Hz or else the product could
become damaged.
• Do not attempt to run this juicer continuously for longer than 15 minutes
at a time. The intelligent chip inside the juicer will automatically disable
the motor after 15 minutes.
• If the juicer is blocked due to becoming overloaded or the food being too
hard, it will automatically stop. Once it beeps, you can restart the machine.
• If there is anything unusual occurring, disconnect the juicer and clean
the feed tube before restarting it.
• Make sure to cut your food down into sizes that will fit through the
food inlet. Always use the pushing rod, and make sure to push the
food slowly, gently, and at a consistent pace.
• Do not attempt to juice foods that are over 140° F (60° C) as this
could cause burning or breakage of the internal components.
• The components which come in contact with your food conform to food
material certification requirements, and are clean, healthy, and reliable.
• It is normal for certain components to end up with a slight discoloration
after juicing, especially when heavily pigmented fruits or vegetables are
involved.
• Do not directly heat this product, or put any of the plastic parts into a
dish washer or water that is above 140° F (60° C). Never use steel wool,
abrasive cleaners, or any corrosive liquids to clean this product.
• This juicer and its parts are not dishwasher-safe.
• Do not use any parts other than the parts supplied with this product, as
this could aect the juicer’s performance, damage it, or cause an accident.
4
PRODUCT PRECAUTIONS
PRODUCT PRECAUTIONS

INTRODUCTION
SAFETY PRECAUTIONS
PRODUCT PRECAUTIONS
TABLE OF CONTENTS
PACKAGE CONTENTS/ PRODUCT OVERVIEW
BUTTON AND LOCK INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
USAGE INSTRUCTIONS
OPERATING TIPS
TIPS FOR CHOOSING INGREDIENTS
CARE AND MAINTENANCE
DISASSEMBLY INSTRUCTIONS
TROUBLESHOOTING
SPECIFICATIONS
CONTACT US
2
3
4
5
6
7
8
9
9
10
11
11
13
14
14
5
TABLE OF CONTENTS
TABLE OF CONTENTS

Make sure to thoroughly clean all components that come into contact
with the juice and ingredients before using the product.
PACKAGE CONTENTS
• Juicer components:
Pushing Rod
Tray
Feeding Tube
Main Body
Juice Outlet
Juice Cup
Pulp Catcher
Screw Rod
Strainer
Tube Lid
• Cleaning brush
• User guide
6
PRODUCT OVERVIEW / PACKAGE CONTENTS
PRODUCT OVERVIEW
A
A
E
E
C
C
G
G
B
B
F
F
D
D
I
I
J
J
Pushing Rod
Key Panel
Main body Release Button Juice Outlet Juice Cup Pulp Catcher
Tray
Feeding Tube Strainer Tube Lid
Screw Rod
Start
Stop
Hold to
Reverse
H
H

START/STOP: Press this button once to start the juicing process. The
juicer will run for 15 minutes and then automatically stop itself. If you
need to stop it sooner, press the Start/Stop button a second time.
HOLD TO REVERSE: If the unit becomes clogged while running,
press the Start/Stop button, then press this button and hold it for a
few seconds to reverse the rotation of the screw rod. Press the Start/
Stop button to restore normal motor function. If the blockage hasn’t
cleared, try pressing the reverse button again.
UNLOCKING TUBE: To release the main Feeding Tube (for
cleaning, etc.), press and hold the release button, then grasp the
tube and twist it clockwise to release it.
7
BUTTON & LOCK INSTRUCTIONS
BUTTON & LOCK INSTRUCTIONS
Release Button
Start
Stop
Hold to
Reverse
C

Align the notches on the Feeding Tube with the corresponding
openings on the Main Body. Press it in and turn counterclockwise
until you hear a loud click and the release button pops out.
HOW TO ASSEMBLE:
Place the Screw Rod into the Feeding Tube with the metal bit
facing inward. Fit the metal piece into the corresponding hole in the
Feeding Tube.
Fit the Strainer around the Screw Rod with the metal grate
facing down. It should fit into the notches on the Feeding Tube.
Insert the Tube Lid into the corresponding notches at the end of
the Feeding Tube, with the symbol pointing to the symbol.
Turn the lid counterclockwise, until the symbol points to the
symbol and the Tube Lid locks into place.
Place the Juice Cup on the black platform on the Main Body
of the unit underneath the grated section of the Feeding Tube
where the juice will come out.
Place the Pulp Catcher underneath the mouth where pulp will
be dispensed.
Flip the outlet cover to the left (toward the Main Body) so that
the Juice Outlet is uncovered. Plug the unit in.
1
2
3
4
5
6
7
8
C
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
D
D
Juice Outlet on/o
Flip left/right
Pulp
E
C
C
C
C
D
Notches C
C
G
D
H
H
I
J
J
J
C
DHIJ

0 Clean the prepared ingredients and cut them down into
manageable sizes to feed into the juicer. Load the ingredients
onto the feed drum or into the Feeding Tube.
0 Press the Start/Stop button to start the product, and use the
Pushing Rod to slowly and gently feed the ingredients down
into the barrel. Do not use your hands.
NOTE: This product comes with an intelligent protection chip,
which automatically stops the motor after 15 minutes of continuous
use. If you want to stop the juicer prior to that time, use the Start/
Stop button.
1 When you are finished, press the Start/Stop button to turn o
the motor.
0 Unplug the juicer from the outlet, and flip the white juice cap to
the right so it covers the juice outlet once the juice stops dripping.
0 Pour juice from the juice cup into a glass and enjoy!
JUICING TIPS
After juicing, it can be helpful to press the Reverse button and
hold it for a few seconds before shutting o the power. This
makes it easier to disassemble and clean the parts.
0 For variety, you can add dierent fruits and vegetables to mix
juices. If you choose to do this, it’s best to put soft ingredients
first, then add tougher produce, to improve the flavor of the juice.
0 When using small amounts of food, there may be decreased
amounts of pulp or no residue at all. This is normal and doesn’t
aect the product usage.
9
USAGE INSTRUCTIONS / JUICING TIPS
1
2
3
4
5
C
USAGE INSTRUCTIONS
1
2
3
A

• Choose fresh ingredients which contain more juice. For example:
apples, pears, pineapple, watermelon, oranges, carrots, tomatoes,
cucumbers, etc. (Remove thick skins from melons, pineapples, citrus
fruits, and others. It’s also good to remove seeds, as skins and
seeds can add a bitter flavor to the juice.)
• Dierent types of apples produce dierent amounts and flavors of
juice. Experiment and see which type of apple juice is your favorite!
• Freshly pressed apple juice will naturally turn brown as a result of
oxidation. This is nothing to worry about, but can be slowed down by
adding a few drops of lemon juice.
• Leafy and other vegetables such as spinach, kale, celery, wheatgrass
etc. can also be added to this juicer.
• Soft produce with low water content or extremely fibrous produce
such as bananas, papayas, figs, mangoes, etc. are not ideal for juice
extraction. They are better processed in food processors or blenders.
• Fruits with high protein and fat content such as jackfruit or avocados
are not suitable for this juicer.
• Seeds, beans, peanuts, corn, and other similar ingredients need to
be fresh or soaked before use.
• It’s best to drink your juice as soon as possible after creating it. If it’s
exposed to the air for too long, the taste and nutritional value will
be aected.
• Any food with hard seeds, stones, or thick skins, such as mangos,
grapes, or oranges, should be processed in a food processor (and
peeled, in some cases) before being juiced. These fruits can damage the
juicer if not properly treated before being inserted into the food inlet.
• Fibrous foods such as celery and ginger should be cut down into 1.2”
(3 cm) chunks to prevent excess residue from the fibers, which can slow
down juice production and also negatively aect the usage of the juicer.
• Strongly acidic fruits (especially lemons) should only be included in
quantities of 0.7 oz (20g)/approximately 3 pieces, or less.
10
TIPS - CHOOSING INGREDIENTS
TIPS - CHOOSING INGREDIENTS
R
E
C
O
M
M
E
N
D
E
D
N
O
T
I
D
E
A
L
N
O
T
S
U
I
T
A
B
L
E
f
i
b
r
o
u
s
p
r
o
d
u
c
e
p
r
o
d
u
c
e
h
i
g
h
i
n
p
r
o
t
e
i
n
/
f
a
t
j
u
i
c
y
f
r
u
i
t
s
/
v
e
g
e
t
a
b
l
e
s

After using this product, make sure to unplug it from the outlet
and clean it promptly.
Use a damp cloth or wipe to clean the main body. Do not wash
or soak the main body in water, as this could damage it and
create an electrical shock hazard.
Do not use steel wool, abrasive detergent, or corrosive liquids
such as gasoline or acetone to clean this product.
While the juicer is not in use, make sure that it is clean and dry,
and that you store it in a dry, ventilated place out of direct
sunlight.
Always allow 20-30 minutes for the electric motor to cool in
between juicing sessions. This will help lengthen the life of the
motor.
If you hear an unusual noise when you turn the unit on, before
inserting any food, it could be due to the screw bolt not being
properly installed. To fix this, turn the unit o, unplug it, wait
for the motor and screw to come to a complete stop, and then
push the screw bolt firmly into the main body. Once you have
done this, you may restart the juicing process. If the noise
continues, unplug the unit and contact Ivation® Customer Care.
DISASSEMBLY
INSTRUCTIONS:
Remove the Pushing Rod and the Tray.
11
CARE AND MAINTENANCE / DISASSEMBLY INSTRUCTIONS
A
A
B
B
CARE AND MAINTENANCE
1
2
3
4
5
6
1

Press the Release button and twist the Feeding Tube
clockwise to remove it from the Main Body.
Remove the Tube Lid by twisting clockwise to unlock and
then pulling straight toward yourself.
Remove the Strainer by pulling it straight toward yourself.
Do the same with the Screw Rod.
Rinse all of the parts under warm, but not hot, water to remove
all the pulp and other food ingredients remaining. Use the
included cleaning brush for the best results. Allow the parts
to dry fully before storing them.
NOTE: Not dishwasher safe.
12
DISASSEMBLY INSTRUCTIONS
C
C
C
D
D
H
H
I
I
J
J
DISASSEMBLY INSTRUCTIONS
Unlock key
2
3
4
4

ISSUE POSSIBLE CAUSE POSSIBLE SOLUTIONS
Product does
not turn on.
The motor has an odd
smell.
The juicer stops while
in use.
Fruit juice contains
excess pulp.
The juicer seems
abnormally noisy and
vibrates a lot.
Power cord is not
connected, or not
connected properly.
The product has been
running too long and
smart protection kicked
in to protect the motor.
If the juicer is still new,
this is normal and not a
cause for concern.
Too many ingredients
have been added at
once, resulting in a
blockage or overload.
The juicer has been
running for 15 minutes
or longer and smart
protection kicked in.
The screw rod could be
damaged.
The inlet tube or screw
rod is not in place, caus-
ing the balance to be o.
Connect power cord
properly to a wall outlet
which has power.
Wait 20-30 minutes and
attempt to use the
machine again.
If the smell continues after
multiple uses, contact
Ivation® customer care.
First, run the machine in
reverse for a couple
seconds. Then, remove
some ingredients from
the feeding tube.
Don’t use too many
ingredients at once, and
always feed the
ingredients slowly with-
out too much pressure.
Wait 20-30 minutes and
then resume the juicing
process.
Contact Ivation®
customer care for a
replacement screw rod.
Remove the components
from the main body and
then reassemble the
juicer. If this does not
resolve the issue,
contact Ivation®
customer care.
NOTE: If your problem cannot be resolved by any of these steps, or you’re
experiencing a dierent issue, do not attempt to repair the problem or
take the machine apart (beyond the normal disassembly process) on your
own. Please contact Ivation® customer care for information about repairs
or replacement parts.
13
TROUBLESHOOTING
TROUBLESHOOTING

SPECIFICATIONS
• Rated Voltage: 120 V
• Rated Power: 150 W / 50/60 Hz
• Rated Motor Speed: 70 RPM
• Continuous Operation Time: ≤15 min
• Interval Time (after continuous use): ≥20 min
• Dimensions: 13.78" x 6.69" x 14.17" (350 x 170 x 360 mm)
NOTE: Some of the parameters of this product may be subject to
change without notice.
Questions or problems?
CONTACT US!
[e-mail]
1-866-849-3049
IVATION is a trademark of C&A IP Holdings, LLC, in the U.S, Canada,
and the E.U.
All other products, brand names, company names, and logos are
trademarks of their respective owners, used merely to identify their
respective products, and are not meant to connote any sponsorship,
endorsement or approval.
Distributed by C&A Marketing, Inc., 114 Tived Lane East, Edison, NJ 08837.
Made in China.
© 2019. C&A IP Holdings, LLC. All Rights Reserved.
Do not dispose of electrical appliances as unsorted municipal waste. This
product’s materials are recyclable. Contact your local authorities or waste
disposal services for information regarding proper disposal and/or
recycling of electrical appliances. Make sure to use your area’s designated
collection facilities.
14
SPECIFICATIONS / CONTACT US
