Ivation IVUC96W; IVUC96S User manual

SPECIFICATION
DESCRIPTION
MODEL
TIMER SETTINGS
POWER SUPPLY
ULTRASONIC FREQUENCY
MATERIAL OF TANK
DIMENSIONS (LxWxH)
TANK CAPACITY
POWER CORD LENGTH (About)
NET WEIGHT (N.W.)
GROSS WEIGHT (G.W.)
Digital Ultrasonic Cleaner
IVUC96W
IVUC96S
r*180s—280s -*380s— 480s-* 90sn
35W ( AC 100-120V 50Hz )
50W ( AC 220-240V 50Hz )
42000HZ( 42 KHz )
Stainless steel SUS304
200 x 195 x 150 mm
750 ml ( MAX- : 600 ml)
1.5 m
1.25 KGS
1.66 KGS
Ivation. INC. Ridgefield Park. NJ 07660
www.myivation.com
for information please contact
info@myivation. com
IV/ATIOn
Digital Ultrasonic cleaner
• IVUC96W
• IVUC96S
(Detachable Tank)
USER GUIDE
FEATURES:
Detachable stainless steel Tank
More convenient to do the pouring and wiping
Ultrasonic Frequency: 42,000Hz
To make item cleaning more easy and safe only by using
tap water
Digital program, 5 working cycles and Ultrasonic
wave energy is adjust, choose freely
v Read All Instructions Before Using
■ Keep This Manual

INTRODUCTION
Thank you for buying this ultrasonic cleaner.
Ultrasonic cleaning is a unique phenomenon, Cleaning items
with tap water, Millions of tiny bubbles are created when
ultrasonic sound is passed through liquid. These tiny bubbles
combined with a huge pressure that created incredible cleaning
results.
READ THE USER GUIDE
The ultrasonic cleaners are very easy to use, although to get
the best from your new purchase, we recommend you read
this User Guide before getting down to any cleaning.
It also contains important safety information as well as
practical hints.

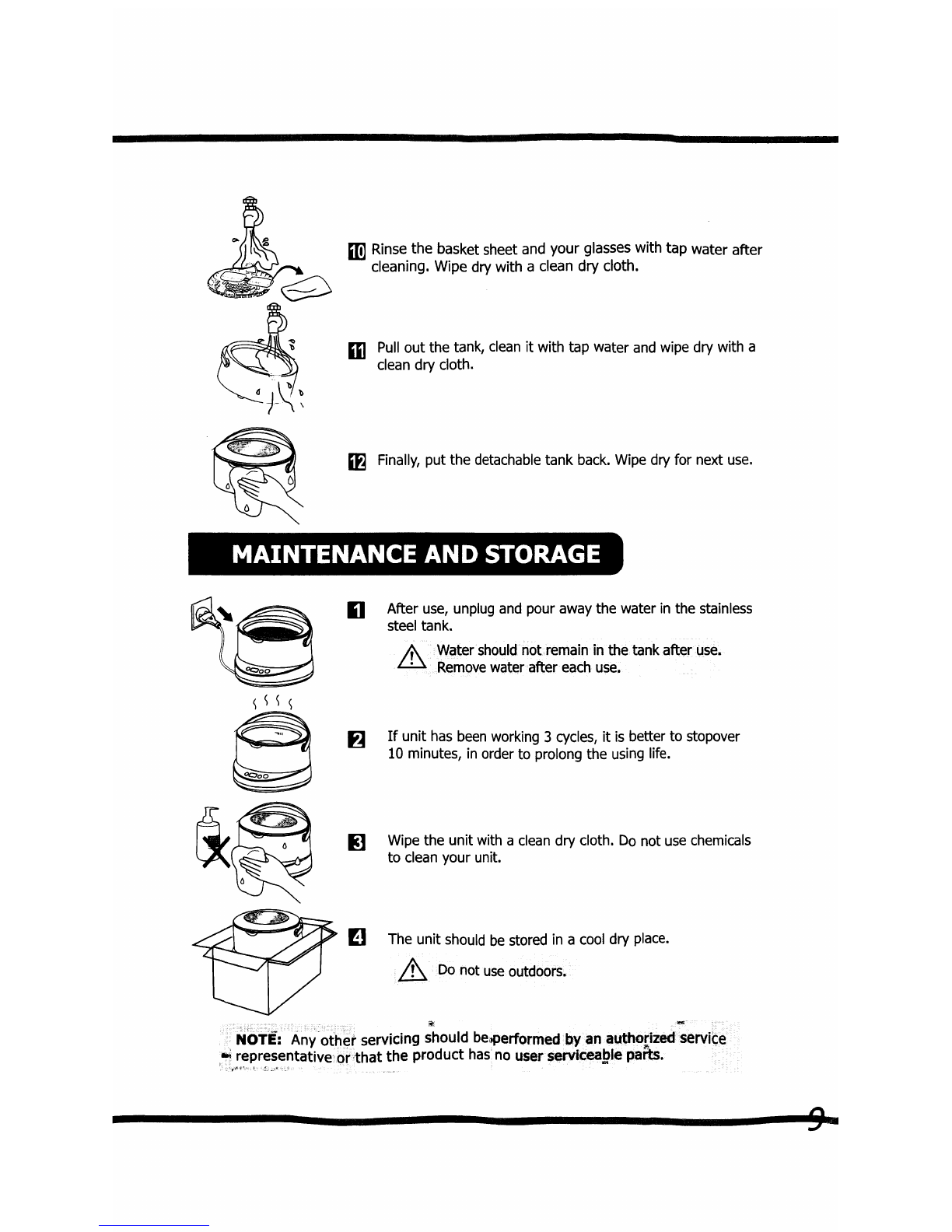

Rinse the basket sheet and your glasses with tap water after
cleaning. Wipe dry with a clean dry cloth.
Pull out the tank, clean it with tap water and wipe dry with a
clean dry cloth.
Finally, put the detachable tank back. Wipe dry for next use.
MAINTENANCE AND STORAGE
After use, unplug and pour away the water in the stainless
steel tank.
A Water should not remain in the tank after use.
Remove water after each use.
If unit has been working 3 cycles, it is better to stopover
10 minutes, in order to prolong the using life.
Wipe the unit with a clean dry cloth. Do not use chemicals
to clean your unit.
H The unit should be stored in a cool dry place.
/K Do not use outdoors.
NOTE: Any other servicing should be»performed by an authorized service
* representative or that the product has no user serviceable parts.

©.
D
M

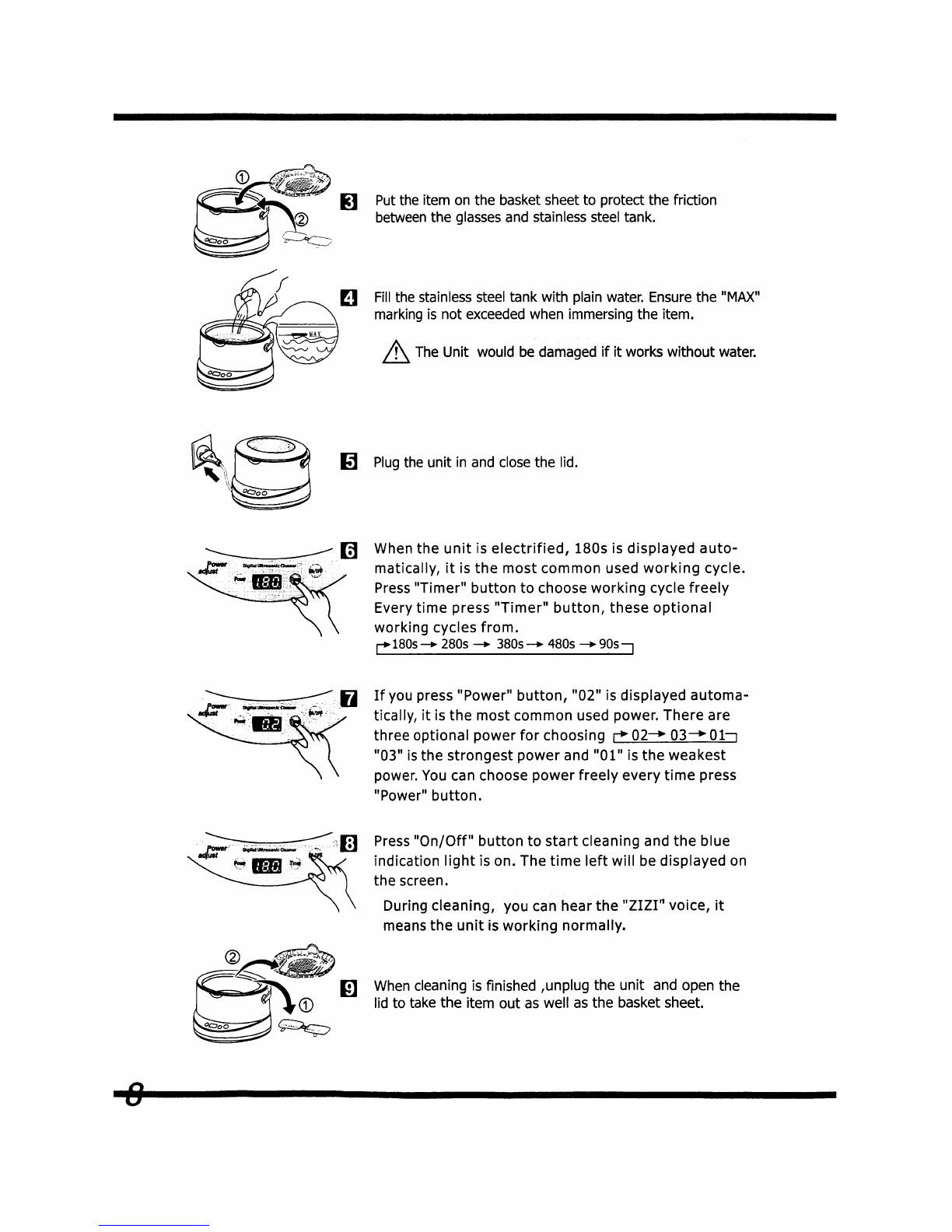

Put the item on the basket sheet to protect the friction
between the glasses and stainless steel tank.
Fill the stainless steel tank with plain water. Ensure the "MAX"
marking is not exceeded when immersing the item.
/[\ The Unit would be damaged if it works without water.
Plug the unit in and close the lid.
When the unit is electrified, 180s is displayed auto
matically, it is the most common used working cycle.
Press "Timer" button to choose working cycle freely
Every time press "Timer" button, these optional
working cycles from.
,-► 180s -► 280s -► 380s -» 480s -*90s-|
If you press "Power" button, "02" is displayed automa
tically, it is the most common used power. There are
three optional power for choosing r»02-»> 03-^Ql-i
"03" is the strongest power and "01" is the weakest
power. You can choose power freely every time press
"Power" button.
|[] Press "On/Off" button to start cleaning and the blue
indication light is on. The time left will be displayed on
the screen.
During cleaning, you can hear the "ZIZI" voice, it
means the unit is working normally.
When cleaning is finished ,unplug the unit and open the
lid to take the item out as well as the basket sheet.
INDEX
1 Safety Instructions
2 Dirt elimination processes
3 Suggested Applications
4 Features and Accessories
5 Two different ways of cleaning
6 Usage of optional accessories
7 Operation Instructions
8 Maintenance and Storage
9 Specification

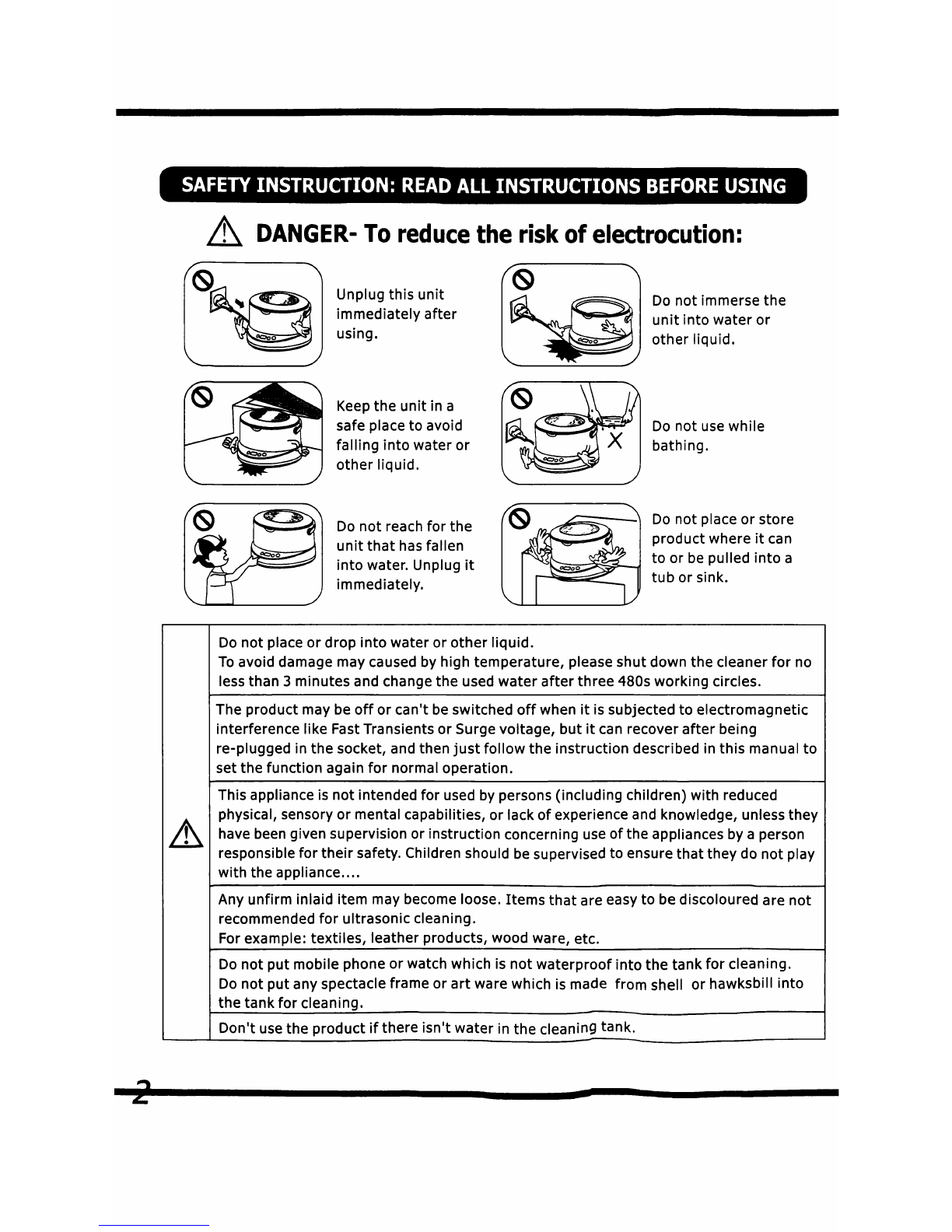

SAFETY INSTRUCTION: READ ALL INSTRUCTIONS BEFORE USING
DANGER- To reduce the risk of electrocution:
WATCH STAND
G
Unplug this unit
immediately after
using.
Keep the unit in a
safe place to avoid
falling into water or
other liquid.
Do not reach for the
unit that has fallen
into water. Unplug it
immediately.
Do not immerse the
unit into water or
other liquid.
Do not use while
bathing.
Do not place or store
product where it can
to or be pulled into a
tub or sink.
Do not place or drop into water or other liquid.
To avoid damage may caused by high temperature, please shut down the cleaner for no
less than 3 minutes and change the used water after three 480s working circles.
The product may be off or can't be switched off when it is subjected to electromagnetic
interference like Fast Transients or Surge voltage, but it can recover after being
re-plugged in the socket, and then just follow the instruction described in this manual to
set the function again for normal operation.
This appliance is not intended for used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliances by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance....
Any unfirm inlaid item may become loose. Items that are easy to be discoloured are not
recommended for ultrasonic cleaning.
For example: textiles, leather products, wood ware, etc.
Do not put mobile phone or watch which is not waterproof into the tank for cleaning.
Do not put any spectacle frame or art ware which is made from shell or hawksbill into
the tank for cleaning.
Don't use the product if there isn't water in the cleaning tank.
CD RACK
The permeability of ultrasonic is very strong, do not put watch
(of water proofing capability less than 30 metres) into the tank
directly, because water may penetrate into the watch and cause
severe damages. It is recommended to use the watch stand for
watch band cleaning by simply immersing the watch band into
the water while keeping the watch case on top of water.
Note: Similar to Basket, the Watch Stand also absorbs
ultrasonic energy. When the watch stand is used, use
"Enhanced Cleaning" for effective cleaning result.
Put the disk (CDs, VCDs, DVDs) onto the disk holder as shown in
the picture (two disks can be cleaned at one time).
Then put the holder into cleaning tank which is filled with normal
water. Caution:
1. Don't use warm or hot water, as the print mark on the surface
is easily got rid of.
2. The disk can be cleaned whenever it is dirty, but please don't
clean the disk for more than two times continuously, otherwise
the print mark of the disk is easily got rid of. Generally, 90s for
once clean is enough.
3. Ultrasonic can only clean the dirty on the surface of the disk,
please note that the disk which is scratched can't be resumed.
Note: When using cloth to clean the dirty disk, it may scratch its surface. While
using ultrasonic technology can throw off the dirt effectively (within 2 minutes),
and the disk can be protected from scratching.
OPERATION INSTRUCTIONS
Open the lid to make sure the stainless steel tank is clean
before using. If not, Pull the tank out to clean as shown in
the picture.
After cleaning, please push the detachable tank back, As
picture shows.

TWO DIFFERENT WAYS OF CLEANING
GENERAL CLEANING
Only using normal tap water
Put items into tank directly or place the items on basket then
put them into tank together, then fill with tap water. Ensure the
items are submerged in the water but do not exceed the "MAX-"
mark. Press "Power" button to choose the strongest power "03",
and press "Timer" button to choose "380" or "480". Then press
the "On/Off" button to start.
Note: during cleaning, the dirt on the item will come out. It
looks like "smoking", meanwhile the clean water becomes
dirty, until "smoking" disappeared, the item is clean.
PUT A LITTLE LIQUID WASH SOAP TO ENHANCED CLEANING
Use for cleaning the items with too much oiled dirt.
Put items into tank directly or place the items on basket then
put them into tank together and fill with tap water, ensure the
water cover the items but do not exceed the "MAX-" mark.
For heavy soiled items, it is often helpful to add approx.
1 teaspoon of liquid soap (about 4ml). Press "Power" button to
choose the strongest power "03" and press "Timer" button to
choose -»180s -> 280s -► 380s -► 480s -► 90s -*
(normally use 380s or 480s), then press "On/Off" button, the
unit start to work.
a If using liquid soap, rinse the item with tap water when complete or clean
_iA ultrasonically without soap the second time for 90s.
Note: The liquid soap is neutral liquid and very normal for home dishware using, it is "soft"
chemical liquid. Using a little in ultrasonic cleaning, can soft the oiled dirt, to make the oiled
dirt can't condense again on the surface of the item, to enhance result of cleaning.
USAGE OF OPTIONAL ACCESSORIES
BASKET
®
When cleaning small item(s), place the item(s) into basket first
before putting into the tank. In this way, scuffling between the
items and the tank can be reduced.
Note: the basket is only used for cleaning small items,
because it absorbs about 30% of ultrasonic energy, and
reduces the cleaning effect. In this case, when using the
basket, please refer to the instruction of "Enhanced
Cleaning" in this manual.
0 WARNING-To reduce the risk of burn or injury to persons
Keep the unit and the
cord away heated sur
faces, and place it on
the dry and level
surface.
Do not disassemble
the unit except for the
authorized technician.
Unplug the unit before
filling. Do not exceed
the"MAX"mark.
Do not touch the
socket with wet hand
to avoid electric shock.
The unit should never
be left unattended
when plugged in.
Do not fill the tank
with abrasives or
corrosive chemicals.
Do not immerse the
unit into water to
avoid electric shock.
Do not use this unit when
sleeping or drowsy, and
do not use outdoors or
operate where aerosol
(spray) products are being
used or where oxygen is
being administered.
Use the unit properly as per its instruction manual. Do not use
attachments not recommended by the manufacturer.
Never operate this unit if cord or plug is damaged. If it is not
working properly, damaged or has been dropped into water, return
the damaged unit to a service centre for examination and repair.
Never drop or insert any object into any opening or hose.
Never block the air openings of the unit or place it on a soft surface, such as a bed
or couch, where the air openings may be blocked. Keep the air openings free of
lint, hair, and the like.
SAVE THESE INSTRUCTIONS

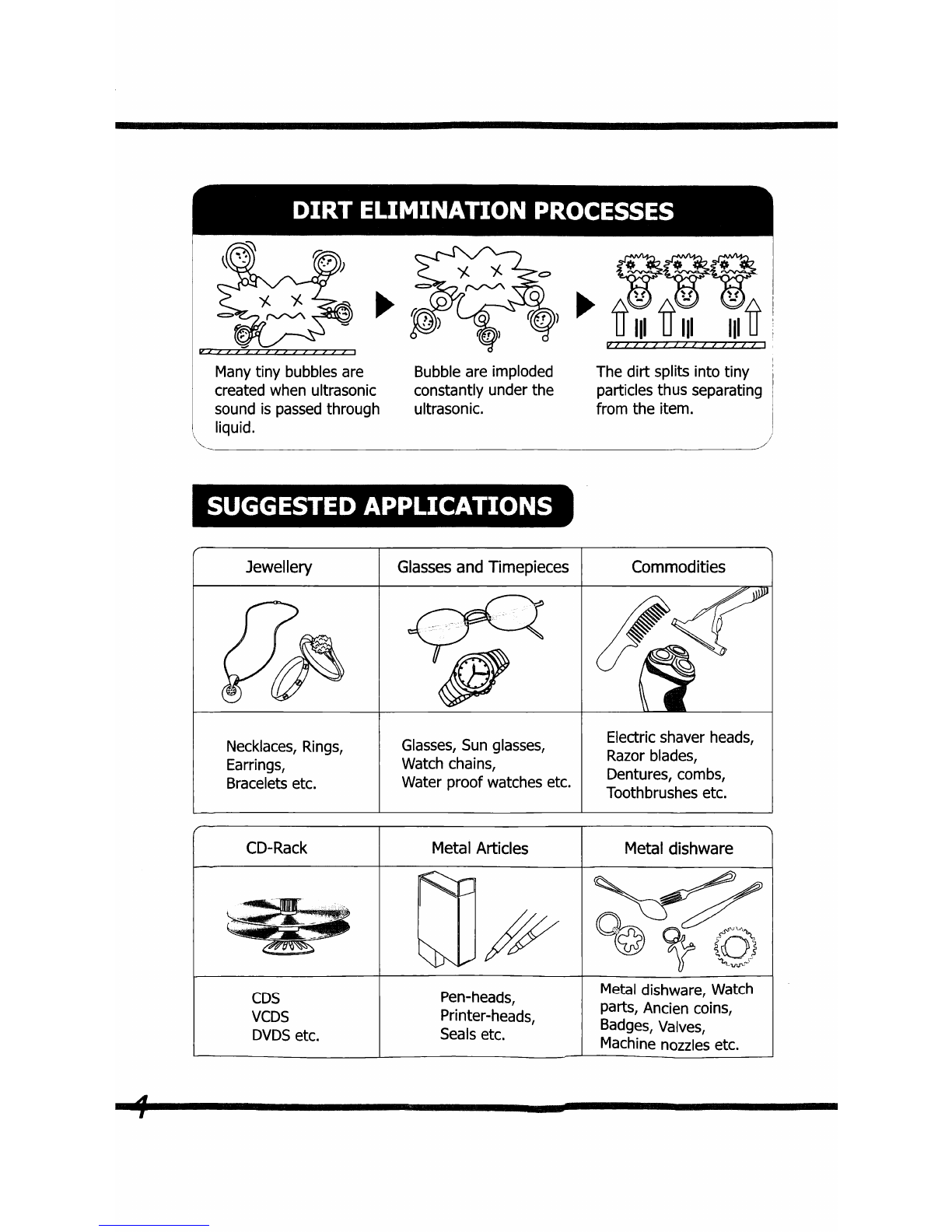

DIRT ELIMINATION PROCESSES
Many tiny bubbles are
created when ultrasonic
sound is passed through
liquid.
Bubble are imploded
constantly under the
ultrasonic.
The dirt splits into tiny
particles thus separating
from the item.
SUGGESTED APPLICATIONS
Jewellery
Glasses and Timepieces Commodities
Necklaces, Rings,
Earrings,
Bracelets etc.
Glasses, Sun glasses,
Watch chains,
Water proof watches etc.
Electric shaver heads,
Razor blades,
Dentures, combs,
Toothbrushes etc.
CD-Rack
Metal Articles Metal dishware
CDS
VCDS
DVDS etc.
Pen-heads,
Printer-heads,
Seals etc.
Metal dishware, Watch
parts, Ancien coins,
Badges, Valves,
Machine nozzles etc.

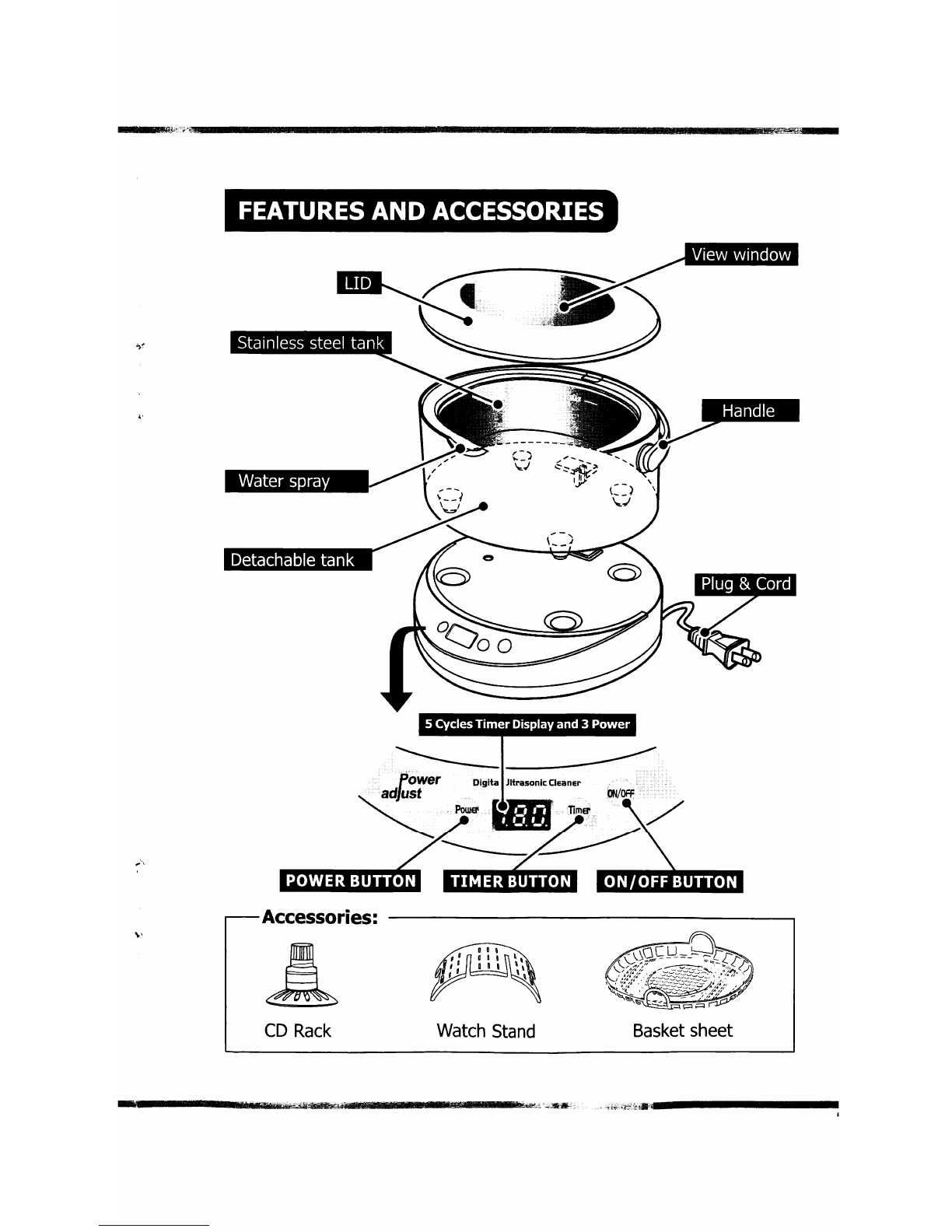

FEATURES AND ACCESSORIES
Digita I Jltrasonic Cleaner
1
Power ISmk] Timer
POWER BUTTON ■ TIMER BUTTON ■ ON/OFF BUTTON
-Accessories:
CD Rack
Watch Stand
Basket sheet

DIRT ELIMINATION PROCESSES
Many tiny bubbles are
created when ultrasonic
sound is passed through
liquid.
Bubble are imploded
constantly under the
ultrasonic.
The dirt splits into tiny
particles thus separating
from the item.
SUGGESTED APPLICATIONS
Jewellery
Glasses and Timepieces Commodities
Necklaces, Rings,
Earrings,
Bracelets etc.
Glasses, Sun glasses,
Watch chains,
Water proof watches etc.
Electric shaver heads,
Razor blades,
Dentures, combs,
Toothbrushes etc.
CD-Rack
Metal Articles Metal dishware
CDS
VCDS
DVDS etc.
Pen-heads,
Printer-heads,
Seals etc.
Metal dishware, Watch
parts, Ancien coins,
Badges, Valves,
Machine nozzles etc.
FEATURES AND ACCESSORIES
Digita I Jltrasonic Cleaner
1
Power ISmk] Timer
POWER BUTTON ■ TIMER BUTTON ■ ON/OFF BUTTON
-Accessories:
CD Rack
Watch Stand
Basket sheet

TWO DIFFERENT WAYS OF CLEANING
GENERAL CLEANING
Only using normal tap water
Put items into tank directly or place the items on basket then
put them into tank together, then fill with tap water. Ensure the
items are submerged in the water but do not exceed the "MAX-"
mark. Press "Power" button to choose the strongest power "03",
and press "Timer" button to choose "380" or "480". Then press
the "On/Off" button to start.
Note: during cleaning, the dirt on the item will come out. It
looks like "smoking", meanwhile the clean water becomes
dirty, until "smoking" disappeared, the item is clean.
PUT A LITTLE LIQUID WASH SOAP TO ENHANCED CLEANING
Use for cleaning the items with too much oiled dirt.
Put items into tank directly or place the items on basket then
put them into tank together and fill with tap water, ensure the
water cover the items but do not exceed the "MAX-" mark.
For heavy soiled items, it is often helpful to add approx.
1 teaspoon of liquid soap (about 4ml). Press "Power" button to
choose the strongest power "03" and press "Timer" button to
choose -»180s -> 280s -► 380s -► 480s -► 90s -*
(normally use 380s or 480s), then press "On/Off" button, the
unit start to work.
a If using liquid soap, rinse the item with tap water when complete or clean
_iA ultrasonically without soap the second time for 90s.
Note: The liquid soap is neutral liquid and very normal for home dishware using, it is "soft"
chemical liquid. Using a little in ultrasonic cleaning, can soft the oiled dirt, to make the oiled
dirt can't condense again on the surface of the item, to enhance result of cleaning.
USAGE OF OPTIONAL ACCESSORIES
BASKET
®
When cleaning small item(s), place the item(s) into basket first
before putting into the tank. In this way, scuffling between the
items and the tank can be reduced.
Note: the basket is only used for cleaning small items,
because it absorbs about 30% of ultrasonic energy, and
reduces the cleaning effect. In this case, when using the
basket, please refer to the instruction of "Enhanced
Cleaning" in this manual.
0 WARNING-To reduce the risk of burn or injury to persons
Keep the unit and the
cord away heated sur
faces, and place it on
the dry and level
surface.
Do not disassemble
the unit except for the
authorized technician.
Unplug the unit before
filling. Do not exceed
the"MAX"mark.
Do not touch the
socket with wet hand
to avoid electric shock.
The unit should never
be left unattended
when plugged in.
Do not fill the tank
with abrasives or
corrosive chemicals.
Do not immerse the
unit into water to
avoid electric shock.
Do not use this unit when
sleeping or drowsy, and
do not use outdoors or
operate where aerosol
(spray) products are being
used or where oxygen is
being administered.
Use the unit properly as per its instruction manual. Do not use
attachments not recommended by the manufacturer.
Never operate this unit if cord or plug is damaged. If it is not
working properly, damaged or has been dropped into water, return
the damaged unit to a service centre for examination and repair.
Never drop or insert any object into any opening or hose.
Never block the air openings of the unit or place it on a soft surface, such as a bed
or couch, where the air openings may be blocked. Keep the air openings free of
lint, hair, and the like.
SAVE THESE INSTRUCTIONS

SAFETY INSTRUCTION: READ ALL INSTRUCTIONS BEFORE USING
DANGER- To reduce the risk of electrocution:
WATCH STAND
G
Unplug this unit
immediately after
using.
Keep the unit in a
safe place to avoid
falling into water or
other liquid.
Do not reach for the
unit that has fallen
into water. Unplug it
immediately.
Do not immerse the
unit into water or
other liquid.
Do not use while
bathing.
Do not place or store
product where it can
to or be pulled into a
tub or sink.
Do not place or drop into water or other liquid.
To avoid damage may caused by high temperature, please shut down the cleaner for no
less than 3 minutes and change the used water after three 480s working circles.
The product may be off or can't be switched off when it is subjected to electromagnetic
interference like Fast Transients or Surge voltage, but it can recover after being
re-plugged in the socket, and then just follow the instruction described in this manual to
set the function again for normal operation.
This appliance is not intended for used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliances by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance....
Any unfirm inlaid item may become loose. Items that are easy to be discoloured are not
recommended for ultrasonic cleaning.
For example: textiles, leather products, wood ware, etc.
Do not put mobile phone or watch which is not waterproof into the tank for cleaning.
Do not put any spectacle frame or art ware which is made from shell or hawksbill into
the tank for cleaning.
Don't use the product if there isn't water in the cleaning tank.
CD RACK
The permeability of ultrasonic is very strong, do not put watch
(of water proofing capability less than 30 metres) into the tank
directly, because water may penetrate into the watch and cause
severe damages. It is recommended to use the watch stand for
watch band cleaning by simply immersing the watch band into
the water while keeping the watch case on top of water.
Note: Similar to Basket, the Watch Stand also absorbs
ultrasonic energy. When the watch stand is used, use
"Enhanced Cleaning" for effective cleaning result.
Put the disk (CDs, VCDs, DVDs) onto the disk holder as shown in
the picture (two disks can be cleaned at one time).
Then put the holder into cleaning tank which is filled with normal
water. Caution:
1. Don't use warm or hot water, as the print mark on the surface
is easily got rid of.
2. The disk can be cleaned whenever it is dirty, but please don't
clean the disk for more than two times continuously, otherwise
the print mark of the disk is easily got rid of. Generally, 90s for
once clean is enough.
3. Ultrasonic can only clean the dirty on the surface of the disk,
please note that the disk which is scratched can't be resumed.
Note: When using cloth to clean the dirty disk, it may scratch its surface. While
using ultrasonic technology can throw off the dirt effectively (within 2 minutes),
and the disk can be protected from scratching.
OPERATION INSTRUCTIONS
Open the lid to make sure the stainless steel tank is clean
before using. If not, Pull the tank out to clean as shown in
the picture.
After cleaning, please push the detachable tank back, As
picture shows.

©.
D
M
Put the item on the basket sheet to protect the friction
between the glasses and stainless steel tank.
Fill the stainless steel tank with plain water. Ensure the "MAX"
marking is not exceeded when immersing the item.
/[\ The Unit would be damaged if it works without water.
Plug the unit in and close the lid.
When the unit is electrified, 180s is displayed auto
matically, it is the most common used working cycle.
Press "Timer" button to choose working cycle freely
Every time press "Timer" button, these optional
working cycles from.
,-► 180s -► 280s -► 380s -» 480s -*90s-|
If you press "Power" button, "02" is displayed automa
tically, it is the most common used power. There are
three optional power for choosing r»02-»> 03-^Ql-i
"03" is the strongest power and "01" is the weakest
power. You can choose power freely every time press
"Power" button.
|[] Press "On/Off" button to start cleaning and the blue
indication light is on. The time left will be displayed on
the screen.
During cleaning, you can hear the "ZIZI" voice, it
means the unit is working normally.
When cleaning is finished ,unplug the unit and open the
lid to take the item out as well as the basket sheet.
INDEX
1 Safety Instructions
2 Dirt elimination processes
3 Suggested Applications
4 Features and Accessories
5 Two different ways of cleaning
6 Usage of optional accessories
7 Operation Instructions
8 Maintenance and Storage
9 Specification

INTRODUCTION
Thank you for buying this ultrasonic cleaner.
Ultrasonic cleaning is a unique phenomenon, Cleaning items
with tap water, Millions of tiny bubbles are created when
ultrasonic sound is passed through liquid. These tiny bubbles
combined with a huge pressure that created incredible cleaning
results.
READ THE USER GUIDE
The ultrasonic cleaners are very easy to use, although to get
the best from your new purchase, we recommend you read
this User Guide before getting down to any cleaning.
It also contains important safety information as well as
practical hints.
Rinse the basket sheet and your glasses with tap water after
cleaning. Wipe dry with a clean dry cloth.
Pull out the tank, clean it with tap water and wipe dry with a
clean dry cloth.
Finally, put the detachable tank back. Wipe dry for next use.
MAINTENANCE AND STORAGE
After use, unplug and pour away the water in the stainless
steel tank.
A Water should not remain in the tank after use.
Remove water after each use.
If unit has been working 3 cycles, it is better to stopover
10 minutes, in order to prolong the using life.
Wipe the unit with a clean dry cloth. Do not use chemicals
to clean your unit.
H The unit should be stored in a cool dry place.
/K Do not use outdoors.
NOTE: Any other servicing should be»performed by an authorized service
* representative or that the product has no user serviceable parts.

SPECIFICATION
DESCRIPTION
MODEL
TIMER SETTINGS
POWER SUPPLY
ULTRASONIC FREQUENCY
MATERIAL OF TANK
DIMENSIONS (LxWxH)
TANK CAPACITY
POWER CORD LENGTH (About)
NET WEIGHT (N.W.)
GROSS WEIGHT (G.W.)
Digital Ultrasonic Cleaner
IVUC96W
IVUC96S
r*180s—280s -*380s— 480s-* 90sn
35W ( AC 100-120V 50Hz )
50W ( AC 220-240V 50Hz )
42000HZ( 42 KHz )
Stainless steel SUS304
200 x 195 x 150 mm
750 ml ( MAX- : 600 ml)
1.5 m
1.25 KGS
1.66 KGS
Ivation. INC. Ridgefield Park. NJ 07660
www.myivation.com
for information please contact
info@myivation. com
IV/ATIOn
Digital Ultrasonic cleaner
• IVUC96W
• IVUC96S
(Detachable Tank)
USER GUIDE
FEATURES:
Detachable stainless steel Tank
More convenient to do the pouring and wiping
Ultrasonic Frequency: 42,000Hz
To make item cleaning more easy and safe only by using
tap water
Digital program, 5 working cycles and Ultrasonic
wave energy is adjust, choose freely
v Read All Instructions Before Using
■ Keep This Manual
