Iwown CS201 Instruction manual

Health and Fitness Watch
CS201

CS201
Einführungsanleitung
Manuel de démarrage rapide
クイックスタート ガ イド
Manual de Inicio Rápido
Quick start manual

Quick start manual
CS201

1. Package Contents
2. How to Operate
2.1 Charge Your Watch
CS201 Watch Quick Start ManualUSB Charging Cable
Properly attach the magnetic charging base to the back of the watch, then plug the
charging cable into a USB port on the computer, charging dock or power bank for
charging.
QUICKSTART MANUAL
CS201

2.2 Operate Your Watch
Short Press
1. Power On
2. Power Off
Long Press
Input current: <0.3A
Input voltage: 5V DC
Charging time: about 2 hours
Note:
1. It is recommended to use the universal 5V/1A charger
with certification mark on the market.
2. Do not use fast charging charger.
Power
Key
Power
Key
1. Wake up the watch
screen.
2. Return to the previous
menu.
3. Pause/Continue the
exercise.
4. Switch screen display.

2.4 Download APP
2.3 Turn on Your Watch
Gestures Instructions
Long press the power key to turn on your watch. If that fails, then please fully charge
the watch first.
The Zeroner Health Pro App is available for iOS in the App Store and for Android in
the Google Play. Please search for "Zeroner Health Pro" to download and install the
App.
Tap the screen
Swipeleft/right
Swipe up/down
Long press the screen
from the home screen
Confirm to use this feature/Enter the sub-interface.
Switch screen display.
Switch screen display.
Change watch face.

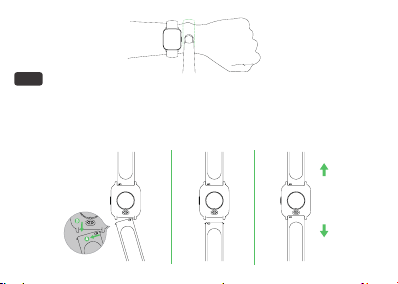

2.6 Wear Your Watch
2.5 Connect Your Watch
After downloading, open the app and register an account, fill in your personal
information (height, weight, date of birth) truthfully, and then complete the connection
according to the operation instructions on app.
Note:
1. In order to connect the watch to your phone successfully, you need to turn on the
Bluetooth of your phone and connect to your device through the app.
2. The Zeroner Health Pro App on the Android phone needs to be given permission to
access your location, otherwise the device may not be searched.
3. The first time you connect to the Zeroner Health Pro App, the date & time on your
phone will be synchronized to the watch, and previous data for steps, calories &
distance on the watch will be cleared.
1. For optimized tracking of the measured values, we recommend wearing the
device with one finger's width below your wrist bone.
2. Please make sure the device is fairly snug against your skin and does not slide up
or down your wrist during exercise.

2.7 Replace the Strap
Please choose the strap with a width of 20mm if you want to replace it.
1. Remove the strap from the watch by sliding the snap lock on the strap.
2. Align the new strap with the watch and buckle the strap in.
3. Pull the strap lightly to make sure it is buckled in the watch.

3. Main Features
3.1 Heart Rate Monitor
Note: The light signal transmission might be blocked if your skin is too dark or
with excessive hair; or improper wearing also may lead to measurement failure.
Built-in PPG heart rate sensor coupled with HR algorithm, the watch can accurately
monitor your heart rate during wearing.
1. The watch can monitor your 24-hour real-time heart rate, you can choose to turn
on or off this function.
2. You can set the upper and lower limit of heart rate on the Zeroner Health Pro App.
If your heart rate is lower than the lower limit or higher than the upper limit during
exercise, the watch will remind you.
3. Heart rate data can be synchronized to the Apple Health.
4. Five heart rate zones display during exercise: all detailed data can be viewed after
connecting and syncing to the app.

3.2 Stress Measurement
Note:
1. Keep quiet and just sit in one position during the measurement.
2. It is better to measure at the same period of time for comparison. It is recommended
to test in quiet condition, for example, every morning after getting up.
The watch can monitor your stress levels and your physical condition. According to
the monitored results, you can reasonably adjust the training intensity & duration to
prevent sports injuries.
1. Wear the watch on your wrist correctly and swipe left or right from the home
screen to find “Stress”, tap it to measure. The result will be shown on the watch
after finishing the measurement. The higher the score, the more stress you have.
2. Historical data can be viewed after synchronizing your watch with the app.
Compare the measured data at different stages to assess your physical condition.
3.3 Swimming Recorder
There are two swimming modes on CS201 watch: free mode (Open Water) and pool
mode.
1. The watch can record swimming distance, SWOLF, stroke data, average pace and
other data.
2. Stop exercise: press the right button once to enter pause interface, then long
press the right button to stop swimming.

3. Switch display data: long press the right key to switch the display data under
swimming mode.
3.4 Sleep Monitor
When you wear the watch to sleep in the evening, you can check your sleep data
monitored on the App after you get up in the morning. The watch goes into sleep
monitoring from 8:00pm to 9:00am the next day.
Note:
1. CS201 is only used for swimming. If wearing for diving, it may cause damage to
the device. Such damage is not within the scope of warranty.
2. CS201 cannot monitor your heart rate during swimming.
3. Under the swimming mode, the touch function is automatically closed.
4. In the pool mode, please set the distance of the swimming pool correctly so as
to calculate the distance and other data accurately. If the swimming distance is
less than one lap, then the distance can not be calculated.
5. The average number of SWOLF = strokes per length + the time for the length.
Note:
1. The sleep monitoring will be stopped after you get up and move for 5-10 minutes.
2. The watch does not record daytime sleep data.

4. More Information
4.1 Water Resistance Instructions
Water resistant rating: IP68
The water resistant performance of the device is not permanently valid, it may
diminish as time passes. The device can be used during washing hands, swimming
in the shallow water or in rainy days, but not support hot water shower, diving,
surfing, etc. It does not have waterproof effect on corrosive liquids such as seawater,
acidic and alkaline solutions, and chemical reagents. If you inadvertently encounter
corrosive liquid, please clean with clear water and wipe it dry. The damage caused
by abuse or improper use is not covered by the warranty.
The following conditions may affect the water resistant performance, and should
be avoided when using:
1. The watch falls, bumps, or suffers from other impacts.
2. The watch is exposed to soap water, shower gel, detergent, perfume, lotion, oil,
etc.
3. Hot and humid scenes such as hot baths and saunas.

10-15 days (receive an average of 50 messages & 5 calls per
day; raise your wrist to activate screen up 50 times; exercise for
half an hour per day; turn on 24-hour automatic heart rate
monitoring.)
Physical size Adjustable strap
Resolution ratio
Battery life
Screen type
Weight
Battery capacity
Working temperature
49×37×13.7MM 150mm-250mm
240×240 pixels
1.3 inch TFT color
square display
About 45g
170mAh Li-Polymer battery
0-40℃
4.2 Specifications
4.3 Firmware Upgrade
1. Firmware Upgrade
When there is an new firmware version, there will be a notification in the app. Go
to the “Device” interface of the app and select firmware upgrade.

5. Device Maintenance
5.1 Device Care
2. Upgrade Failed
Wait for the watch to restart automatically if upgrade fails. Then reconnect your
watch to the app for upgrading again.
Note:
（1）Make sure that the battery level is more than 50% before upgrading.
（2）During the upgrade process, you can not quit halfway if the progress bar moves,
keep the screen of your phone bright, and only when the upgrade is completed can
you exit the interface. Otherwise, the upgrade will fail.
1. Do not use a sharp object to clean the device.
2. Avoid using solvents, chemical cleaners or insect repellents that might damage
plastic components of the device.
3. Thoroughly rinse the device with fresh water after exposure to chlorine, salt
water, sunscreen, cosmetics, alcohol or other harsh chemicals to avoid damage to
the device.
4. Avoid pressing the key on the device while it is under water.

6. Important Safety Tips
（1） If you have a pacemaker or other internal electronic device in your body, consult
your physical condition before using a heart rate monitor.
（2） The inside optical heart rate monitor will occasionally emit green light and the light
flashes. Consult your physician if you are sensitive to flashing light or have epilepsy.
（3） Always consult your physician before beginning or modifying any exercise program.
5.2 Clean Your Watch
5. Avoid extreme shock and harsh treatment since it can reduce the product life.
6. Do not exposure to extremely high or low temperatures for a long time, which
can cause permanent damage.
7. After each training, please rinse the watch with clean water.
1. Gently wipe the device by using a flannelette with a neutral mild detergent;
2. Wait for dry.
Note: Even the fainter sweat or moisture may cause the corrosion of the charging
terminal when charging the device, which will also hinder the transmission of data
and affect the charging.

（4） The device, accessories, heart rate monitor and related data are intended to be
used only for exercise monitoring not for medical purposes.
（5） The heart rate data are for reference only, and no liability is accepted for the
consequences of any wrong interpretation.
（6） Do not expose the watch to a heat source or in a high-temperature location, for
example, in an unattended car in the sun. To prevent the possibility of damage, take
out the device from the car or store it out of direct sunlight.
（7） If you want to store the watch for a long time, please place it within the
temperature ranges specified in this manual.
（8） It is recommended to use the universal 5V/1A charger with certification mark on
the market. Do not use fast charging charger.

Einführungsanleitung
CS201

1. Versandliste
2. Gerätsbenutzung
2.1 Batterieaufladung
Armbanduhr EinführungsanleitungAnschlusskabel
Adsorbieren Sie das in der Verpackung begleitende magnetische Anschlusskabel
richtig auf die Rückseite der Armbanduhr. Und stecken Sie das USB Anschlusskabel
im Computer, in dem Ladebasis oder in Aufladbarer Schatz zur Aufladung ein.
Einführungsanleitung
CS200

2.2 Bedienungsanleitung
Kurz drücken
1. Einschalten
2. Ausschalten
Lange drücken
Eingangsstrom: <0.3A
Ladespannung: 5V DC
Ladezeit: ca. 2 Stunden.
Achtung:
1. Es wird empfohlen, das universelle 5V /1A Ladegerät
mit Zertifizierungszeichen auf dem Markt zu
verwenden.
2. Die Benutzung von Schnellladegeräten ist verboten.
Ein/
Ausschalter
Ein/
Ausschalter
1. Klicken und aufhellen
den Bildschirm
2. Rückkehr
3. Anhalten/weiter
Bewegen
4. Bildschirm umschalten

2.4 APP herunterladen
2.3 Einschalten
2.5 Verbindung
Gestenbeschreibung
Nach dem Herunterladen, bitte APP öffnen, ein Konto registrieren, und füllen Sie
die richtige persönliche Daten (Größe, Gewicht, Geburtsdatum). Nach der
Bedienungsanleitung die Verbindung fertig machen.
Einschaltungstaste lange drücken zum Einschalten. Wenn es nicht ausschalten
während dem lange Drücken kann, laden Sie bitte zuerst die Uhr auf.
Suchen Sie im App Store nach Zeroner Health Pro APP
oder scannen Sie den unten stehenden QR-Code.
Klicken Sie den Bildschirm
Schieben Sie den Bildschirm
nach links und rechts
Schieben Sie den Bildschirm
nach oben und unten
Klicken Sie den
Hauptbildschirm lange
Verwenden Sie diese Funktion\Zur nächsten Funktion gehen
Wechseln Sie den bildschirm horizontal
Rutschen Sie den bildschirm auf- und ab
Wechseln Sie die Zifferblattsseite
