IXOM Medora SolarBee SB500PWc User manual

© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
O&M_SB500PWc_10316_20210309a
SolarBee SB500PWc
Owner's Manual

Table of Contents
About Ixom
Ixom combines knowledge and experience from across the water quality spectrum to help solve
real-world problems. Whether in Lakes, Stormwater Retention Ponds, Raw Drinking-Source Reservoirs, Water
Treatment Plants, Potable Storage Tanks, or Wastewater Treatment Processes, Ixom equipment continues to
be at the forefront as the #1 world leader for in-situ water body treatment.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Table of Contents
10014_20200528
SolarBee SB500PWc
Owner's Manual
Safety 1
Operation 4
Frame Assembly 5
Low Profile Stand Assembly 8
Features 14
Maintenance 22
Electrical 31
Troubleshooting 34
Parts Diagram 37
Dimension Drawing 38
Appendix 39
Technical Specifications 40
Warranty 52
Customer Service 53
O&M_SB500PWc_10316_20210309a

Carefully read safety information when you see
any safety symbols.
Be sure you have read all installation, operation, maintenance and safety instructions before
you install, service or begin to operate this unit.
Accidents occur every year because of careless use of industrial equipment. You can avoid hazards
by following these safety instructions, and applying some ordinary common sense when operating or
servicing this unit.
Keep in mind that full operator attention and alertness are required when operating or servicing
this unit.
USE COMMON SENSE!! Most accidents can be avoided by using common sense and
concentration on the job being done.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Safety
Safety
1949_10036_20200528 O&M_SB500PWc_10316_20210309a - 1

IMPORTANT!!!
Follow all federal and state laws in regards to
safety regulations of working at heights, conned
spaces, rescue, etc. as required by the U.S.
Department of Labor, Occupational Safety and
Health Administration. Use necessary PPE when
placing and servicing this unit.
Identify all possible hazards. Determine what
safeguards are needed and implement them.
Only you, the user, understand your product
and system characteristics fully. The ultimate
responsibility for safety is with you. Your
safety ultimately rests in your hands. Do
your part and you will enjoy safe, trouble free
operation for years to come. This instruction
manual is not intended to include a
comprehensive listing of all details for all
procedures required for placement, operation
and maintenance. If you have a question about
a procedure or are uncertain about any detail,
Do Not Proceed. Please contact Ixom
Customer Service at 866-437-8076 to speak
to a representative.
ELECTRICAL HAZARD
WARNING: THIS EQUIPMENT CONTAINS
HIGH VOLTAGE! ELECTRICAL SHOCK CAN
CAUSE SERIOUS OR FATAL INJURY. ONLY
QUALIFIED PERSONNEL SHOULD ATTEMPT
PLACEMENT, OPERATION AND MAINTENANCE
OF ELECTRICAL EQUIPMENT. REMOVE ALL
SOURCES OF ELECTRICAL POWER BEFORE
PERFORMING ANY SERVICE WORK TO THE
MACHINE. USE PROPER LOCKOUT TAGOUT
(LOTO) PROCEDURES TO ENSURE A SAFE
WORK ENVIRONMENT.
Rotating Hazard
CAUTION: KEEP BODY APPENANDAGES OR
LOOSE CLOTHING AWAY FROM EQUIPMENT
WHILE OPERATING. ENSURE EQUIPMENT IS
OFF BEFORE ATTEMPTING SERVICE.
Crush Hazard
WARNING: DO NOT REMOVE ANY FLOAT
ASSEMBLY BOLTS OR PINS WHILE EQUIPMENT
IS FLOATING IN WATER. EQUIPMENT MUST BE
SECURELY SUPPORTED BEFORE PERFORMING
SERVICE.
Laceration Hazard
CAUTION: EDGES MAY BE SHARP AND CAUSE
LACERATION IF PROPER CARE IS NOT USED.
Entanglement Hazard
WARNING: ENSURE THAT PERSONNEL ARE
CLEAR OF THE ELECTRIC CORD AND CHAIN TO
AVOID ENTANGLEMENT.
Thin Ice Hazard
WARNING: ICE SURROUNDING MACHINE MAY
NOT SUPPORT WEIGHT, KEEP CLEAR OF THIN
ICE.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Safety
Safety
1949_10036_20200528 O&M_SB500PWc_10316_20210309a - 2

Permit-Required
Conned Spaces
A conned space has limited openings for
entry or exit, is large enough for entering and
working, and is not designed for continuous
worker occupancy. Conned spaces include
underground reservoirs, ground storage tanks,
elevated tanks, silos, manholes, and pipelines.
Conned Space Tips
• Do not enter permit-required conned spaces
without being trained and without having a
permit to enter.
• Review, understand and follow employer’s
procedures before entering permit-required
conned spaces and know how and when
to exit.
• Before entry, identify any physical hazards.
• Before and during entry, test and monitor for
oxygen content, ammability, toxicity or
explosive hazards as necessary.
• Use fall protection, rescue, air monitoring,
ventilation, lighting and communication
equipment according to entry procedures.
• Maintain contact at all times with a trained
attendant either visually, via phone, or by
two-way radio. This monitoring system
enables the attendant and entry supervisor
to order you to evacuate and to alert
appropriately trained rescue personnel to
rescue entrants when needed.
Refer to 29 CFR 1910.146 for complete
regulations set by OSHA. Refer to your state's
regulations if your state established and operates
their own safety and health programs approved
by OSHA.
Protect Yourself
It is important that you comply with all relative
OSHA and local regulations while installing
and performing any maintenance to the mixer
circulation equipment.
Key OSHA Compliance Standards that must
be followed (and not limited to) are:
• 1910.146 Permit-required conned spaces
• 1910.147 Lockout/Tagout
• 1926.500 Fall Protection
Fall Protection Tips
• Identify all potential tripping and fall hazards
before work starts.
• Look for fall hazards such as unprotected
oor openings/edges, shafts, open hatches,
stairwells, and roof openings/edges.
• Inspect fall protection and rescue equipment
for defects before use.
• Select, wear, and use fall protection and
rescue equipment appropriate for the task.
• Secure and stabilize all ladders before
climbing.
• Never stand on the top rung/step of a ladder.
• Use handrails when you go up or down stairs.
• Practice good housekeeping. Keep cords,
welding leads and air hoses out of walkways
or adjacent work areas.
Refer to 29 CFR 1926.500 for complete
regulations set by OSHA. Refer to your state's
regulations if your state established and operates
their own safety and health programs approved by
OSHA.
Lockout Tagout
When the On/Off switch is in the "ON" position,
the mixer may start up at any time if not already
operating. The mixer's On/Off switch can be
locked out by placing a pad lock thru the door latch
of the controller after the switch has been turned
to the "OFF" position. The On/Off switch is to be
used as the emergency stop.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Safety
Safety
1949_10036_20200528 O&M_SB500PWc_10316_20210309a - 3

The SolarBee is designed to circulate water
by bringing water from below and sending it
out across the top in a thin layer causing a
mixing effect. The laminar layer ows outward
radially, in diverging “stream lines” from the
distribution dish. As it does, vertical ow is
induced in between the water being drawn
below and the water above. At the level of the
ow intake, water is drawn from all corners of
the tank. As this lower layer of uid makes its
way inward with converging streamlines to the
SolarBee, the water is forced upward, toward
the surface, providing gentle mixing and
de-stratication.
The SolarBee obtains all the energy it needs
from the sun. Its solar panels provide power
to the onboard battery which energizes the
drive system’s controls and motor. Excess
solar energy is stored during the day and
used during the night allowing the SolarBee
to operate during the night without being
connected to the grid.
During operation, a visible ow can be
observed coming off the distributor dish
and spreading outward. The impeller of the
SolarBee is designed to operate at full speed
when there is sufcient sunlight and battery
charge. The rpms may drop down some
during the later night and early morning when
the battery uses up its charge after a longer
period of overcast days. In severe sunlight
limited conditions, the machine may slow
down or stop temporarily to protect the battery
from damage.
SolarBee Series Flow Model
Flow Coming Off Distribution Dish
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Operation
Operation
SB Series
10199_20200220 O&M_SB500PWc_10316_20210309a - 4

STEP 1: Locate the Dish Assembly, Floats and Float Arms. (See Figure 1 & 2)
STEP 2: Attach the Floats to the Float Arms. (See Figure 3)
STEP 3: Attach the Float Arm Assembly to the Dish Assembly with provided bolts and nylock nuts.
(See Figure 4 & 5)
STEP 4: Repeat STEPS 1 through 3 for the other two oats.
IMPORTANT! The following pages give detailed instructions on how to assemble different portions of the
machine; however, the order in which the components are assembled and entered into the reservoir may
need to be altered based on the hatch size and whether the reservoir will be full or empty. For instance, the
hose assembly to the base of the machine can be performed on the reservoir exterior prior to lowering the
equipment inside if the hatch has a clear opening of at least 24 inch diameter (60cm). A hatch this size or
larger will allow the SB500PWc collapsible unit assembly to be installed without requiring oat disassembly.
For smaller hatches, the SB500PWc collapsible unit assembly will need to be broken down into multiple
components and the hose assembly will need to be performed inside the reservoir. The following order of
operations listed is based on a wet installation and small hatch opening. The oat arm assembly is
pre-attached at the factory.
Fig 1: Dish Assembly Fig 3: Float Arm Assembly
Fig 4: Attaching Float Arm Assembly Fig 5: Detailed View with Float Attached
Fig 2: Float and Float Arms
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Small Frame Assembly
SB500PWc
SB500PWc Assembly
Assembly Diagram
10315_20200220 O&M_SB500PWc_10316_20210309a - 5

STEP 1: Locate one end of the hose section and place hose clamp over the end. Be sure that hose and
clamp are installed above the metal rib of the ange and then tighten hose clamp as tight as possible
to rmly secure hose. (See Figure 6)
STEP 2: Fasten Hose to bottom of machine by pushing hose up and all the way up above metal rib.
(See Figure 7)
STEP 3: Locate end of the Hose Section opposite of the machine and insert the 6” Tube for 6” Hose Intake
inside the end of the hose until approximately ush as shown. (See Figure 8)
STEP 4: Insert a 6” Hose Clamp and insert the end through one of the two small at slots with Hose Clamp on
top of the Torque Bar as shown. Either slot will work ne. (See Figure 9)
Fig 8: Inner Hose Tube for Intake
Fig 6: Attaching Hose to Frame
Fig 9: Torque Bar Closed with Hose Clamp
DISH AND FLOAT
ARM ASSEMBLY
HOSE
HOSE CLAMP
Fig 7: Hose Attached to Frame
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Small Frame Assembly
SB500PWc
SB500PWc Assembly
Assembly Diagram
10315_20200220 O&M_SB500PWc_10316_20210309a - 6

STEP 1: Position the end of the hose so that the clamp is centered over the 6” Hose Intake Tube. Secure the
torque bar to the hose by tightening the hose clamp using a 5/16" nut driver. (See Figure 10)
STEP 2: Leave the Torque Bar in the folded position ready for entry through the hatch.
STEP 3: Lower the folded Torque Bar Assembly and Hose through the hatch to the entrant. The entrant then
needs to expand Torque Bar into the fully opened position, and install an M8 x 45mm bolt and nylock
nut through the torque bar tab to secure the torque bar in the open position. (See Figure 11)
MACHINE FULLY ASSEMBLED
Fig 10: Hose Clamped to Torque Bar
Fig 11: Torque Bar Fully Opened
(Hose End Not Shown)
M8 X 45MM
BOLT & NUT
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Small Frame Assembly
SB500PWc
SB500PWc Assembly
Assembly Diagram
10315_20200220 O&M_SB500PWc_10316_20210309a - 7

Base Assembly and Pipe Clamp
Attachment to Ground Pipe Leveling Feet and Side Panel Installation
Battery and Control Box Installation Access Panel Installation
Control
Box
Battery
4” Pipe
Assembly
Battery
Tray
Access
Panels
Hinges
Crossbar
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]

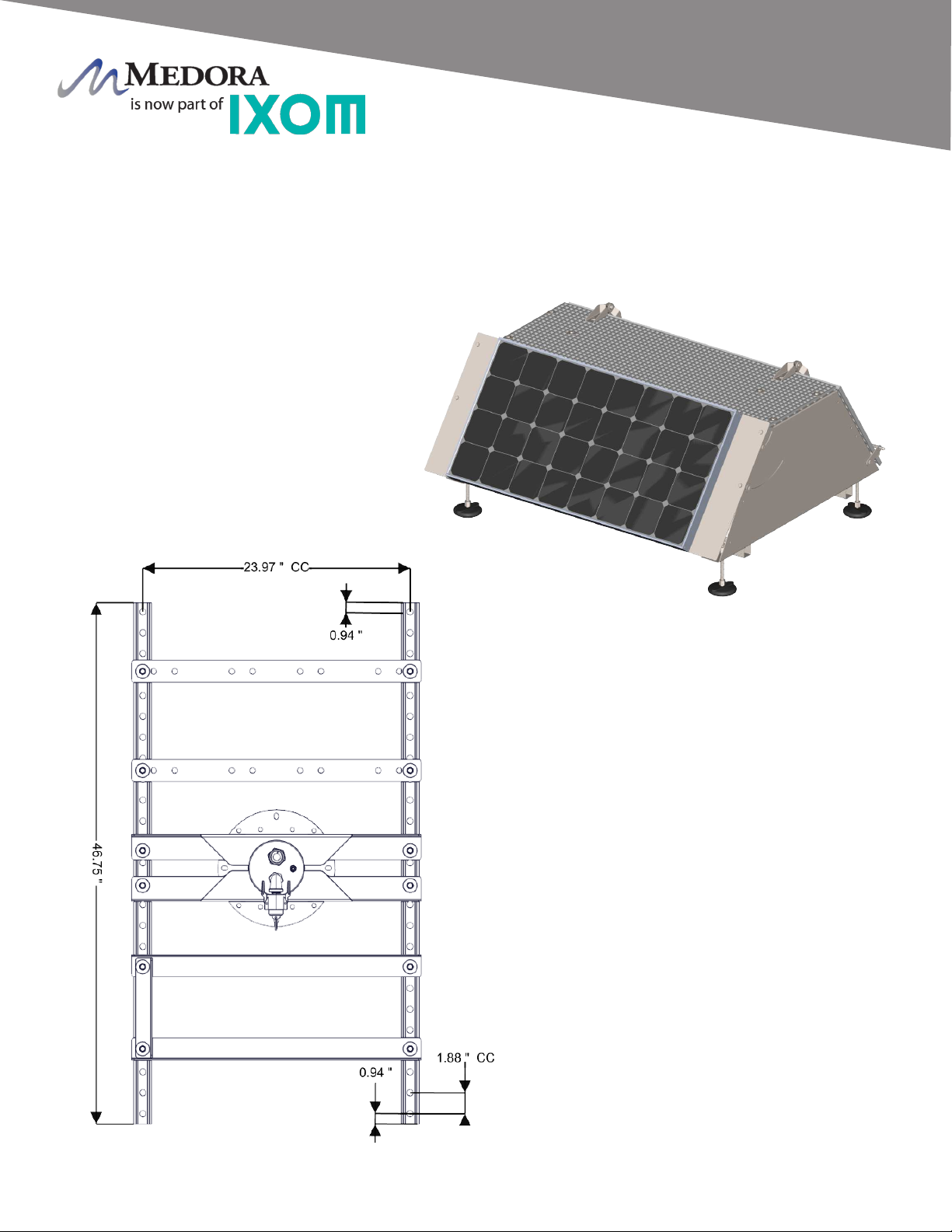

Low Profile Stand
Assembly Diagram
Low Profile Stand Assembly
2194_10313_20200701 O&M_SB500PWc_10316_20210309a - 8

PV Adjustment
Brackets
Attaching Brackets to Single Solar Panel
PV Adjustment
Brackets
Attaching Brackets to Double Solar Panel
PV Wedge Angle Bracket
Triple Solar Panel Assembly
Dual PV
Brackets
Attaching Single Solar Panel
Attaching Dual Solar Panel
Attaching Triple Solar Panel
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Low Profile Stand
Assembly Diagram
Low Profile Stand Assembly
2194_10313_20200701 O&M_SB500PWc_10316_20210309a - 9

© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Low Profile Stand
Assembly Diagram
Low Profile Stand Assembly
2194_10313_20200701 O&M_SB500PWc_10316_20210309a - 10

Panel #1 1 Panel 2 Panel 3 Panel
Approximate
Weight 290 lbs 300 lbs 310 lbs
X” 52” 52” 63”
Y” 43” 44” 60”
Z” 24” 41” 27”
4 Inch Pipe Assembly Detail
4 Inch Stainless Coupling Detail
SS Cord Grip: Electrical
and Chemical Injection Lines
4” PVC Pipe Cap
with Set Screw
4” NPT SCH40 T316SS Pipe
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Low Profile Stand
Assembly Diagram
Low Profile Stand Assembly
2194_10313_20200701 O&M_SB500PWc_10316_20210309a - 11

Figure 1: Outside Tank Bolt Installation
Figure 2: Inside Tank Bolt, Gasket and Flange Installation
Sheet Roof
Structure with Penetration
Hole and Bolt Holes
4” Coupling Flange Assembly
with Lexel Sealant
(See Inset A for
placement of Sealant)
Sheet Roof
Structure with Penetration
Hole and Bolt Holes
Rubber Gasket
with Lexel Sealant
(See Inset B for
placement of Sealant)
Fender Washer with
Lexel Sealant
M8 Nylock Nut
Fender Washer M8 Bolt
Inset A
Inset B
*** NOT DESIGNED AS A
SUBMERSIBLE PENETRATION ***
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Integration
4" Coupling Flange Assembly
For Steel Roof Systems
1957_10046_20200528 O&M_SB500PWc_10316_20210309a - 12

T316 SS FLANGE PENETRATION: 4” COUPLING
FLANGE ASSEMBLY
TANK PENETRATION IS SEALED WITH
PVC GASKET ACCOMPANIED BY
LEXEL® CO-POLYMER RUBBER-BASED SEALANT
1 FLANGE PER MACHINE:
BOLT PATTERN: STD 4” 150LB FLANGE
STD 6” 150LB FLANGE
GASKET OD: 5.350”
BORE REQUIRED OD: 4.125”
BOLT HOLE OD: 0.346”
Figure 4: Bolt View Inside Tank
Figure 3: Flange Bolt Pattern Outside Tank
ASME 4” 150# Hole Pattern (ø OD 0.346)
ASME 6” 150# Hole Pattern (ø OD 0.346)
Bore Hole Center
(ø OD 4.125)
Gasket
(ø OD 5.350)
1 FLANGE PER MACHINE
Fender Washer with
Lexel Sealant M8 Nylock Nut
Rubber Gasket
with Lexel Sealant
Procedural Steps
1. Use Coupling Flange as a template for center hole and at least
6 bolt holes and mark on roof.
2. Make sure to not drill into interior structural beams. Pick a clear
location to place the ange.
3. Mark and then cut holes, catch and collect lings.
4. Make sure all holes that have been cut are coated in
Lexel sealant.
2.000"
[51mm]
ø10.500"
[267mm]
Figure 5: Side Cutaway View of Completed Installation
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Integration
4" Coupling Flange Assembly
For Steel Roof Systems
1957_10046_20200528 O&M_SB500PWc_10316_20210309a - 13

The SolarBee with technology includes new features
which enhance its performance through more e󰀩cient
and durable components, improved operation
monitoring capablilities, easy component access, and a
robust frame structure.
Solar / Electronics
Photovoltaic (PV) Modules -The PV modules are
often referred to as the solar panels. The SolarBee
uses 100% solar energy to provide day/night operation.
The PV modules collect solar power to operate the
machine with excess left over to charge an onboard
12-volt, deep cycle battery. The SolarBee has an
80-watt PV modules which individually connect to the
digital controller. A bird deterrent is located directly
above the PV modules to prevent bird fouling.
The PV module is generally placed on a low prole
structure which encloses the controller and battery.
The PV module is positioned so it faces the direction of
best sunlight.
The low prole solar panel stand o󰀨ers additional
protection by providing shading while also allowing
ventilation. Keeping the temperature down inside the
digital controller and the battery at a lower temperature
which extends the life of the battery and electronics.
Deep Cycle Battery - The deep cycle battery stores
excess power from the PV module during the day and
operates the machine using the stored power during
the night and extremely overcast days.
Low Prole Stand
Interior of Low Prole Stand
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB500PWc
10230_20210303 O&M_SB500PWc_10316_20210309a - 14

Digital Controller - The digital controller is located
inside the the low prole solar panel stand. The
digital controller operates and monitors the SolarBee.
The digital controller is programmed with application
specic run schedule, fallback rpm, and battery charge
settings. The SolarBee's Design and Application
Engineering groups are constantly reviewing the
program to optimize operation. The digital controller
can be updated with a new program (rmware) using
a SD (Secure Digital) Card, similar to that of a digital
camera's memory stick.
All solar energy collection and motor operation are
managed by the digital controller. This component
has two primary functions: (1) To direct and divide the
power being collected by the PV module(s) between
the brushless motor and battery. (2) To serve as the
main control center that operates the brushless motor.
There are 3 PV module connections located on the
front face of the digital controller. If the supplemental
AC power accessory was purchased, a connection will
be located on the right side face. The supplemental
power connection is used only in applications where
AC grid power is desired.
The left side face of the digital controller contains the
brushless motor connection, battery connection, and
On/O󰀨 switch. The On/O󰀨 switch activates power
to the motor. When the switch is turned to the O󰀨
position, the motor will not operate. The charging
function of the controller will continue to charge the
battery even when the switch is turned o󰀨.
SCADA outputs o󰀨ering machine operation parameters
reside within the digital controller. Please contact
SolarBee if you are interested in receiving these
parameters.
Front Face Of Digital Controller
Left Side Face Of Digital Controller
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB500PWc
10230_20210303 O&M_SB500PWc_10316_20210309a - 15

Motor Controller - The motor controller is located near
the motor just below the top plate of the SolarBee. The
motor controller is sealed in line with the electrical cord
that runs to the brushless motor.
The motor controller on the SolarBee receives power
and signals from the digital controller located inside the
low prole stand. These signals are used to operate
the brushless motor at the commanded speed. The
motor controller also sends feedback signals back up
to the digital controller.
Due to the high frequency of communication between
the motor controller and brushless motor, the two
components need to be located close to one another.
This is the primary reason for having the motor
controller located directly on the SolarBee.
All electronic connections on the SolarBee equipment
should only be used for the inputs or outputs that
they are labeled and designed for. If any of the leads
going into the digital controller are disconnected, be
sure when re-connecting to place them in the proper
position, following the proper power up/power down
procedures.
Wiring - All electric wiring includes corrosion-resistant,
industrial cords with molded, weather and watertight
connectors. The connectors are indexed to prevent
improper wiring. A general electrical schematic can
be found in the Maintenance and Field Adjustment
section.

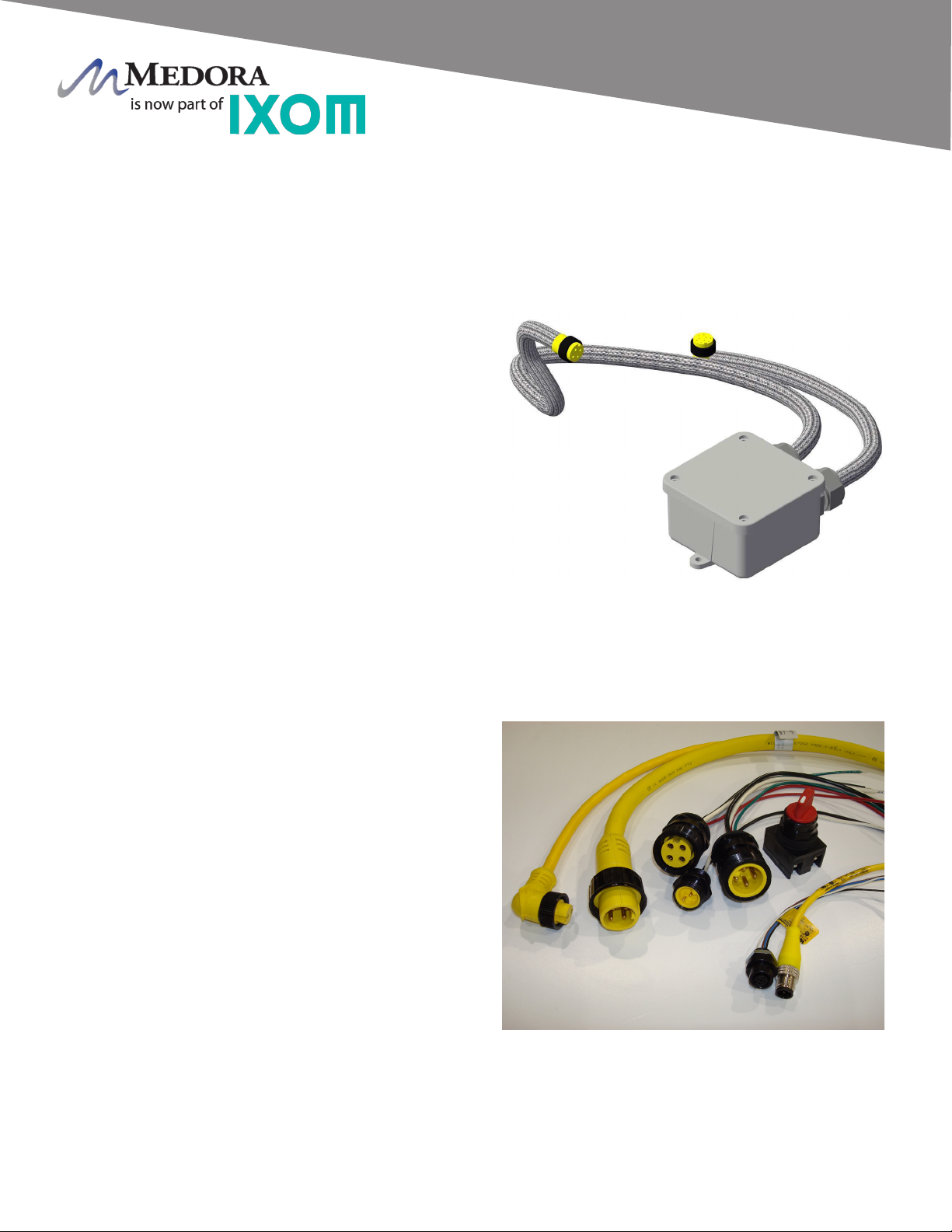

Motor Control Cord
Durable Wiring And Connectors
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB500PWc
10230_20210303 O&M_SB500PWc_10316_20210309a - 16

Brushless Motor / Impeller
Brushless Motor - The brushless motor is located
directly below the Top Deck. 4 bolts run down through
the Top Deck and into the housing of the brushless
motor fastening it onto the machine.
The brushless motor is built to be very durable. The
housing is constructed of casted aluminum. The
brushless motor runs very quietly and smoothly. It
does not require any maintenance. A drive shaft
extends through the bottom center of the housing.
Shaft Coupling - The shaft coupling connects the
brushless motor drive shaft to the impeller shaft. The
shaft coupling is located directly below the brushless
motor.
The rotating assembly (motor, shaft coupling, impeller
shaft, impeller) can be removed from the machine
without disconnecting the shaft coupling.
Brushless Motor
Brushless Motor With Shaft Coupling Attached
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB500PWc
10230_20210303 O&M_SB500PWc_10316_20210309a - 17

Impeller Assembly - The rotating assembly is made
up of the stainless steel impeller shaft, stainless steel
ag indicator, and stainless steel impeller blades. The
impeller assembly can be removed by pulling on the
top plate.
CAUTION: KEEP BODY APPENDAGES OR
LOOSE CLOTHING AWAY FROM THE IMPELLER
ASSEMBLY WHILE THE MACHINE IS OPERATING!
IF MAINTENANCE IS REQUIRED, BE SURE TO
TURN THE SOLARBEE OFF FIRST!
The ag indicator is xed to the shaft and used as a
visual indicator of the impeller shaft's rotational speed.
The impeller blades are welded to a hub that is
fastened to the impeller shaft. The impeller is designed
to gently pump water from below and can handle up to
7.6cm (3-inch) spherical solids.
The impeller bushing is a smooth collar that the
impeller shaft tip ts into. The impeller bushing aligns
and centers the impeller shaft within the machine.
Turn SolarBee O󰀨 Before Performing Maintenance
Flag Indicator
Impeller Blades
Impeller Hub
SB500PWc Impeller Assembly
Top Plate
Impeller
Bushing
U-Joint
Shaft
Coupling
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB500PWc
10230_20210303 O&M_SB500PWc_10316_20210309a - 18
