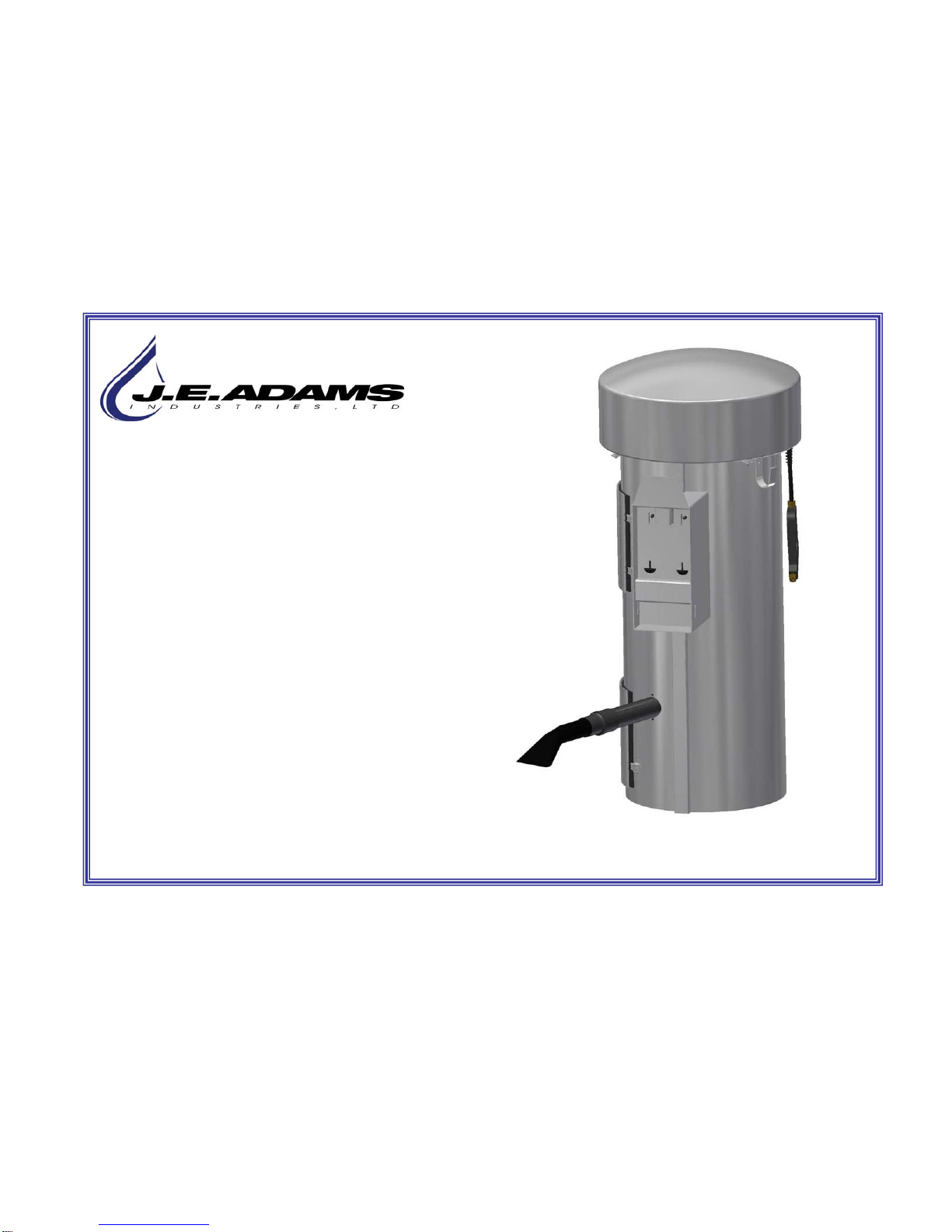

J.E. Adams 9730 User manual

REV 4-9-121
Models- 9730 Vacuum & Water Machine
Page 2 Product Information
Page 3 Specifications
Page 4 Important Safety Instructions

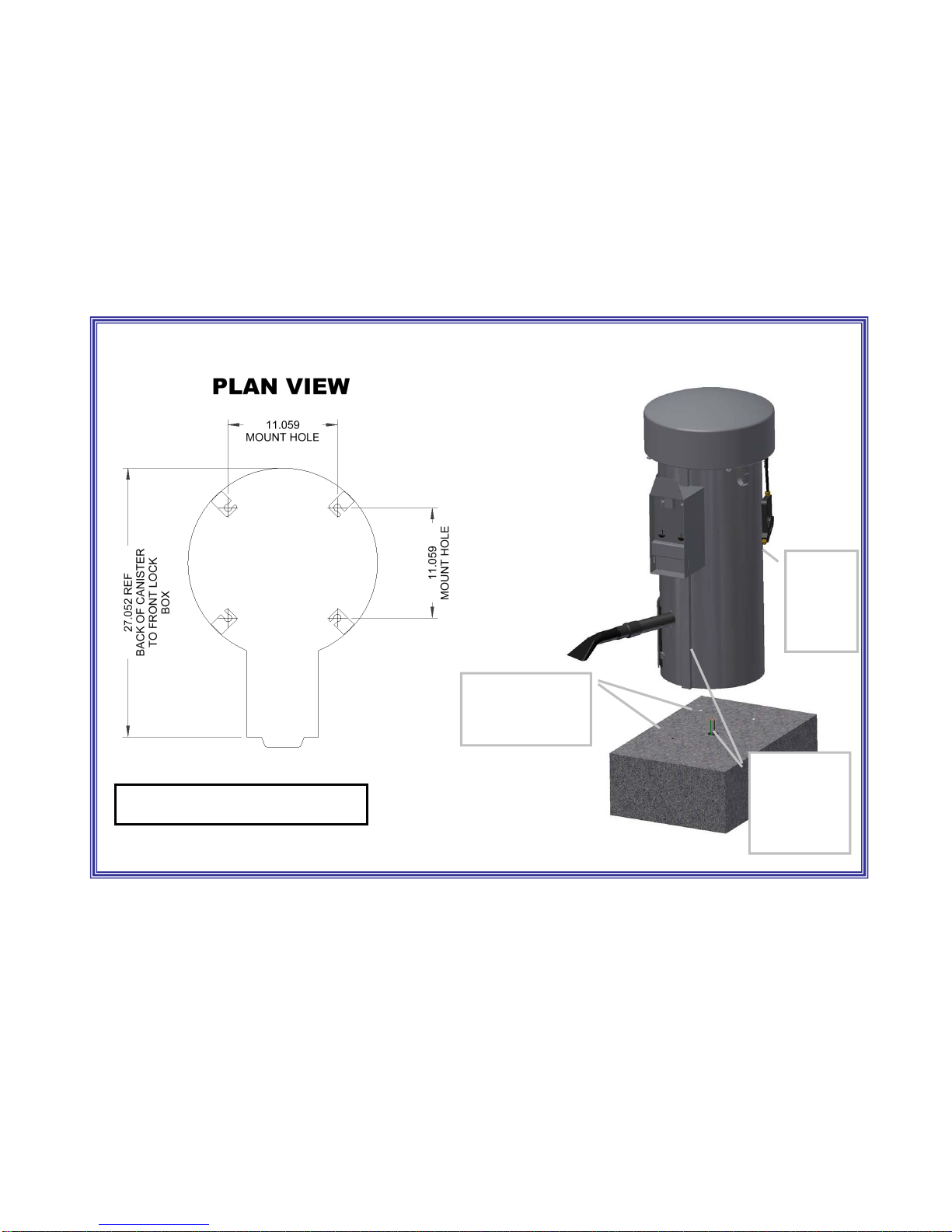

Page 5-6 Product Dimensions
Page 6-8 Installation
Page 8-9 Programming
Page 10 Operating Instructions
Page 10-11 Maintenance & Troubleshooting

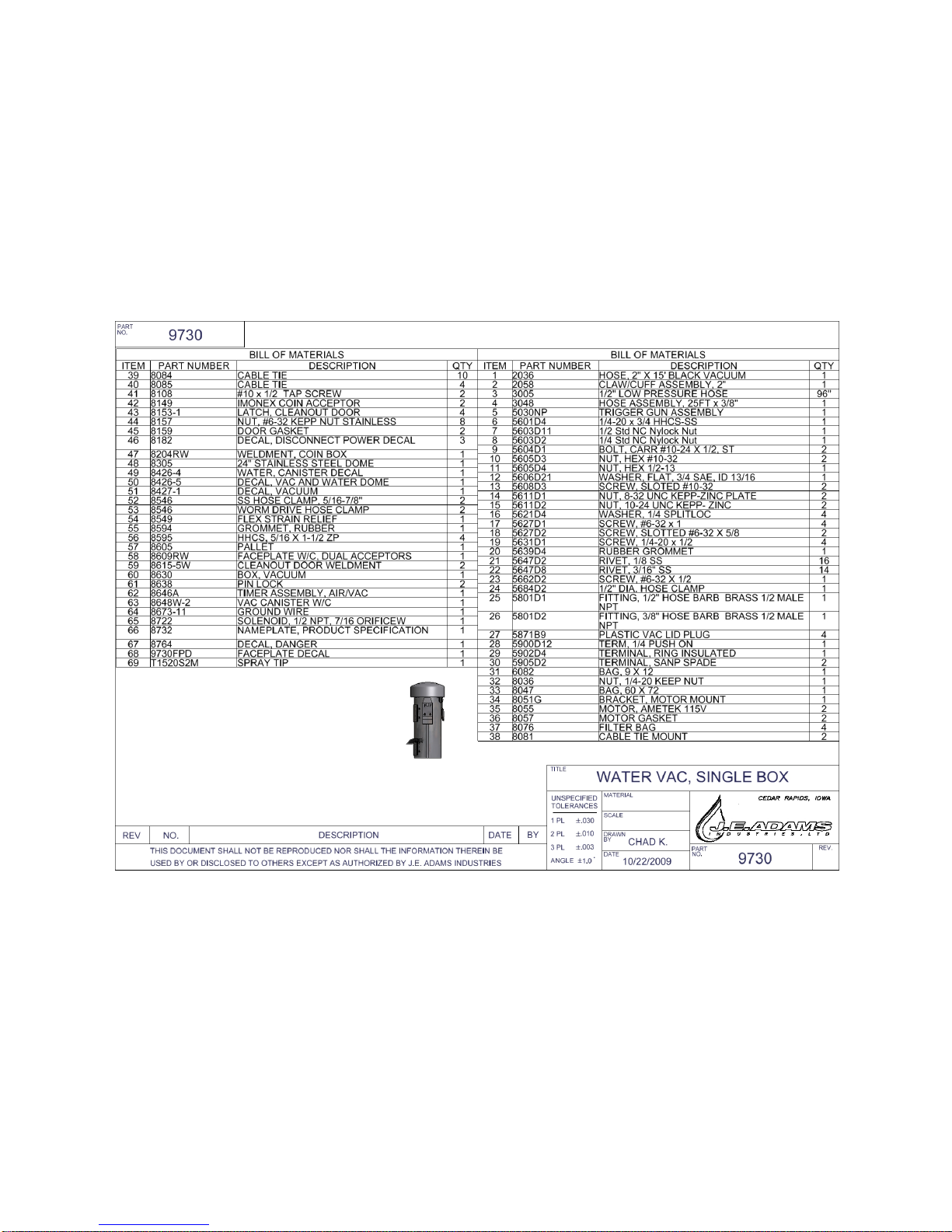

Page 12-13 Parts List

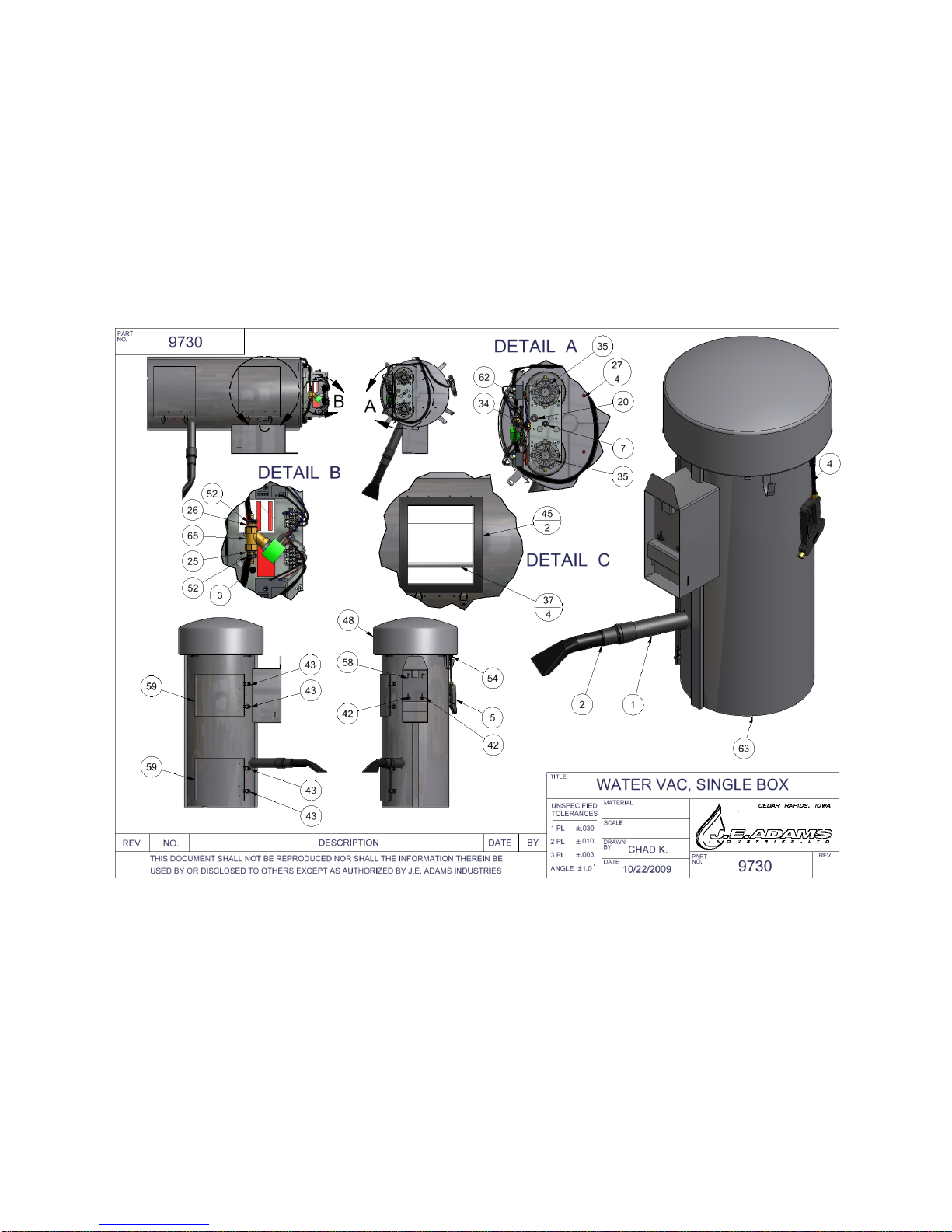

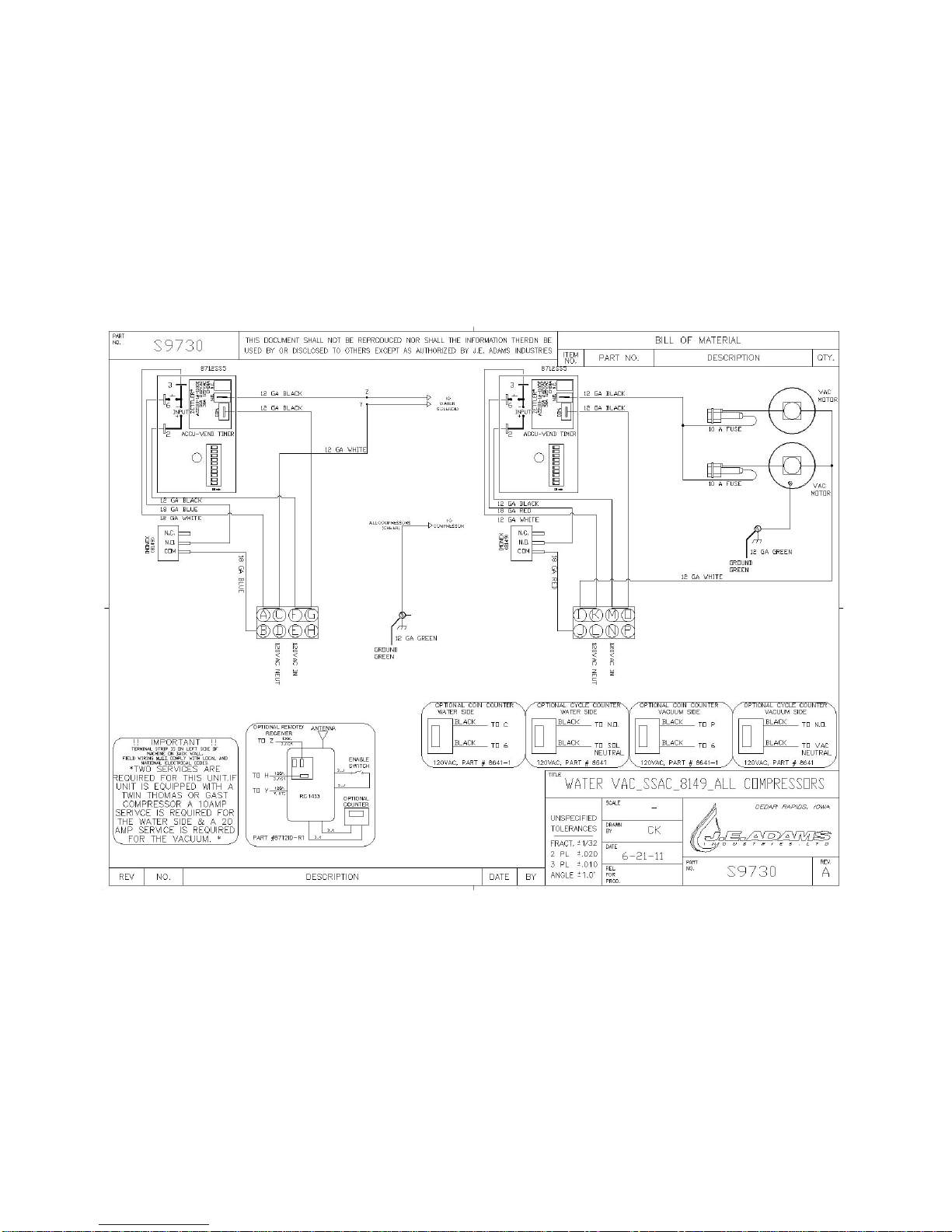

Page 14 Wiring Diagram

REV 4-9-122
PRODUCT INFORMATION
Please take a moment to fill out the information below in order to aid us with any future sales
or service inquiries. Model number and serial number information can be found on the
serial tag located inside the control box and/or on the lower exterior of the can. Key
number can be found on the tag that comes attached to the keys. There may be more than
one key number depending on unit.
Please keep this information with your records.
MODEL#:____________________________
SERIAL#:____________________________
KEY NUMBER(S):_____________________
DATE PURCHASED:___________________
DISTRIBUTOR:_______________________
J.E. Adams Industries
1025 63rd Ave. S.W.
Cedar Rapids, IA 52404
1-800-553-8861
www.jeadams.com

REV 4-9-123
Specifications
Unit specifications: 9730
Voltage: 120VAC, 60Hz
Amperage: (1) 20 amp service (vac motors) and (1) 10 amp service (water side) are required for this unit.
Weight: 180 lbs with pallet.
Vacuum side:
Motors: (2) 120VAC vacuum motor
Fuses: (2) 10 amp inline fuses
Water side:
Solenoid 120V, 60hz, .05amps
NOTES: Solenoid to be used with city water pressure only!
Not intended for human consumption!!
NOTE:
Two separate electrical services are required for this unit.
This combo machine has two functions each having it's own coin mechanism that starts the function.
NOTE: “UNIT INTENDED FOR COMMERCIAL USE ONLY”

REV 4-9-124
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
WARNING – To reduce the risk of fire, electric shock, or injury:
• Do not use on wet surfaces.
• Use only as described in manual. Use only manufactures recommended attachments.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that
may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• “Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.”
• “Do not use without dust bag and/or filters in place.”
SAVE THESE INSTRUCTIONS
•Installation Instructions:
• Determine location to mount unit (“DANGER” “THIS EQUIPMENT INCORPORATES PARTS SUCH AS SWITCHES,
MOTORS, OR THE LIKE THAT TEND TO PRODUCE ARCS OR SPARKS THAT CAN CAUSE AN EXPLOSION.
WHEN LOCATED IN GASOLINE-DISPENSING AND SERVICE STATIONS INSTALL AND USE AT LEAST 20 FEET (6
M) HORIZONTALLY FROM THE EXTERIOR ENCLOSURE OF ANY DISPENSING PUMP AND AT LEAST 18 INCHES
(450 MM) ABOVE A DRIVEWAY OR GROUND LEVEL.”
• Run service to that location
•Grounding Instructions: This appliance must be connected to a grounded metal, permanent wiring system; or an
equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding
terminal or lead on the appliance.
• All local and national electric codes must be followed for installation and use.
• Licensed electricians are recommended for installation.

REV 4-9-125
Product Dimensions
.

REV 4-9-126
Installation:
Drill holes into
concrete surface
and install 3/8" studs
(4).
NOTE: when mounting, provide clearance
so cleanout doors can open!!
Bring electrical
in underneath
can and route
up front
channel to
terminal strip.
Water
service
can come
up back
channel.

REV 4-9-127
Bring BOTH
services up
through this
channel and
hook each into
a terminal
strip.
Terminal strips.
Water
service
can come
up back
channel.

REV 4-9-128
Now the unit can be turned on and programmed.
Programming Instructions:
Coin acceptor:
No programming to acceptor needed if unit was purchased with the standard Imonex Z3 acceptor (8149 JEA part number)
as it is built accept US quarters.
If different acceptor was purchased, see additional literature sent along with unit for programming info.
Once unit has been installed use 5871B8 cap plugs (supplied with unit) to seal holes
in canister bottom located in lower cleanout door. Extra cap plugs are included with
the unit in case plug becomes damaged during shipping removal.
To attach hose,
thread into metal hole
counter clockwise.
Edge of
hose will
need to start
here. To insert 5871B8 cap plugs into bottom holes, pinch
cap plug into place using index finger and thumb.
With edges of plug resting against edges of hole,
firmly push down on plug with end of hammer or
other blunt object until plug snaps into place.

REV 4-9-129
Programming:
The below timer pictured is the standard SSAC model that allows the end user to select the "coins to start" and
the "time per coin" by settings series of dip switches. The number of "coins to start" dip switch is how many
quarters are needed to make the machine come on. In the below example, the "one coin" dip is selected which
makes the unit come on with one coin. The "time per coins" will then need to be set, but a good rule of thumb
would be 4 minutes which requires dip switches 3.2 and .8 to be set to on. This scenario means 1 quarter will
provide 4 minutes of vacuum time. The time per coin setting can be modified as desired by simply adding or
subtracting time. If the operator would later decide to increase the cost of the unit to "2" quarters, the 2 dip
switch would need to be in the on position (all other off) and the time dip switches would need to have the 1.6
and 0.4 dips selected. This would allow 2 minutes of time for each quarter for a total of 4 minutes for two
quarters. Time in minutes/per coin dip switch settings:
0.1 = 6 seconds
0.2 = 12 seconds
0.4 = 24 seconds
0.8 = 48 seconds
1.6 = 96 seconds
3.2 = 192 seconds
6.4 = 384 seconds

REV 4-9-1210
Operating Instructions:
• Choose function desired and insert payment into that coin mechanism to start function.
• Once service is used, hang up hose.
Maintenance:
•All servicing of machine should be conducted by an authorized service representative!
• Filter bags should be accessed and shaken down weekly. It is recommended to keep a new set of bags on hand
so that once every few months the bags can be replaced and then laundered.
• To maintain performance, empty dirt bin from the canister on a regular basis.
• Periodically inspect wires and connections for wear or fatigue.
• Check door and motor gaskets periodically for signs of wear or damage and replace as needed.
• Check vac hose for cracks on a weekly basis.
• Check water hoses for cracks and fatigue on a weekly basis.
• During cold months, water must be shut off to unit and water line must be purged to prevent line breakage.
• Clean canister with a stainless steel cleaner as needed. Decals can be cleaned with mild soap and water.
• Check motor brushes every month for excessive wear. Motor brushes should be changed immediately if they
are shorter than ¼”. Please disconnect power before doing this!
DISCONNECT POWER BEFORE SERVICING OR TROUBLESHOOTING!
Troubleshooting:
Problem Possible cause Solution
Breaker inside fuse panel is not in the on position. Turn breaker on.
No power to machine. Check incomin
g
power line volta
g
e.
Loose connection. Check incomin
g
power connection.
Is the incoming power at 120V? Check voltage and monitor while machine runs.
Low voltage can cause erratic behavior.
Are any of the machines wires worn through or connections
not making contact? Inspect wiring and connections. Look for sharp bends in wires and places where wire is against
the metal chassis.
Unit is not powered.
Machine is behaving
erratically.

REV 4-9-1211
Inadequate wire size ran to machine. Call electrician and install proper wire size for
electrical service versus len
g
th or run.
Wrong size breaker. Install correct breaker (only if wire size is
ade
q
uate to handle breaker
)
.
Inadequate wire size ran to machine. Call electrician and install proper wire size for
electrical service versus len
g
th or run.
Motor brushes ma
y
be bad or too short. Re
p
lace motor brushes.
Vac hose clo
gg
ed? Clean debris from vac hose.
Filter bags need cleaned or dirt chamber needs emptied? Shake or clean filter bags or replace and empty
lower dirt chamber.
Vac hose is s
p
lit? Re
p
lace/re
p
air vac hose.
Cleanout door
g
askets torn or worn? Re
p
lace
g
askets.
Vac motor gaskets are worn or motor is not tight against. Inspect/replace gaskets and assure motor is
ti
g
ht a
g
ainst them.
Lower chamber cap plugs/mounting hole covers have
p
o
pp
ed out? Open lower chamber and inspect plugs, order new if needed.
Cleanout door
g
askets torn or worn? Re
p
lace
g
askets.
One of the vac motors is not working? Check line motor fuse and replace. Replace
motor if necessar
y
.
Coin mech might not be sending a pulse. Replace coin mech if no switch closure/ pulse.
Timer may be bad - confirm voltage coming from timer when
active. Replace timer if no voltage.
Water will not shut off. Water solenoid is powered all the time. Remove power
source to test. If removing power and water still runs, replace solenoid.
Water will not come on. Confirm there is voltage to solenoid. If voltage is present, solenoid is bad - replace.
Lack of vacuum suction.
Machine will not start.
Unit keeps tripping
breaker.
Fuses for vac motors keep
blowing.

REV 4-9-1212

REV 4-9-1213

REV 4-9-1214
